F-14 Tomcat Manual

Contents

This documentation contains the manual for the F-14 Tomcat aircraft. The content is grouped per aircraft variant:

• Chapter F-14A/B is the main manual, listing and explaining all systems. Special focus is given to the variants
  • F-14A-95-GR (Export),
  • F-14A-135-GR (Early),
  • F-14A-135-GR (Late) and
  • F-14B.
• Chapter F-14B(U) then goes into details on all changes introduced with the F-14B Upgrade specifically.

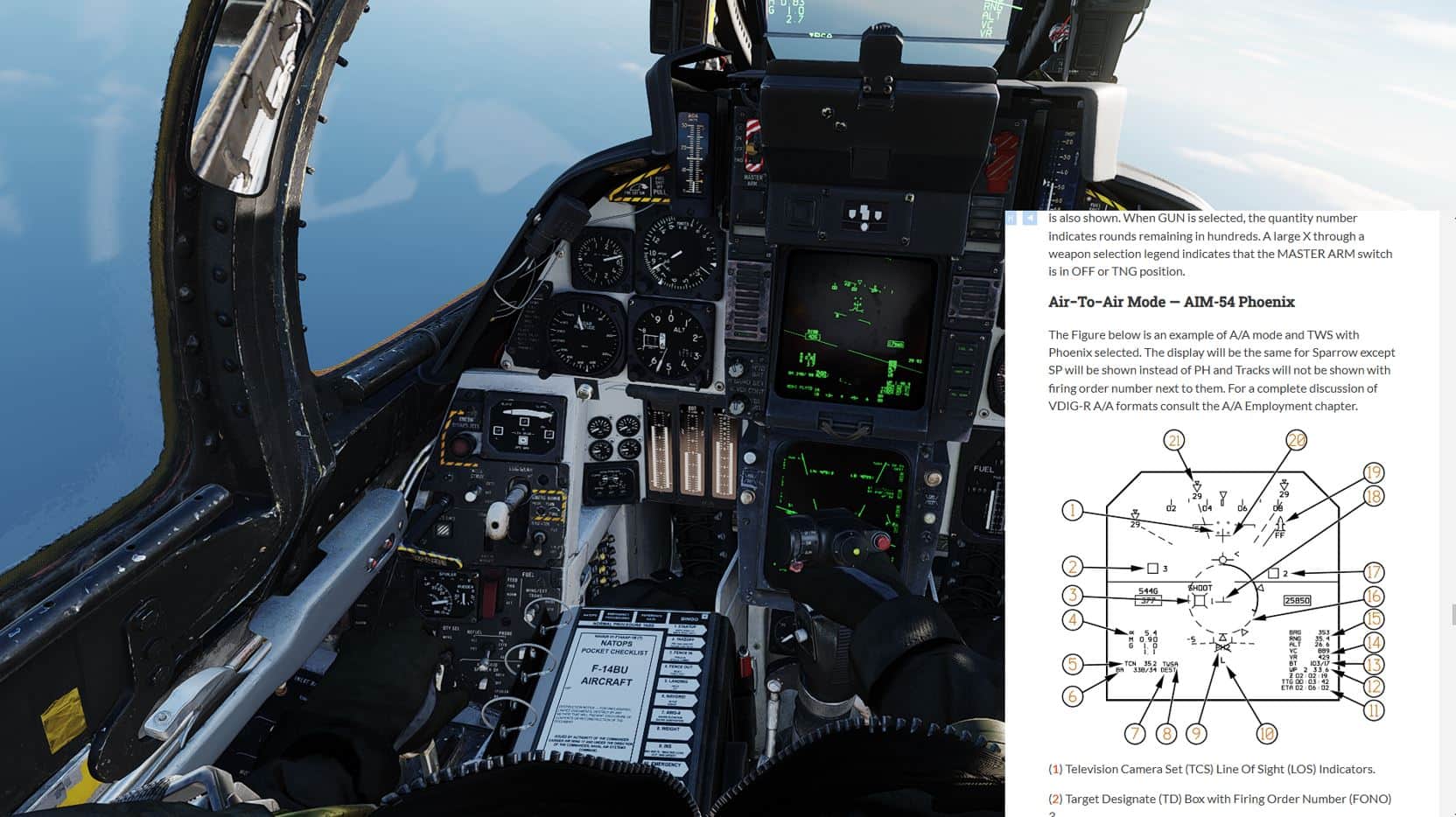

This document is available online, as PDF version, embedded in-game as offline website and can be contributed to as open-source project at GitHub.

💡 This manual provides comprehensive details on the F-14 Tomcat. For a more hands-on approach it is recommended to check out Chuck's Guide as well.

Introduction

Origins

U.S. Navy photo by LT J.G. Thomas Prochilo. (DN-SC-83-06680)

The F-14 Tomcat can trace its origin back to the 1950's and the US Navy's need for a carrier based long range interceptor to fill the Fleet Air Defence role. It was decided that it needed an aircraft with a more advanced and longer ranged radar as well as longer ranged air-to-air missile than the F-4 Phantom.

The Navy was directed, by then defense secretary Robert McNamara, to join the Tactical Fighter Experimental or TFX program to procure this aircraft in a joint venture with the US Air Force. The Navy was opposed to this from the beginning and the proposed General Dynamics F-111B did not meet the Navy's expectations.

Grumman, which had been brought on board by General Dynamics for the Navy F-111B, was eventually awarded a contract to begin development of an aircraft more suited to the Navy's requirements. This led to the design that would eventually become the F-14, carrying over the radar (AN/AWG-9) and missiles (AIM-54 Phoenix) from the failed F-111B project.

The F-14 Tomcat first flew on the 21st of December 1970 and entered service on the 22nd of September 1974. The name "Tomcat" follows Grumman's tradition of naming their aircraft after cats and also partially from the nickname "Tom's Cat" for Vice Admiral Thomas F. Connolly who was instrumental for the development of the F-14.

Service Life Upgrades

The first version of the F-14, the F-14A was equipped with the Pratt & Whitney TF30 and carried an IRST system in the chinpod under the nose.

The TF30 engines were generally regarded as temperamental and underpowered for the F-14A and were eventually replaced by the General Electric F110-400 engines in the F-14A+ (later F-14B).

The IRST system was rather quickly determined to be underperforming and replaced with the TCS (Television Camera Set) in the chinpod allowing for greater than visual range identification of radar tracked targets.

Both the F-14A and F-14B received continuous upgrades during their life, including new programmable cockpit displays (PTID and PMDIG) as well as a new INS system, a digital flight control system (DFCS) and an RWR system amongst others.

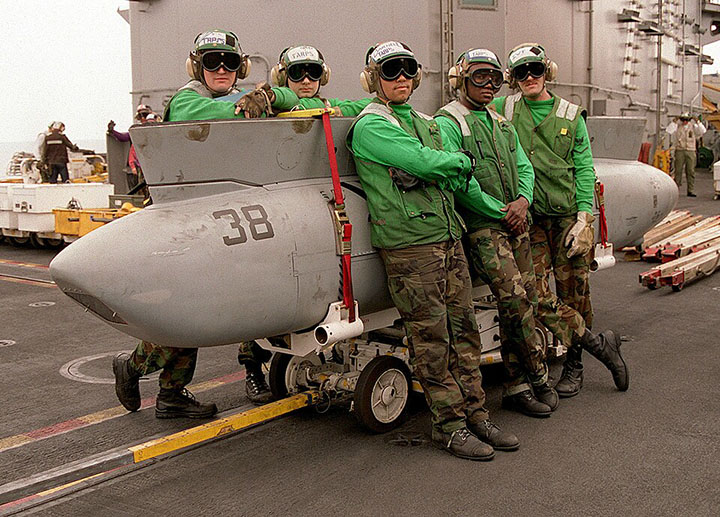

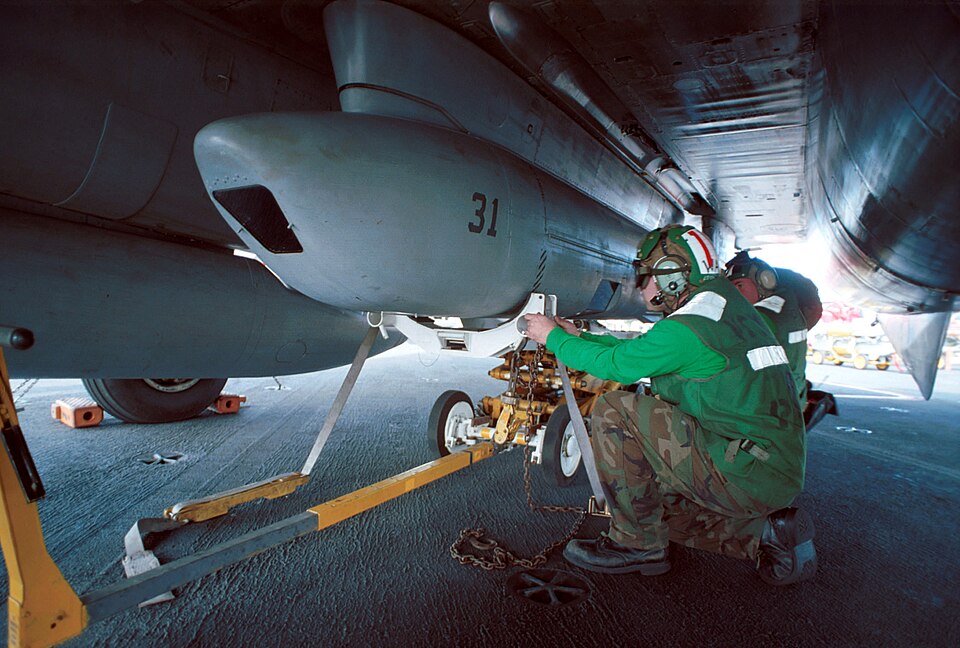

Eventually the Tactical Reconnaissance mission was also added to the F-14's portfolio, enabled by the TARPS system, allowing the Tomcat to gather photographic reconnaissance material.

Ground Attack Role

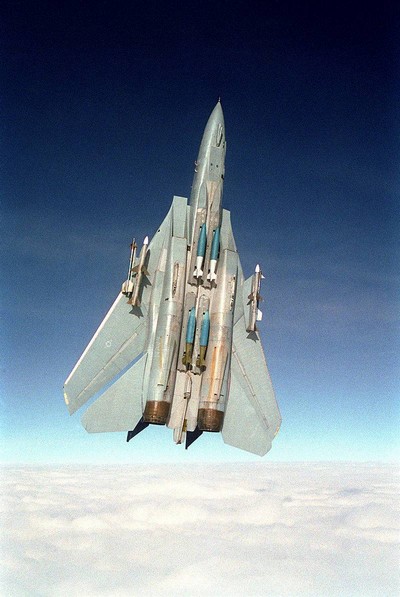

Photo by LCDR Dave Parsons. (DN-SC-93-01299)

During the 1990's when the aerial threat to the fleets of the US Navy lessened and with the advent of operations like Desert Storm, the ground attack role was resurrected.

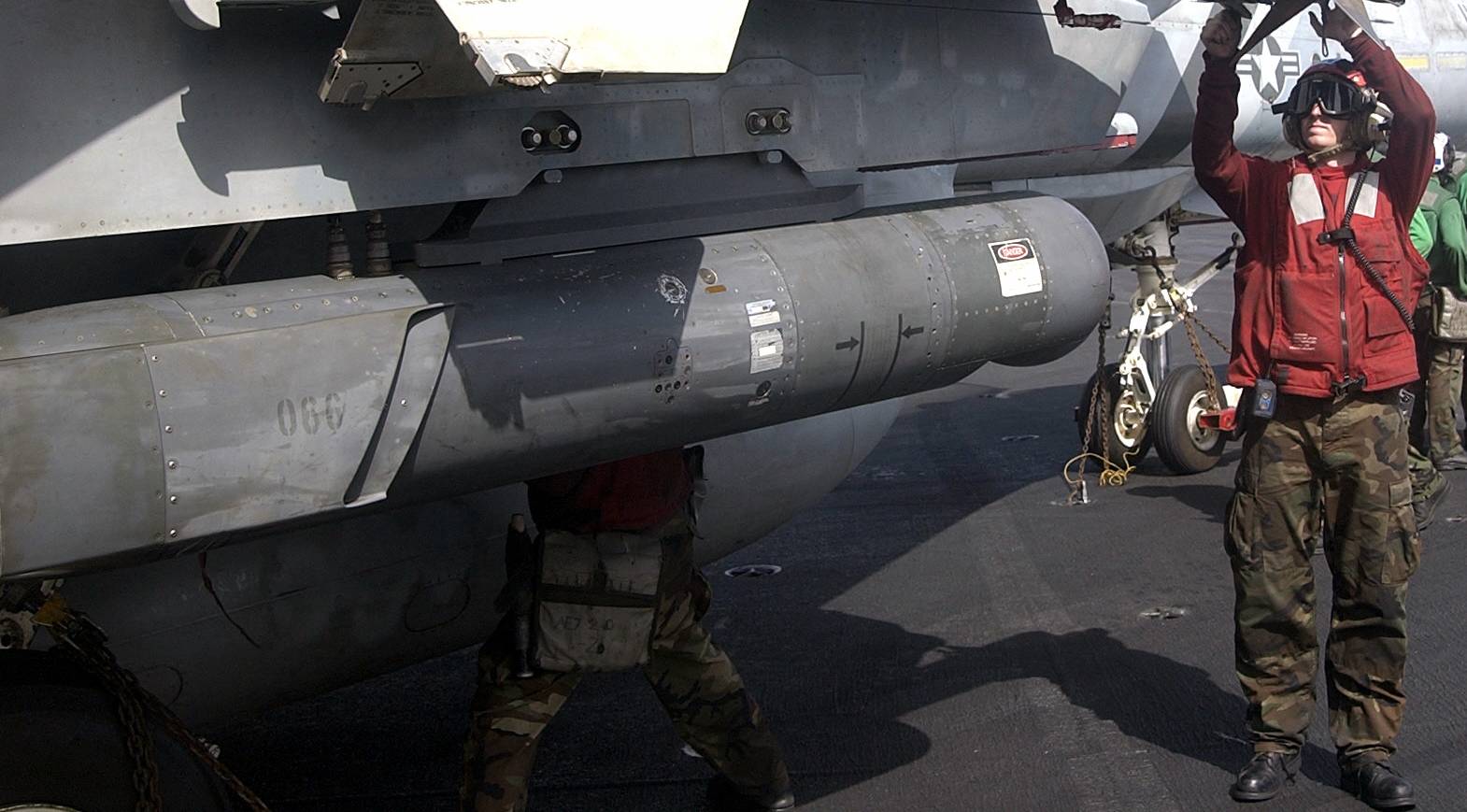

The ability to carry and deliver air-to-ground munitions had been implemented in the F-14 from the beginning but ruled out by the Navy as cost and risk ineffective given the F-14's role as a Fleet Air Defence fighter.

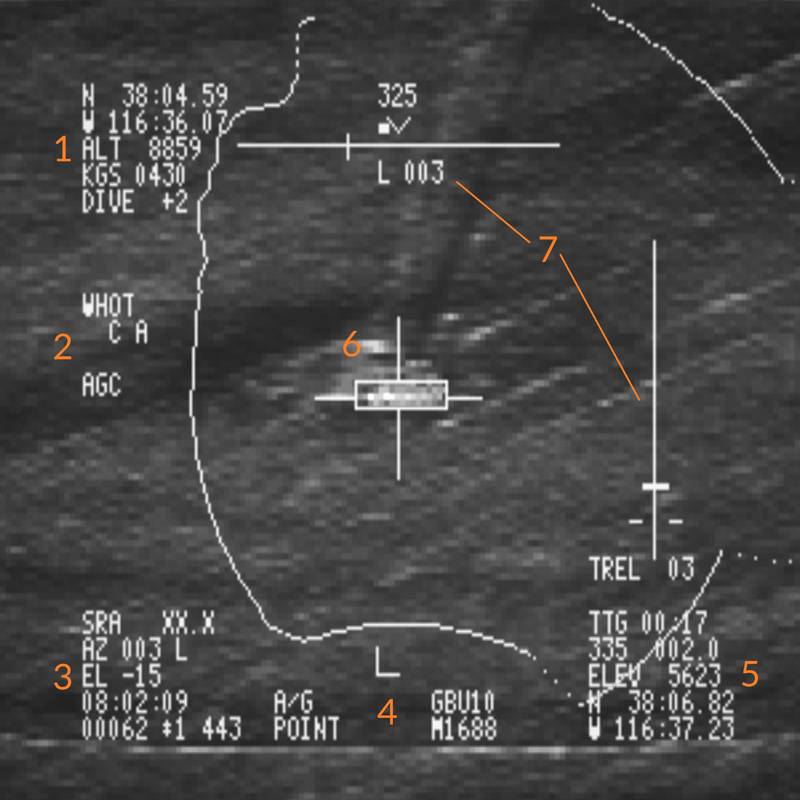

With the renewed interest for this role, some of the F-14As and F-14Bs were equipped to carry the LANTIRN targeting pod allowing the RIO to find and designate laser guided bombs for his own aircraft and others. Later on the ability to carry and deliver gps-guided JDAMs was also added.

Most of the LANTIRN equipped aircraft were the ones upgraded with the programmable TID or (PTID) allowing for greater integration of the LANTIRN.

F-14B UPGRADE

Starting in september 1996 the NAVY Upgraded its entire F-14B fleet of 84 aircraft to the F-14B(U) standard.

Aside from numerous avionics improvements, the airframe changes over the standard B model included provision for the emerging capabilities of Night Vision Goggle (NVG) compatibility, LANTIRN provision and carriage/digital image transmission ability of the TARPS-DI pod.

F-14D

In the 1990's the ultimate F-14 version was beginning to see service, the F-14D.

The F-14D used the same engines as the F-14B, the GE F110-400s in addition to using the digital flight control system, which was eventually retrofitted into operational F-14As and F-14Bs as well.

In addition the F-14D also had a newer, more advanced version of the AN/AWG-9, the AN/APG-71, as well as a whole suite of upgraded avionics along with a new chinpod combining the TCS with a new, improved IRST system.

End of Service

The F-14 Tomcat did eventually show its age, forcing the Navy to retire it due to increased maintenance costs and the general status of the now dated airframes. Additionally the Tomcat's primary role, the Fleet Air Defence role, seemingly disappeared with the end of the Cold War.

The Tomcat was finally retired in a ceremony on the 22nd of September 2006 at NAS Oceana.

Iran

IRIAF photo circa 1986

The only other operator of the F-14 Tomcat was the Imperial Iranian Air Force, later the Islamic Republic of Iran Air Force, for which the Shah of Iran, Mohammad Reza Pahlavi acquired 80 Tomcats.

The eventual fall of the Shah and the rise of the Islamic Republic of Iran meant that a country now opposed to the United States had access to one of its most advanced fighter aircraft. This meant that the Iranian F-14s now lost access to new spare parts and missiles, apart from black market sources, greatly increasing the difficulty of maintaining the aircraft.

The F-14 Tomcat was used during the Iran-Iraq war, claiming a great number of air-to-air victories over the Iraqi Air Force, with some sources going so far as to claim that Iraqi pilots at times left the contested air space to avoid facing the AN/AWG-9 - AIM-54 combo.

To this date the IRIAF continues to fly the F-14 Tomcat as the sole operator. It's not entirely known how the Iranians source their spare parts but it's assumed that they've had to cannibalize inoperable aircraft to keep a portion of their fleet flying. In addition rumours exist mentioning black market sources as well as indigenous production of some parts.

The Iranian operated Tomcats are of the earlier F-14A revisions, using the TF30 engines and lacking a TCS or IRST system.

AIM-54 Phoenix

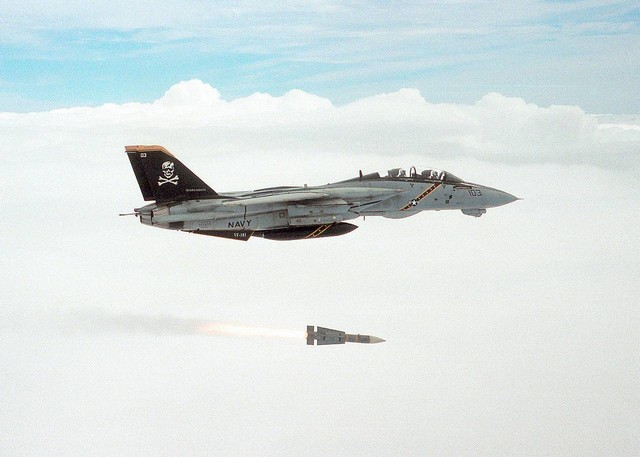

U.S. Navy photo by Capt. Dana Potts. (020924-N-1955P-001)

The AIM-54 long-range air-to-air missile was born from the same TFX program as that which eventually led to the F-14 Tomcat.

It was designed for the F-111B and then adopted for the F-14 as a long-range missile capable of long range engagement of enemy bombers in addition to hostile cruise missiles. That's not to say that the AIM-54 Phoenix was a slouch at engaging other smaller targets as well.

Outstanding features of the AIM-54 missiles were their long range as well as their ability to be launched at up to six simultaneous targets, guided first by the AN/AWG-9 radar in the launching aircraft and then its own active radar seeker independently.

The original AIM-54 Phoenix was the AIM-54A with a mk47 rocket motor. The motor was later on upgraded, creating the mk60 motor, increasing the missile's range. Eventually the AIM-54 itself was also upgraded, resulting in the AIM-54C with, amongst other things, an upgraded seeker head and a newer version of the mk47 producing less smoke, making the missile hard to spot visually.

The US Navy fired only three AIM-54 missiles in combat, all three over Iraq. The missiles never hit their intended targets though as two of the missiles' rocket motors failed with the third also missing its target as it turned tail and ran.

While little is known for certain in the western hemisphere, the IRIAF claims at least 78 air-to-air victories using the AIM-54 against Iraqi MiG-21s, MiG-23s, MiG-25s, Mirage F-1s, Super Etendards and even some anti-ship cruise missiles.

Technical Specifications

F-14A

F-14B

Variants

F-14A-95-GR (Export)

Early F-14A version as sold to the IIAF (Imperial Iranian Air Force) which later became the IRIAF (Islamic Republic of Iran Air Force).

This version has the early Pratt & Whitney TF30-P-414A engines, AN/ALR-45 radar warning receiver and lacks the Television Camera Set (TCS) and Link-4 data link system as well as being limited to the earlier air to air missiles available to Iran. In addition these aircraft were never equipped with external fuel tanks and as such lack the ability to carry them.

F-14A-135-GR (Early)

Early US Navy F-14A version.

This version has the early Pratt & Whitney TF30-P-414A engines and AN/ALR-45 and AN/ALR-50 radar warning receivers.

F-14A-135-GR (Late)

Later US Navy F-14A version.

This version has the early Pratt & Whitney TF30-P-414A engines and the AN/ALR-67 radar warning receiver.

F-14B

US Navy F-14B (renamed from F-14A+).

This version has the newer General Electrics F110-GE-400 engines, the AN/ALR-67 radar warning receiver as well as having the ability to mount and use the LANTIRN targeting pod.

F-14B(U)

US Navy F-14B Upgrade.

This version retained the newer General Electrics F110-GE-400 engines, the AN/ALR-67 radar warning receiver and LANTIRN. But also added an upgraded navigation system, a Programmable Tactical Information Display (PTID) and the Vertical Display Indicator Group Replacement (VDIG-R), as well as the ability to employ GPS Guided Weapons such as the GBU-31.

Definitions

Should an acronym, such as IRST be unclear at any point, look it up in the exhaustive list provided at the Abbreviations chapter.

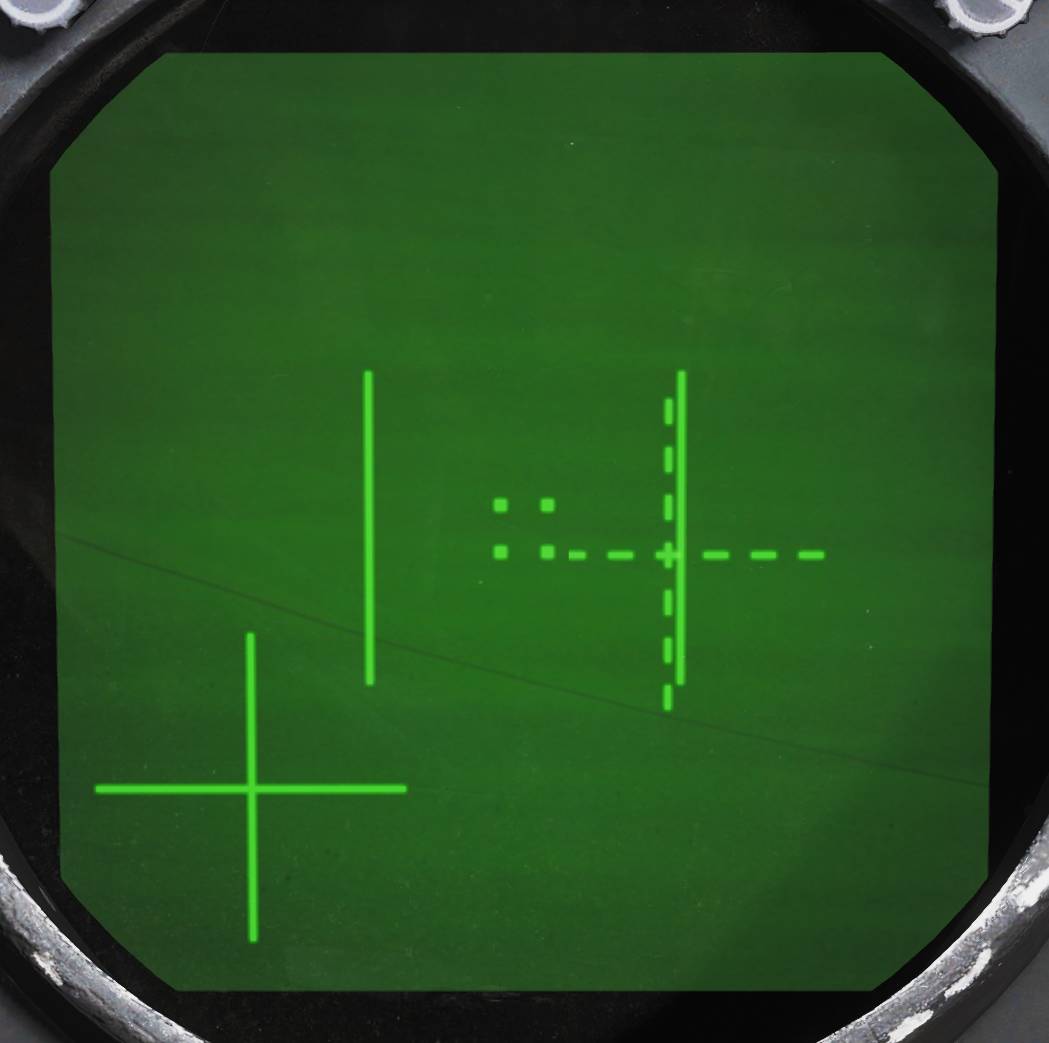

The following symbology is used throughout this manual.

General

F-14A/B

Main manual for the F-14 Tomcat, special focus is given to the variants

• F-14A-95-GR (Export),
• F-14A-135-GR (Early),
• F-14A-135-GR (Late) and
• F-14B.

Contents

1. Introduction
2. Cockpit Overview
3. Systems Overview
4. Weapons & Stores
5. Jester & Iceman
6. Normal Procedures
7. Emergency Procedures
8. Abbreviations
9. Tutorials
10. Imprint

Cockpit Overview

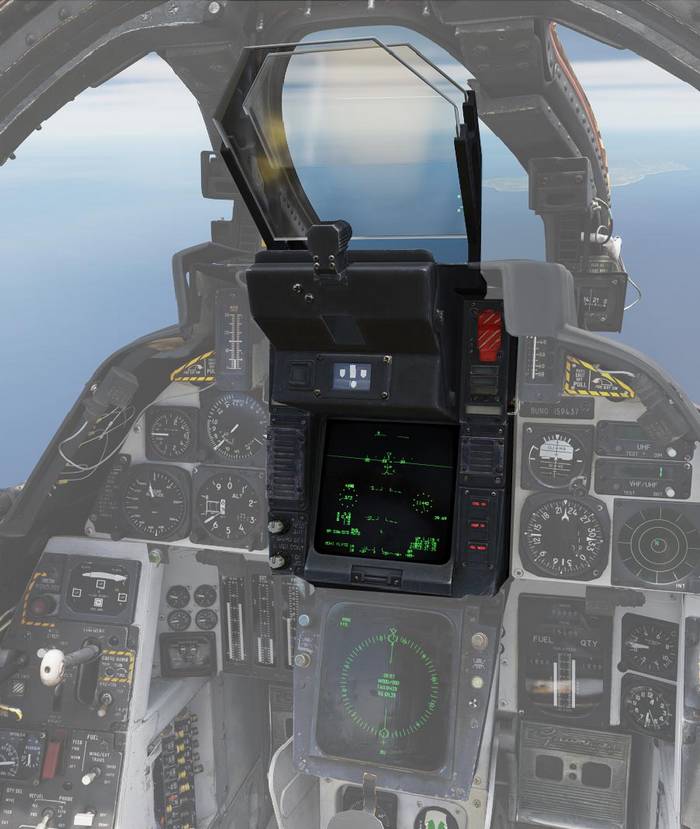

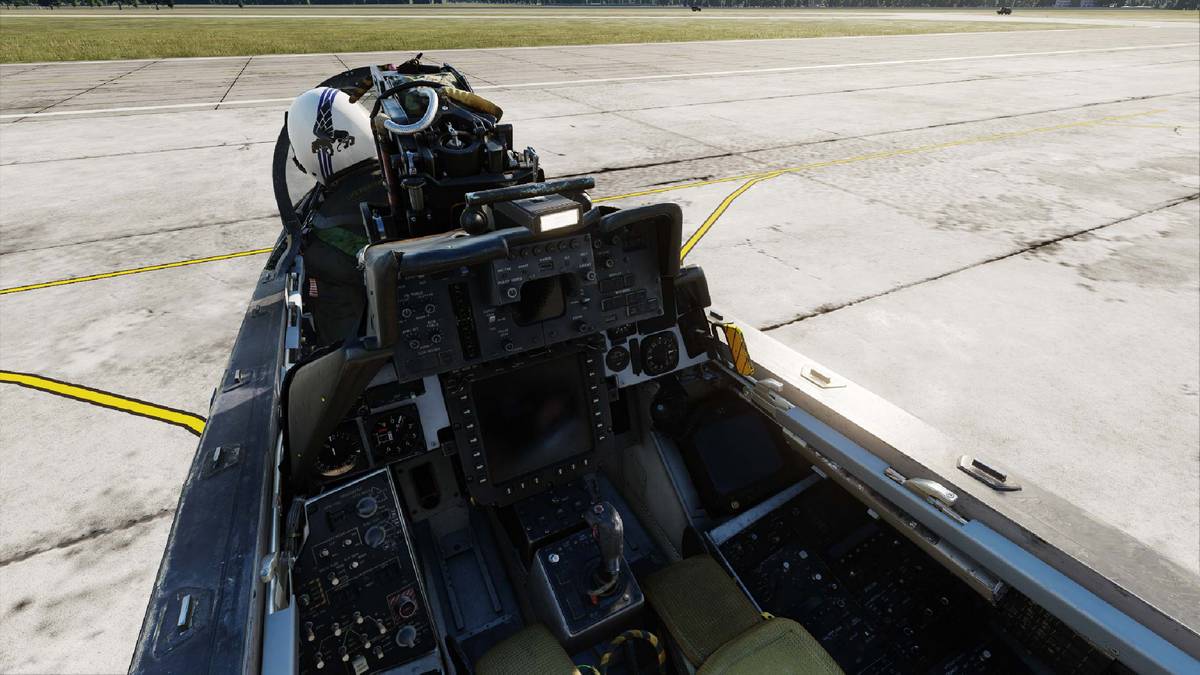

The following chapter gives a detailed overview of the pilot's cockpit, as well as that of the Radar Interceptor Officer (RIO). Each single switch will be outlined and explained briefly, while giving context to the functions.

More in-depth details on the various systems and consequences of using a switch beyond their brief explanation are available in the Systems Overview Chapter.

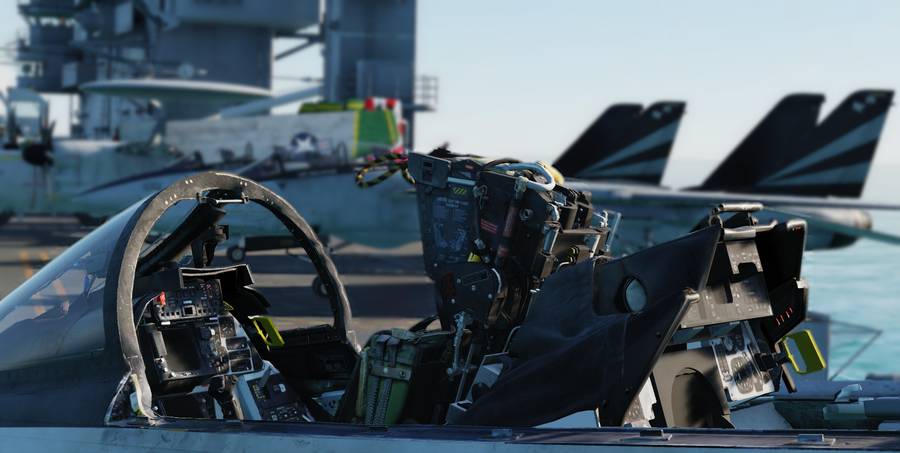

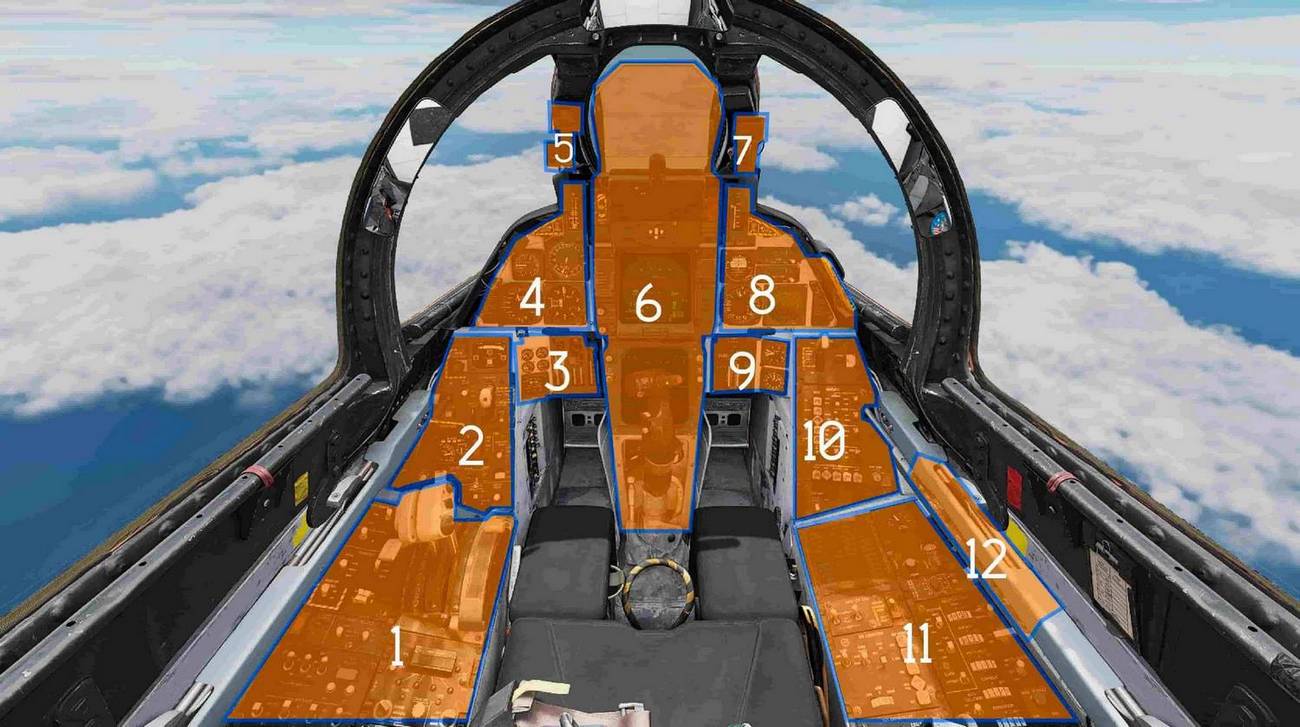

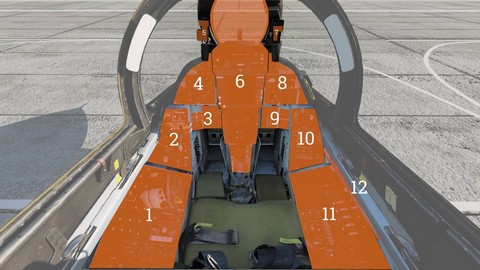

Pilot Cockpit Overview

Layout

Left Side Console

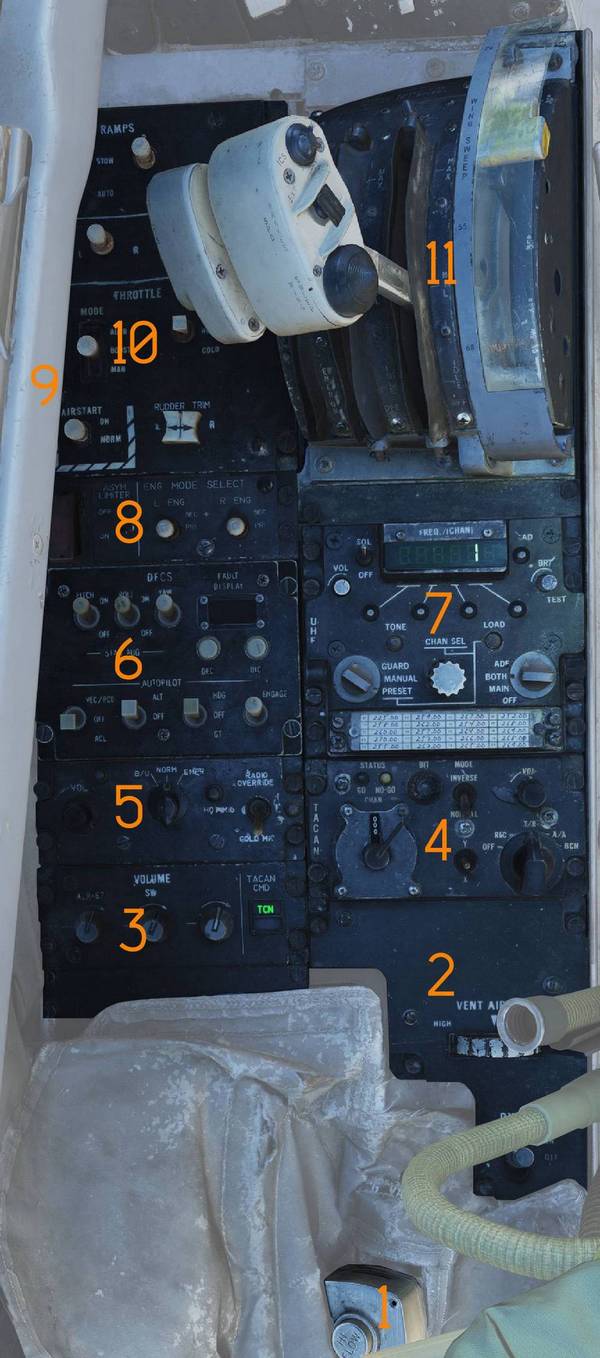

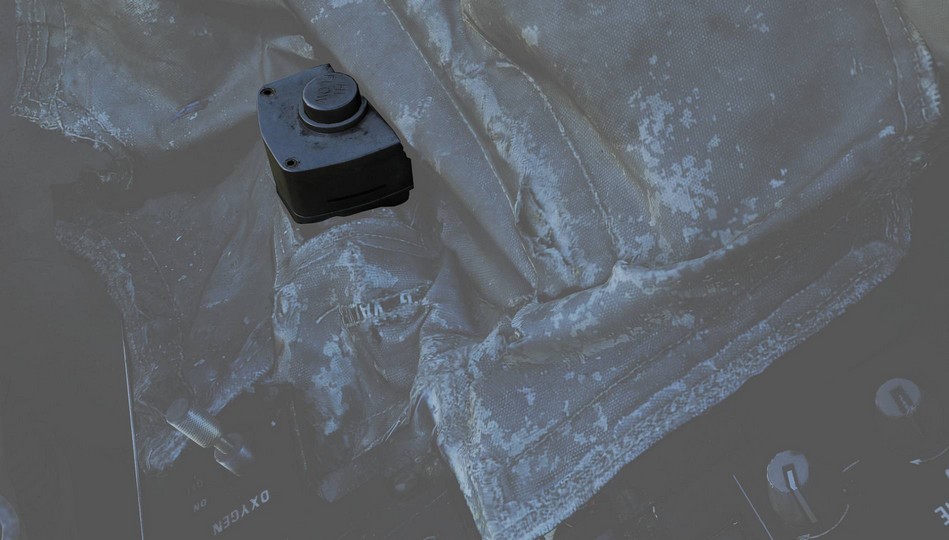

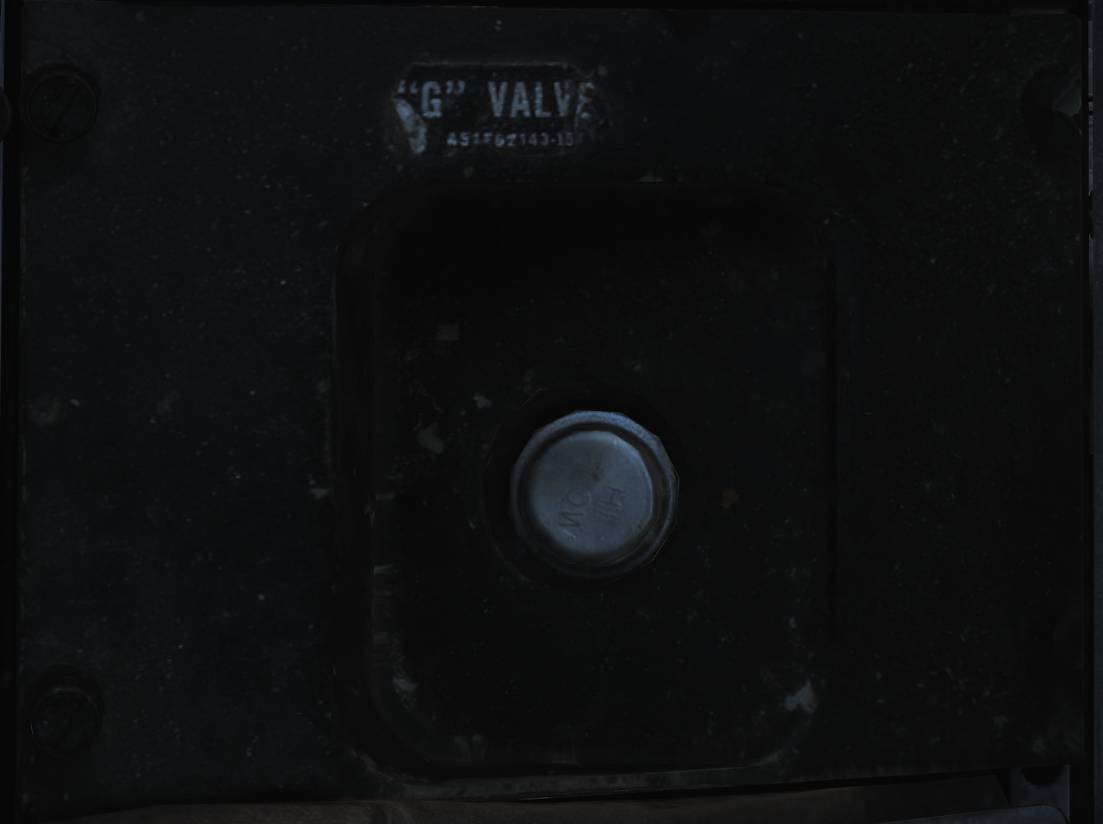

G-valve Button

The G-valve button is pressed to test inflation of the g-suit.

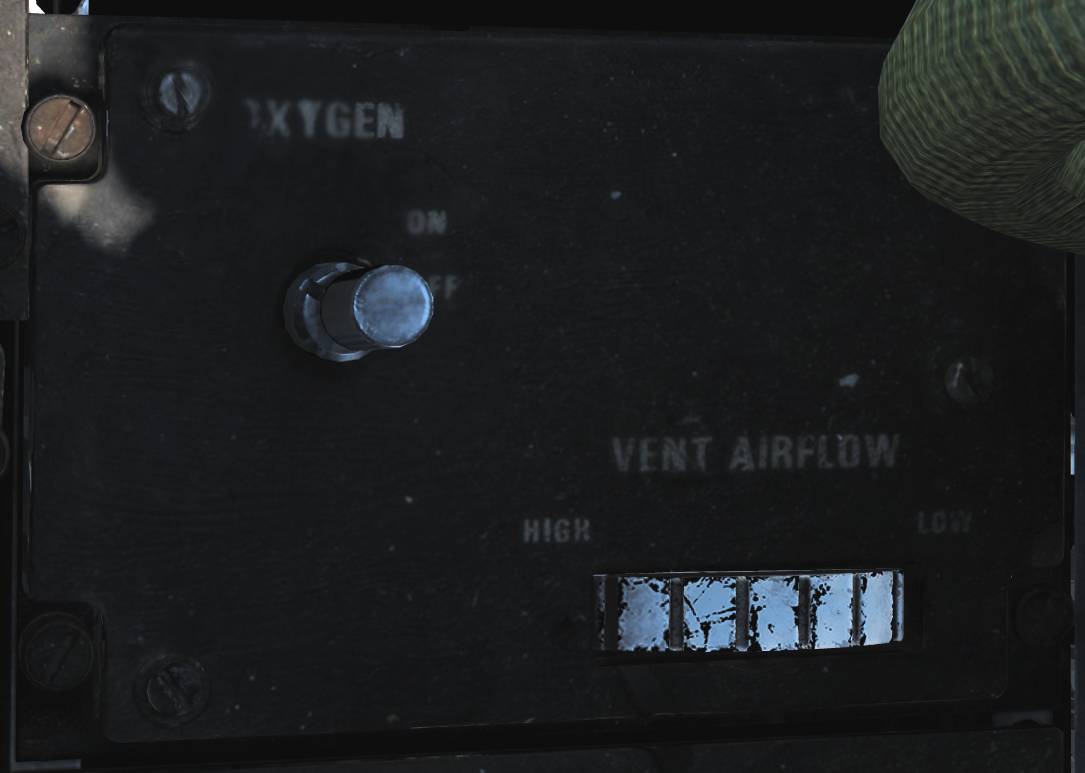

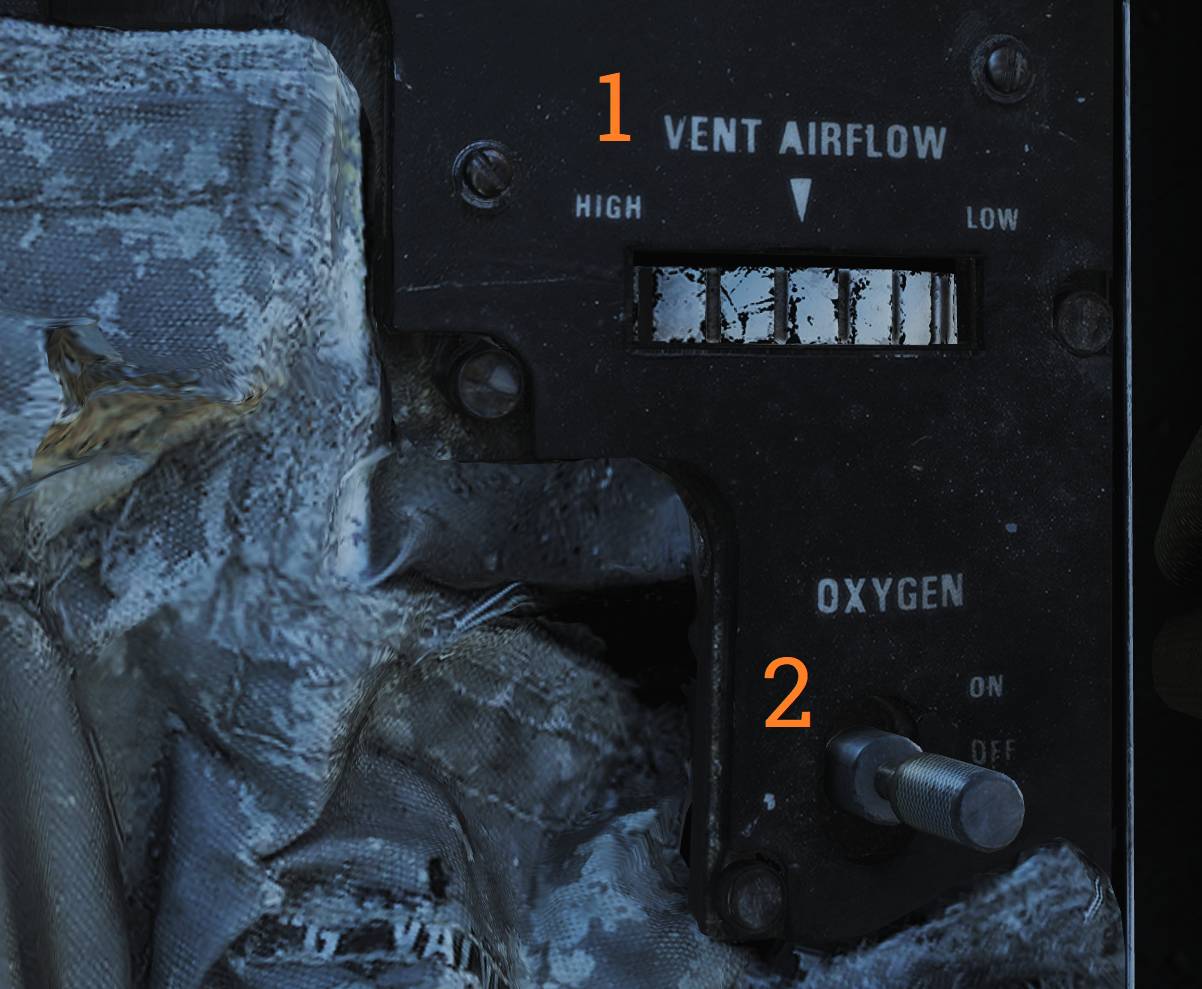

Oxygen-Vent Airflow Control Panel

Controls ventilation airflow to the pressure suit or seat cushions and controls oxygen flow to the pilot mask.

Vent Airflow Dial

The VENT AIRFLOW dial (1) controls ventilation airflow through the pressure suit or, if a pressure suit is not worn, through the seat cushions.

Oxygen Switch

The OXYGEN switch (2) controls oxygen flow to the pilot mask.

• ON — Enables oxygen flow.
• OFF — Disables oxygen flow.

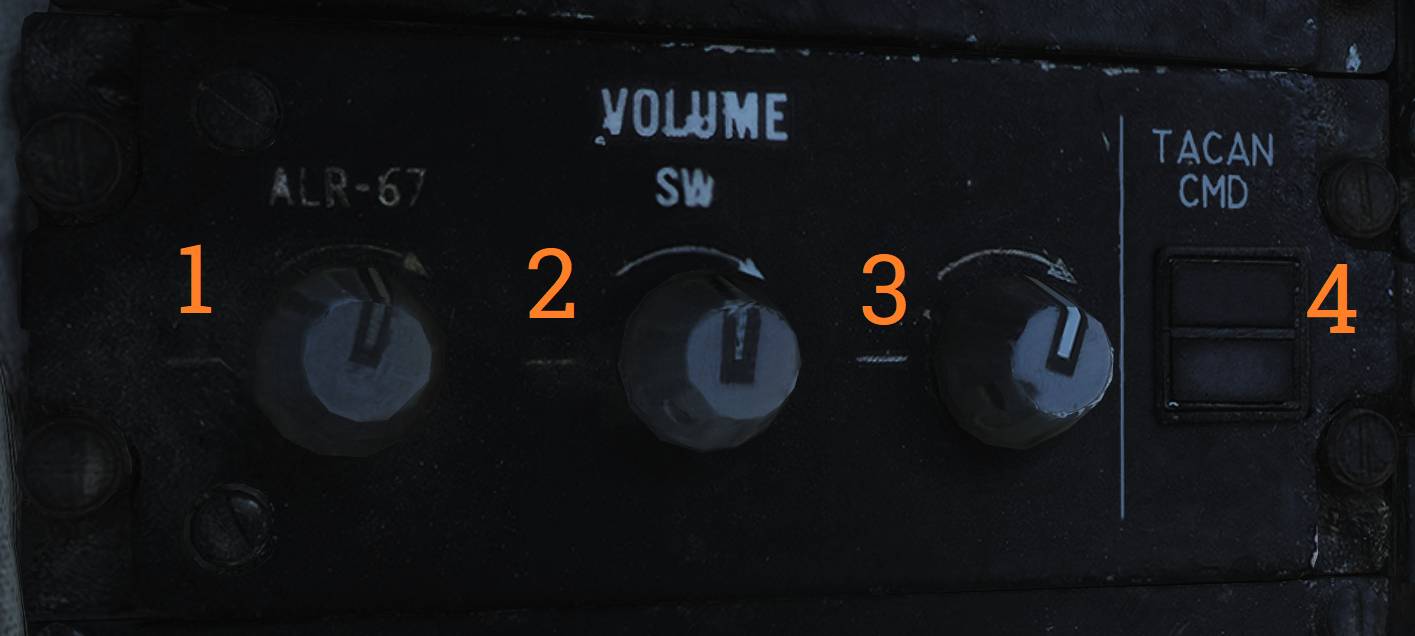

Volume/TACAN Command Panel

Controls pilot headset audio volumes and selects which crewmember is in command of TACAN operation.

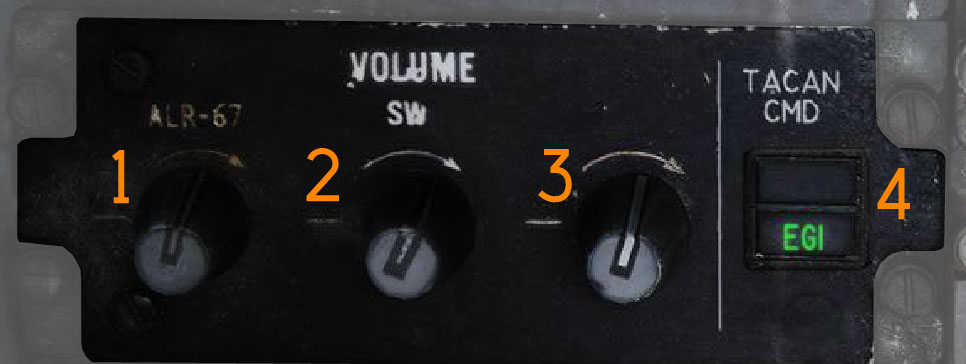

F-14B and F-14A (Late)

ALR-67 Volume Knob

The ALR-67 knob (1) controls audio volume from the ALR-67 to the pilot.

Sidewinder Tone Volume Knob

The SW knob (2) controls Sidewinder audio tone volume to the pilot.

V/UHF 2 Volume Knob

The V/UHF 2 knob (3) controls AN/ARC-182 (V/UHF 2) audio volume to the pilot.

TACAN Command Switch

The TACAN CMD switch (4) selects which crewmember controls TACAN and indicates the current setting.

F-14A (Early)

ALR-45 Volume Knob

The ALR-45 knob (1) controls audio volume from the ALR-45 to the pilot.

ALR-50 Volume Knob

The ALR-50 knob (2) controls audio volume from the ALR-50 to the pilot.

Sidewinder Tone Volume Knob (F-14A Early)

The SW knob (3) controls Sidewinder audio tone volume to the pilot.

V/UHF 2 Volume Knob (F-14A Early)

The V/UHF 2 knob (4) controls AN/ARC-182 (V/UHF 2) audio volume to the pilot.

TACAN Command Switch (F-14A Early)

The TACAN CMD switch (5) selects which crewmember controls TACAN.

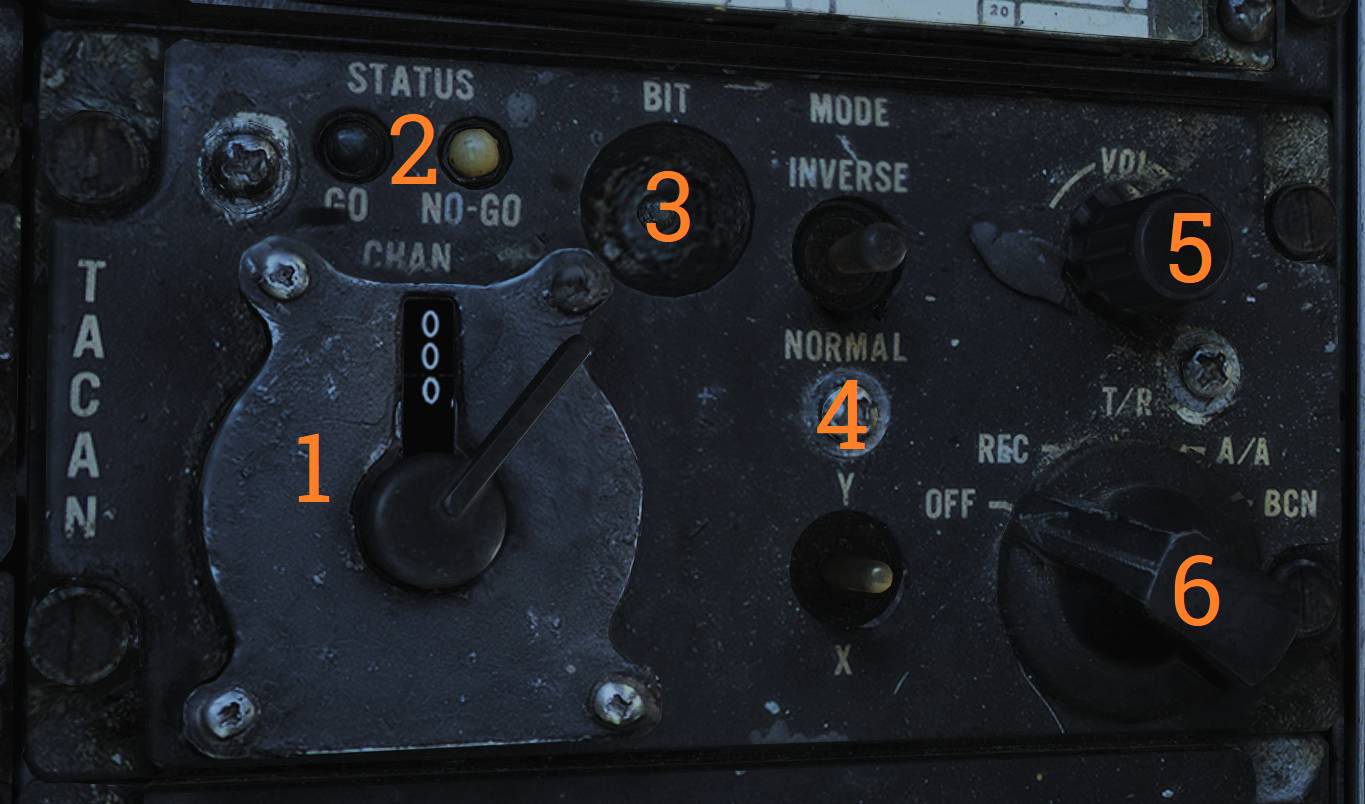

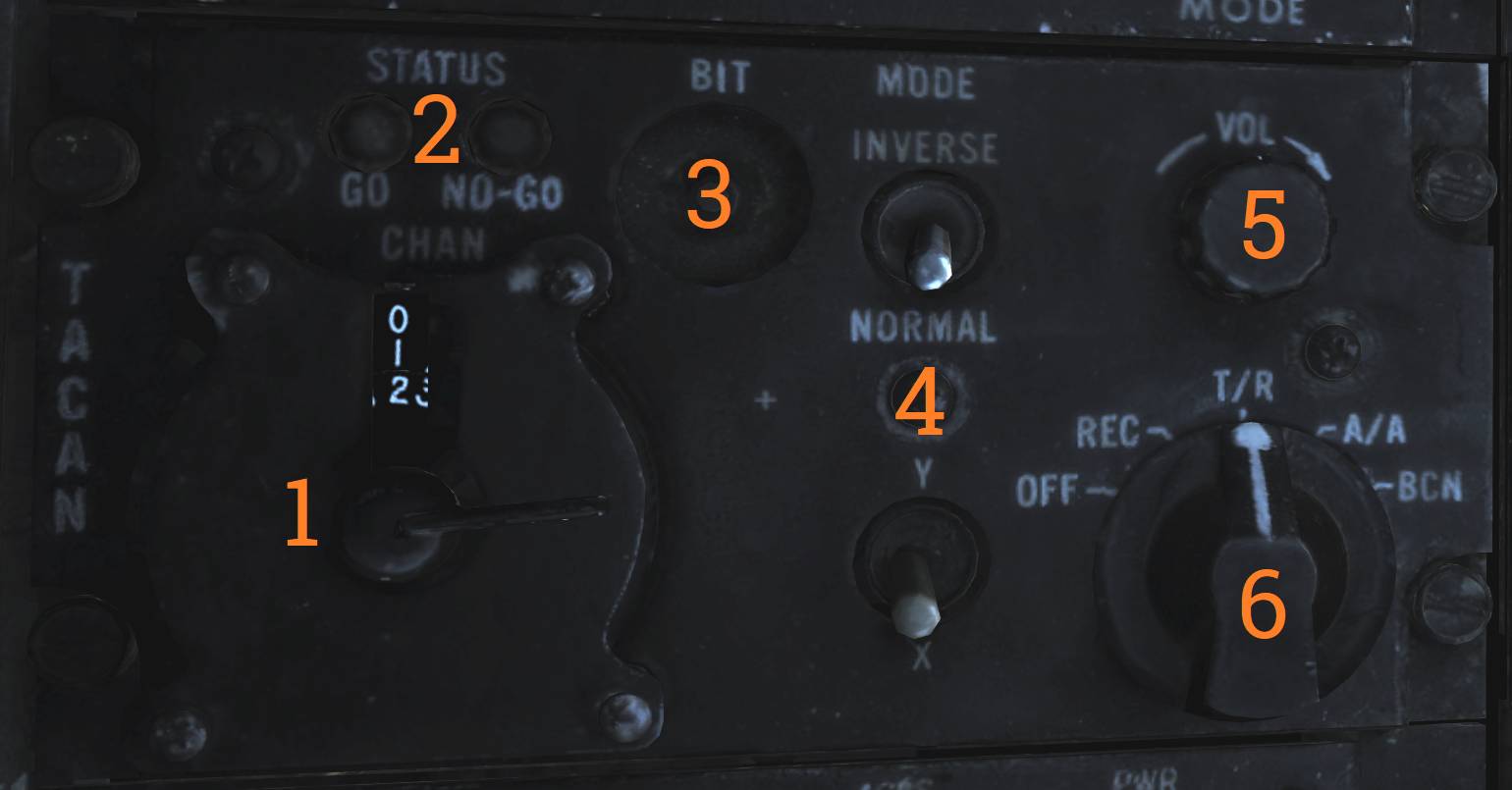

TACAN Control Panel

TACAN control panel used by the pilot when in command of TACAN.

Channel Selector (Dual Rotary Switch)

The dual rotary switch (1) selects the TACAN channel.

The outer dial selects the first two digits and the inner dial selects the final digit.

GO and NO-GO Lights

The GO and NO-GO lights (2) indicate the result of the TACAN BIT.

BIT Button

The BIT button (3) initiates TACAN BIT.

Mode Switches (X/Y and Operating Mode)

The MODE switches (4) select TACAN operating mode and X or Y channel operation.

INVERSE mode is not functional.

TACAN Audio Volume Knob

The VOL knob (5) controls TACAN audio volume to the pilot.

TACAN Mode Selector Knob

The mode knob (6) selects TACAN function.

The following modes are available:

• OFF — TACAN off.
• REC — Receive only.
• T/R — Transmit and receive. Enables range readout.
• A/A — Air-to-air TACAN mode.
• BCN — Beacon mode. Not functional.

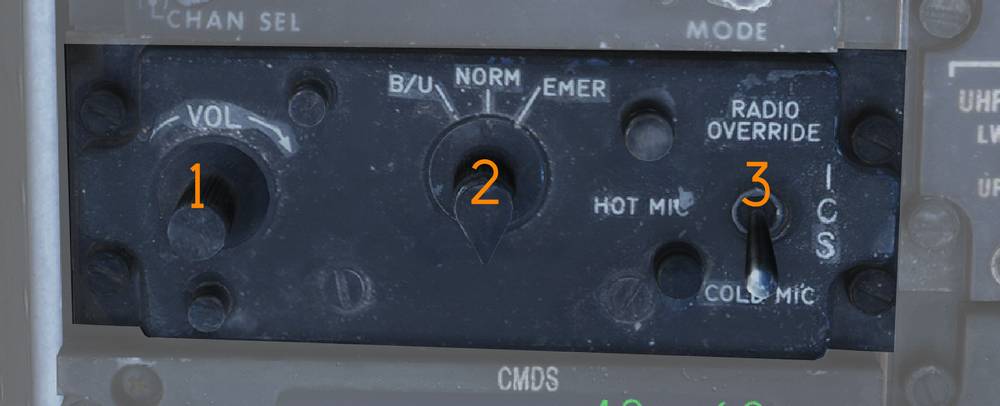

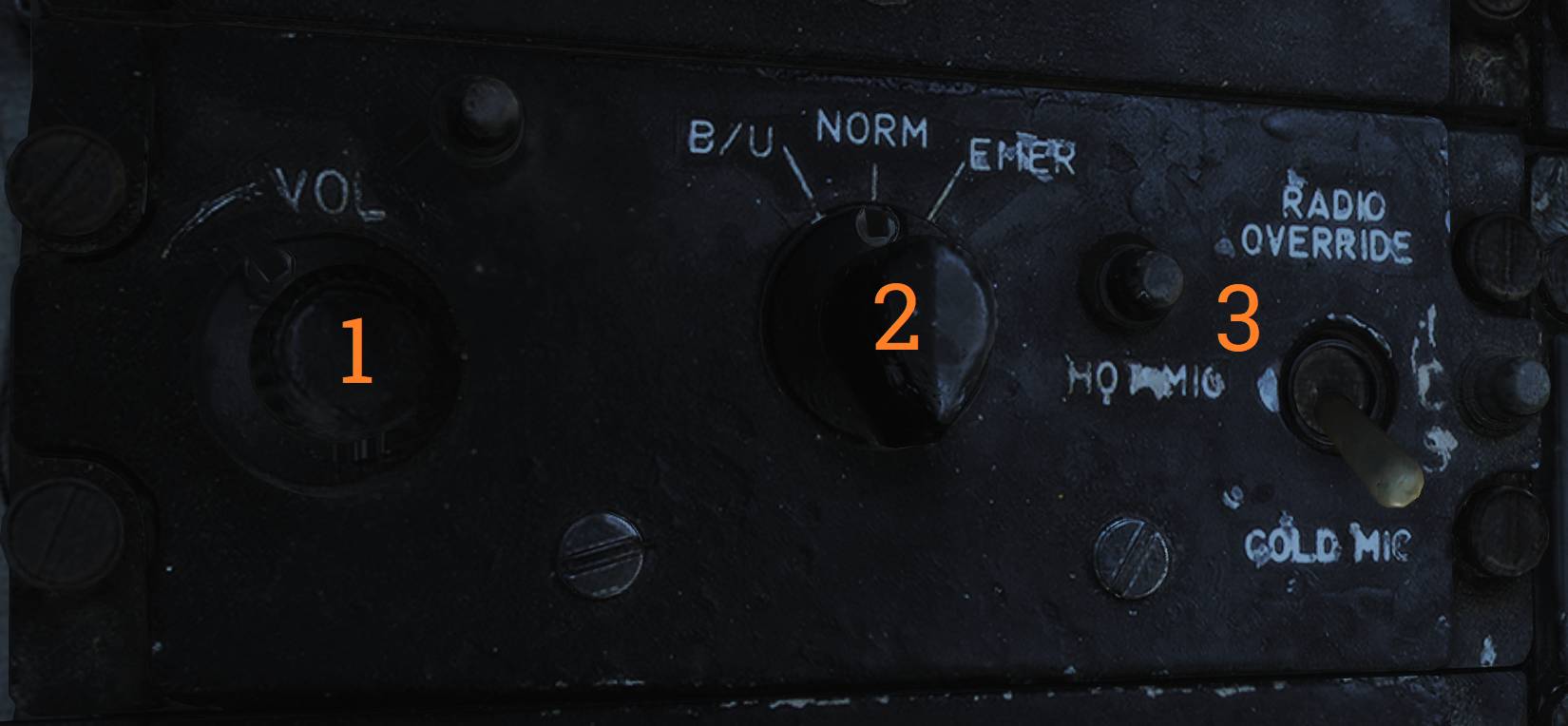

ICS Control Panel

Control panel for the intercommunications system (ICS).

ICS Volume Knob

The VOL knob (1) controls intercommunication audio volume from the RIO to the pilot.

Amplifier Selection Knob

The amplifier selection knob (2) selects which amplifier drives pilot headset audio.

The following amplifiers are available:

• B/U — Backup amplifier.
• NORM — Normal amplifier.
• EMER — Emergency amplifier. Uses the RIO’s amplifier and his volume settings and prevents monitoring of pilot-only audio such as Sidewinder tone and engine stall/overtemperature warnings.

ICS Function Switch

The ICS switch (3) selects ICS operating function.

Available ICS functions are:

• RADIO OVERRIDE — ICS audio overrides radio audio.
• HOT MIC — Enables intercom without pressing PTT. Also allows ground crew communication through the external interphone.
• COLD MIC — Intercom only while PTT is pressed.

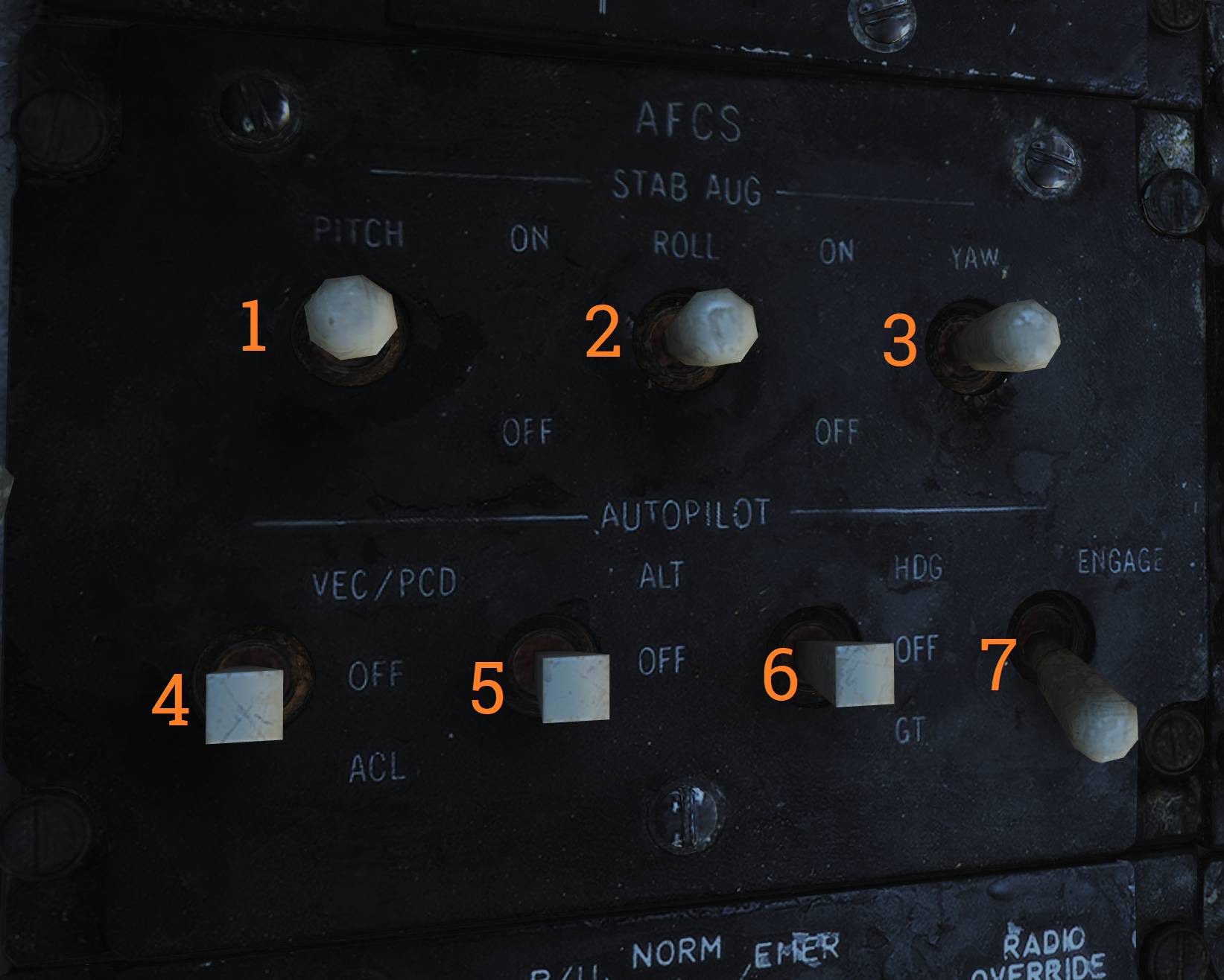

AFCS Control Panel

Control panel for AFCS and autopilot control.

💡 All switches are spring-loaded to OFF but held in position by a solenoid, allowing automatic disengagement when applicable.

Pitch Stability Augmentation Switch

The PITCH switch (1) enables pitch stability augmentation.

Roll Stability Augmentation Switch

The ROLL switch (2) enables roll stability augmentation.

Yaw Stability Augmentation Switch

The YAW switch (3) enables yaw stability augmentation.

VEC/PCD/ACL Switch

The VEC/PCD/ACL switch (4) selects remote-control autopilot modes.

• VEC/PCD — Vector/PCD mode. Data link controls roll and pitch. Engaged using the NWS button on the pilot stick.
• OFF — Remote-control function off.
• ACL — Automatic carrier landing mode. Engaged using the NWS button on the pilot stick.

Altitude Hold Switch

The ALT switch (5) enables altitude hold. The mode is engaged using the NWS button on the pilot stick.

Heading Mode Switch

The HDG switch (6) selects heading-related autopilot modes.

• HDG — Heading hold.
• OFF — Heading hold off.
• GT — Ground track mode. Engaged using the NWS button on the pilot stick.

Autopilot Engage Switch

The ENGAGE switch (7) engages the autopilot.

• ENGAGE — Autopilot on.
• OFF — Autopilot off.

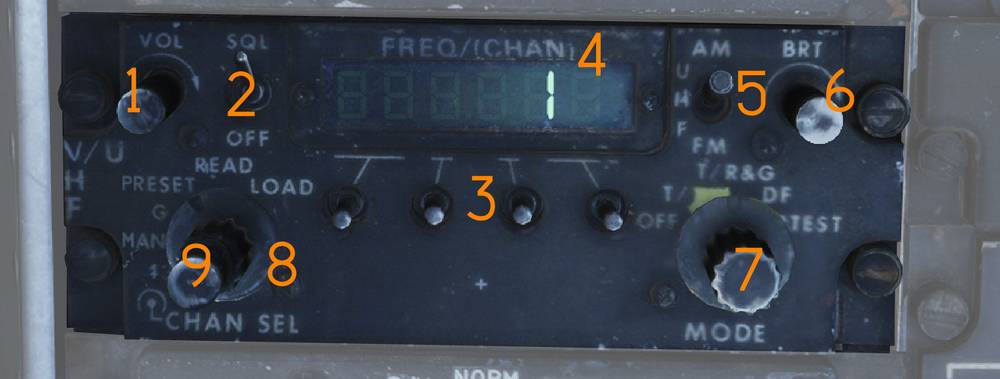

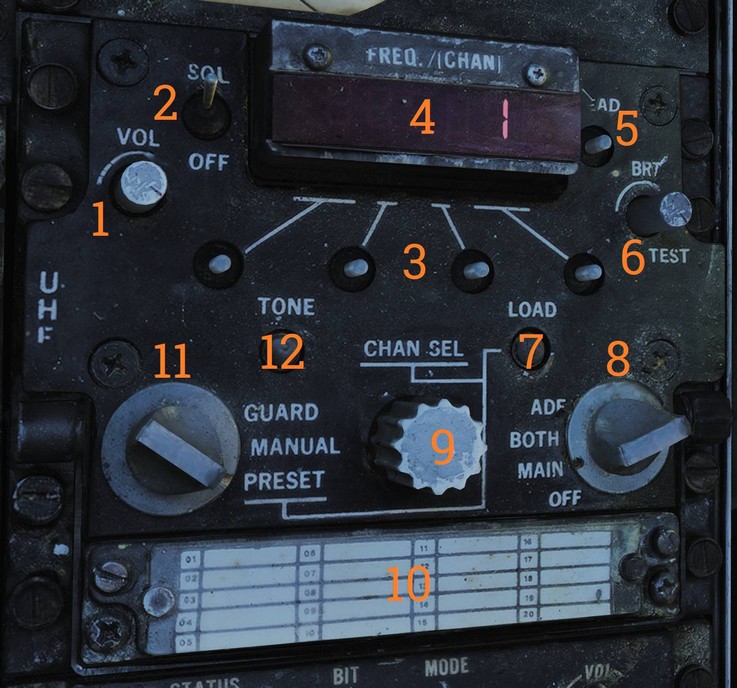

UHF 1 (AN/ARC-159) Radio

Pilot UHF radio (UHF 1) and controls.

💡 ADF is nonfunctional with the AN/ARC-159. Use V/UHF 2 instead.

Volume Knob

The VOL knob (1) controls UHF 1 audio volume to the pilot headset.

Squelch Switch

The SQL switch (2) enables or disables squelch.

• ON — Squelch enabled.
• OFF — Squelch disabled.

Frequency Select Switches

The frequency select switches (3) set the active frequency.

Frequency/Channel Display

The FREQ/(CHAN) display (4) shows the selected frequency or channel.

Read Button

The READ button (5) displays the selected channel while held.

Brightness Knob

The BRT knob (6) controls display brightness.

Load Button

The LOAD button (7) loads the set frequency into the selected preset channel.

Function Selector Knob

The function selector knob (8) selects radio function.

Channel Select Knob

The CHAN SEL knob (9) selects the preset channel.

Preset Channels Chart

The preset channels chart (10) is used to record preset channel frequencies.

Mode Selector Knob

The mode selector knob (11) selects frequency selection mode.

Tone Button

The TONE button (12) transmits a tone on the current frequency.

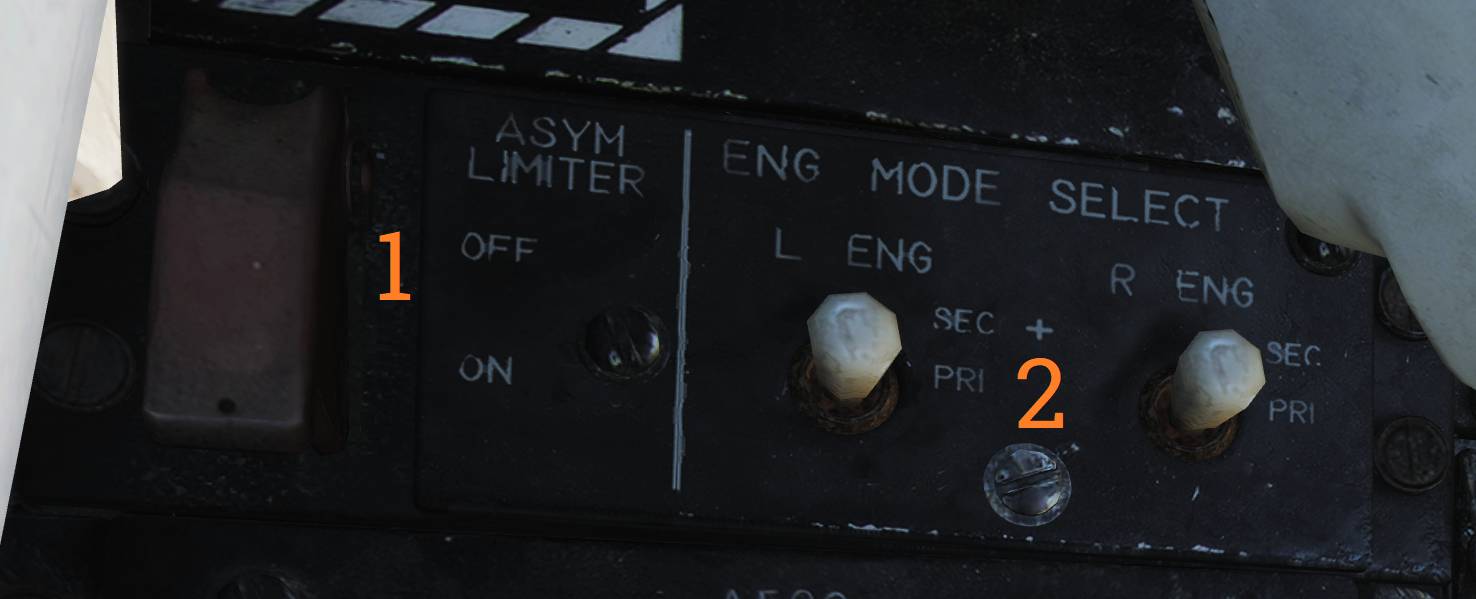

ASYM Limiter/Engine Mode Select (F-14B only)

Control panel for the asymmetric thrust limiter system and engine control mode selection.

Asymmetry Limiter Switch

The ASYM LIMITER switch (1) enables or disables the afterburner thrust asymmetry limiter.

• ON — Limiter enabled.
• OFF — Limiter disabled.

Engine Mode Select Switches

The ENG MODE SELECT switches (2) select control mode for each engine.

Selectable engine modes are:

• PRI — Primary engine control mode.
• SEC — Secondary engine control mode.

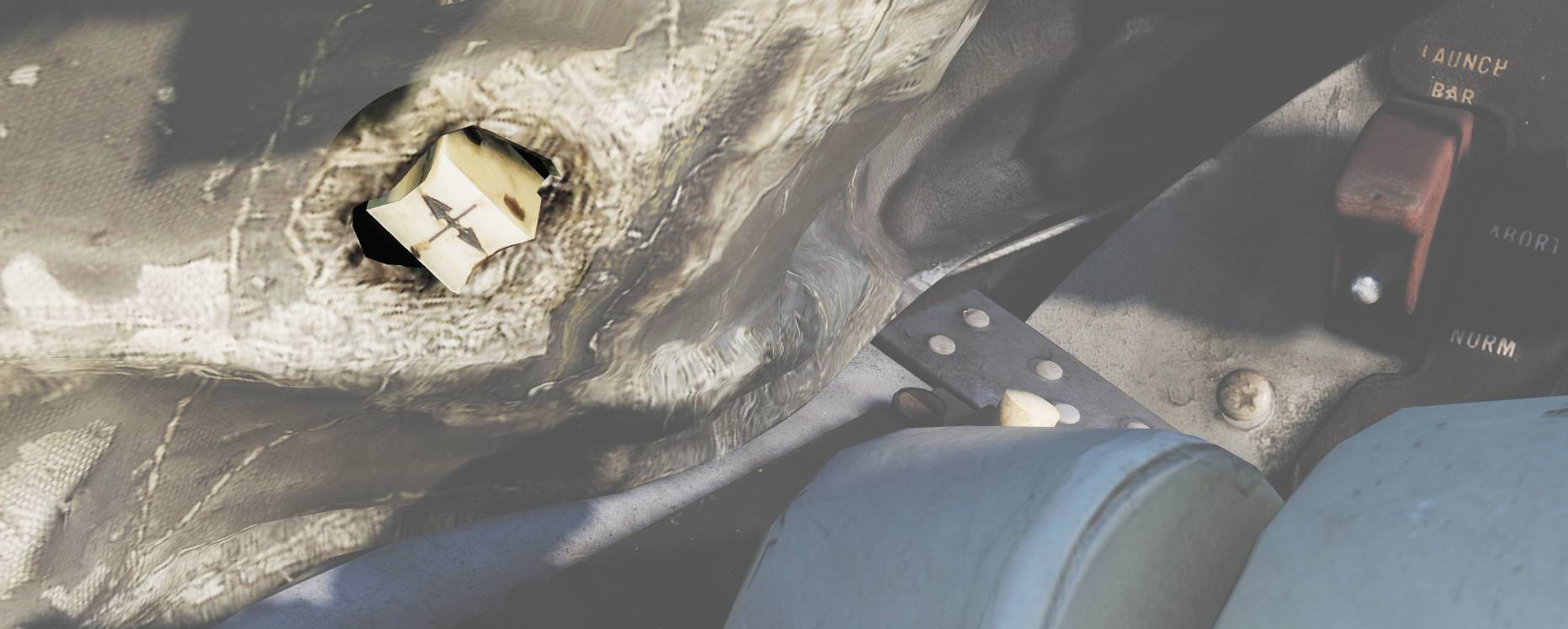

Target Designate Switch

The target designate switch is used to designate ground targets on the HUD and to command pilot ACM radar modes (except PLM).

The switch can be moved up, down, and forward (designate).

In air-to-ground mode, up and down move the designator and forward designates.

In other modes, up and down select VSL HI and VSL LO, respectively, and forward selects PAL.

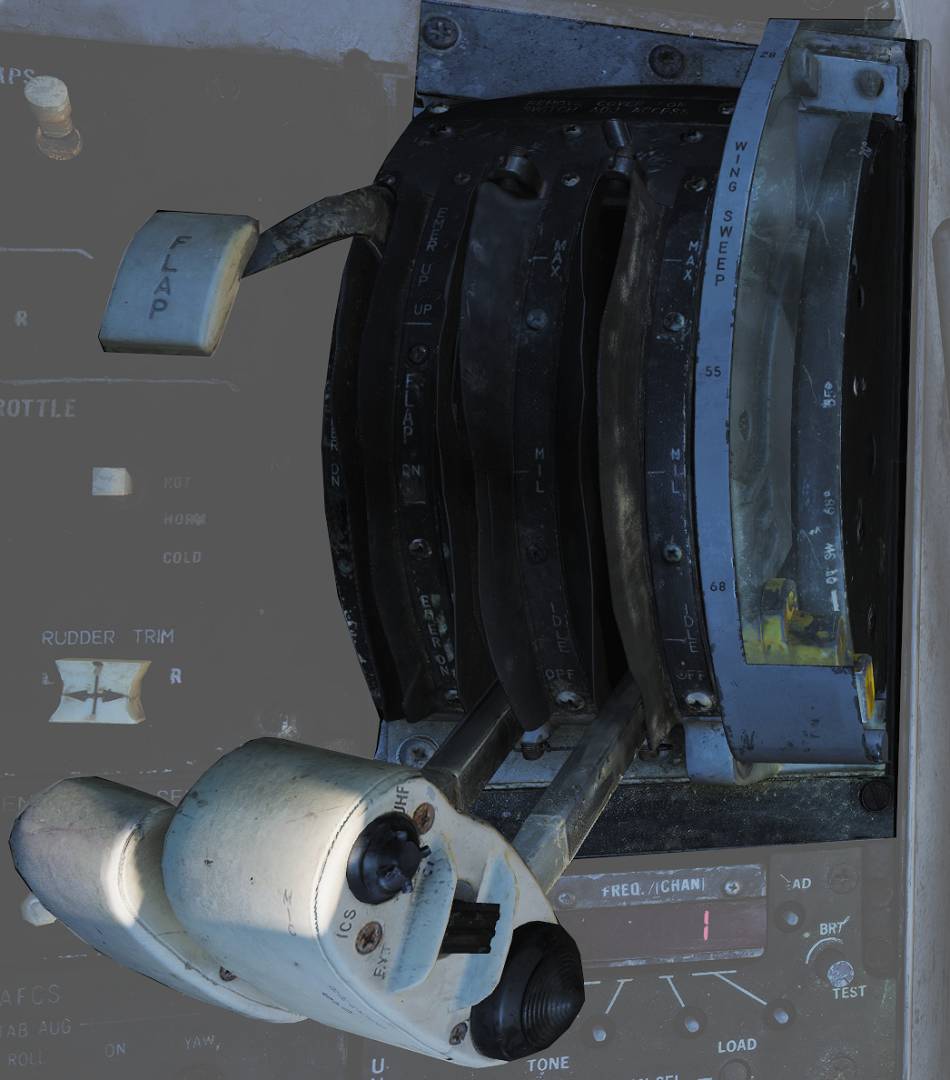

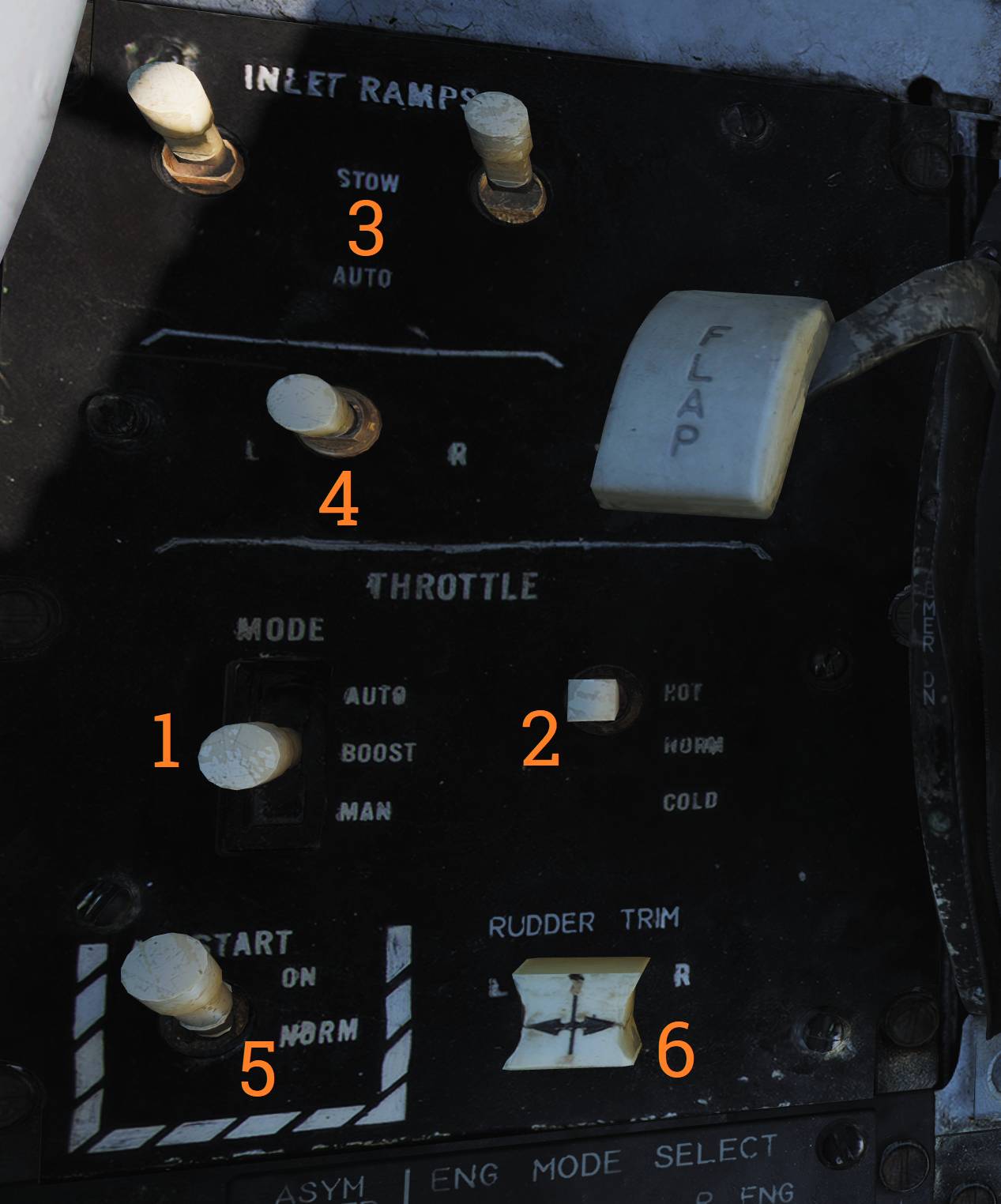

Inlet Ramps/Throttle Control Panel

Control panel for engine systems, throttle settings, and rudder trim.

Throttle Mode Switch

The THROTTLE MODE switch (1) selects throttle operation mode.

• AUTO — Automatic.
• BOOST — Boosted.
• MAN — Manual.

Throttle Temp Switch

The THROTTLE TEMP switch (2) selects throttle computer gain.

• HOT — Hot.
• NORM — Normal.
• COLD — Cold.

Inlet Ramps Switches

The INLET RAMPS switches (3) select operational mode for the respective engine inlet ramps.

• STOW — Stowed.
• AUTO — Automatic.

Engine Crank Selector

The ENG CRANK selector (4) selects engine crank for left or right engine.

Airstart/Backup Ignition Switch

The Airstart/BACK UP IGNITION switch (5) toggles engine backup ignition.

• ON — Airstart/Backup ignition enabled.
• OFF — Airstart/Backup ignition disabled.

Rudder Trim Switch

The RUDDER TRIM switch (6) adjusts rudder trim.

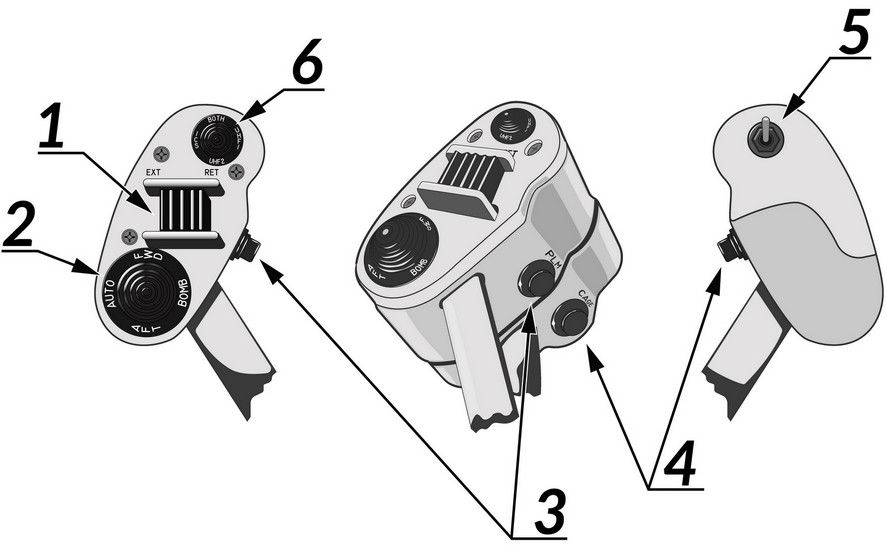

Throttle

The throttle grips contain HOTAS flight controls.

Speed Brake Switch

The speed brake switch (1) controls speed brake extension and retraction.

• EXT — Momentary. Extends the speed brake incrementally while held and holds the achieved position when released.
• RET — Retracts the speed brake.

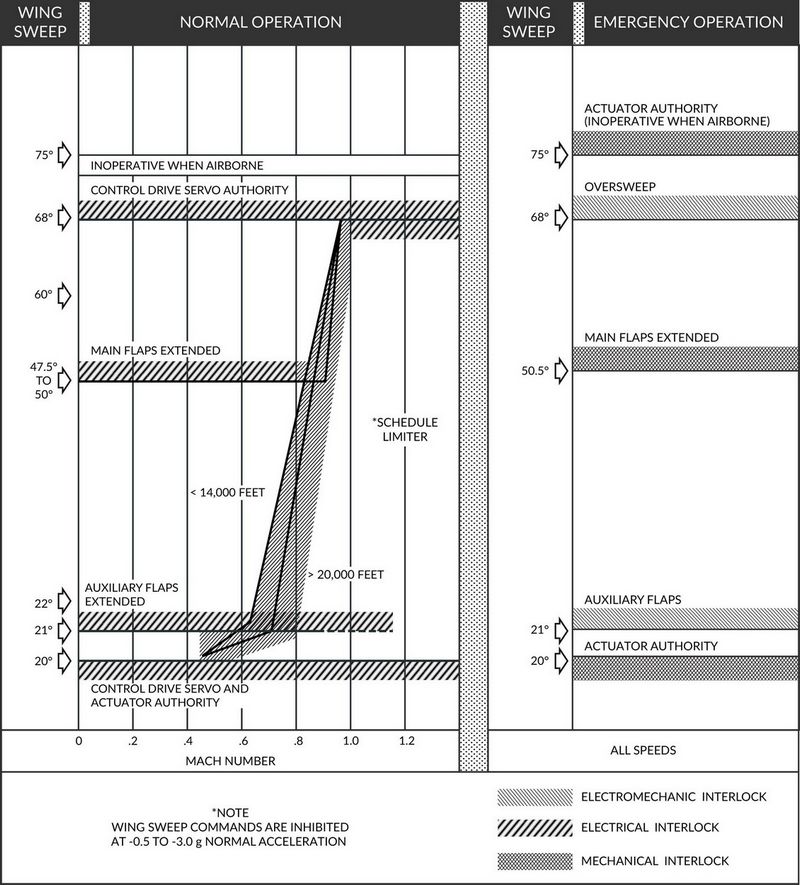

Wing-Sweep Switch

The wing-sweep switch (2) controls wing sweep. Manual mode only allows positions aft of the CADC commanded position.

• AUTO — Wing sweep controlled automatically by CADC.
• FWD — Sweeps wings forward manually.
• AFT — Sweeps wings aft manually.
• BOMB — Commands 55° wing sweep if currently forward of 55°. If CADC commanded position is aft of 55°, wing sweep follows CADC instead.

PLM Button

The PLM button (3) commands pilot lockon mode of the AWG-9 and disengages autopilot while in ACL.

CAGE/SEAM Button

The CAGE/SEAM button (4) commands AIM-9 CAGE/SEAM for lock-on and disengages APC when in use.

Exterior Light Switch

The exterior light switch (5) controls exterior lights.

• OFF — Disables exterior lights and increases approach light intensity.
• ON — Enables exterior lights and dims approach lights.

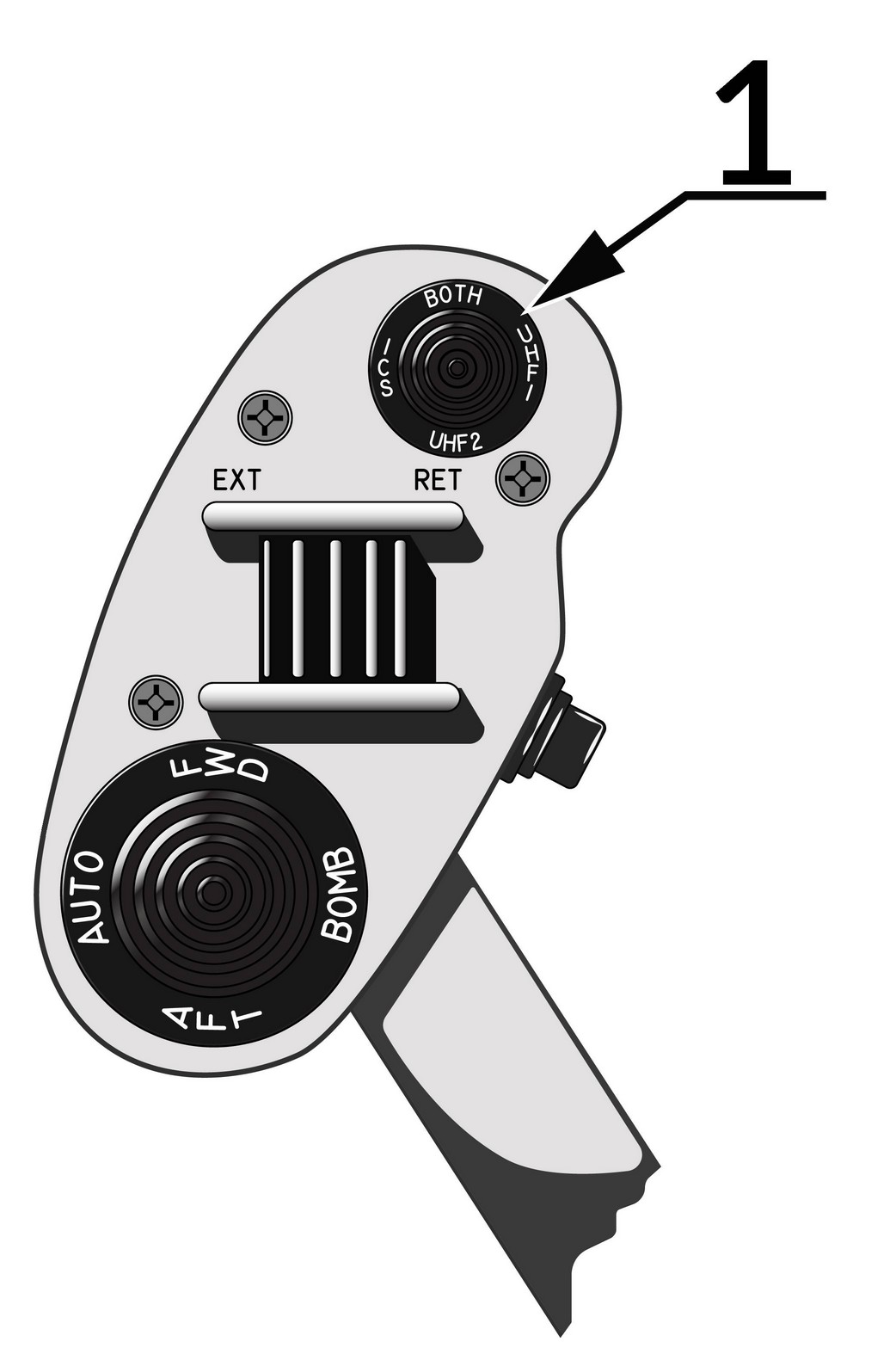

ICS PTT Switch

The ICS PTT switch (6) keys radios and/or intercom for transmission.

• ICS — Keys intercommunication to the RIO.
• BOTH — Keys UHF 1 and V/UHF 2.
• UHF1 — Keys UHF 1.
• UHF2 — Keys V/UHF 2.

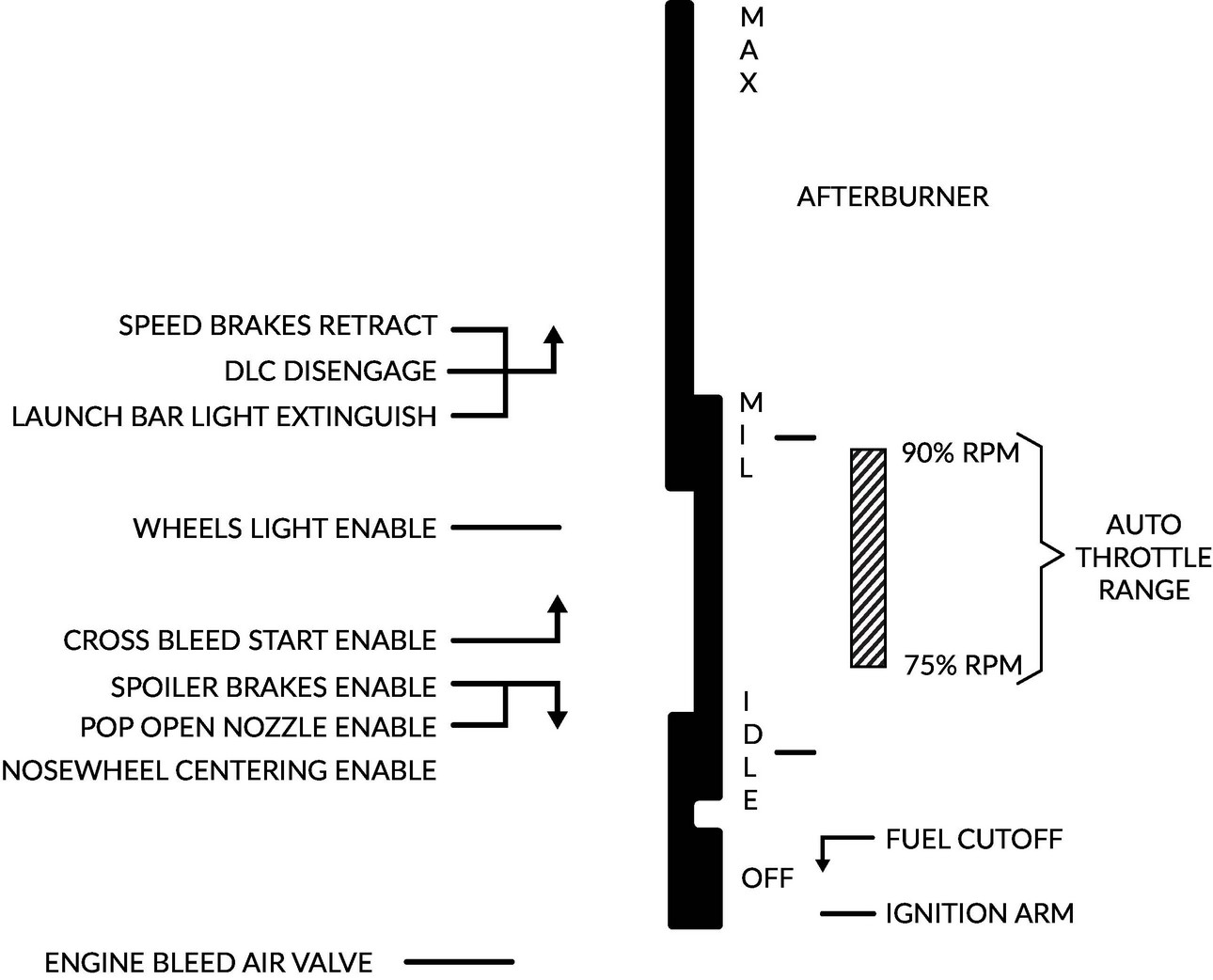

Throttle Quadrant

Quadrant	Schema

The throttle quadrant contains the two main engine throttle controls, the flap lever, and the manual wing-sweep handle, in addition to HOTAS controls on the throttles.

The throttles have detents in the OFF, IDLE, and MIL positions.

Moving the throttles from OFF to IDLE arms ignition and disengages fuel cutoff.

The sideways throttle movements are not spring-loaded, allowing the pilot to rest the throttles at MIL during catapult launches and preventing accidental spool-down.

A friction lever for throttle movement friction is located on the left side of the throttle quadrant beneath the flap lever.

The flap lever has a stepless range of motion between up and down and includes two emergency positions, emergency up and emergency down. Both have detents and require moving the lever outboard to continue into the emergency range.

Emergency up forces the flaps up, overriding normal flap logic. Emergency down is non-functional.

The manual/emergency wing-sweep handle is guarded and normally stowed. The handle top is extended for manual operation.

For more information see Wing-Sweep System.

Hydraulic Hand Pump

The hydraulic hand pump is located inboard of the throttle quadrant near the pilot’s left leg.

It is used to manually build hydraulic pressure for brake operation (with the gear handle down) or for refueling probe operation in the event of hydraulic system failure.

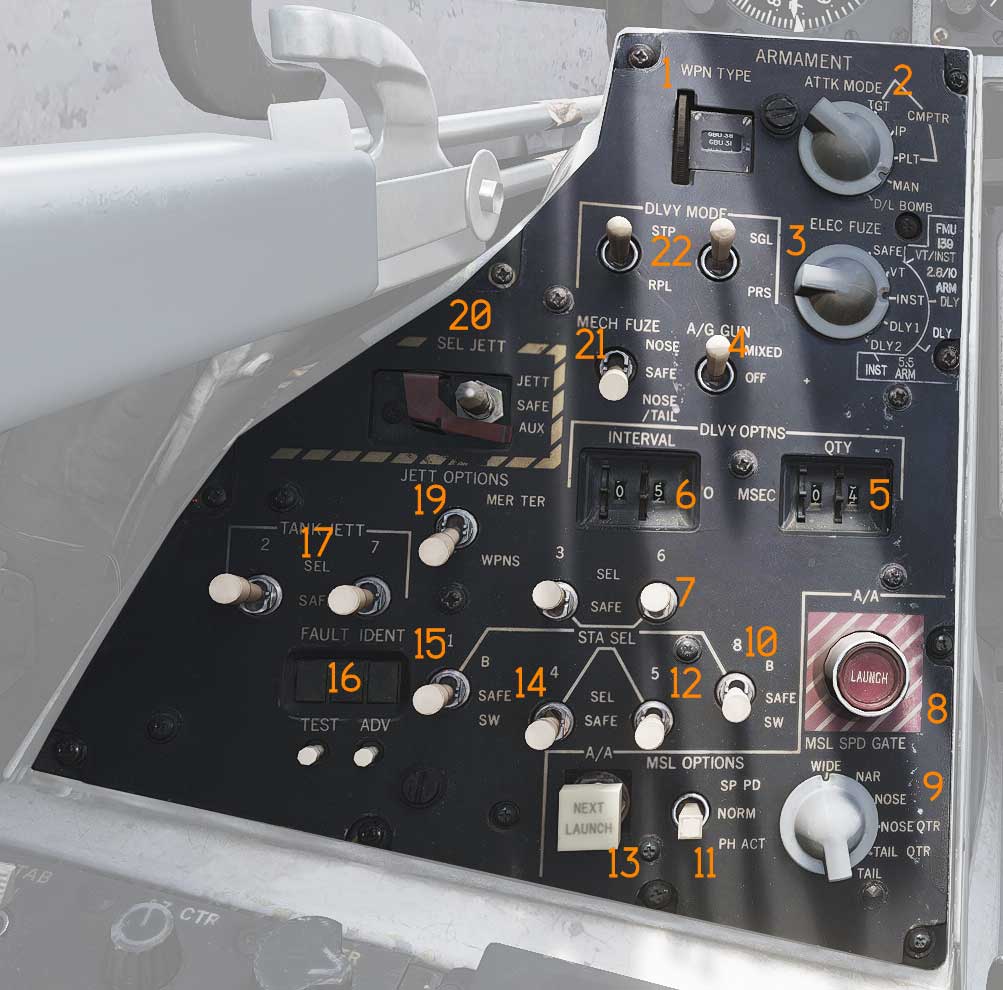

Left Vertical Console

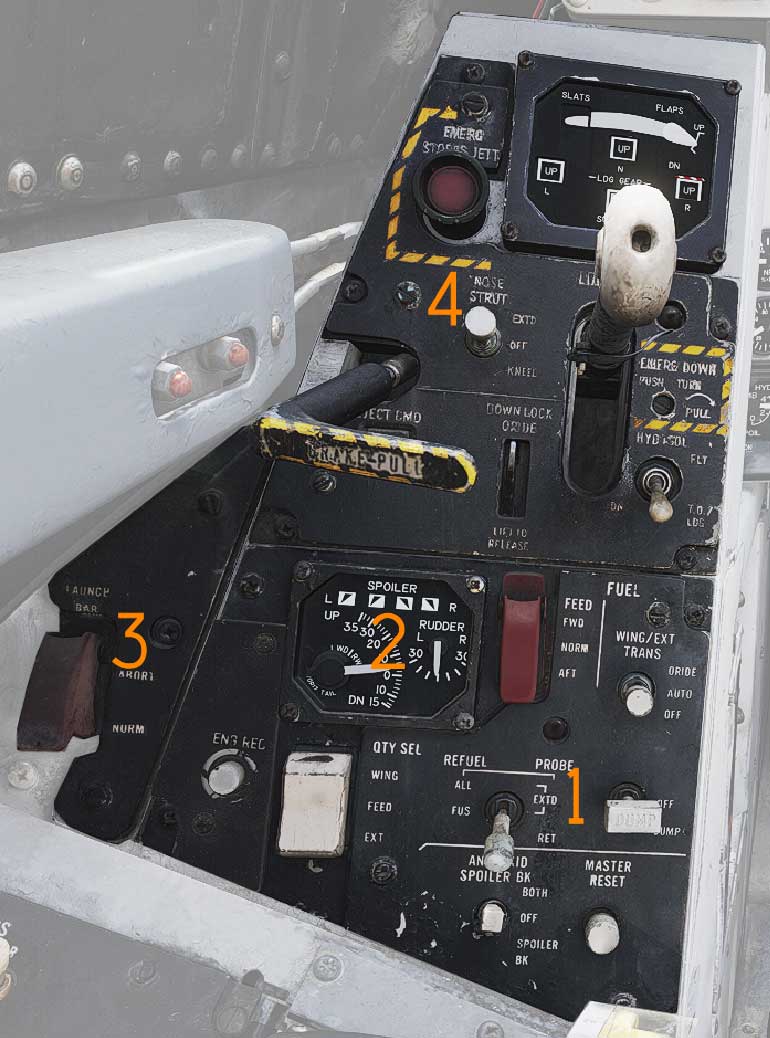

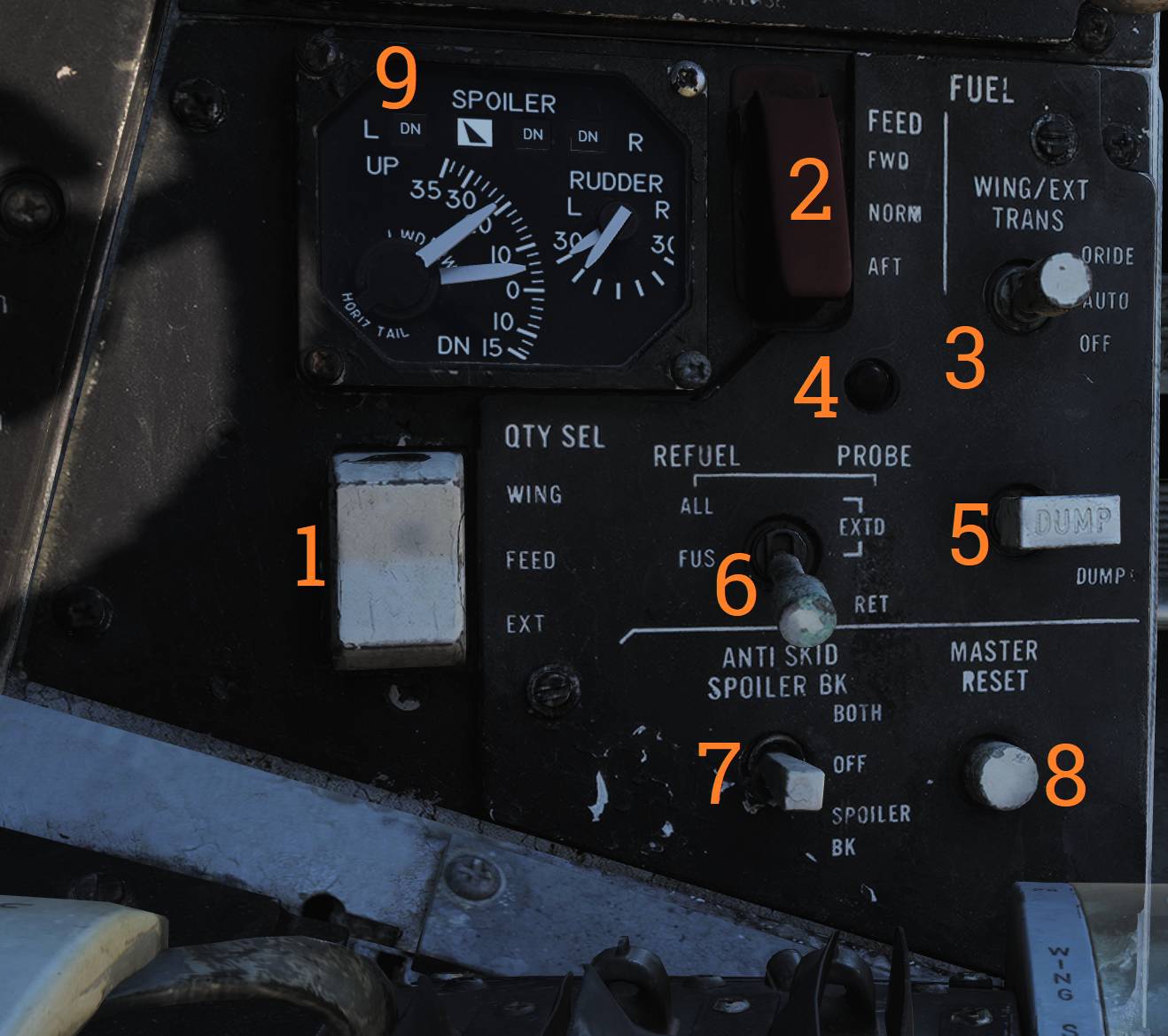

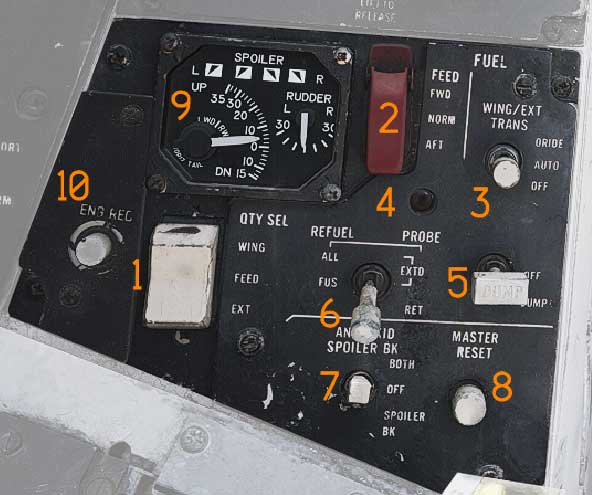

Fuel Management Panel

Control panel for fuel system management, CADC master reset, and anti-skid and spoiler brake control.

Quantity Selector Switch

The QTY SEL switch (1) selects which fuel quantities are displayed on the fuel quantity indicator tapes.

The switch is spring-loaded to FEED.

• FEED — Displays respective feed and fuselage tank quantities.
• WING — Displays respective wing tank quantities.
• EXT — Displays respective external tank quantities.

Fuel Feed Switch

The FEED switch (2) selects fuel feed routing to the engines.

The guard locks the switch in NORM until lifted.

Wing/External Transfer Switch

The WING/EXT TRANS switch (3) controls operation of wing and external fuel tank transfer.

• ORIDE — Overrides automatic transfer logic.
• AUTO — Normal automatic operation.
• OFF — Disables fuel feed from wing and external tanks.

Refueling Probe Indicator Light

The refueling probe transition light (4) illuminates when the probe is neither fully extended nor fully retracted.

Fuel Dump Switch

The DUMP switch (5) enables fuel dumping when placed in DUMP.

Fuel dumping is permitted only when speed brakes are retracted, afterburner is off, and weight is off wheels.

Refueling Probe Switch

The REFUEL PROBE switch (6) controls refueling probe operation.

• ALL EXTD — Extends the refueling probe and allows refueling of all tanks. Also resets the WING/EXT TRANS switch to AUTO.
• FUS EXTD — Extends the refueling probe and allows refueling of fuselage tanks only.
• RET — Retracts the refueling probe.

Anti-Skid / Spoiler Brake Switch

The ANTI SKID SPOILER BK switch (7) selects braking system operation with weight on wheels.

• BOTH — Enables both anti-skid and spoiler brake functions.
• OFF — Disables both systems.
• SPOILER BK — Enables spoiler braking only.

Master Reset Button

The MASTER RESET button (8) resets the CADC failure detection system and clears associated fault indications.

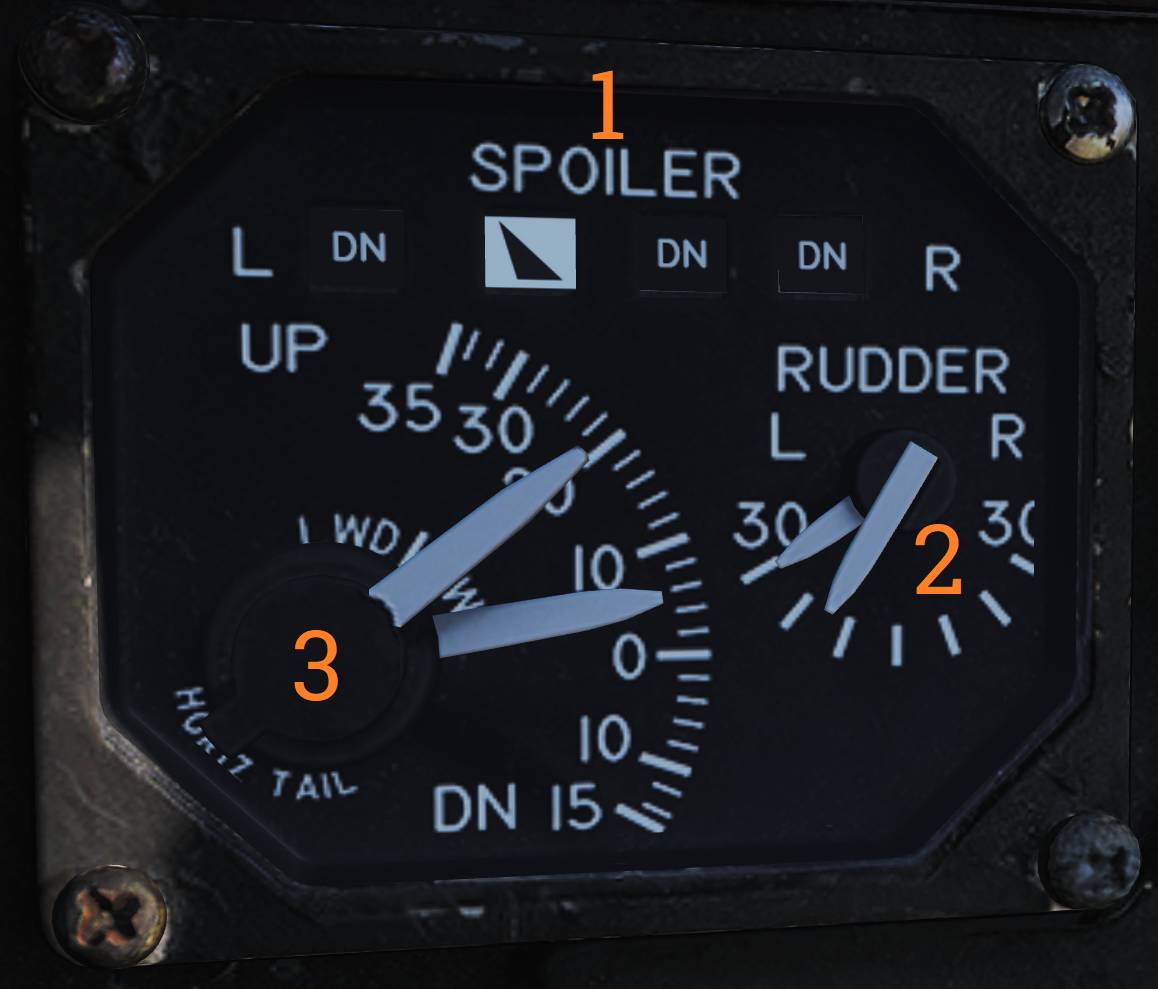

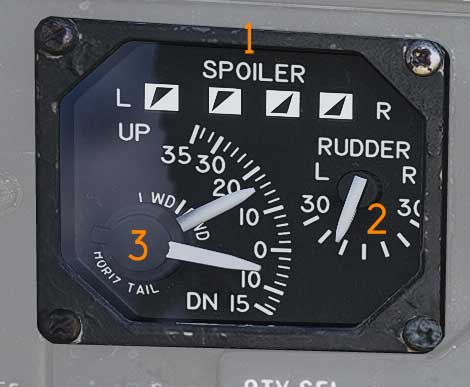

Control Surface Position Indicator

Provides indication of aircraft control surface positions.

Spoiler Position Indicators

The spoiler indicators (1) show spoiler position.

• DN — Spoilers down and flush with the wing.
• Up-arrow — Spoilers extended above the wing.
• Down-arrow — Spoilers drooped below the wing surface.

Rudder Position Indicators

The rudder indicators (2) display left and right rudder positions, identified by L and R symbols.

Horizontal Tail Position Indicators

The horizontal stabilizer indicators (3) display left and right tail positions, identified by L and R symbols.

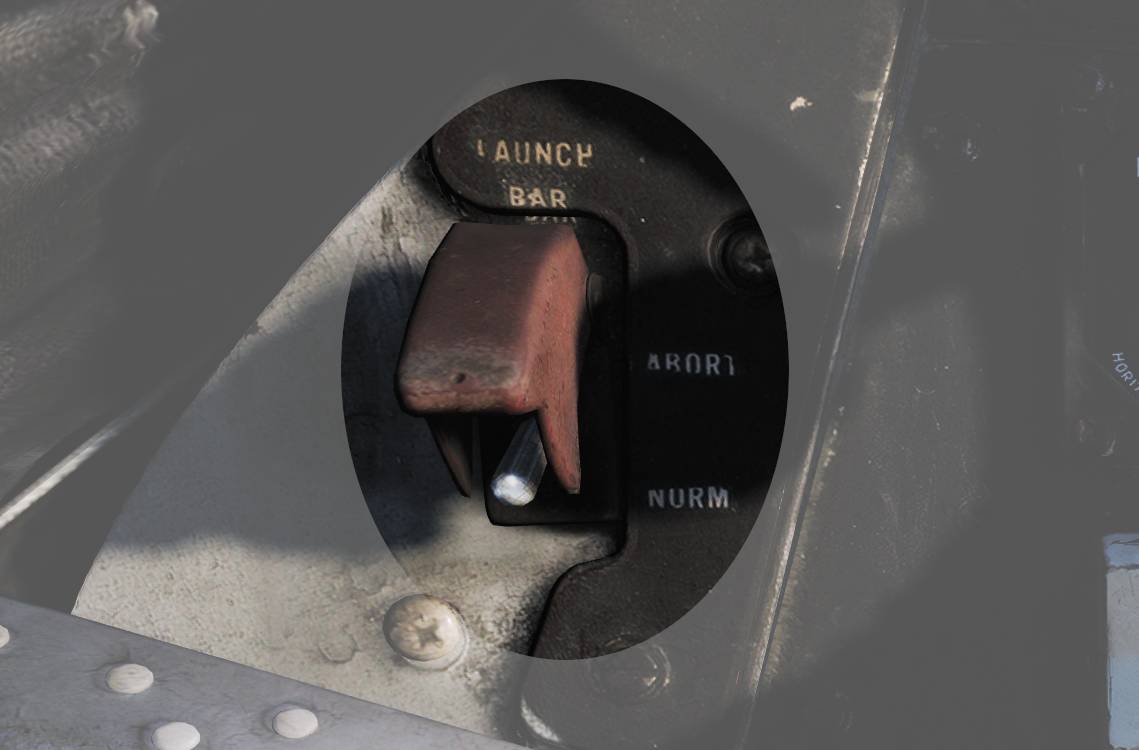

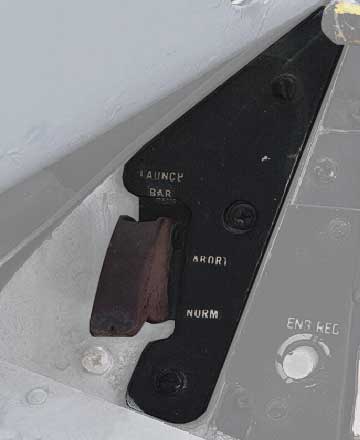

Launch Bar Abort Panel

The launch bar abort switch is used to abort catapult launches.

When held in ABORT, the launch bar is raised. The switch is spring-loaded back to NORM, which is the standard position.

💡 Not currently used in DCS.

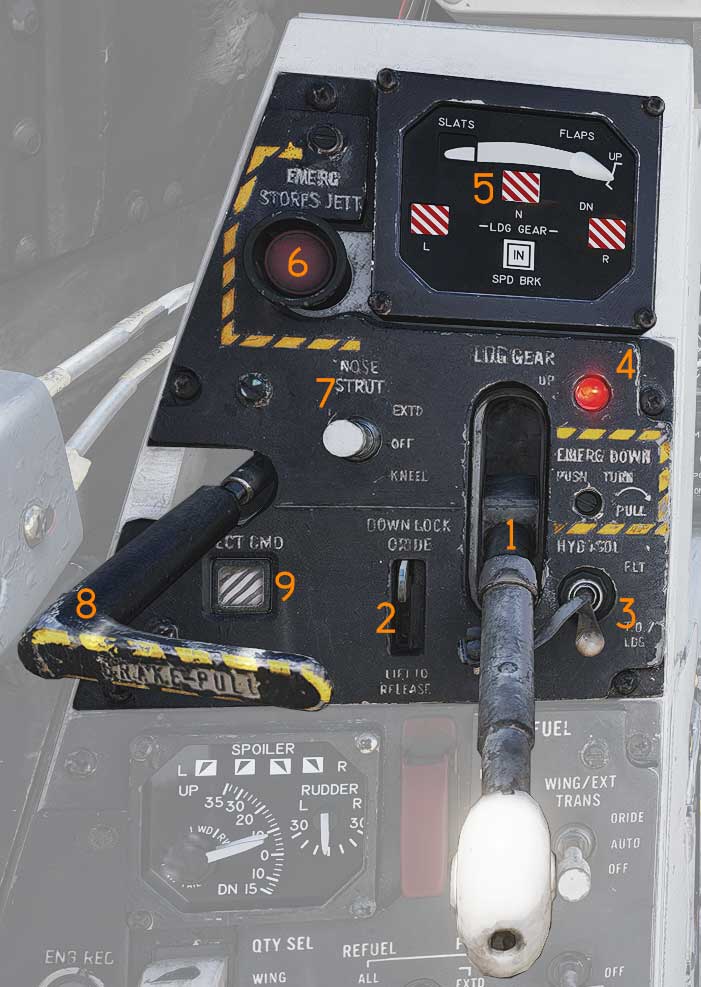

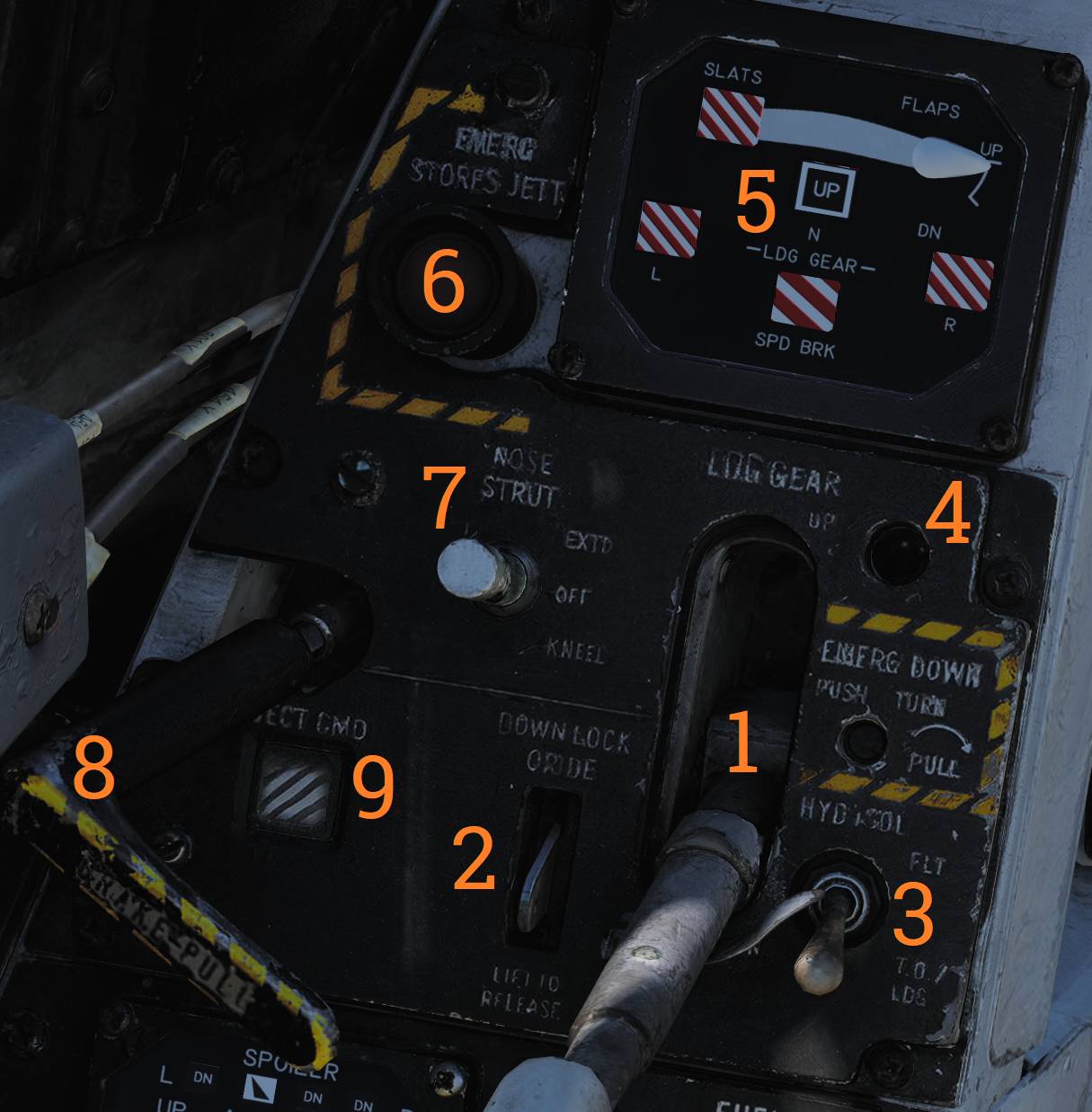

Landing Gear Control Panel

Control panel for landing gear operation and emergency stores jettison.

Landing Gear Handle

The LDG GEAR handle (1) selects landing gear UP or DOWN.

For emergency extension with the handle in DOWN, push the handle in, rotate it clockwise, and pull outward. This releases a compressed nitrogen charge to extend the gear.

Down Lock Override

The DOWN LOCK ORIDE indicator (2) moves down by solenoid to indicate weight on wheels.

The indicator may be lifted to override the signal.

Hydraulic Isolation Switch

The HYD ISOL switch (3) isolates landing gear, nosewheel steering, and wheel brakes from the combined hydraulic system.

The switch is automatically moved to T.O./LDG when the landing gear handle is in the DOWN position.

• FLT — In-flight operation. Isolates listed systems.
• T.O./LDG — Takeoff and landing operation. Connects listed systems.

Landing Gear Transition Light

The transition light (4) illuminates when landing gear position does not match handle position.

Wheels and Flaps Position Indicator

The wheels-flaps indicator (5) displays positions of flaps, slats, speed brakes, and landing gear.

Slat Indications

Indication	State
	Power off or maneuver slats extended.
	Slats extended.
	Slats retracted.

Flap position is shown by a pointer moving between UP and DOWN. The first marked segment represents the maneuver flap range.

Landing Gear Indications

Indication	State
	Power off or unsafe gear.
	Gear down.
	Gear retracted and doors closed.

Speed Brake Indications

Indication	State
	Speed brake system power off.
	Speed brake partial extension, not in motion.
	Speed brake fully extended.
	Speed brake retracted.

Emergency Stores Jettison Button

The EMERG STORES button (6) commands emergency jettison of all expendable stores.

The button illuminates to indicate activation upon press.

Nose Strut Switch

The NOSE STRUT switch (7) controls nosewheel strut position.

• EXTD — Extends the nose strut and raises and locks the launch bar.
• OFF — Turns off nosewheel strut movement. Spring-loaded to this position.
• KNEEL — Releases strut pressure to retract the nose strut, kneeling the aircraft and unlocking the launch bar.

Brake Pull Handle

The BRAKE-PULL handle (8) applies or releases the parking brake.

Pull out to apply the parking brake. Push in to release.

Eject Command Indicator

The EJECT CMD indicator (9) displays the current ejection command logic for the rear cockpit.

• PILOT — Pilot ejects both crewmembers; RIO ejects only himself.
• MCO — Either crewmember ejects both crew.

💡 Currently non-functional in DCS.

Left Knee Panel

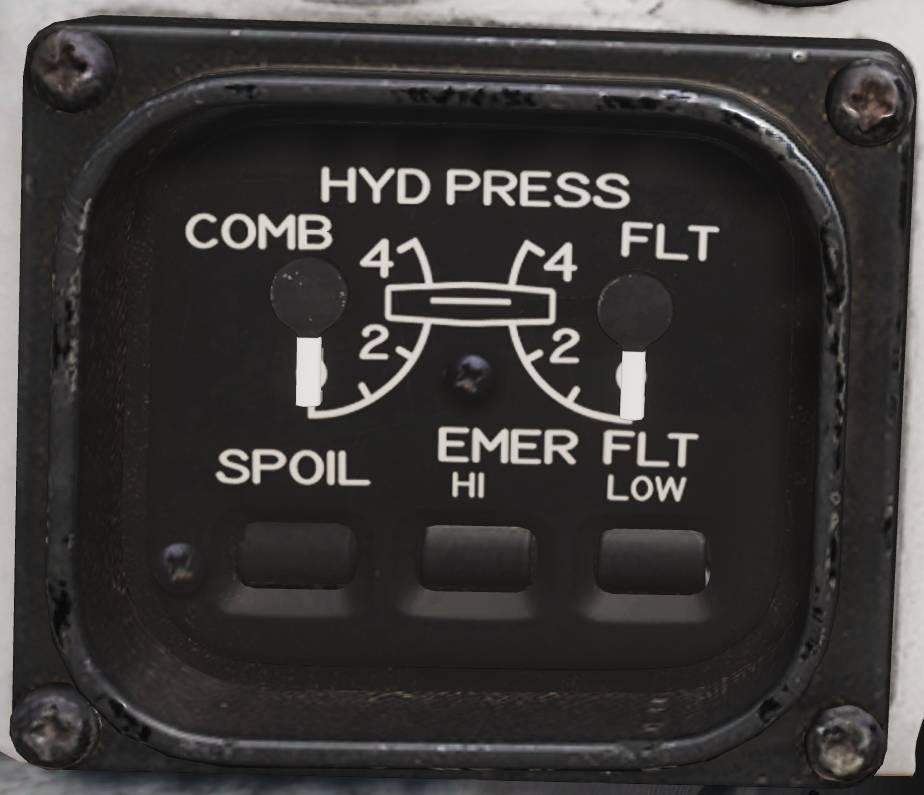

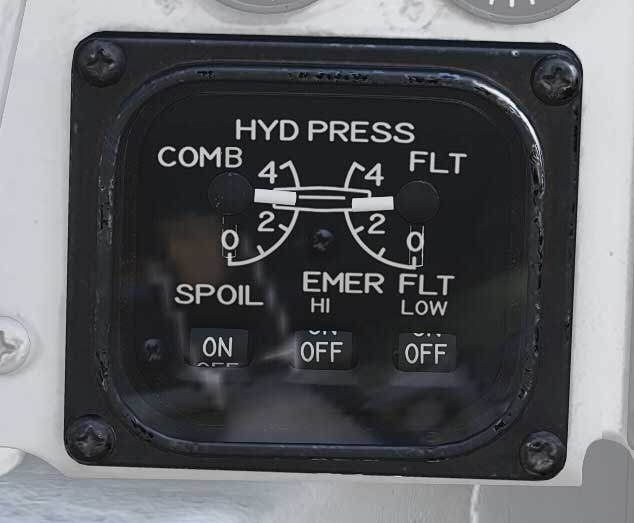

Hydraulic Pressure Indicator

Shows hydraulic pressure of the combined and flight hydraulic systems.

• SPOIL (Spoiler): ON/OFF-flag indicates pressurization of outboard spoiler module.
• EMER FLT HI: ON/OFF-flags indicates backup flight hydraulic system pressures when HI or LOW is selected respectively.

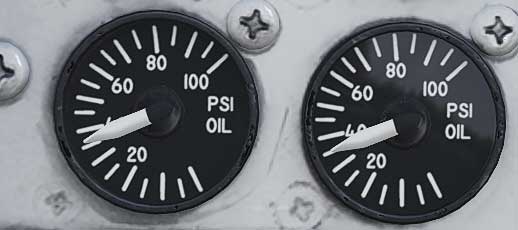

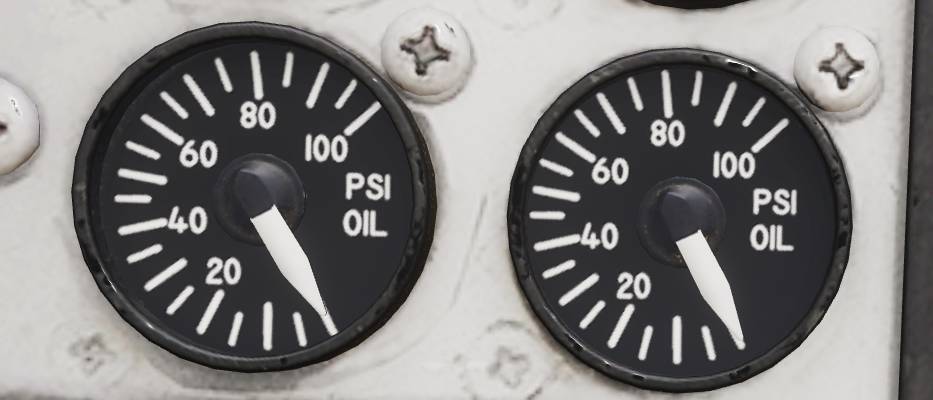

Oil Pressure Indicator

Displays oil pressure for each engine. Range is 0 - 100 psi, normal range is 25 - 65 psi, varying with engine rpm.

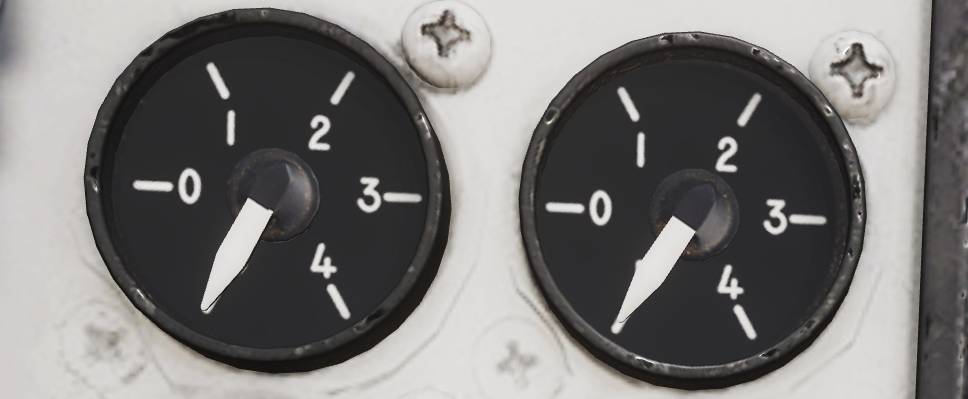

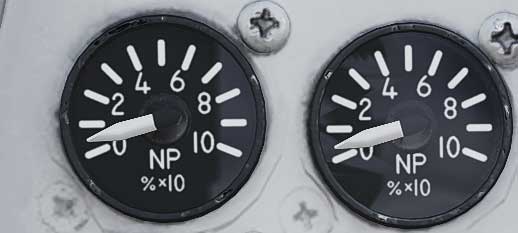

Exhaust Nozzle Position Indicator

Displays position of engine nozzles. Range 0 - 5 with 5 being fully open.

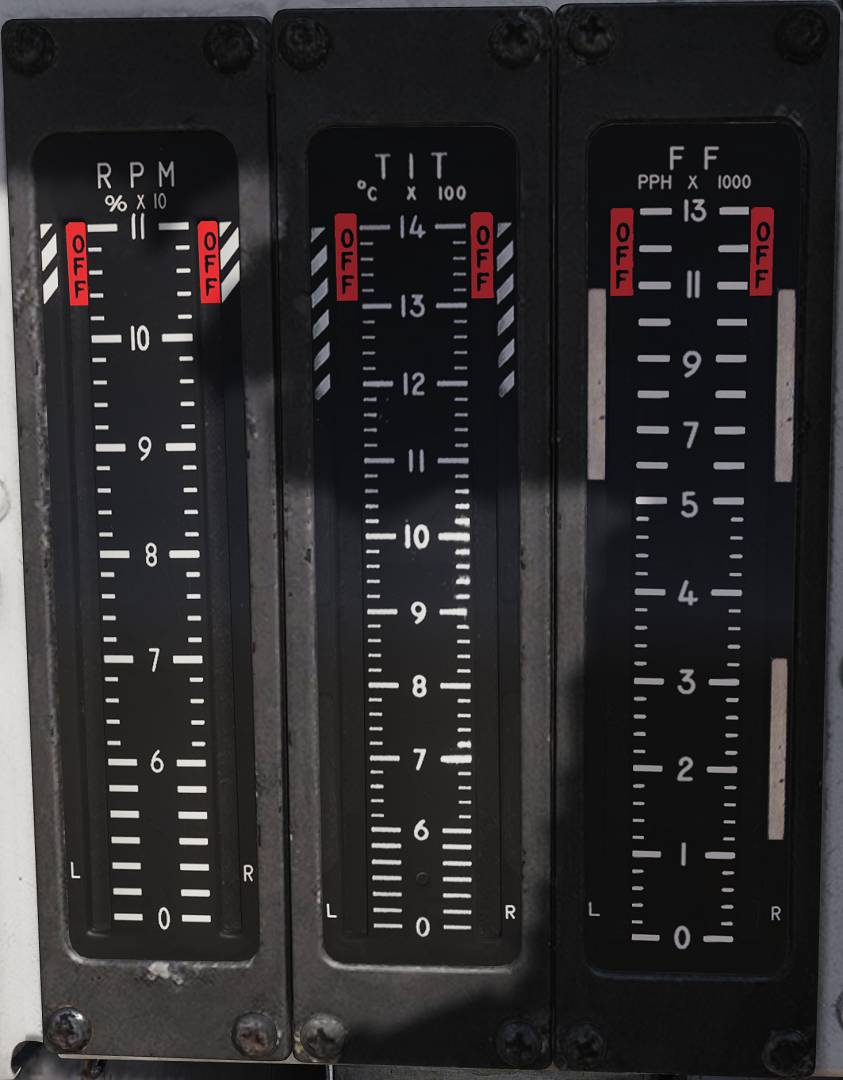

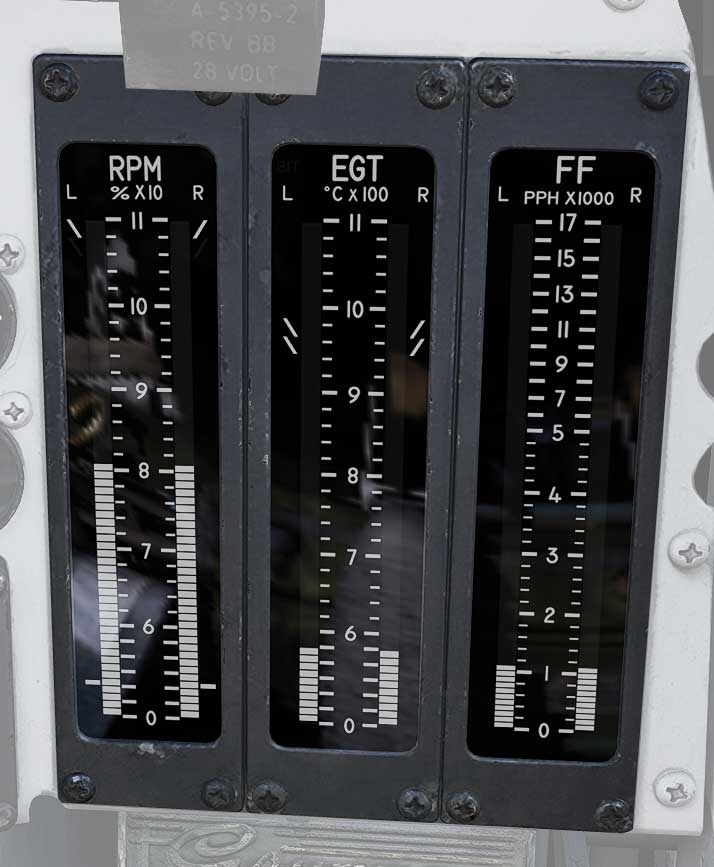

Electronic Instrument Group

Displays engine RPM (High-pressure compressor rotor speed (N2)), EGT (Exhaust Gas Temperature) and FF (Fuel Flow) for respective engine.

💡 Image shows TF-30 engine instruments, F110 EIG coming soon.

FF is not indicated for the additional fuel used in afterburner.

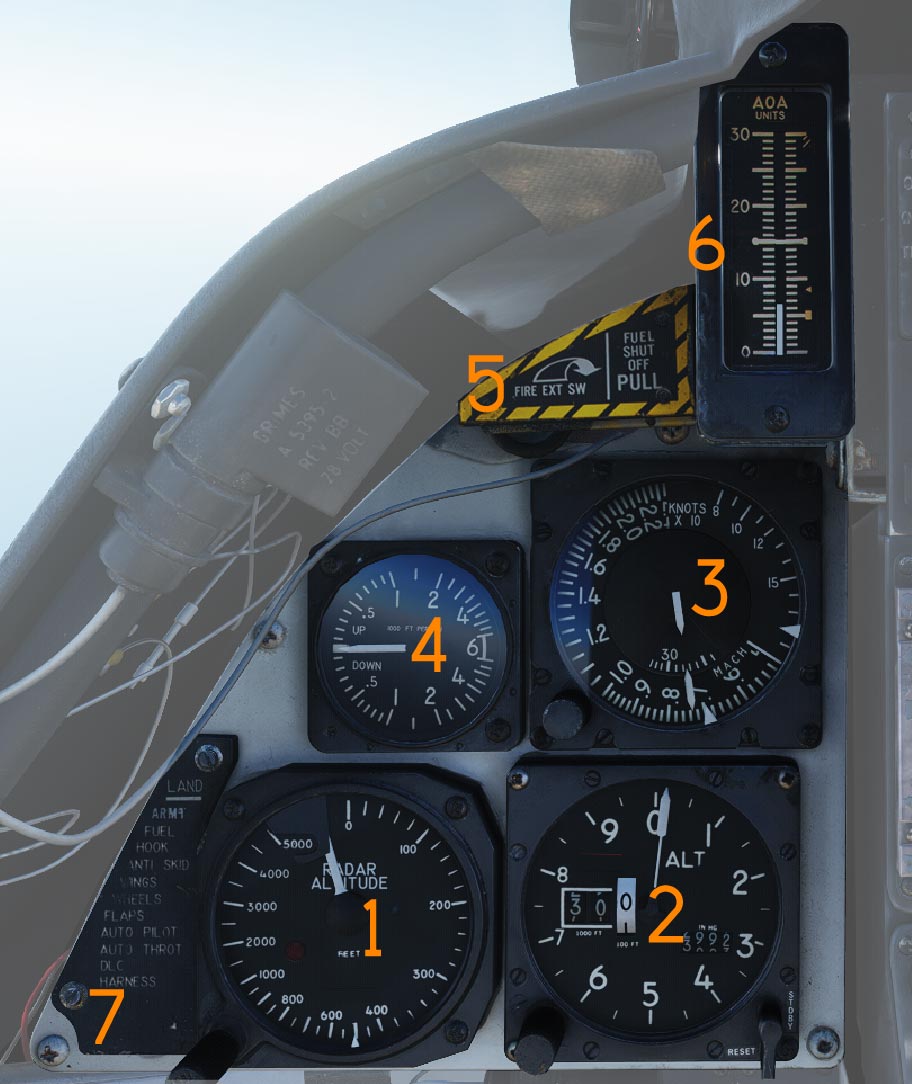

Left Instrument Panel

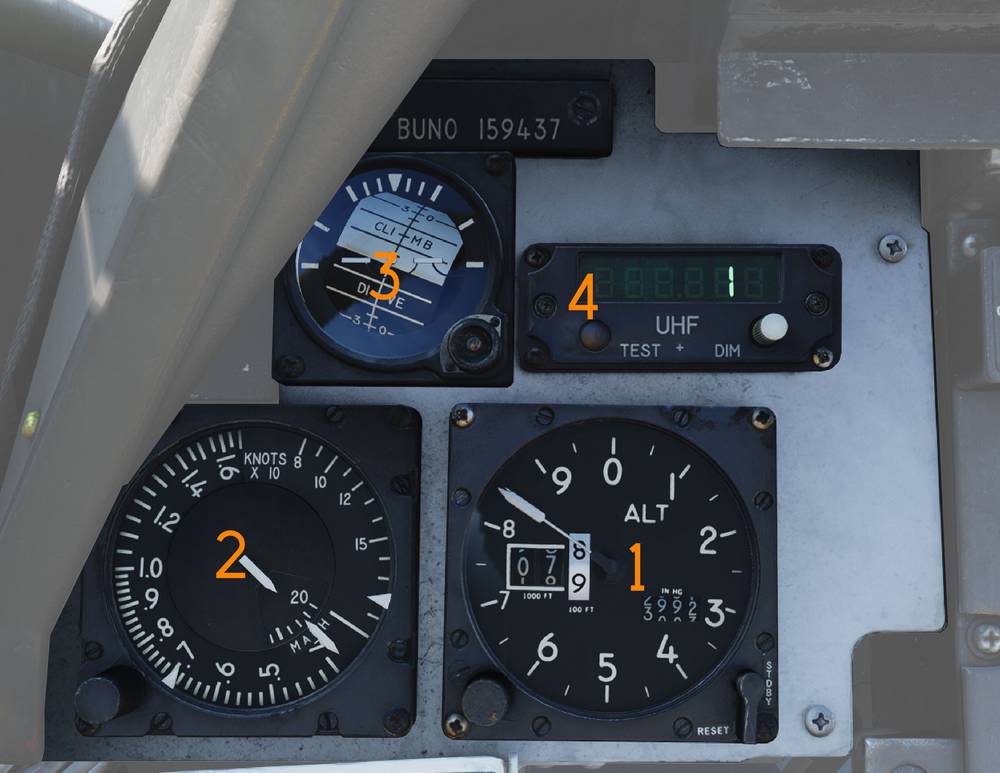

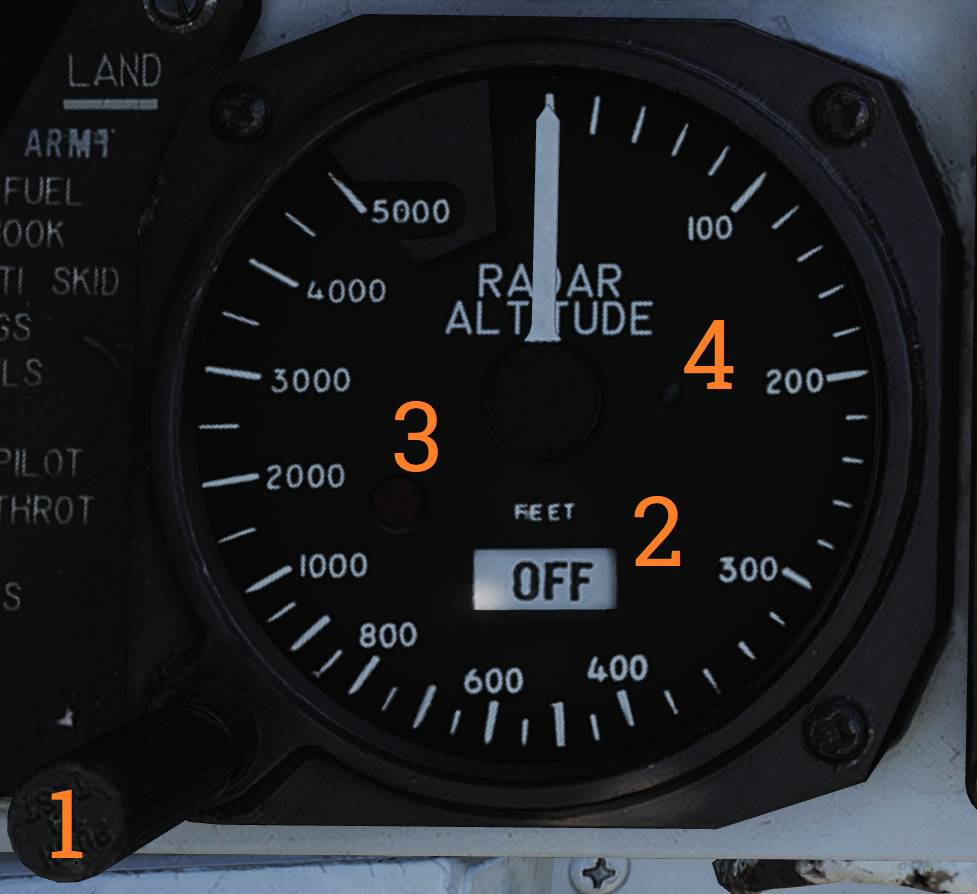

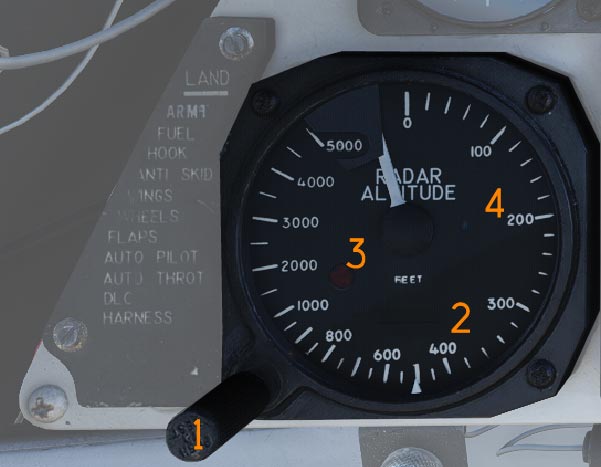

Radar Altimeter

Control and indicator for the radar altimeter.

Radar Altimeter Control Knob

The radar altimeter control knob (1) controls radar altimeter power, sets the low altitude warning threshold, and initiates BIT.

Fully counterclockwise turns the radar altimeter off. Rotating clockwise sets the altitude warning level. Depressing the knob initiates radar altimeter BIT.

OFF Flag

The OFF flag (2) is displayed when the radar altimeter is off, power is unavailable, or the system loses ground lock.

Low Altitude Warning Light

The low altitude warning light (3) illuminates red when the aircraft is below the set altitude warning level.

Self-Test Light

The self-test light (4) illuminates green when radar altimeter BIT is run.

During BIT, the readout should display 100 feet ±10.

Low-Altitude Limit Index

The low-altitude limit index (5) is a triangular bug on the outer edge indicating the selected altitude warning threshold.

💡 Radio override does not disable the low-altitude warning tone.

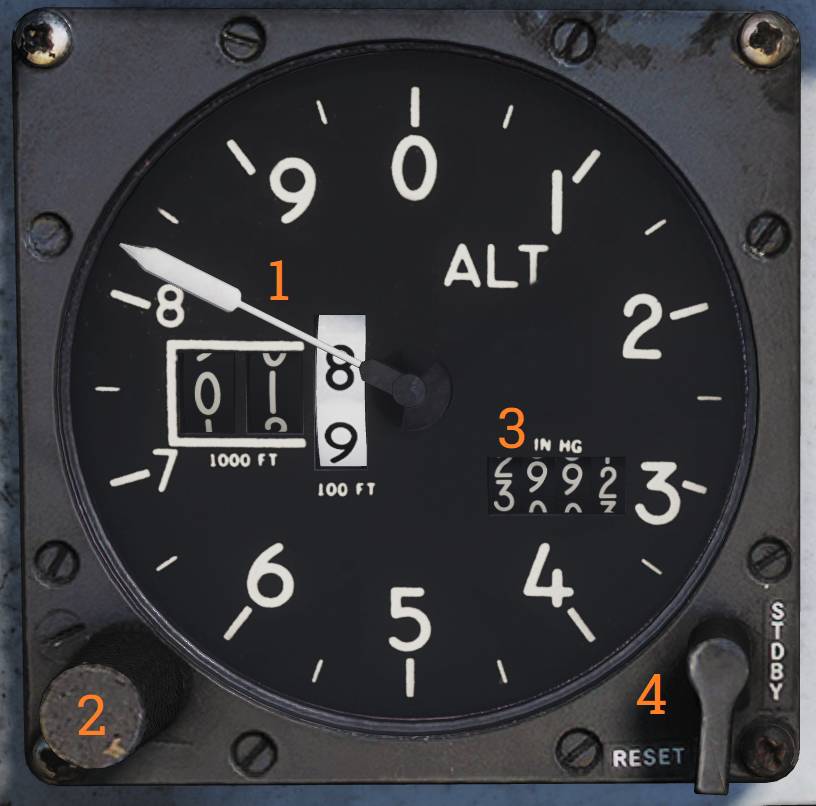

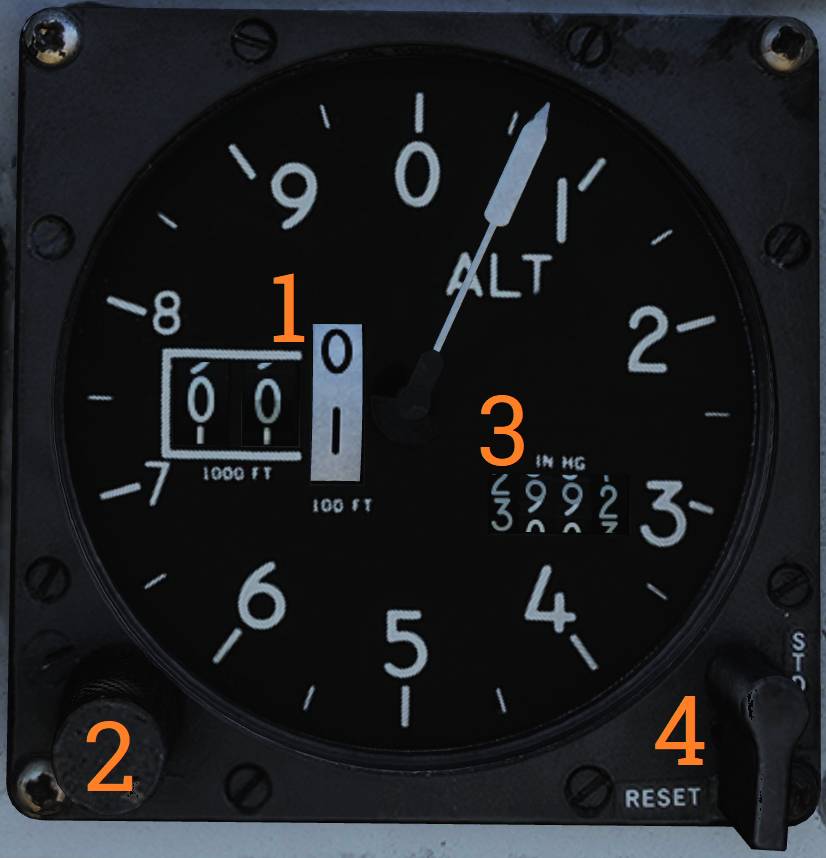

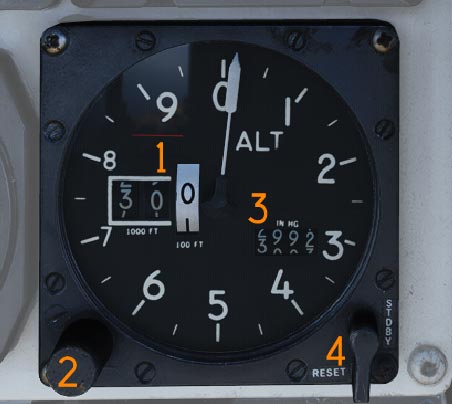

Servopneumatic Altimeter

The servopneumatic altimeter provides altitude indication using both electrical and pressure-based systems.

Altimeter Readout

The altimeter readout (1) displays altitude using three digital drums for 10,000, 1,000, and 100 feet, and a pointer on a circular scale indicating hundreds of feet.

A pointer on the circular scale provides continuous indication in hundreds of feet.

Baroset Knob

The baroset knob (2) sets local barometric pressure in inches of mercury (in.Hg).

This setting only affects the local altimeter display. Other CADC-driven digital indicators use a fixed 29.92 in.Hg reference.

Local Barometric Pressure Window

The local barometric pressure window (3), also known as the Kollsman window, displays the selected pressure setting.

Mode Switch

The mode switch (4) selects altimeter operating mode and is spring-loaded from RESET.

• RESET - When CADC power and altitude data are available, holding RESET for approximately three seconds enables normal servoed operation.
• STBY - Selects backup pressure mode.

If CADC data or electrical power is absent for more than three seconds, the system automatically reverts to standby mode.

STBY Flag

The STBY flag is a red standby indication that appears when the altimeter is operating in backup (standby) mode (not visible in this image).

💡 At high speeds and below 10,000 feet, pressure effects can produce significant readout errors: up to 1,200 feet when transonic and up to 4,000 feet when supersonic.

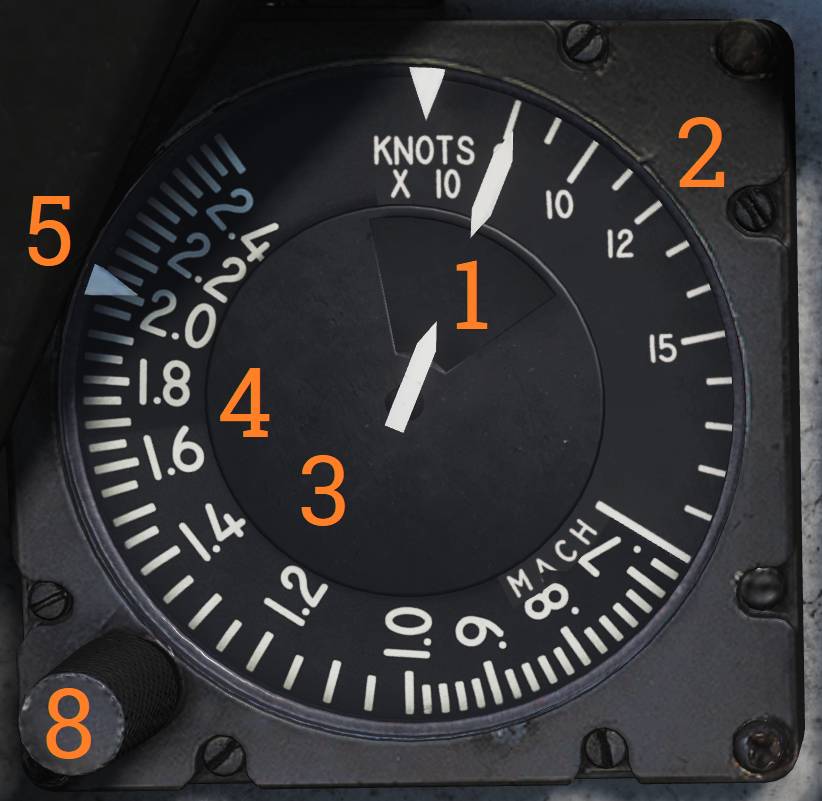

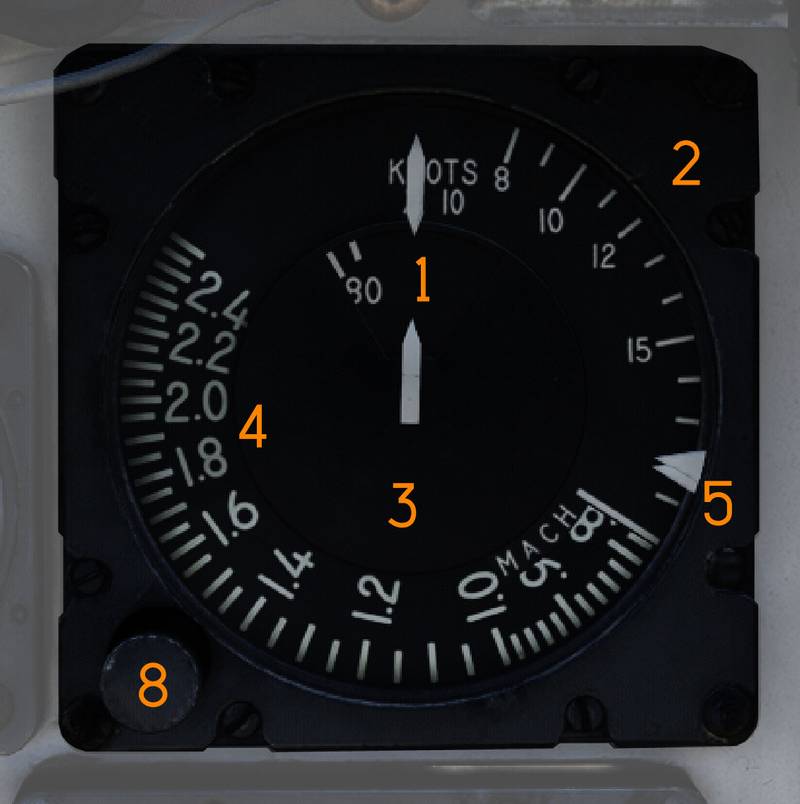

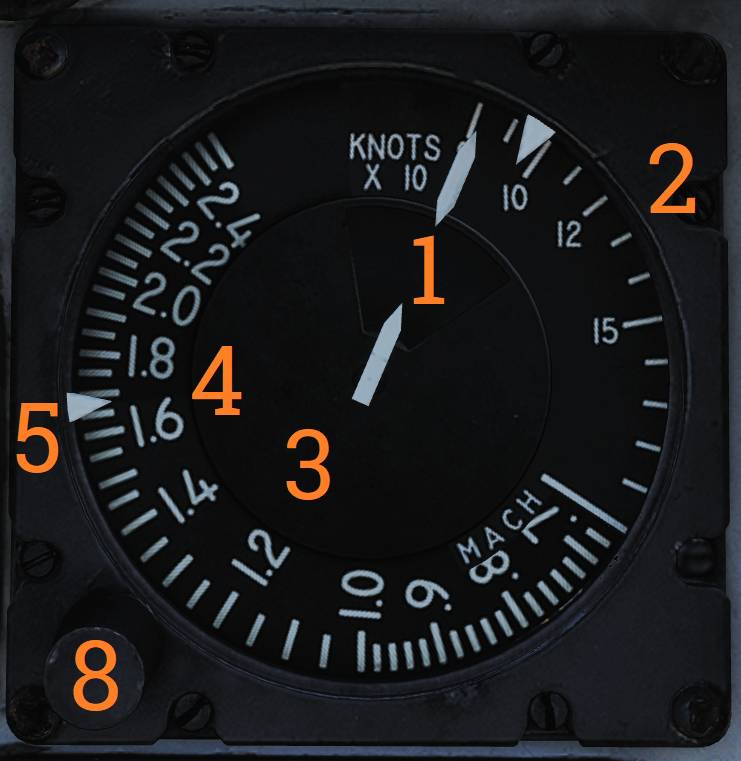

Airspeed Mach Indicator

Indicated airspeed and Mach number display.

Airspeed Dial

The airspeed dial (1) drives the airspeed and Mach indication across three scales.

Indicated Airspeed Scale (Outer)

The outer indicated airspeed scale (2) provides readout up to 200 knots.

Indicated Airspeed Scale (Inner)

The inner indicated airspeed scale (3) provides readout from 200 to 850 knots and is covered by the dial until applicable.

Mach Number Scale

The Mach number scale (4) provides Mach readout and shifts relative to indicated airspeed to indicate the correct Mach number.

Indicated Airspeed Index Pointer

The indicated airspeed index pointer (5) can be set to a desired indicated airspeed.

Mach Number Index Pointer

The Mach number index pointer (6) can be set to a desired Mach number.

Not visible in the image.

Safe Mach Number Index Pointer

The safe Mach number index pointer (7) indicates the CADC-computed safe Mach number.

Not visible in the image.

Index Knob

The index knob (8) is a push-pull knob used to select which index pointer is adjusted.

One position adjusts the indicated airspeed index and the other adjusts the Mach number index.

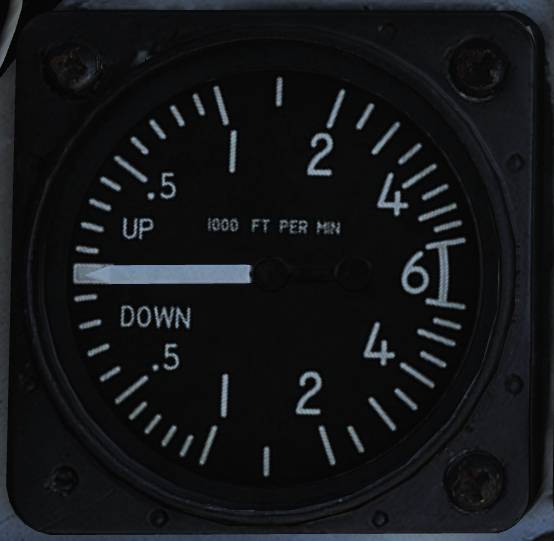

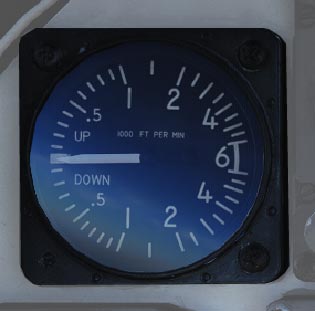

Vertical Velocity Indicator

Displays vertical velocity in thousands of feet per minute.

Sudden or abrupt attitude changes can produce erroneous indications due to airflow changes over the static probe.

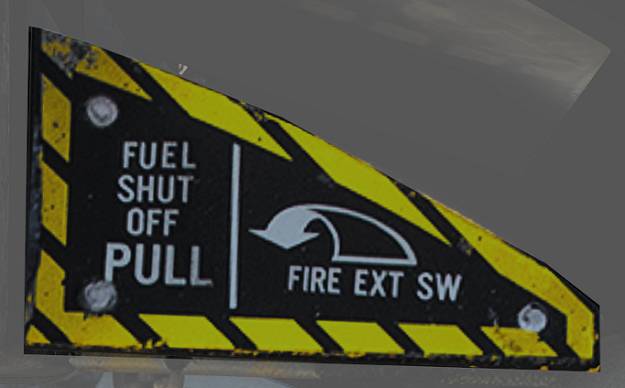

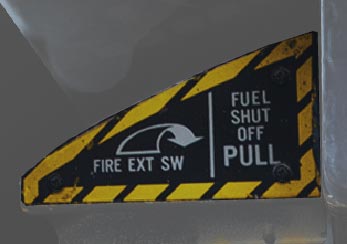

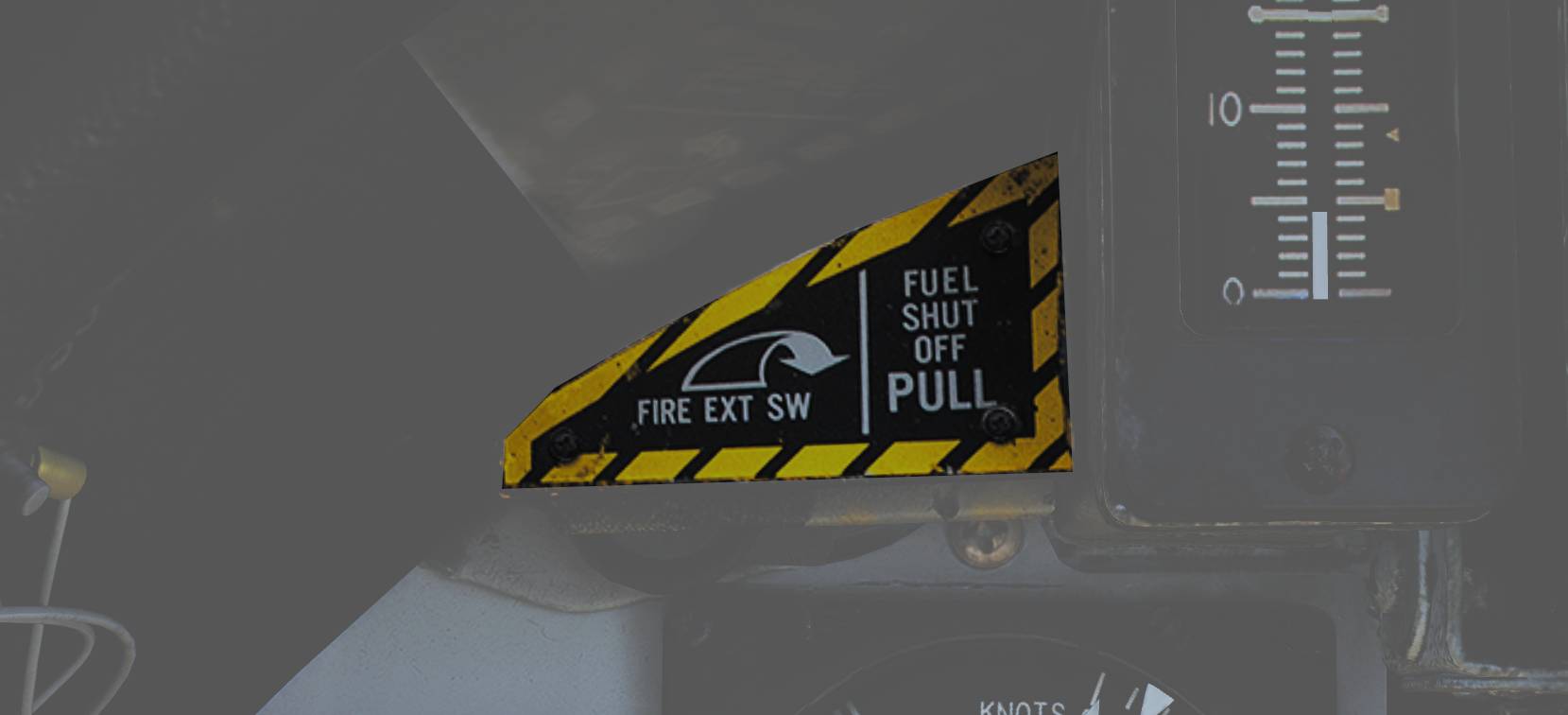

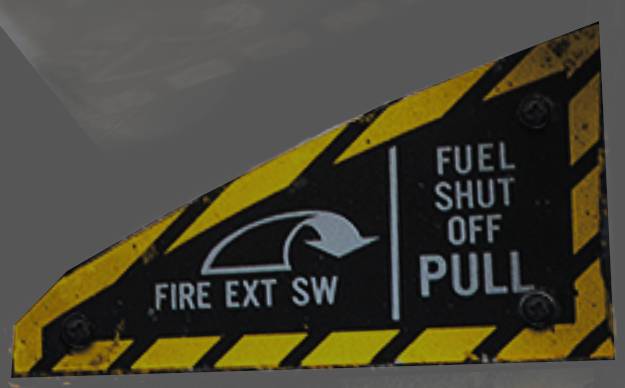

Left Engine Fuel Shutoff Handle

Emergency fuel shutoff handle for the left engine.

Pulling the handle shuts off fuel flow to the left engine. Pushing the handle in restores fuel flow.

This handle should not be used to normally secure the engine.

A left engine fire extinguishing button is located behind the handle and is accessible when the handle is pulled out.

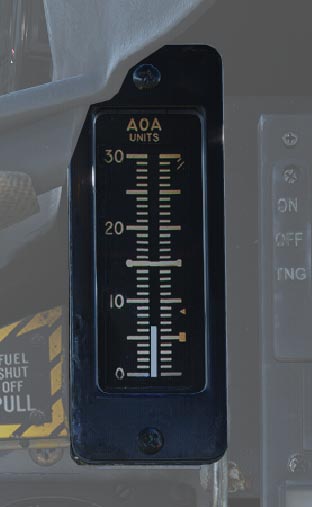

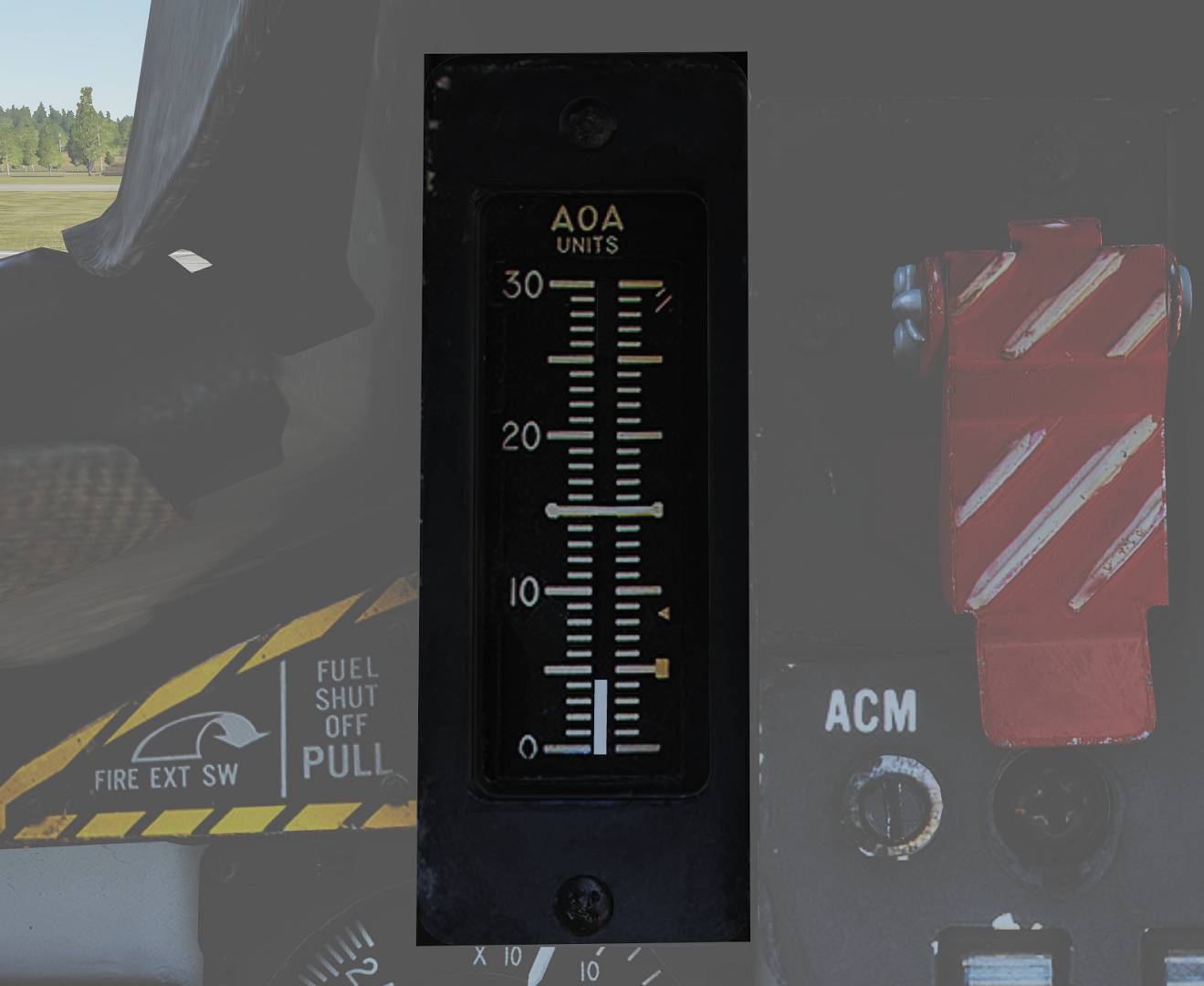

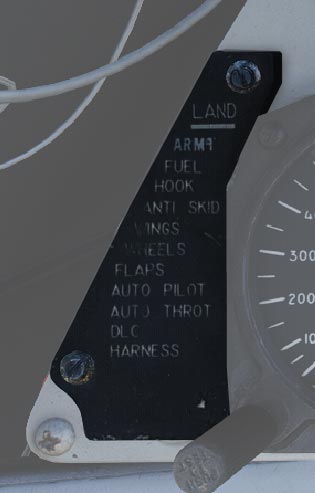

Angle-of-Attack Indicator

Displays angle of attack (AOA) on a tape scale from 0 to 30 units.

This corresponds approximately to -10° to +40° rotation of the AOA probe.

Reference markers are provided on the right side for climb (5), cruise (8.5), and stall (29). A reference bar indicates on-speed approach (15).

Left Windshield Frame

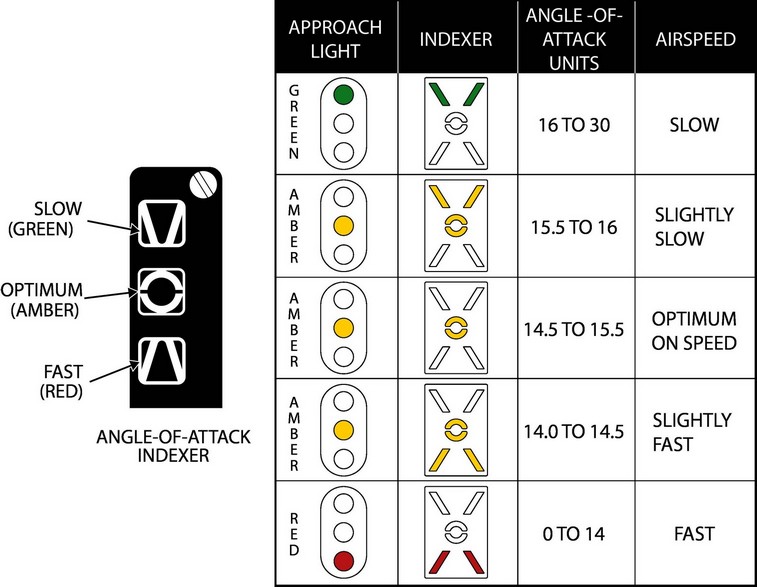

Approach Indexer

The approach indexer provides visual indication of aircraft angle of attack relative to on-speed AOA during landing.

Three lights are displayed:

• Green — Indicates aircraft is slow (AOA too high).
• Amber — Indicates on-speed AOA.
• Red — Indicates aircraft is fast (AOA too low).

When the HOOK BYPASS switch is set to CARRIER and the landing gear is down, the indexer lights will flash if the arresting hook is not extended.

These indications are repeated on the nosewheel strut approach lights, allowing the landing signal officer (LSO) to observe aircraft AOA during carrier recoveries.

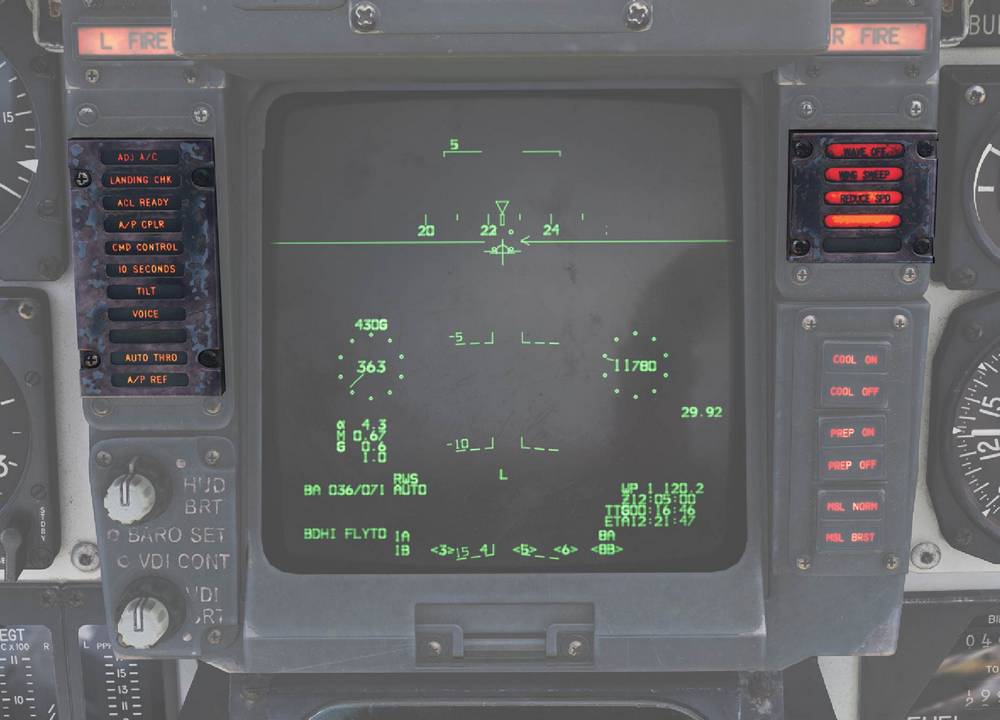

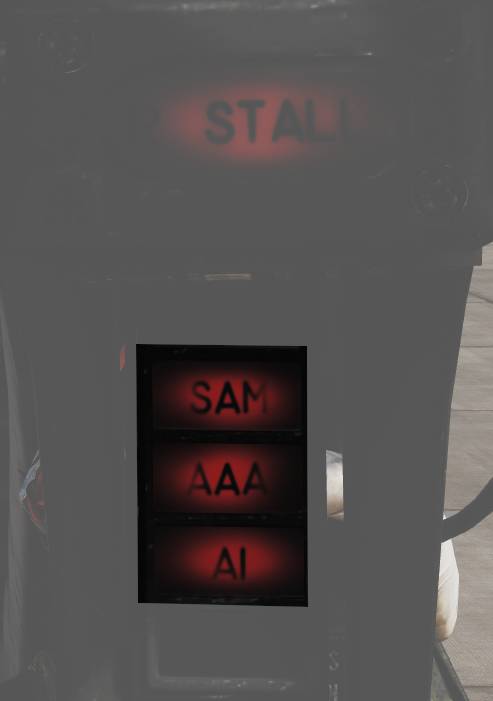

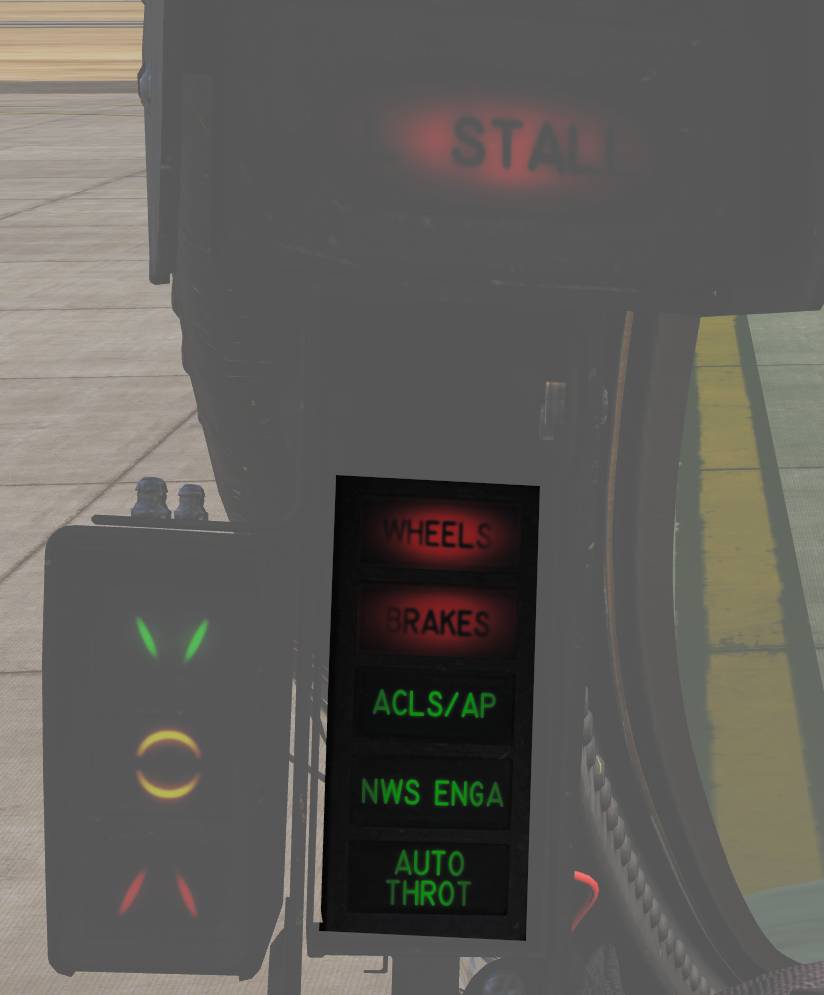

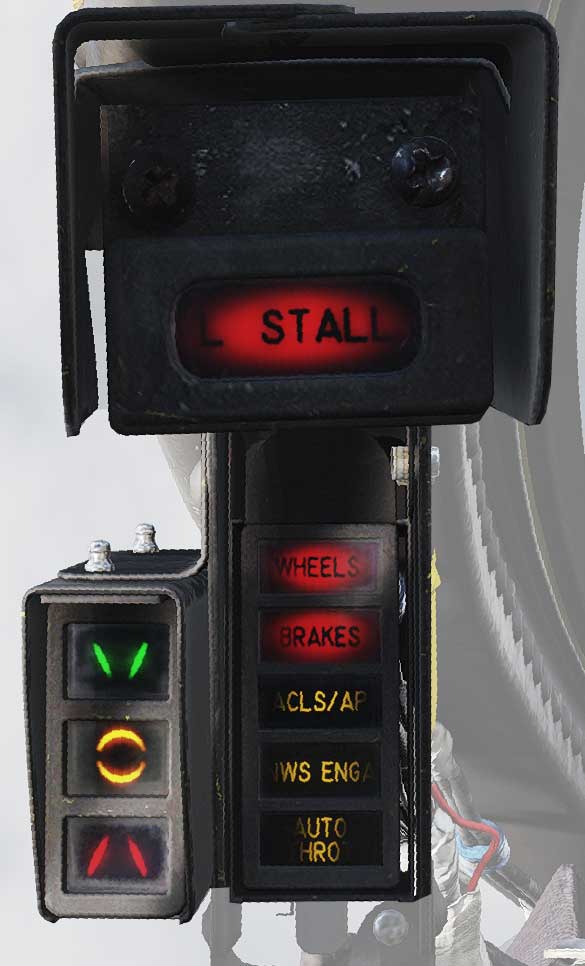

HUD Caution Lights

Several caution and warning indicators are located to the left of the HUD.

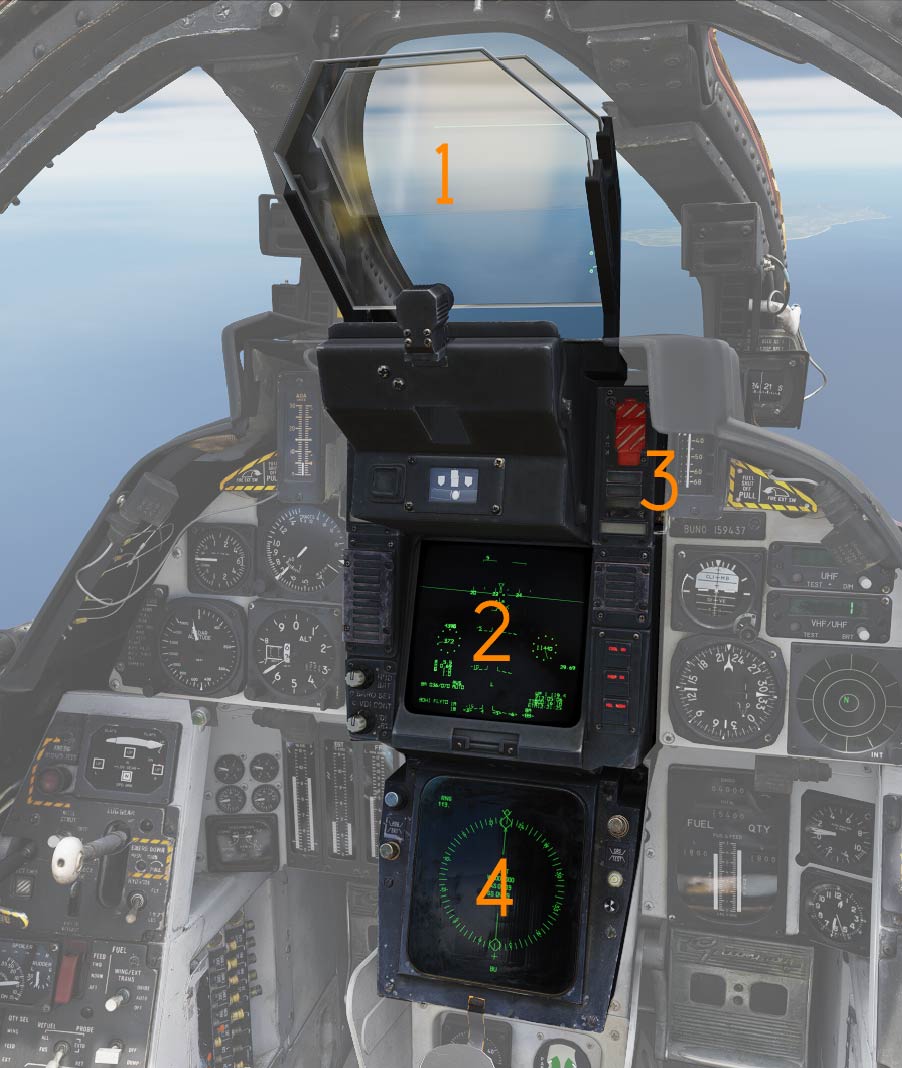

Center Panel

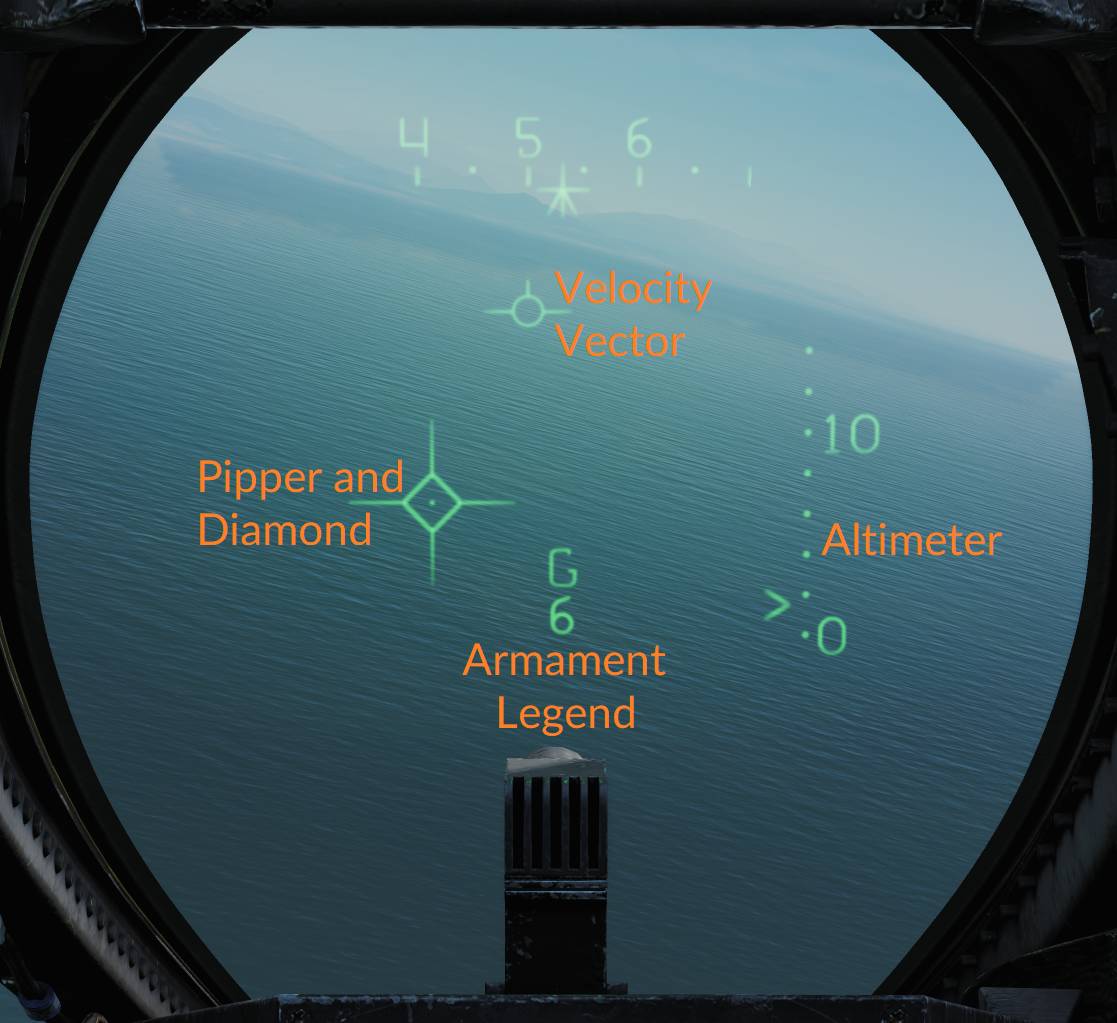

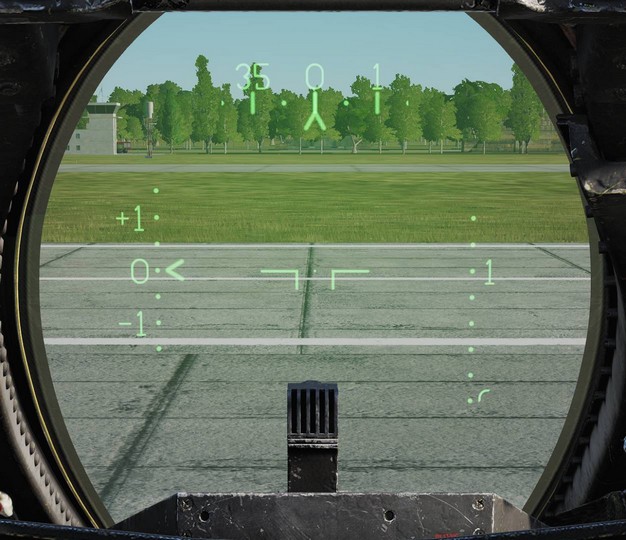

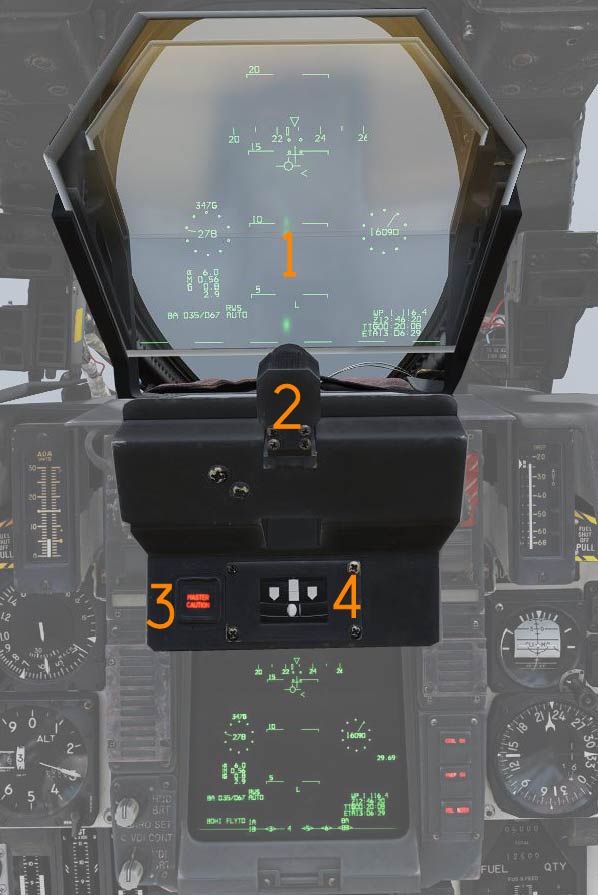

Heads-Up Display

The heads-up display (HUD) projects flight and weapon delivery information onto the forward portion of the canopy/windscreen.

Night mode is selected using the control on the right side of the VDI.

Two engine stall warning lights, L STALL and R STALL, are mounted on the left and right sides of the HUD, respectively. Each light indicates an engine stall condition in the corresponding engine.

💡 For more information see relevant chapters under Navigation and Weapons and Weapons Employment Overview.

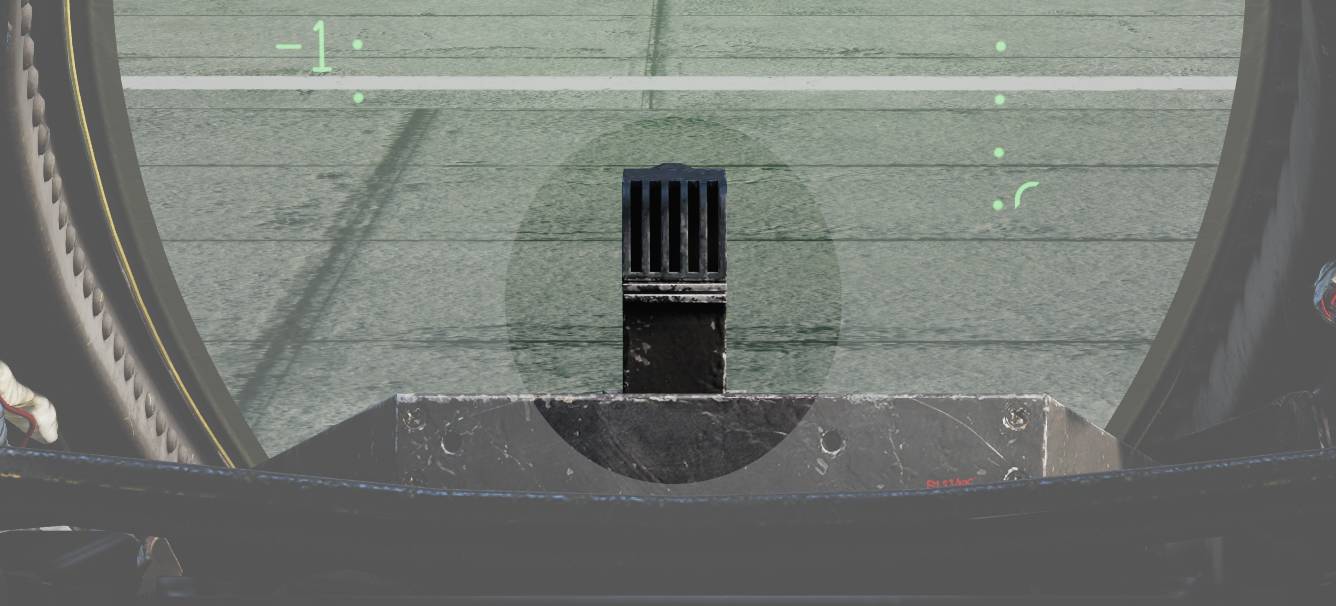

Cockpit Television Sensor (CTVS)

The cockpit television sensor (CTVS) records the HUD for registration of weapons delivery. It can be removed/hidden by clicking on it. Realistically, some pilots carried a wrench and removed it for improved visibility during carrier landings.

💡 Recording functionality not currently implemented in DCS.

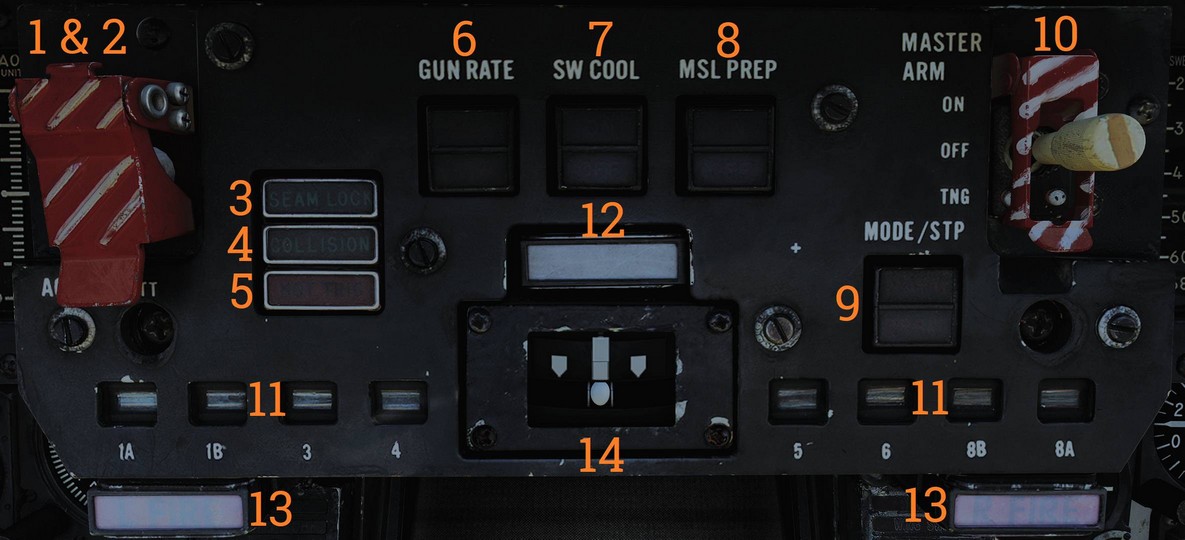

Air Combat Maneuver Panel

Main pilot armament control panel.

ACM Switch/Cover

The ACM (Air Combat Maneuver) switch/cover (1) enables ACM mode when lifted and provides access to the ACM JETT button.

ACM Jettison Button

The ACM JETT button (2) is located under the ACM cover and commands jettison of stores selected on the RIO’s ARMAMENT panel.

Sidewinders are not jettisoned even if selected.

SEAM Lock Light

The SEAM LOCK light (3) illuminates to indicate that Sidewinder acquisition is in progress while in slaved and boresight SEAM modes.

The light illuminates during the 4.5-second SEAM acquisition attempt and remains illuminated if the seeker locks onto a target.

Collision Light

The COLLISION light (4) indicates collision steering has been selected during AWG-9 STT operation.

Hot Trigger Light

The HOT TRIG light (5) illuminates when HOT TRIGGER conditions are satisfied. When illuminated, pulling the trigger will release a weapon.

Gun Rate Pushbutton

Toggle pushbutton with light indication (6) selecting the M61 gun firing rate.

• HIGH - Selects 6,000 rounds per minute. Normally used for air-to-air operation.
• LOW - Selects 4,000 rounds per minute. Normally used for air-to-ground operation.

The gun rate is automatically set to HIGH when ACM mode is selected.

Sidewinder Cooling Pushbutton

Toggle pushbutton with light indication (7) providing manual control of Sidewinder seeker cooling.

Sidewinder cooling is automatically set to ON when ACM mode is selected.

Missile Preparation Pushbutton

Toggle pushbutton with light indication (8) commanding the WCS to prepare AIM-54 and AIM-7 missiles.

Missile preparation is automatically set to ON when ACM mode is commanded.

Missile Mode Pushbutton

Toggle pushbutton with light indication (9) selecting missile launch mode.

• NORM - Normal missile launch mode.
• BRSIT - Boresight missile launch mode.

Controlled by the WCS when in ACM mode.

Master Arm Switch

The MASTER ARM switch (10) enables weapons release and selective and auxiliary jettison.

• OFF - Disables electrical power to release circuitry.
• ON - Enables electrical power to release circuitry. Position is locked until the master arm cover is lifted.
• TNG - Enables in-flight training mode.

💡 The MASTER ARM bus is interlocked with the landing gear control lever, disabling all releases except emergency jettison while the gear is down.

💡 ACM jettison and emergency jettison are not disabled by MASTER ARM.

Station Status Flags

Station status flags (11) indicate weapon readiness for each station.

• BLACK - Station not loaded or weapon not ready.
• WHITE - Station and weapon ready.
• CHECKERBOARD - Weapon selected and ready for launch. While on the ground, this indicates fuselage rails are up and locked and that loaded weapons are armed.

Master Caution Light and Button

The MASTER CAUTION light and reset button (12) flashes to indicate a status change on the pilot caution/advisory panel.

Press to acknowledge and extinguish the light until the next event.

Engine Fire Warning Lights

The L FIRE and R FIRE lights (13) illuminate when fire is detected in the respective engine.

Turn-and-Slip Indicator

The turn-and-slip indicator (14) displays rate of turn about the aircraft vertical axis and slip/skid.

The upper section contains an electrically driven pointer, where one needle deflection corresponds to a 360° turn in four minutes. The lower section contains an inclinometer with a ball suspended in damping fluid.

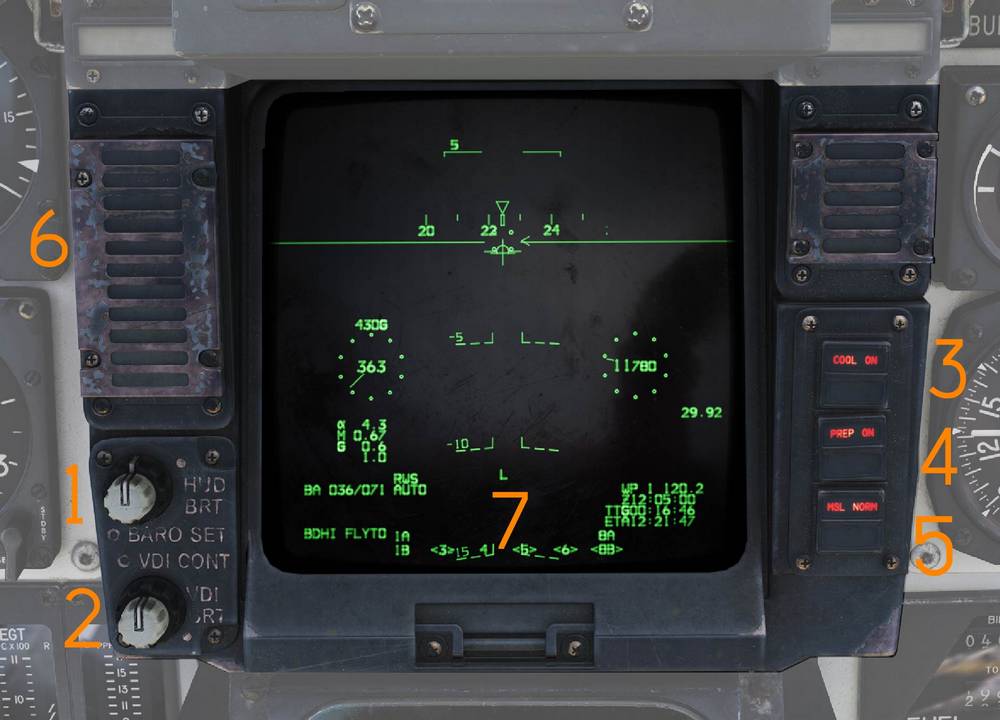

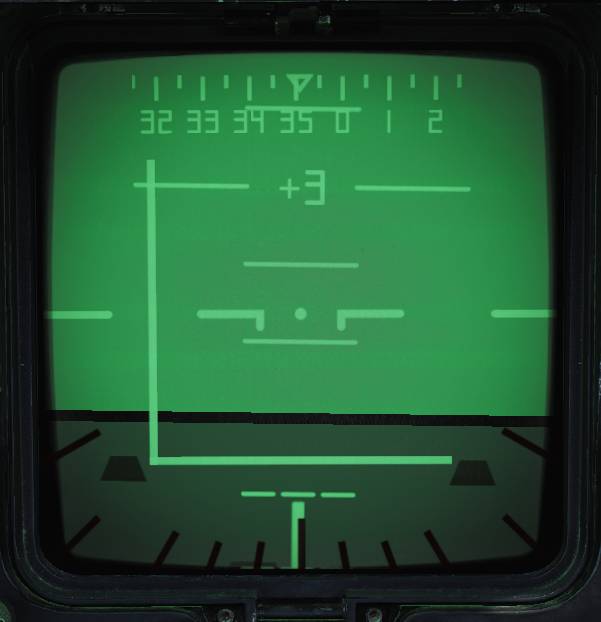

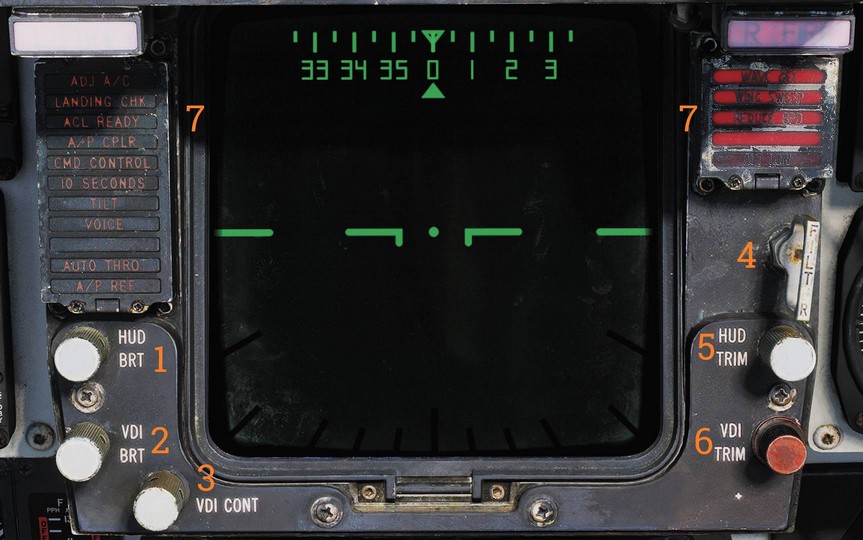

Vertical Display Indicator (VDI)

The vertical display indicator (VDI) complements the HUD by displaying flight and weapon information.

💡 The VDI has a red night filter that can be installed by clicking in the middle of the VDI screen.

HUD Brightness Control

The HUD BRT control (1) adjusts HUD brightness.

VDI Brightness Control

The VDI BRT control (2) adjusts VDI brightness.

VDI Contrast Control

The VDI CONT control (3) adjusts VDI contrast.

Filter Handle

The FILTER handle (4) inserts the night filter for HUD night operation when pulled.

HUD Trim Control

The HUD TRIM control (5) adjusts/aligns pitch lines on the HUD.

VDI Trim Control

The VDI TRIM control (6) adjusts/aligns pitch lines on the VDI.

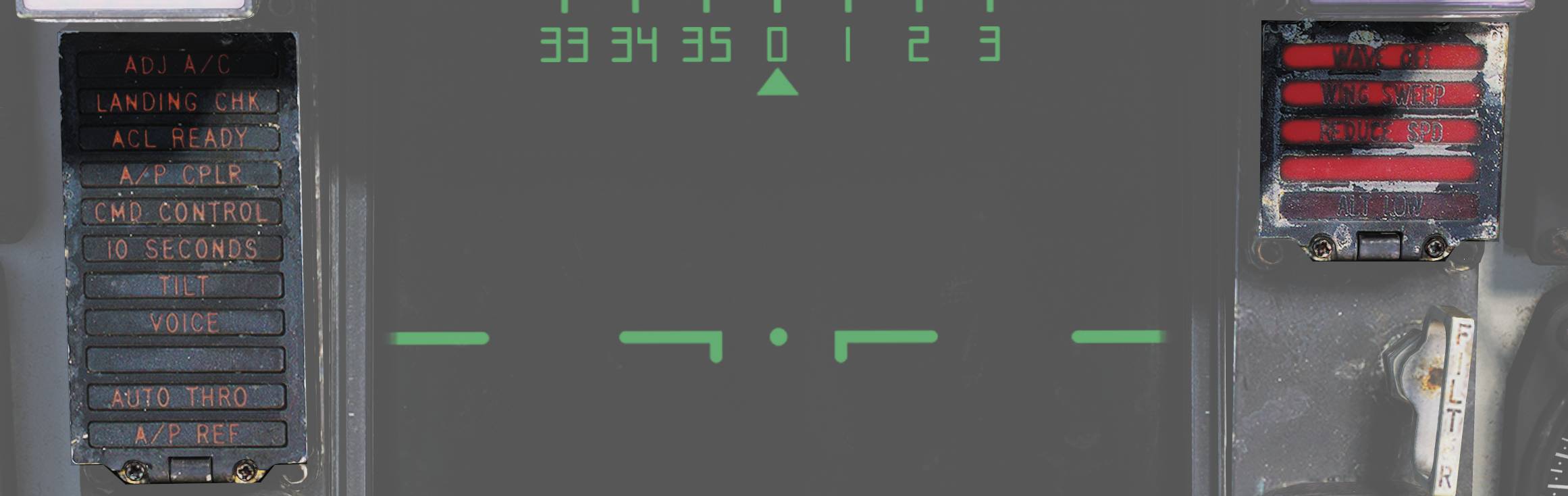

VDI Caution Lights

VDI-mounted caution lights (7) provide data link warning and caution indications.

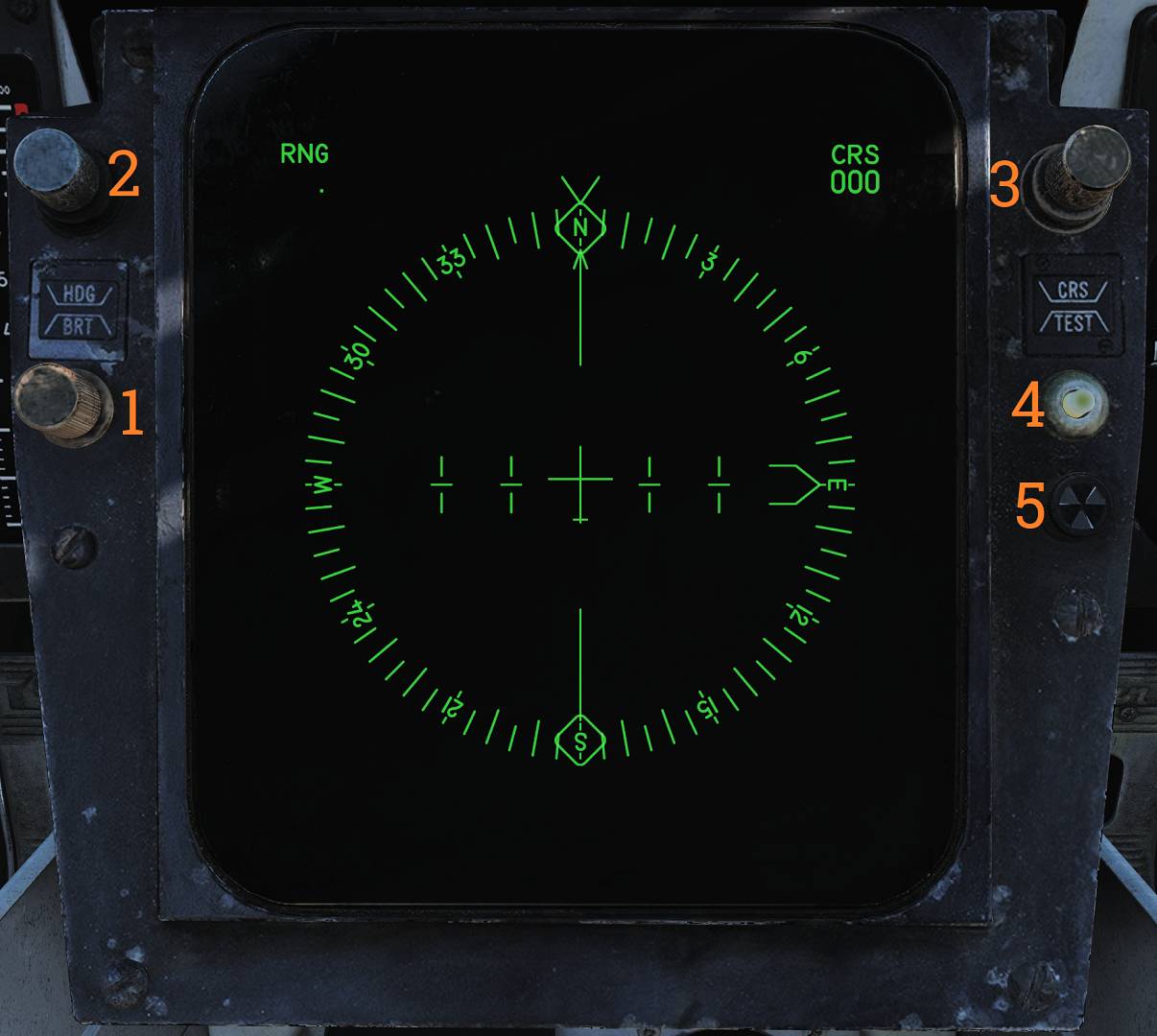

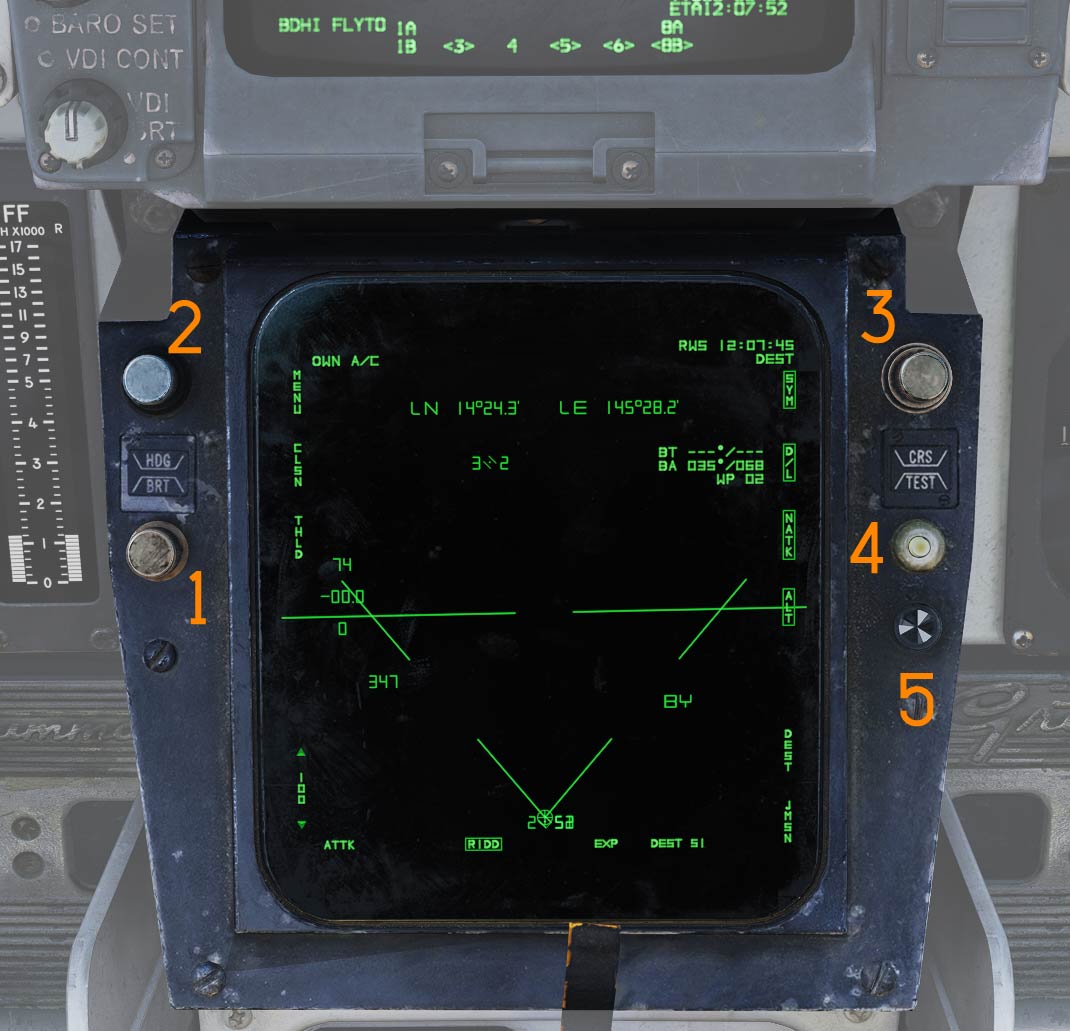

Horizontal Situation Display Indicator (HSD)

The horizontal situation display (HSD) displays navigational information to the pilot and can repeat the RIO’s TID.

HSD Brightness Control

The BRT control (1) adjusts HSD brightness.

Heading Bug Control

The HDG control (2) adjusts the heading reference bug in TACAN mode.

Course Control

The CRS control (3) sets desired course in MAN (manual) and TACAN modes.

Test Button

The TEST button (4) resets the HSD if overload protection has tripped and displays the HSD IR field test display.

BIT Indicator

The BIT indicator (5) indicates HSD failure by displaying white flags. Reset by rotating clockwise.

💡 For more information see relevant chapters under Navigation and for the TID repeat Tactical Information Display (TID) and Associated Controls.

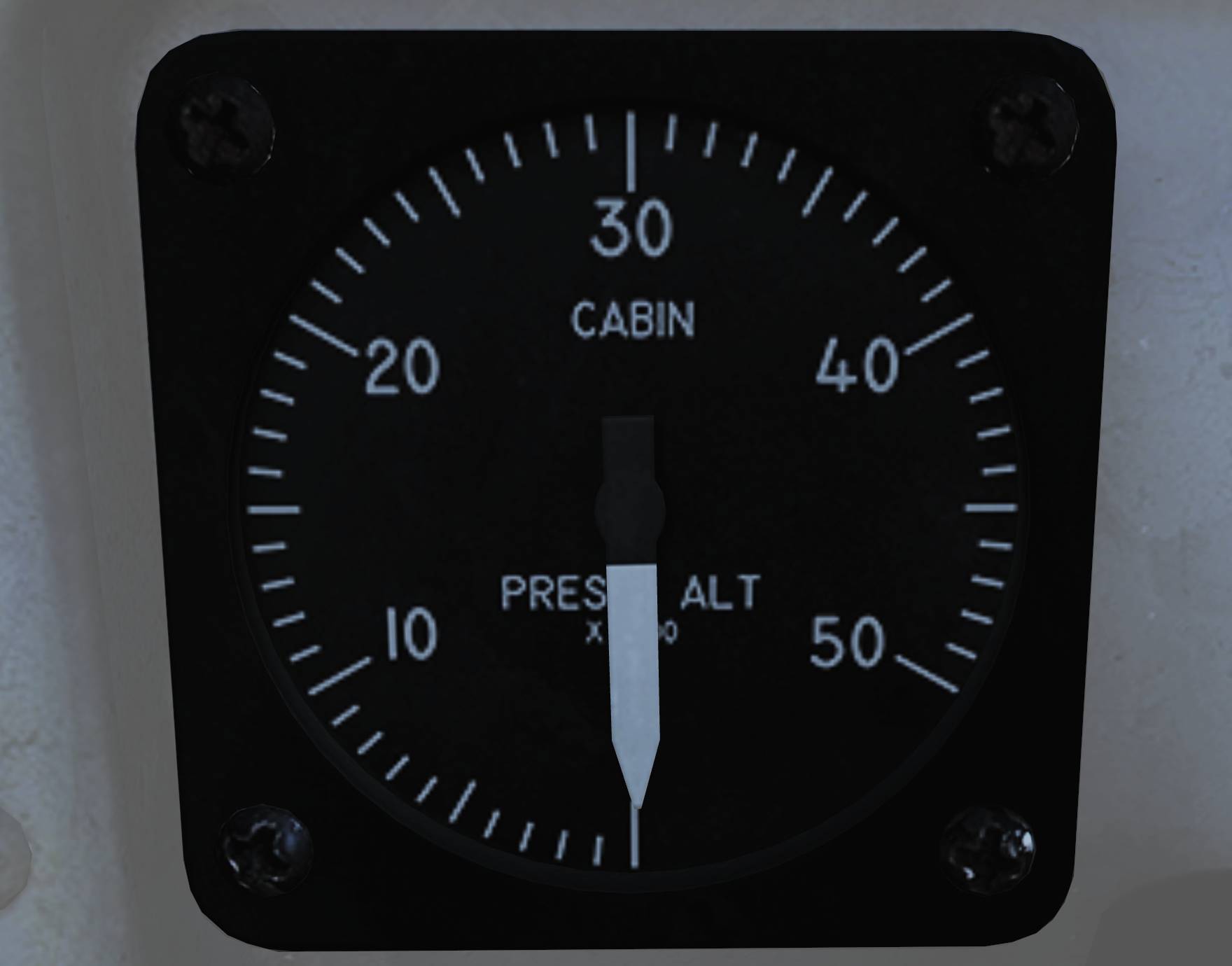

Cabin Pressure Altimeter

Displays cabin pressure in 1,000-foot increments from 0 to 50,000 feet.

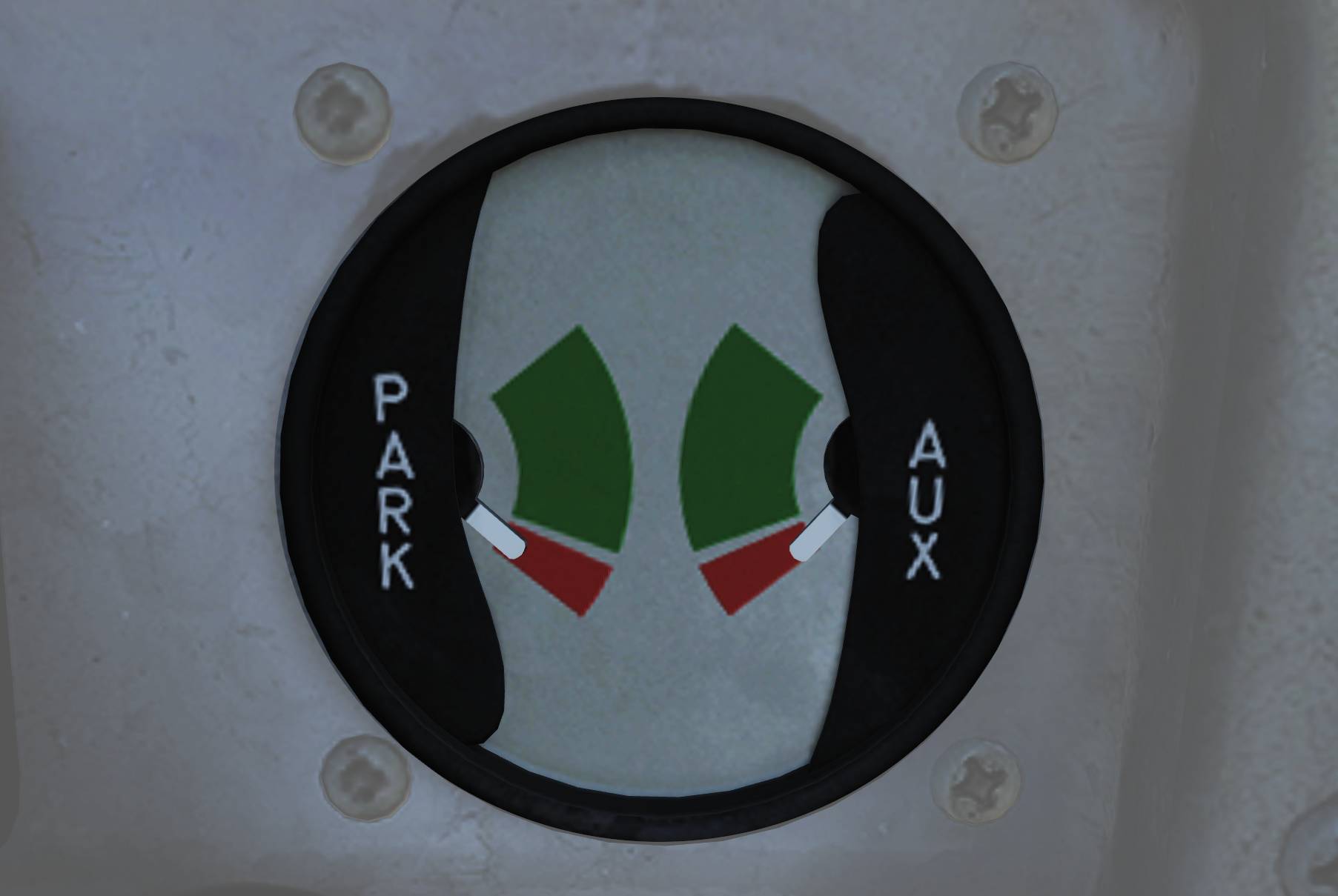

Emergency Brake Pressure Indicator

Displays hydraulic pressure available from the emergency brake accumulators to the auxiliary and parking wheel brake systems.

Parking Brake Pressure

The PARK indication shows brake pressure available for parking brakes.

The green segment indicates 2,150 to 3,000 psi and the red segment indicates 1,900 to 2,150 psi. When in the green, sufficient pressure is available for approximately three brake applications.

Auxiliary Brake Pressure

The AUX indication shows brake pressure available for the auxiliary brake system, usable via toe brakes.

The green segment indicates 2,150 to 3,000 psi (approximately 13 to 14 applications) and the red segment indicates 1,900 to 2,150 psi (approximately five applications).

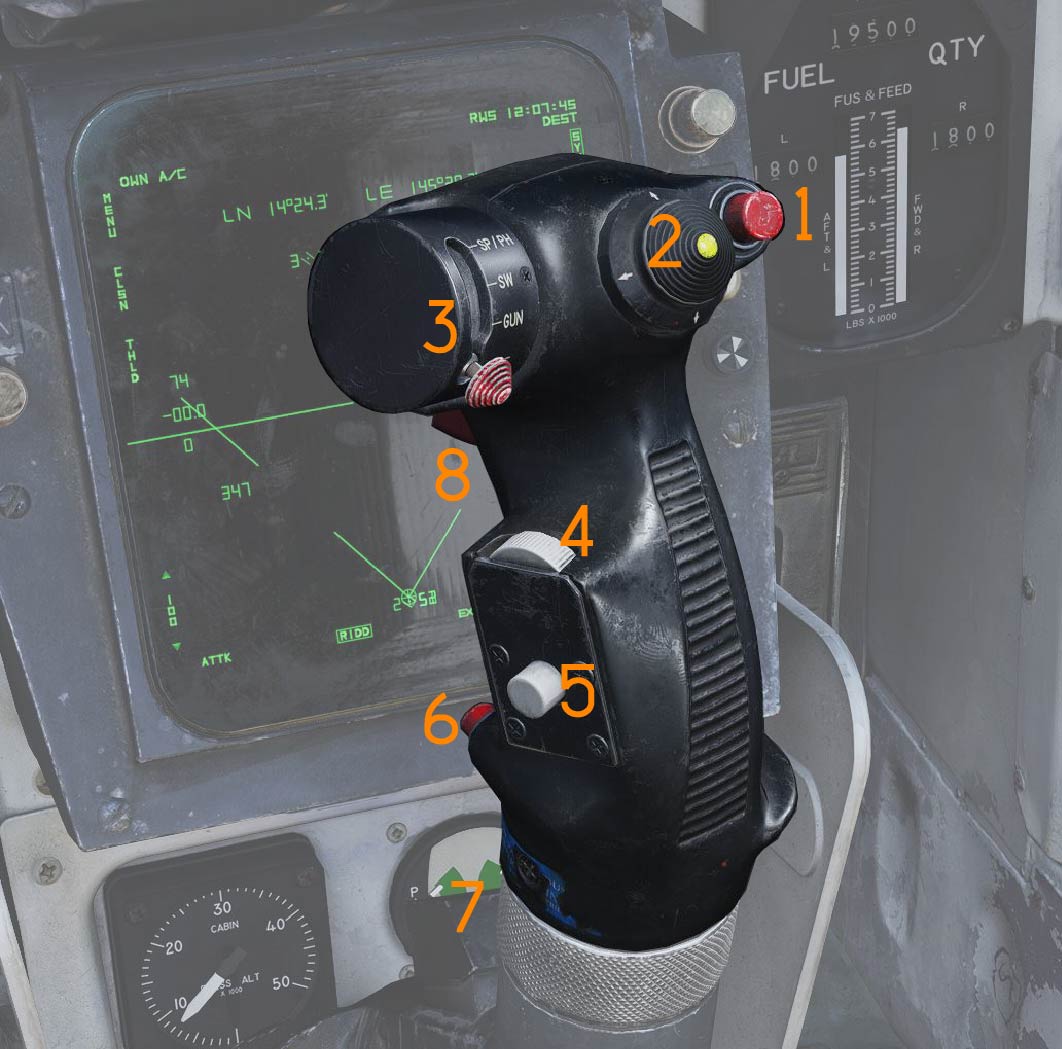

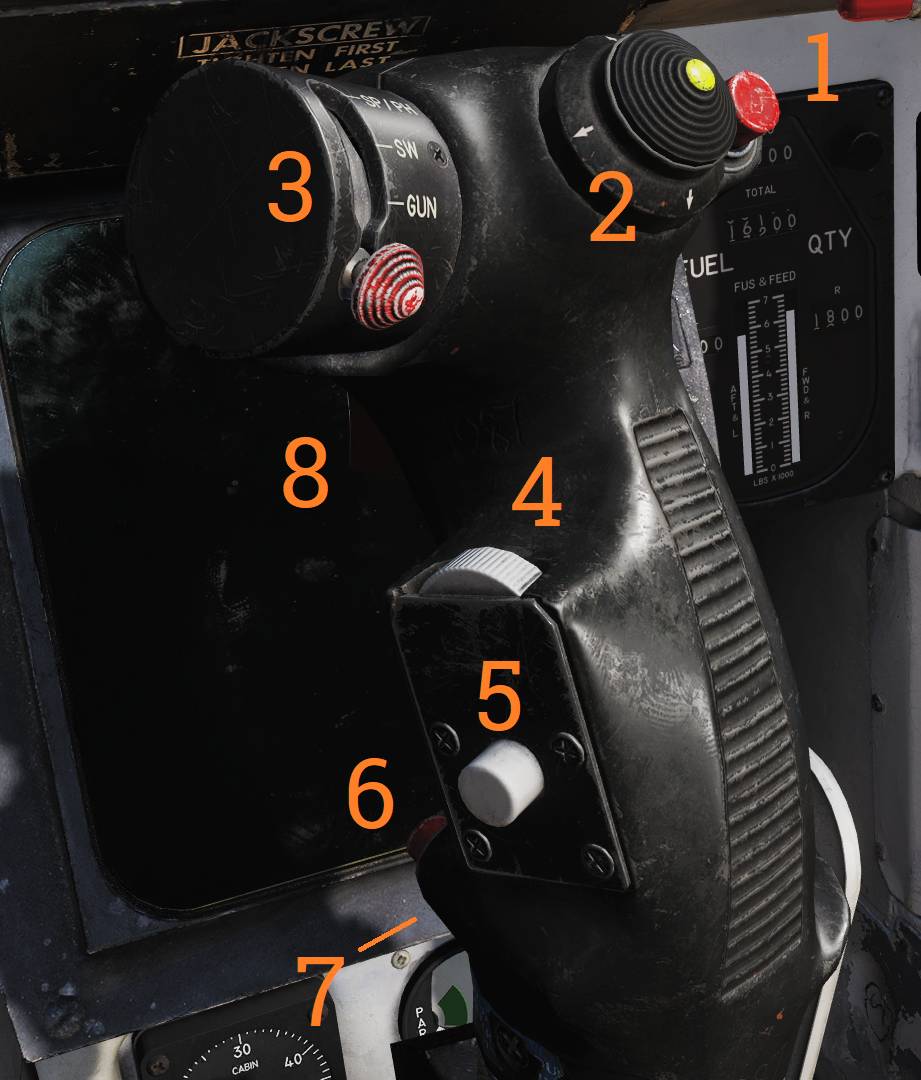

Control Stick

The control stick provides aircraft roll and pitch control and contains additional weapon and aircraft control functions.

Bomb Release Button

The bomb release button (1) is the stores release control used for air-to-ground ordnance (except rockets) and loaded external countermeasures.

Pitch and Roll Trim Hat

The pitch and roll trim hat (2) controls aircraft trim.

Up/down commands pitch trim and left/right commands roll trim.

Weapon Select Hat

Selector hat (3) moveable up and down and depressible. Used to select weapon type and variants.

• SP or PH - Selects AIM-7 or AIM-54. Depression toggles between types.
• SW - Selects AIM-9. Depression toggles between stations.
• GUN - Selects M61A1 Vulcan gun.
• OFF - Inhibits weapon release.

DLC and Maneuver Flap Command Wheel

The DLC and maneuver flap command wheel (4) controls DLC or maneuver flaps depending on configuration.

With DLC engaged, forward rotation extends spoilers and aft rotation retracts spoilers.

With flaps up and DLC disengaged, forward rotation retracts maneuvering flaps/slats and aft rotation extends them.

The control logic is that pulling the wheel toward the pilot increases lift and pushing it away decreases lift.

DLC Engage/Disengage and Countermeasure Dispense Button

The DLC engage/disengage and countermeasure dispense button (5) engages DLC when flaps are down, throttles are below MIL, and no spoiler system failure is present.

With flaps up, this button commands the ALE-39 to dispense chaff or flares per RIO settings.

DLC disengages with another momentary press, raising flaps, or advancing either throttle to MIL.

Autopilot Reference and Nosewheel Steering Button

The autopilot reference and nosewheel steering button (6) toggles nosewheel steering with weight on wheels.

With weight off wheels, it engages enabled autopilot modes.

Autopilot Emergency Disengage Paddle

The autopilot emergency disengage paddle (7) disengages all autopilot modes and DLC and releases autopilot switches and roll and pitch SAS switches to OFF.

With weight on wheels, it additionally reverts throttle mode to MAN (manual) while depressed.

Weapon Firing Trigger

The weapon firing trigger (8) is a two-stage trigger.

The first detent enables CTVS and gun camera. The second detent releases the selected forward-firing weapon.

💡 CTVS and gun camera are not implemented in DCS.

Right Windshield Frame

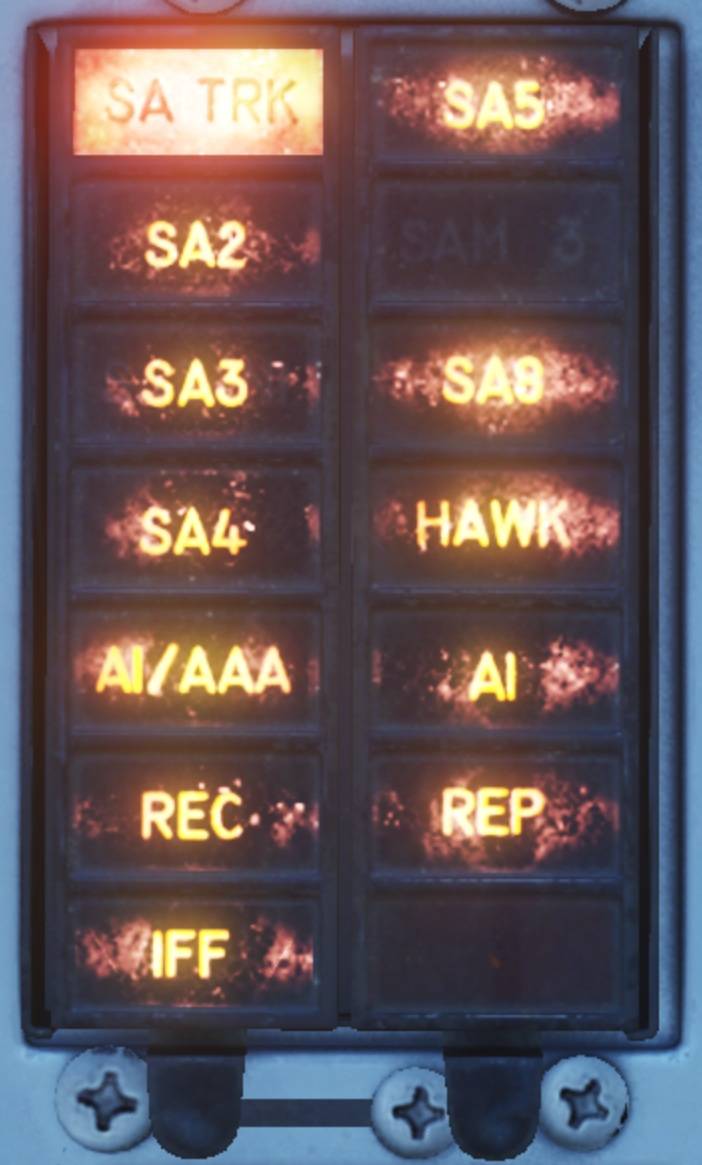

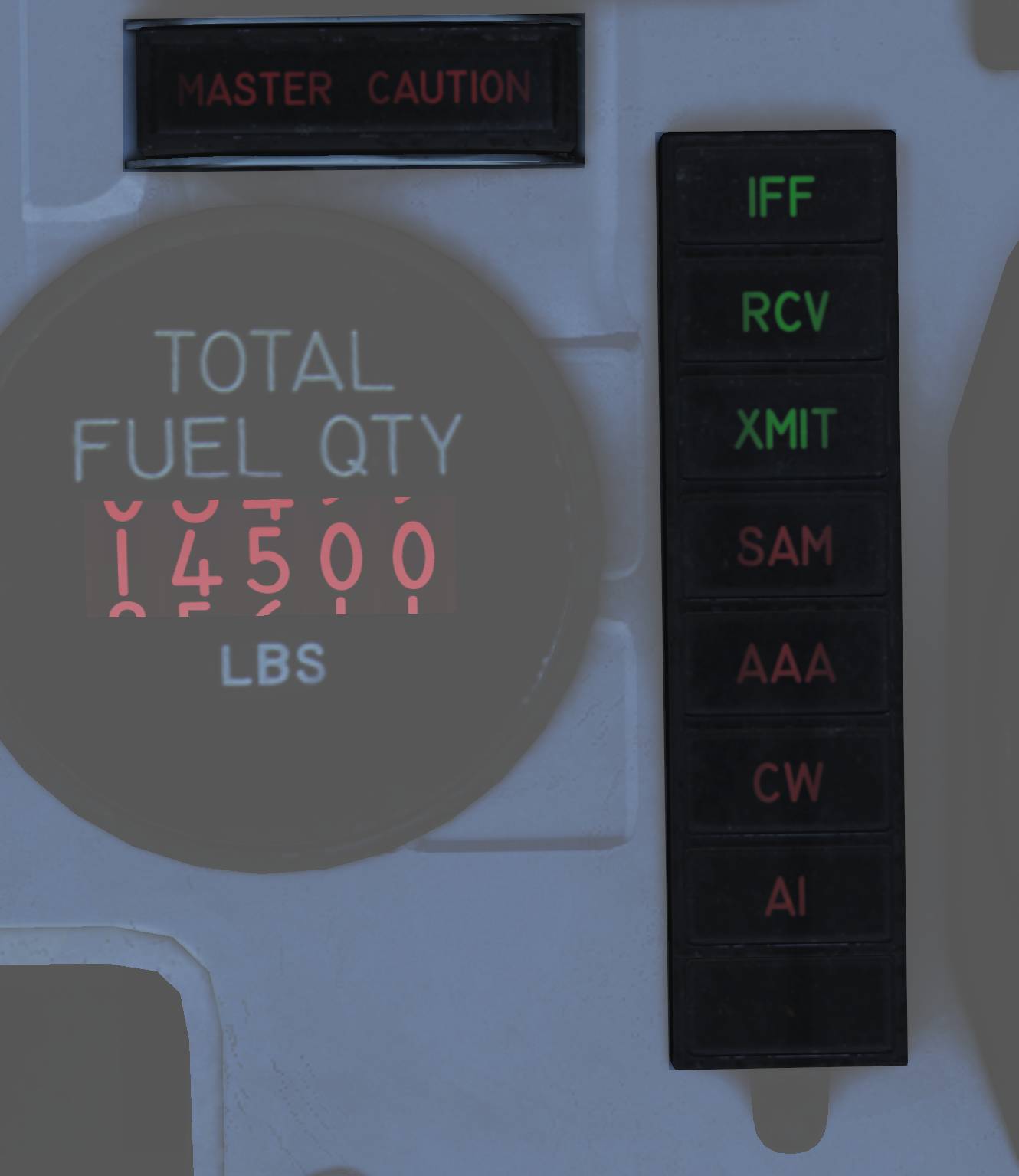

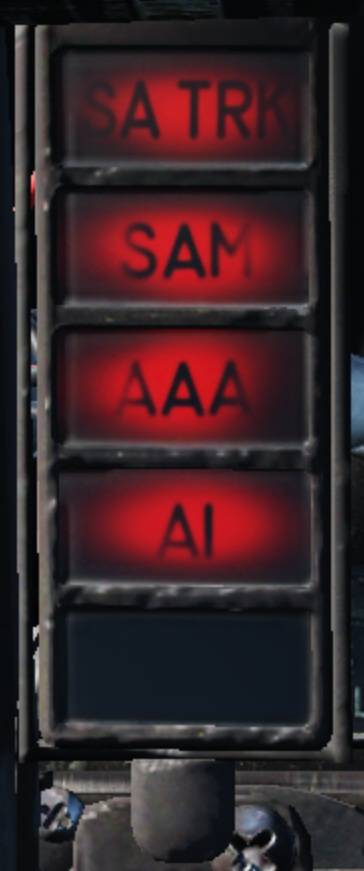

ECM Warning Lights

Warning lights connected to the ALR-67 indicating different types of threats.

ALR-67

ALR-45

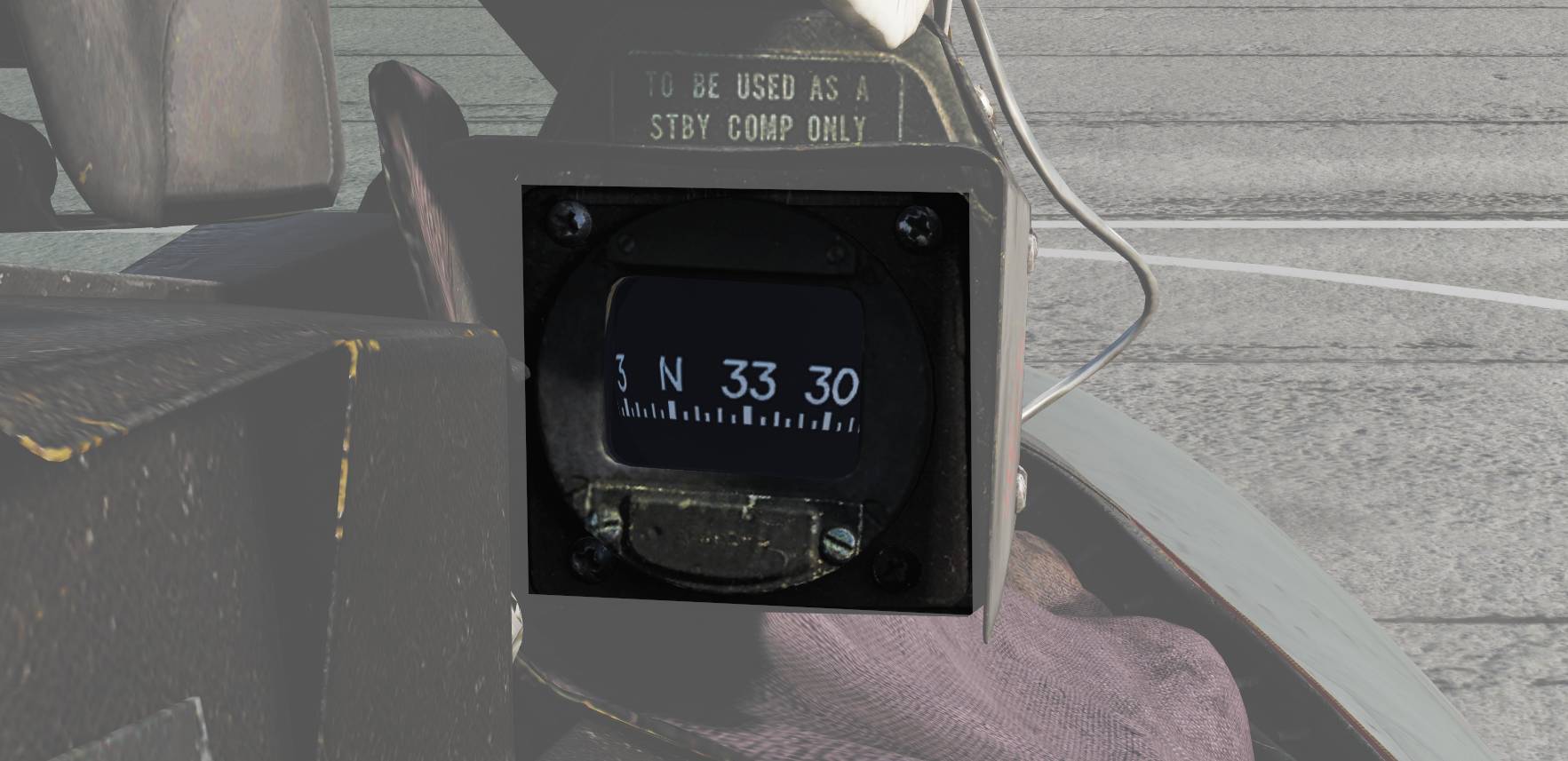

Standby Compass

Conventional standby compass.

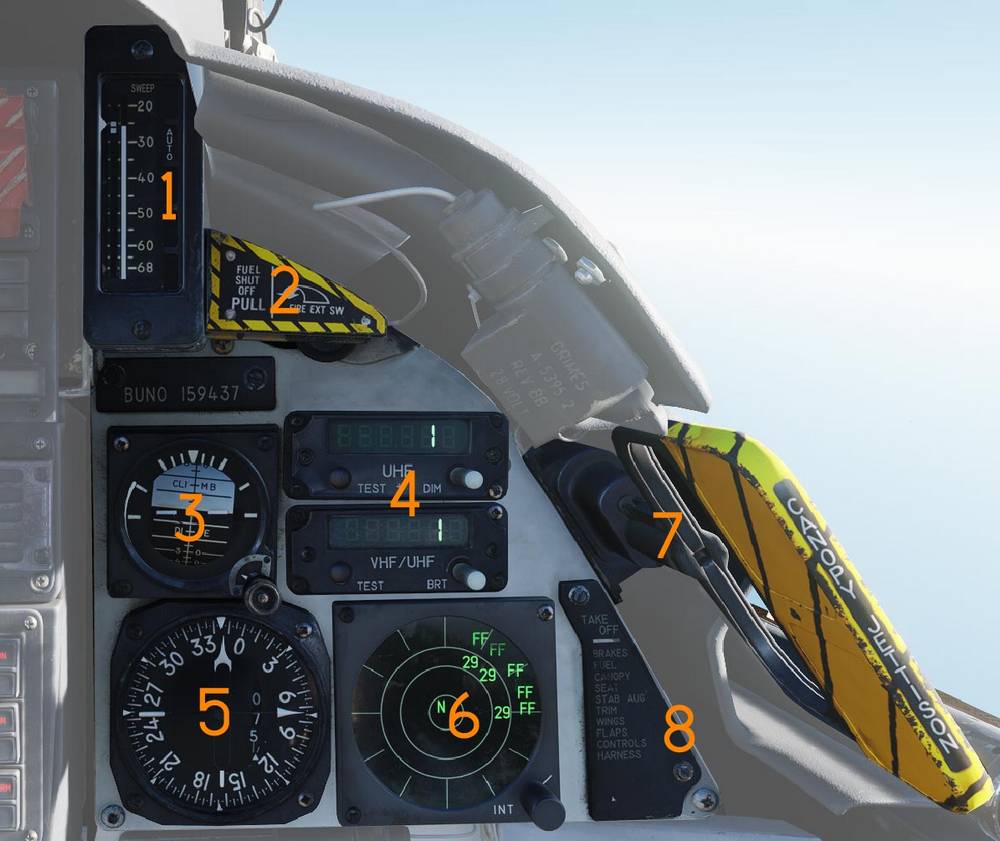

Right Instrument Panel

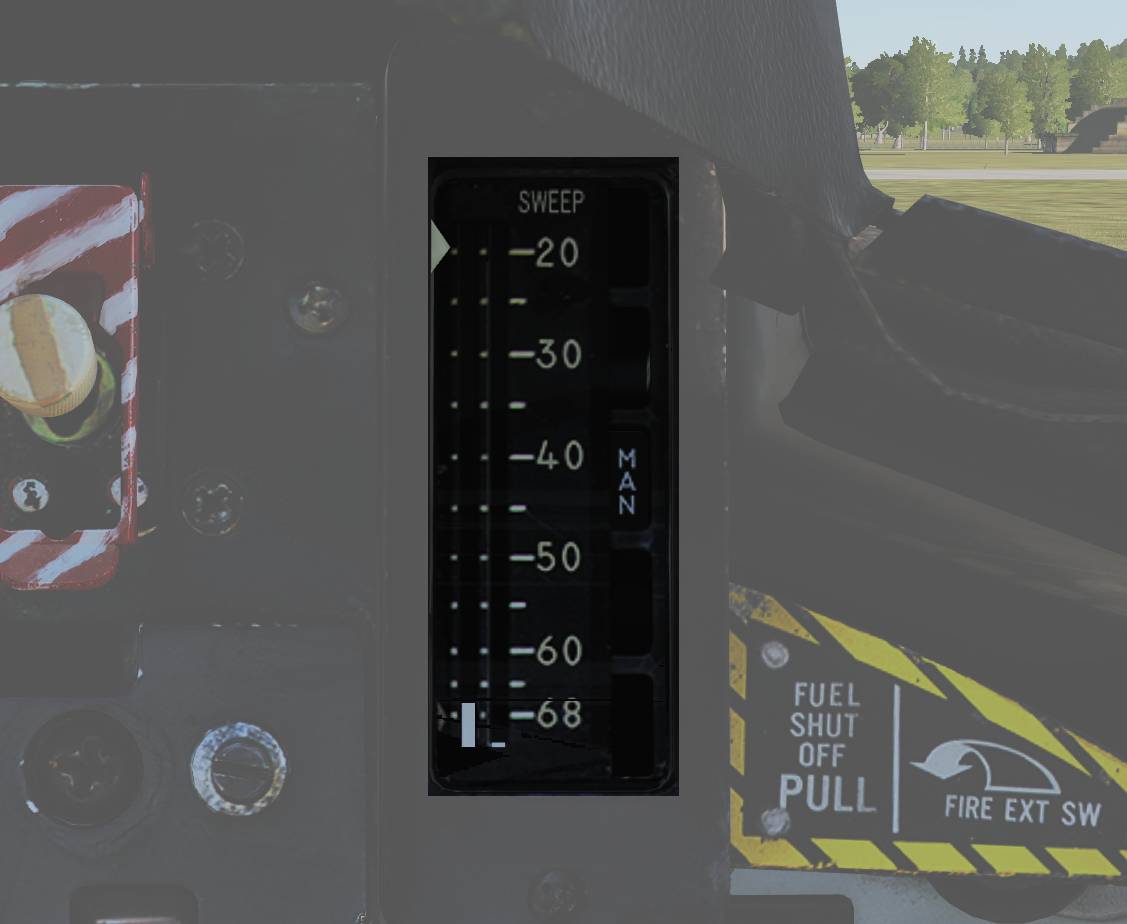

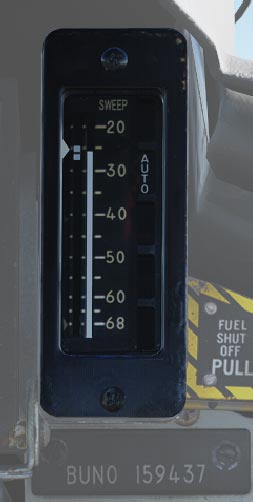

Wing-Sweep Indicator

Indicator detailing status of the wing-sweep system.

Leftmost indicator pointer shows wing-sweep program position which is also the max forward angle at present airspeed and altitude.

Middle tape shows commanded wing-sweep position.

Rightmost tape shows actual wing-sweep position.

The five indicator windows shows current operating mode.

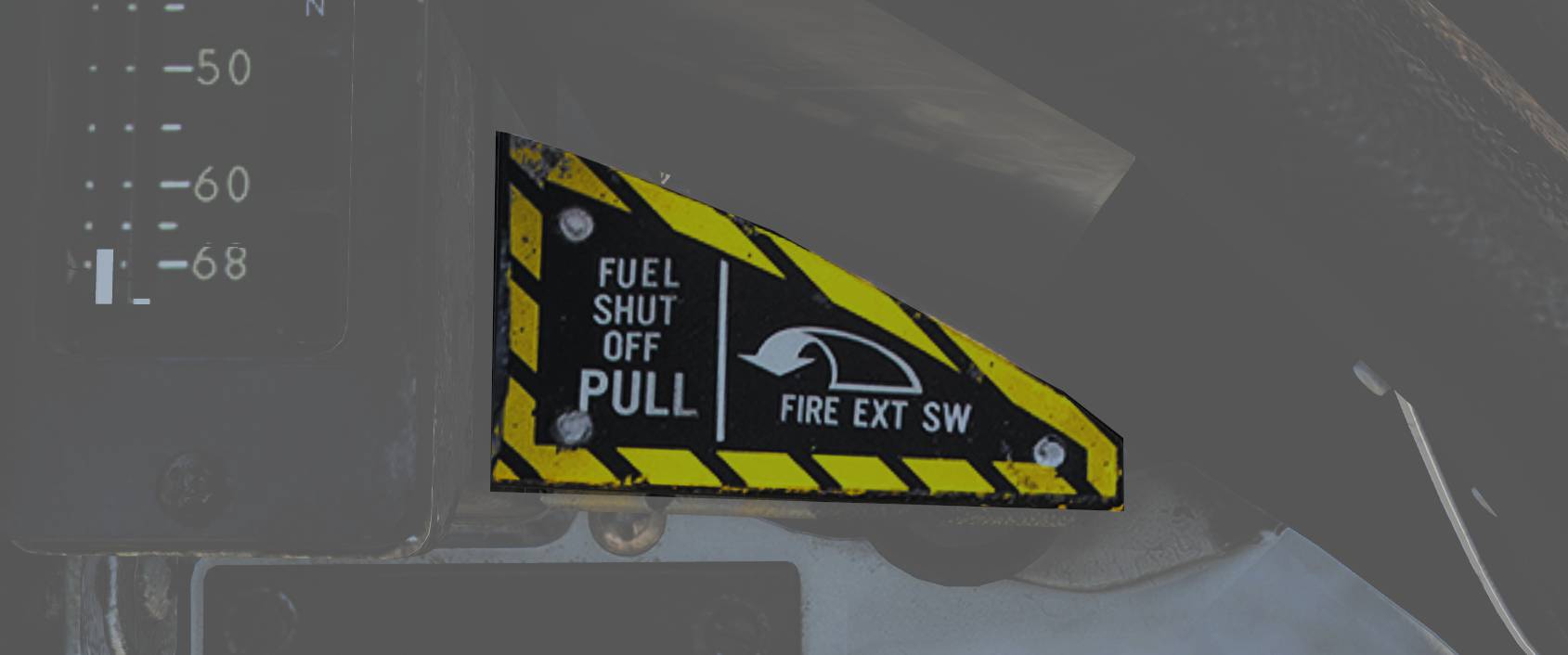

Right Engine Fuel Shutoff Handle

Emergency fuel shutoff handle for the right engine.

Pulling the handle shuts off fuel flow to the right engine. Pushing the handle in restores fuel flow.

This handle should not be used for normal engine shutdown.

The right engine fire extinguishing button is located behind the handle and is accessible when the handle is pulled outward.

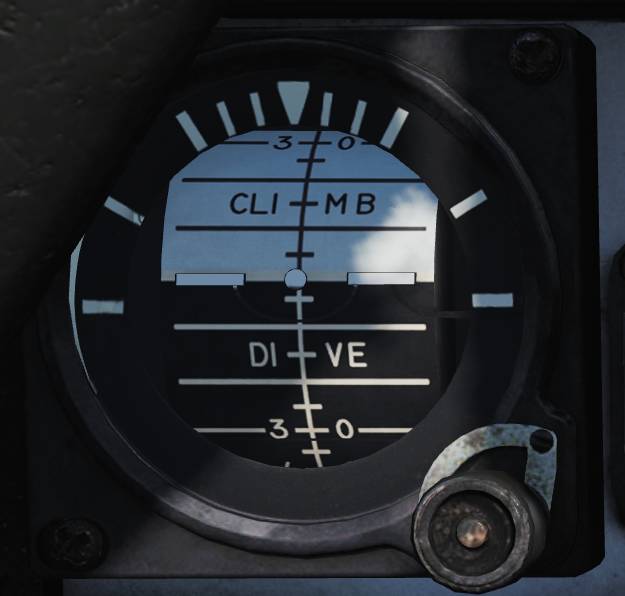

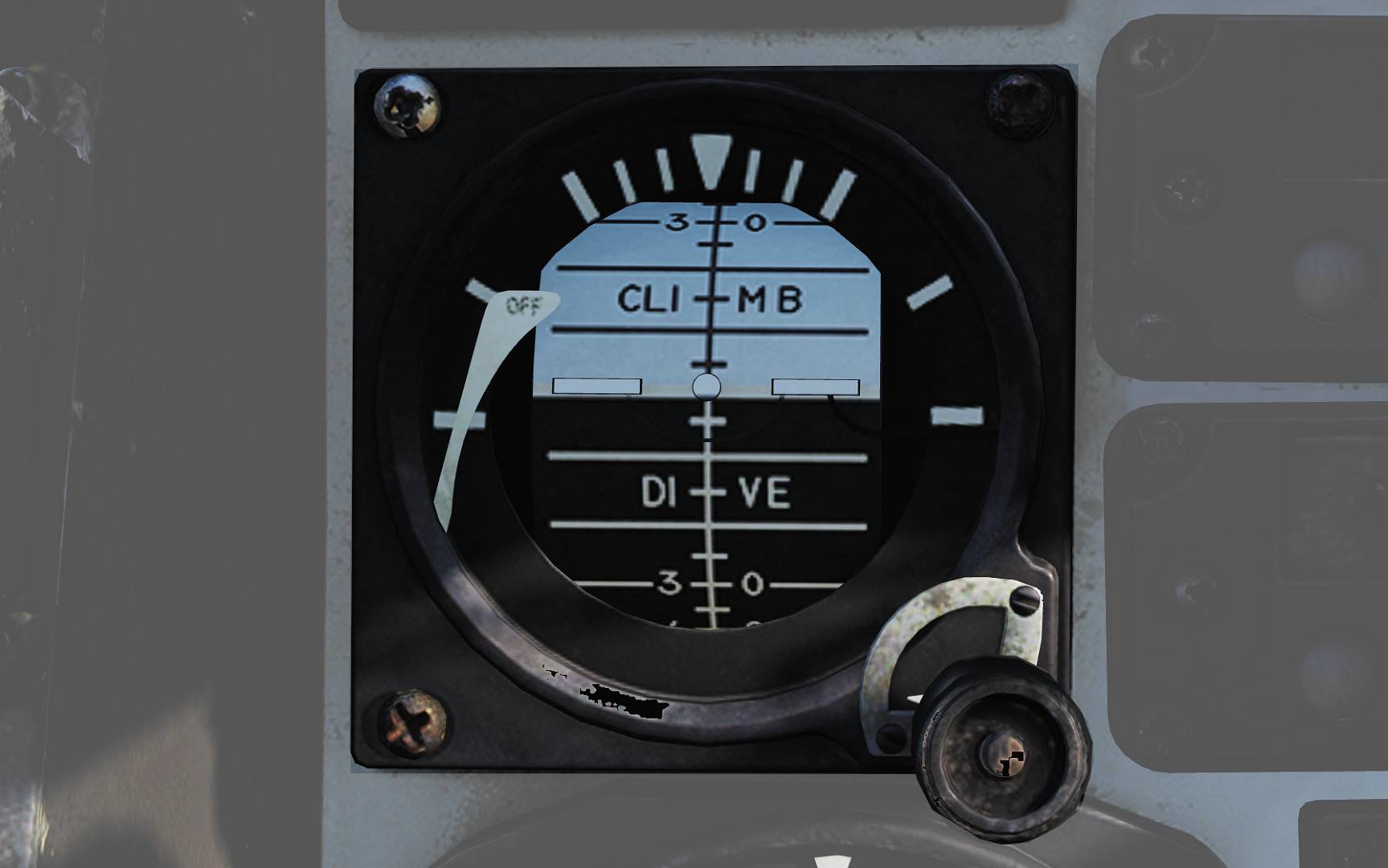

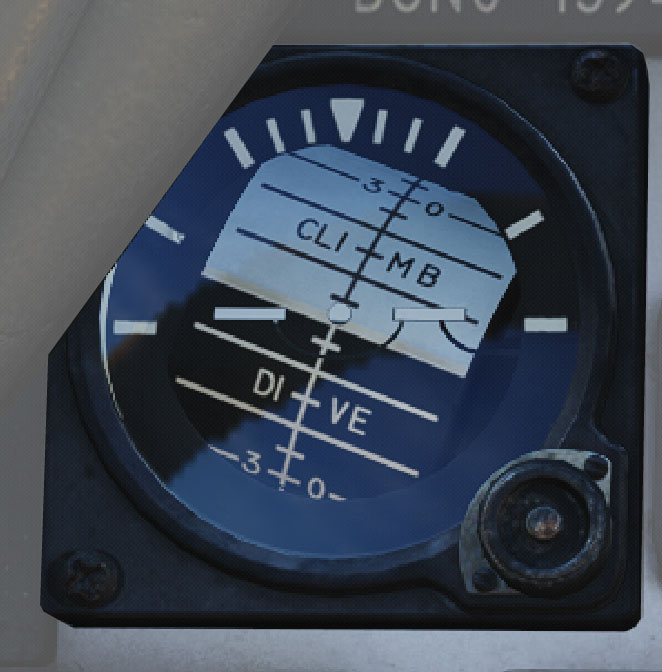

Standby Attitude Indicator

Standalone standby attitude indicator.

An OFF flag is visible on the left side when caged or when un-powered.

The knob below and to the right of the indicator cages/un-cages the indicator and allows trim to correct pitch. In pulled out position the indicator is caged. When pushed in un-cages the indicator and allows pitch trim by turning the knob.

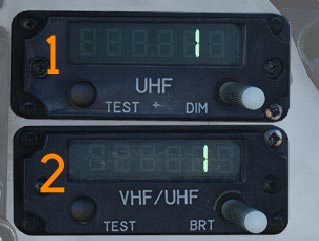

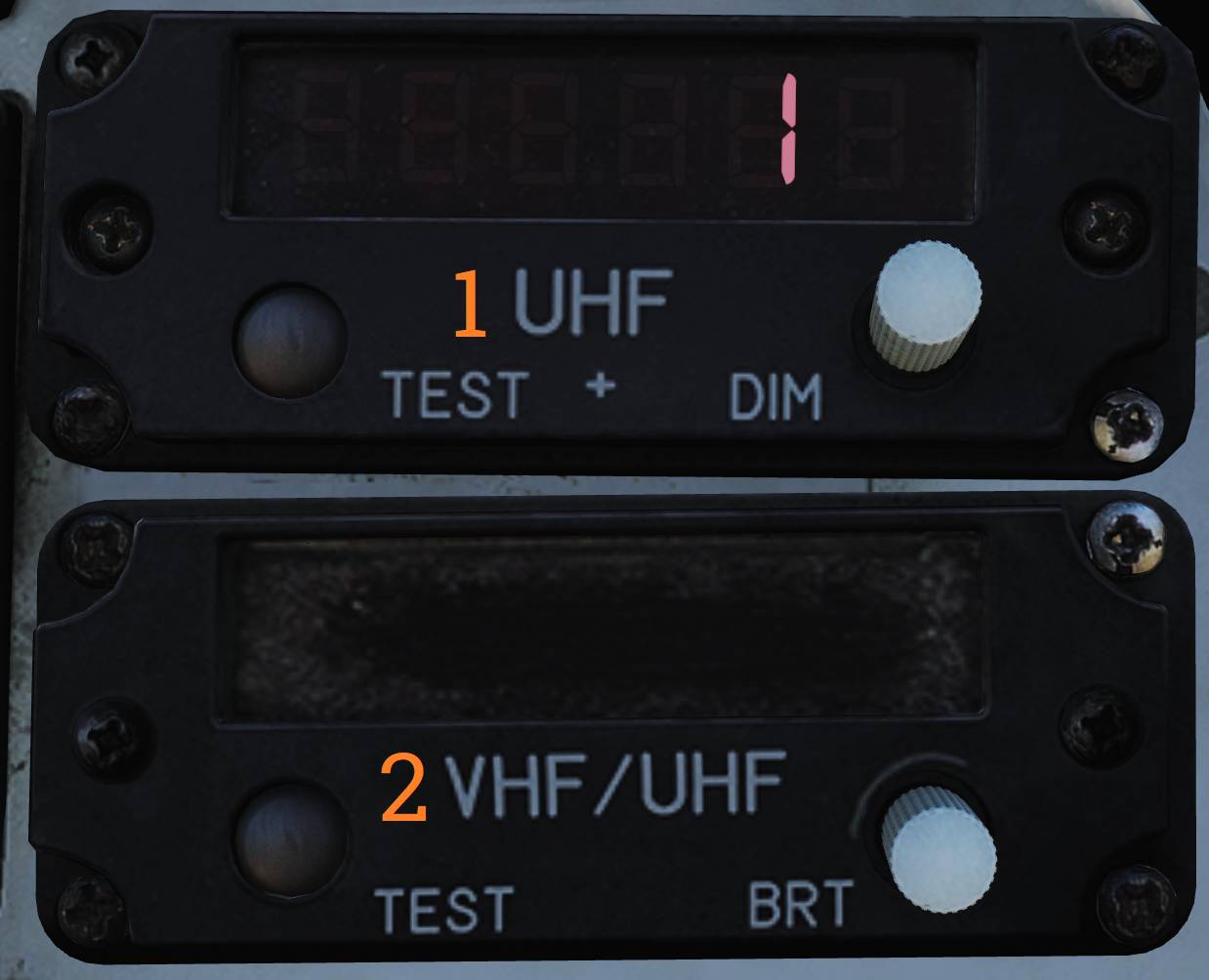

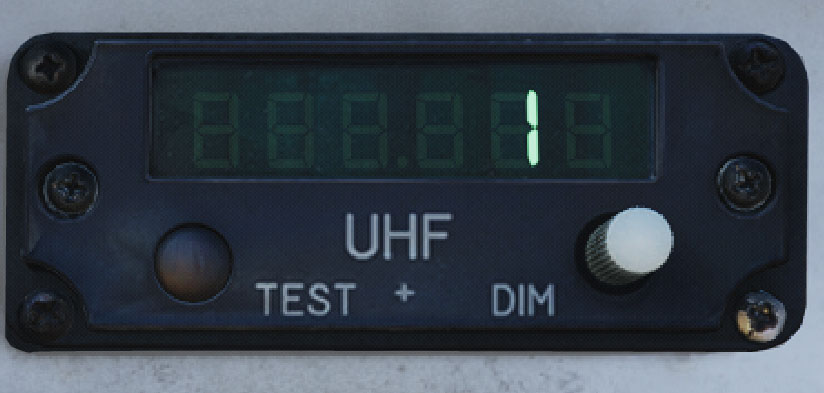

UHF/VHF Remote Indicators

Remote indicators display frequency or channel information for UHF 1 and V/UHF 2 radios.

UHF 1 Remote Indicator

The UHF 1 remote indicator (1) displays the currently selected frequency or channel for the AN/ARC-159.

V/UHF 2 Remote Indicator

The V/UHF 2 remote indicator (2) displays the currently selected frequency or channel for the AN/ARC-182.

The operation of the DIM and BRT knob as well as TEST button are the same for both indicators.

The DIM and BRT knobs control display brightness.

The TEST button initiates a self-test. A correct test result displays 888.888.

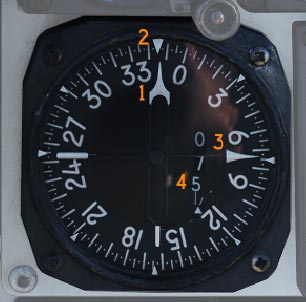

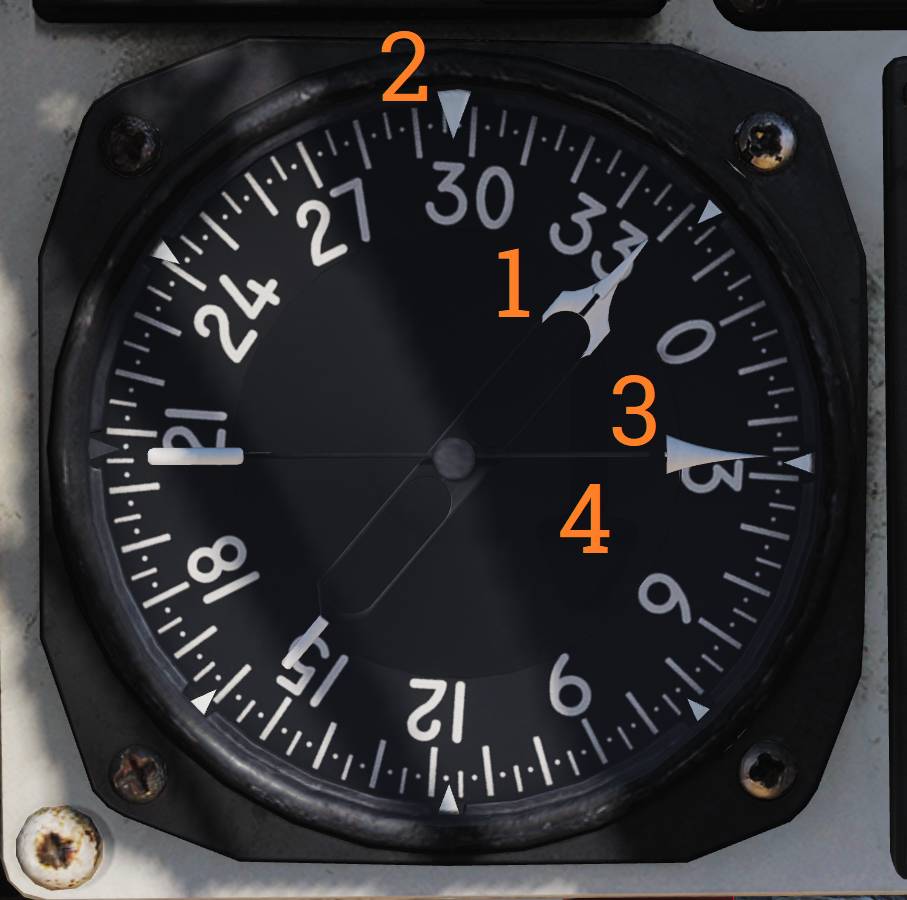

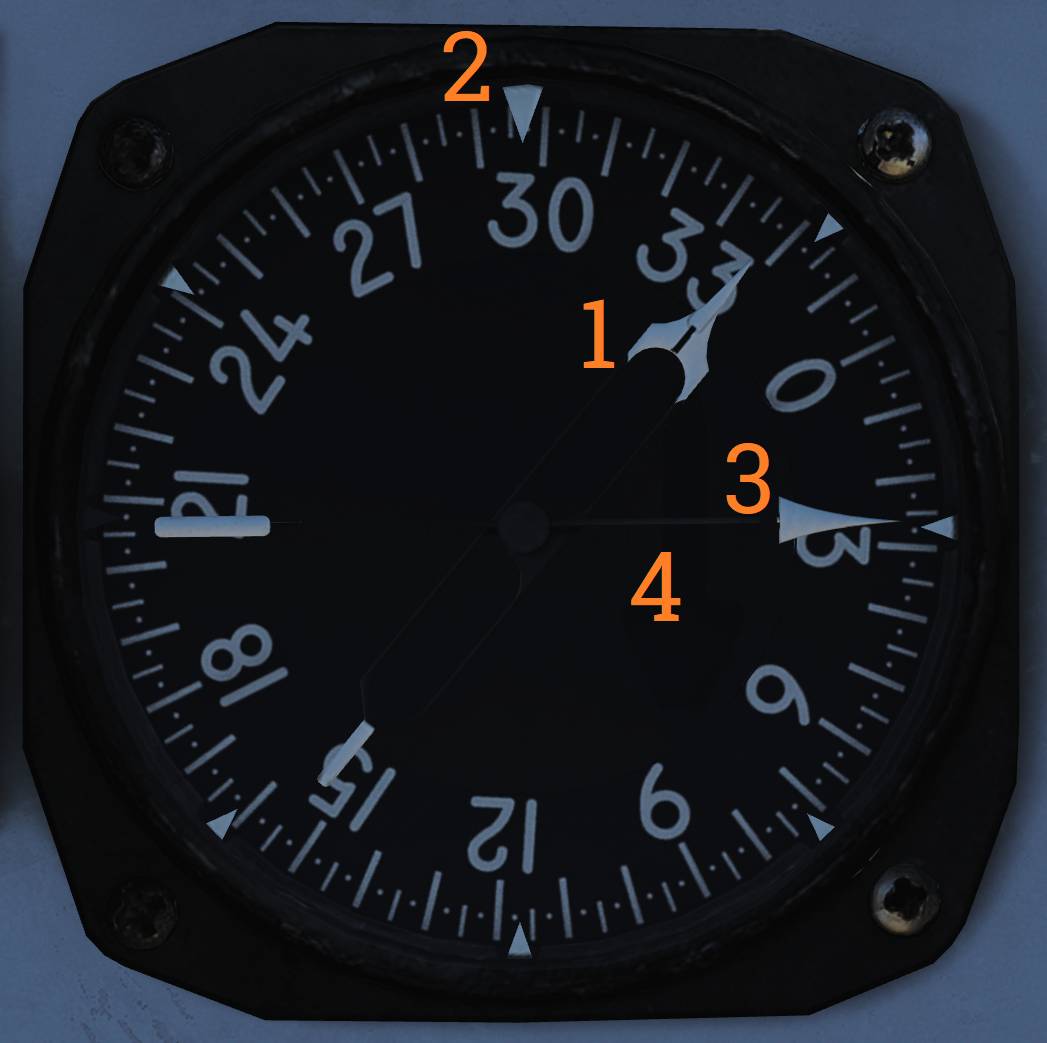

Bearing Distance Heading Indicator (BDHI)

Provides azimuth, bearing, and distance information.

No. 2 Bearing Pointer

The No. 2 bearing pointer (1) indicates magnetic course to the tuned TACAN station.

Compass Rose

The compass rose (2) displays current aircraft magnetic heading.

No. 1 Bearing Pointer

The No. 1 bearing pointer (3) indicates bearing to the tuned UHF/ADF station.

Distance Counter

The distance counter (4) displays slant range to the tuned TACAN station in nautical miles (not visible in this image).

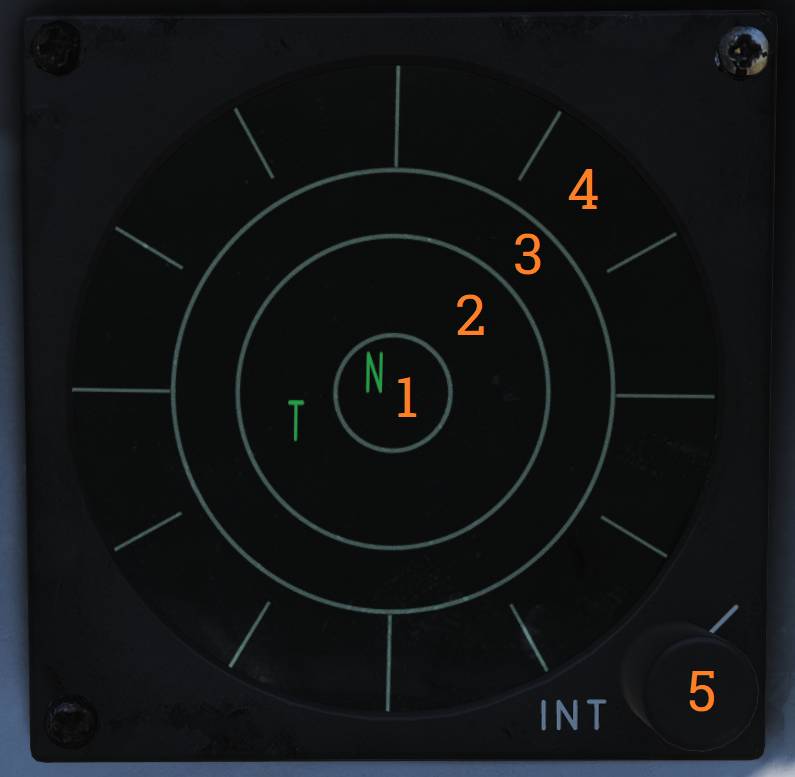

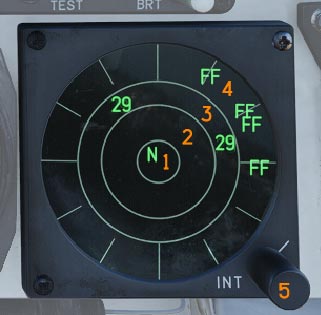

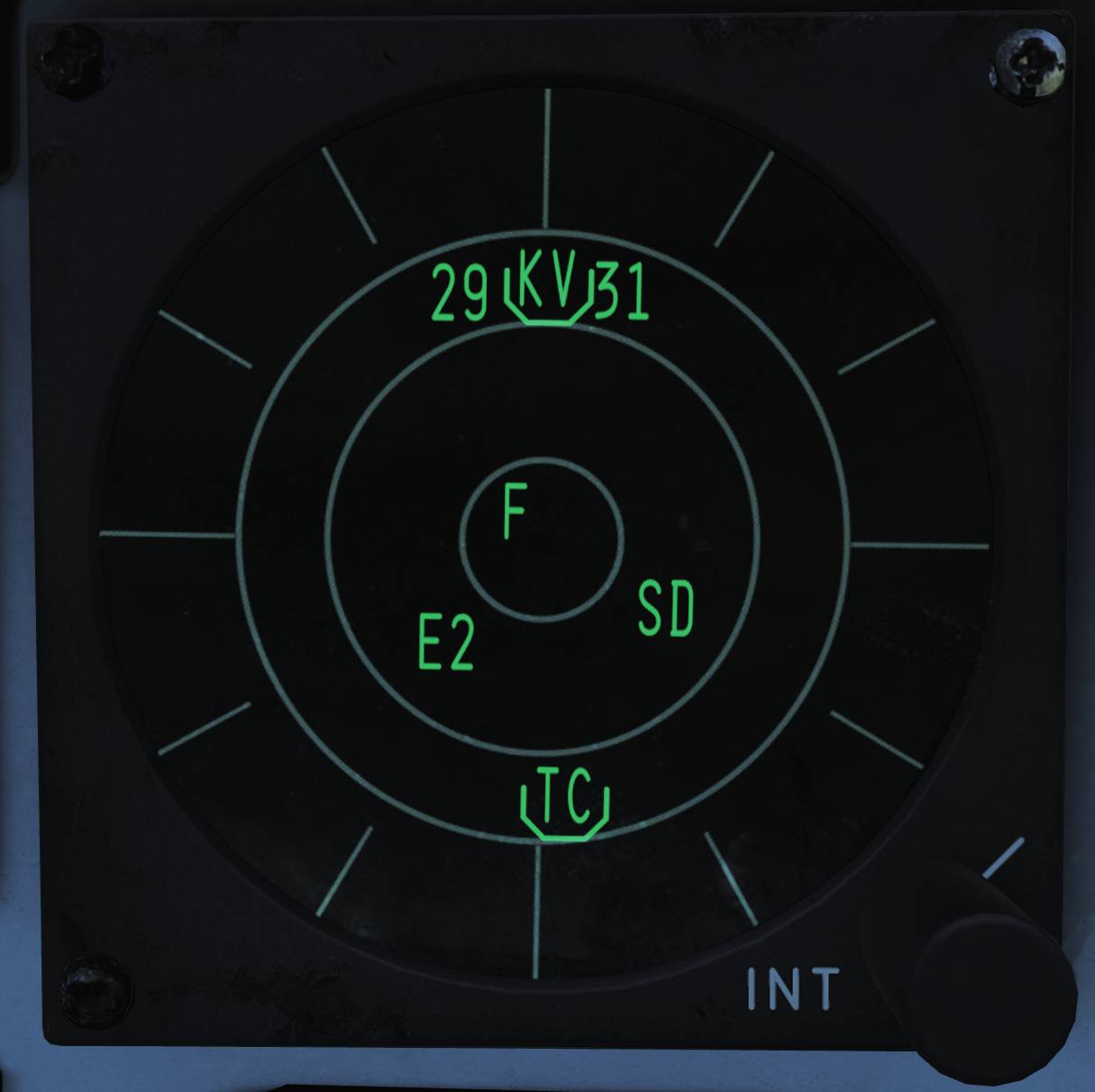

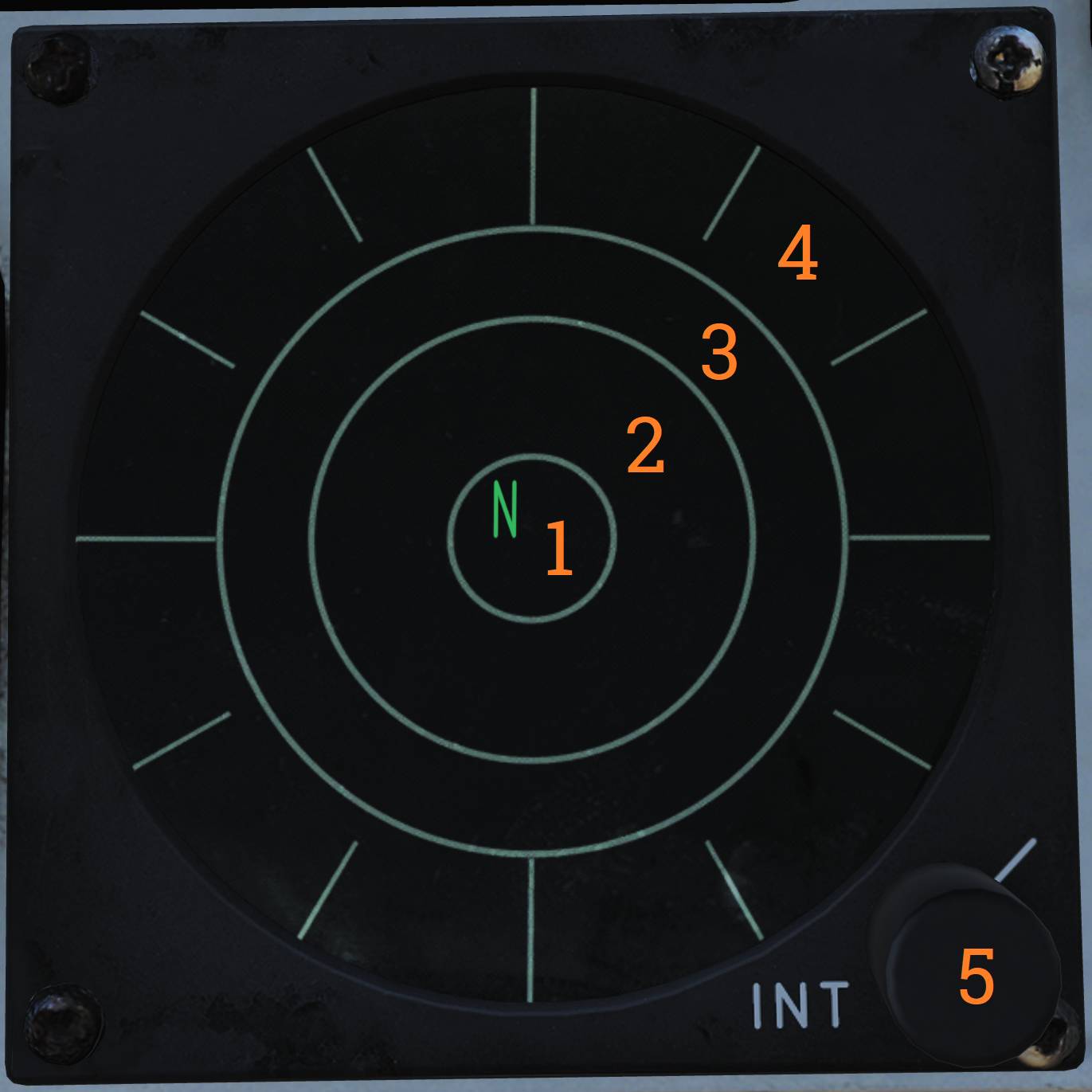

ALR-67 Indicator

Displays radar emitters detected by the ALR-67 radar warning receiver.

Threat Display Bands

• Non-lethal band (2) - Displays emitters not considered an immediate threat due to range or lack of weapon capability.
• Lethal band (3) - Displays emitters capable of engaging own aircraft but not currently doing so.
• Critical band (4) - Displays direct threats to own aircraft. Systems capable of engaging own aircraft and showing current intent of doing so.

System Status Circle

The system status circle (1) is divided into three areas.

Area I (upper left quadrant) displays threat prioritization symbols:

• N - Normal.
• I - AI, Airborne interceptors prioritized.
• A - AAA, Anti-air artillery prioritized.
• U - Unknown emitters prioritized.
• F - Friendly emitters displayed in addition to threats.

Area II (upper right quadrant) indicates limited mode status.

• (Blank) - Limited mode not selected.
• L - Limited mode selected. Only the six highest-priority threats are shown.

Area III (lower half) displays system status and offset information:

• (Blank) - Normal operation.
• B - BIT failure.
• T - Thermal overload.
• O - Offset display selected. Threats will be separated to allow readout of overlapping symbols. Bearing accuracy degraded for displaced threats.

Intensity Control Knob

The INT knob (5) adjusts display brightness.

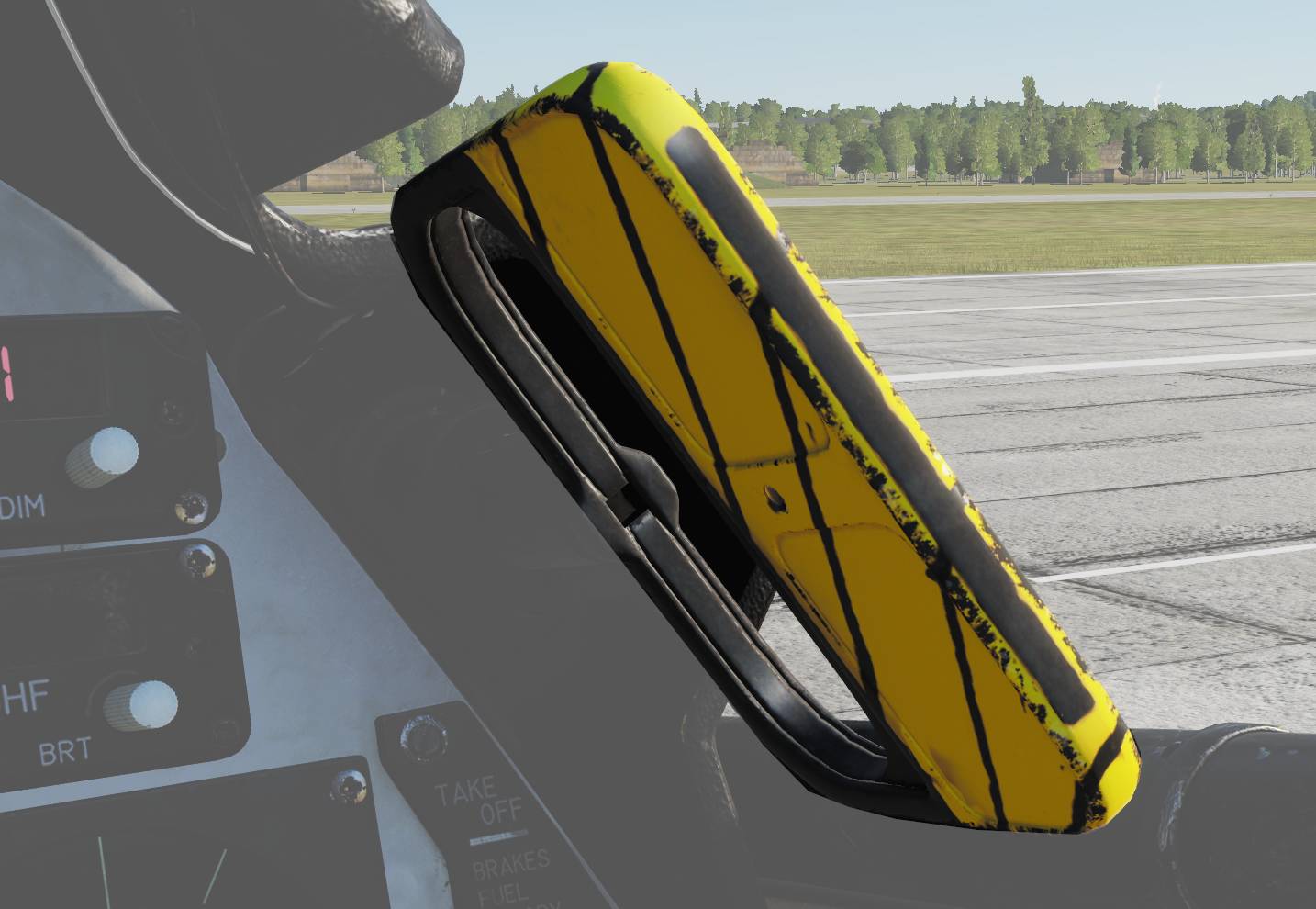

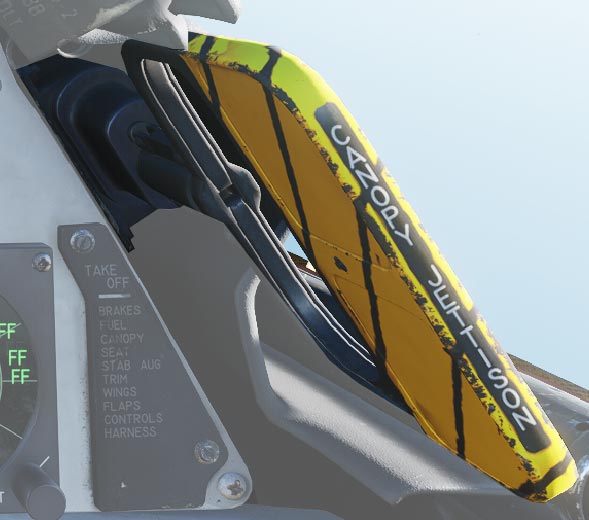

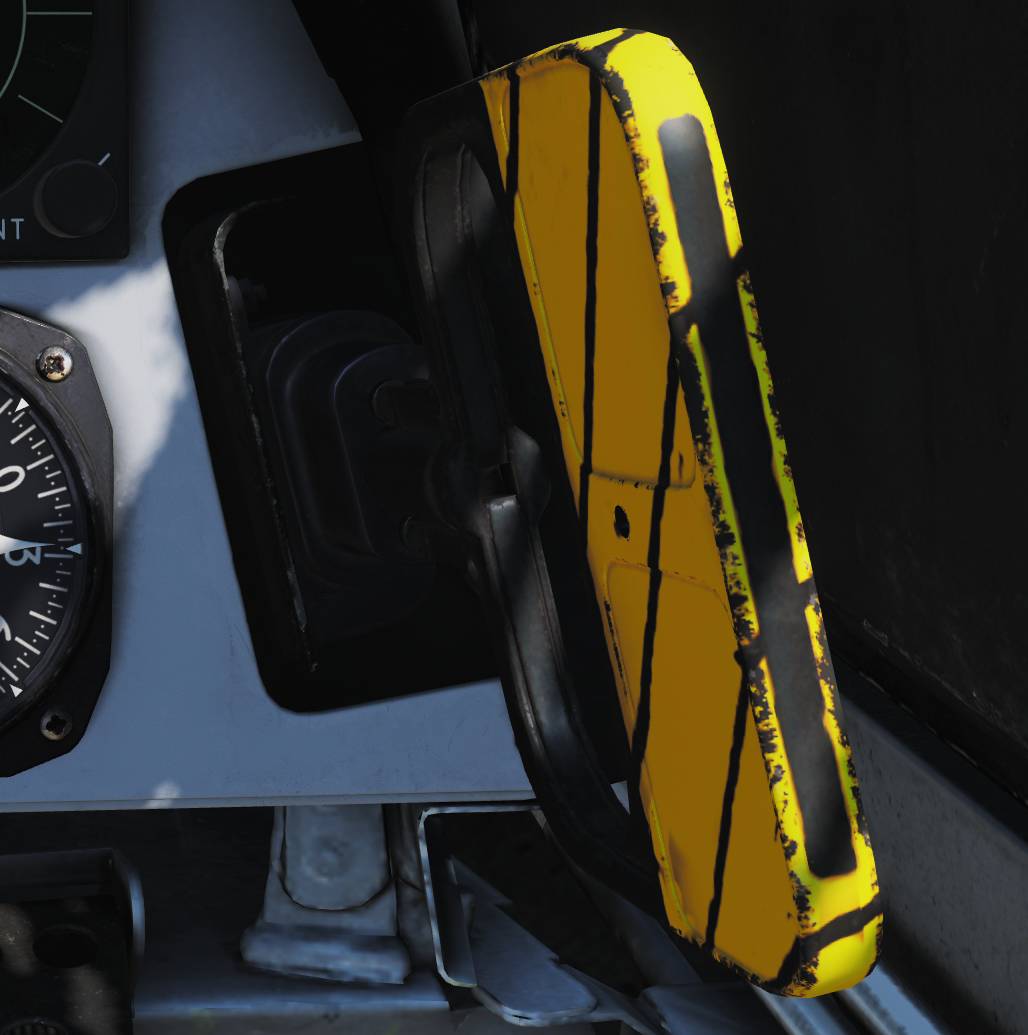

Canopy Jettison Handle

The canopy jettison handle is used to manually jettison the canopy during emergency egress.

Right Knee Panel

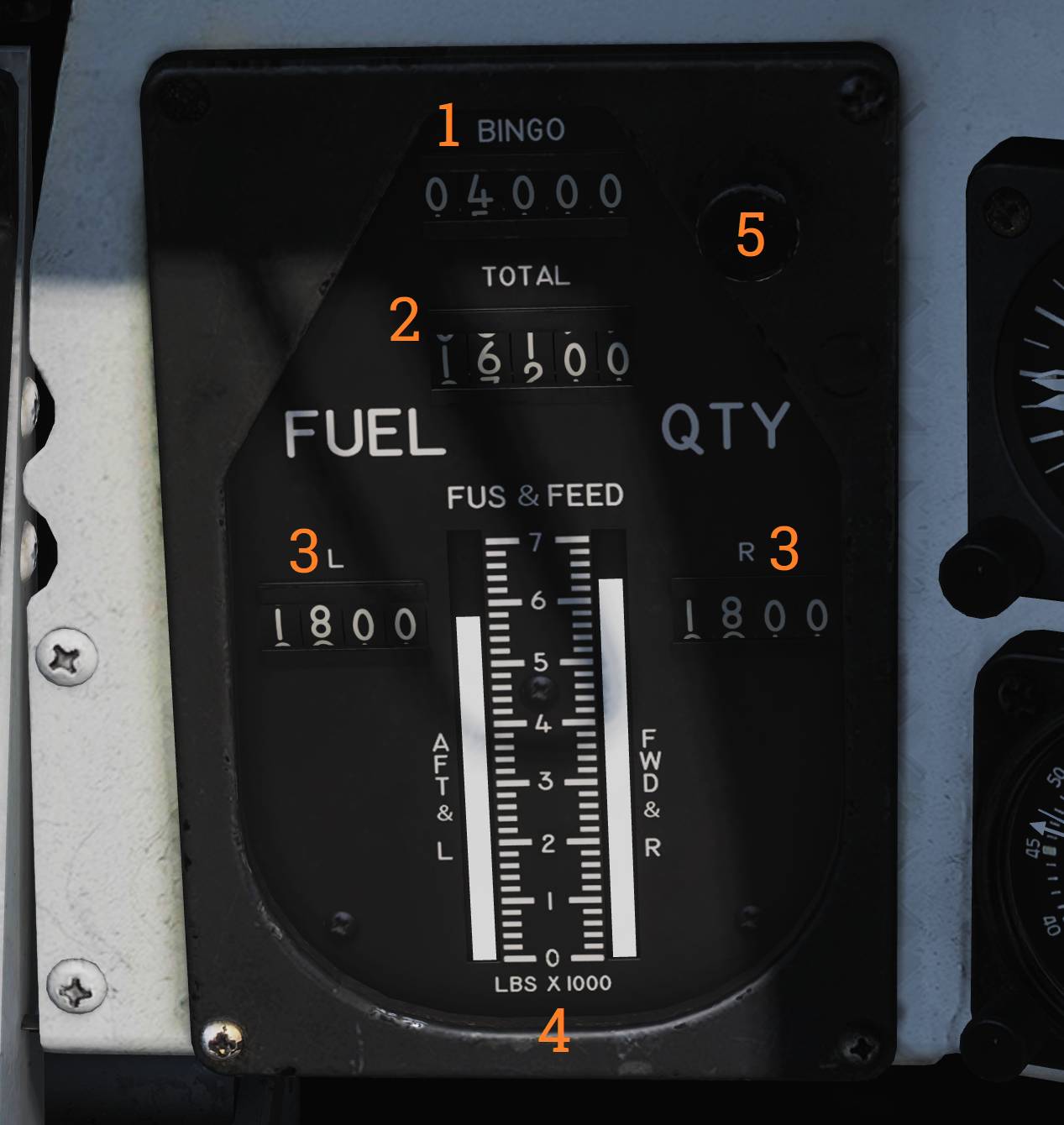

Fuel Quantity Indicator

The fuel quantity indicator displays fuel quantity information for all aircraft tanks.

BINGO Readout

The BINGO readout (1) displays the currently set BINGO fuel quantity.

Total Fuel Counter

The TOTAL counter (2) displays total fuel quantity contained in all aircraft tanks.

Left and Right Tank Counters

The L and R counters (3) display fuel quantity for the currently selected left or right tanks.

The displayed tank group (feed, wing, or external) is selected using the QTY SEL switch on the fuel management panel.

Fuselage and Feed Fuel Tapes

The FUS and FEED fuel tapes (4) display fuselage fuel quantities.

• Left tape — Indicates left feed and aft fuselage tanks.
• Right tape — Indicates right feed and forward fuselage tanks.

BINGO Set Knob

The SET knob (5) is used to set the desired BINGO fuel quantity.

Rotate the knob to select the required value.

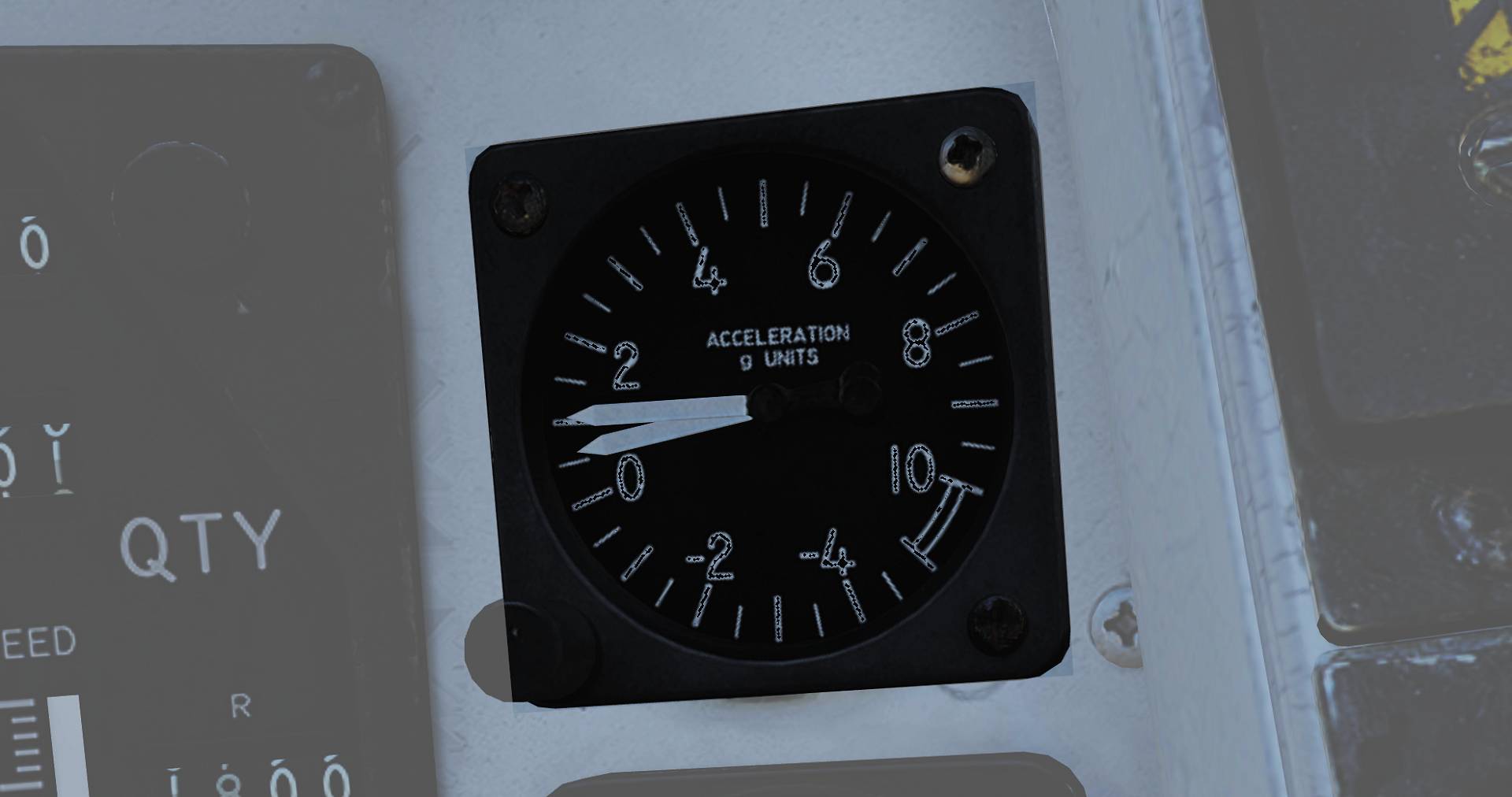

Accelerometer

Instrument showing current aircraft g-load (acceleration along the aircraft vertical axis). It’s graded in g from -5g to +10g. One pointer will show current g-load while the other two will indicate max reached negative and positive g-load. These can be reset by pushing the PUSH TO SET button on the lower left corner of the instrument.

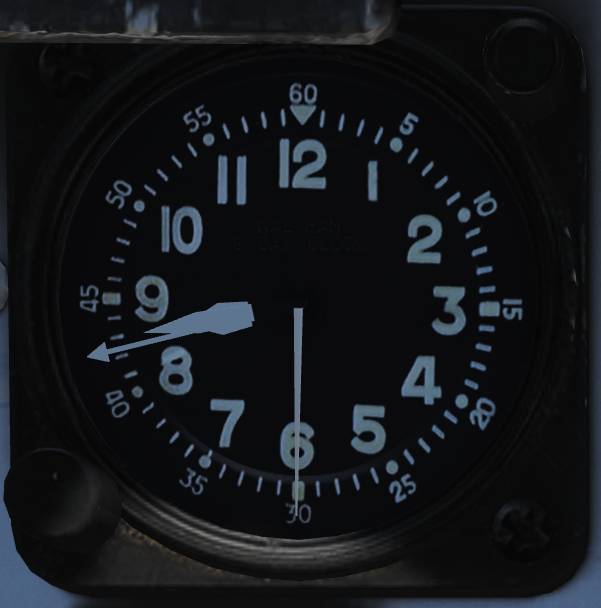

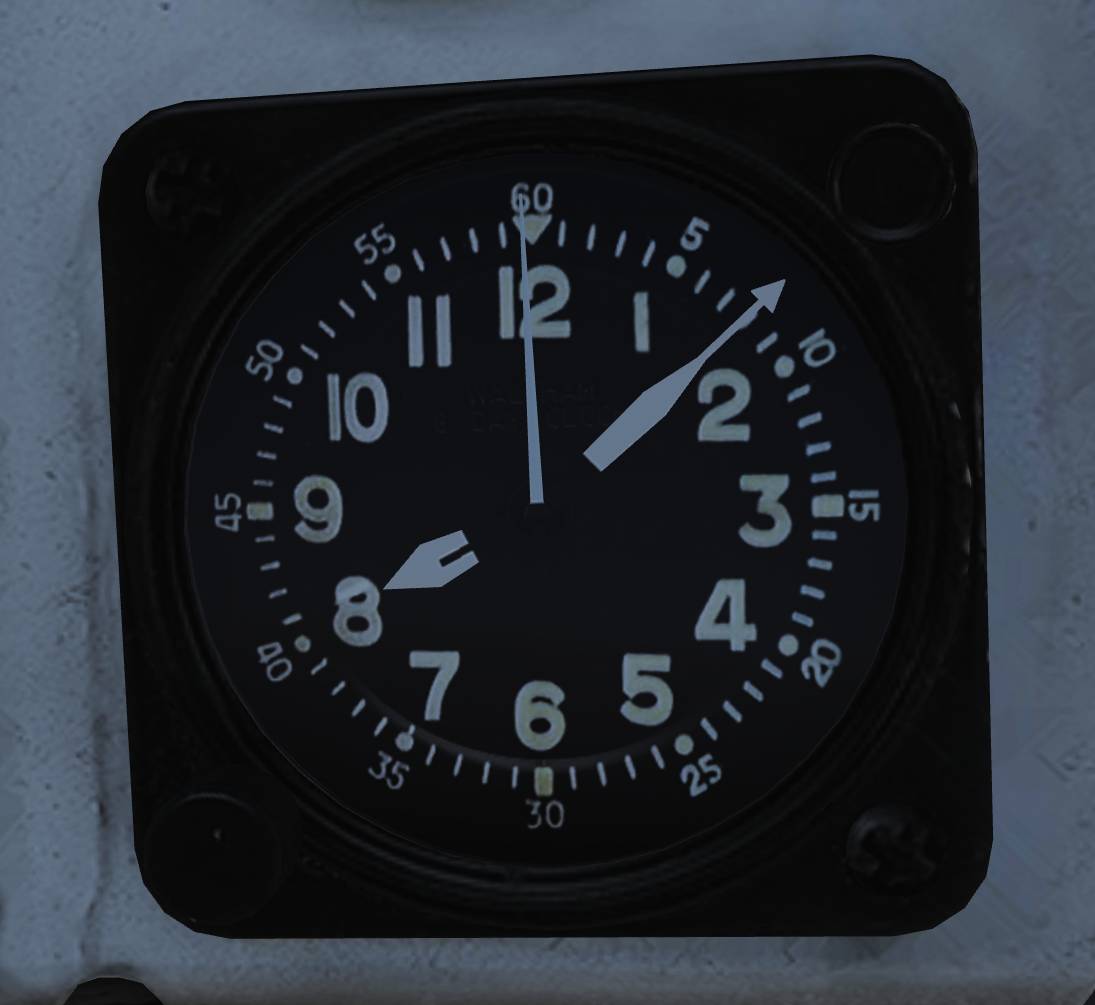

Clock

Mechanical wind-up clock.

The knob on the lower left corner is used to wind up the clock by turning it clockwise and pulled out and turned to set the hour and minute hands.

The control on the upper right corner is used to start, stop, and reset a 1-hour elapsed time counter.

Right Vertical Console

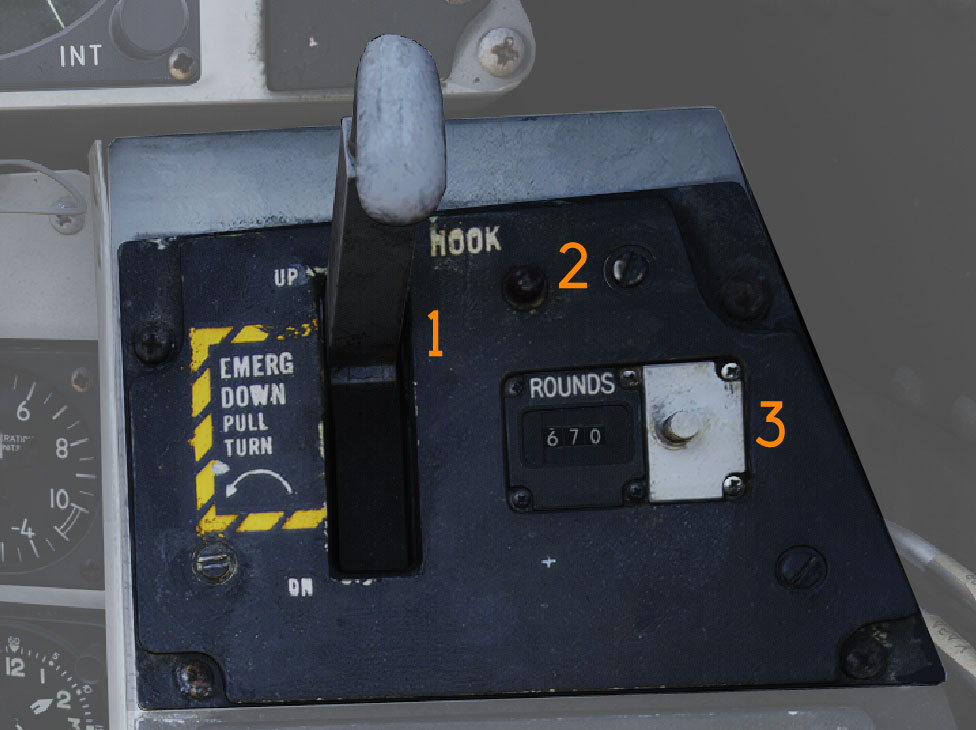

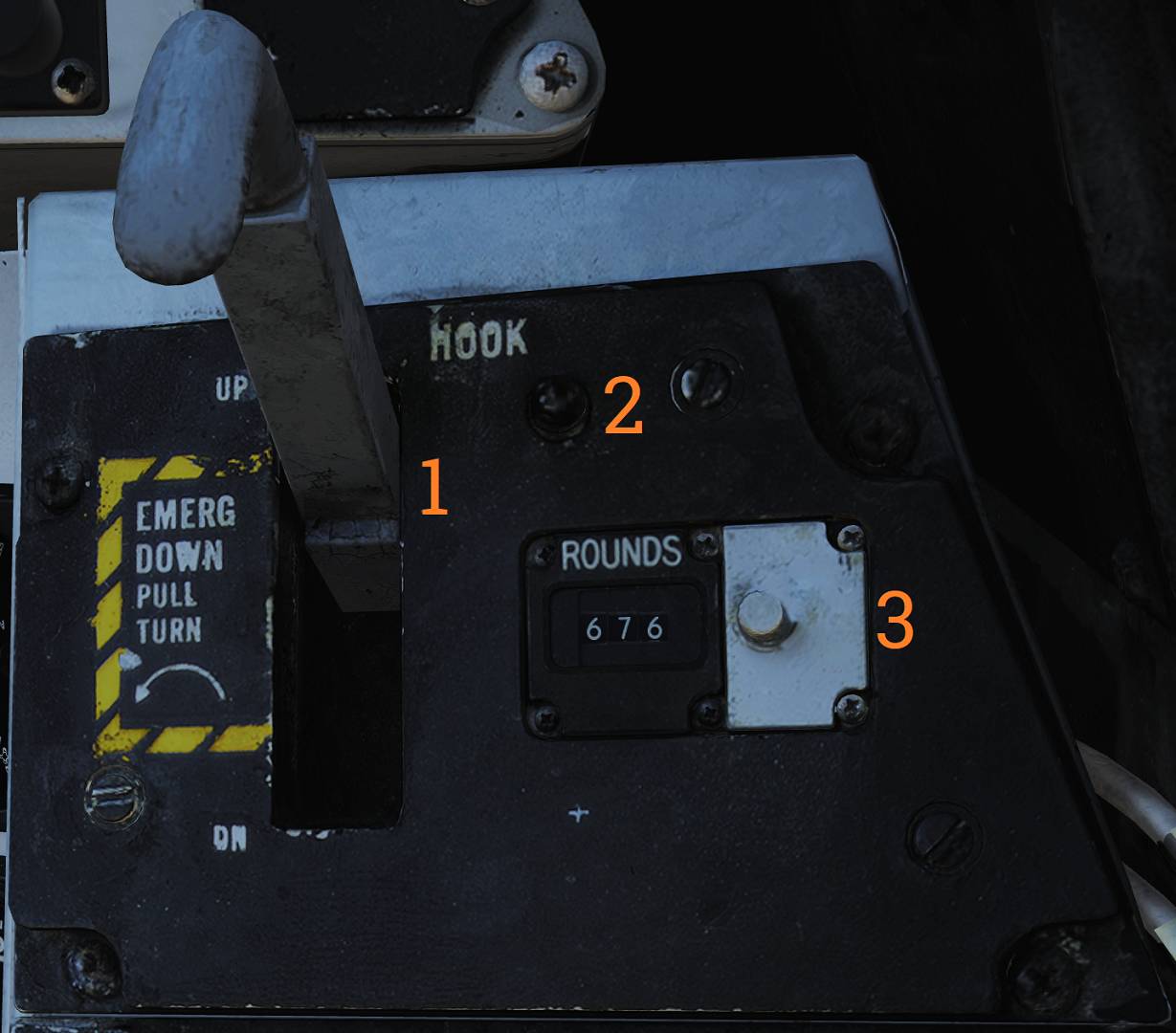

Arresting Hook Panel

Panel controlling arresting hook operation.

Hook Handle

The HOOK handle (1) selects arresting hook position.

• UP - Electrically commands hydraulic retraction of the hook and locks it in the up-lock.
• DOWN - Electrically releases hydraulic pressure, allowing the hook to extend by dashpot pressure and gravity.
• EMERG DOWN - When the handle is pulled and rotated counter-clockwise, the hook is mechanically released for emergency extension.

Hook Transition Light

The hook transition light (2) illuminates when hook position does not correspond to handle position.

The light will not extinguish until the hook is fully extended and may remain illuminated during high-speed extension due to hook blowback.

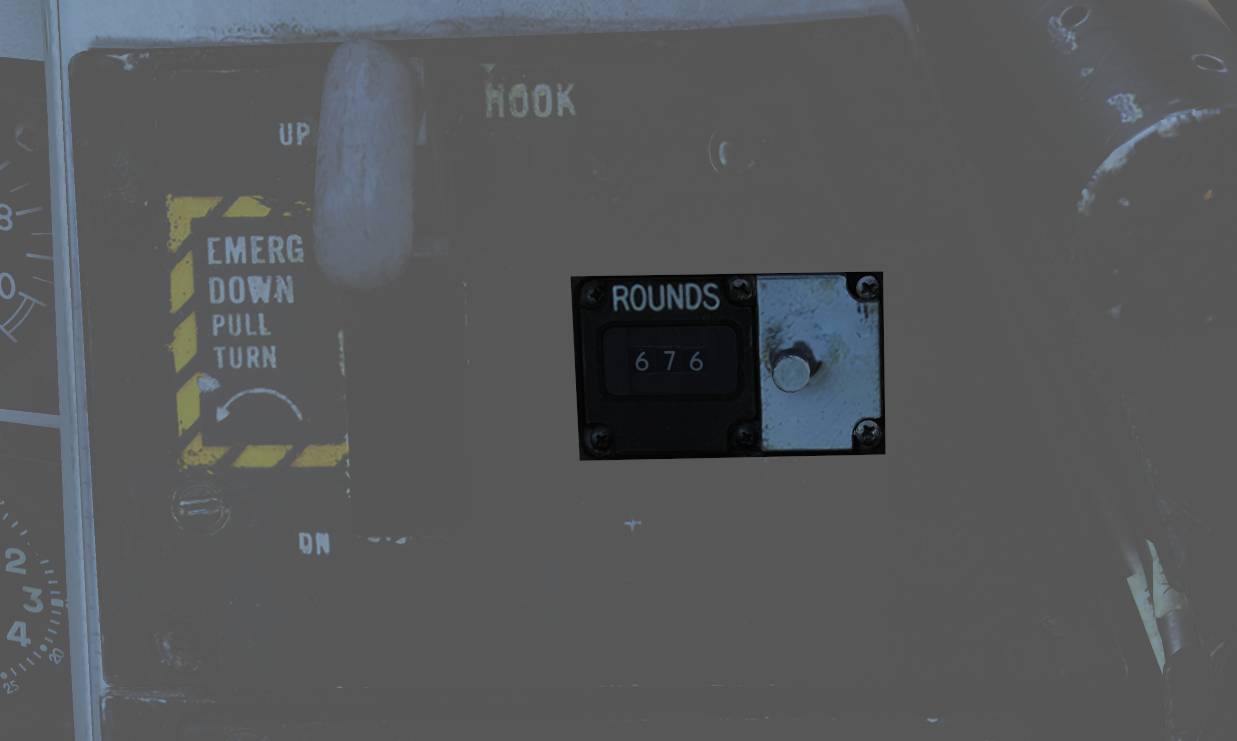

Rounds Remaining Counter

The rounds remaining counter (3) displays remaining M61A1 gun ammunition.

The counter normally counts down from 676 rounds and may be manually reset to a desired value using the adjustment knob on the right side.

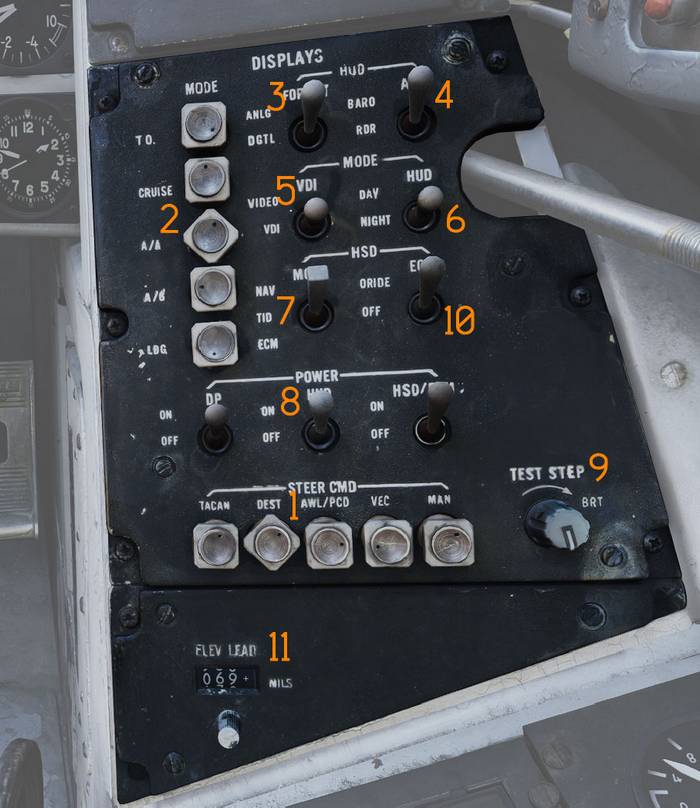

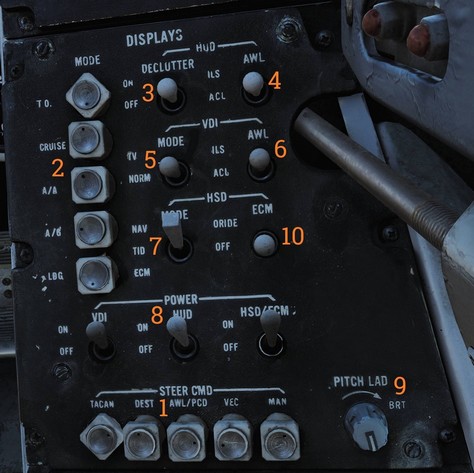

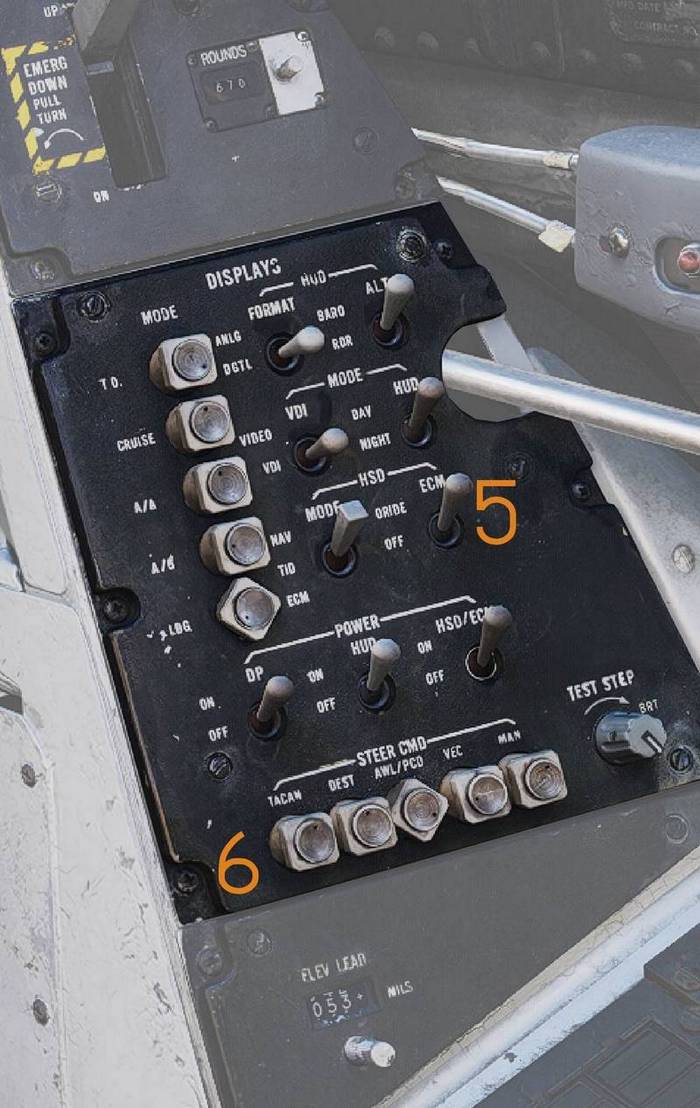

Displays Control Panel

💡 Image shows an F-14A with AN/ALR-45 having a third option on the HSD MODE and an ECM ORIDE which are not functional but are present in some aircraft with the AN/ALR-67.

Control panel for front cockpit display configuration.

Steering Command Selectors

The STEERING CMD selectors (1) select the source of steering command information.

The selectors are mutually exclusive and rotate to indicate the active selection.

• TACAN - TACAN provides steering information.
• DEST - Steering commands based on the RIO-selected waypoint.
• AWL/PCD - Selects glideslope guidance (ILS or ACLS) for landing or PCD steering for air-to-ground delivery.
• VEC - Data link vector steering commands.

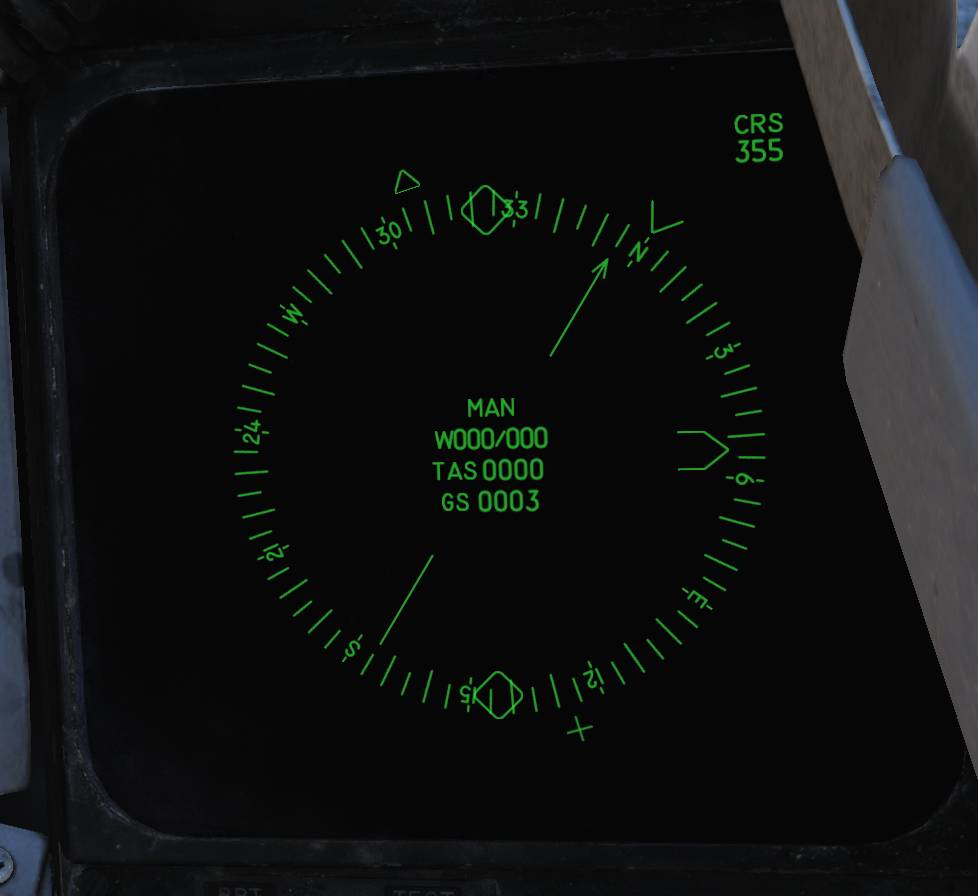

• MAN - Manual course and heading steering.

Mode Selectors

The MODE selectors (2) determine overall display mode.

Selectors are mutually exclusive and rotate to indicate the selected mode.

• T.O. - Takeoff mode.
• CRUISE - Cruise mode.
• A/A - Air-to-air mode.
• A/G - Air-to-ground mode.
• LDG - Landing mode.

HUD Declutter Switch

The HUD DECLUTTER switch (3) selects declutter level for HUD symbology.

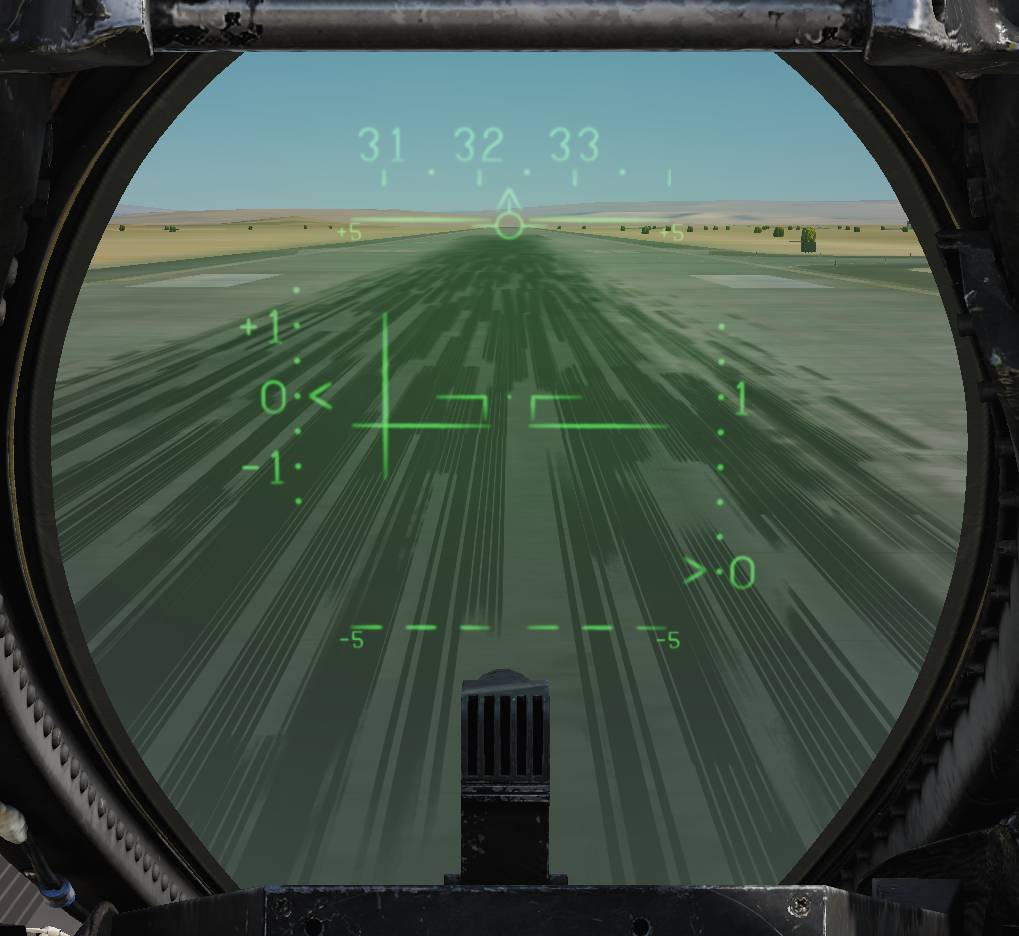

HUD AWL Switch

The HUD AWL switch (4) selects the source of all-weather landing information displayed on the HUD.

• ILS - ILS is used as the AWL source.
• ACL - ACLS is used as the AWL source.

VDI Mode Switch

The VDI MODE switch (5) selects the display content shown on the VDI.

• TV - Displays video from TCS or LANTIRN.
• NORM - Displays the standard VDI presentation.

VDI AWL Switch

The VDI AWL switch (6) selects the AWL source displayed on the VDI.

• ILS - ILS-based AWL information.
• ACL - ACLS-based AWL information.

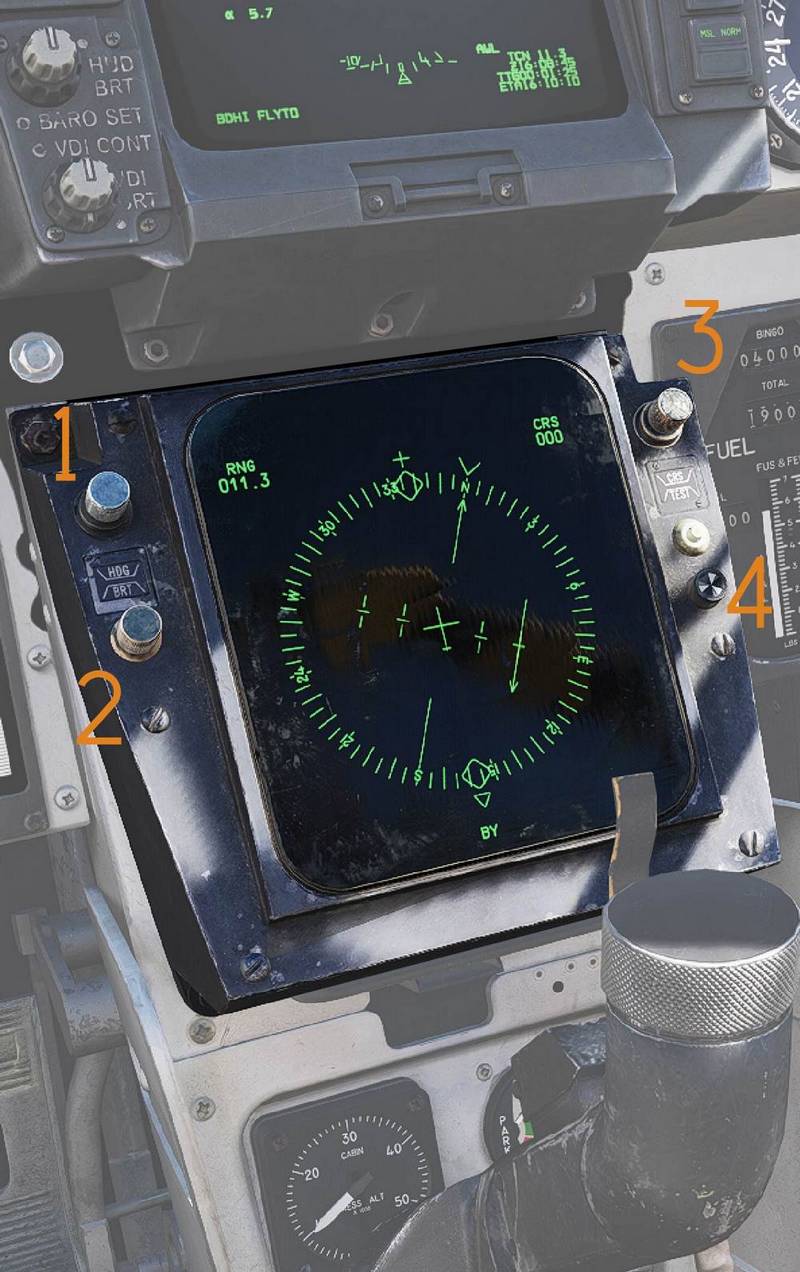

HSD Mode Switch

The HSD MODE switch (7) selects the display content shown on the HSD.

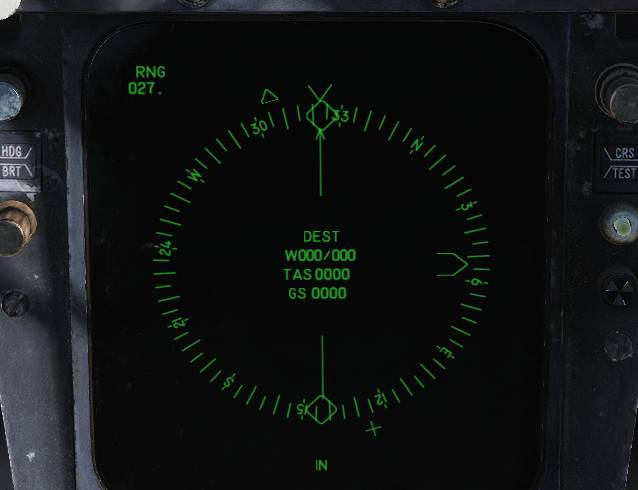

• NAV - Navigation display showing steering information based on selected steering command source.
• TID - Repeats the RIO Tactical Information Display. If the RIO TID is set to TV, the display will be blank.

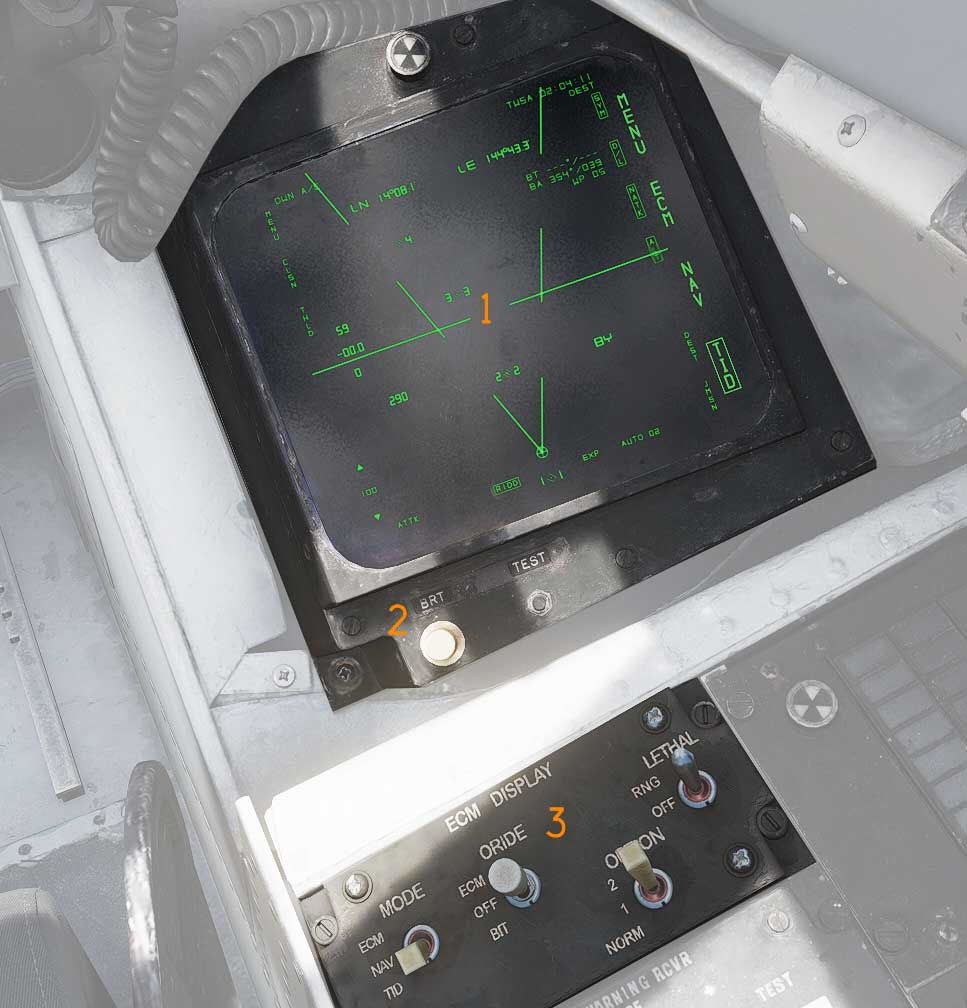

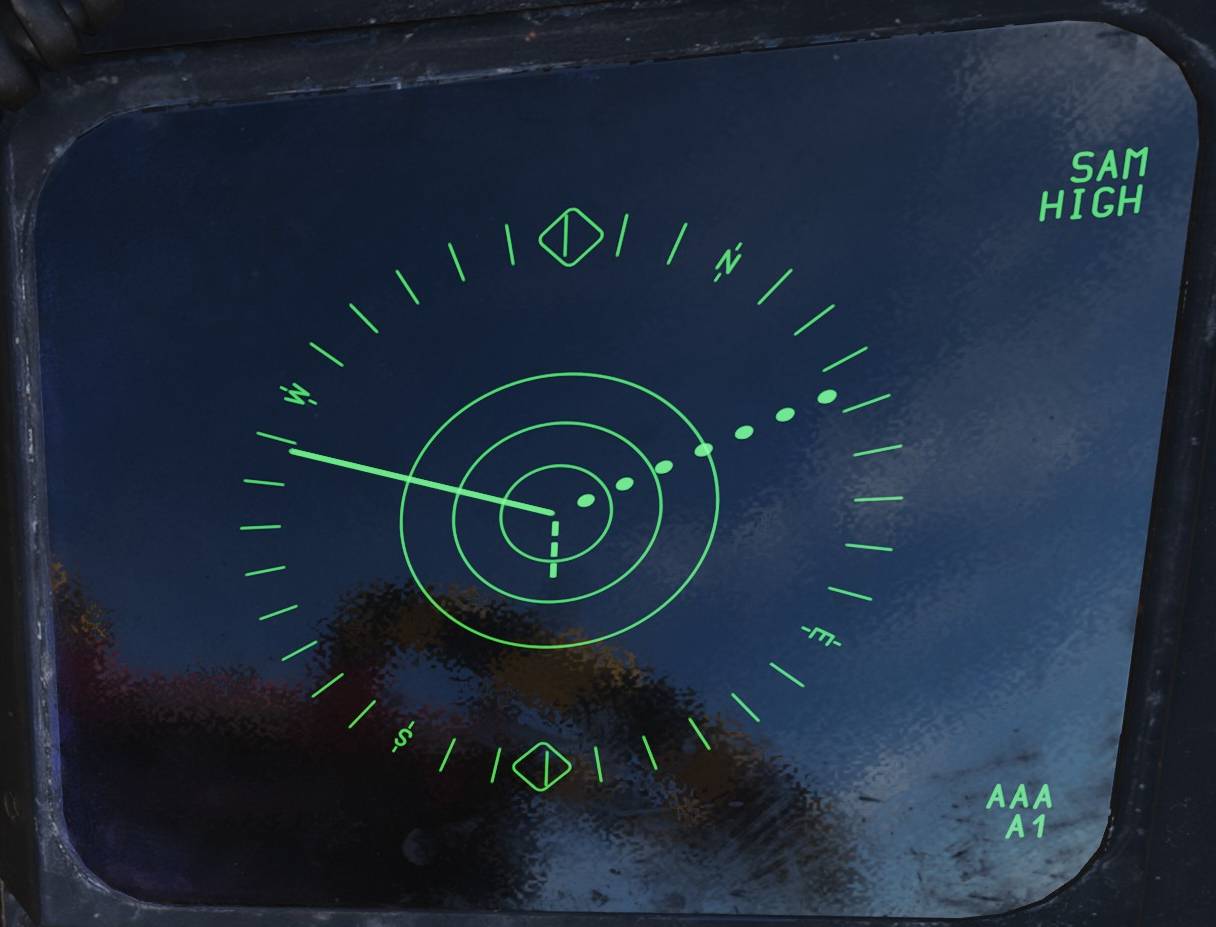

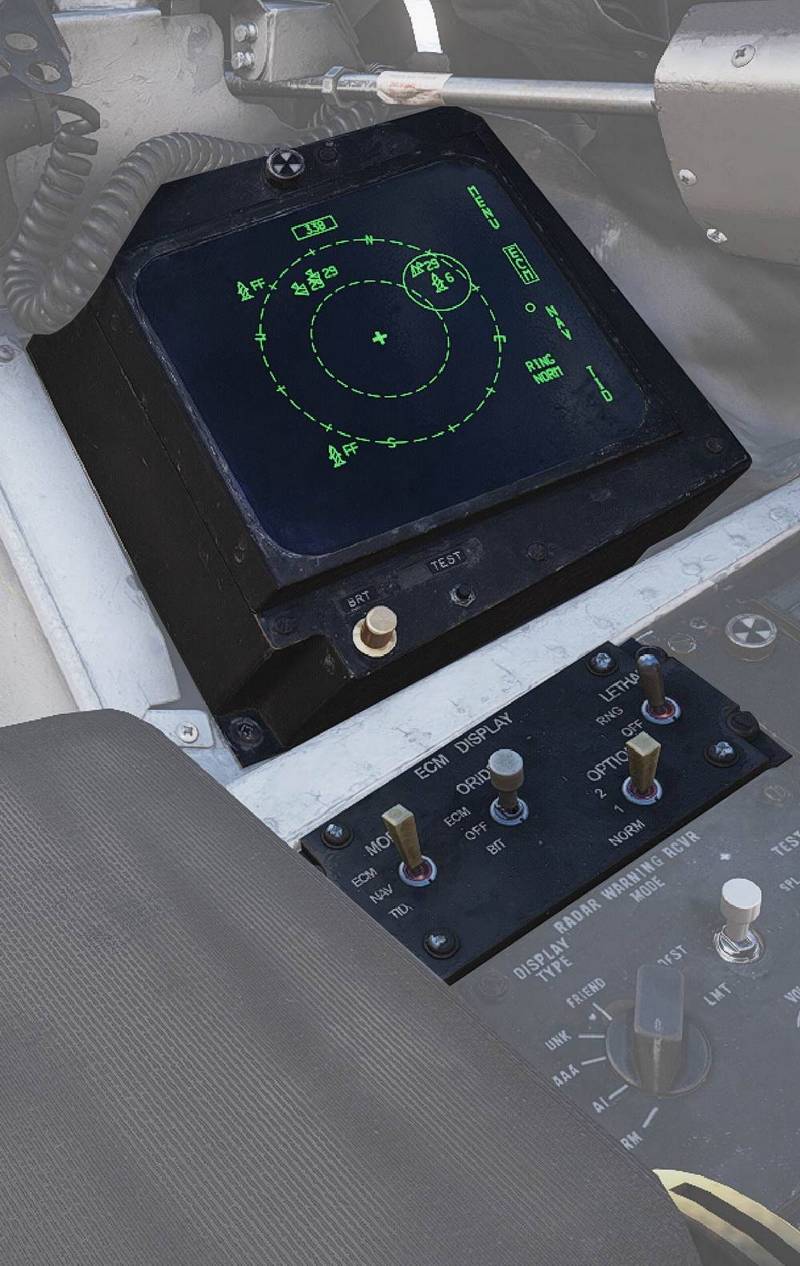

• ECM - Displays ECM information from AN/ALR-45 and AN/ALR-50 (F-14A with AN/ALR-45/50 only).

Display Power Switches

The POWER switches (8) control electrical power to the VDI, HUD, and HSD/ECMD.

Pitch Ladder Brightness Knob

The PITCH LAD BRT knob (9) controls brightness of the HUD pitch ladder.

HSD ECM Override Switch

The HSD ECM ORIDE switch (10) determines whether ECM information is allowed to override the current HSD display when a threat is detected.

• ORIDE - Allows ECM override.
• OFF - Prevents ECM override.

Only functional in aircraft equipped with the AN/ALR-45/50.

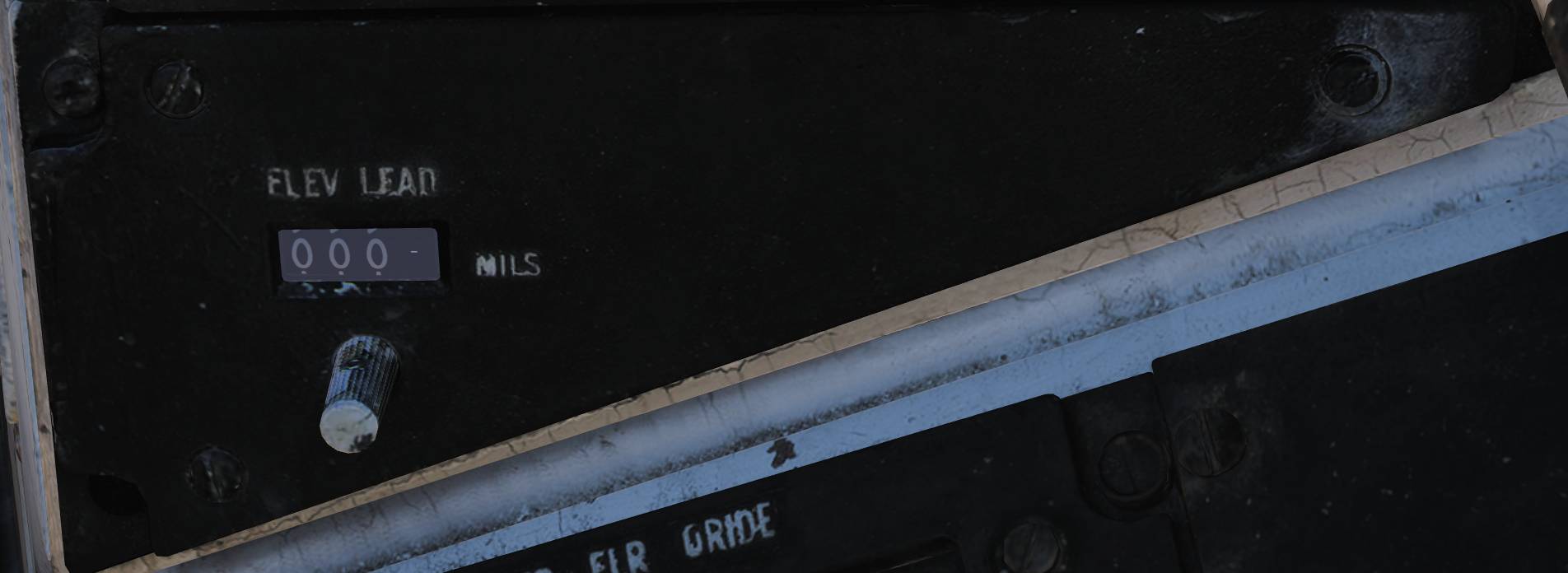

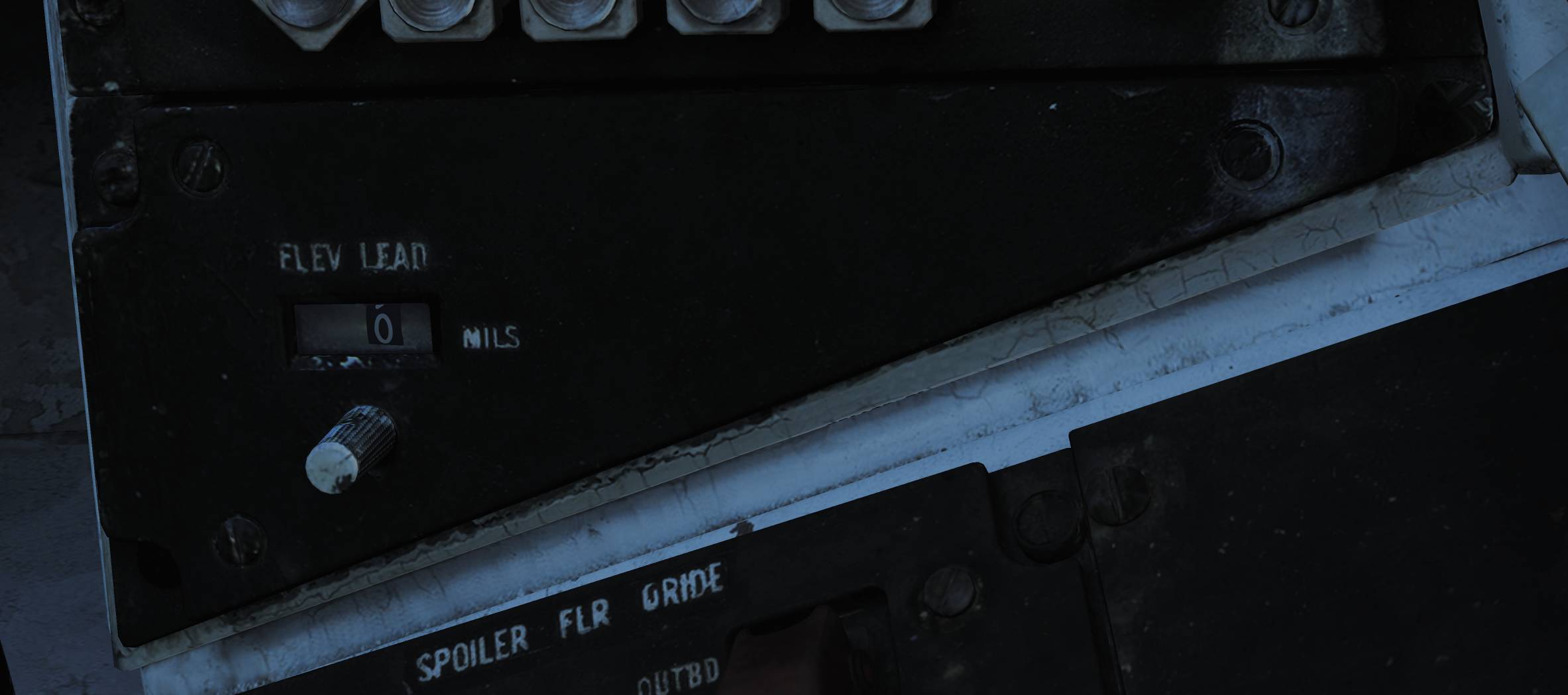

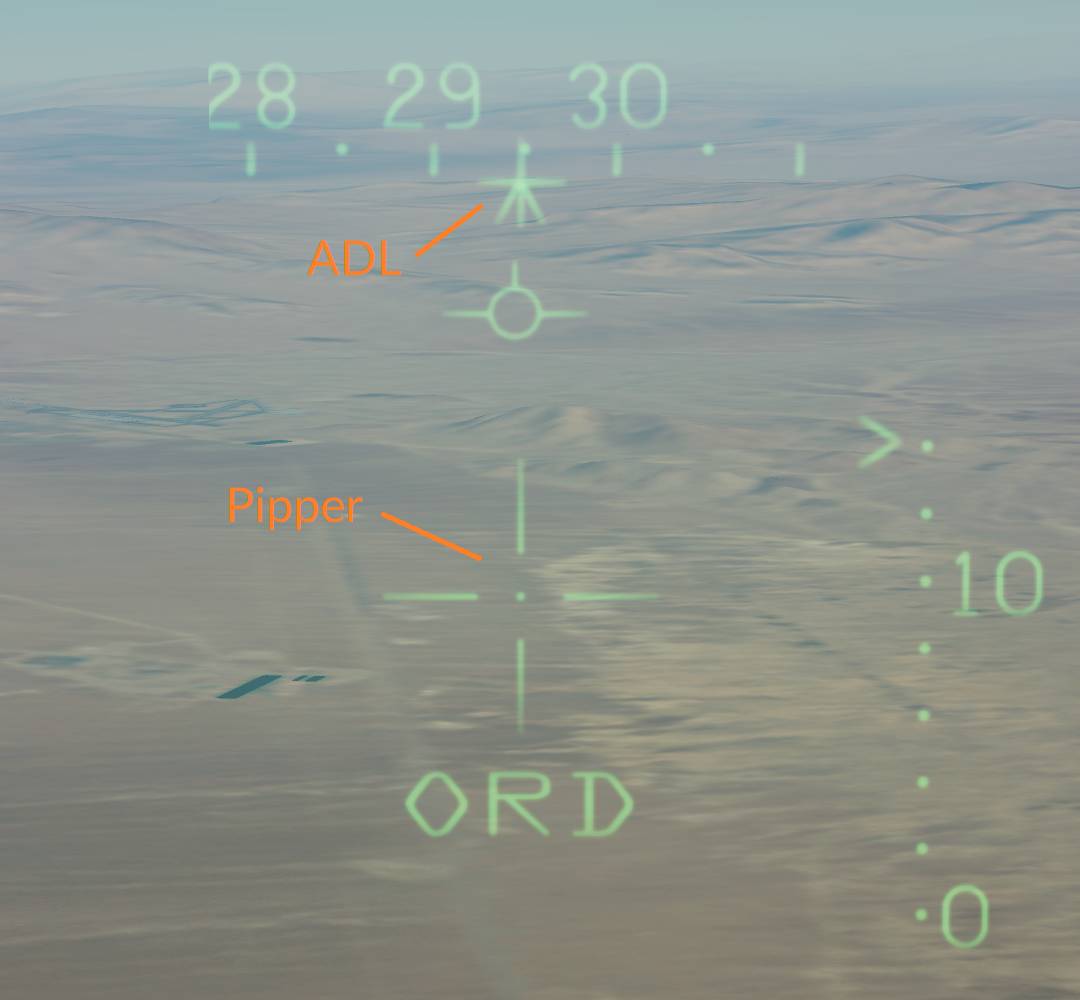

Elevation Lead Panel

The elevation lead panel (11) sets gun elevation lead in mils for manual air-to-air and air-to-ground gun modes.

Adjustment range is from −263 to +87 mils.

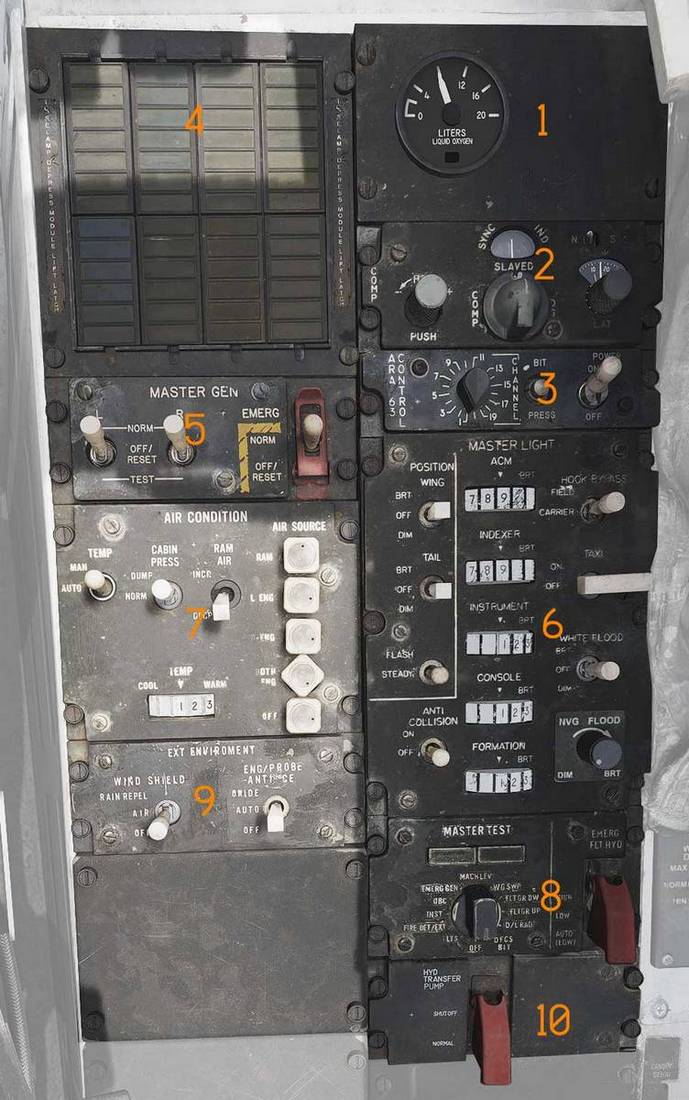

Right Side Console

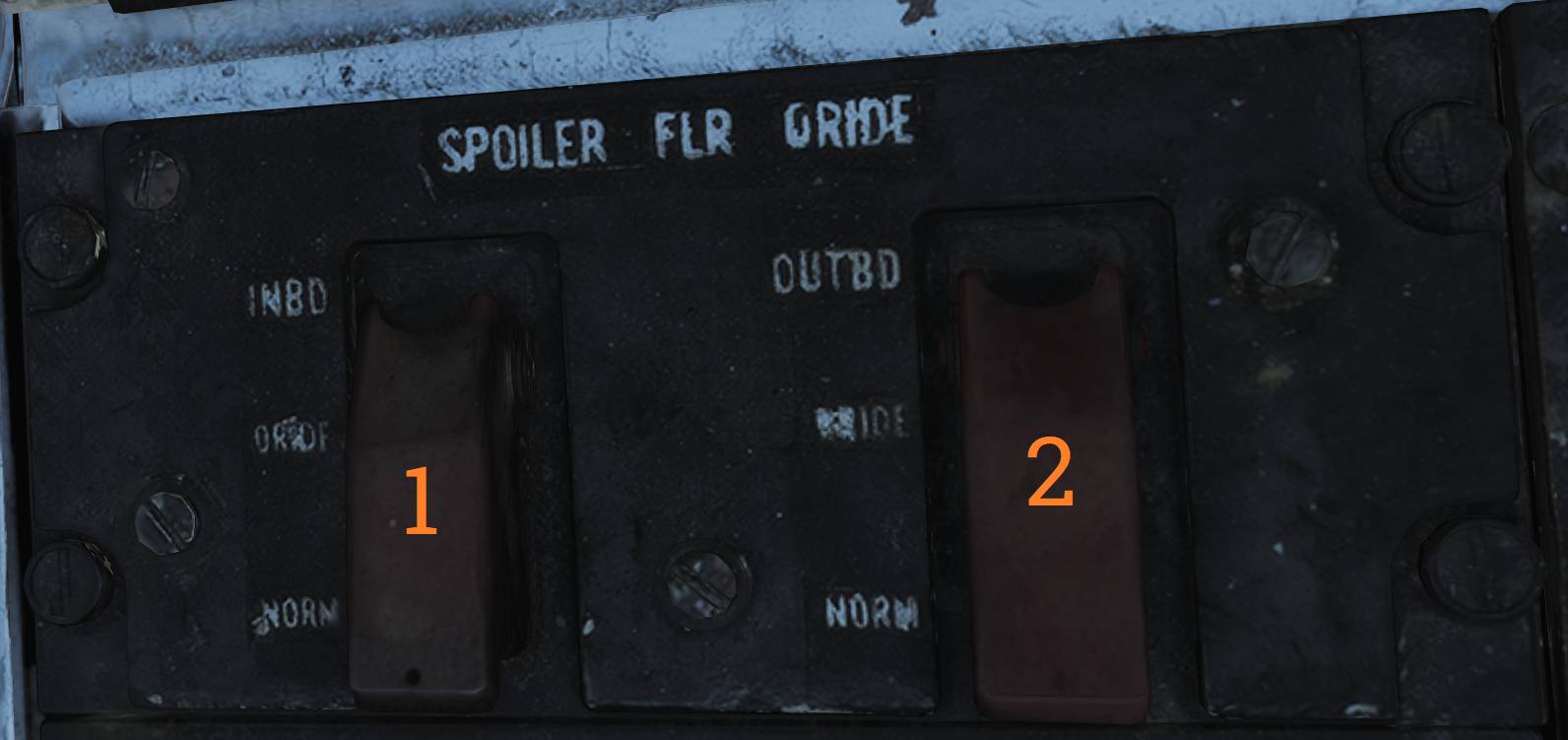

Spoiler Failure Override

Contains controls to override failed spoiler sections, allowing the remaining spoilers to continue operating after a MASTER RESET.

Inboard and Outboard Spoiler Override Switch

Two-position switch (1) controlling the inboard spoiler override function with two-position switch (2) controlling the outboard spoiler override function.

Both controls have two positions:

• ORIDE - Overrides spoiler symmetry protection, allowing a functional spoiler to continue to operate after a MASTER RESET if one fails.
• NORM - Normal (guarded position), in this mode, if a spoiler fails up the rest are commanded to drop and the SPOILERS light illuminates on the caution panel.

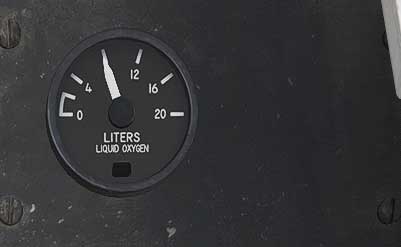

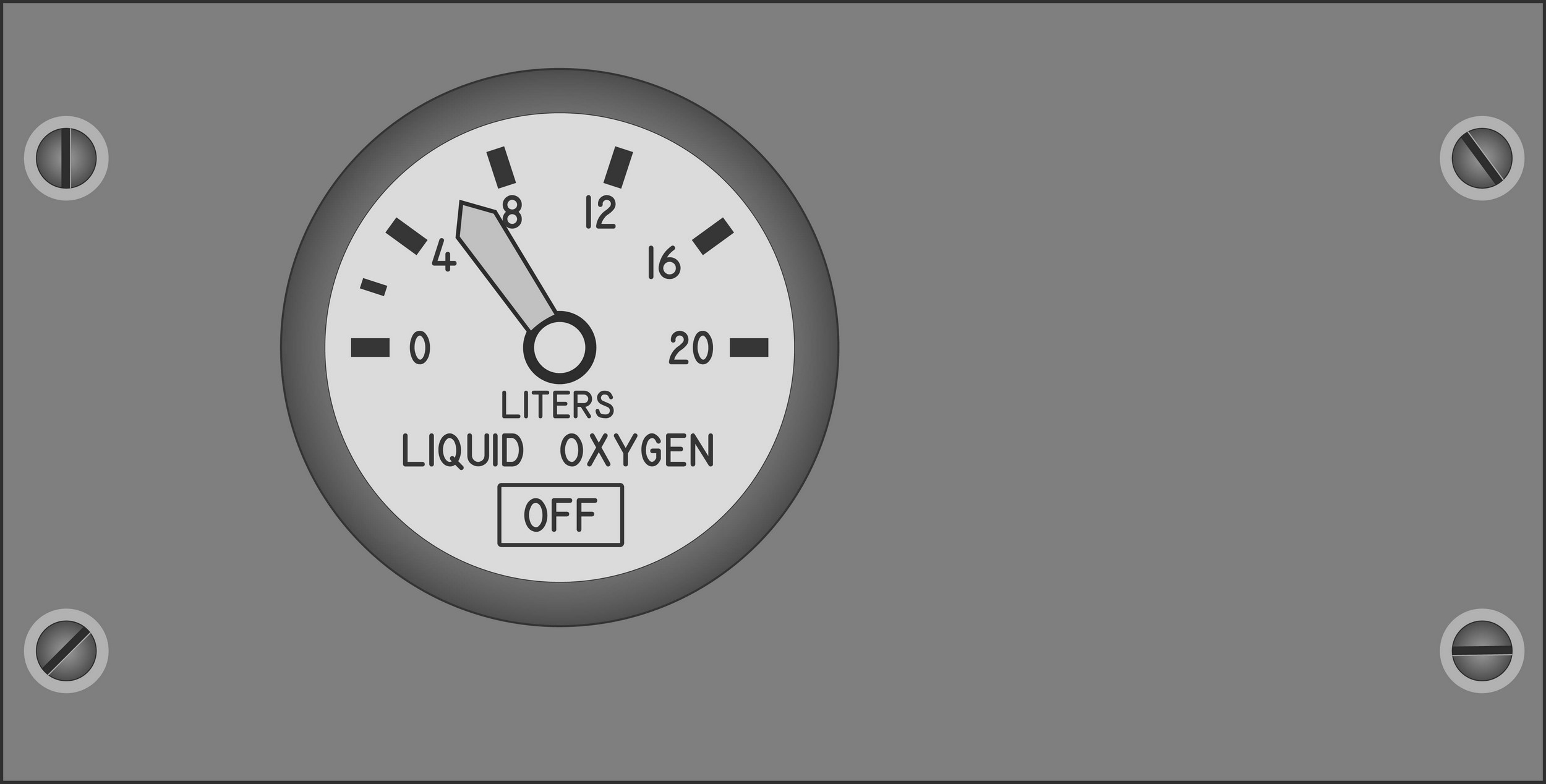

Liquid Oxygen Quantity Indicator

Contains an indicator showing the remaining quantity of liquid oxygen available. Graduated in 1-liter increments. Also has an OFF flag that is shown in case of power failure to the indicator. The indicator is tested through the INST mode on the MASTER TEST panel and should read 2 liters.

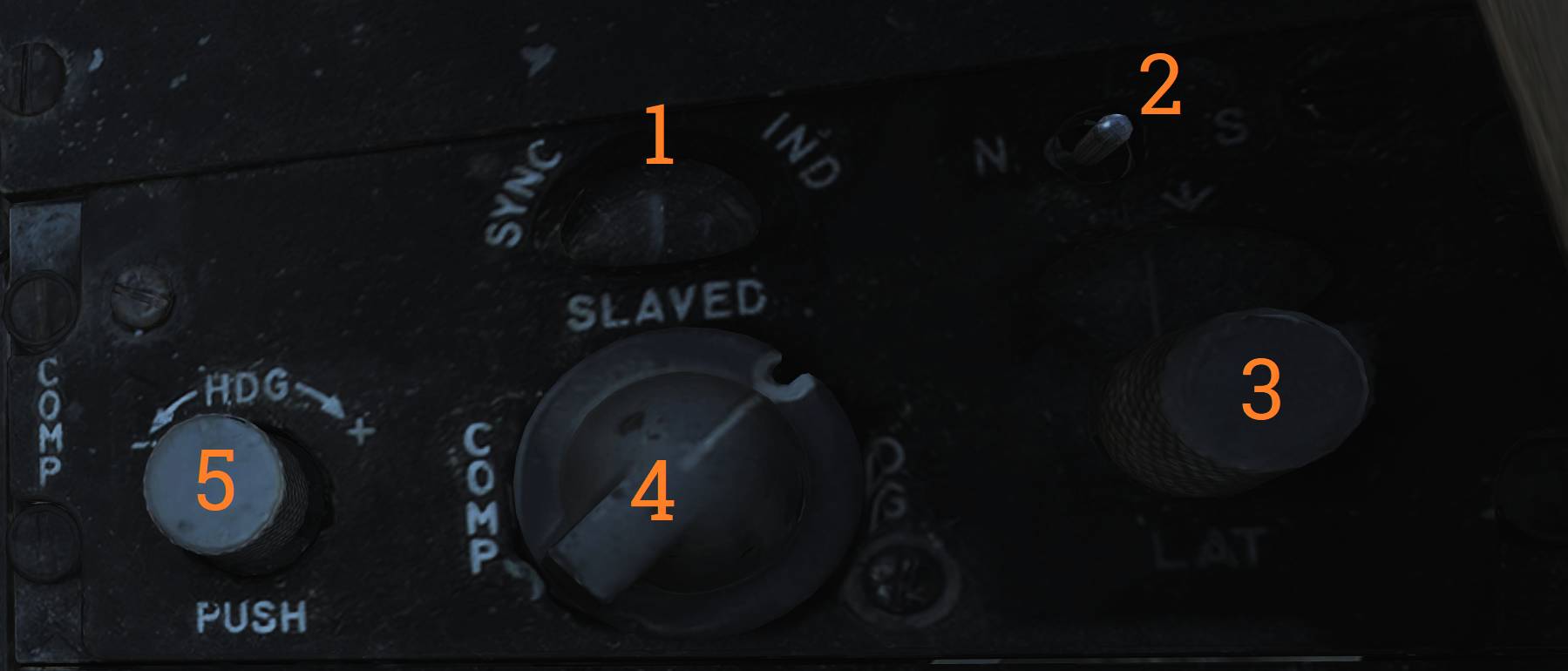

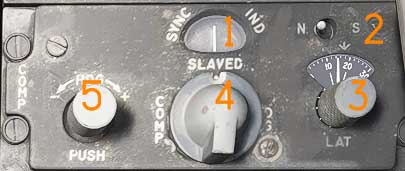

Compass Control Panel

The compass control panel contains controls used to configure AHRS heading reference modes.

Sync Indicator

Indicator (1) displaying synchronization between the AHRS directional gyro and the magnetic azimuth detector. Used primarily in SLAVED mode.

Hemisphere Selector Switch

The N-S switch (2) selects the hemisphere in which the aircraft is operating.

Correct selection is critical to ensure proper earth-rate correction in both DG and SLAVED modes.

Latitude Selector Knob

The LAT knob (3) selects aircraft latitude from 0° to 90°.

This input allows the AHRS to apply correct earth-rate compensation in DG and SLAVED modes.

Compass Mode Switch

The mode switch (4) selects the source of heading information for the AHRS.

• COMP - Compass, uses magnetic azimuth detector directly without stabilization from the directional gyro, used only for emergency operation and the displays automatically uses the manual magnetic variation.
• SLAVED - Normal mode, uses the magnetic azimuth detector stabilized by the directional gyro.
• DG - Directional gyro mode, uses only gyro and not the magnetic azimuth detector.

Heading Knob/Button

The HDG knob and pushbutton (5) is used in DG and SLAVED modes.

In SLAVED mode it's used to sync the directional gyro with the magnetic azimuth detector and set magnetic heading on the BDHI. Button should be held until the synchronization indicator needle is over the null mark.

In DG mode the button is depressed and rotated to select desired heading on the BDHI.

The button can also be used to fast erect pitch and roll of the AHRS by depressing the button for up to 3 minutes. A new fast erect attempt can be done if a 1 minute wait is first observed.

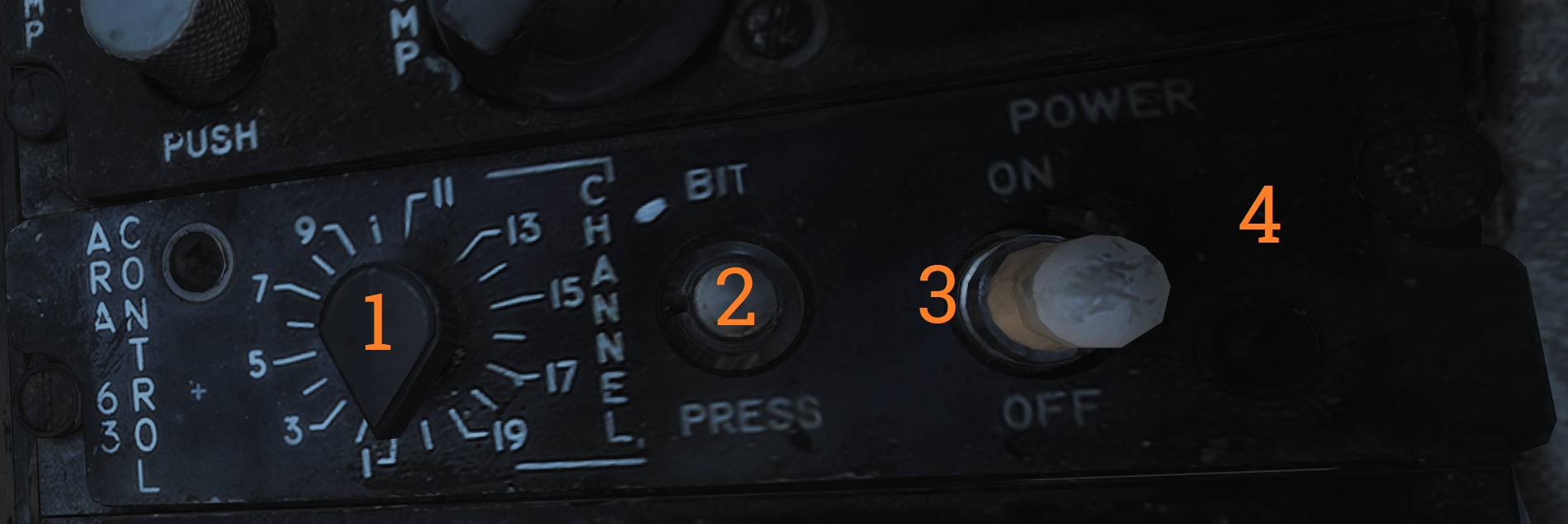

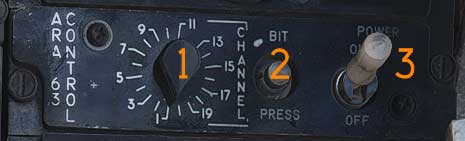

ARA-63 Control Panel

Panel used to control the AN/ARA-63 Instrument Carrier Landing System (ICLS).

Channel Selector

Rotary selector (1) used to select one of 20 available ICLS channels.

BIT Button

The BIT pushbutton (2) initiates a self-test of the AN/ARA-63 system.

When activated, landing symbology is displayed on the HUD and VDI if configured for ILS operation.

Power Switch

The POWER switch (3) controls electrical power to the AN/ARA-63.

The switch must be pulled outward to move to the OFF position.

Power Indicator Light

Indicator light (4) illuminates when the AN/ARA-63 is powered.

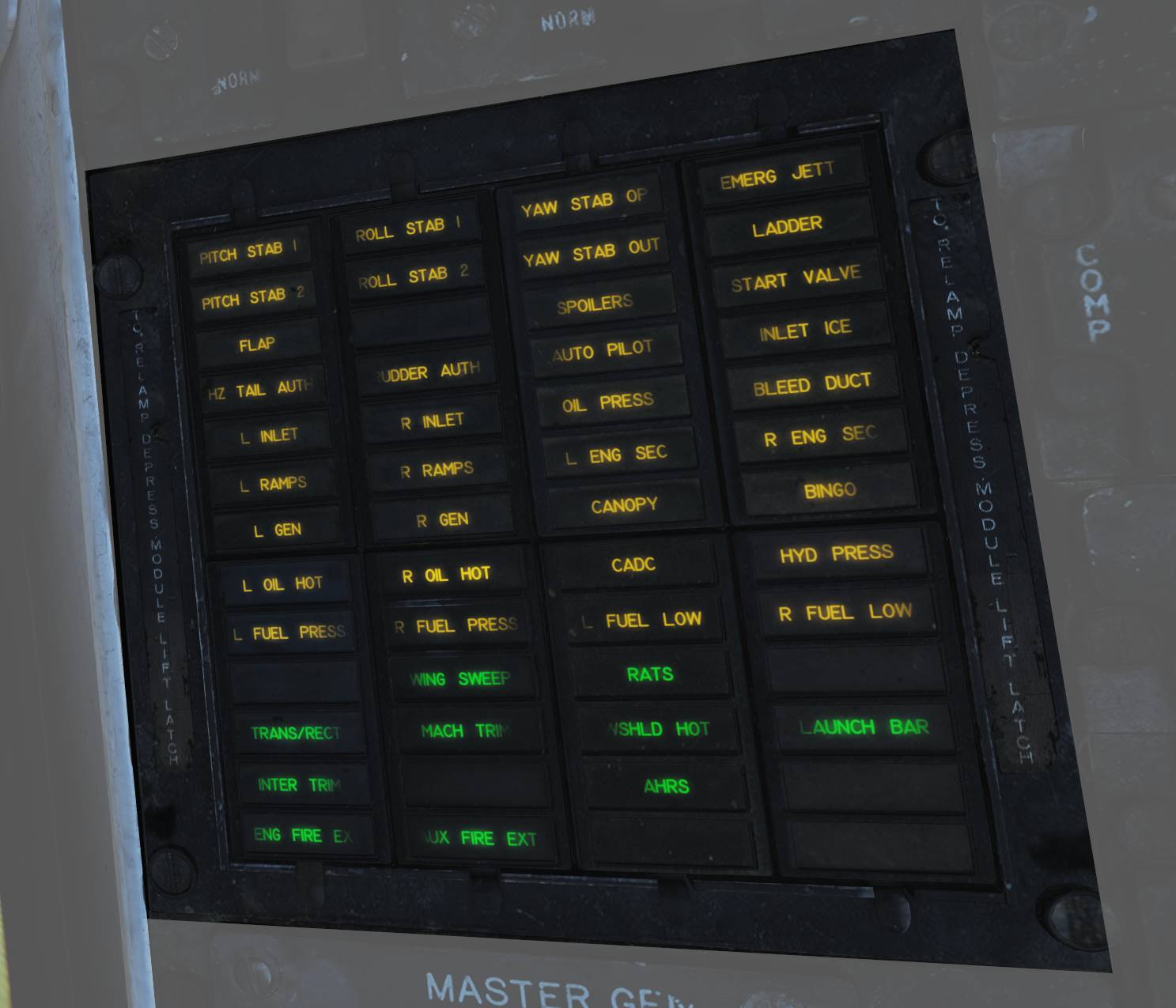

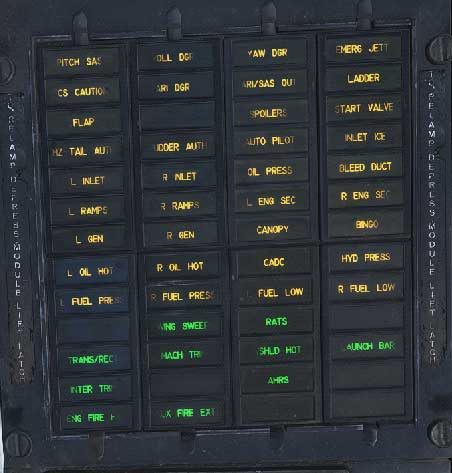

Caution - Advisory Indicator

Main pilot caution panel.

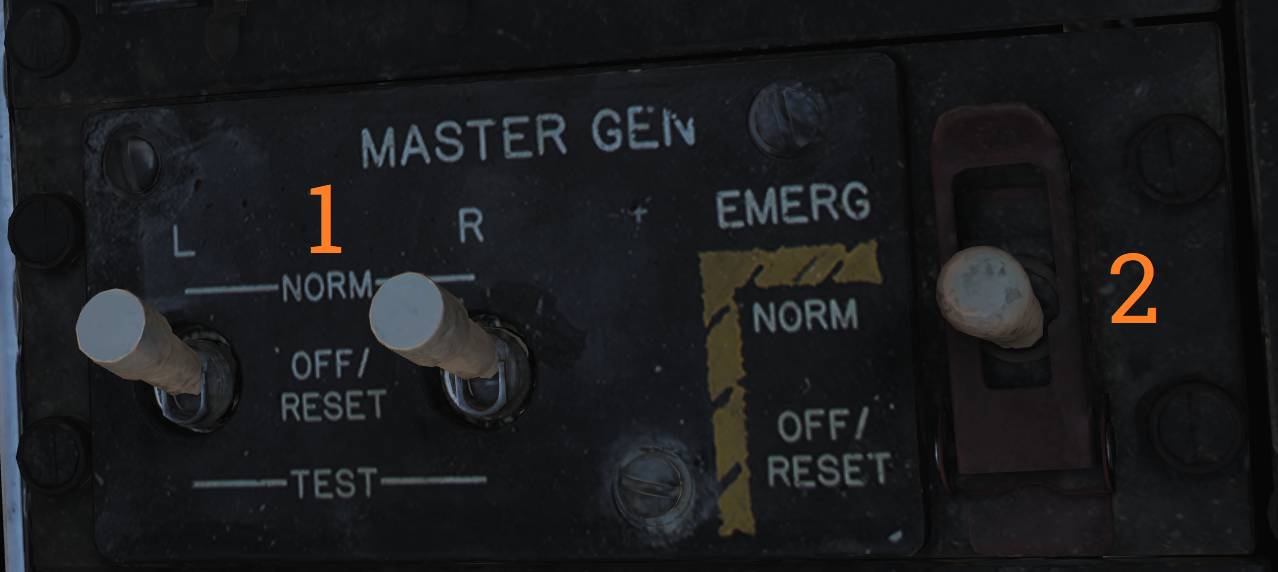

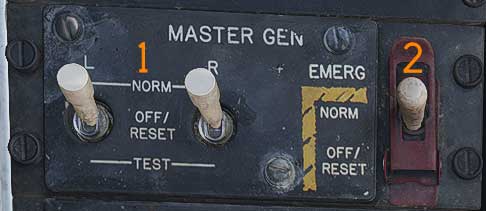

Master Generator Control Panel

Panel controlling electrical power generation and emergency generator logic.

Master Generator Switches

The left and right MASTER GEN switches (1) control activation and connection of their respective engine-driven generators.

The switch must be lifted to move from OFF/RESET.

• NORM - Activates and connects the generator to the main electrical buses.
• OFF/RESET - Disconnects the generator and resets protective circuits.
• TEST - Activates the generator without connecting it to the buses for testing purposes.

Emergency Generator Switch

Guarded EMERG switch (2) controlling emergency generator connection to the essential buses.

• NORM - Emergency generator automatically connects if both main generators fail.
• OFF/RESET - Disconnects the emergency generator and resets protection circuits.

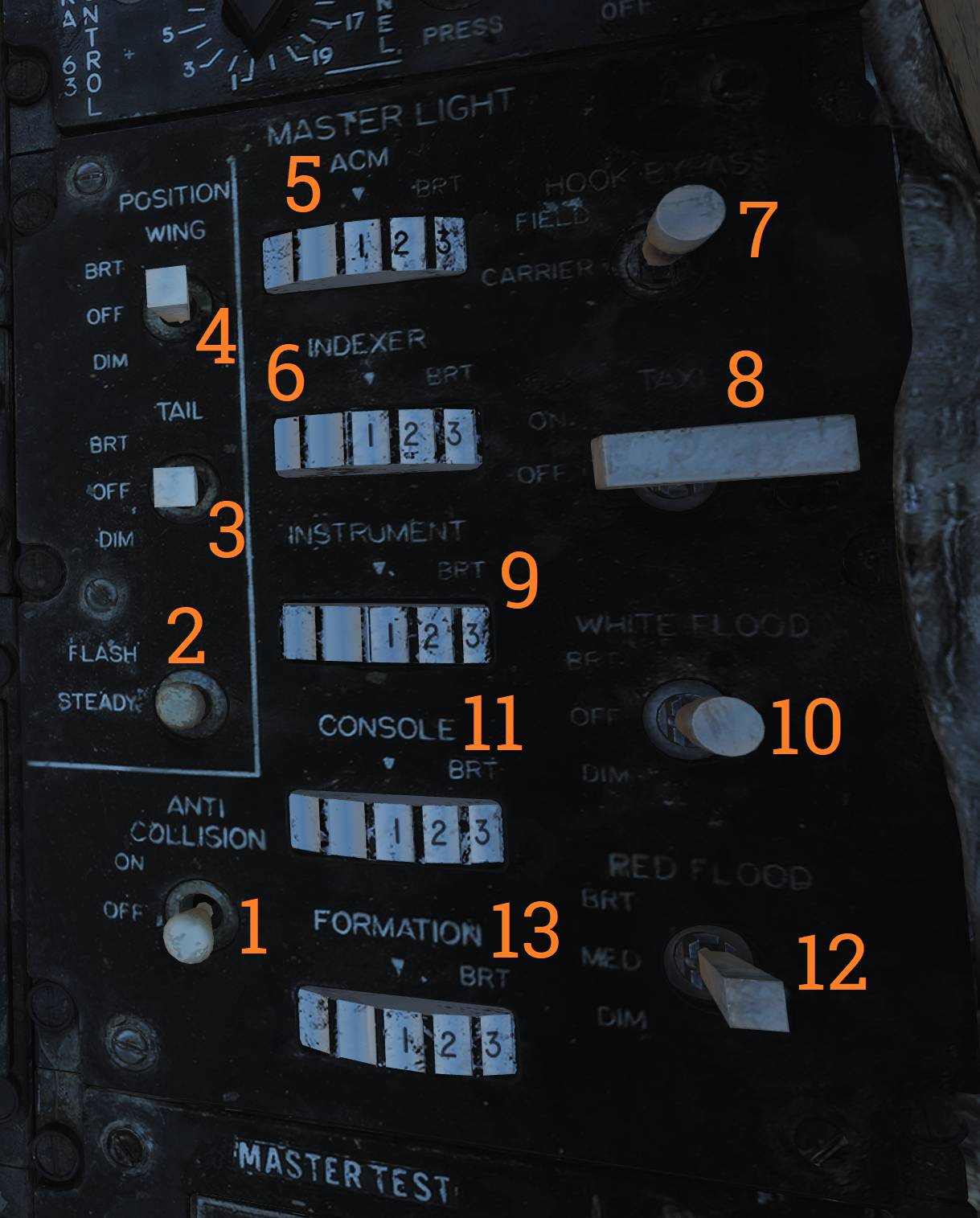

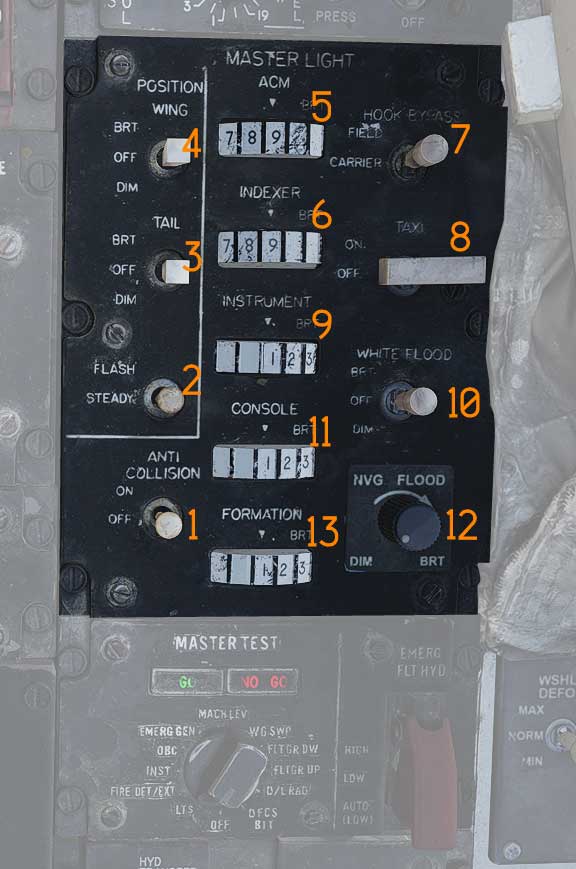

Master Light Control Panel

The master light control panel manages most interior and exterior aircraft lighting systems.

Anti-Collision Light Switch

ON/OFF switch (1) controlling aircraft anti-collision lights.

Position Light Mode Switch

Switch (2) selecting steady or flashing operation of wing and supplementary tail position lights.

With weight on wheels, supplementary lights remain steady regardless of selection.

Tail Position Light Switch

Switch (3) controlling tail position lights with DIM and BRT settings.

Wing Position Light Switch

Switch (4) controlling wing position lights with DIM and BRT settings.

ACM Lighting Thumbwheel

Thumbwheel (5) controlling ACM panel lighting intensity from 0 (off) to 14 (maximum).

AoA Indexer Thumbwheel

Thumbwheel (6) adjusting angle-of-attack indexer light intensity from 0 to 14.

Hook Bypass Switch

Switch (7) selecting FIELD or CARRIER AoA logic.

When set to CARRIER with wheels down, AoA lights flash if the arresting hook is not down.

Taxi Light Switch

ON/OFF switch (8) controlling taxi lights.

Instrument Lighting Thumbwheel

Thumbwheel (9) controlling instrument panel lighting intensity from 0 to 14.

White Flood Light Switch

Switch (10) enabling white cockpit flood lighting.

DIM and BRT positions available. Switch is locked to OFF unless pulled outward.

Console Lighting Thumbwheel

Thumbwheel (11) controlling console lighting and red flood lighting.

• 0 - All off
• 1–14 - Increasing console light intensity

Red Flood Light Switch

Switch (12) controlling red instrument and console flood lighting.

• DIM - Dim red console flood
• MED - Medium red console flood
• BRT - Bright red instrument and console flood

Formation Light Thumbwheel

Thumbwheel (13) controlling external formation light brightness from 0 to 14.

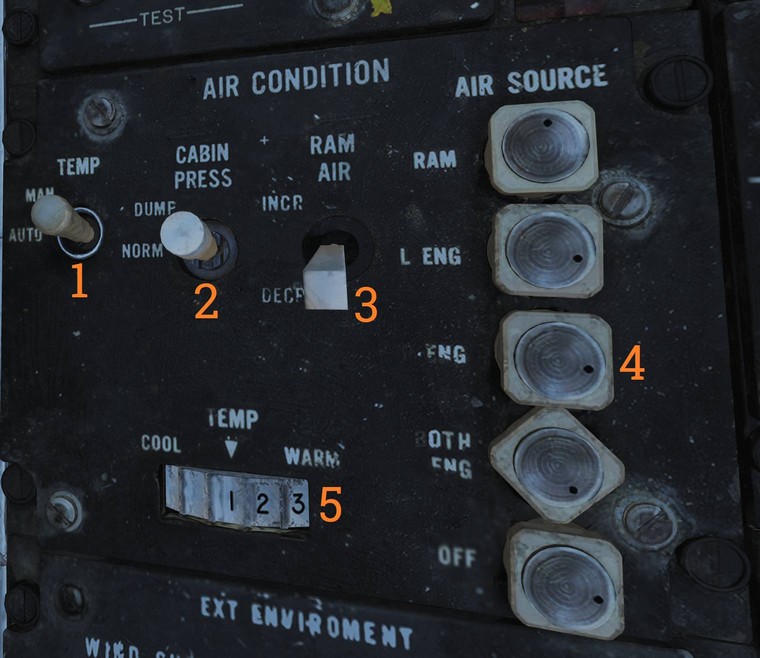

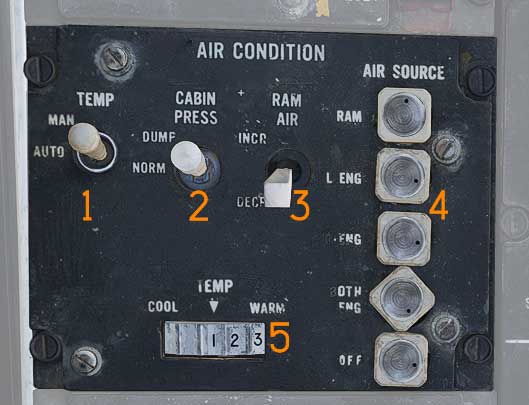

Air Conditioning Control Panel

Panel controlling the environmental control system (ECS).

Temperature Switch

Two-position switch (1) controlling the cabin and pressure suit temperature mode.

• AUTO - Temperature is automatically regulated using the TEMP thumbwheel regardless of airspeed and altitude.
• MAN - Temperature is manually controlled using the TEMP thumbwheel and varies with airspeed and altitude.

Cabin Pressure Switch

Two-position switch (2) controlling cabin pressurization. The switch is locked in NORM until lifted.

• NORM - Normal pressurization mode. Cabin pressure is maintained at approximately 8,000 feet up to an aircraft altitude of 23,000 feet, after which a constant 5 psi differential is maintained.
• DUMP - Opens the cockpit dump valve, depressurizing the cockpit.

RAM AIR Switch

The RAM AIR switch (3) modulates cockpit air temperature when the ram air door is in use.

INCR opens the ram air door, decreasing temperature, while DECR closes the door, increasing temperature. The switch is spring-loaded to center.

Air Source Selectors

Five mutually exclusive air source selectors (4) used to select ECS air supply source.

• RAM - Closes all other air sources and opens the ram air door. Gun firing is inhibited.
• L & R ENG - Selects either engine as bleed air source.
• BOTH ENG - Selects both engines as bleed air sources. Normal position.
• OFF - Closes all air sources except the ram air door. Pressurization and air conditioning are unavailable. Gun firing is inhibited.

Temperature Thumbwheel

The TEMP thumbwheel (5) selects cockpit and pressure suit air temperature. 0-14 is selectable with COOL and WARM placarded at each end stop. With the TEMP switch (1) set to AUTO, a setting of 7 corresponds approximately to 21°C (70°F) while set to manual, the thumbwheel needs to be set for each variation in airspeed and altitude.

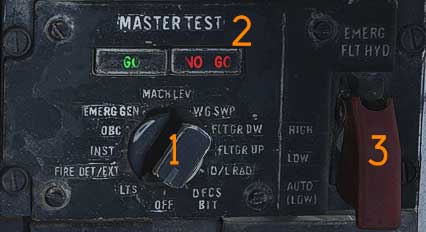

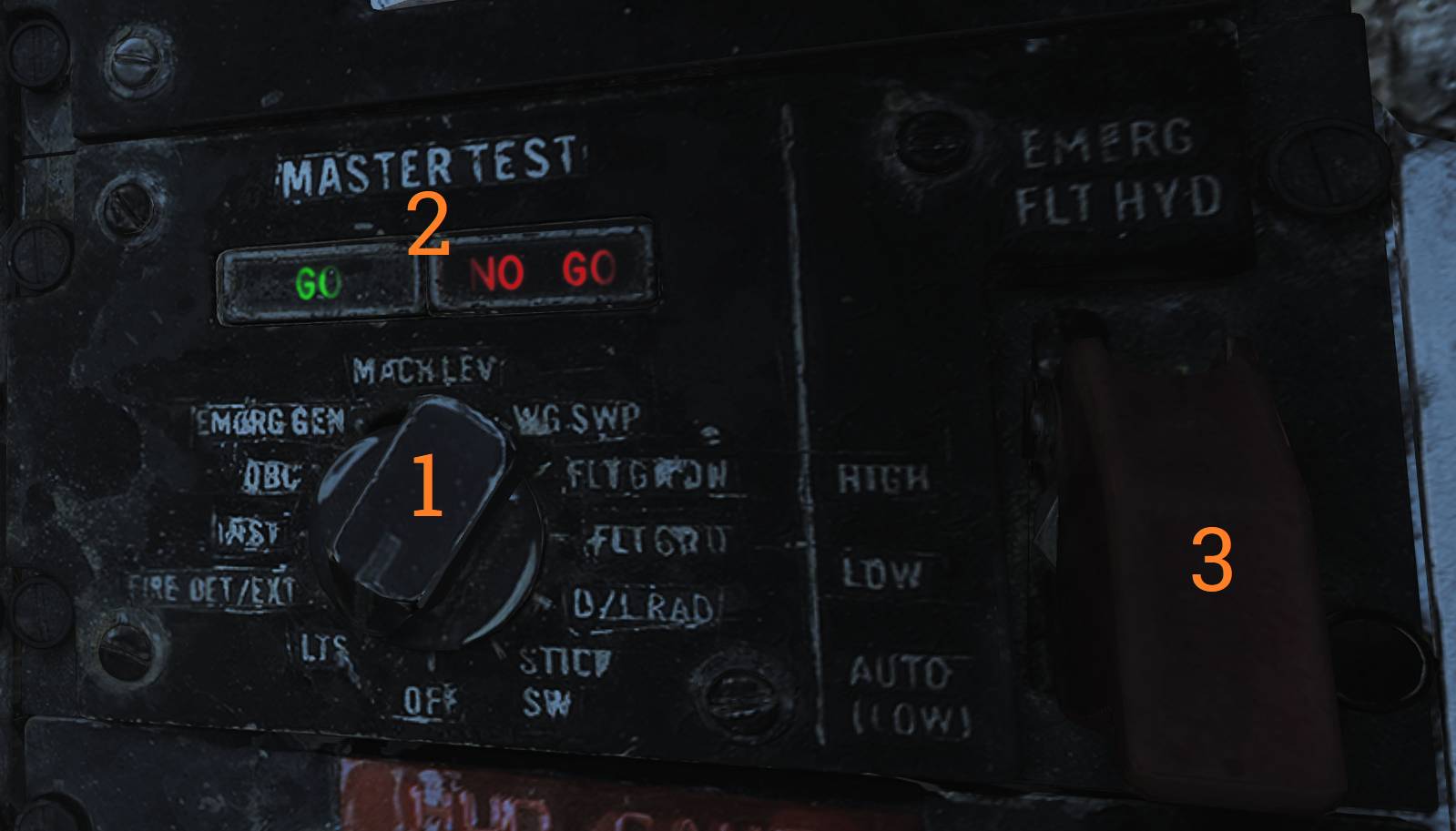

Master Test Panel

Panel used to control onboard checkout (OBC), on board built-in tests (BIT), and emergency flight hydraulic operation.

Master Test Selector

The MASTER TEST selector (1) is used to select and initiate OBC and BIT functions. Pull out to enable selection, push in at selected option to start test.

• OFF - Disables all test functions.
• LTS - Tests cockpit lights.
• FIRE DET/EXT - Tests fire detection and extinguishing systems.
• INST - Tests cockpit instruments.
• OBC - Initiates onboard checkout.
• EMERG GEN - Tests emergency generator.
• MACH LEV - Dynamic Mach lever test. (F-14A only.)
• WG SWP - Wing sweep test.
• FLT GR DN - Ground check of autothrottle interlocks.
• FLT GR UP - External tank pressurization test.
• D/L RAD - Data link converter test.
• STICK SW - Stick and spoiler symmetry switch test.

GO / NO-GO Indicator Lights

The GO and NO-GO lights (2) used to indicate GO or NO-GO conditions of systems during relevant tests.

Emergency Flight Hydraulic Switch

The EMERG FLT HYD switch (3) controls emergency flight hydraulic operation. The switch is guarded to the AUTO (LOW) position.

• HIGH - Activates the power module (high speed mode), bypassing flight and combined 2,100 psi switches.
• LOW - Activates the backup power module bypassing flight and combined 2,100 psi switches.
• AUTO (LOW) - Automatically activates LOW mode when both flight and combined system pressures are below 2,100 psi.

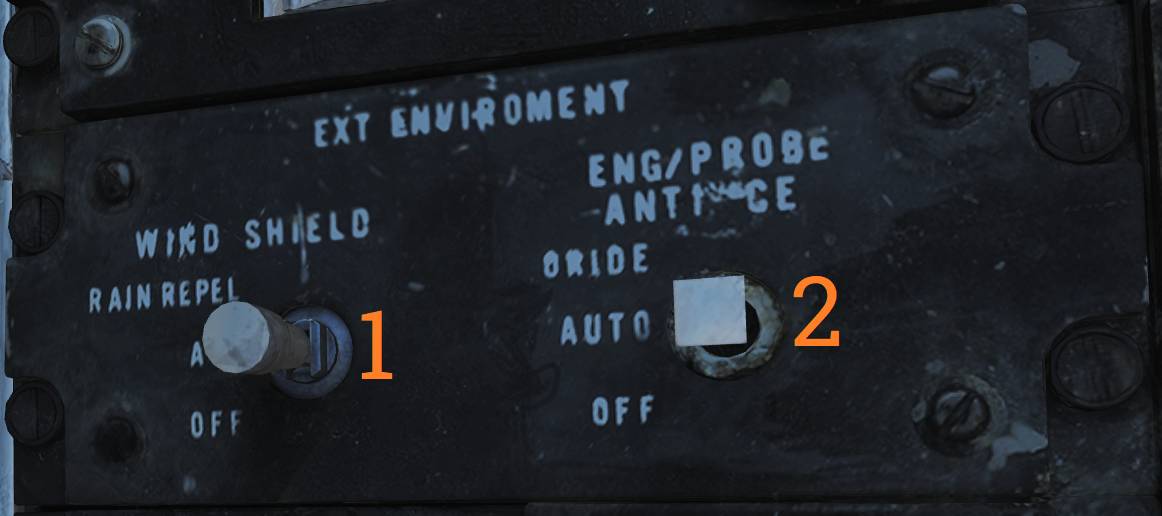

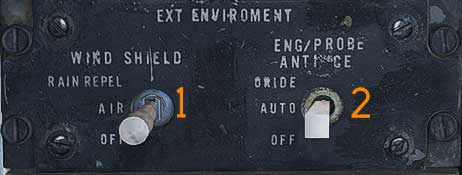

External Environmental Control Panel

Panel controlling windshield heating and external anti-ice systems.

Windshield Heat Switch

The WIND SHIELD switch (1) controls external windshield heating by blasting the exterior with warm air.

• AIR - Enables windshield heating using warm air.
• OFF - Disables windshield heating.

ENG/PROBE ANTI-ICE Switch

The ENG/PROBE ANTI-ICE switch (2) controls engine, probe, and AICS anti-ice systems.

• ORIDE/ON - Engages engine and probe anti-ice regardless of external conditions and enables the anti-ice setting in AICS.
• AUTO/OFF - Automatically engages engine and probe anti-ice as needed, turns off AICS anti-ice.
• OFF/OFF - Turns off both engine and probe anti-ice and AICS anti-ice.

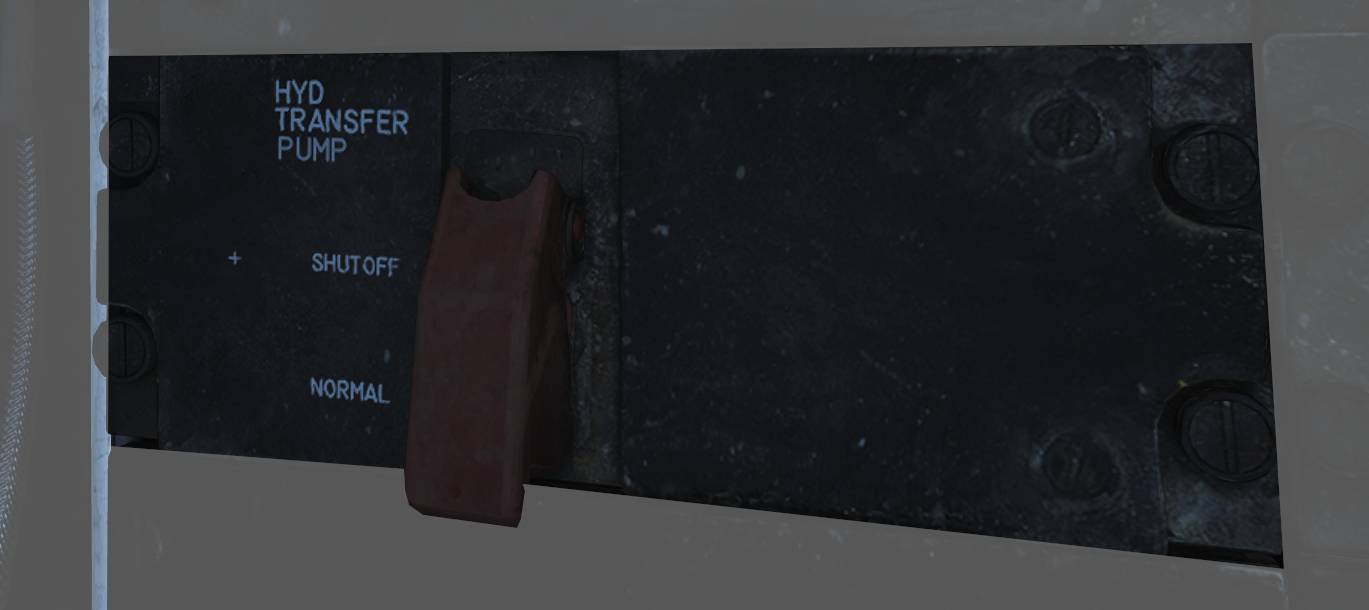

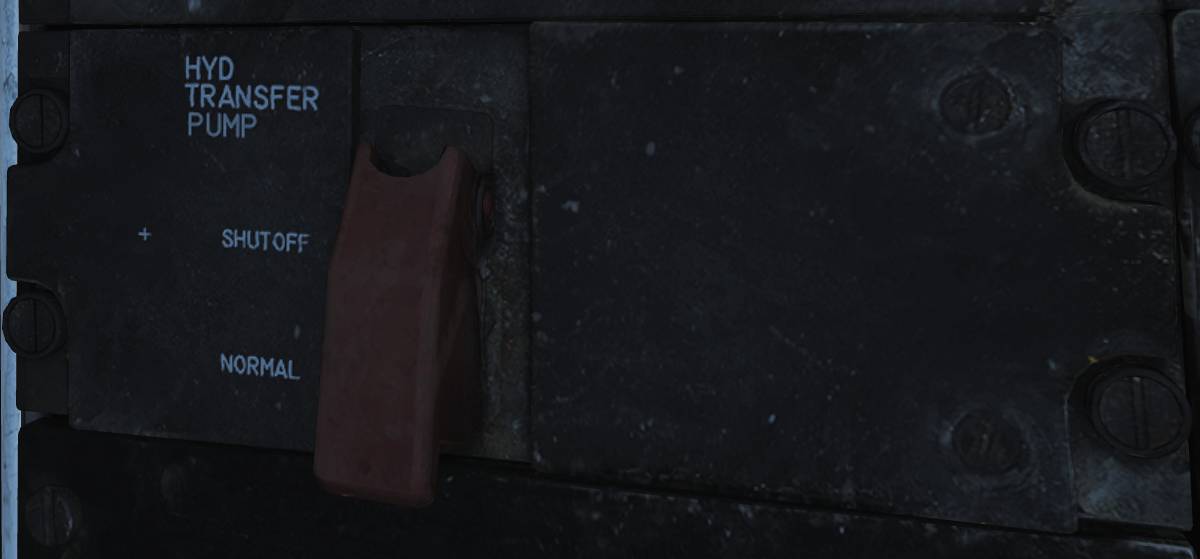

Hydraulic Transfer Pump Switch

Panel containing the control for the hydraulic transfer pump which equalizes pressure between the combined and flight hydraulic systems in case of a failure in one of them.

The HYD TRANSFER PUMP switch has two positions, SHUTOFF and NORMAL (guarded position).

The NORMAL position (also the standard setting) will have the hydraulic transfer pump pressurize a failed hydraulic system from the other, functioning system, when it drops below 2,100 psi.

The SHUTOFF position (which can be accessed by lifting the guard) is used to turn off the transfer pump in case it can’t supply enough pressure to the failed system as that would risk disabling the still operational system.

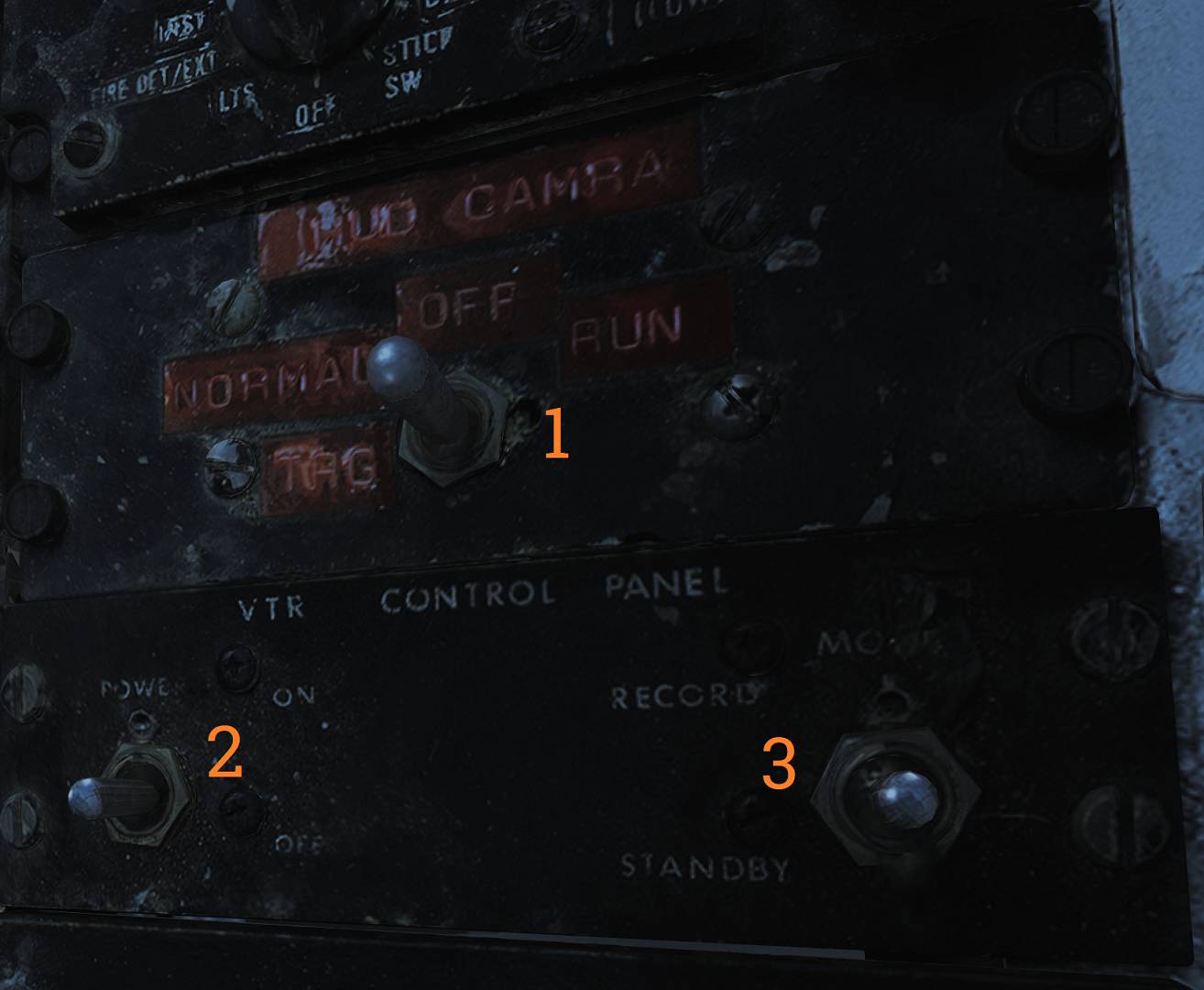

HUD - Video Control Panel

Control panel for the CTVS system used to record HUD video.

💡 Not implemented in DCS.

HUD Camera Switch

The HUD CAM(E)RA switch (1) selects when recording occurs.

• TRG - Trigger, records while the second (firing) detent on the stick trigger is depressed.
• NORMAL - Records while the first detent on the stick trigger is depressed.
• OFF - Disables power to the CTVS.
• RUN - Records continuously.

Switches (2) and (3) are for the Video Tape Recorder (VTR).

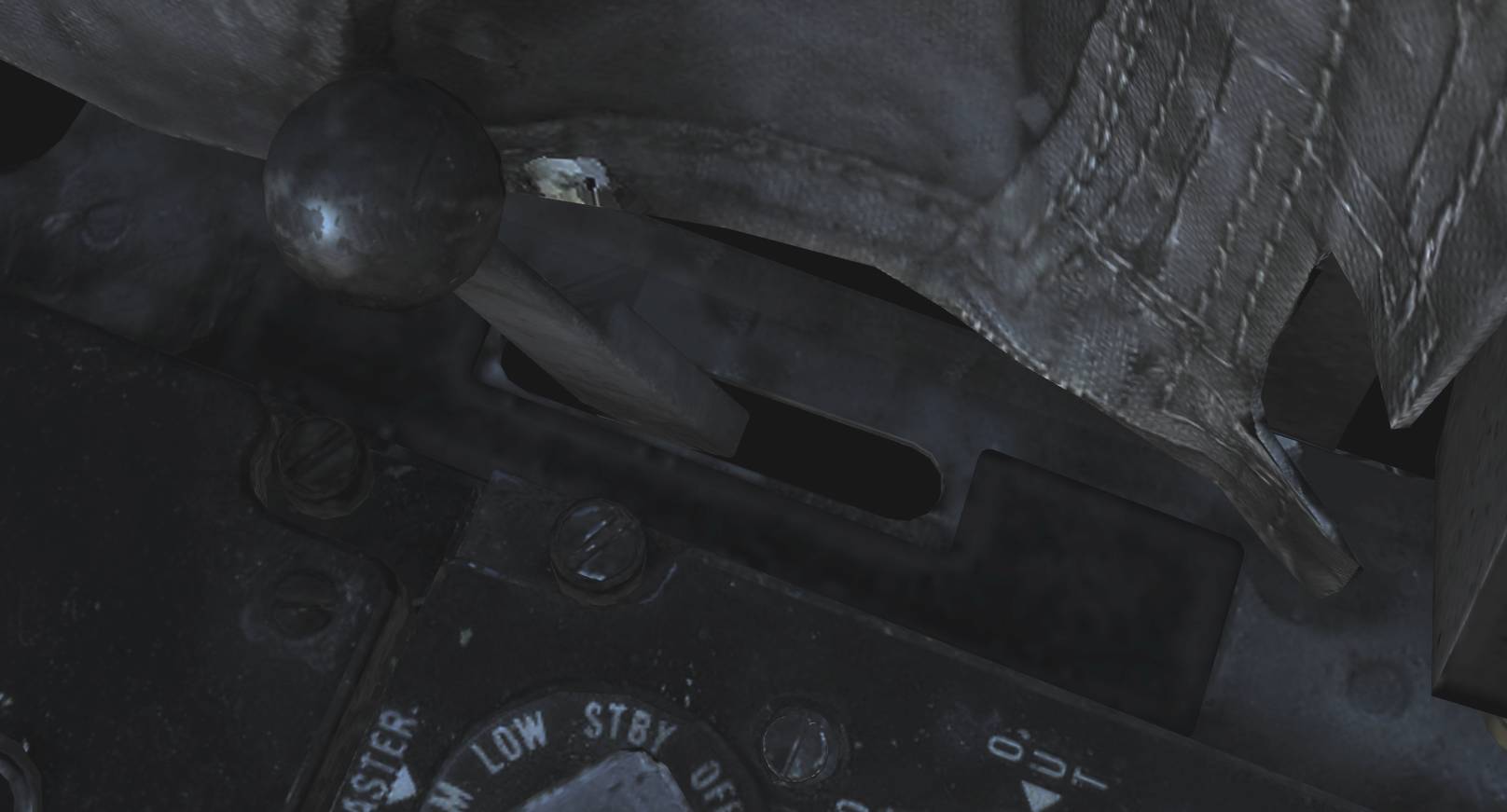

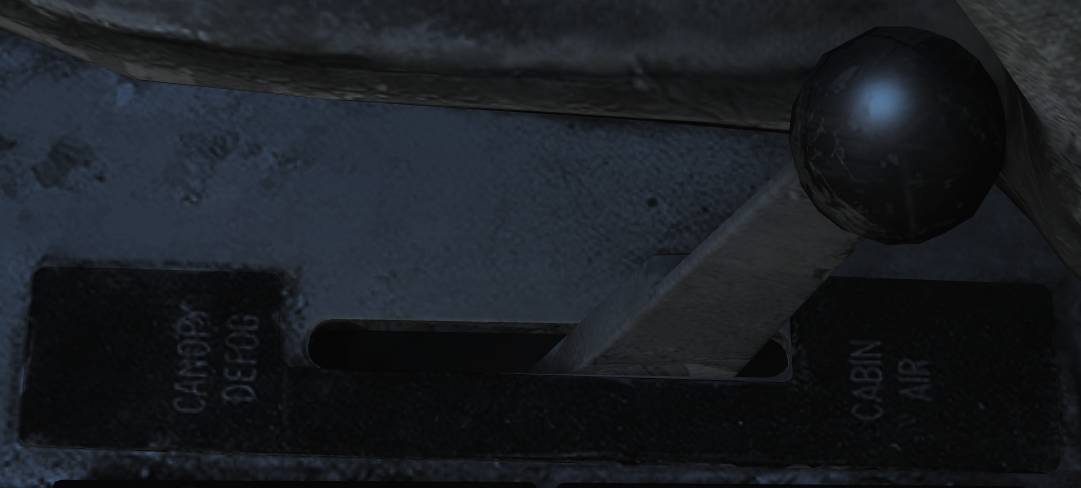

Canopy Defog / Cabin Air Lever

The canopy air diffuser lever controls the flow of cabin air. The normal position, CABIN AIR, directs 70% of the conditioned air through the cockpit air diffusers and 30% through the canopy air diffusers.

The CANOPY DEFOG position directs all airflow through the canopy air diffusers for canopy defog.

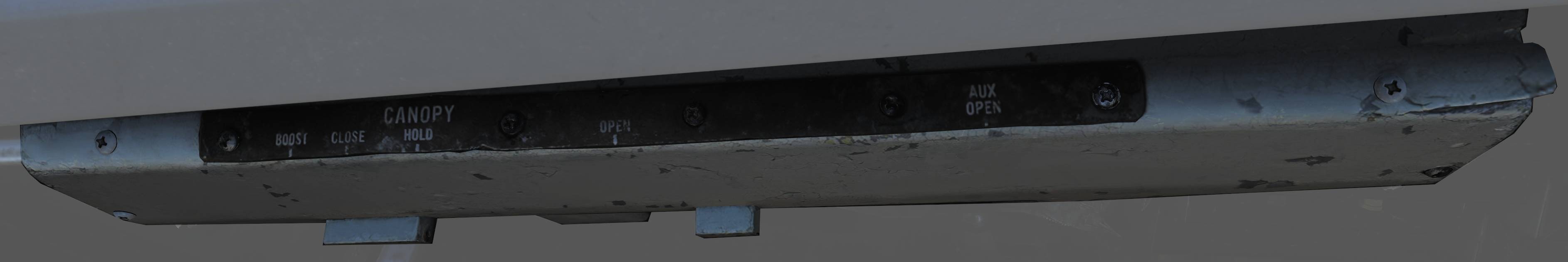

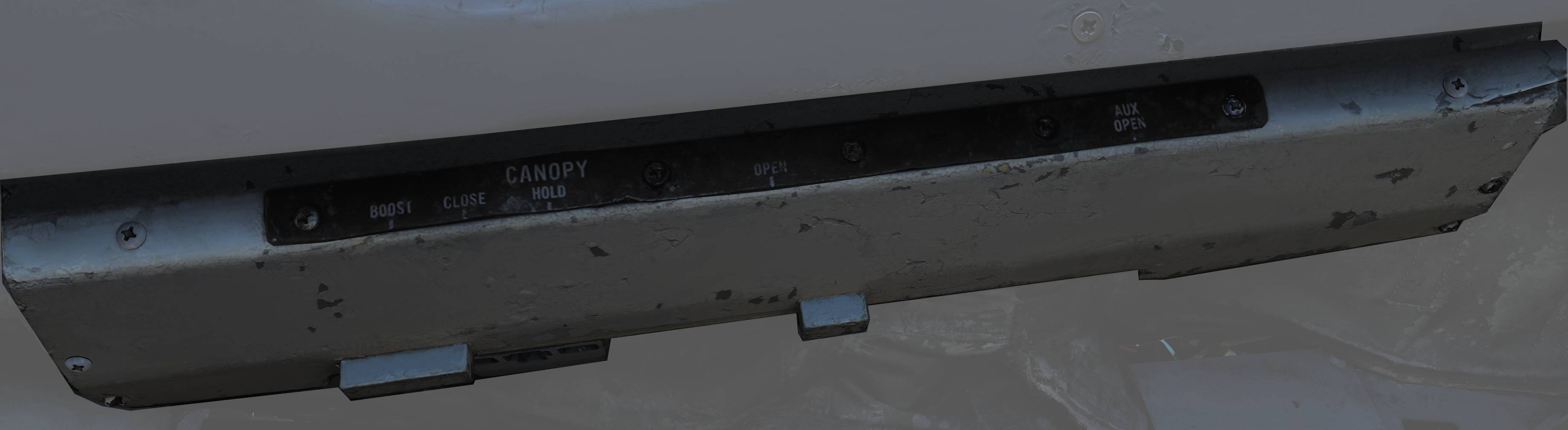

Canopy Control Handle

The canopy control handle controls canopy operation and is located on the right cockpit wall. The handle is mounted downwards beneath the box containing the handle mechanism and the handle position texts. The canopy control handle is duplicated in the RIO cockpit.

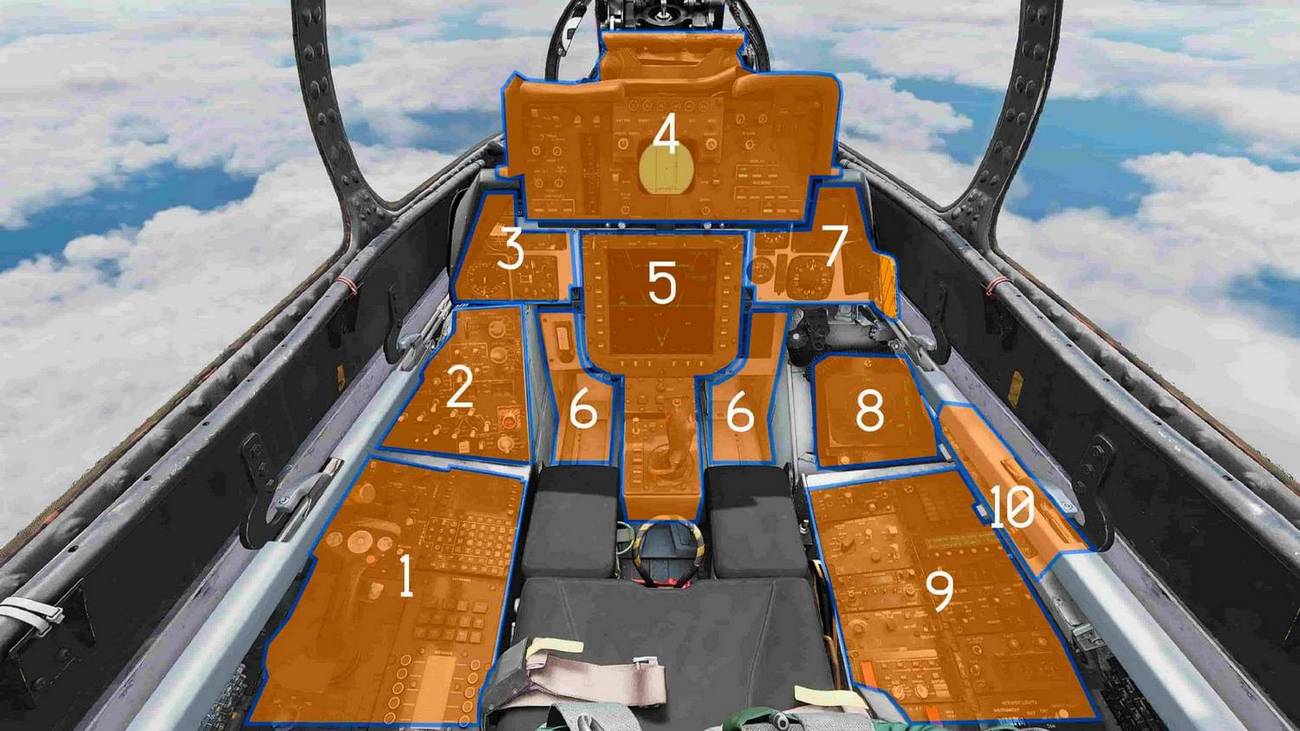

RIO Cockpit Overview

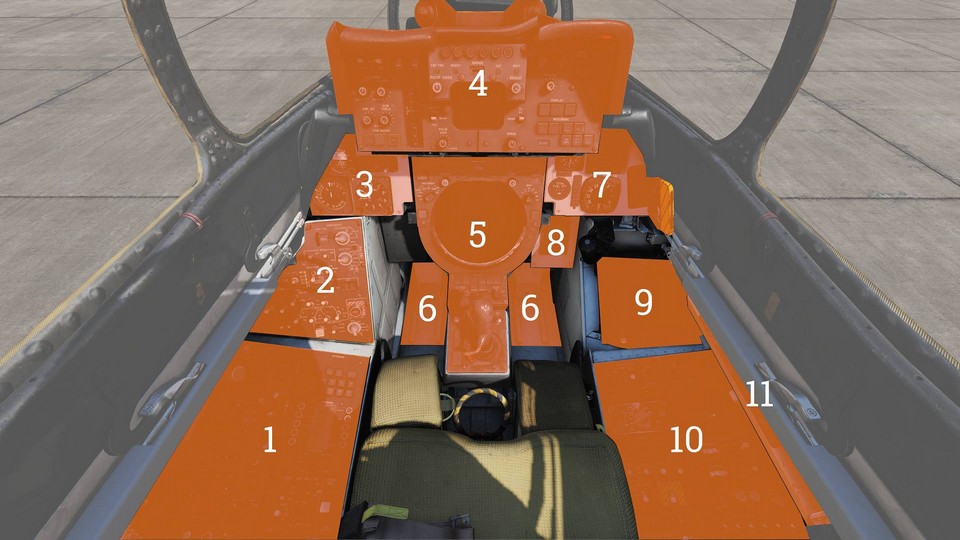

Layout

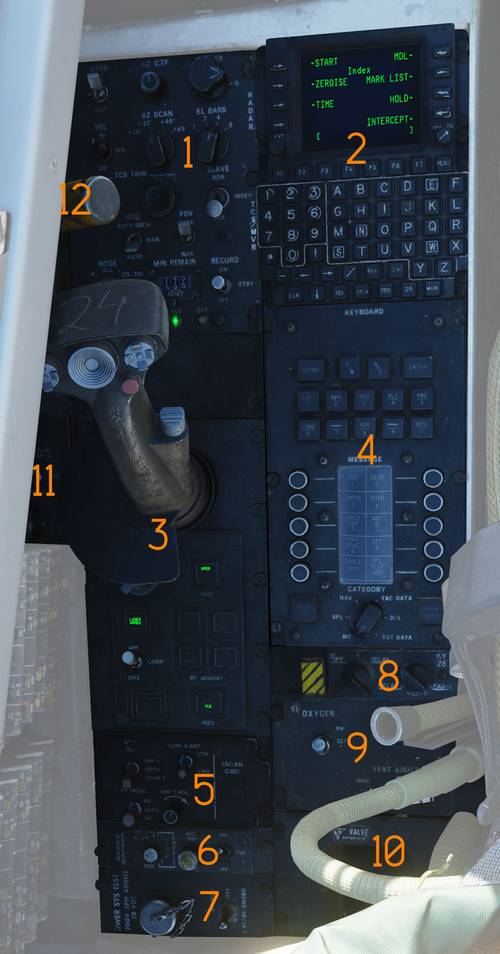

Left Side Console

G-Valve Button

The G-valve button is pressed to test inflation of the g-suit.

Oxygen-Vent Airflow Control Panel

Panel controlling ventilation airflow and oxygen supply to the RIO.

Vent Airflow Dial

The VENT AIRFLOW dial controls airflow through the pressure suit or seat cushions when no pressure suit is worn.

Oxygen Switch

The OXYGEN switch controls oxygen flow to the RIO oxygen mask.

• ON - Oxygen supplied to mask.
• OFF - Oxygen flow shut off.

Data Stowage Compartment

The data stowage compartment provides storage space for equipment, documents, and mission briefing materials.

TACAN Control Panel

TACAN control panel allowing the RIO to operate TACAN when assigned command.

Channel Selector

The dual rotary selector (1) selects the TACAN channel.

• Outer dial - selects the first two digits.
• Inner dial - selects the final digit.

GO / NO-GO Indicator Lights

The GO and NO-GO lights (2) display TACAN BIT results.

BIT Button

The BIT button (3) initiates TACAN built-in test.

Mode Switches

The MODE switches (4) select TACAN operating mode and X or Y channel.

INVERSE mode is not functional.

TACAN Volume Knob

The VOL knob (5) controls TACAN audio volume to the RIO headset.

TACAN Mode Selector

The MODE knob (6) selects TACAN operating mode.

Available modes are:

• OFF - TACAN off.
• REC - Receive only.
• T/R - Transmit and receive with range readout.
• A/A - Air-to-air TACAN.
• BCN - Beacon mode (not functional).

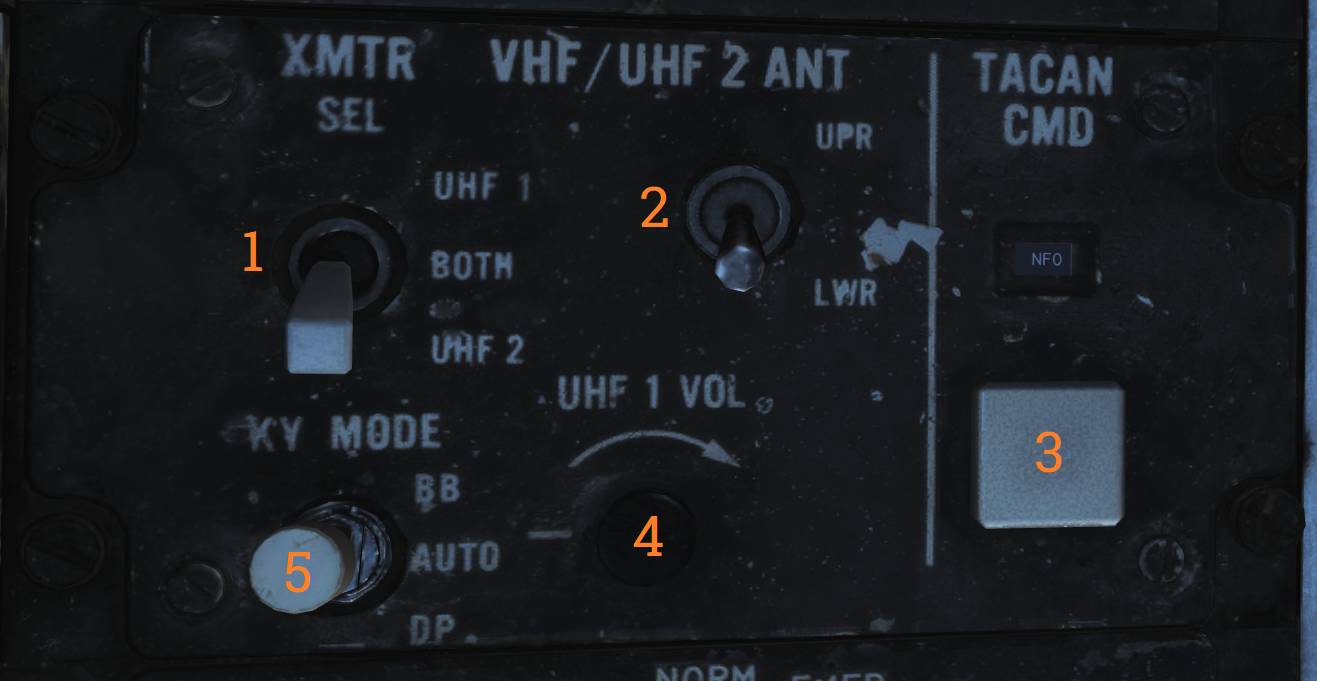

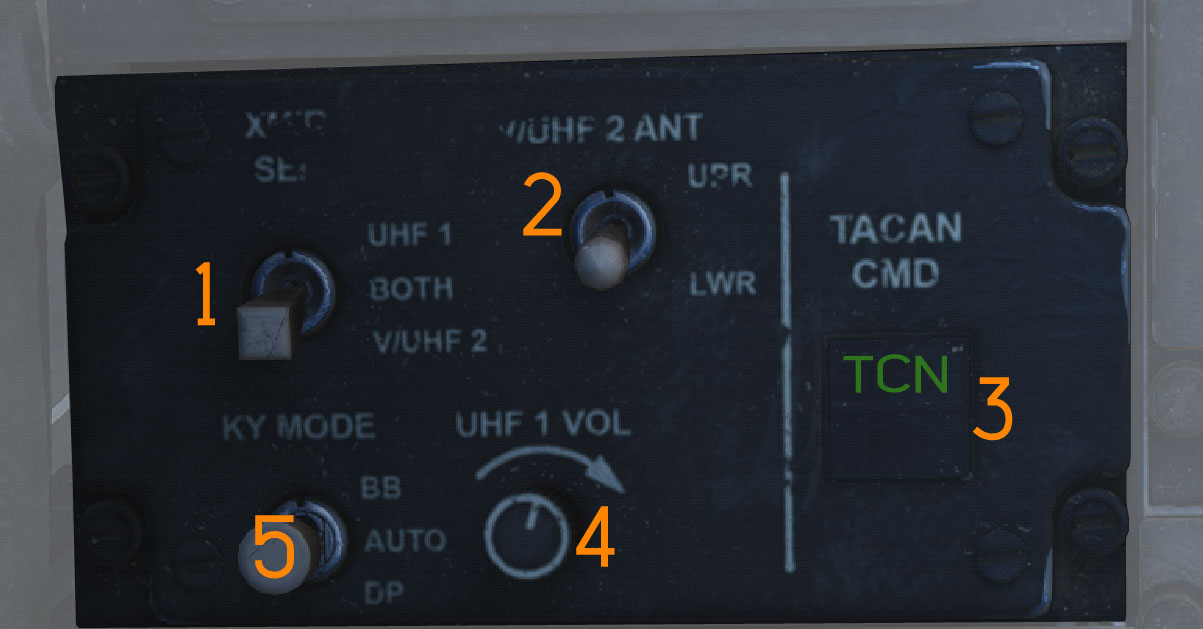

Communication / TACAN Command Panel

Panel controlling radio selection, antenna routing, and TACAN command authority.

Transmitter Select Switch

The XMTR SEL switch (1) selects which radio is keyed by the RIO PTT.

• UHF 1 - ARC-159.
• BOTH - Both radios.
• V/UHF 2 - ARC-182.

V/UHF 2 Antenna Switch

The V/UHF 2 ANT switch (2) selects antenna used by the ARC-182.

• UPR - Upper antenna.
• LWR - Lower antenna.

TACAN Command Switch

The TACAN CMD switch (3) selects which crewmember controls TACAN and indicates current authority.

UHF 1 Volume Knob

The UHF 1 VOL knob (4) controls UHF-1 audio volume to the RIO headset.

KY Mode Switch

The KY MODE switch (5) is only functional with KY-58 encryption.

The simulated aircraft uses KY-28; this switch is non-functional.

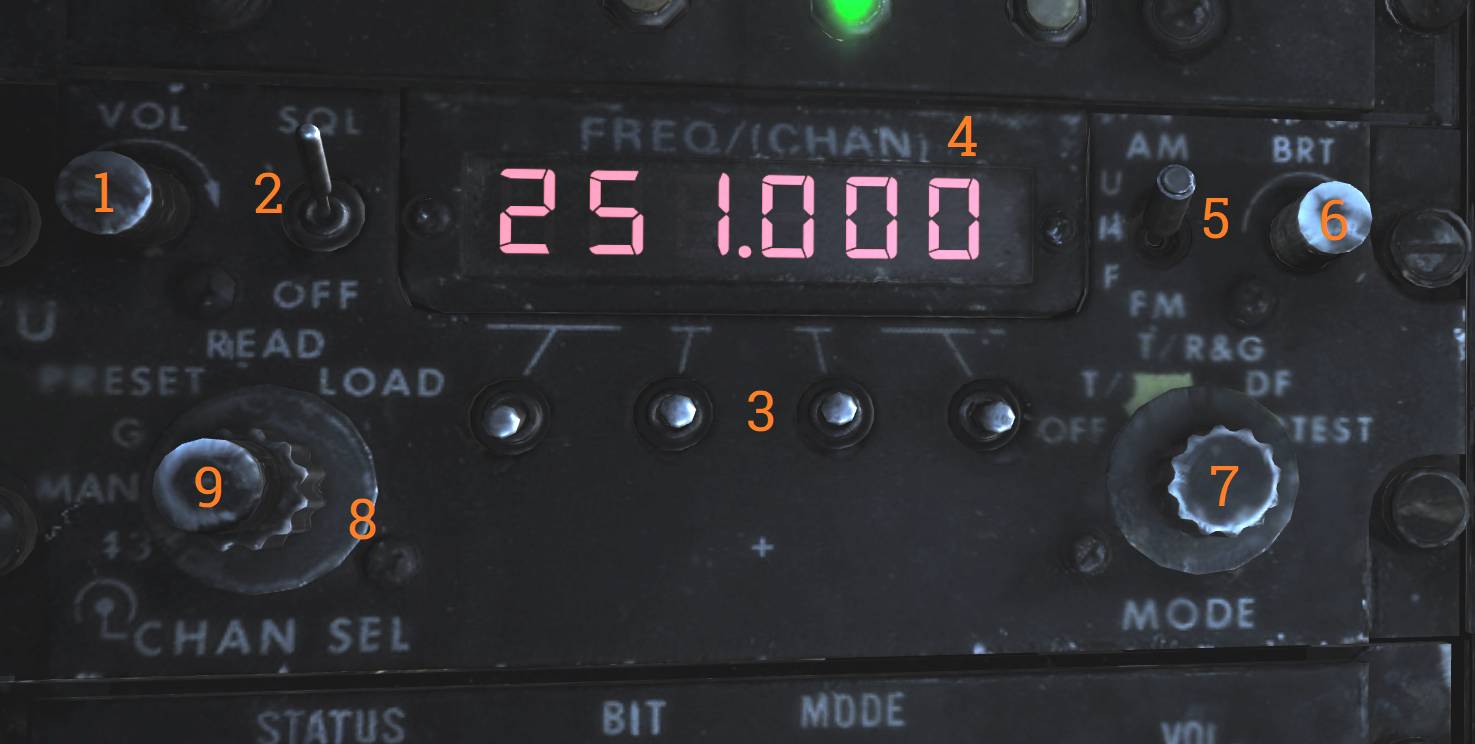

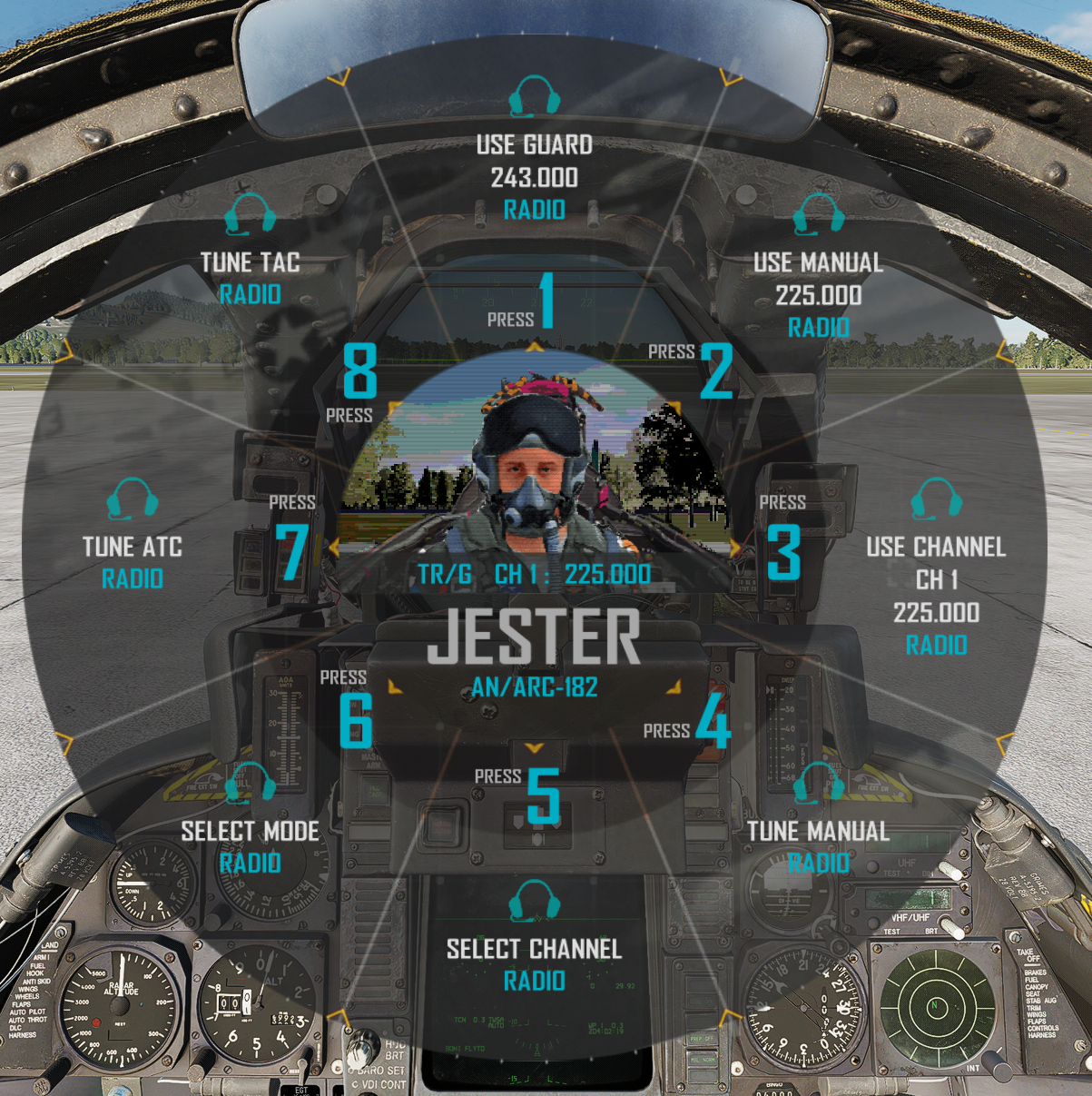

V/UHF 2 (AN/ARC-182) Radio

Secondary VHF/UHF radio providing voice communications.

V/UHF 2 Volume Knob

The VOL knob (1) controls V/UHF-2 audio volume.

Squelch Switch

The SQL switch (2) enables or disables squelch.

Frequency Select Switches

The frequency select switches (3) set the desired operating frequency.

Frequency / Channel Display

The FREQ/(CHAN) display (4) shows selected frequency or preset channel.

UHF Selector Switch

The UHF switch (5) selects modulation mode within the 225.000–399.000 MHz band.

Brightness Knob

The BRT knob (6) controls display brightness.

Mode Selector Knob

The MODE knob (7) selects ARC-182 operating mode.

Frequency Mode Knob

The outer frequency mode dial (8) selects frequency tuning mode.

Channel Select Knob

The inner CHAN SEL knob (9) selects preset channel.

💡 HAVE QUICK anti-jam functionality is not implemented in DCS.

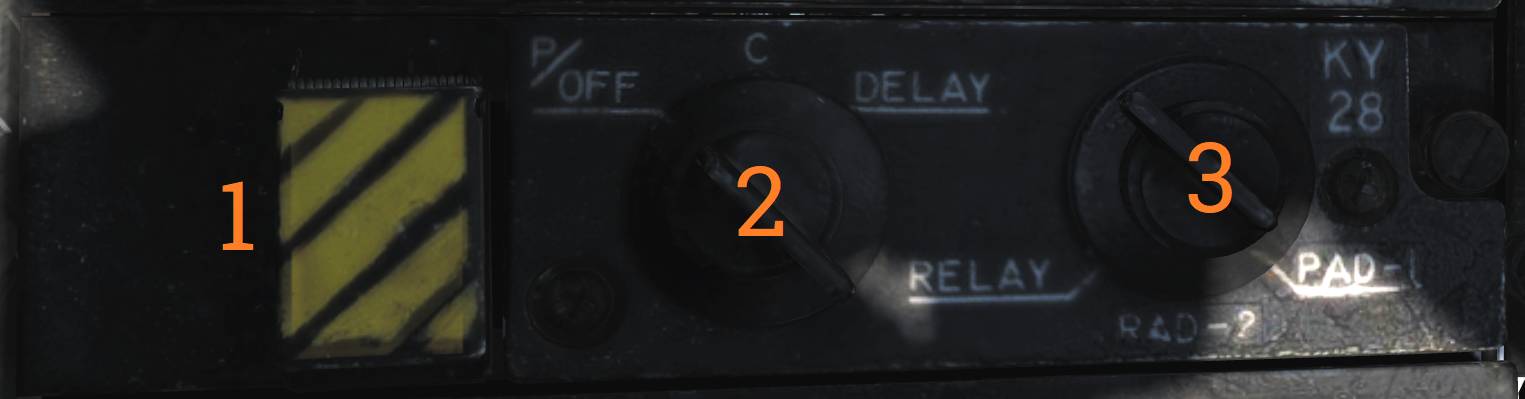

KY-28 Control Panel

Encryption control panel for secure voice communications.

Zeroize Switch

The ZEROIZE switch (1) clears all encryption keys when actuated.

Power-Mode Switch

The power-mode switch (2) selects KY-28 operating mode.

Radio Select Switch

The radio select switch (3) selects which radio is encrypted.

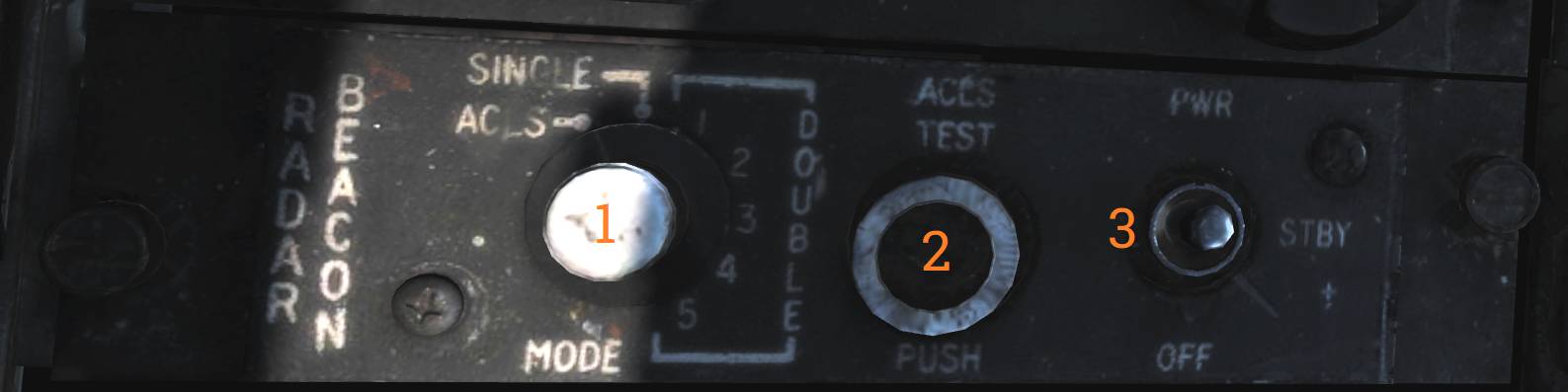

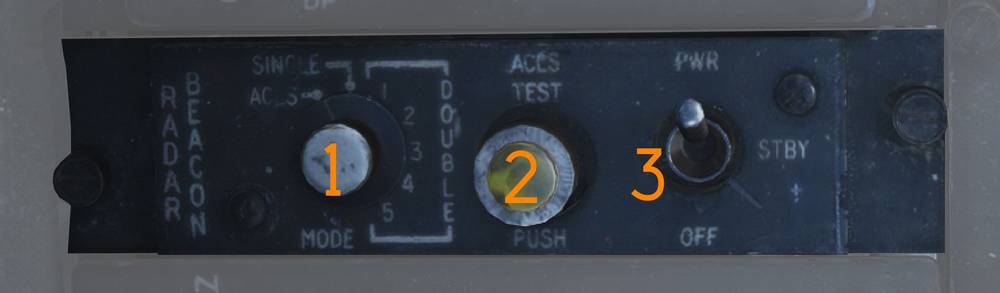

Radar Beacon Control Panel

Panel controlling the AN/APN-154 radar beacon.

Beacon Mode Selector

The MODE selector (1) selects beacon operating mode.

• SINGLE - Responds to single-pulse interrogation.
• DOUBLE - Responds to double-pulse code.
• ACLS - Enables ACLS augmentation for carrier landings.

ACLS Test Button

The ACLS TEST button (2) includes a green indicator light.

• Illuminates during successful test.
• Flashes when SPN-42 radar sweep is detected.
• Steady illumination indicates radar lock-on for ACLS.

Power Switch

The PWR switch (3) controls beacon electrical power.

• PWR - Beacon fully active.
• STBY - Warm-up mode; ACLS replies enabled if MODE is ACLS.
• OFF - Beacon off.

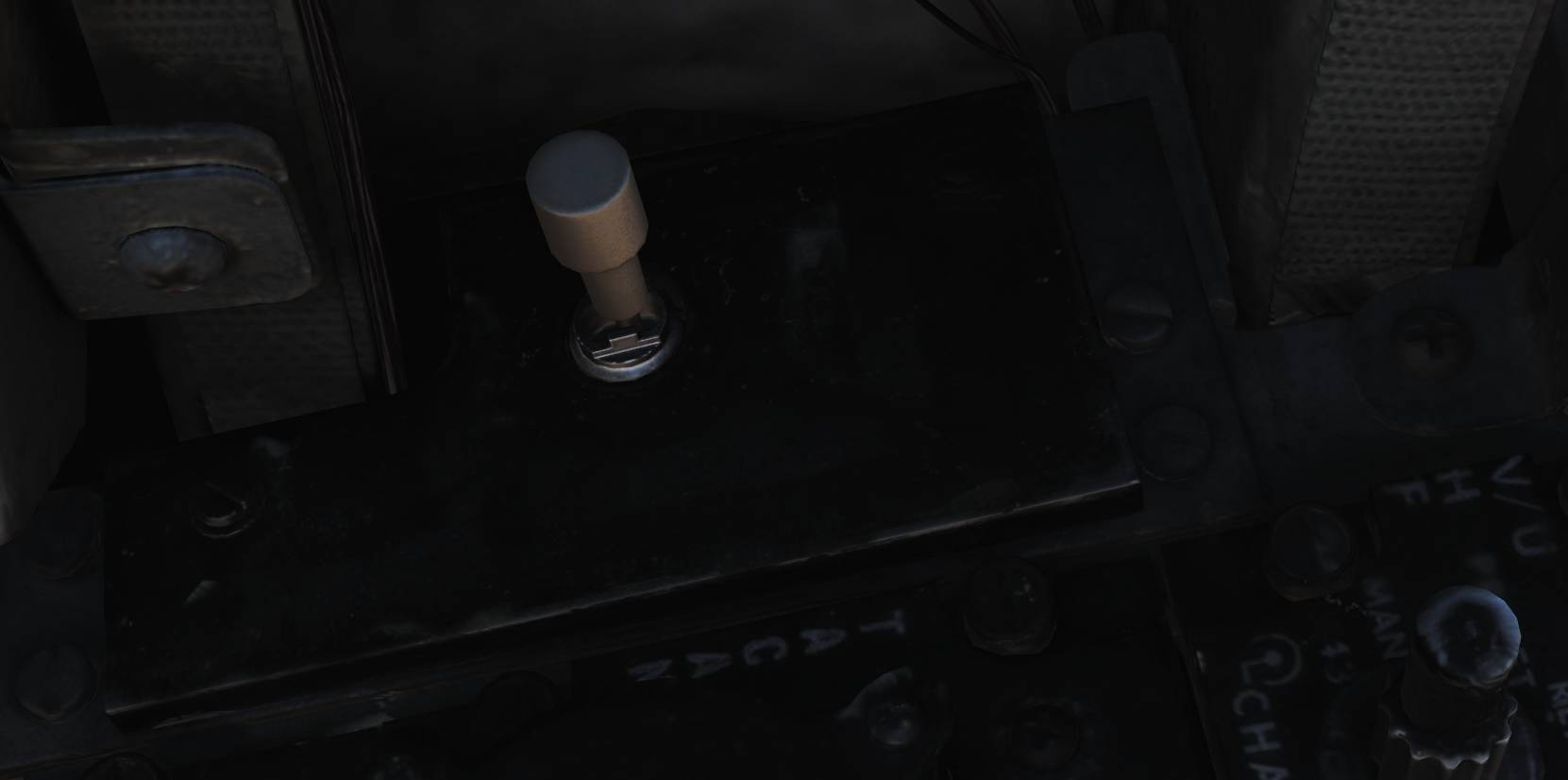

Liquid Cooling Control Panel

LIQ COOLING switch controlling the liquid cooling system for the AWG-9 and AIM-54. The AWG-9 circuit can be enabled independently of the AIM-54. This switch needs to be enabled for the respective system before AWG-9 operation or AIM-54 missile preparation.

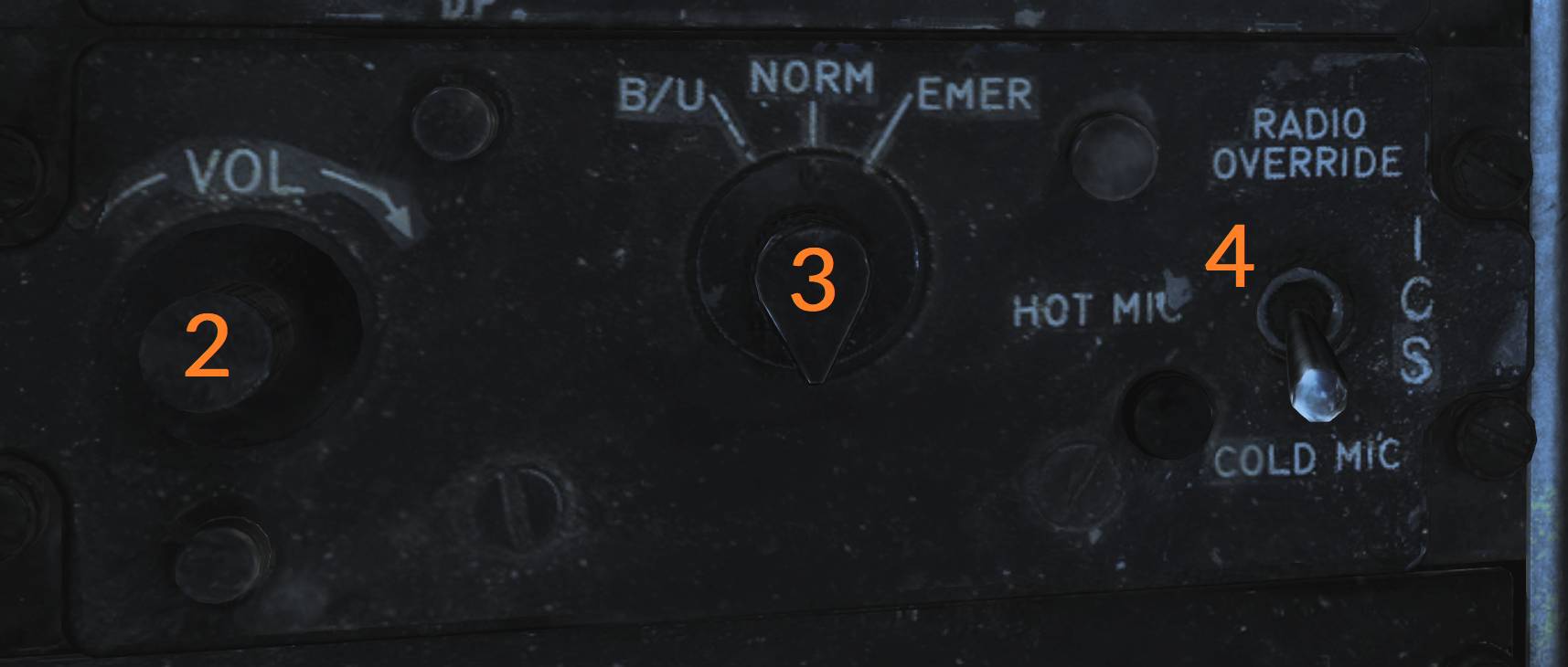

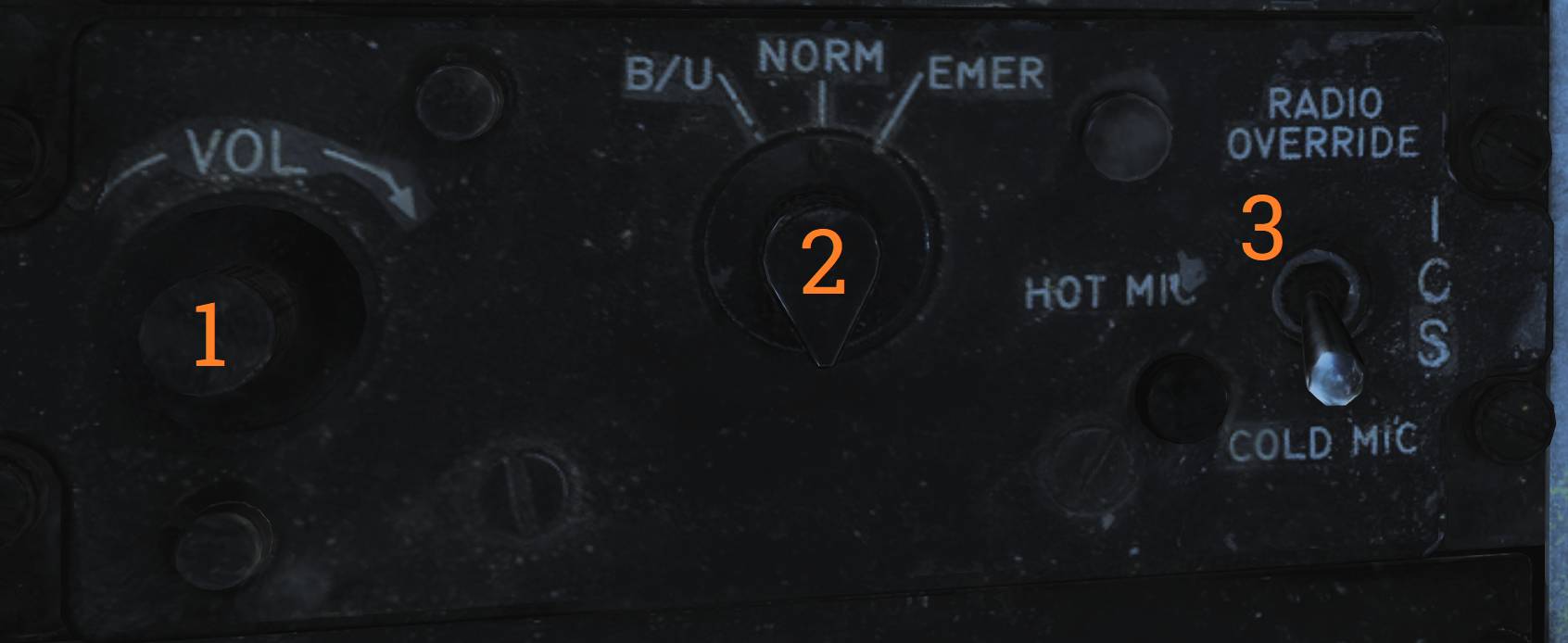

ICS Control Panel

Intercommunication system control panel.

ICS Volume Knob

The VOL knob (1) controls ICS audio volume from the pilot.

Amplifier Selection Knob

The amplifier selection knob (2) selects which audio amplifier is used.

• B/U - Backup amplifier.
• NORM - Normal amplifier.
• EMER - Emergency amplifier using pilot’s amplifier and volume settings. Disables RIO-only audio sources.

ICS Function Switch

The ICS switch (3) selects ICS operating mode.

• RADIO OVERRIDE - ICS audio overrides radio audio.
• HOT MIC - Enables continuous intercom without PTT.
• COLD MIC - Intercom only when PTT is pressed.

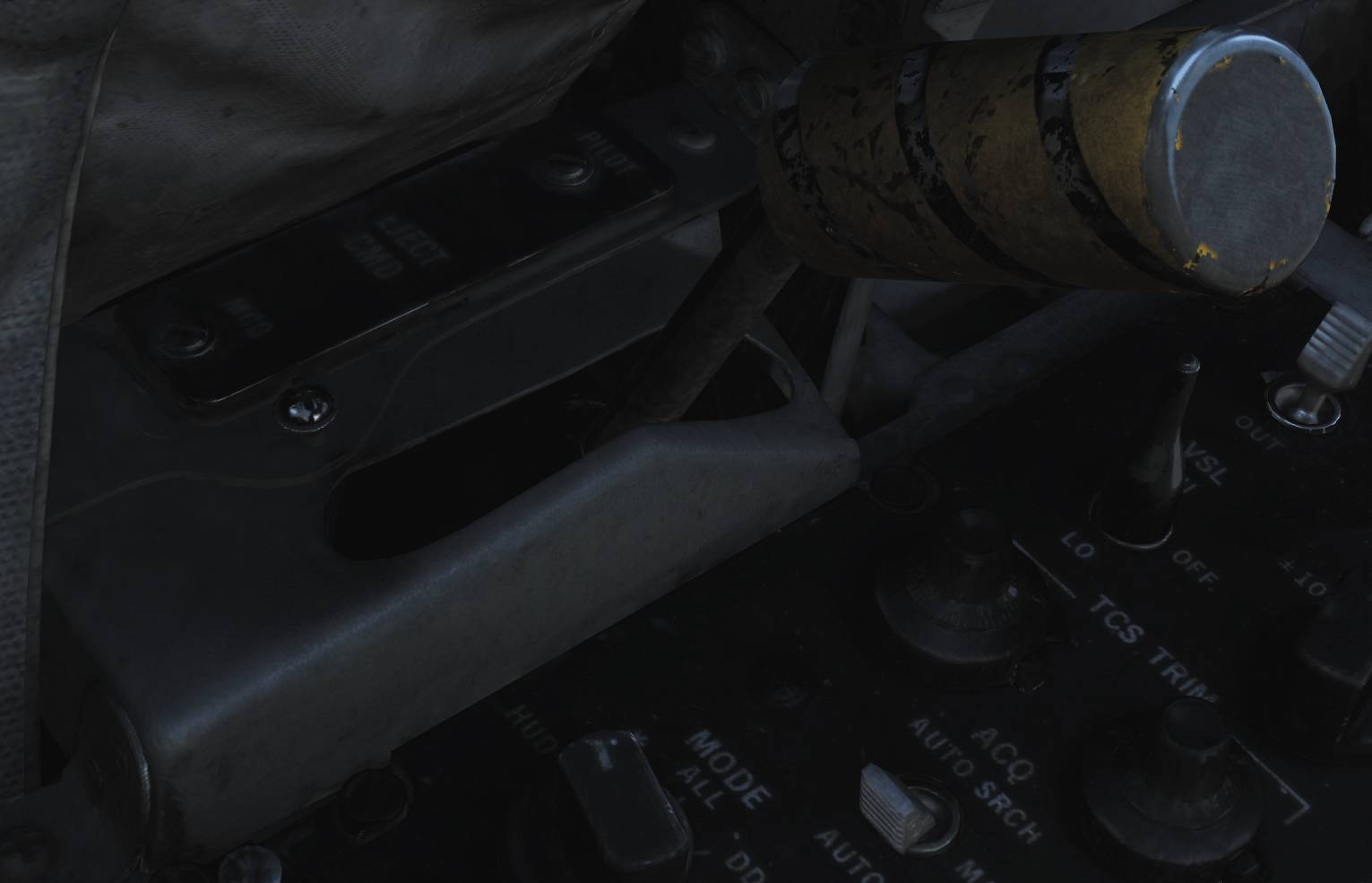

Eject Command Lever

The EJECT CMD lever determines ejection logic when the RIO ejects.

• PILOT (lever forward) - Only the RIO ejects.
• MCO (lever aft) - Both crewmembers eject.

Pilot-initiated ejection always ejects both crew members.

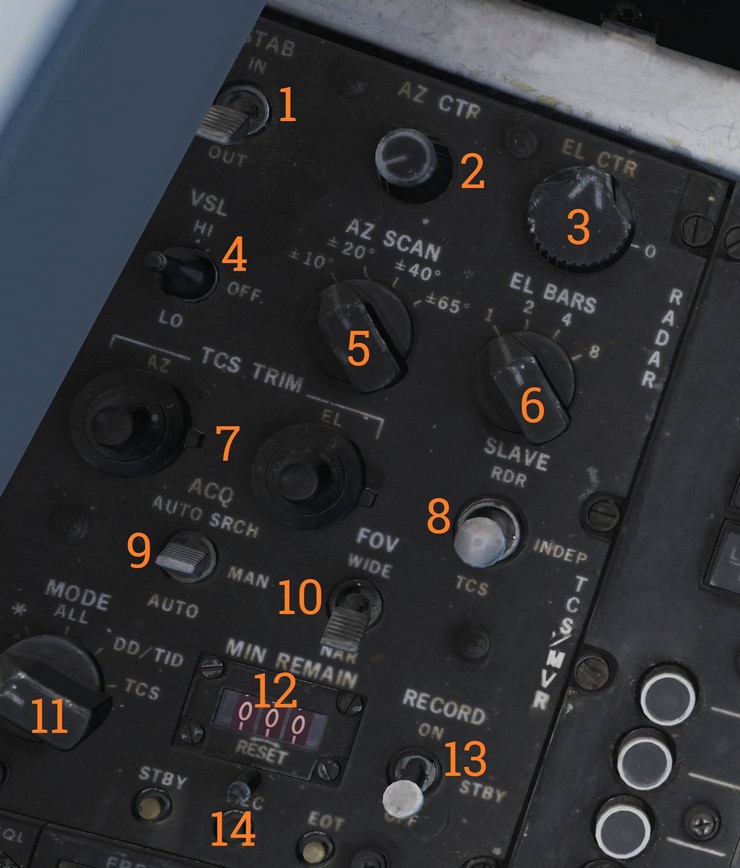

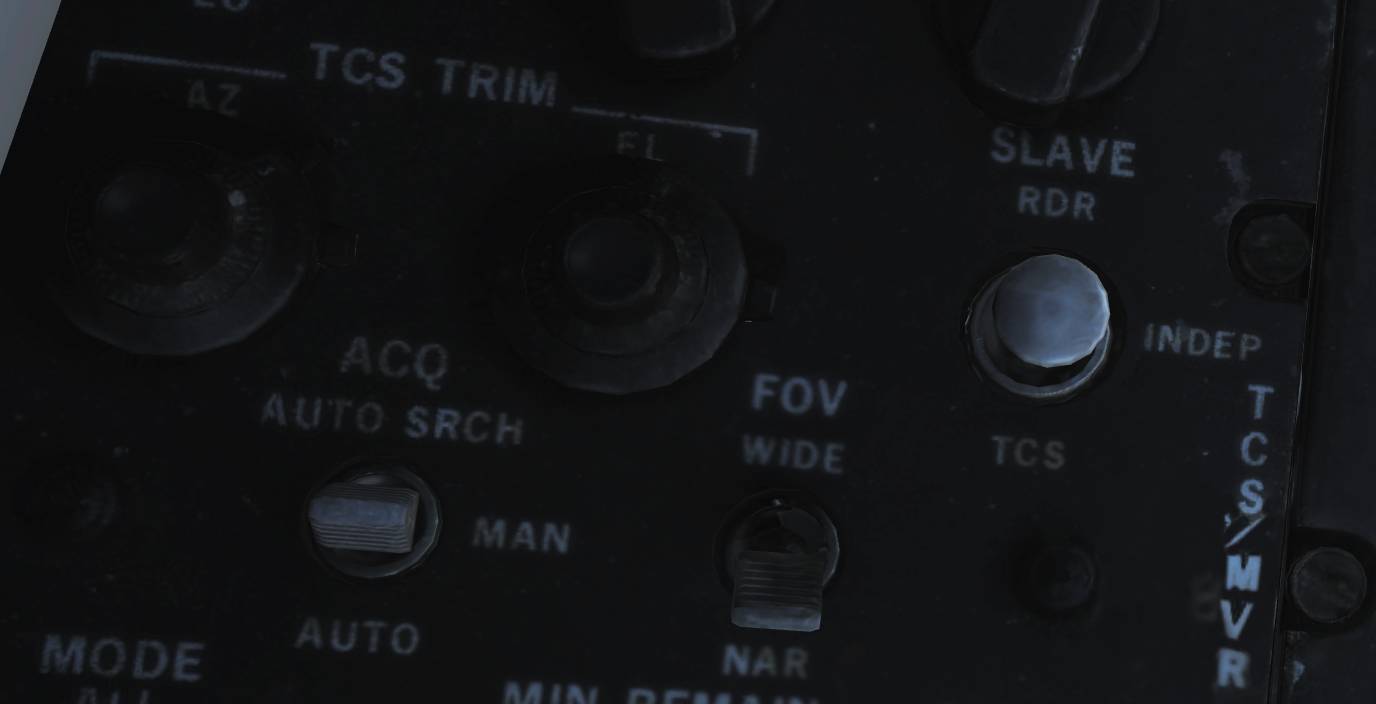

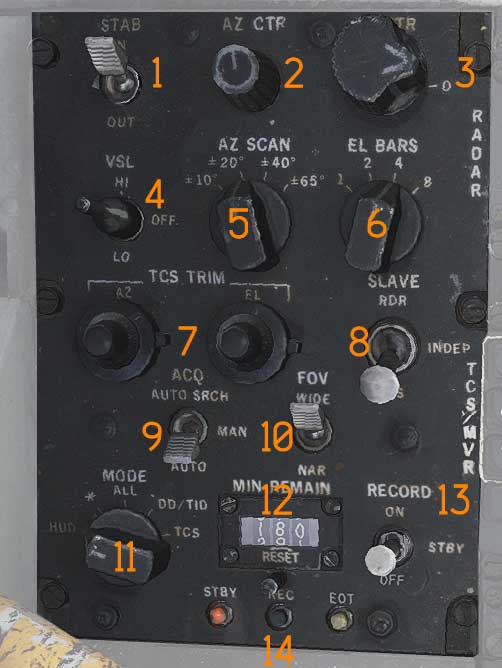

Sensor Control Panel

Control panel for radar scan geometry, TCS operation, and AVTR recording.

Stabilization Switch

The STAB switch (1) controls ground stabilization of the radar.

Azimuth Center Knob

The AZ CTR knob (2) sets the center of the radar azimuth scan.

Elevation Center Knob

The EL CTR knob (3) sets the center of the radar elevation scan.

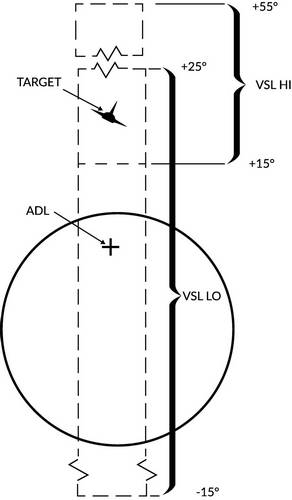

VSL Switch

The VSL switch (4) is spring-loaded to the OFF position and selects vertical scan mode.

• VSL HI
• VSL LO

Azimuth Scan Knob

The AZ SCAN knob (5) selects azimuth scan width.

Elevation Bars Knob

The EL BARS knob (6) selects number of elevation scan bars.

TCS Trim Knobs

The TCS TRIM knobs (7) adjust azimuth and elevation alignment of TCS video.

Slave Switch

The SLAVE switch (8) selects which sensor is slaved to the other.

Acquisition Switch

The ACQ switch (9) selects TCS acquisition mode.

• AUTO SRCH
• MAN
• AUTO

Field of View Switch

The FOV switch (10) selects TCS field of view.

• WIDE
• NAR

AVTR Mode Knob

The MODE knob (11) selects what the airborne video tape recorder records.

Minutes Remaining Display

The MIN REMAIN display (12) shows remaining recording time.

Record Switch

The RECORD switch (13) controls AVTR operation.

• OFF
• STBY
• ON

AVTR Indicator Lights

The indicator lights (14) show AVTR status.

• STBY
• EOT (end of tape)
• REC

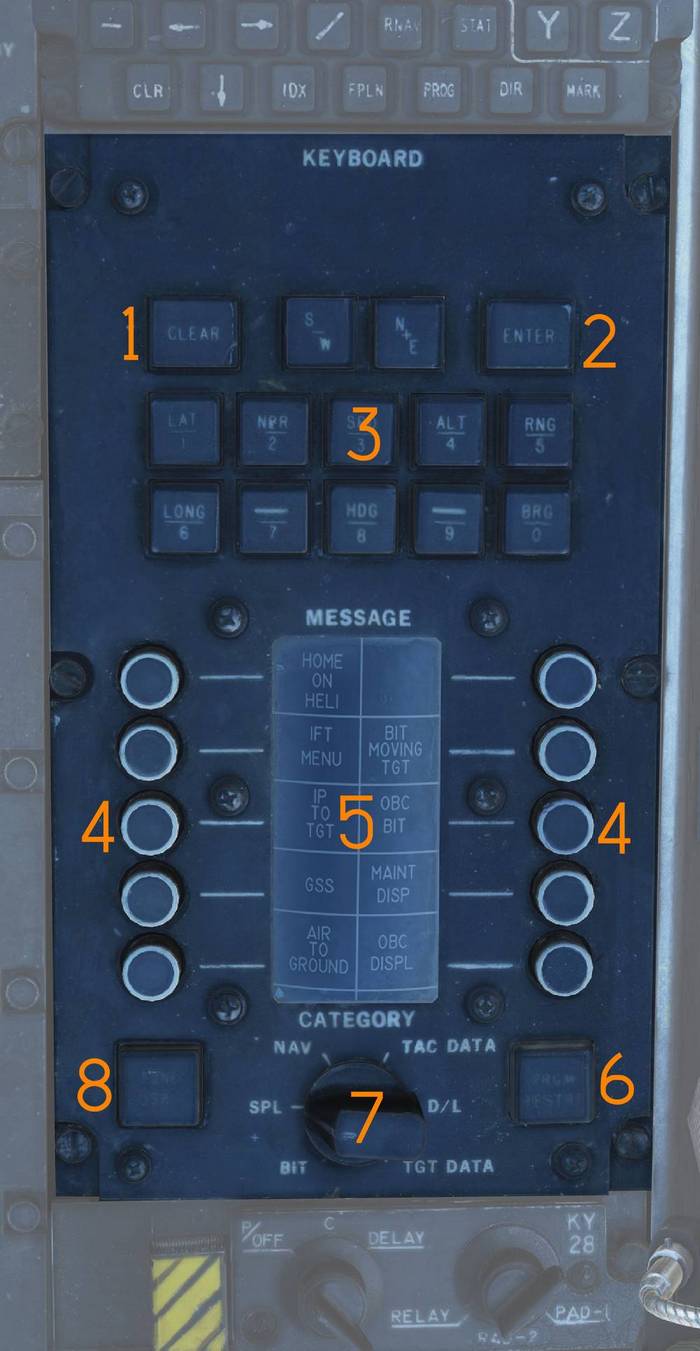

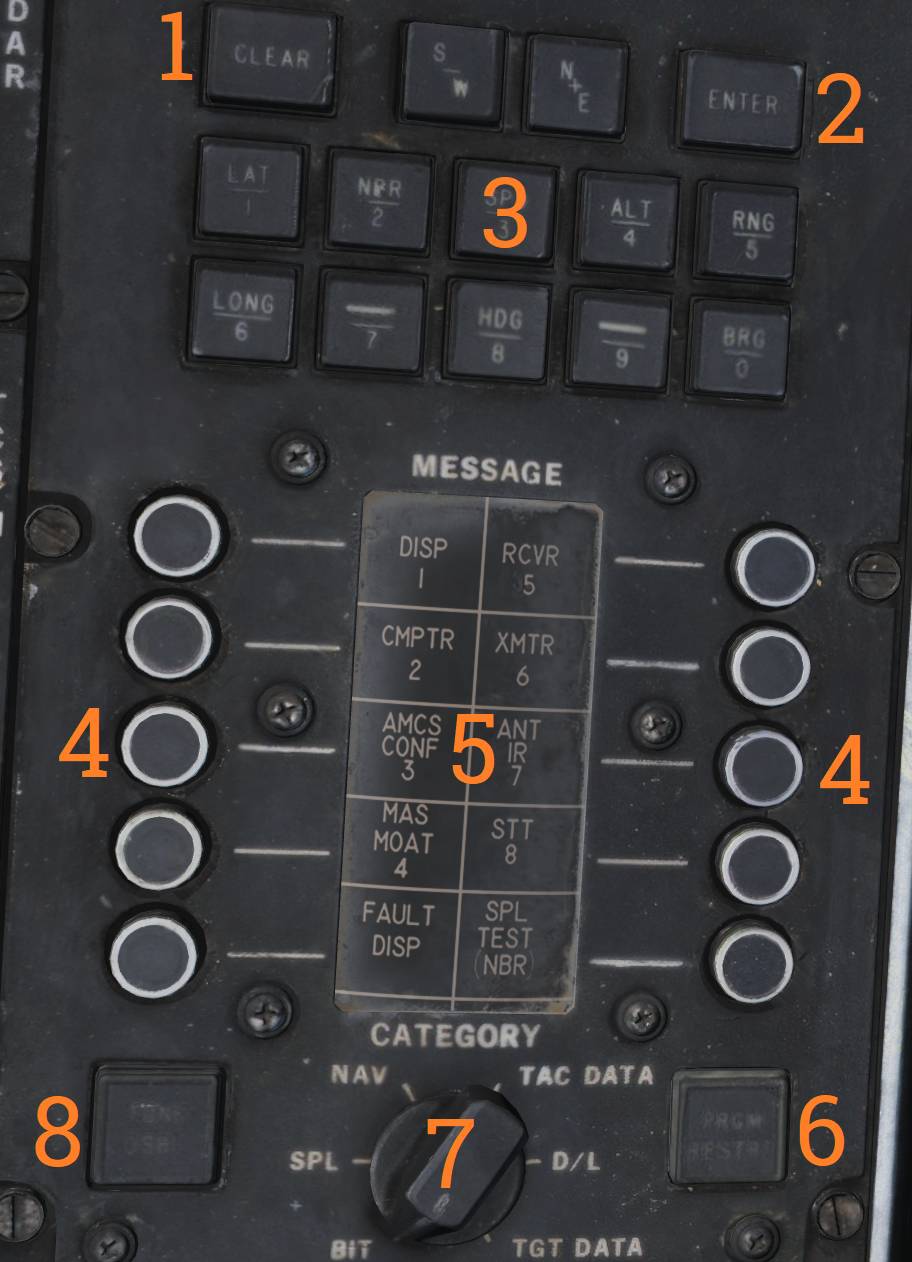

Computer Address Panel (CAP)

The Computer Address Panel is used to enter data into the Weapon Control System.

Clear Button

The CLEAR button (1) clears the current TID buffer without entering data.

Enter Button

The ENTER button (2) inserts buffered data into the WCS.

Prefix and Numerical Buttons

The numerical and prefix buttons (3) are used for data entry.

Message Selection Buttons

The MESSAGE buttons (4) select functions indicated on the MESSAGE drum.

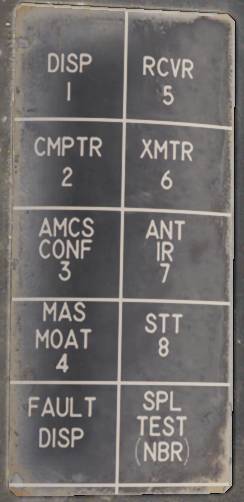

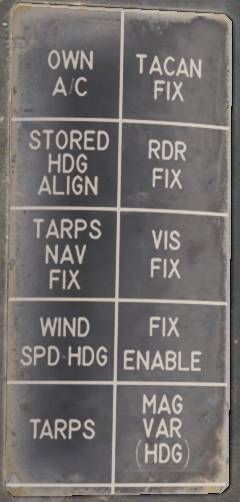

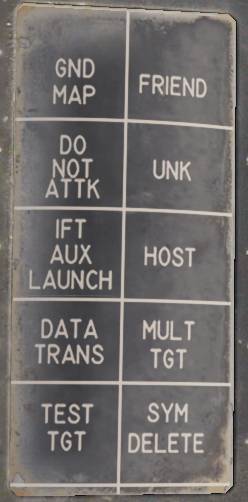

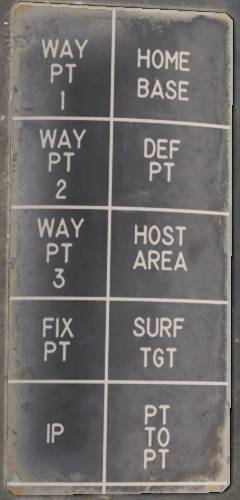

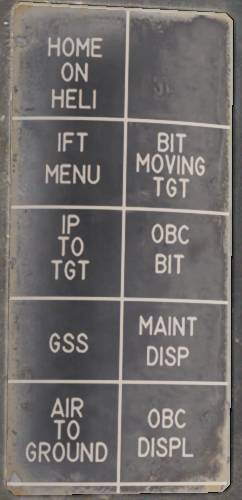

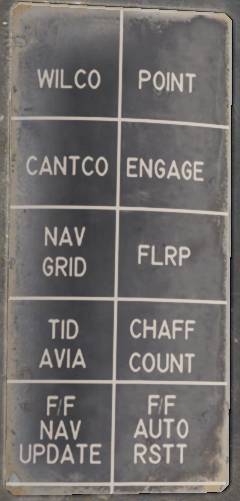

Message Indicator Drum

The MESSAGE drum (5) displays available WCS message functions.

Program Restart Button

The PRGM RESTRT button (6) restarts the active WCS program.

Category Selector Knob

The CATEGORY knob (7) selects the active MESSAGE category.

Tune Disable

The TUNE DSBL function (8) is non-functional.

💡 All CAP buttons include indicator lights that illuminate based on selected function.

Left Vertical Console

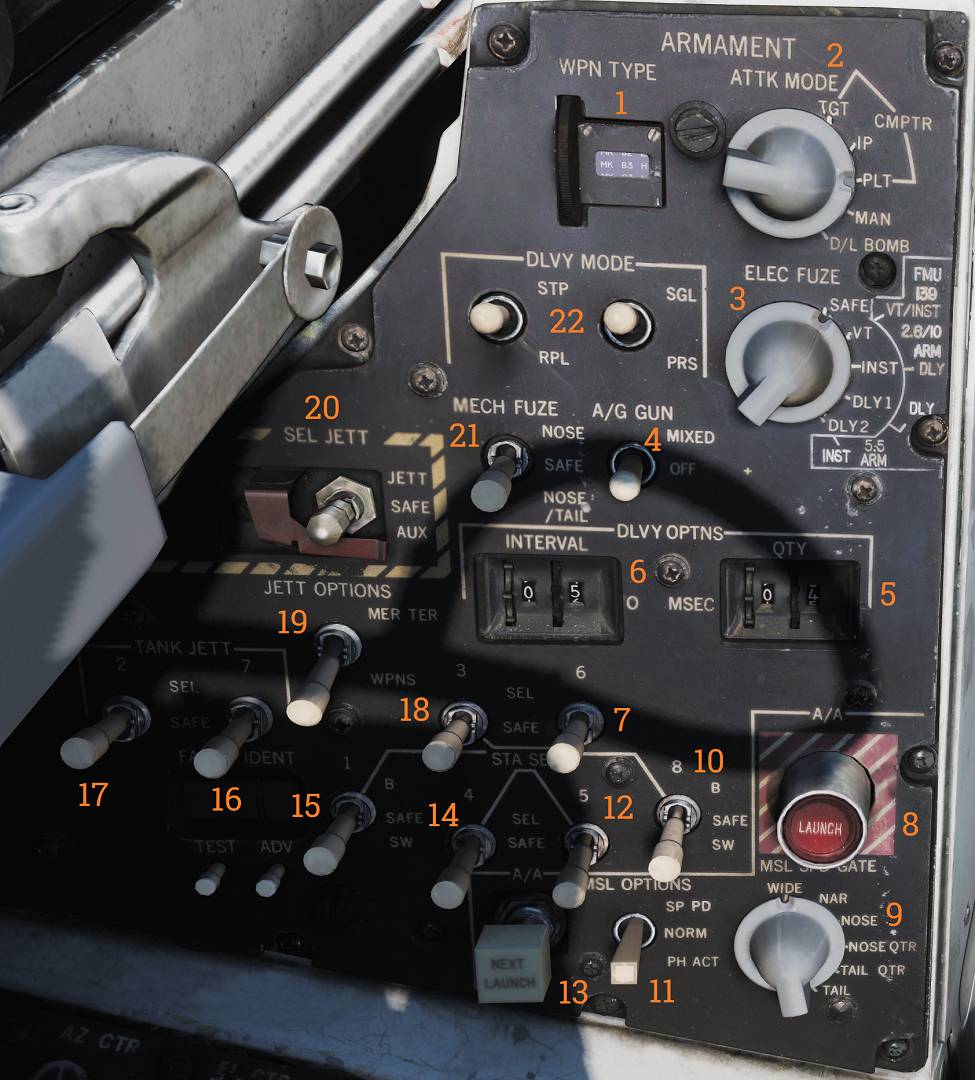

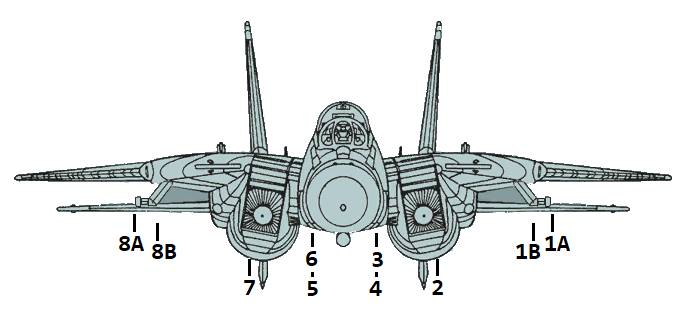

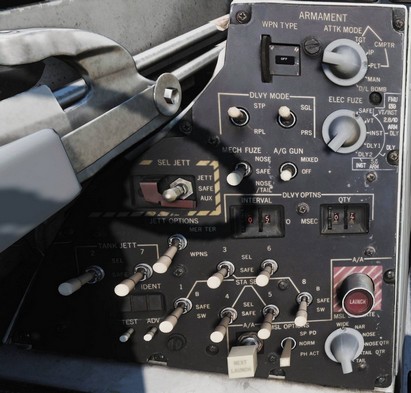

Armament Panel

The armament panel provides primary control of air-to-air and air-to-ground weapon employment from the RIO cockpit.

Weapon Type Selector

The WPN TYPE selector (1) selects the weapon type used by the WCS for air-to-ground ballistic calculations.

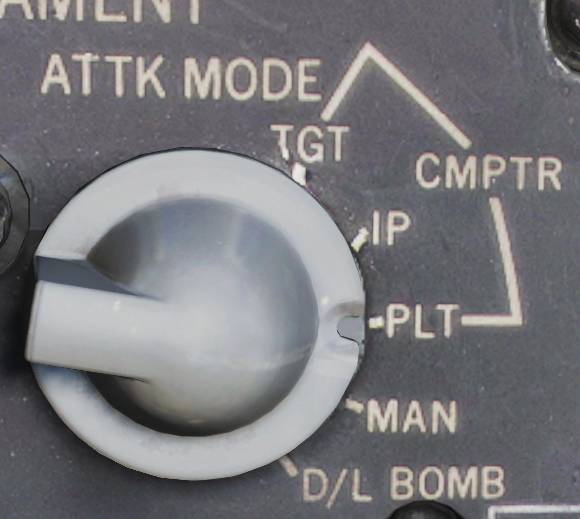

Attack Mode Selector

The ATTK MODE knob (2) selects the air-to-ground attack mode used for weapon delivery.

Electrical Fuse Selector

The ELEC FUSE knob (3) selects the electrical fuze setting for air-to-ground ordnance.

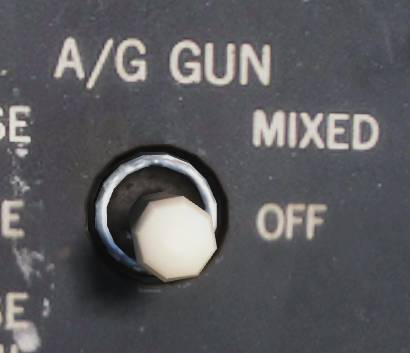

Air-to-Ground Gun Switch

The A/G GUN switch (4) selects gun availability in A/G master mode.

• OFF - Gun disabled.
• MIXED - Enables gun in addition to selected A/G ordnance.

Quantity Selectors

The QTY selector wheels (5) set the quantity of air-to-ground ordnance released per delivery, including rockets.

Interval Selectors

The INTERVAL selector wheels (6) set the time interval between successive weapon releases in ripple delivery mode.

Interval is set in milliseconds.

Station 6 Select Switch

The station 6 select switch (7) selects station 6 for jettison or air-to-ground weapons delivery.

Air-to-Air Launch Button

The A/A LAUNCH button (8) allows the RIO to command launch of AIM-7 or AIM-54 missiles.

Button illumination indicates hot-trigger conditions are met.

Missile Speed Gate Knob

The MSL SPD GATE knob (9) controls the position of the missile speed gate used by the WCS.

Station 8 Select Switch

The station 8 select switch (10) selects station 8 for jettison or air-to-ground weapons delivery.

• B - Selects lower pylon.
• SW - Non-functional.

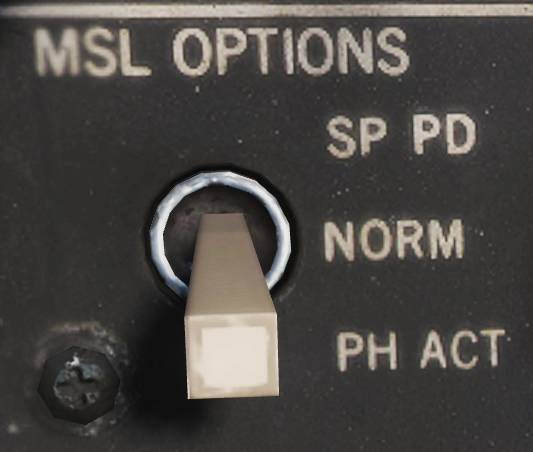

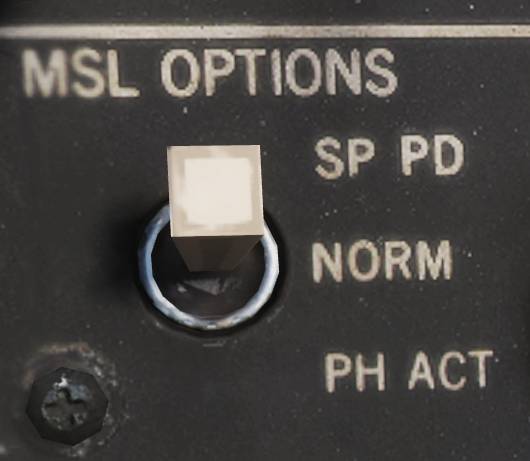

Missile Options Switch

The MSL OPTIONS switch (11) configures missile launch behavior.

• Enables AIM-7 pulse-doppler mode.
• Enables AIM-54 active launch mode.

Station 5 Select Switch

The station 5 select switch (12) selects station 5 for jettison or air-to-ground weapons delivery.

Next Launch Button

The NEXT LAUNCH button (13) designates the currently hooked target as the next launch target during TWS operation.

Station 4 Select Switch

The station 4 select switch (14) selects station 4 for jettison or air-to-ground weapons delivery.

Station 1 Select Switch

The station 1 select switch (15) selects station 1 for jettison or air-to-ground weapons delivery.

• B - Selects lower pylon.
• SW - Non-functional.

Tank Jettison Station 7 Switch

The TANK JETT station 7 switch (16) selects station 7 external fuel tank for jettison.

Tank Jettison Station 2 Switch

The TANK JETT station 2 switch (17) selects station 2 external fuel tank for jettison.

Station 3 Select Switch

The station 3 select switch (18) selects station 3 for jettison or air-to-ground weapons delivery.

Jettison Options Switch

The JETT OPTIONS switch (19) selects jettison configuration.

• WPNS - Jettison weapons only.
• MER/TER - Jettison racks in addition to weapons.

This function is non-functional in the modeled F-14.

Selective Jettison Switch

The SEL JETT switch (20) selects selective jettison mode.

• JETT - Normal jettison mode.
• AUX - Backup jettison mode (guarded).

Mechanical Fuse Selector

The MECH FUSE switch (21) enables and selects the mechanical fuze setting for air-to-ground ordnance.

Delivery Mode Selectors

The DLVY MODE switches (22) consist of two selector switches that control air-to-ground release logic.

• One switch selects single or paired weapon release.
• The other selects single-pass or multiple-pass delivery according to quantity and interval settings.

Left Instrument Panel

Servopneumatic Altimeter

The servopneumatic altimeter provides altitude indication using both electrical and pressure-based systems.

Altimeter Readout

The altimeter readout (1) displays altitude using three digital drums for 10,000, 1,000, and 100 feet, and a pointer on a circular scale indicating hundreds of feet.

A pointer on the circular scale provides continuous indication in hundreds of feet.

Baroset Knob

The baroset knob (2) sets local barometric pressure in inches of mercury (in.Hg).

This setting only affects the local altimeter display. Other CADC-driven digital indicators use a fixed 29.92 in.Hg reference.

Local Barometric Pressure Window

The local barometric pressure window (3), also known as the Kollsman window, displays the selected pressure setting.

Mode Switch

The mode switch (4) selects altimeter operating mode and is spring-loaded from RESET.

• RESET - When CADC power and altitude data are available, holding RESET for approximately three seconds enables normal servoed operation.
• STBY - Selects backup pressure mode.

If CADC data or electrical power is absent for more than three seconds, the system automatically reverts to standby mode.

STBY Flag

The STBY flag is a red standby indication that appears when the altimeter is operating in backup (standby) mode (not visible in this image).

💡 At high speeds and below 10,000 feet, pressure effects can produce significant readout errors: up to 1,200 feet when transonic and up to 4,000 feet when supersonic.

Airspeed Mach Indicator

The airspeed Mach indicator displays indicated airspeed and Mach number.

Airspeed Dial

The airspeed dial (1) integrates multiple scales to display both indicated airspeed and Mach number.

Outer Airspeed Scale

The outer indicated airspeed scale (2) displays airspeed values up to 200 knots.

Inner Airspeed Scale

The inner airspeed scale (3) displays airspeed from 200 to 850 knots.

This scale remains covered by the dial until applicable.

Mach Number Scale

The Mach number scale (4) moves relative to airspeed to indicate current Mach number.

Indicated Airspeed Index Pointer

The indicated airspeed index pointer (5) can be set to mark a desired airspeed.

Mach Number Index Pointer

The Mach number index pointer (6) marks a selected Mach number.

(Not visible in the referenced image.)

Safe Mach Number Index Pointer

The safe Mach number index pointer (7) displays the maximum safe Mach number calculated by the CADC.

(Not visible in the referenced image.)

Index Selector Knob

The index knob (8) is a push-pull control.

One position adjusts the airspeed index pointer, and the other adjusts the Mach index pointer.

Standby Attitude Indicator

The standby attitude indicator provides independent attitude reference.

OFF Flag

The OFF flag (1) appears when the instrument is un-powered or caged.

Cage and Trim Knob

The cage and trim knob (2) controls indicator caging and pitch trim.

• Pulled out - Indicator is caged.
• Pushed in - Indicator is uncaged and pitch trim may be adjusted by rotating the knob.

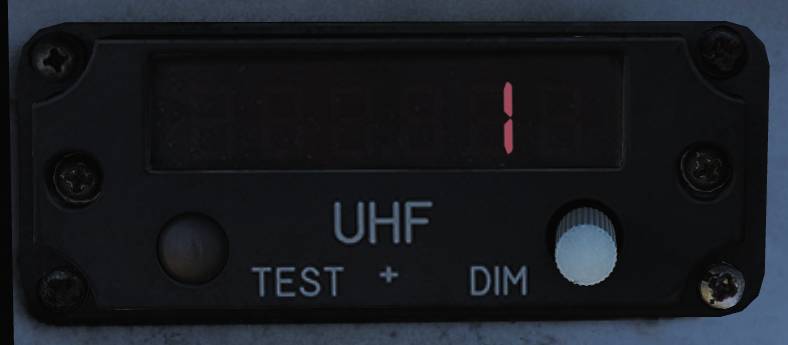

UHF Remote Indicator

The UHF remote indicator provides a cockpit readout of ARC-159 radio tuning.

The remote display shows the selected frequency or preset channel for UHF 1.

The TEST button initiates an indicator self-test. A successful test results in a display of 888.888.

The DIM knob controls indicator display brightness.

Center Panel

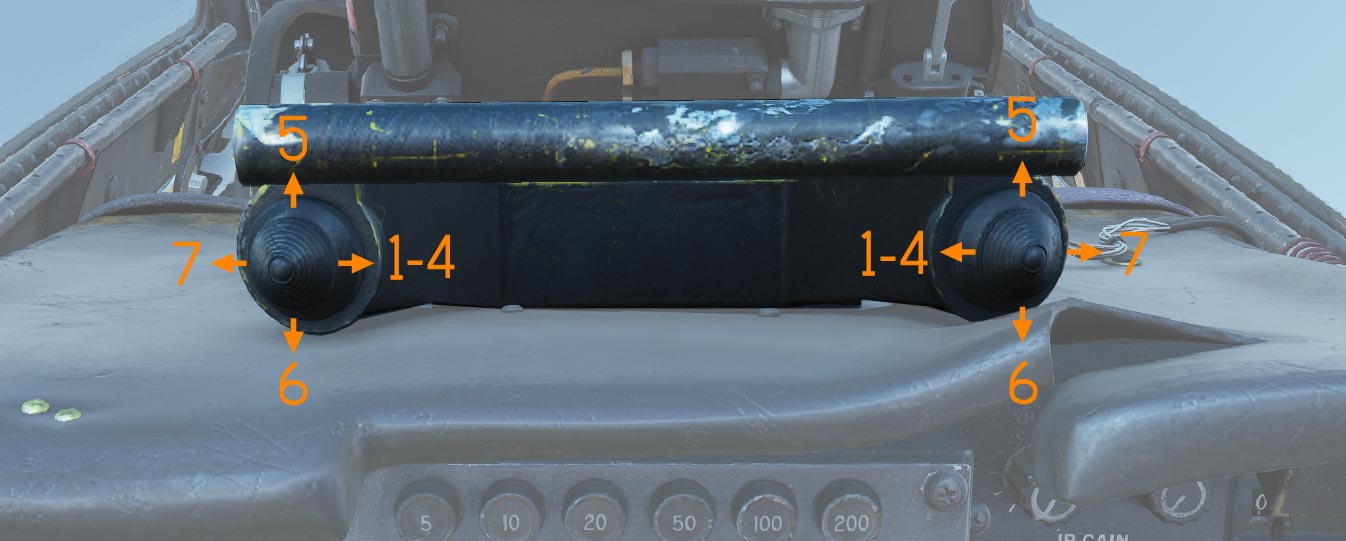

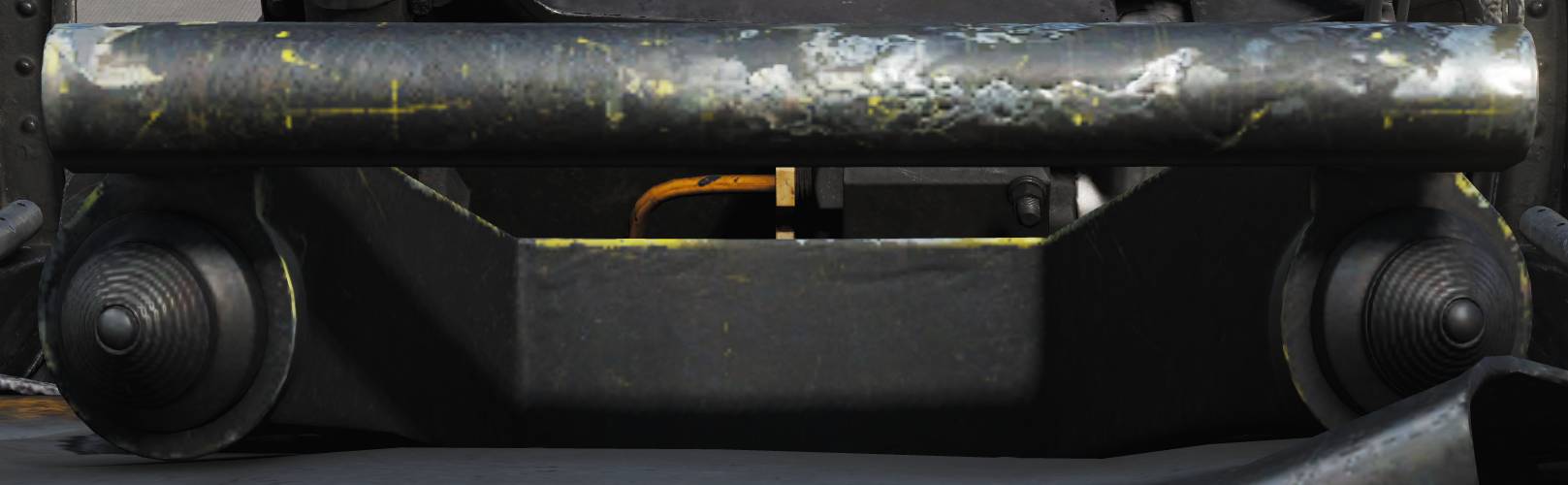

Chaff/Flare Dispense Switches

Two countermeasure switch hats (1 and 2) are located on the RIO center handhold and are used to initiate release of defensive countermeasures.

The switches are functionally mirrored.

• Up - Initiates a single chaff release.
• Down - Initiates the selected chaff release program.
• Inboard - Initiates the selected jammer release program.
• Outboard - Initiates the selected flare release program.

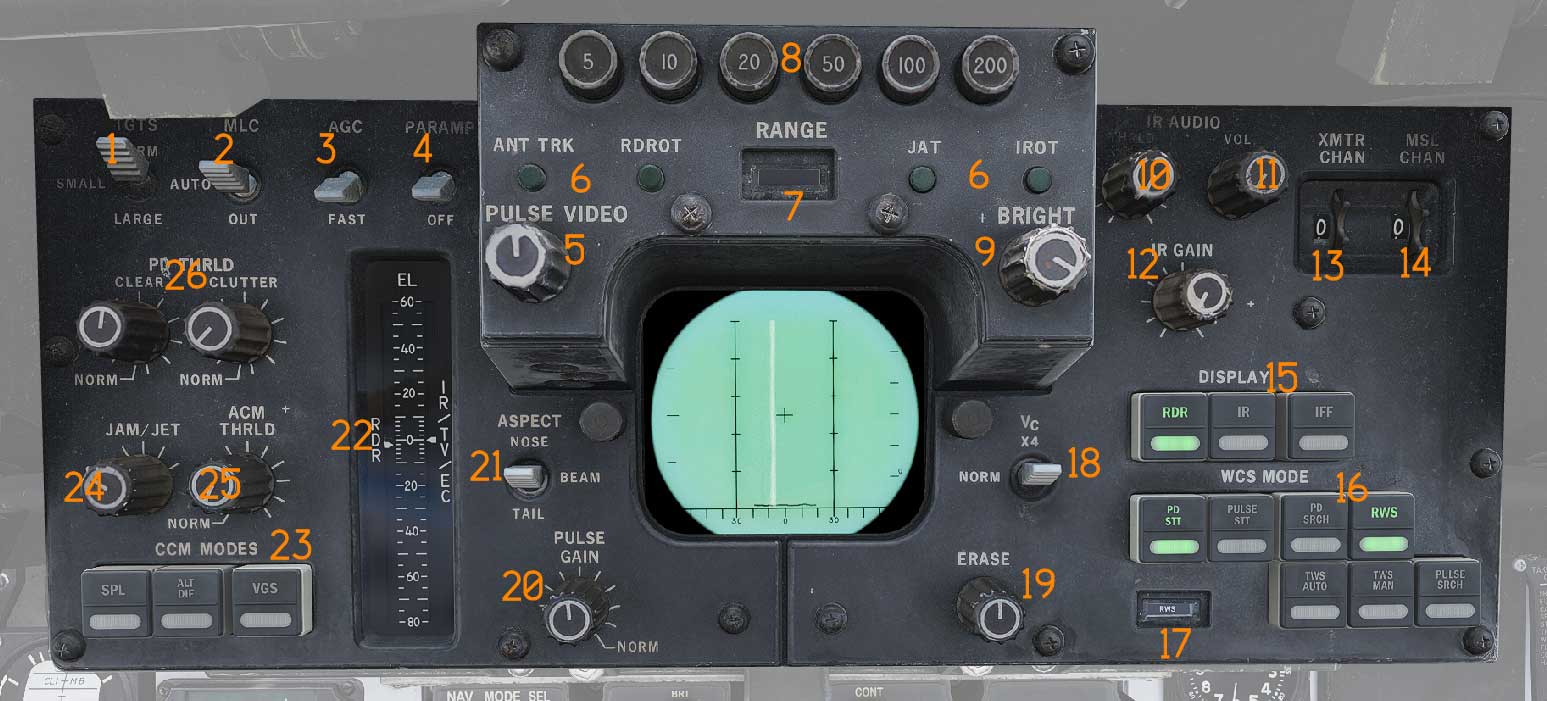

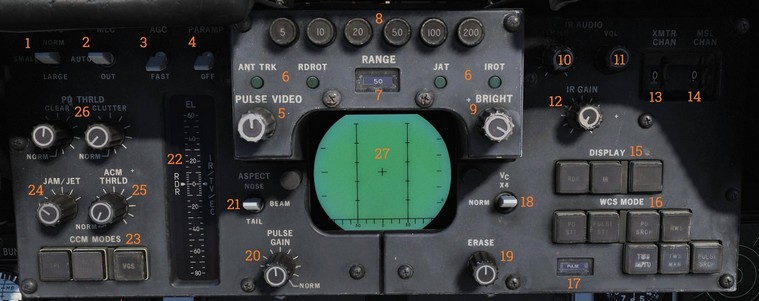

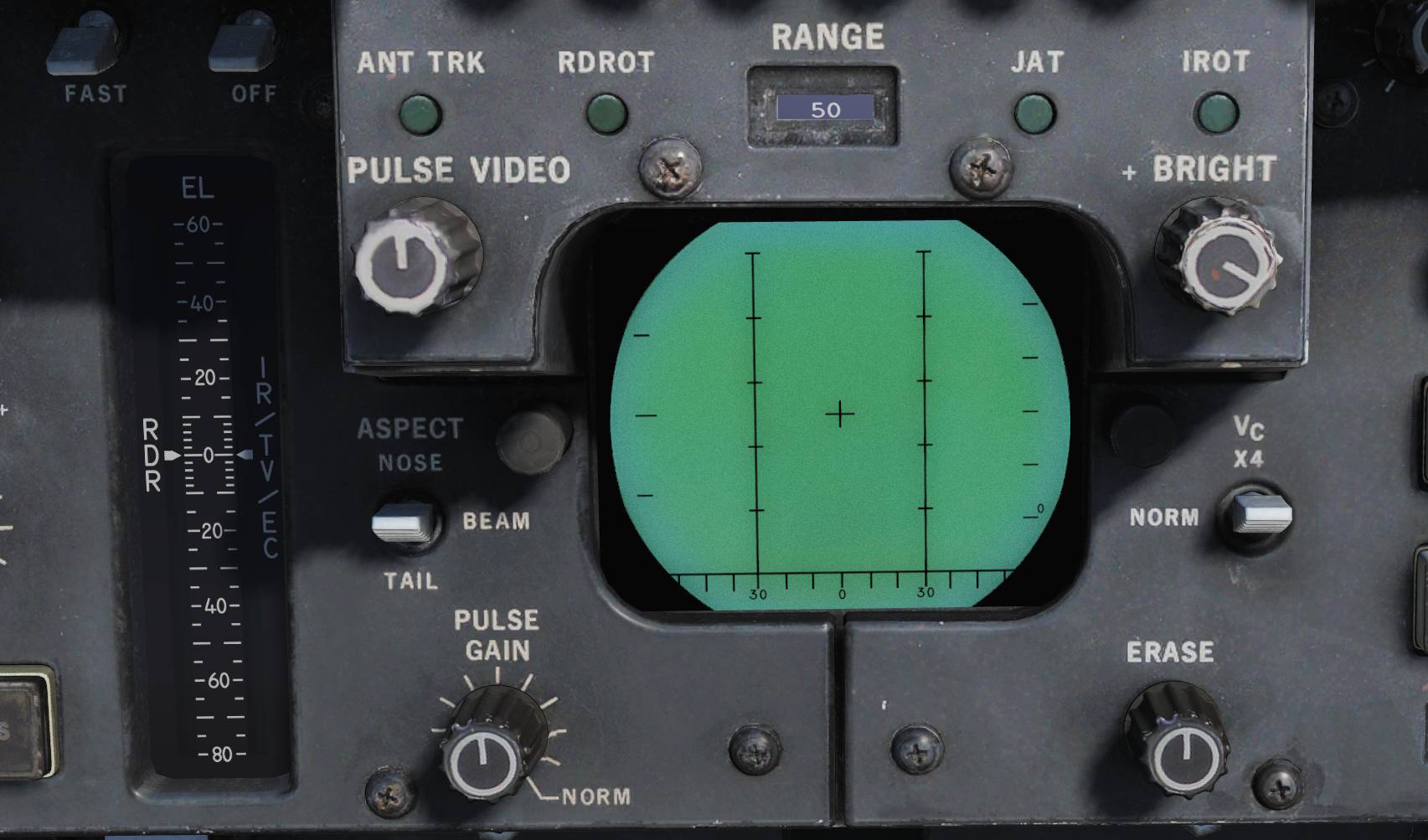

Detail Data Display Panel

The Detail Data Display (DDD) panel provides primary radar control and display functions for the AWG-9 weapon system.

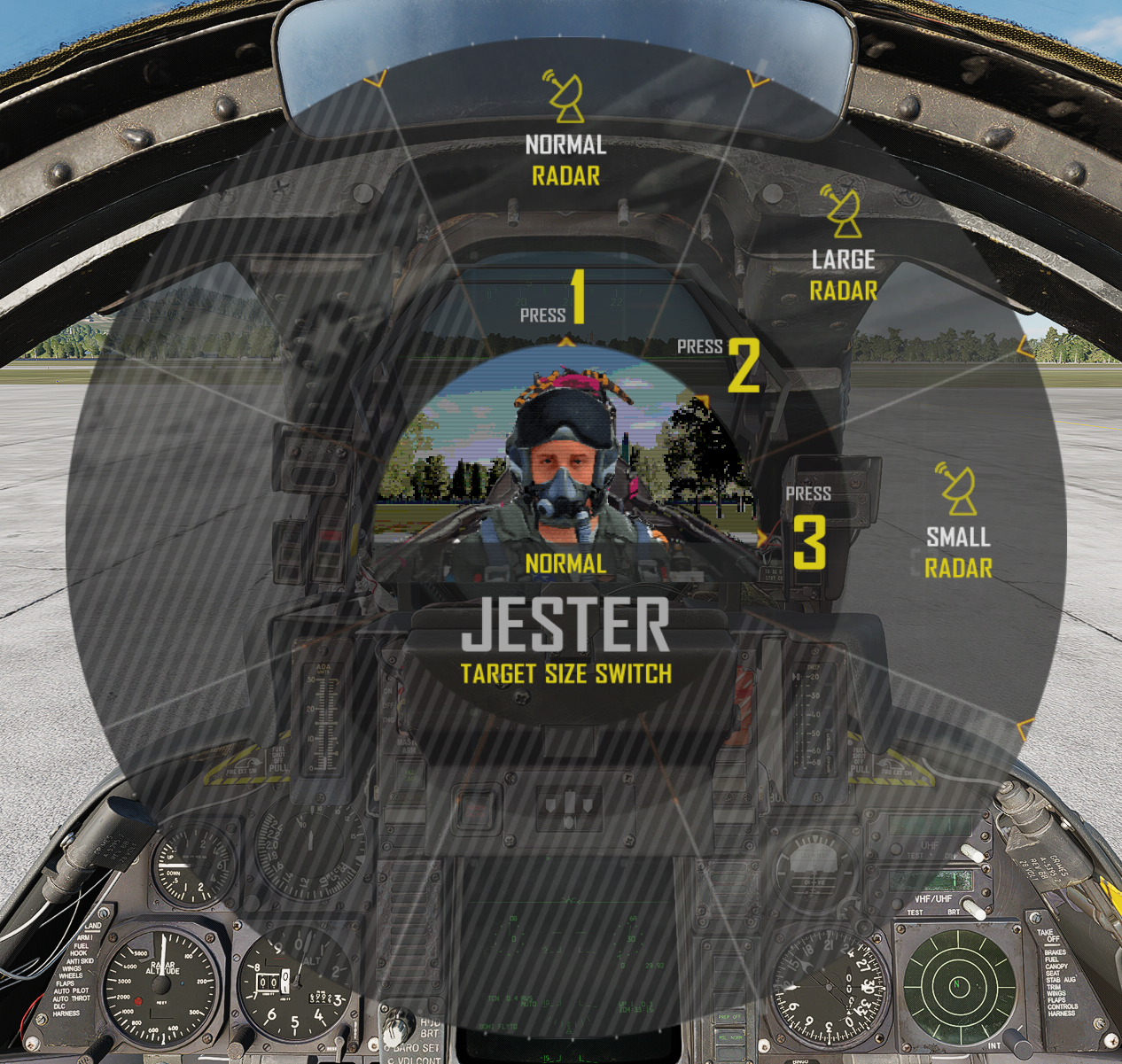

Target Size Switch

The TGTS switch (1) selects target size used for missile launch zone calculation, WCS tracking logic, and missile autopilot calculations.

Mainlobe Clutter Switch

The MLC switch (2) selects mainlobe clutter processing mode.

Automatic Gain Control Switch

The AGC switch (3) controls AGC response speed.

This function is currently non-functional in DCS.

Parametric Amplification Switch

The PARAMP switch (4) controls parametric amplification.

Currently non-functional in DCS.

Pulse Video Control

The PULSE VIDEO knob (5) adjusts the strength of pulse video displayed on the DDD.

This control has no effect on pulse-doppler video.

Radar Track Indicator Lights

The radar track indicator lights (6) indicate tracking status during STT operation.

• ANT TRK - Radar is tracking target angle.
• RDROT - Target is within range or rate gate and being tracked.
• JAT - Radar is tracking a jamming source angle.
• IROT - Indicates TCS angle tracking. Originally used for IRST in early F-14A variants.

Range Display Drum

The RANGE display (7) is a rotary drum indicating the currently selected radar range scale.

The display may be blank when no range scale is applicable.

Range Selection Buttons

The RANGE buttons (8) select the desired radar range scale.

Brightness Control Knob

The BRIGHT knob (9) controls DDD brightness through a polarized filter mounted in front of the display.

IR Audio Threshold Knob

The IR AUDIO THRLD knob (10) sets infrared audio threshold.

This function is non-functional when using the TCS.

IR Audio Volume Knob

The IR AUDIO VOL knob (11) controls infrared audio volume.

Non-functional with TCS.

IR Gain Knob

The IR GAIN knob (12) adjusts infrared gain.

Non-functional with TCS.

Transmitter Channel Wheel

The XMTR CHAN wheel (13) selects the AWG-9 operating frequency.

Currently non-functional in DCS.

Missile Channel Wheel

The MSL CHAN wheel (14) selects the missile guidance channel used by AIM-7 or AIM-54.

Currently non-functional in DCS.

Display Selection Buttons

The DISPLAY buttons (15) control which radar elements are displayed on the DDD.

The IR button is non-functional with TCS.

WCS Mode Buttons

The WCS MODE buttons (16) select the current AWG-9 operating mode.

WCS Mode Display

The WCS MODE display (17) is a rotary drum showing the active WCS mode.

Closing Velocity Scale Switch

The Vc switch (18) selects closing velocity scale used on the DDD in pulse-doppler modes.

Erase Control Knob

The ERASE knob (19) adjusts the intensity of the erase beam, thereby controlling how rapidly radar returns fade from the display.

Pulse Gain Control

The PULSE GAIN knob (20) controls radar gain in pulse mode.

Normally left in the detent position unless adjustment is required due to clutter or jamming.

Aspect Switch

The ASPECT switch (21) selects doppler filter rate regions and pulse tracking method.

• Controls expected target aspect.
• Selects edge or centroid tracking in pulse mode.

Elevation Indicator

The EL indicator (22) displays sensor elevation information.

• Left needle - Actual radar antenna elevation.
• Right needle - Commanded radar elevation when RDR is selected on the HCU, or TCS elevation when IR/TV is selected.

Counter-Countermeasure Mode Buttons

The CCM MODES buttons (23) configure AWG-9 counter-jamming behavior.

Currently non-functional in DCS.

Jam/Jet Threshold Knob

The JAM/JET knob (24) sets the signal threshold at which returns are classified as jamming targets.

Currently non-functional in DCS.

ACM Threshold Knob

The ACM THRLD knob (25) controls radar sensitivity at close range.

Normally left in the detent position, as automatic logic manages this function.

Pulse-Doppler Threshold Knobs

The PD THRLD knobs (26) set pulse-doppler video thresholds for the display regions:

• CLEAR - Upper half of the DDD.
• CLUTTER - Lower half of the DDD.

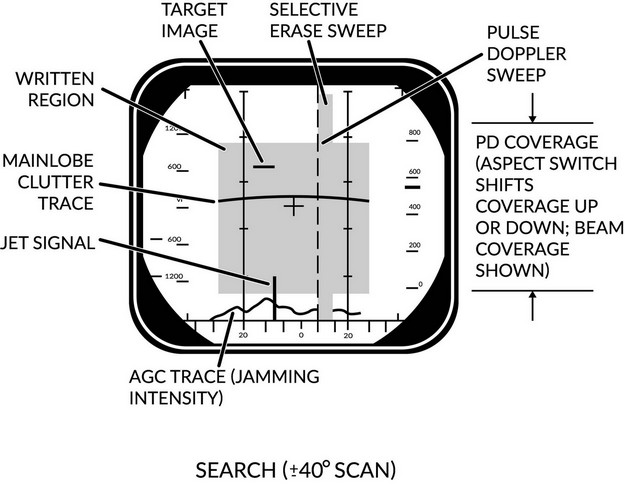

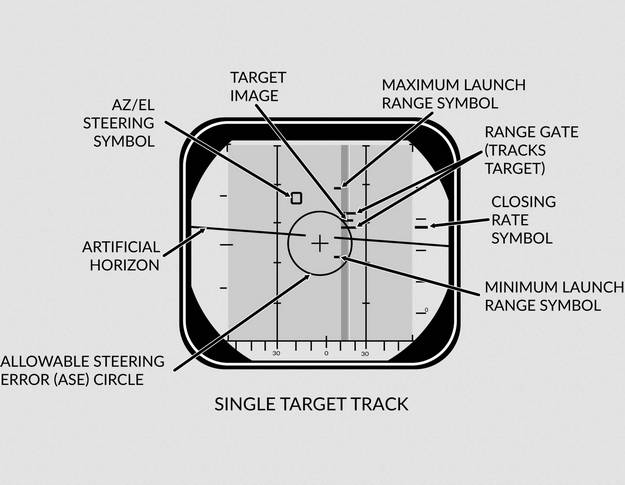

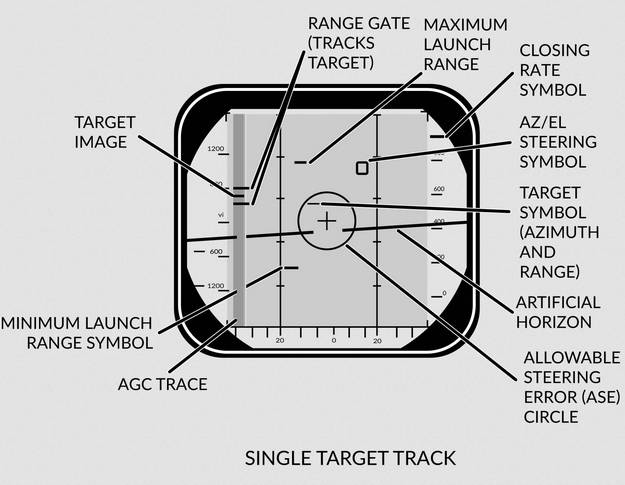

DDD Radar Display

The DDD radar display (27) is the primary AWG-9 radar presentation surface.

Center Console

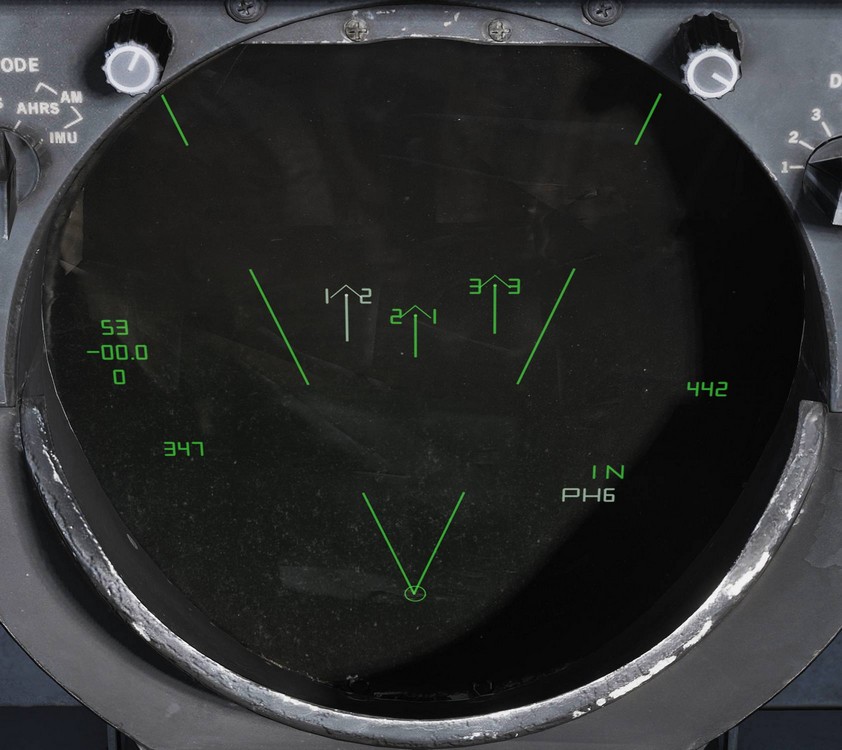

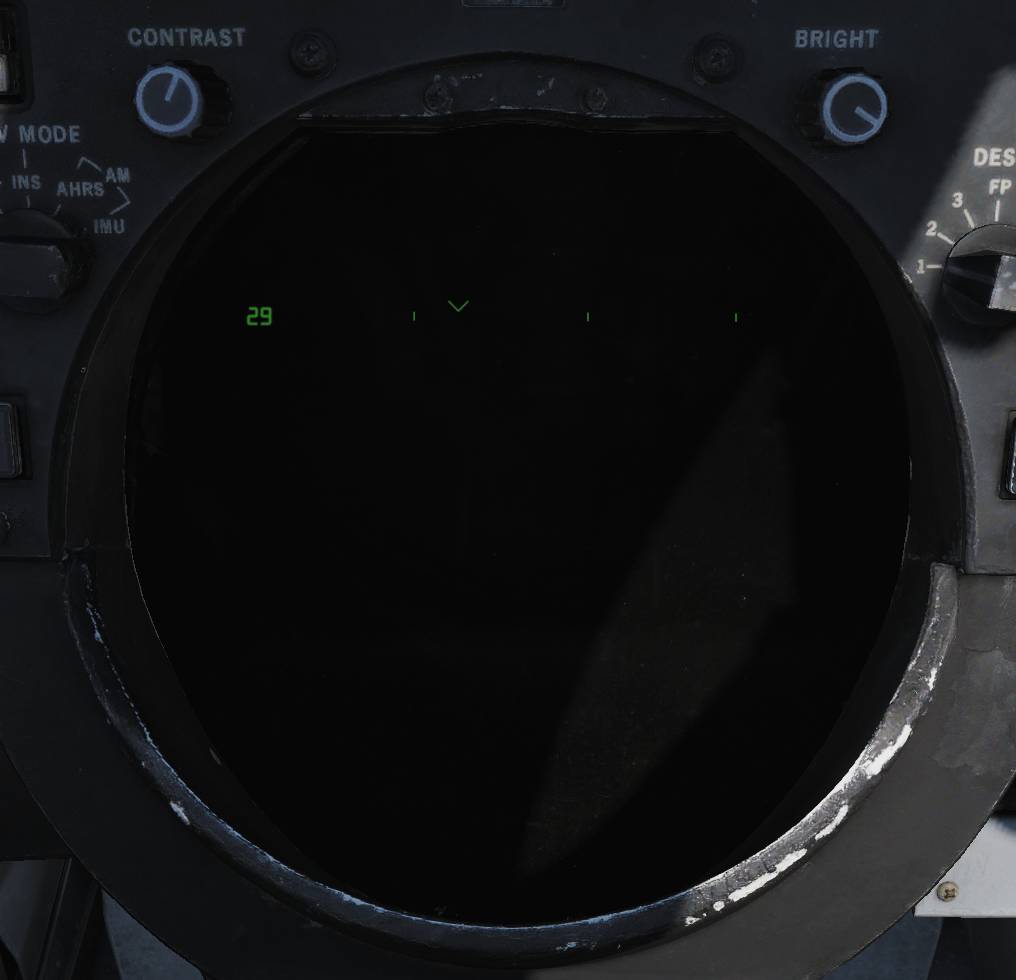

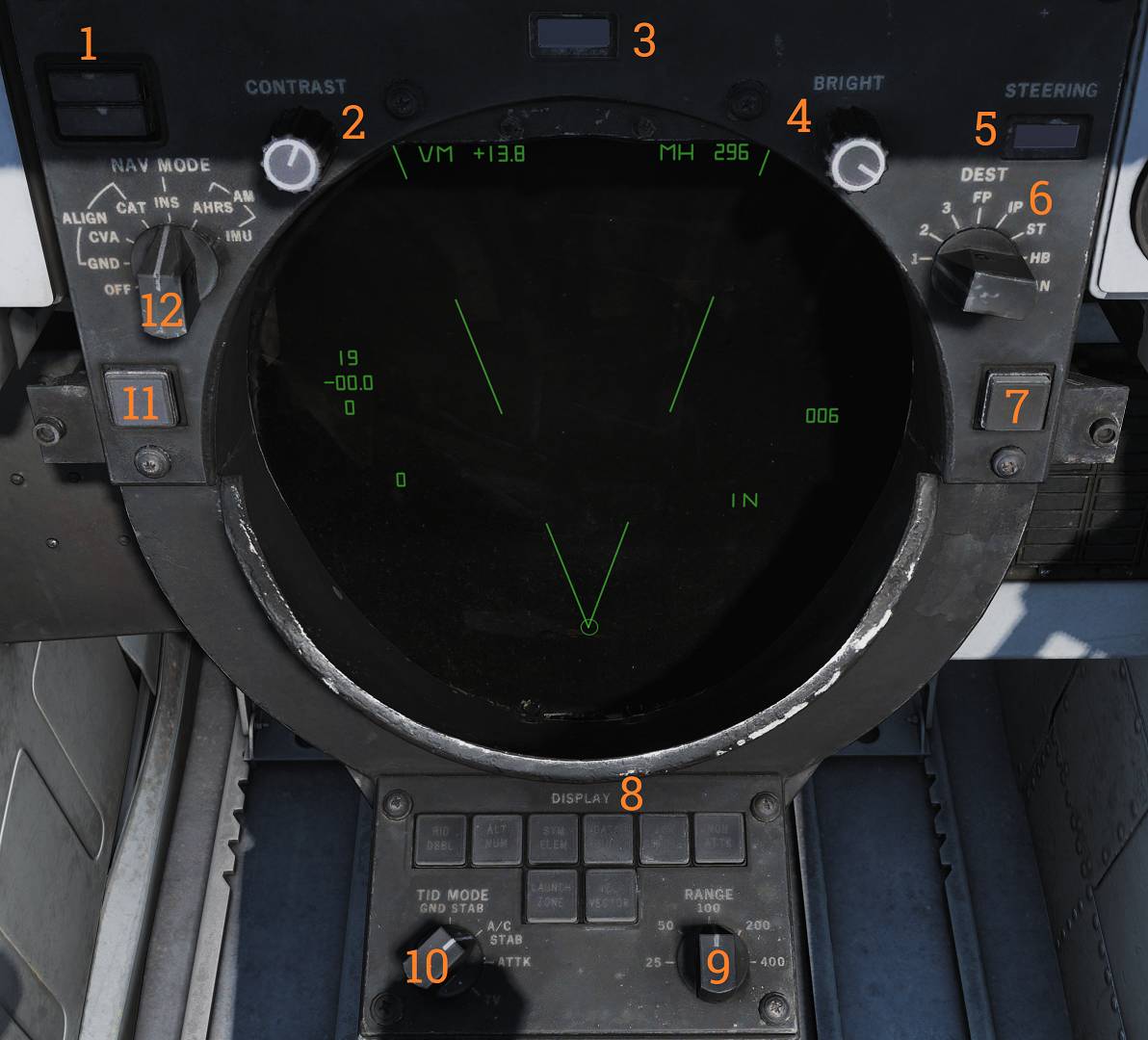

Tactical Information Display (TID)

The Tactical Information Display (TID) presents tactical, navigation, and data link information to the RIO and provides associated navigation and display controls.

INS Status Indicator

The INS status indicator (1) displays inertial navigation system alignment status.

• STBY — Power applied but alignment not complete.
• READY — Minimum alignment sufficient for AIM-54 launch criteria.

Both lights extinguish when an INS mode is selected. The indicator may also display fault conditions.

Contrast Knob

The CONTRAST knob (2) adjusts contrast of TCS video displayed on the TID.

Data Readout Drum

The DATA READOUT drum (3) indicates the data source currently shown on the TID alphanumeric readouts.

The drum may be blank for sources that do not generate textual data.

Brightness Knob

The BRIGHT knob (4) controls overall TID display brightness.

Steering Indicator Drum

The STEERING indicator drum (5) displays the steering information currently being provided to the pilot.

Destination Selector

The DEST selector (6) selects the destination used for navigation in destination mode.

Collision Steering Button

The CLSN button (7) selects collision steering toward a tracked target or the TWS centroid.

Display Selection Buttons

The DISPLAY buttons (8) control which elements are shown on the TID.

Each button includes an indicator light showing current selection state.

Available display selections include:

• RID DISABLE — Functions as TID Expand.
• ALT NUM — Toggles altitude numerics next to track symbols.
• SYM ELEM — Toggles supplementary track symbology. When deselected, only the track symbol dot is displayed.
• DATA LINK — Toggles display of all data link tracks.
• JAM STROBE — Toggles display of jamming strobes.
• NON-ATTK — Toggles display of non-attackable tracks.
• VEL VECTOR — Toggles display of velocity vectors.
• LAUNCH ZONE — Toggles missile launch zone display. Replaces velocity vectors when applicable. Automatically enabled by the WCS 60 seconds prior to maximum missile launch range.

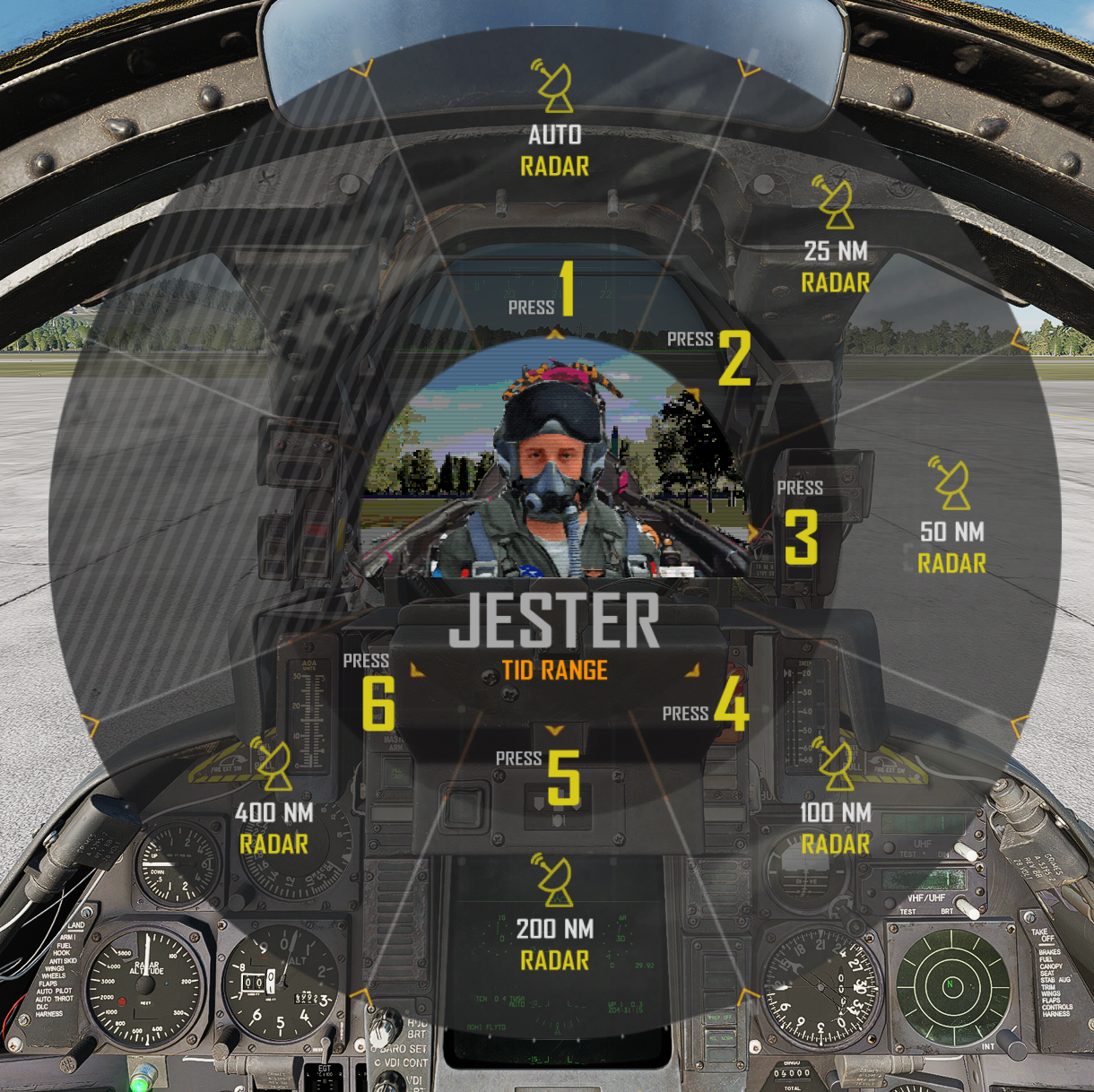

Range Selector

The RANGE selector (9) selects the TID display scale.

The selected range corresponds to the diameter distance represented on the display.

TID Mode Selector

The TID MODE selector (10) selects the current TID presentation mode.

Track Hold Button

The TRACK HOLD button (11) extends the time before a radar track is dropped after the last observation.

When selected, track retention time is increased to two minutes. Normal retention time is approximately 14 seconds.

Navigation Mode Selector

The NAV MODE selector (12) selects navigation reference systems and controls INS alignment and operating mode.

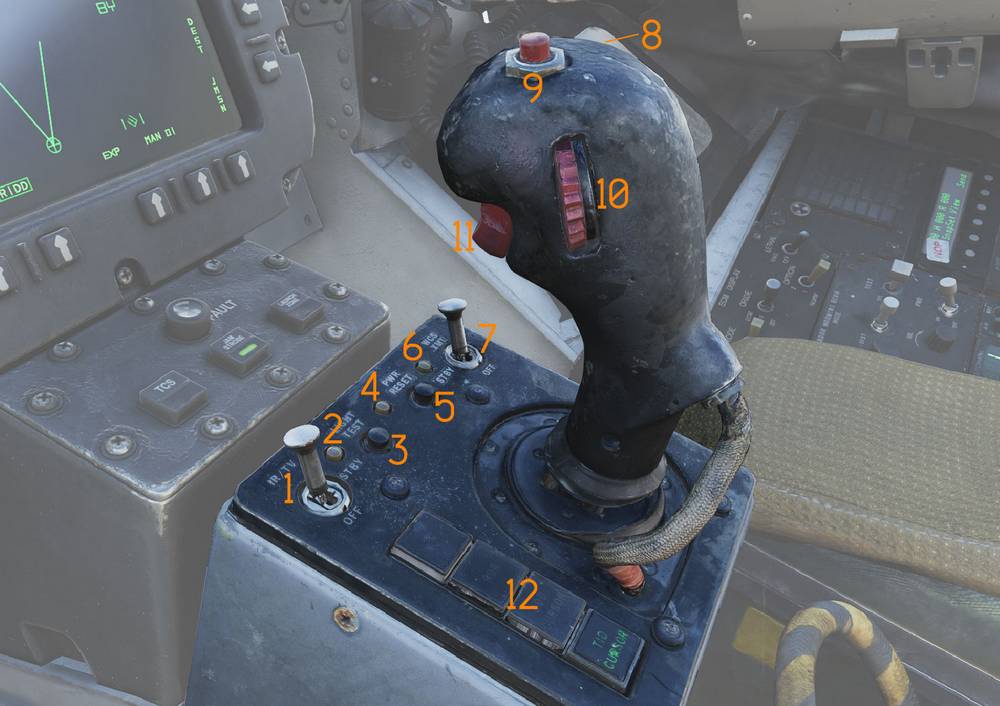

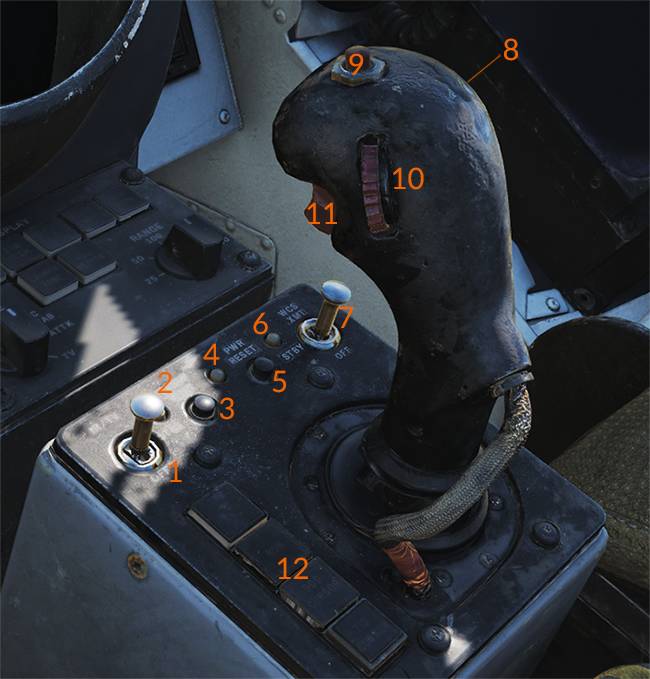

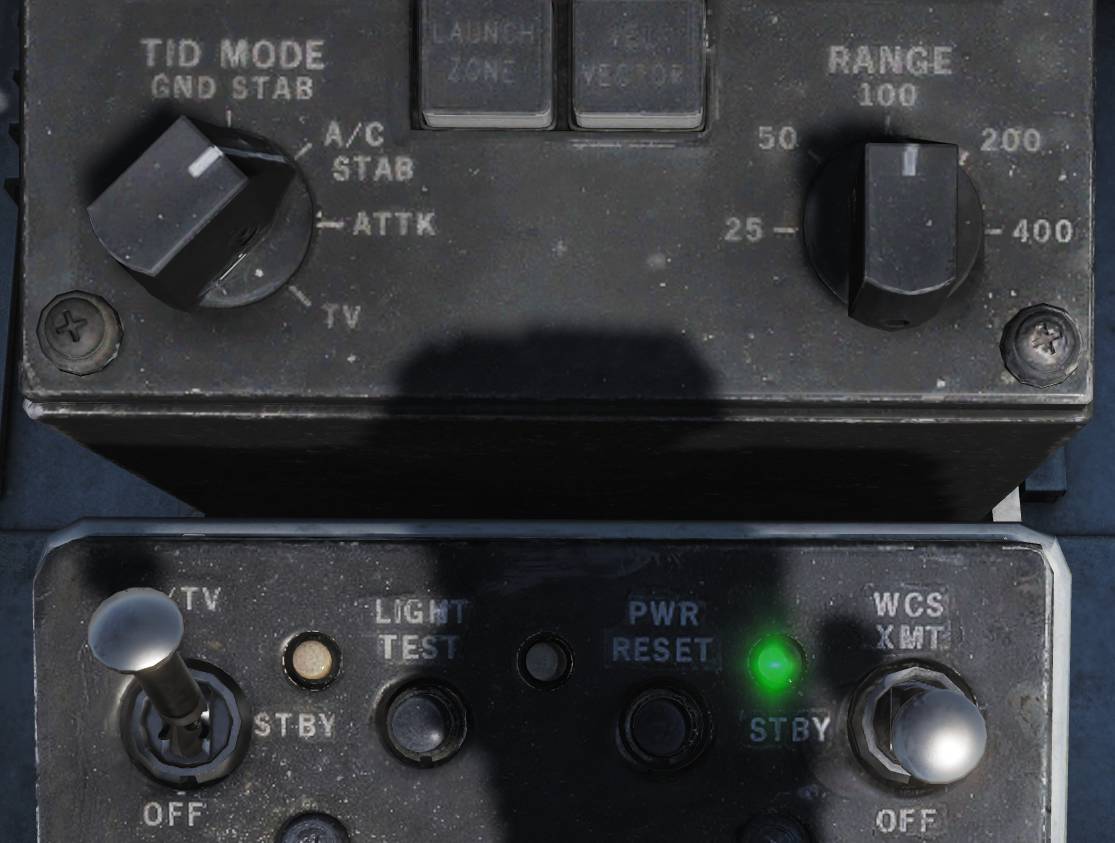

Hand Control Unit (HCU)

The hand control unit is the primary control stick for radar and TCS operation.

IR/TV Switch

The IR/TV switch (1) controls TCS power.

• OFF/STBY — Applies power without full operation.
• ON — Enables full TCS operation.

IR/TV Overtemperature Indicator

The IR/TV overtemp indicator (2) illuminates when an overtemperature condition exists within the TCS.

Light Test Button

The LIGHT TEST button (3) initiates a test of all AWG-9 indicator lights.

Power Reset Indicator

The PWR RESET indicator (4) illuminates when one or more secondary power supplies are inoperative.

Power Reset Button

The PWR RESET button (5) attempts to restore inoperative secondary power supplies.

If the fault condition persists, affected supplies will remain inoperative.

WCS Status Indicator

The WCS indicator (6) illuminates under the following conditions:

• STBY or XMT selected while radar warmup is incomplete.
• XMT selected while radar transmission remains inhibited.

WCS Power Switch

The WCS switch (7) controls weapon control system power.

• STBY — Applies power to WCS and begins radar warmup without transmission.
• XMT — Enables radar transmission when warmup is complete.

Display warmup time is approximately 30 seconds. Radar warmup time is approximately three minutes.

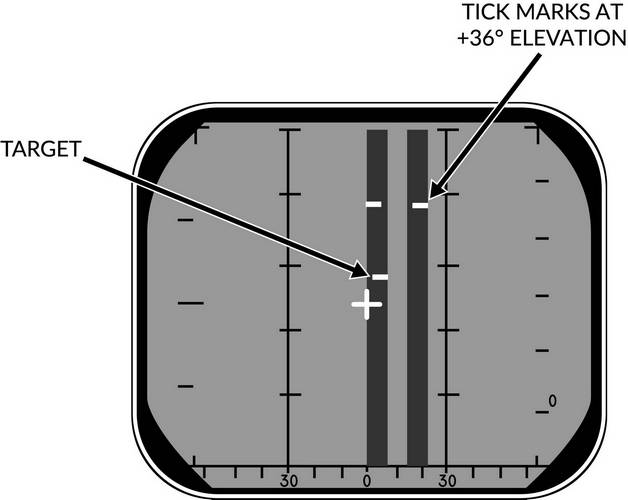

Manual Rapid Lockon Button

The MRL button (8) selects manual rapid lock-on mode.

This mode overrides all other radar operating modes except PLM and VSL.

Offset Button

The OFFSET button (9) offsets the TID display to the currently hooked location.

Antenna Elevation Thumbwheel

The ELEV thumbwheel (10) fine-tunes radar antenna elevation during STT lock-on acquisition.

HCU Trigger

The HCU trigger (11) is a two-stage trigger used to command various WCS functions depending on selected mode.

• First detent — HALF ACTION.
• Second detent — FULL ACTION.

Functions include target acquisition and symbol hook.

Hand Control Function Buttons

The hand control function buttons (12) select the active control mode of the HCU stick.

The buttons are mutually exclusive and light up when selected.

Available functions are:

• IR/TV — Controls TCS azimuth, elevation, and tracking. Enables display of TCS elevation on the right elevation indicator on the DDD.
• RDR — Controls radar antenna elevation and STT acquisition or return to search. Displays commanded radar antenna elevation on the DDD.
• DDD CURSOR — Controls DDD cursor for marking geographic positions in pulse radar mode.
• TID CURSOR — Controls the TID cursor used to hook symbols on the TID.

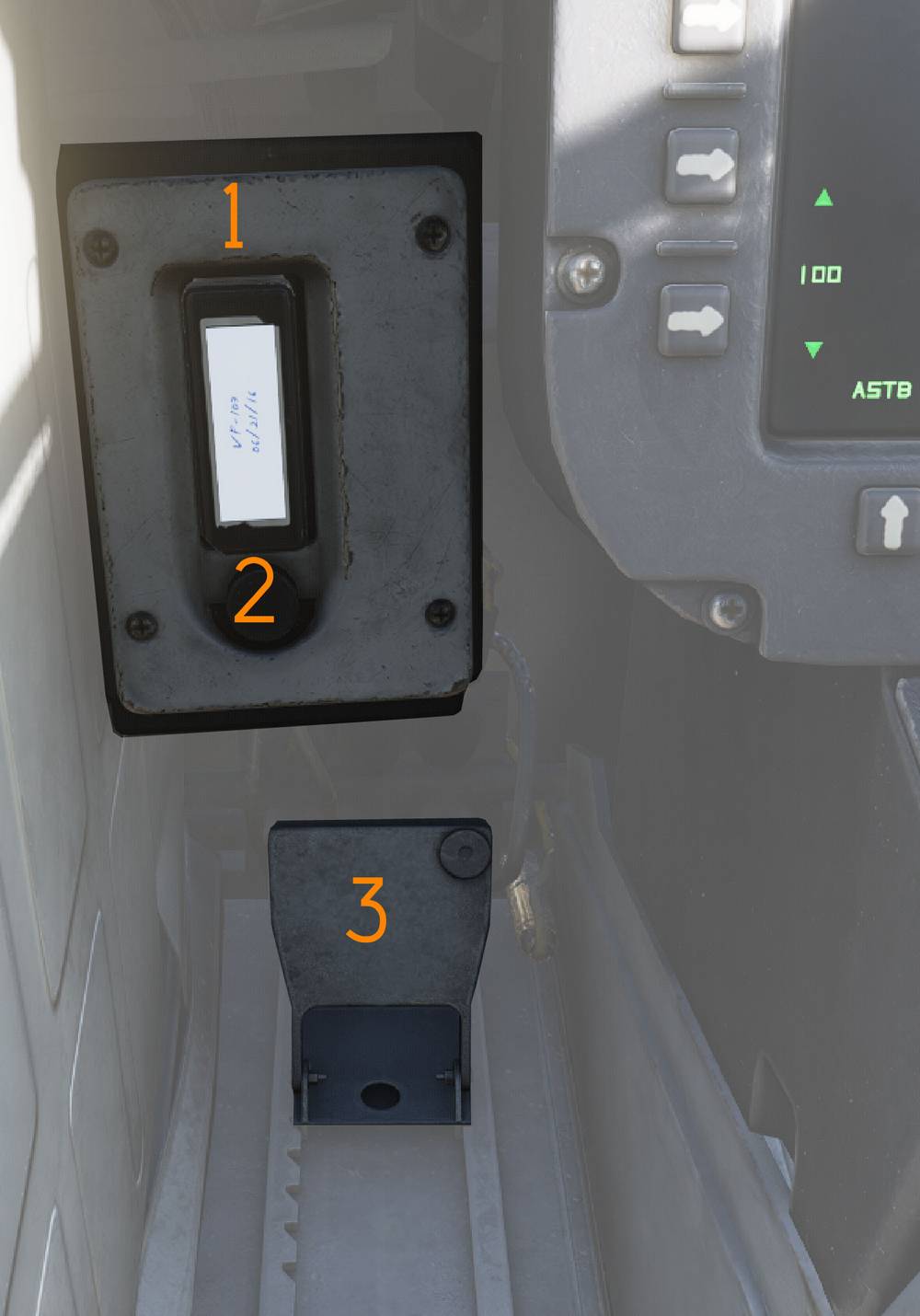

Footwells

ICS Foot Button

RIO left footrest containing ICS PTT for COLD MIC intercommunication.

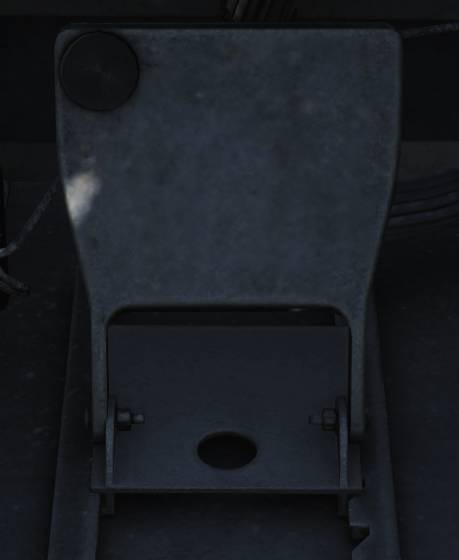

Mic Foot Button

RIO right footrest containing PTT for transmission on UHF 1, V/UHF 2, or both depending on ICS setting.

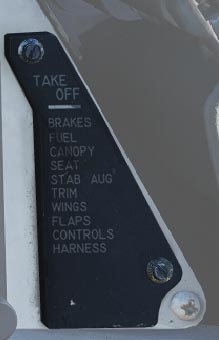

Right Instrument Panel

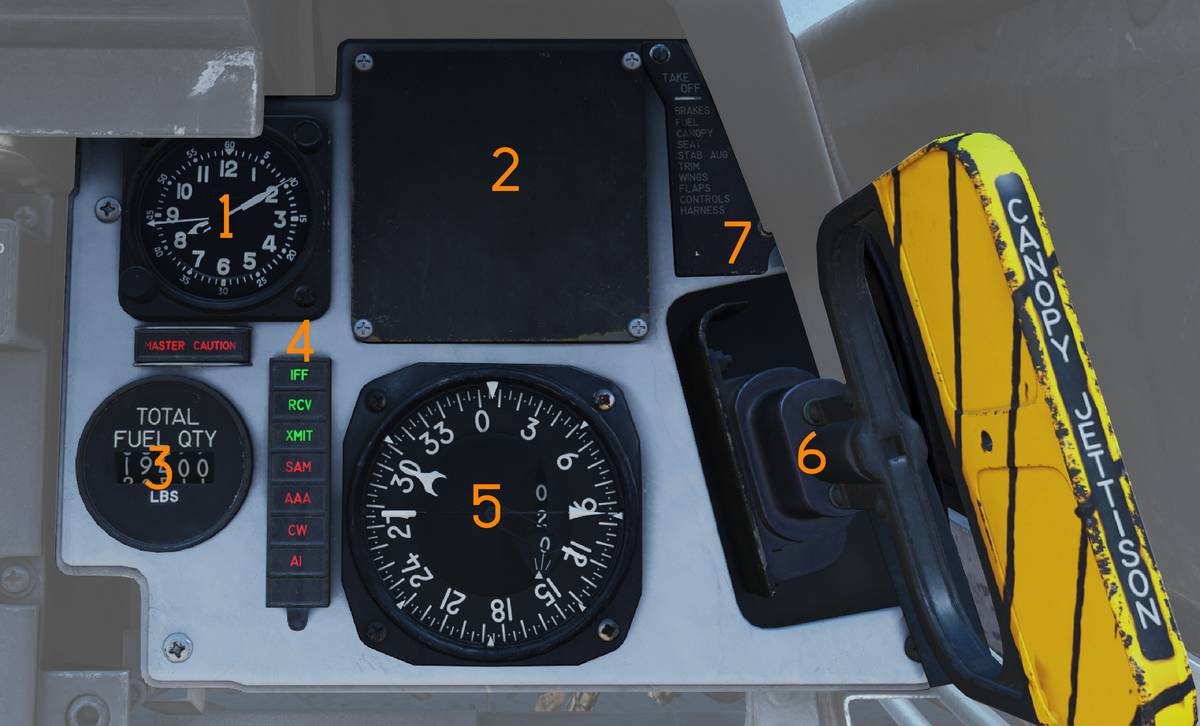

Clock

Mechanical wind-up clock.

The wind/set knob (1) is located on the lower left corner.

• Rotate clockwise to wind the clock.
• Pull out and rotate to set the hour and minute hands.

The elapsed-time control (2) is located on the upper right corner and is used to start, stop, and reset the 1-hour elapsed time counter.

ALR-67 Indicator

Displays radar emitters detected by the ALR-67 radar warning receiver.

Threat Display Bands

• Non-lethal band (2) - Displays emitters not considered an immediate threat due to range or lack of weapon capability.
• Lethal band (3) - Displays emitters capable of engaging own aircraft but not currently doing so.
• Critical band (4) - Displays direct threats to own aircraft. Systems capable of engaging own aircraft and showing current intent of doing so.

System Status Circle

The system status circle (1) is divided into three areas.

Area I (upper left quadrant) displays threat prioritization symbols:

• N - Normal.
• I - AI, Airborne interceptors prioritized.
• A - AAA, Anti-air artillery prioritized.
• U - Unknown emitters prioritized.
• F - Friendly emitters displayed in addition to threats.

Area II (upper right quadrant) indicates limited mode status.

• (Blank) - Limited mode not selected.
• L - Limited mode selected. Only the six highest-priority threats are shown.

Area III (lower half) displays system status and offset information:

• (Blank) - Normal operation.
• B - BIT failure.
• T - Thermal overload.
• O - Offset display selected. Threats will be separated to allow readout of overlapping symbols. Bearing accuracy degraded for displaced threats.

Intensity Control Knob

The INT knob (5) adjusts display brightness.

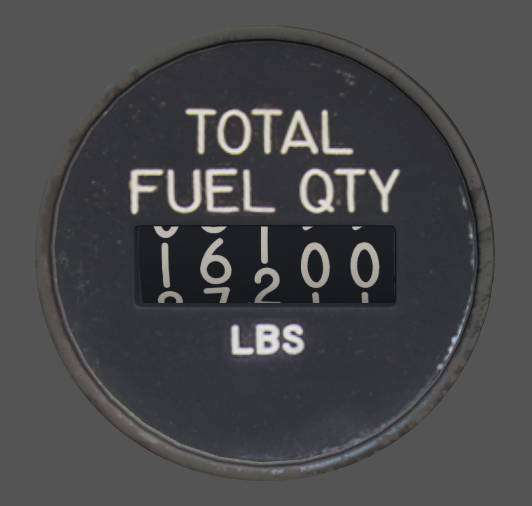

Fuel Quantity Totalizer

The fuel quantity totalizer (1) displays total fuel quantity in all aircraft tanks.

Threat Advisory and Master Caution Lights

Master caution light and ECM/IFF advisory and warning indications.

The MASTER CAUTION light and reset button flashes to indicate a status change on the RIO caution/advisory panel.

Press to acknowledge and extinguish the light until the next event.

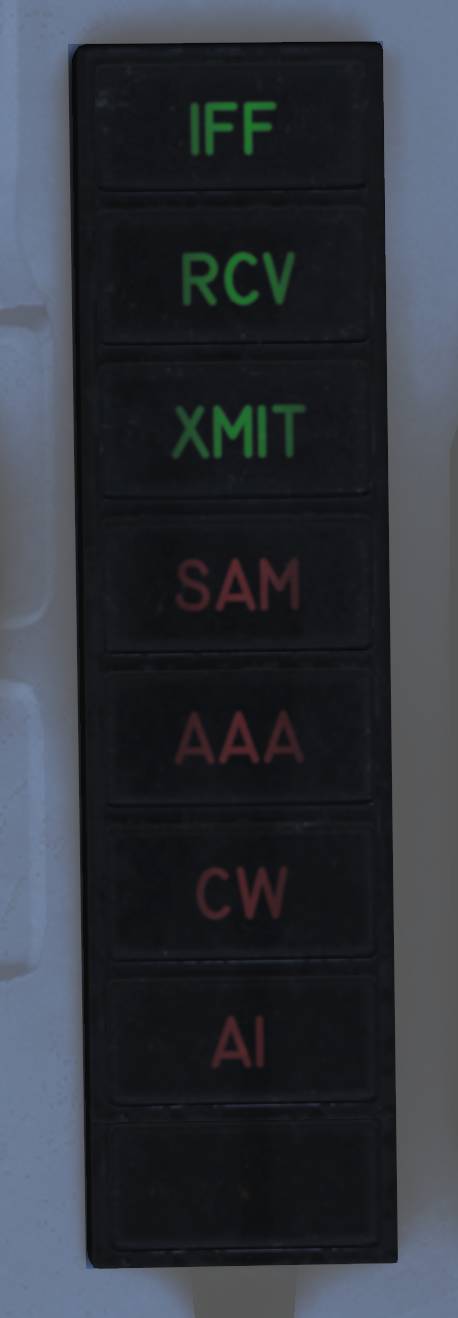

ALR-67 Caution Lights

ALR-45 Caution Lights

Bearing Distance Heading Indicator (BDHI)

Display indicating azimuth and bearing information.

No. 2 Bearing Pointer

The No. 2 bearing pointer (1) indicates magnetic course to the tuned TACAN station.

Compass Rose

The compass rose (2) indicates aircraft magnetic heading.

No. 1 Bearing Pointer

The No. 1 bearing pointer (3) indicates bearing to the tuned UHF/ADF station.

Distance Counter

The distance counter (4) indicates slant range to the tuned TACAN station in nautical miles.

(Not visible in the referenced image.)

Canopy Jettison Handle

The canopy jettison handle (1) is used to manually jettison the canopy.

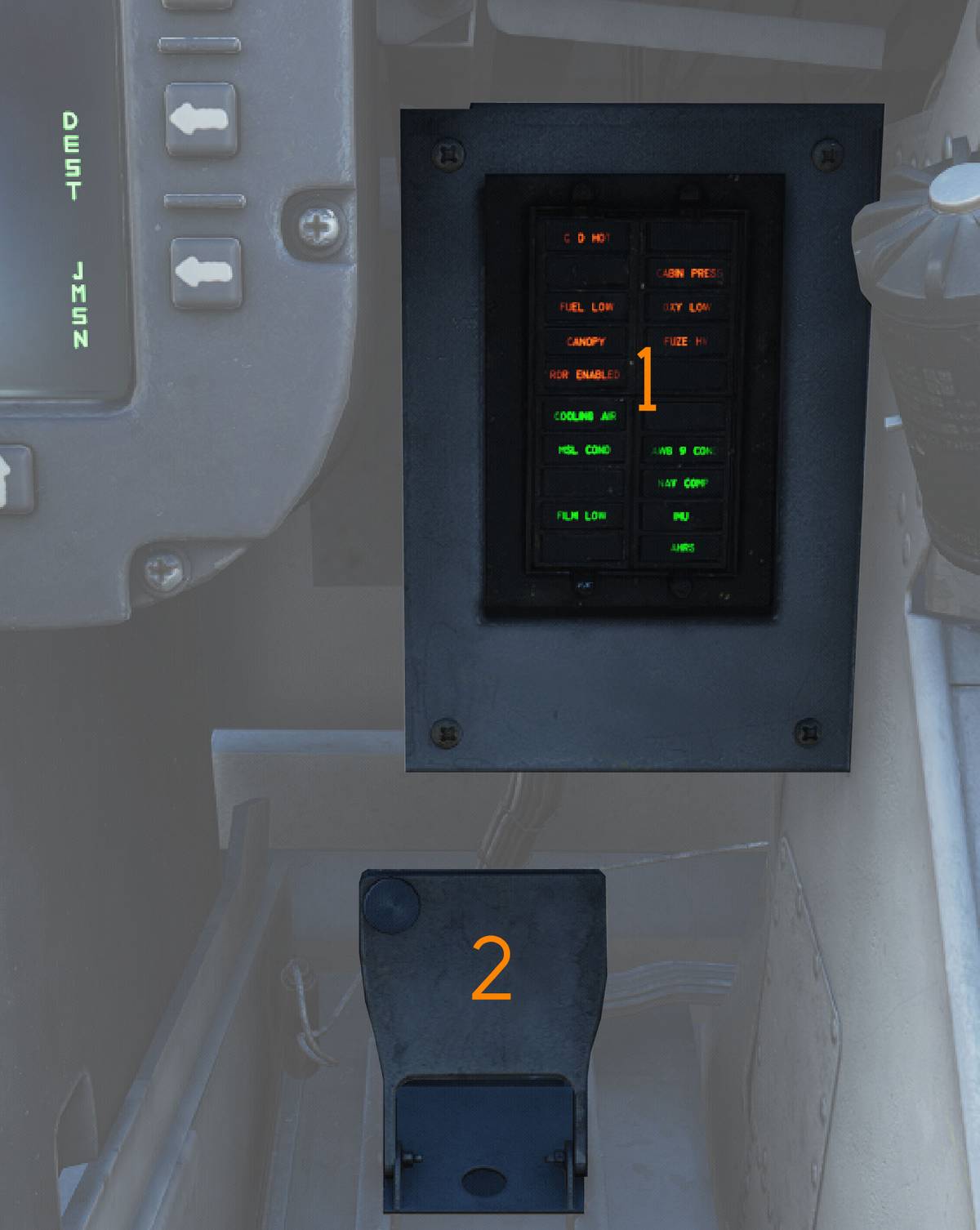

Right Knee Panel

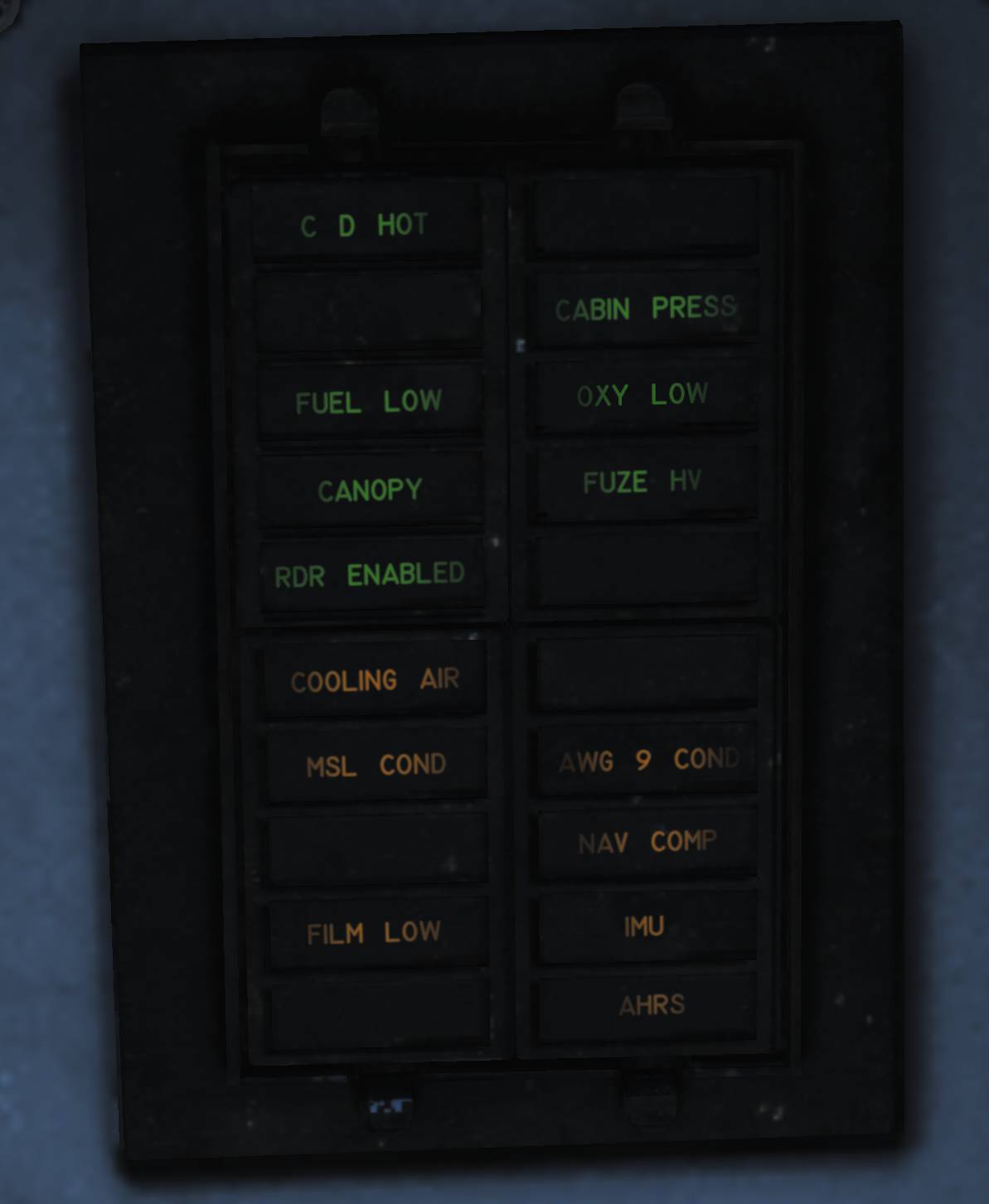

Caution-Advisory Panel

Right Vertical Console

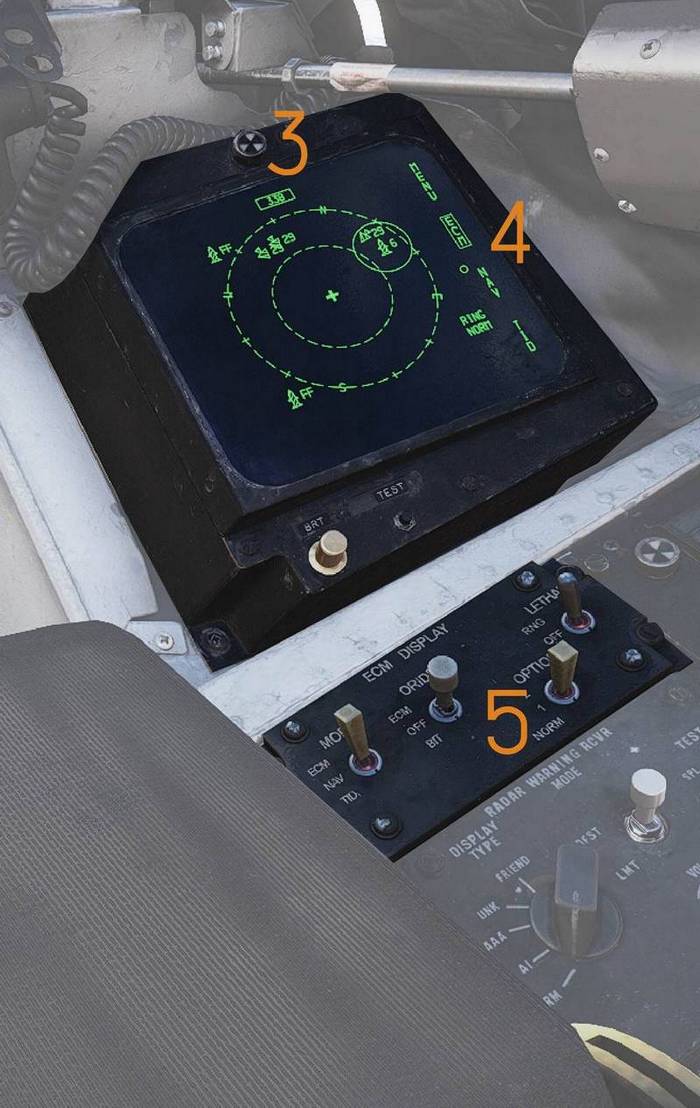

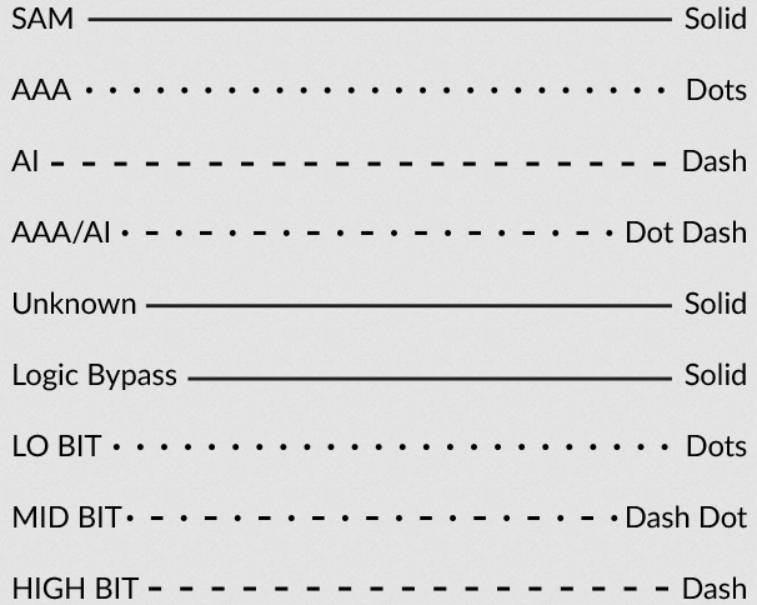

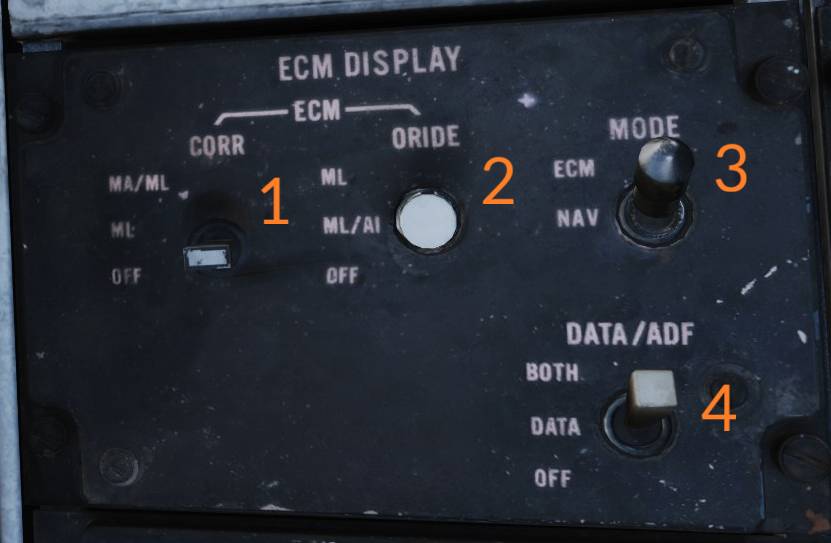

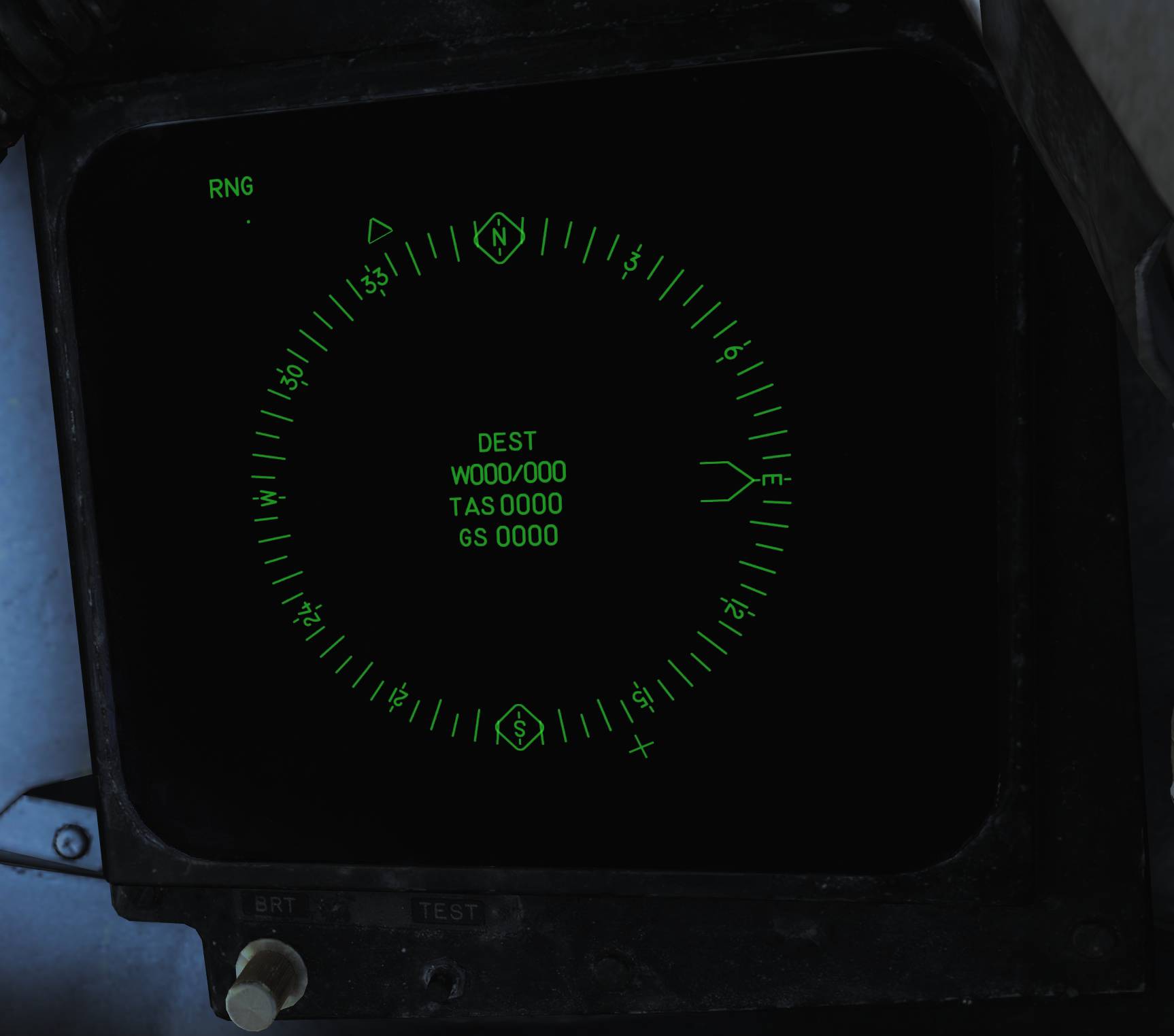

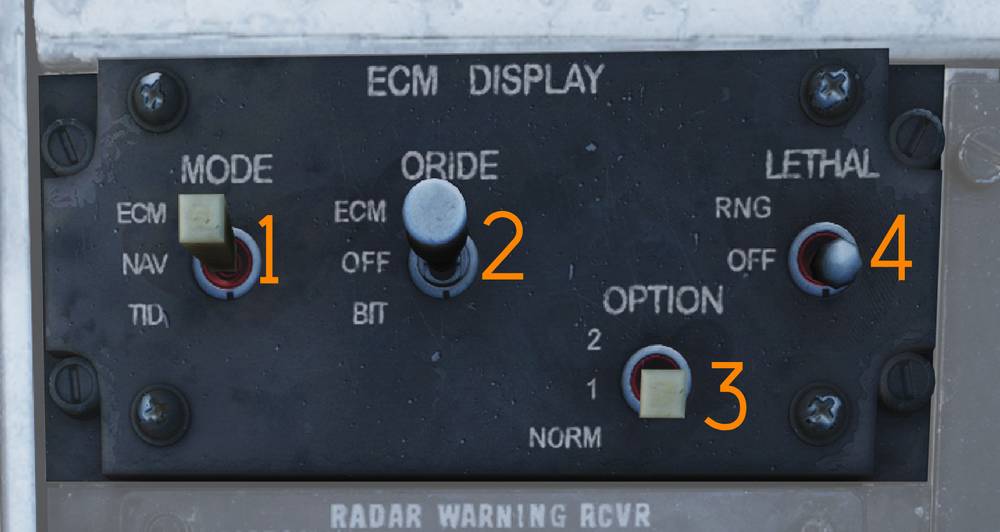

Electronic Countermeasures Display (ECMD)

Display used for navigational information and AN/ALR-45 ECM (only in F-14A with AN/ALR-45).

Has a brightness control knob, test button and a BIT indicator showing the status of the display (solid black when operational, showing white flags when indicating a fail condition).

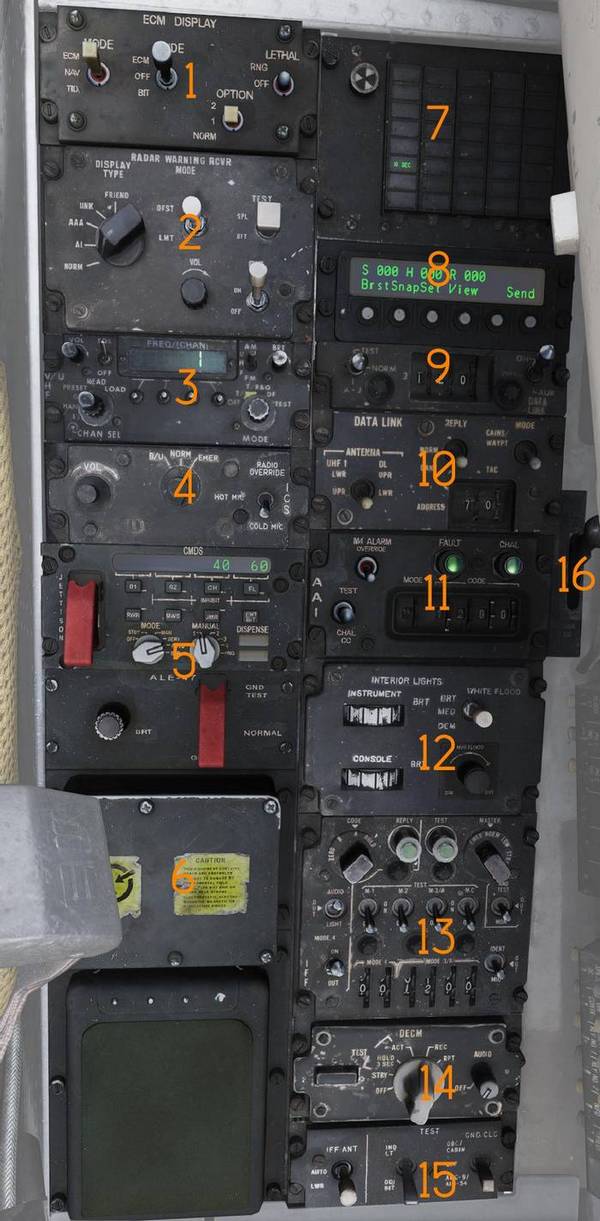

Right Side Console

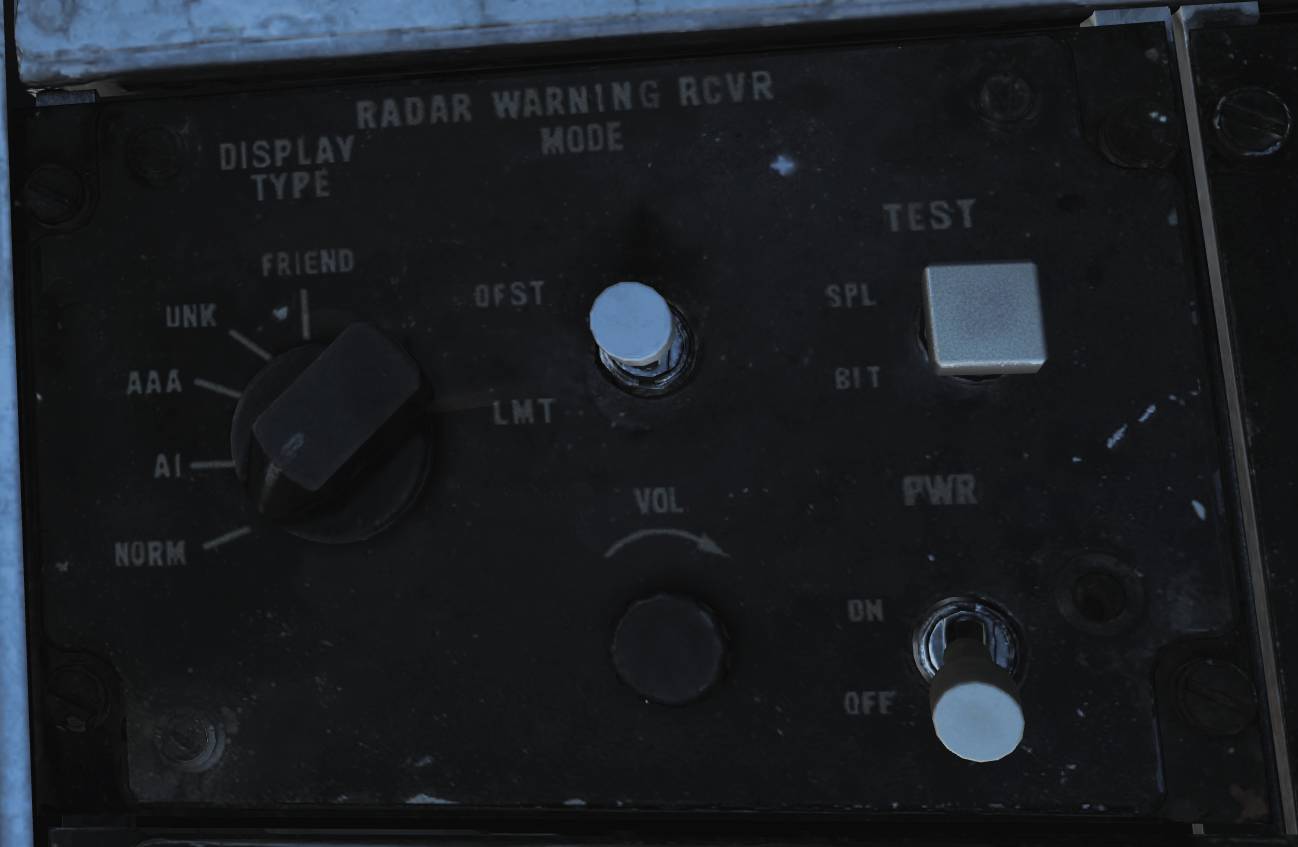

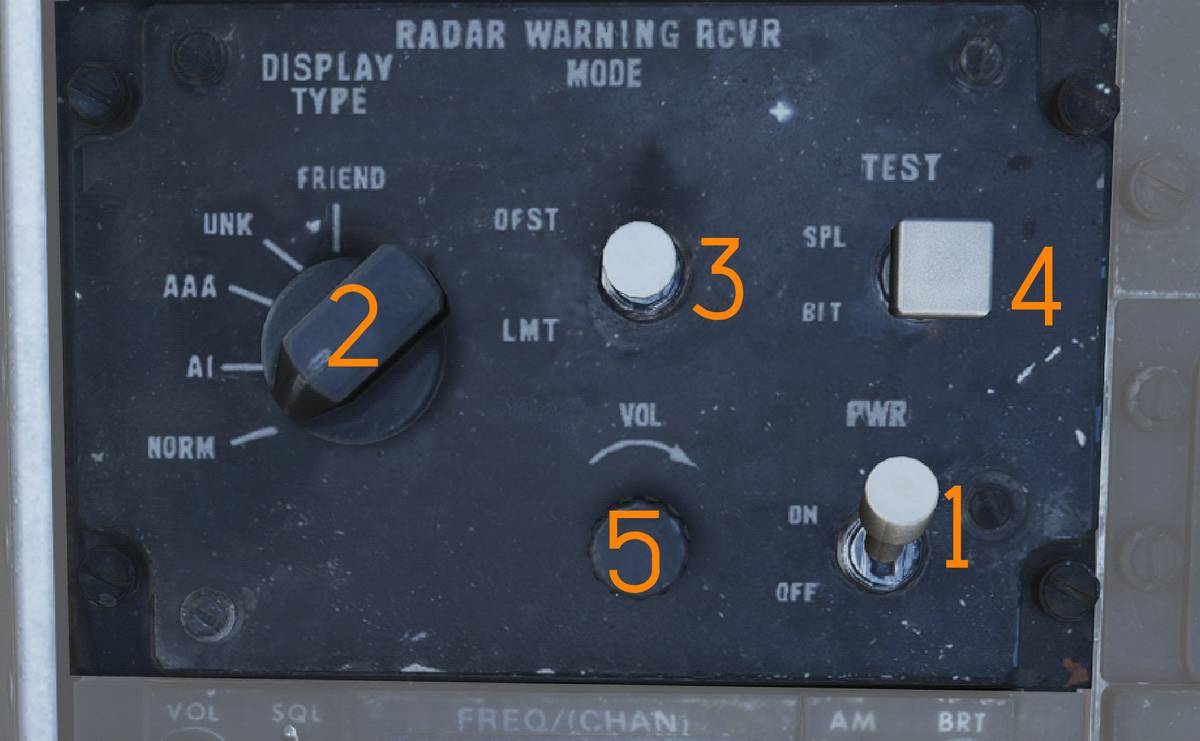

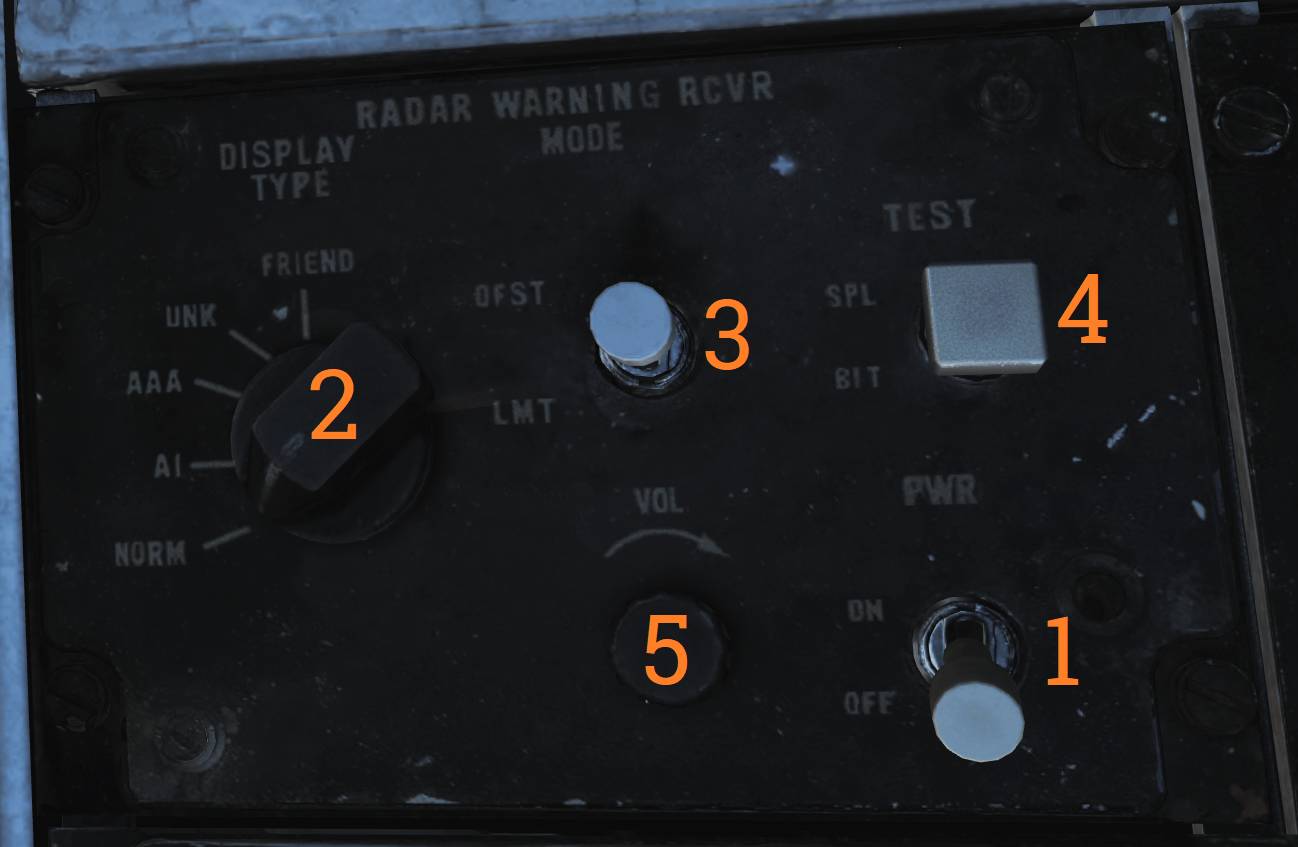

Radar Warning Receiver Panel

Control panel for the ALR-67 radar warning receiver.

Power Switch

The PWR switch (1) controls electrical power to the ALR-67.

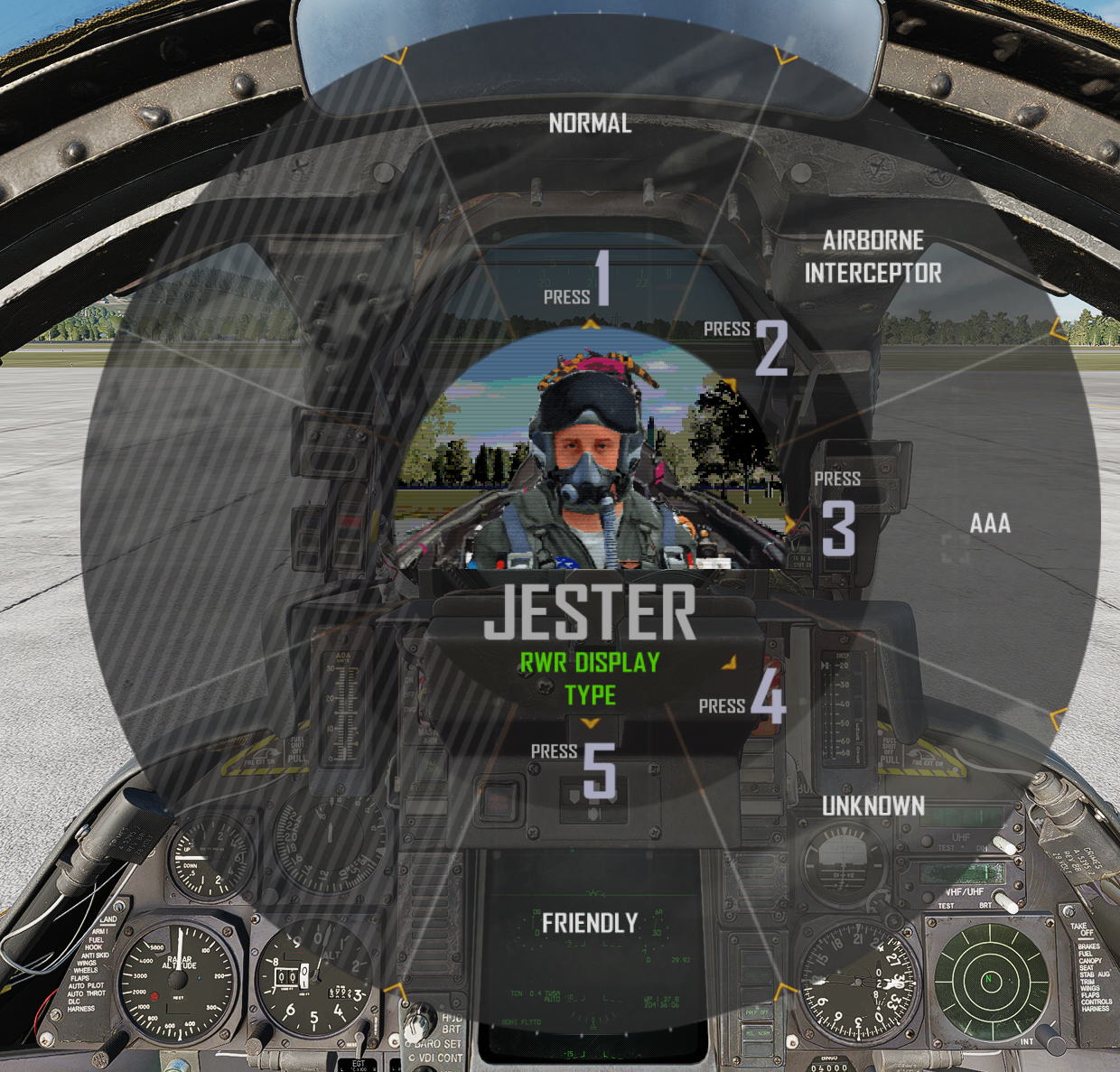

Display Type Selector

The DISPLAY TYPE selector (2) selects which threat types are prioritized and displayed.

Mode Switch

The MODE switch (3) is spring-loaded to the center (OFF) position.

It can be held to the following momentary positions:

• OFST - Enables offset display while held.
• LMT - Enables limited display while held.

Test Switch

The TEST switch (4) is spring-loaded to center.

• BIT - Momentary selection initiates ALR-67 BIT.
• SPL - While BIT page 1 is displayed, holding SPL displays the special BIT status page while held and for three seconds after release.

Volume Knob

The VOL knob (5) controls ALR-67 audio volume to the RIO headset.

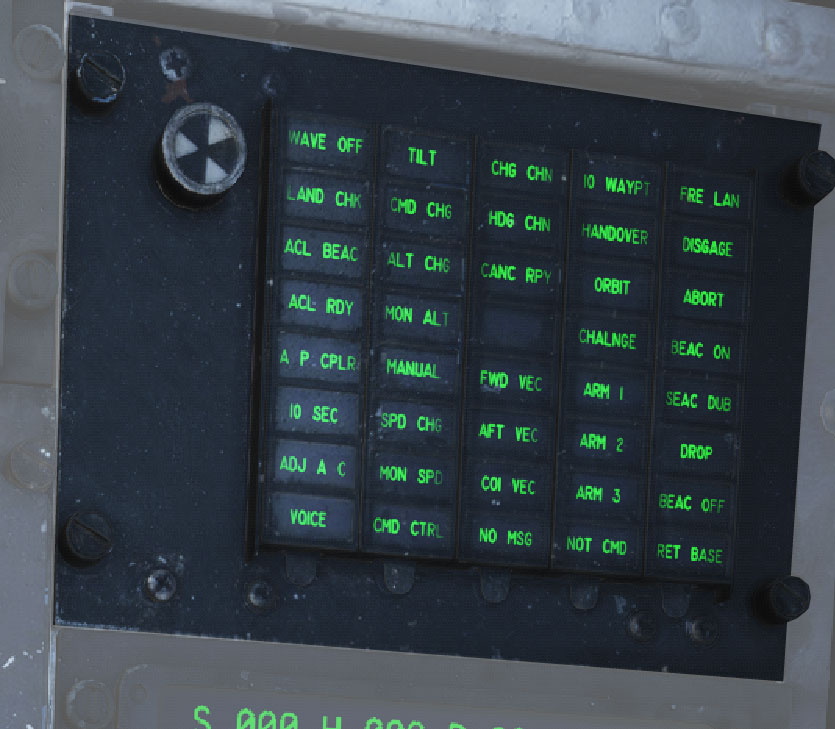

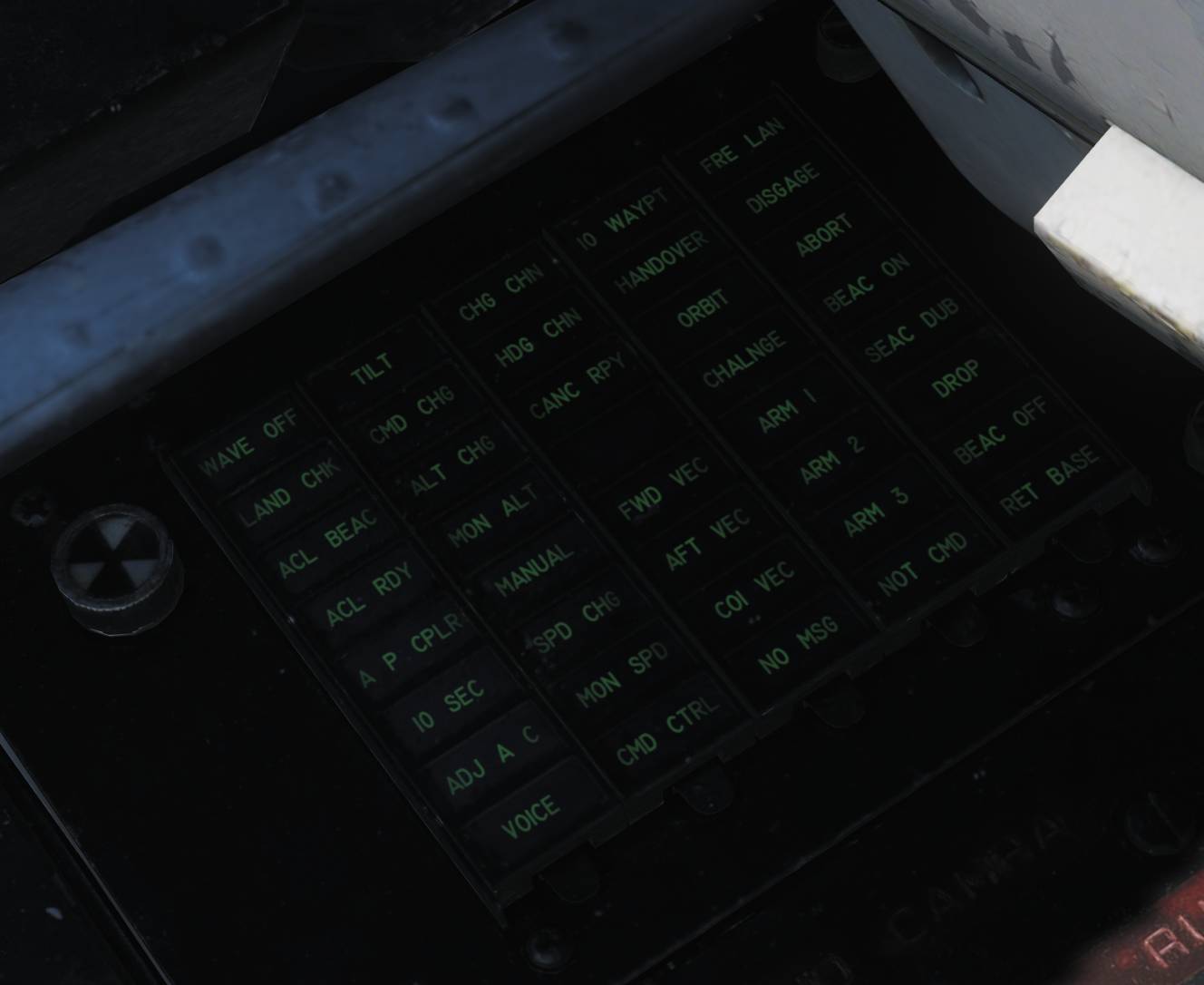

Digital Data Indicator (DDI)

Digital data indicator used to display commands received via the data link.

💡 The majority of the DDI lights depend on data link reply messages not currently modelled in DCS.

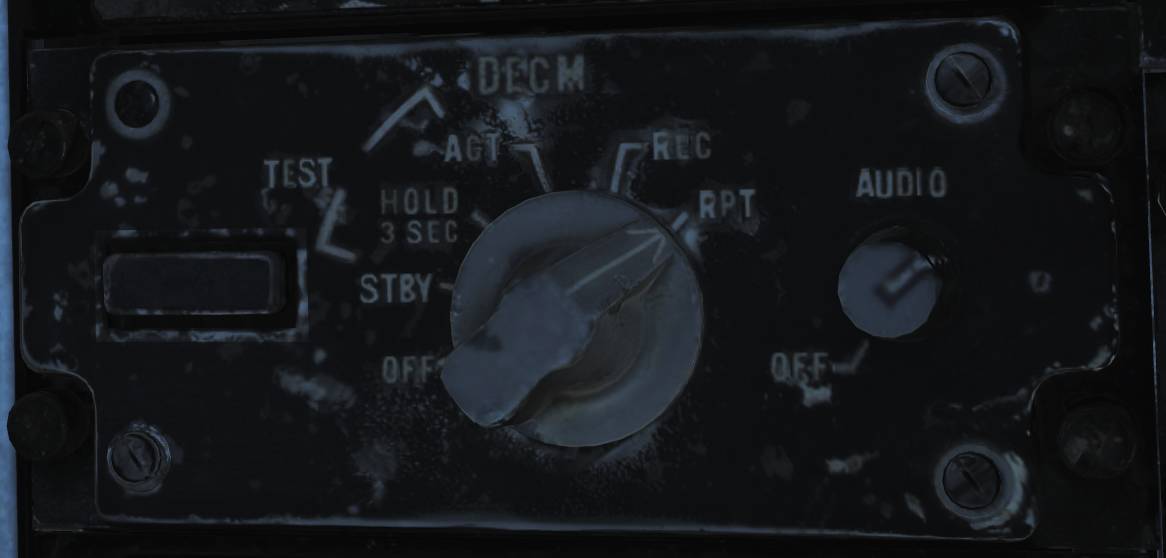

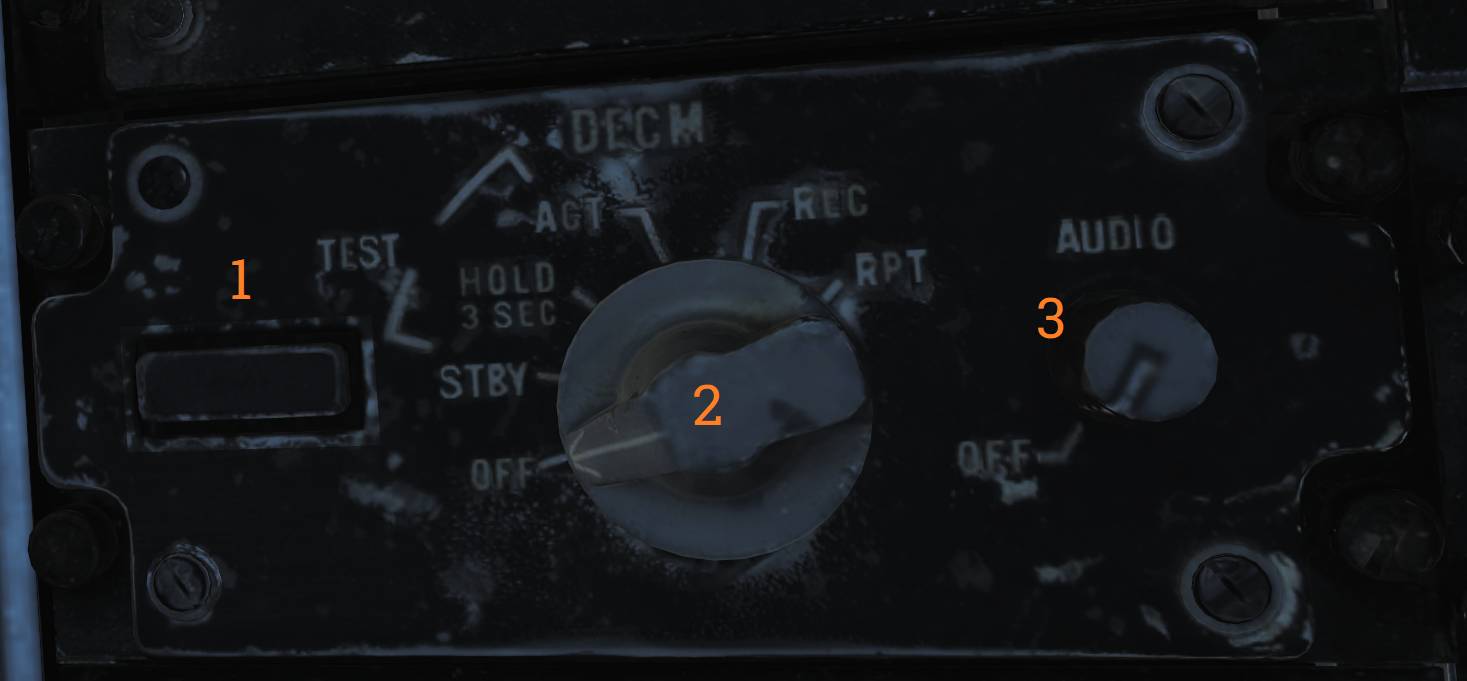

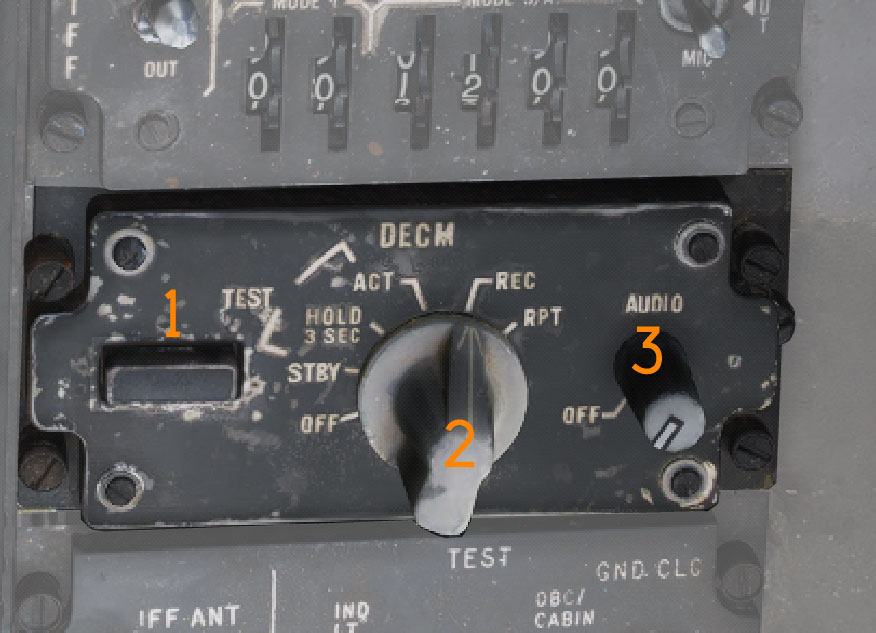

DECM Control Panel

Control panel for the AN/ALQ-126 DECM jammer.

Standby Light

The STANDBY light (1) is an orange warm-up indication when the system is placed in STBY.

The light extinguishes after warm-up. Illumination during test or operation indicates a fault.

DECM Selector

The DECM selector (2) controls AN/ALQ-126 power and operating mode.

Selectable modes are:

• OFF - Removes power from the AN/ALQ-126.
• STBY - Standby warm-up mode.
• TEST/HOLD 3 SEC - Hold for three seconds to arm the system test.
• TEST/ACT - Initiates AN/ALQ-126 BIT after the TEST/HOLD 3 SEC step.
• REC - Receive and analyze threat signals. Missile launch detection may force the system into repeat.
• RPT - Repeat mode, transmits programmed responses to detected threats.

Audio Knob

The AUDIO knob (3) sets jammer audio volume to the RIO headset.

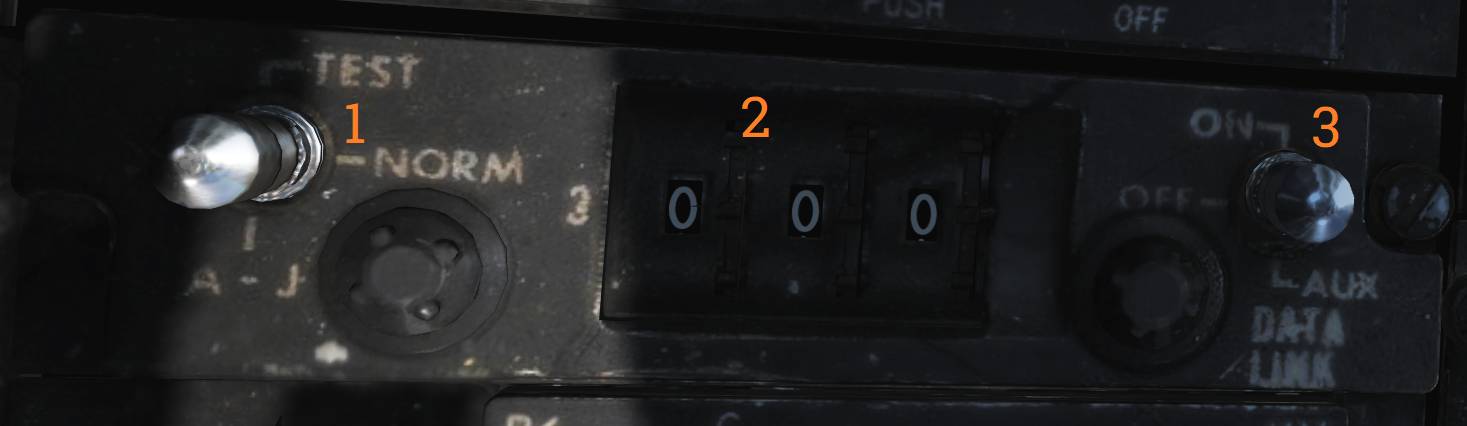

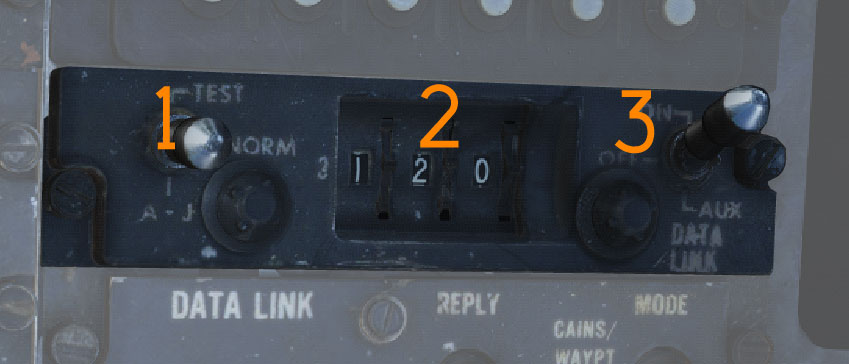

Data Link Control Panel

Control panel for data link operation.

Transmission Mode Switch

The transmission mode switch (1) selects data link transmission mode.

• TEST - Initiates system test.
• NORM - Normal operational mode.
• A/J - Anti-jam transmission mode.

Frequency Select Wheels

The frequency select thumbwheels (2) set the data link frequency.

Data Link Power Switch

The data link power switch (3) applies power to the data link and is also used to select AUX (auxiliary) mode.

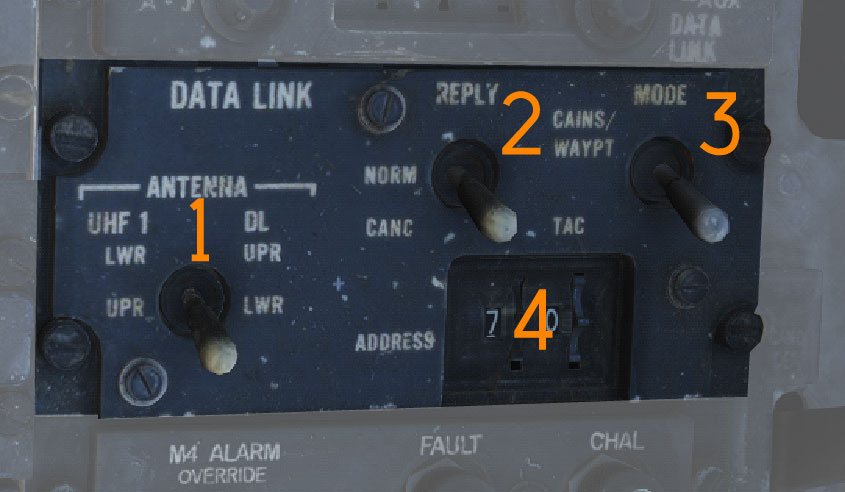

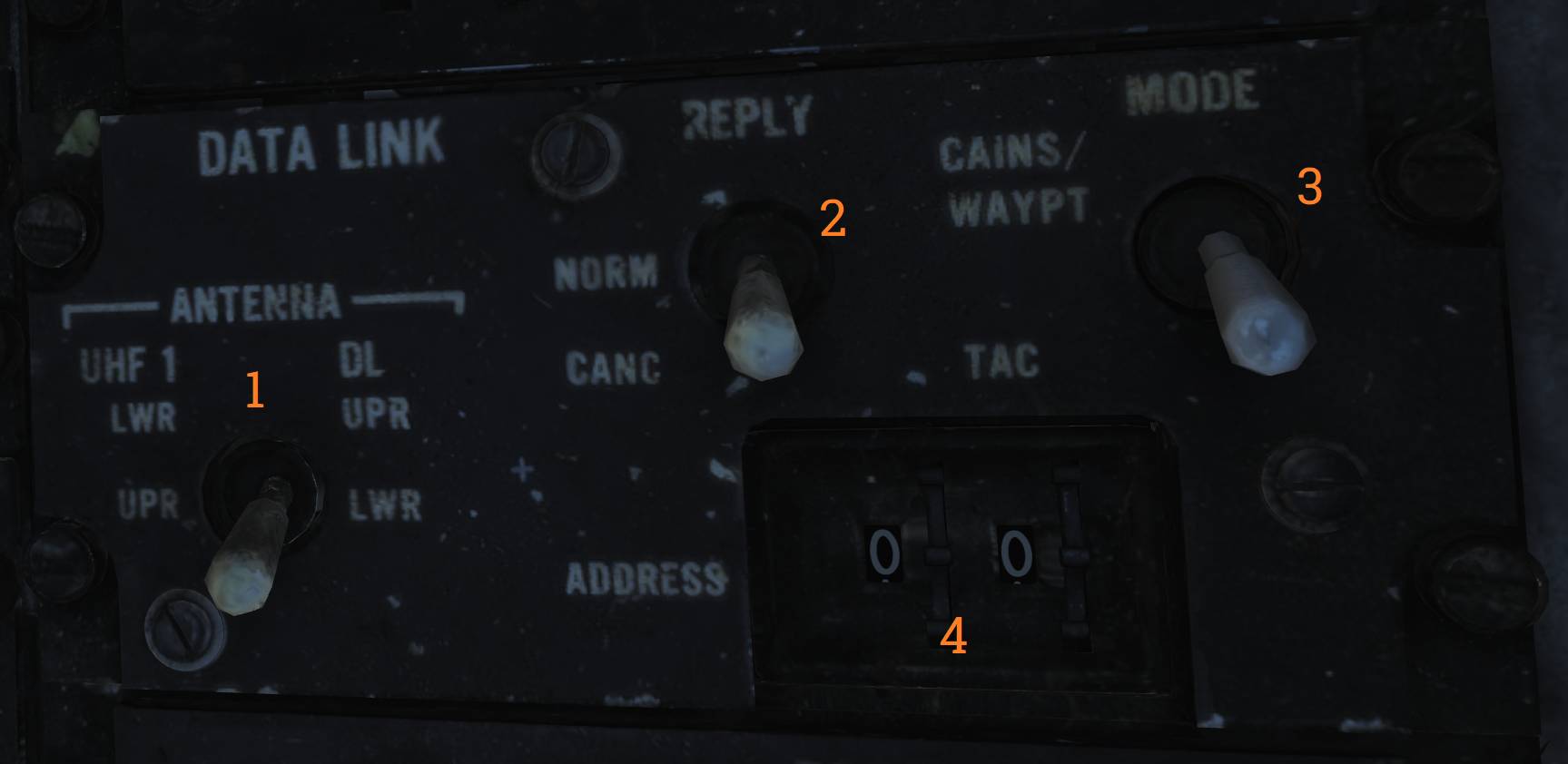

Data Link Reply and Antenna Control Panel

Panel controlling data link alignment, reply, and antenna selection.

Antenna Switch

The ANTENNA switch (1) selects the antenna used for UHF 1 and the data link.

Reply Switch

The REPLY switch (2) controls data link reply transmission.

• NORM - Reply transmission enabled.
• CANC - Reply transmission disabled (cancelled).

Datalink Mode Switch

The MODE switch (3) is spring-loaded to TAC and held by solenoid.

• CAINS/WAYPT - Enables data link alignment and waypoint update.
• TAC - Enables manual frequency selection and stops alignment/waypoint update.

Address Thumbwheel

The ADDRESS thumbwheel (4) sets the aircraft data link address.

This sets the two least-significant digits; remaining digits are set by ground crew.

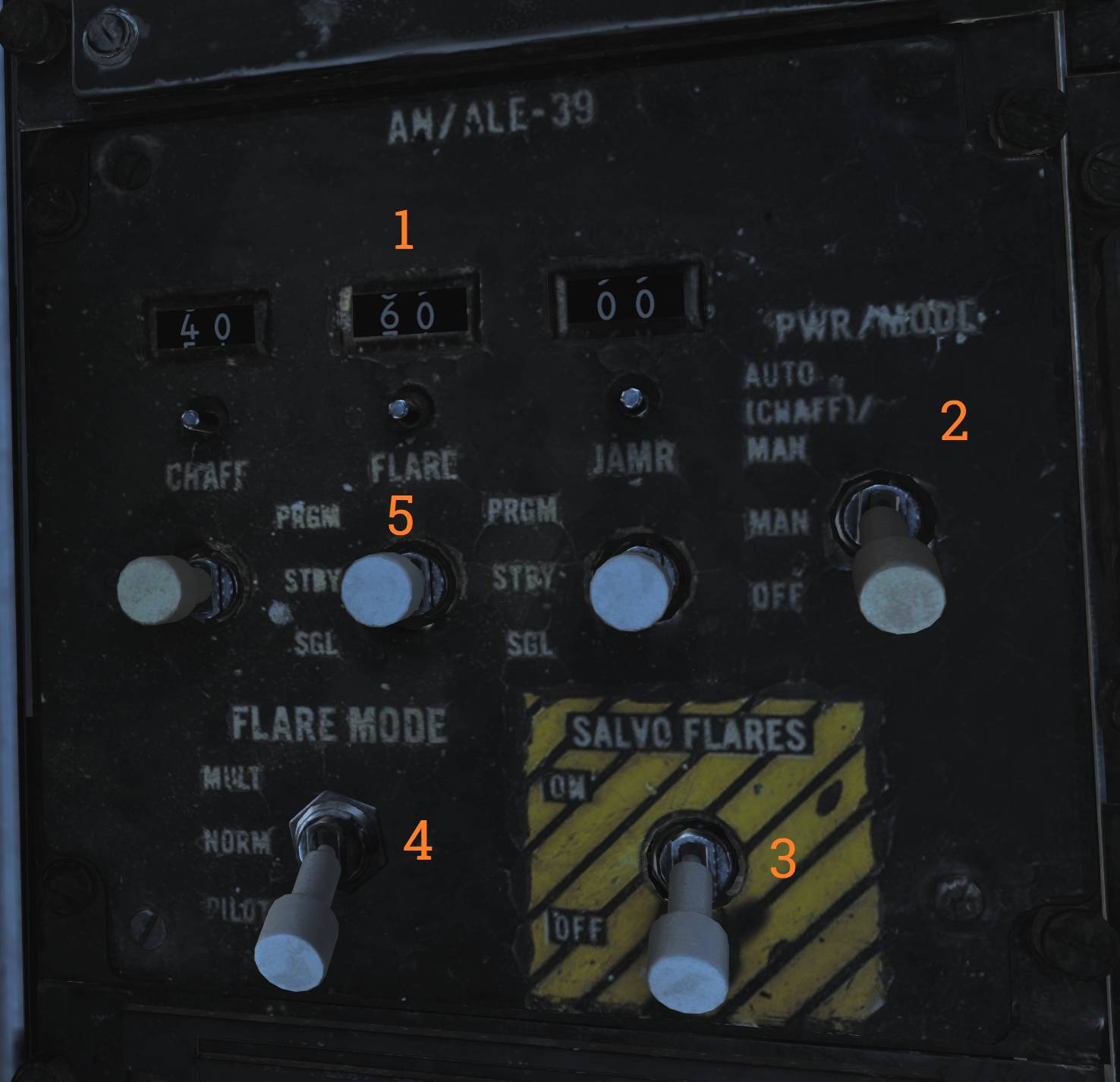

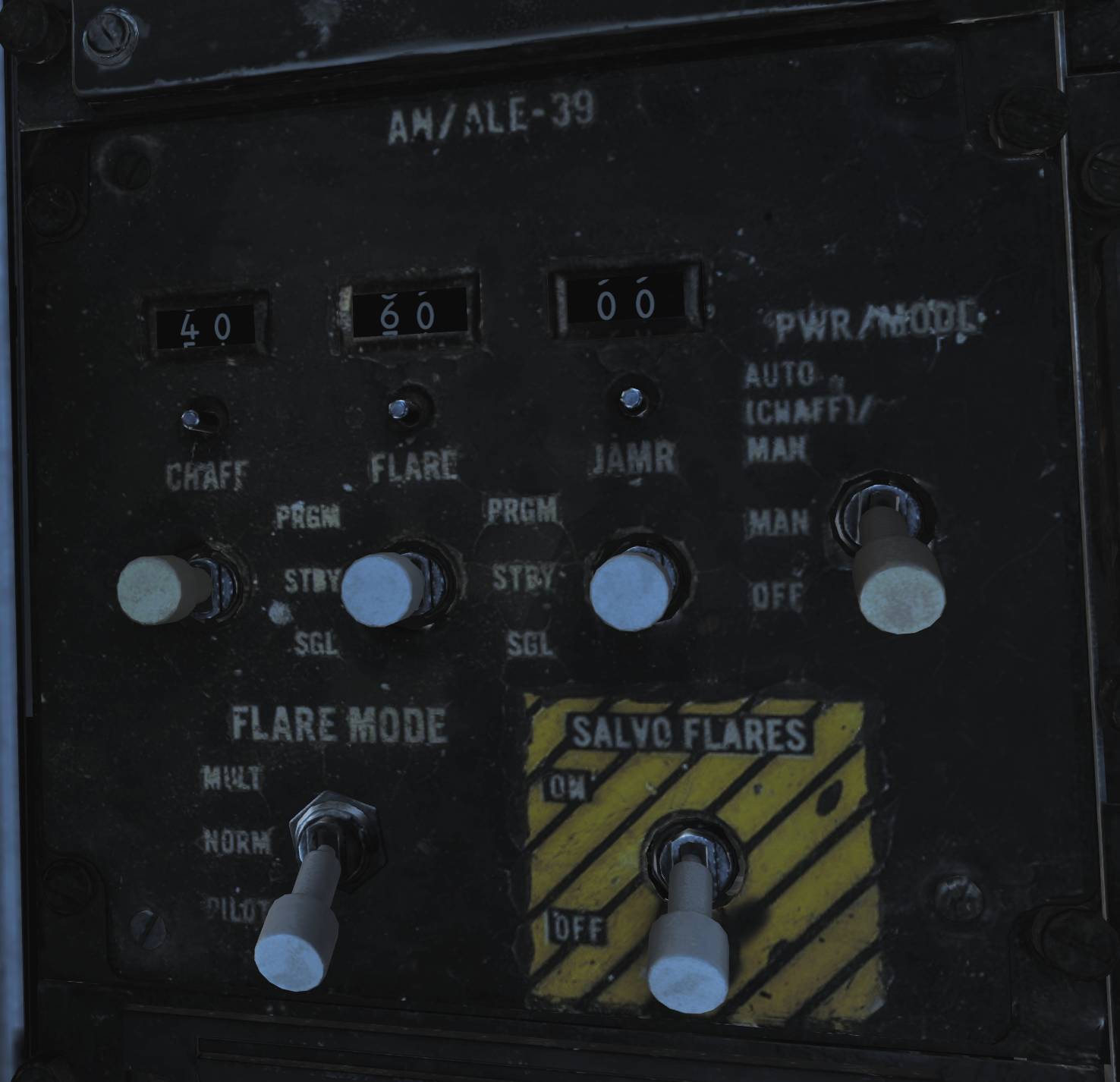

AN/ALE-39 Control Panel

Controls countermeasure dispensing and operating modes for the AN/ALE-39.

Inventory Counters

The inventory counters (1) indicate remaining countermeasure quantities.

Counters are manually set by pushing in and rotating the knob beneath each counter.

Power and Mode Switch

The PWR/MODE switch (2) applies power and selects AN/ALE-39 operating mode.

• AUTO(CHAFF)/MAN - Enables manual dispensing and automatic chaff dispensing via ECM threat detection.
• MAN - Manual dispensing only.
• OFF - System off.

Salvo Flares Switch

The SALVO FLARES switch (3) enables rapid firing of all flares.

The switch must be lifted to move to ON.

Flare Mode Switch

The FLARE MODE switch (4) selects flare dispensing logic and also controls what the pilot’s DLC button dispenses while airborne.

• MULT - Each flare command dispenses one flare from each launcher subsection loaded with flares.
• NORM - Each flare command dispenses one flare total.
• PILOT - Pilot DLC button dispenses flares. Other positions cause the pilot DLC button to dispense chaff.

Countermeasure Release Switches

The countermeasure release switches (5) are spring-loaded to center and command countermeasure release.

• PRGM - Program release. Switch must be lifted to enter PRGM; momentary actuation initiates programmed release.
• STBY - No release.
• SGL - Single release.

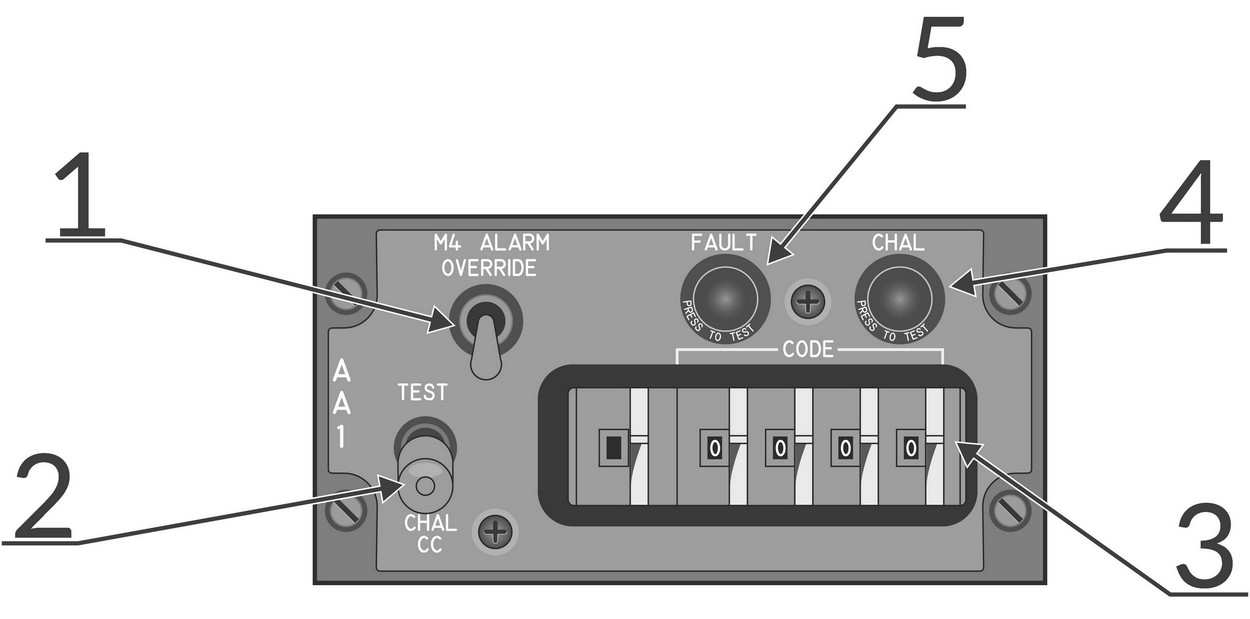

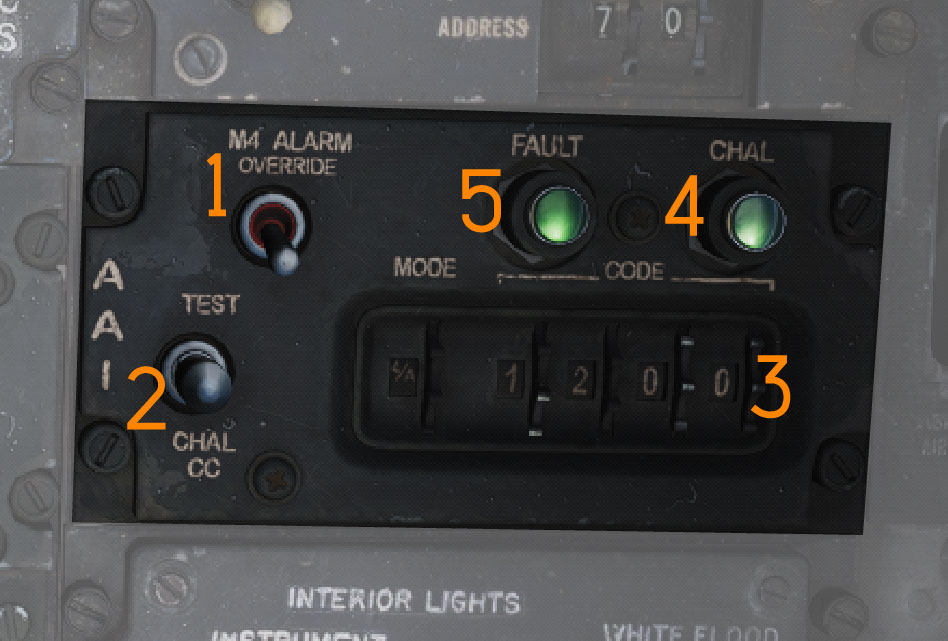

AAI Control Panel

AN/APX-76 interrogator control panel.

💡 Due to DCS limitations in regards to IFF the AAI control panel is currently non-functional.

M4 Alarm Override Switch

The M4 ALARM OVERRIDE switch (1) disables the Mode 4 tone alarm in the RIO headset.

Test / Challenge CC Switch

The TEST-CHAL CC switch (2) is spring-loaded to center and controls IFF test and challenge functions.

• TEST - Momentary actuation interrogates own transponder. With matching codes, two solid lines appear on the DDD at 3 and 4 miles.
• CHAL CC - Momentary actuation starts a 10-second interrogation cycle. Only returns with correct mode and code are displayed on the DDD.

Code Selector Thumbwheels

The CODE selector thumbwheels (3) set interrogation mode and code.

The first wheel sets mode, and the last four wheels set code.

Challenge Light

The CHAL light (4) illuminates during active interrogation.

Fault Light

The FAULT light (5) indicates an AN/APX-76 fault.

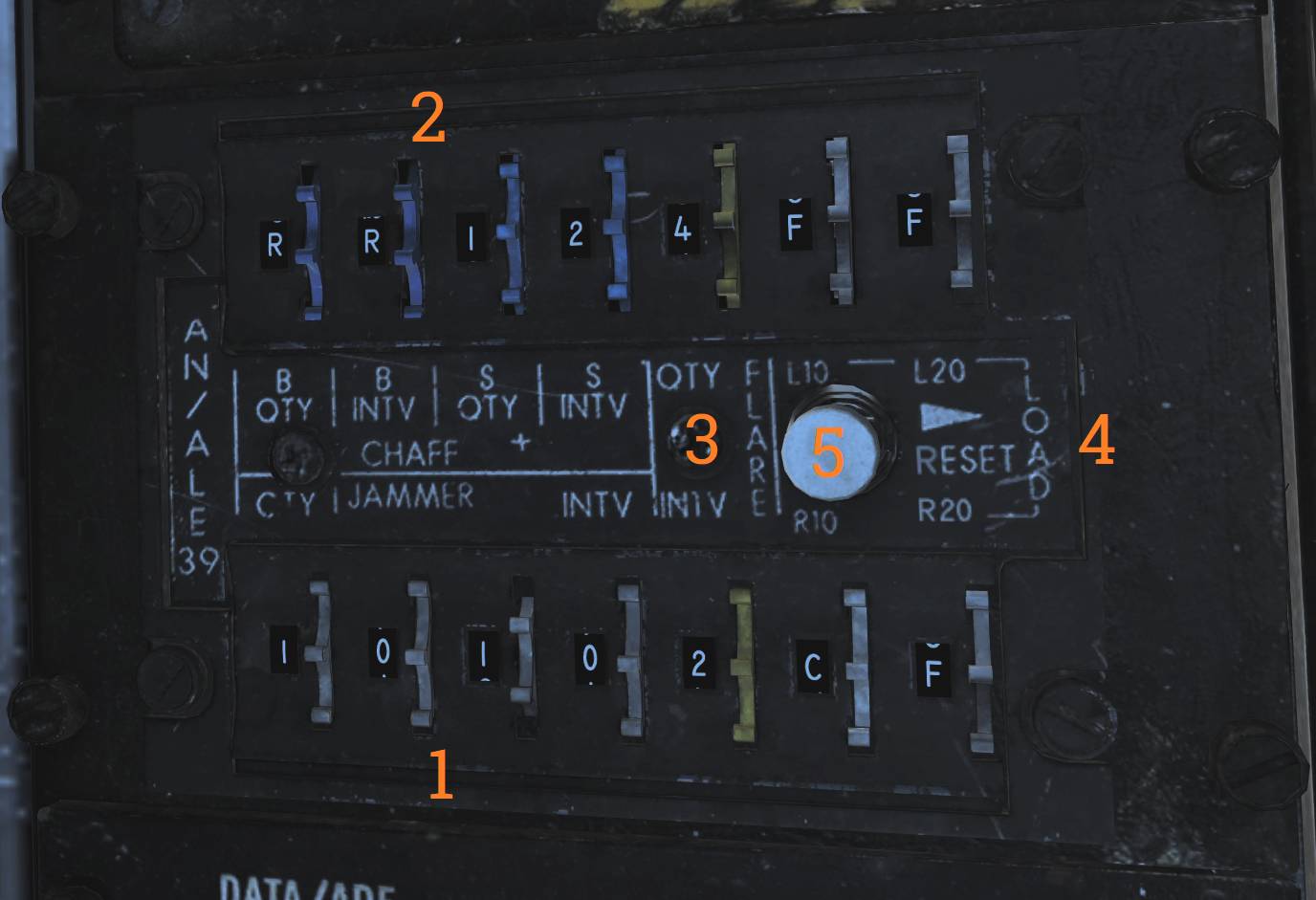

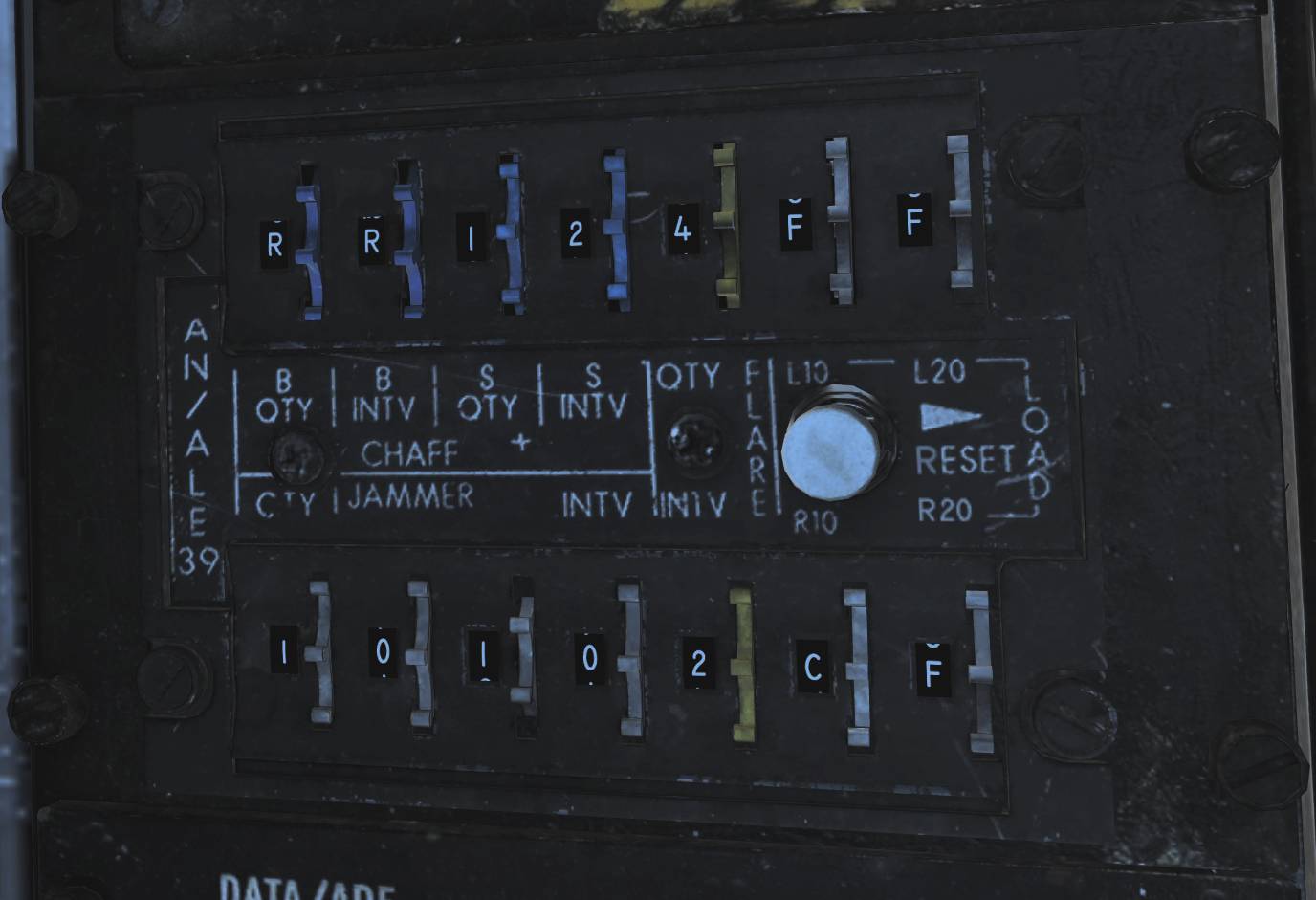

AN/ALE-39 Programmer

Programming panel used to enter countermeasure programs and inventory into the AN/ALE-39.

Jammer Program Thumbwheels

The JAMR thumbwheels (1) set jammer program parameters.

• QTY - Quantity of jammers released per program.
• INTV - Interval in seconds between jammer releases.

Chaff Program Thumbwheels

The CHAFF thumbwheels (2) set chaff program parameters.

• B-QTY - Burst quantity per salvo; may be set to C (continuous) or R (random).
• B-INTV - Burst interval; may be set to R (random).
• S-QTY - Number of salvos in the program.
• S-INTV - Interval between salvos.

Flare Program Thumbwheels

The FLARE thumbwheels (3) set flare program parameters.

• QTY - Quantity of flares released per program.
• INTV - Interval between flare releases.

Load Control Thumbwheels

The LOAD control thumbwheels (4) input what is loaded in each launcher subsection.

• L10 - Left 10 subsection load.
• L20 - Left 20 subsection load.
• R10 - Right 10 subsection load.
• R20 - Right 20 subsection load.

Reset Switch

The RESET switch (5) loads programmed settings into the AN/ALE-39 and resets sequencer switches to their start positions.

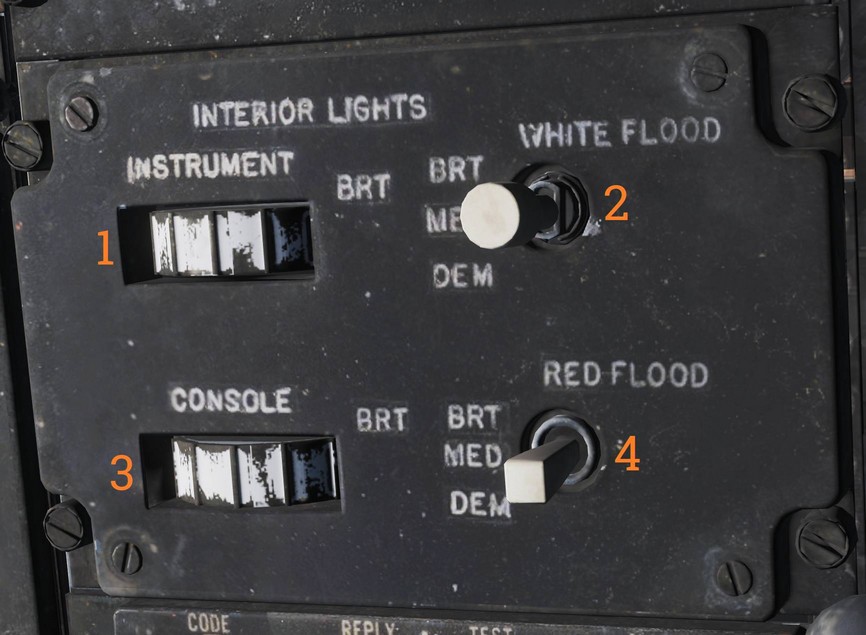

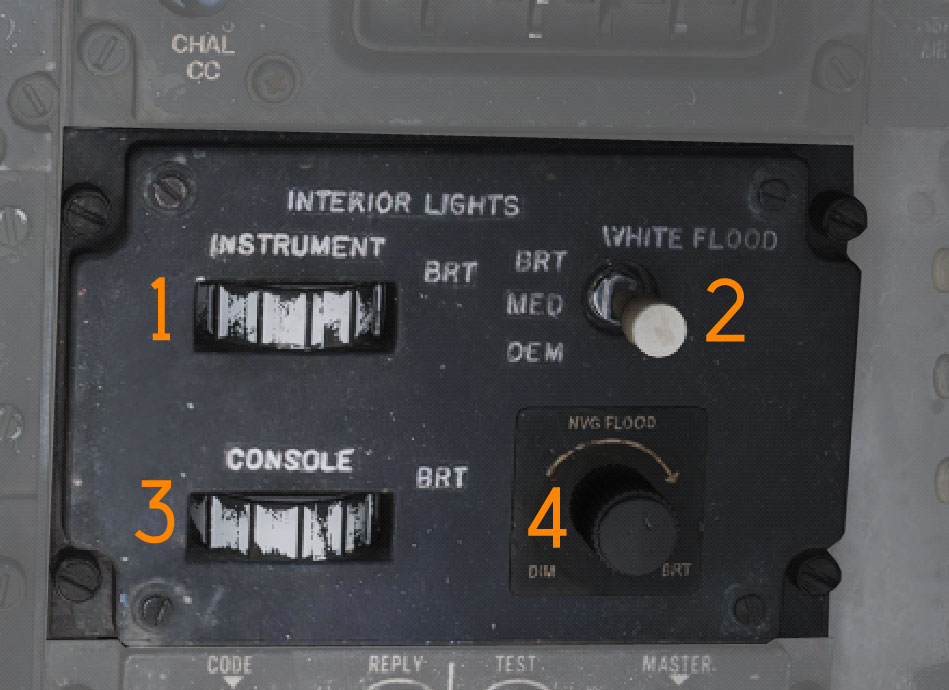

Interior Light Control Panel

Panel controlling RIO cockpit lighting.

Instrument Lighting Thumbwheel

The INSTRUMENT thumbwheel (1) controls instrument panel lighting intensity.

• 0 - Off
• 1–14 - Increasing brightness

White Flood Switch

The WHITE FLOOD switch (2) enables white flood lighting.

DIM and BRT settings are available. The switch is locked to OFF unless pulled out.

Console Lighting Thumbwheel

The CONSOLE thumbwheel (3) controls console lighting and red flood lighting.

• 0 - Console and red flood off
• 1–14 - Increasing console brightness

Red Flood Switch

The RED FLOOD switch (4) controls red instrument and console flood lighting.

• DIM - Dim red console flood
• MED - Medium red console flood
• BRT - Bright red instrument flood and console lights

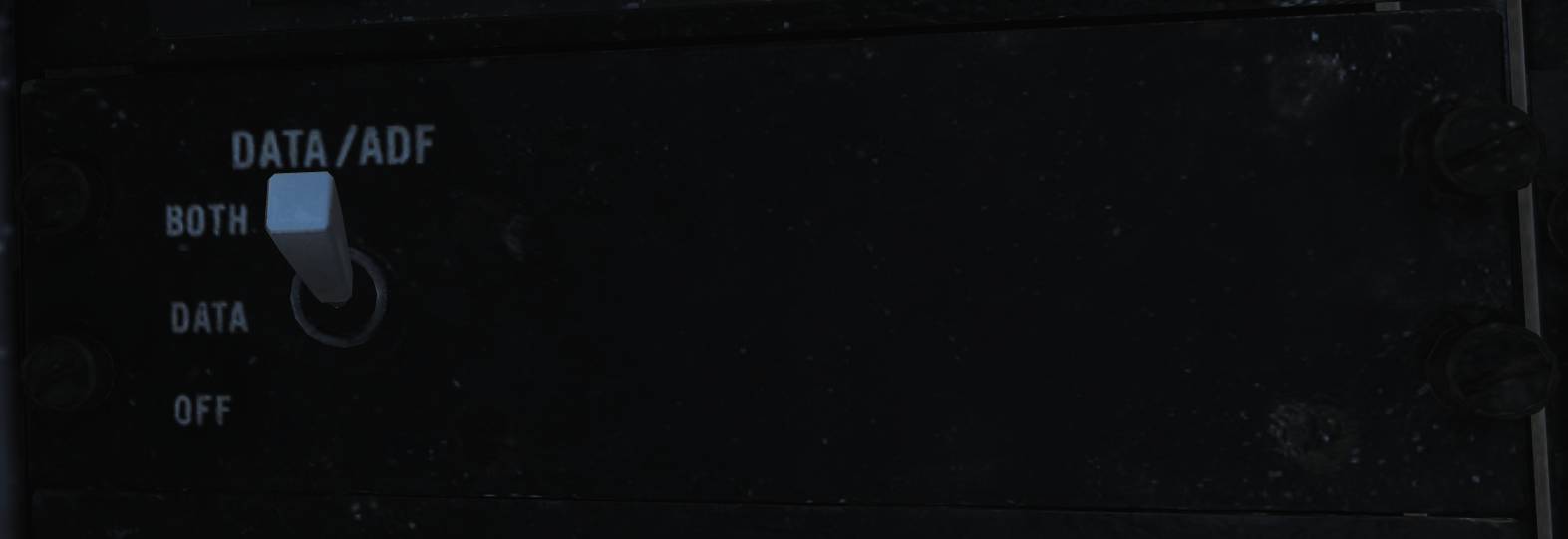

Data / ADF Switch

The DATA/ADF switch (1) controls display of navigation data and ADF symbology on the HSD and ECMD.

• BOTH - Displays ADF bug and navigation data block.
• DATA - Displays navigation data block only.
• OFF - Disables both.

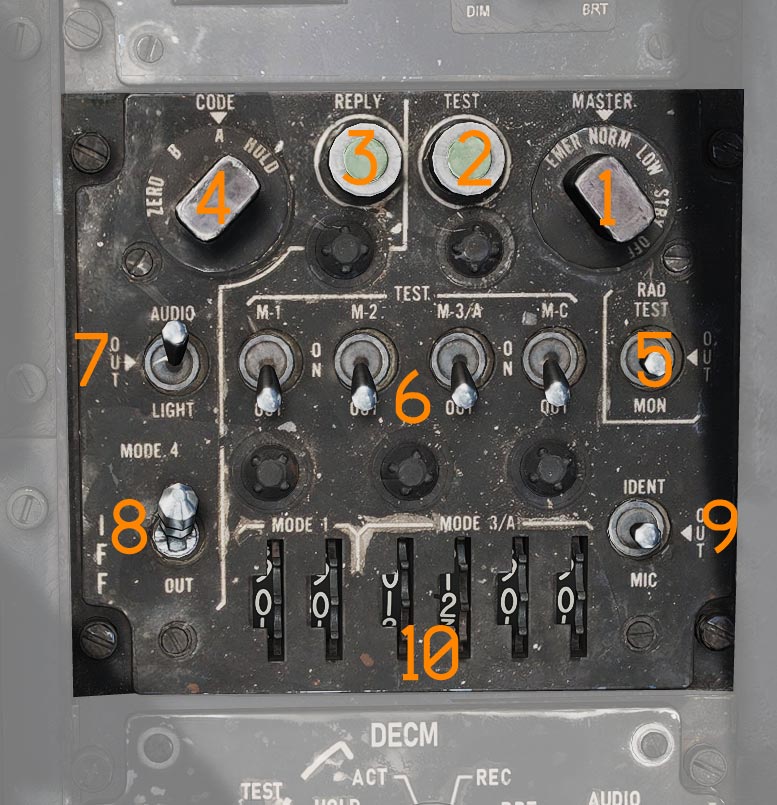

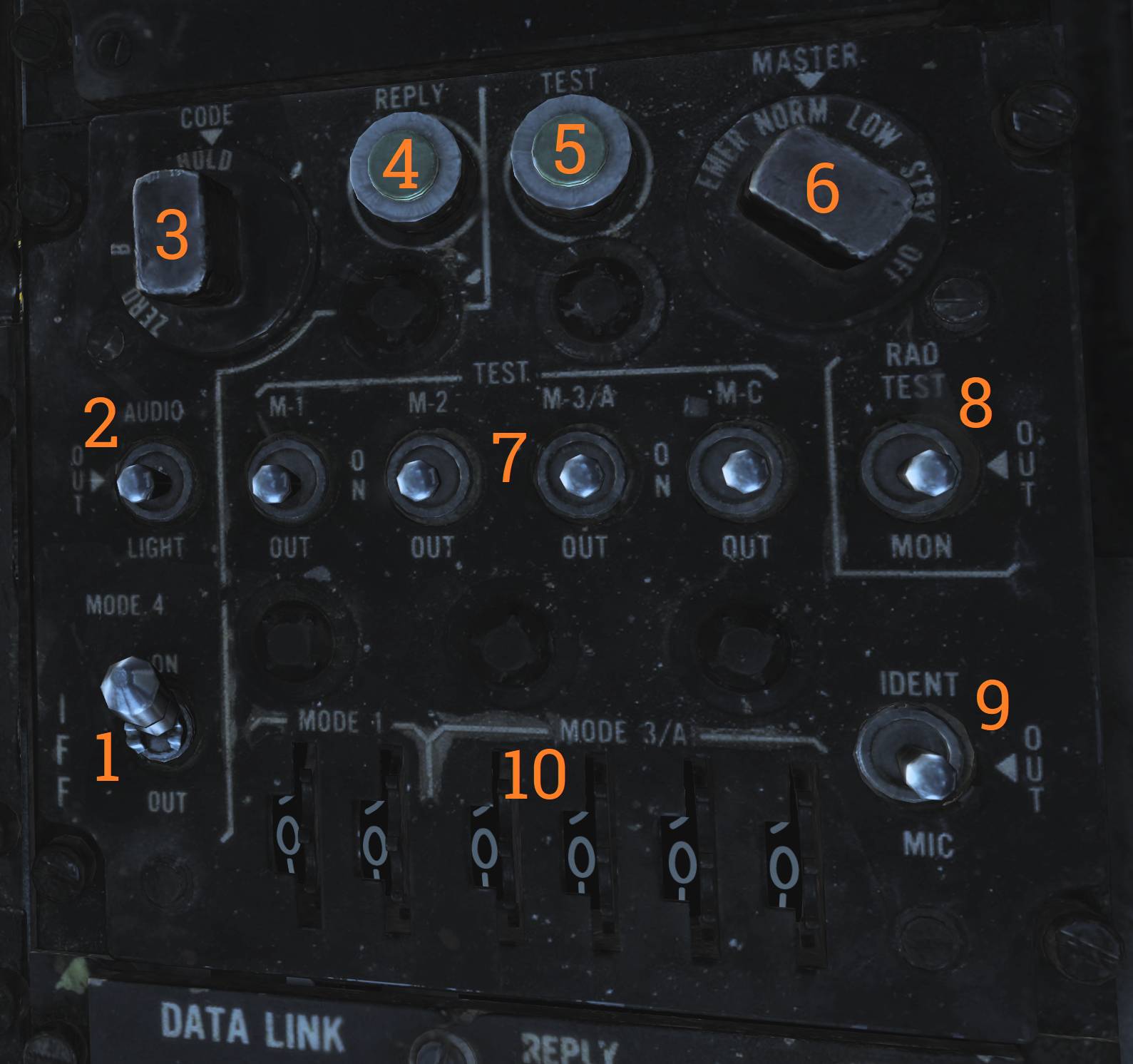

IFF Transponder Control Panel

Control panel for the AN/APX-72 IFF transponder.

Mode 4 Switch

The MODE 4 switch (1) enables Mode 4 operation.

Mode 4 Audio/Light Switch

The MODE 4 AUDIO/LIGHT switch (2) enables Mode 4 audio monitoring and/or reply light monitoring.

• AUDIO - Enables Mode 4 audio monitoring and reply light monitoring.
• OUT - Disables audio and light monitoring.
• LIGHT - Enables reply light monitoring only.

Mode 4 Code Selector

The MODE 4 CODE selector (3) selects which cipher code is used.

• ZERO - Erases both ciphers.
• B - Selects B cipher.
• A - Selects A cipher.
• HOLD - Non-functional.

Mode 4 Reply Light

The MODE 4 REPLY light (4) illuminates when a Mode 4 reply is generated and transmitted.

The light can be pressed to test.

Test Light

The TEST light (5) illuminates to indicate a successful test when a mode test is performed.

The light can be pressed to test illumination.

Master Selector

The MASTER selector (6) selects AN/APX-72 operating state.

• OFF - No power.
• STBY - Standby for immediate operation when another mode is selected.
• LOW - Low sensitivity replies; responds only to strong nearby interrogators.
• NORM - Normal reply operation.
• EMER - Emergency replies to Mode 1, 2, and 3/A and normal reply to Mode C, regardless of mode switch settings.

Mode Switches

The MODE switches (7) control individual IFF mode operation.

• TEST - Tests the respective mode; correct operation indicated by TEST light.
• ON - Enables the mode.
• OUT - Disables the mode.

Rad Test / Out / Mon Switch

The RAD TEST-OUT-MON switch (8) controls ground test and monitoring of non-Mode 4 replies.

• RAD TEST - Not used by aircrew.
• OUT - Disables test and monitoring.
• MON - Monitors Mode 1, 2, 3, and C by illuminating the TEST light when replies are generated and transmitted.

Ident / Out / Mic Switch

The IDENT-OUT-MIC switch (9) controls Mode 1–3 IDENT functionality.

• IDENT - Momentary; enables IDENT replies for 15–30 seconds after release.
• OUT - IDENT disabled.
• MIC - Transfers IDENT control to crewmember UHF PTT; IDENT replies occur when PTT is keyed.

Code Thumbwheels

The code thumbwheels (10) set Mode 1 and Mode 3 codes.

Six thumbwheels are provided.

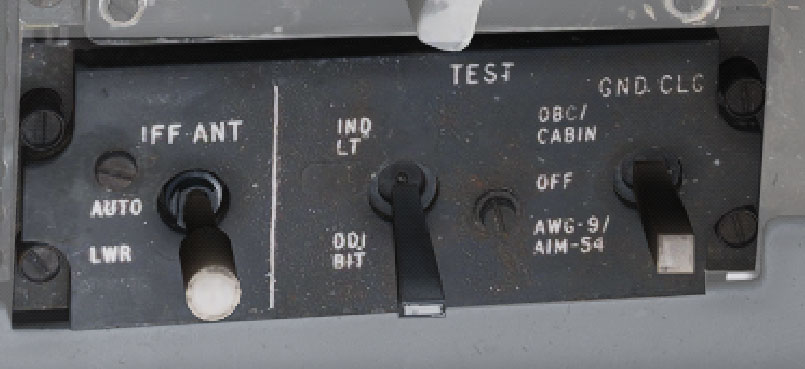

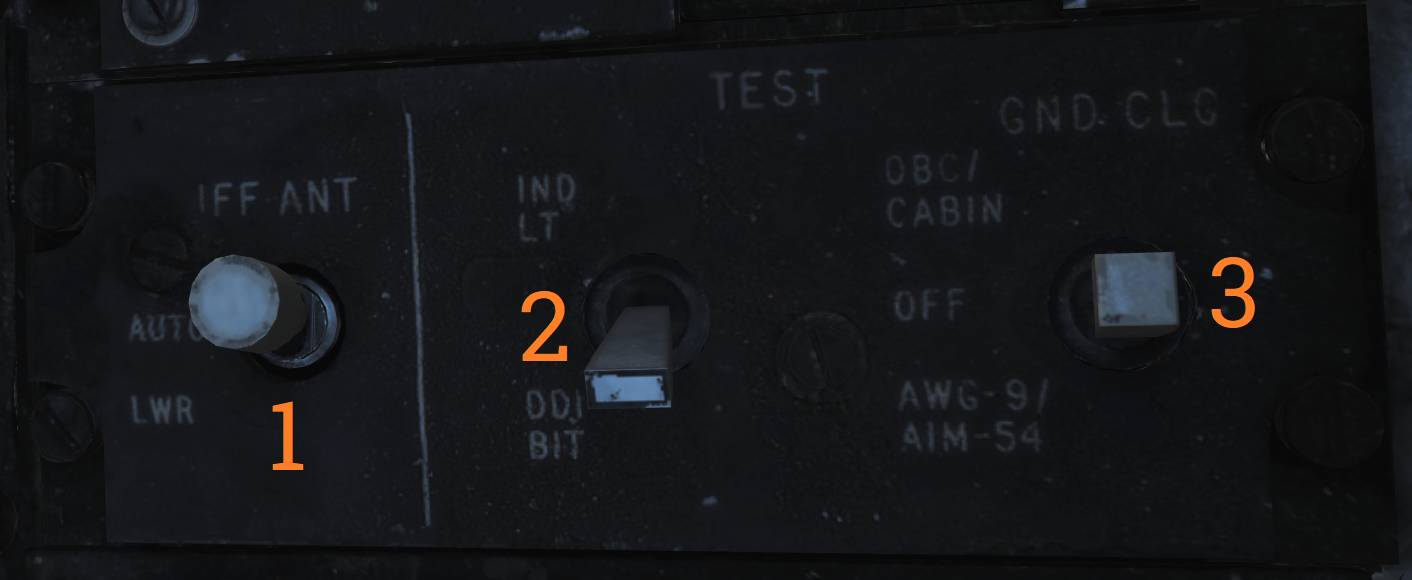

IFF Antenna Control / Test Panel

Panel containing IFF antenna selection, BIT controls, and ground cooling control.

IFF Antenna Switch

The IFF ANT switch (1) selects which antenna the IFF transponder uses.

• AUTO - Automatic selection.
• LWR - Forces lower antenna selection.

Indicator Light / DDI BIT Switch

The IND LT/DDI BIT switch (2) initiates DDI BIT and tests RIO indicator lights.

Ground Cooling Switch

The GND CLG switch (3) enables external air cooling while on the ground.

• OBC/CABIN - External air into cabin and electronics cooling with reduced OBC performance.
• OFF - External air not used.
• AWG-9/AIM-54 - External air used to cool AWG-9/AIM-54 more effectively; disables external cabin air.

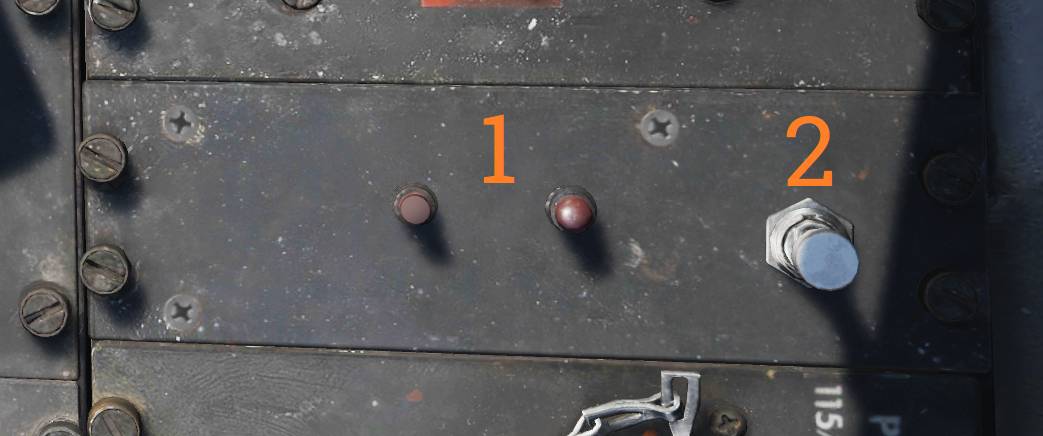

Mid Compression Bypass Test Panel (F-14A only)

Panel used to verify Mid Compression Bypass (MCB) circuit functionality.

Left and Right Test Lights

The left and right test lights (1) illuminate during an MCB test to indicate successful test results for the respective engine circuits.

MCB Test Switch

The MCB test switch (2) initiates the MCB circuit test.

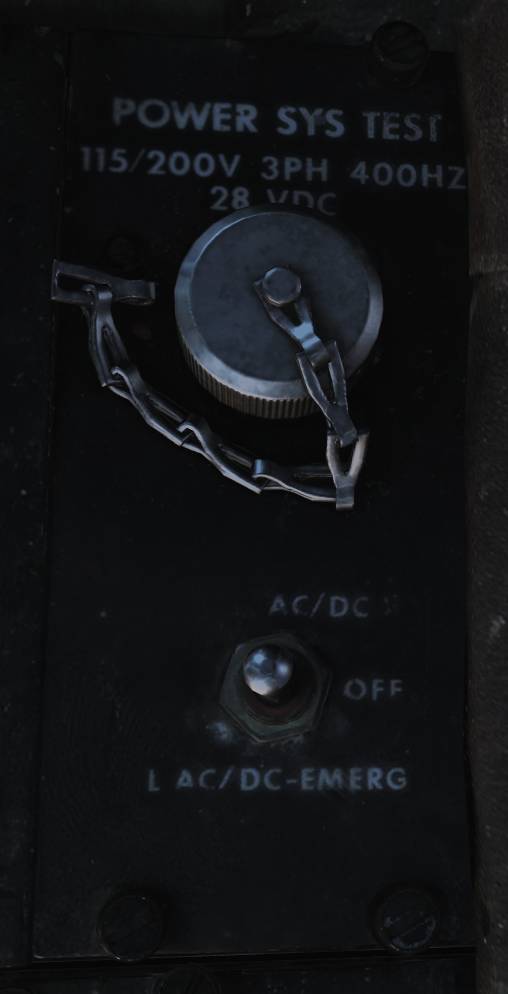

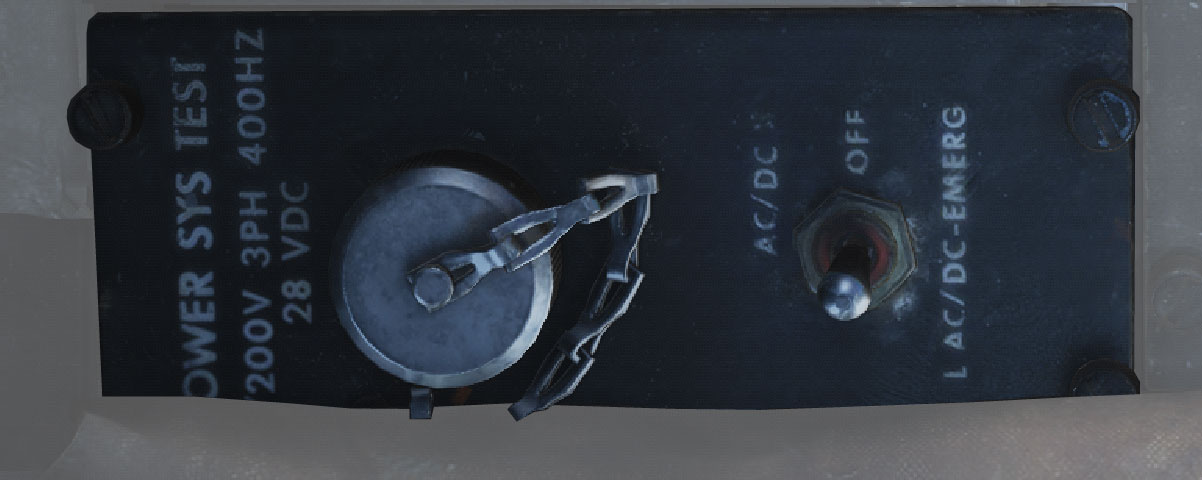

Electrical Power System Test Panel

Ground crew test panel for aircraft electrical systems.

💡 Non-functional in DCS.

Canopy Defog / Cabin Air Lever

The canopy air diffuser lever (1) controls distribution of conditioned cabin air.

• CABIN AIR - Normal position. Directs approximately 70% of airflow through cockpit air diffusers and 30% through canopy diffusers.
• CANOPY DEFOG - Directs all airflow through canopy diffusers for canopy defog.

Canopy Control Handle

The canopy control handle controls canopy operation and is located on the right cockpit wall. The handle is mounted downwards beneath the box containing the handle mechanism and the handle position texts. The canopy control handle is duplicated in the pilot cockpit.

Systems Overview

This chapter gives detailed in-sights and explanations into all major systems of the Tomcat.

From the engine system to fuel flow, control surfaces, how to navigate, use the radar and weapons effectively, or the insights of INS alignments and its gyro system.

Flight Controls and Gear

This chapter contains all necessary information about the flight controls, the controlling computer system, the wing sweep mechanism and systems used on the ground such as the landing gear.

Central Air Data Computer (CADC)

The Central Air Data Computer or CADC is the computer acting as the spider in the web for most aircraft flight sensors and relaying this information to all systems needing them.

In addition, it also controls the wing-sweep via the wing-sweep schedule and also controls the flaps and slats as they are limited by that same schedule.

Flight Controls & AFCS

The flight control system on the F-14 Tomcat is driven by the two main hydraulic circuits, powered by pumps connected to each engine.

For longitudinal (pitch) control both tail stabilizers are deflected in unison, acting in the same way as traditional elevators.

Lateral (roll) control is produced by both the tail stabilizers and the spoilers working in unison. To produce roll the stabilizers are deflected opposite each other to act as ailerons in combination with the spoilers on the side to which roll is commanded.

The rudders on the F-14 is a standard rudder configuration albeit in a two tail, two rudder configuration.

Control surface position is indicated on the Control Surface Position Indicator and can also be used to check trim position with controls at neutral.

💡 Above 15 units AOA, the rudders should be used for lateral (roll) control due to the different airflow along the aircraft control surfaces.

Trim

Longitudinal and lateral trim is accomplished via the trim hat on the Control Stick. This changes the stick neutral position, thus trimming the aircraft. Rudder trim is accomplished via the RUDDER TRIM switch on the Inlet Ramps/Throttle Control Panel, changing the neutral rudder position.

The Mach Trim and ITS (Integrated Trim System) automatically trims to compensate for changes in longitudinal trim. The Mach Trim system compensates for transonic and supersonic trim changes and the ITS for trim changes due to flap and speed-brake position changes.

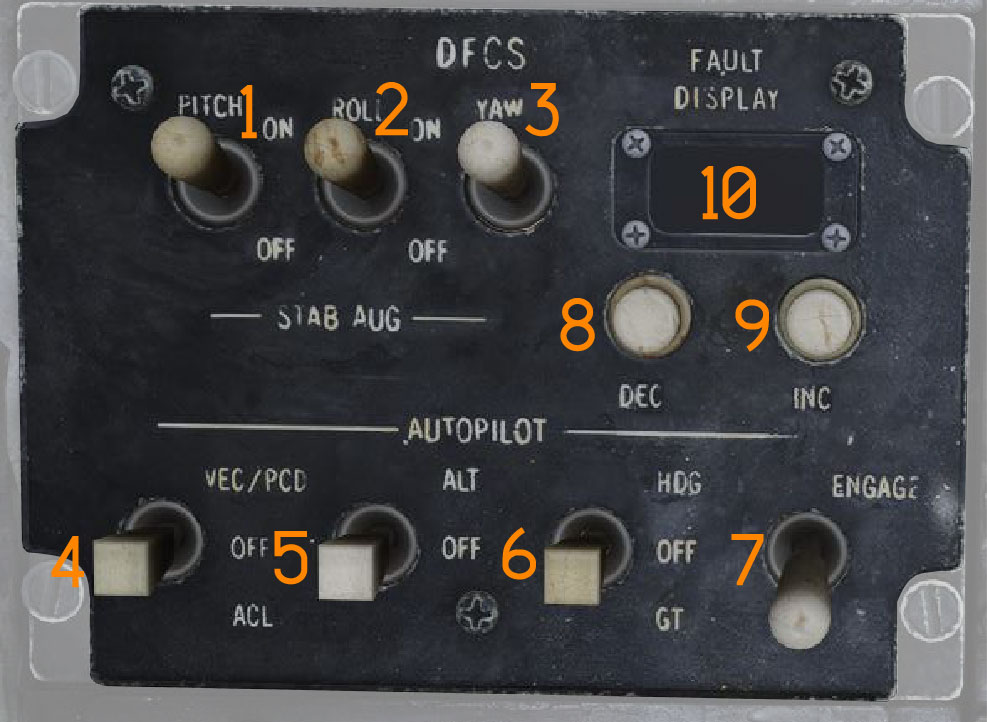

AFCS Automatic Flight Control System

The AFCS or Automatic Flight Control System provides additional aircraft stability (SAS or Stability Augmentation System) via automatic control surface commands generated from AFCS sensors. The AFCS is controlled by switches on the AFCS Control Panel and pitch, roll and yaw can each be set individually.

The pitch and roll switches are spring-loaded to off but normally held to on by solenoids meaning that if the system is turned off or inoperable the switches return to off. The yaw switch is purely mechanical.

Roll SAS should not be used for situations involving flight at AOA above 15 units and should therefore be set to off for combat maneuvers.

If the autopilot emergency disengage paddle on the control stick is held down the pitch and roll channels will be set to off.

Autopilot

Apart from stability augmentation the AFCS is also used to provide autopilot functionality. To use the autopilot all three stabilization channels must be enabled.

The controls for the autopilot system are situated on the AFCS Control Panel.

Autopilot modes available are attitude hold, heading hold, ground track, altitude hold, vector/pcd (precision course direction) and acl (automatic carrier landing).

By setting the autopilot ENGAGE switch to on the attitude hold is engaged, maintaining current aircraft attitude. Limited to within 30° pitch and 60° roll angles and the aircraft will be automatically moved within this range. Current attitude can be changed with the control stick and will be held when the stick is released.

The ENGAGE switch is also a prerequisite for all other autopilot modes.

The HDG position on the HDG switch enables heading hold, maneuver the aircraft to desired heading and with a bank angle of less than 5° to set heading.

The ground track mode is entered by setting the HDG switch to GT, wait for the A/P REF warning light on the left side of the Vertical Display Indicator (VDI) to illuminate and then press the nosewheel steering button on the control stick. The A/P REF warning light will then turn off and the ground track mode will be enabled, setting the autopilot to follow a ground track by compensating for aircraft wind drift.

The altitude hold mode is set via the ALT, altitude, switch and like the ground track mode the A/P REF warning light will illuminate until the nosewheel steering button is depressed, enabling the mode.

The Data Link Vector - Precision Course Direction mode is used to allow a Link 4 controller to remotely control the aircraft. This is not modelled in DCS.

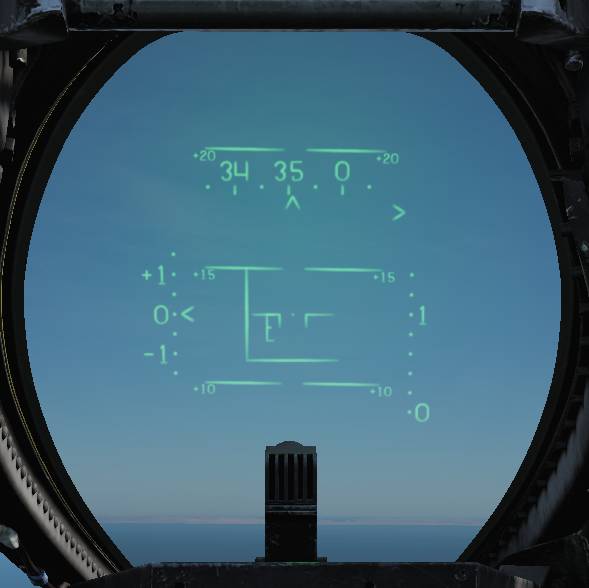

Finally the ACL or Automatic Carrier Landing mode is used to conduct automatic carrier landings in conjunction with the Link 4 data link and the on-board radar beacon. To enable the ACL, set the VEC/PCD switch to ACL which will cause the A/P REF warning light to illuminate. When intercepting the ACL glideslope and with the ACL READY and A/P CPLR warning lights illuminated on the VDI, depress the nosewheel steering button on the control stick. This engages the ACL and lets the data link control the aircraft. The A/P REF warning light will turn off.

The ACL can be used in conjunction with the APC (see Throttle Controls) for a fully automatic landing. The ACL can be disengaged via the PLM button on the right throttle and the APC via the CAGE/SEAM button on the left throttle.

All the autopilot modes can be overridden by enough force on the control stick or by depression of the autopilot emergency disengagement paddle, automatically resetting all autopilot switches to off.

Spoilers

The spoilers located on the upper surfaces of the wings are used to control roll as detailed above under Flight Control System, for braking on the ground as part of the Antiskid system and as a part of the DLC system (see next section).

The spoilers are only used forwards of 62° wing-sweep as further aft these conflict with the fuselage.

In case of a spoiler malfunction the spoiler symmetry protection logic disables all of the spoilers in the same section as the failed spoiler, either inboard or outboard spoilers. If this occurs the SPOILERS caution light on the Caution - Advisory Indicator illuminates.

To override this the switch corresponding to the relevant section on the Spoiler Failure Override can be set to override by lifting the guard and setting the switch to ORIDE and then depressing the MASTER RESET button on the Fuel Management Panel.

Spoiler position can be seen on the Control Surface Position Indicator.

DLC Direct Lift Control

The DLC or Direct Lift Control is used to control vertical glideslope position without pitch control inputs or engine throttle commands. The DLC uses the two inboard spoiler sections in conjunction with small corrections on the tail stabilizers to control lift.

The DLC is engaged by depression of the DLC switch on the control stick with flaps down and throttles less than MIL. This causes the inboard spoilers to extend to half and enables the DLC & maneuver flap command thumbwheel on the control stick to control them. The DLC also requires the AFCS roll and pitch channels, the inboard spoilers and the hydraulic systems to be operative as well.

Rotation of the thumbwheel forwards extends the spoilers towards the max up position, decreasing lift and adjusting glideslope position downward. Rotation of the thumbwheel aft retracts the spoilers towards the flush position, increasing lift and adjusting glideslope position upward.

Another depression of the DLC switch disengages the system.

Flaps and Slats

The flaps and slats on the F-14 Tomcat can be used in two modes.

The normal flap and slat extension is controlled using the FLAP handle on the Throttle Quadrant. The flaps can be set to anywhere between retracted and fully extended where the flaps will extend to 35° and the slats to 17°. The auxiliary flaps, the innermost section, only have two positions, retracted and extended. They will extend fully when the FLAP handle is at more than 5° extension.

If a fault exists preventing retraction of flaps the FLAP handle should be moved to the UP position and then moved outboard and up to the EMER UP position, overriding faulty interlocks. The EMERG DOWN position has no function.

💡 In DCS, the failures that would necessitate the usage of the EMERG UP position are not modeled. In addition, the EMERG UP position does not fix issues where the flaps are unable to go up due to damage.

The other mode is the maneuver flap system in which the CADC uses the flaps and slats automatically to improve aircraft performance. In this mode the flaps extends to 10° maximum and the slats to 7° maximum and the innermost flap section is disabled.

While normally automatic the maneuver flap system can be manually controlled using the DLC & maneuver flap command thumbwheel on the control stick. Forward thumbwheel rotation retracts the flaps and slats and aft thumbwheel rotation extends them.

When sweeping the wings the flaps are limited by the wing-sweep position. Aft of 21° sweep the auxiliary (inboard flaps) are disabled up. Aft of 50° all flaps are disabled up. The slats are not inhibited by wing-sweep.

Position of the flaps and slats are indicated on the Wheels-Flaps Position Indicator.

The FLAP light on the pilot Caution - Advisory Indicator indicates a malfunction in the flap system with flaps at non symmetrical positions. The REDUCE SPEED warning light on the left side of the Vertical Display Indicator (VDI) indicates flaps not retracted above 225 knots indicated airspeed.

Speedbrakes

The speedbrakes on the F-14 Tomcat consists of three sections on the tail located between the engines and these are powered by the combined hydraulic system.

The speedbrake controls are located on the right Throttle and can be set to desired position depending on how long the switch is held to the extend position. Retraction always fully retracts the speedbrakes.

To protect the speedbrakes they will start retracting above 400 knots and will continue to do so with increasing airspeed, additionally selection of MIL power or above automatically retracts them.

As the speedbrakes disturb airflow around the tail the fuel dump is disabled with speedbrake extension as to not have the fuel hit the aircraft.

Position of the speedbrakes can be seen on the Wheels-Flaps Position Indicator.

Wing-Sweep System

Wing-sweep schedule as function of Mach number and related flap interlocks.

The wing-sweep system controls the geometry of the F-14’s wings, allowing the wings to move from a 20° to a 68° position in the air. While on the deck an oversweep of 75° is also possible reducing the F-14’s wing span to 33 feet (about 10 meters).

The wings are moved by hydro-mechanical screw-jack actuators which are interconnected mechanically, making sure they’re synchronized. As long as both main hydraulic systems are functioning the maximum wing-sweep change rate is about 15°/s. This can be affected negatively by negative g or large amounts of positive g.

In normal operation the CADC, Central Air Data Computer, controls the wing position as a function of current Mach via the wing-sweep program, this is known as the AUTO mode. The pilot can also select a wing position aft of the wing-sweep program manually or choose the BOMB mode that sets the wings to 55° or further aft depending on the program. Simply put, the CADC wing-sweep program determines the max forward position of the wings. All this is done electrically via two independent channels (for redundancy) to the wing-sweep actuators.

Currently commanded wing position, CADC program wing position and actual wing position can be seen on the wing-sweep indicator next to the ACM panel.

Emergency Mode

While the normal mode controls the wing-sweep electrically, to supplement this it’s also possible to control the wing-sweep mechanically via the emergency mode. This is done via the emergency wing-sweep handle on the right side of the throttle. That handle is connected mechanically to the hydraulic valves in the wing-sweep system, providing a physical back-up control.

Normally this handle is moved with the electronic wing-sweep program by a servo located beneath it, making sure it’s at the actual wing position. To disengage the electric system and enable the emergency mode the guard over the handle is opened and then the handle is extended for additional leverage. Then the handle can be forced out of the spider-detent normally connecting it to the electrical servo and then used to manually set the wing position.

In this mode the pilot has to make sure to follow the following schedule to avoid damage to the wings:

To return to the normal mode of operation, the handle should be pushed into the desired position and pressed down and the guard closed. The MASTER RESET button on the fuel management panel should then be depressed and the wing-sweep system set to the same position as the handle. The servo will then drive to the commanded position and re-engage the handle to the spider detent, resuming normal operation.

Oversweep

The emergency wing-sweep handle is also used to select the oversweep position of the wings. The oversweep is only used while on the ground to reduce the wing span to make it easier to spot the aircraft on the carrier deck. As the wing will sweep over the stabilizers on the tail the horizontal tail authority system is enabled to prevent the wings and stabilizers from damaging each other by restricting movement of the stabilizer.

To set the wings to oversweep the emergency wing-sweep handle should be moved to the 68° position and held in the extended position. This will deflate the wing-seal airbags and activate the horizontal tail authority system, indicated by the HZ TAIL AUTH caution light illuminating. When the HZ TAIL AUTH caution light goes out and the OVER flag on the wing-sweep indicator appears the oversweep interlocks are free and the handle can now be moved to the 75° position and stowed.

To move the wings out of oversweep the handle is pulled up and moved forwards of 68°. This will again illuminate the HZ TAIL AUTH caution light. When the wings have physically exited the oversweep the caution light and the OVER flag will turn off.

As with normal emergency mode operation the handle should now be set to the same position as the spider detent and the MASTER RESET button depressed.

Controls and Indicators

The controls for the wing-sweep system are on the right throttle (electrical) and to the right of the right throttle (mechanical). See the Throttle and the Throttle Quadrant.

The wing-sweep hat on the right throttle is normally set to AUTO enabling CADC control of the wings, this is the upper position. The down position sets the wing-sweep to the BOMB mode, 55° or aft.

The AFT and FWD (forward) positions enable manual movement aft of the CADC scheduled position.

The emergency wing-sweep handle on the throttle quadrant is used to control the mechanical emergency mode, see emergency mode above.

The wing-sweep indicator to the right of the ACM panel is used to indicate the current wing-sweep positions. The pointer on the left side shows the CADC scheduled wing position. The left tape shows the manually commanded position and the right tape shows the actual wing position.

The five windows on the right side show:

• OFF: System inoperable.
• AUTO: CADC controlling wing-sweep.
• MAN: Wings set manually with the control on the right throttle.
• EMER: Wings set with the emergency wing-sweep handle.
• OVER: Wings in oversweep.

The relevant warning and advisory lights are located on the Vertical Display Indicator (VDI) and the pilot Caution - Advisory Indicator.

The WING SWEEP advisory light on the right side of the VDI illuminates when both wing-sweep electrical channels are inoperable or the emergency mode is in use. If it illuminates without the emergency mode being used that mode should then be used as the electrical system might not work.

The WING SWEEP caution light on the pilot caution - advisory indicator illuminates when at least one electrical wing-sweep channel is inoperable.

Wing-Sweep System Test

The wing-sweep system can be tested on the ground in pre-flight without moving the wings using the Master Test Panel.

To conduct the test, set the wing-sweep mode to AUTO and push the MASTER RESET button. Set the MASTER TEST switch to WG SWP.

The CADC commanded position indicator on the wing-sweep indicator will now move to 44°. The WING SWEEP and FLAP light will illuminate on the pilot Caution - Advisory Indicator and the REDUCE SPEED warning light on the Vertical Display Indicator (VDI).

💡 The WING SWEEP advisory light will illuminate after 3 seconds into test, turn off and then illuminate again at 8 seconds.

When the CADC commanded position indicator moves forward to the 20° position the test is over and the above light will turn off. The MASTER TEST switch can now be set to OFF and the test is complete. The test will take about 25 seconds to complete.

💡 The RUDDER AUTH and/or MACH TRIM lights might illuminate and the control stick might move. This can be ignored.

💡 The WG SWP test on the Master Test panel is not implemented yet.

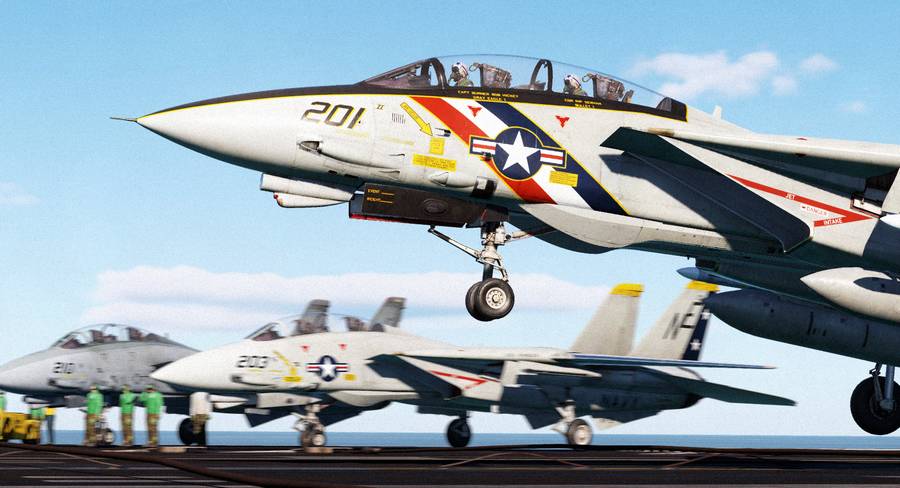

Landing Gear System & Ground Handling

The F-14 Tomcat has a tricycle landing gear designed to be fully retractable as well as hardened enough to withstand the rigours of carrier traps. The landing gear extension and retraction is powered by the combined hydraulic system as well as having an emergency extension system. The emergency extension system has a nitrogen bottle that can be used to power a one-shot emergency extension. With the emergency system triggered, the system needs to be reset by technicians on the ground to allow further normal retraction.

For additional information on controls and indicators see Landing Gear Control Panel for controls and Wheels-Flaps Position Indicator for the indicators.

Nosewheel Steering

The nosewheel steering system on the F-14 can be activated with weight on wheels by depression of the nosewheel steering button on the Control Stick. The activation of this system is indicated via the NWS ENGA caution light on the left side of the HUD, see Wheels Warning/Brakes Warnings/ACLS/AP Caution/NWS Engage Caution/Auto Throttle Caution Lights.

Disengagement of this system occurs automatically with weight off wheels (take-off), electrical supply failure or lowering of the launch bar. It’s also possible to deactivate the system by depression of the nosewheel steering button.

The nosewheel, with the system engaged, is controlled via the rudder pedals. It’s capable of a deflection of up to 70° meaning that it will turn tightly enough that the inner wheel will in fact move backwards.

Wheelbrakes

The wheelbrakes can be applied either via the rudder pedals by pressing on the upper part of them, rotating them forwards. The other application is via the parking brake handle located on the Landing Gear Control Panel panel.

The rudder pedals can be used to apply the brakes gradually while the parking brakes are either on or off.

Normally both systems are supplied from the combined hydraulic system but if that system becomes depressurized the brake system automatically switches to the backup accumulators. The Emergency Brake Pressure Indicator shows current pressure in the emergency accumulators.

If fully charged the auxiliary accumulator allows for about 13 to 14 wheelbrake applications from the pedals and the parking brake accumulator 3 parking brake applications minimum. These accumulators can be recharged via the Hydraulic Hand Pump.

The BRAKES warning light on the left side of the HUD indicates either parking brake applied, antiskid system fail or that the brakes are operating in the emergency mode (only when the pedals are depressed).

Antiskid

The antiskid system modulates the wheelbrakes to prevent skidding while on the ground. When armed in the air the system prevents braking until both main wheels are on the ground and the wheels have spun up. Also the system is not operational below 15 knots.

The antiskid system switch also controls the spoiler brake system that deploys the spoilers as brakes when the throttles are set to IDLE while on the ground.

💡 The antiskid should be disabled during taxi as below 15 knots, the system may disturb normal braking even though the antiskid feature is not operational at those speeds.

The ANTI SKID SPOILER BK switch on the Fuel Management Panel panel controls the system. OFF disables the system, BOTH enables antiskid and the spoiler brake system and SPOILER BK enables only the spoiler brake system.

Catapult Launch and Arresting Gear

Nosegear Catapult System

The nosegear of the F-14 contains the system allowing for catapult assisted takeoff during carrier based operations.

The three components mounted in or on the nosegear are the nosewheel kneel functionality, the launch bar and the holdback fitting.

To enable the system the aircraft is kneeled using the NOSE STRUT switch on the Landing Gear Control Panel. This is done by holding the switch to the KNEEL position until downward movement stops.

This drains hydraulic fluid from the shock absorber, compressing the nosegear strut 14 inches. When compressed this also releases the lock on the launch bar which can then be lowered manually by the deck crew or by turning the nosegear more than 10° from center.

💡 In DCS, the launch bar is automatically lowered with nosegear kneel.

The aircraft can then be guided onto the catapult and connected to the shuttle, in DCS via default keybind U. The holdback bar is currently not modelled in DCS.

💡 Deselection of nosewheel steering should be done before final movement onto the shuttle and hookup to avoid misalignment.

The final command to launch the aircraft, after proper procedures, is then to salute the "shooter" or officer in command of catapult launch, default keybind LShift + U in DCS.

After the catapult stroke, when the launch bar is released from the shuttle, stored hydraulic energy is released to impart a positive pitch moment to the aircraft. This also automatically raises the launch bar into its stowed position.

Indication of the launch bar status is available on the Caution - Advisory Indicator via the LAUNCH BAR advisory light. The advisory light is on with weight on wheels when the launch bar is not up and locked and turns off if throttles are advanced to MIL to enable a lights out for launch criteria. With weight off wheels the LAUNCH BAR advisory light is on if the nose strut hasn’t fully extended, launch bar is not up and locked or nosewheel hasn’t centered correctly. This inhibits nosegear retraction.

The Launch Bar Abort Panel contains the LAUNCH BAR switch used to disengage the launch bar in case of an aborted launch. This functionality is currently not implemented in DCS, unhooking the launch bar is currently accomplished by another depression of the hookup key, default key U.

Arresting Gear

The arresting hook located on the underside of the tail of the F-14 is used for arrested landings during carrier operations.

The system uses hydraulic power from both flight and combined hydraulic systems and is controlled electrically, thus requiring electrical power as well.

Operation of the system is via the arresting HOOK handle on the Arresting Hook Panel. UP raises the arresting hook and DN, down, lowers it to 37° allowing it to catch the wire during a correctly executed carrier "trap". The transition light next to the arresting HOOK handle illuminates whenever the arresting hook position does not correspond with handle position.

If on board failures do not allow for normal hook lowering it’s possible to use a mechanical backup to deploy the hook. To activate the mechanical backup, pull the handle out and rotate it 90° counterclockwise. This releases the mechanical up-lock and drain the hydraulic pressure keeping the hook up, thus lowering it.

If electrical power and hydraulic power are restored, it’s then possible to retract the hook by rotating the handle 90° clockwise and pushing the handle back in and then setting it in the default UP position.

💡 Hook position also affects the AoA indexer and approach lights, making them flash with gear down if the hook is not also down. This feature can be disabled using the HOOK BYPASS switch on the Master Light Control Panel.

Engines & Fuel Systems

Depending on the variant, the F-14 Tomcat is either equipped with two Pratt & Whitney TF30-P-414A or two General Electrics F110-GE-400 turbofan engines.

Each engine is fed by an independent fuel system from fuel tanks installed in the airframe.

Engines

The F-14A is powered by two Pratt & Whitney TF30-P-414A while the F-14B is powered by two General Electrics F110-GE-400, both of which are afterburning turbofan engines.

To provide the engines with an even subsonic airflow the F-14 has the AICS or Air Inlet Control System. This system controls the variable geometry intakes by moving the variable ramps mounted in them to slow the airflow. This is accomplished using various sensor inputs run through a calculation using set schedules which decides the positions of the ramps.

In addition, the TF30 uses two systems to improve reliable operation, the Mid Compression Bypass System (MCB) and the Mach Lever.

The MCB helps mitigate high angle of attack airflow onto the compressor fans to reduce the risk of an engine stall. This system vents air from the compressor section to bypass duct to stabilize the airflow for later compressor stages. Normally this system uses angle of attack and Mach number sensor data to activate, but with the landing gear handle in the down position this it is only activated with zone 5 afterburner. Additionally the WCS commands the MCB to activate with extension of the refuelling probe as well as when launching AIM-7 or AIM-9 missiles, air to ground rockets or firing the M61 Vulcan gun.

The Mach Lever also mitigates the risk of an engine stall by controlling min and max rpm allowed as a function of Mach number. In addition it also increases the minimum rpm in high angle of attack regimes while subsonic.

The two F110s in F-14B, on the other hand, are controlled by the AFTC (Augmenter Fan Temperature Control unit). The AFTC is an early engine control computer akin to an early version of a FADEC (Full Authority Digital Engine Control) used on newer turbine engines. This system controls both the engine itself as well as the variable exhaust nozzles controlling the engine exhaust gases and removes the need for the MCB and Mach Lever for the F110. The lack of such a system in the F-14A controlling its TF30s is one of the reasons for them being deemed less reliable than the F110s.

In case of a failure in the AFTC the MEC (Main engine control) is capable of assuming control of the engines to provide a fall-back, mechanical control. The normal mode, AFTC, is the primary mode (PRI) and called as such while the fall-back MEC is the secondary (SEC) mode. The selection of primary or secondary is automatic in case of a failure in the AFTC but can also be manually selected. Of note is that in secondary mode the engine nozzles are fully closed and disabled in addition to the afterburners being disabled with a corresponding loss of engine performance.

In addition both engines also drive separate fuel, hydraulic and electric generators to create redundancy.

💡 The main difference between the TF30 and F110 engines (apart from lesser thrust in the TF30s) is that the TF30s are more sensitive to the quality of the airflow entering the compressor face. In general it is wise to avoid anything less than military power or afterburner while in high angle of attack maneuvers as well as avoiding large rudder inputs or asymmetric engine throttle settings. That said, the TF30s in the HB F-14A module have been extensively tuned using available data and SME expertise, resulting in an accurate modelling of an engine undeserving of its bad reputation. One "advantage" of the TF30’s mechanical fuel control is its high speed thrust, resulting in higher top speeds than the F110 can achieve. If flown within normal parameters, the TF30 engines behave well if a tad underpowered compared to the F110s.

Throttle Controls

The throttles in the F-14 have detents preventing unintentional engine start and shutdown and unintentional selection of afterburner. In addition the throttles also controls several different systems depending on throttle position as shown in the diagram above. The most critical of these being the fuel cutoff and ignition systems in the respective engines.

For throttle operations there are three modes:

The manual mode is a mechanical mode in which the engines are controlled by mechanical linkages directly from the throttles to the engines. The manual mode is designed as a backup mode and may be inexact because of the mechanical nature of the controls.

Boost mode is the normal mode of operation in which electrical paths control actuators moving the same engine controls as the mechanical linkages but more exactly and with lesser force required.

The third mode is the approach power compensator mode or the auto throttle mode which is a system which allows for automatic throttle control for optimal angle-of-attack during approaches.

The controls for the throttle mode are located on the inlet ramps/throttle control panel to the side of the main throttles and allows for selection of all three modes. The auto throttle mode is solenoid held and will revert to boost mode if the criteria for automatic controls are not met.

To allow selection of auto mode the throttles need to be between 75 to 90% rpm, the gear handle needs to be down and with no weight on the wheels. If these criteria are no longer met, the throttles are manually overridden with force or the Cage/SEAM button on the left throttle is depressed the solenoid releases the switch and it reverts to boost.

For additional auto-throttle tune the gain of the system can be set on the inlet ramps/throttle control panel. The settings are hot, normal or cold with hot increasing the throttle gain (and effective thrust) and cold decreasing it. These settings correspond to cold or hot external temperatures but should be set according to observed throttle control.

The RATS or reduced arrestment thrust system is a system limiting engine thrust after touchdown to limit it to levels appropriate for carrier environments. The system is enabled by weight on either main landing gear and is disabled by selection of afterburner on the throttles.

Finally, and implemented only for the F110-GE-400, is the asymmetric limiter, preventing asymmetric afterburner engagement if only one afterburner lights by keeping that afterburner at minimum afterburner thrust until the other afterburner also lights.

Engine and Throttle Control Switches and Indicators

The inlet ramps/throttle control panel contains most other engine related controls.

The inlet ramps/throttle control panel contains most other engine related controls.

The THROTTLE MODE (1) switch sets throttle mode to AUTO, BOOST or MAN modes respectively, with auto being spring-loaded back to boost but held in place electrically as mentioned above.

The THROTTLE TEMP (2) switch controls the gain of the automatic throttle system also described above.

The INLET RAMPS (3) switches enable (AUTO) or disable, stow (STOW) the variable intake ramps.

The engine crank switch (4) is used to crank the engines to 20% rpm allowing for engine start by moving the respective throttle to idle from cut-off. The air to start the engine is sourced from an external air supply if connected or the other engine if no external source exists. At 50% rpm the crank switch automatically returns to off/center position. If this does not occur it should be manually set to off to prevent damage to the air turbine starter.

The BACK UP IGNITION (5) switch enables the backup ignition system in case of a failure in the main ignition circuits that are normally enabled by moving the throttles out of the cut-off position.

💡 F-14B only.

The ASYM LIMITER (1) on the ASYM limiter/engine mode select panel enables or disables the asymmetric afterburner thrust limiter. Default position is ON and the switch has a guard cover keeping it in that position.

The other switches on that same panel are the ENG (engine) MODE SELECT switches (2), setting the left (L ENG) and right (R ENG) to PRI, primary or SEC, secondary modes respectively.

💡 F-14A only.

The MCB Test Panel, located in the RIO pit on the right horizontal panel, is used to test if the MCB system functions. The TEST switch (2) set to the TEST position activates the test circuit which lights the two test lights (1) for the left and right engine respectively if their MCB circuits function.

The ENG/PROBE ANTI-ICE (2) switch on the external environmental control panel enables the engine anti-ice and intake ramp anti-ice mode in addition to the various probe heaters. The ORIDE position enables the system, the AUTO position enables the system if icing is detected and the OFF position disable it.

Engine Instrument Group (EIG), Related Indicators and Caution Lights

The ENGINE INSTRUMENT GROUP displays engine RPM, TIT (Turbine Inlet Temperature, F-14A) or EGT (Exhaust Gas Temperature, F14B) and FF (fuel flow) to the pilot to allow for engine monitoring.

💡 Pictured above are the TF30 engine indicators, F110 EIG coming soon.

The exhaust nozzle position indicators display respective engine’s current engine exhaust nozzle position, with zero being fully closed and full clockwise rotation being fully open. The F-14A indicates 0 to 6 units while the F-14B indicates 0 to 100 percent open (tens indicated on gauge).

The oil pressure indicators display respective engine oil pressure allowing the pilot to check that engine oil pressure is at acceptable levels.

The caution lights relevant to engine operation are located on the pilot’s caution - advisory panel, and at the sides of the HUD.

The caution lights on the sides of the HUD are the engine stall warning lights which flashes at a 3 Hz rate when an engine stall is detected. The warning light on the left side of the HUD indicates an engine stall in the left engine and the one on the opposite side the right engine. This is also combined with an audio warning, a modulated tone at 320 Hz.

Below the left engine stall warning light is, amongst others, the AUTO THROT (auto throttle) caution light which illuminates for 10 seconds when the auto throttle system is disengaged by other means than the throttle mode switch.

On the main caution - advisory panel the relevant engine caution and warnings lights are:

• INLET ICE: Caution light indicating ice detection on the detector in the left engine inlet.
• L & R INLET: Caution lights indicating failure in AICS for respective variable intake system.
• OIL PRESS: Caution light indicating low oil pressure in either engine.
• BLEED DUCT: Caution light indicating hot air leakage in either engine.
• L & R RAMPS: Caution lights indicating respective engine intake ramp not being locked into position when supposed to.
• L & R GEN: Caution lights indicating that respective engine generator is inoperative.
• L & R OIL HOT: Caution lights indicating that respective engine oil is too hot.
• L & R FUEL PRES: Caution lights indicating engine fuel pressure below 9 psi in respective engine fuel boost pump.

F-14A TF30-P-414A only lights:

• L & R OVSP/VALVE: Caution lights indicating engine starter system malfunction or N1 rotor over-speed in respective engine.

F-14B F110-GE-400 only lights:

• START VALVE: Caution light indicating that the starter valve is open. Control engine crank position if lit after engine start completion.
• L & R ENG SEC: Caution lights indicating that respective engine is operating in secondary mode.
• RATS: Caution light indicating that RATS (reduced arrestment thrust system) is enabled.

💡 F-14A specific lights not yet implemented.

Fuel System

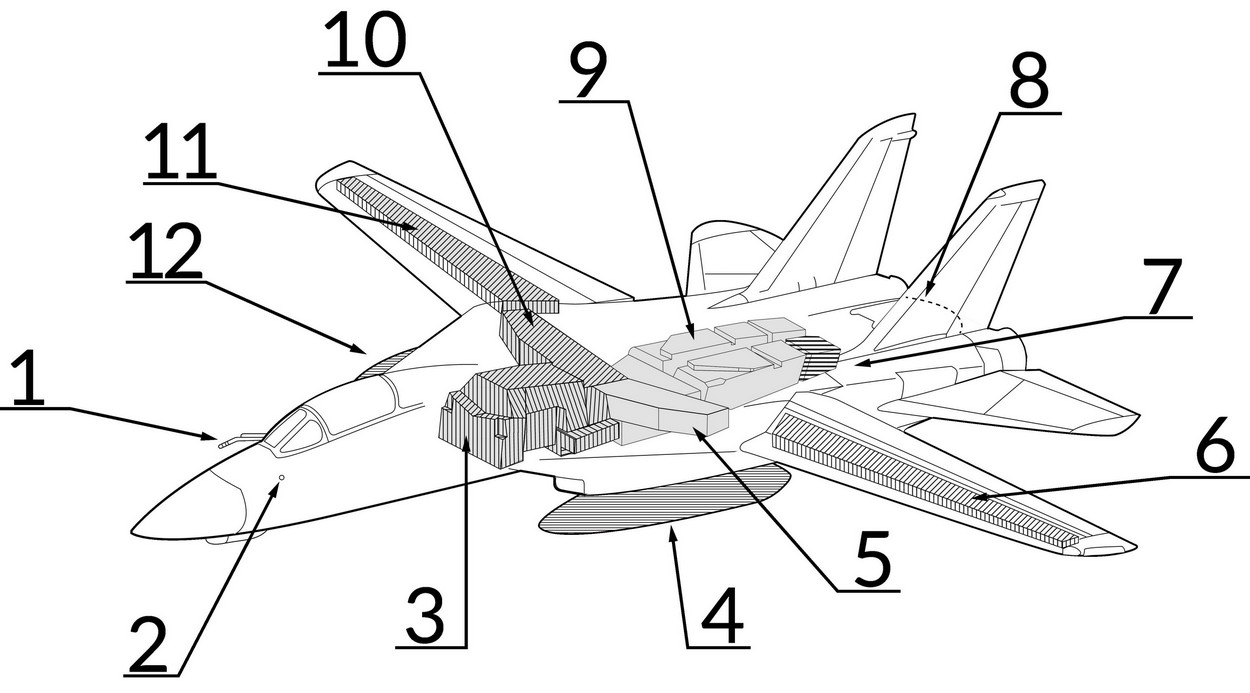

1. Refueling Probe, 2. Ground refueling Port (Right Side), 3. Forward Fuselage Tank, 4. Left External Drop Tank, 5. Left Box Beam Tank, 6. Left Wing Tank, 7. Vent Tank, 8. Fuel Dump Mast, 9. Aft Fuselage Tank, 10. Right Box Beam Tank, 11. Right Wing Tank, 12. Right External Drop Tank.

The main fuel storage in the F-14 consists of two feed systems, one for each engine. The right engine feed system consists of the right wing and right box cells and the front fuselage cells while the left engine feed system consists of the left wing and left box cells in addition to the aft fuselage cells. This fact needs to be kept in mind when reading the fuel gauges.

The total useable fuel quantity is roughly 20,000 pounds distributed as in the table below.

Fuel Quantity Indicators and Controls

The fuel quantity indicator on the pilot right knee panel displays internal and external fuel carried.

The uppermost indicator (1) displays currently set BINGO fuel level, this quantity is set by rotating the knob (5) to desired amount. This indicator and control activates the BINGO caution light when total fuel level is below set amount.

The TOTAL (2) indicator displays total carried fuel.

The L and R (3) normally shows fuel carried in left and right fuel feeds respectively. A rocker switch on the fuel management panel enables selection of the wing internal tanks (WING) or external fuel tanks (EXT) for display but is spring-loaded to return to showing the feed tanks (FEED) automatically. When displaying wing internal tanks or external fuel tanks, the left wing or left external tank is shown on the L counter and the right wing or right external tank on the R counter.

The FUS & FEED tapes (fuselage and feed) shows the AFT & L (aft fuselage and left feed) and FWD & R (forward fuselage and right feed) in thousands of pounds.

Additionally the RIO has a total fuel quantity display on the right instrument panel. This display counter can only show total fuel quantity. (See Fuel Quantity Totalizer.)

The fuel management panel on the pilot’s left vertical console contains the applicable controls for the fuel system.

The QTY SEL (1) rocker switch is detailed above under the description above about the L & R fuel displays.

The FEED switch allows the pilot to correct fuel imbalances caused by single engine operation or feed failures by selecting both engines to feed from either the FWD (forward and right tanks) or AFT (aft and left tanks) instead of from one feed system each as normal NORM. The switch guard locks the switch to the NORM position when down.

The WING/EXT TRANS switch controls fuel transfer from the wing and external tanks into the fuselage feed systems. The normal AUTO position enables this transfer as soon the landing gear is retracted. The ORIDE position enables this transfer regardless of landing gear position, enabling transfer when on the ground or during a malfunction in the electrical system inhibiting landing gear retraction detection. Additionally the OFF position disables this transfer but can be overridden automatically to AUTO when the INST test is performed on the MTS panel, the refuel probe is set to ALL EXTD or when dumping fuel.

The DUMP (5) switch enables fuel dump through the beaver tail fuel dump mast, it also enables all fuel transfer systems, enabling dump of fuel in wings and external tanks in addition to the fuselage. If there’s weight on the wheels or the speed brake is not fully retracted the fuel dump is inhibited.

🟡 CAUTION: Even though technically possible to engage the afterburners after a fuel dump is in progress, this is not allowed due to the possibility of igniting the dumped fuel.

In-Flight Refueling

The above panel also contains the control for the in-flight refueling system.

The REFUEL PROBE (6) switch controls the extension of the refueling probe as well as setting up the fuel system to receive fuel. The two extended positions (EXTD) are ALL, enabling refueling of all tanks, including wings and external tanks and FUS, allowing refuel of only the fuselage tanks. When selecting the ALL position the fuel feed from the wings and external tanks are disabled to allow refueling of these tanks. RET (Retract) retracts the refueling probe and resumes normal fuel system operation.

💡 Selecting EXTD ALL resets the WING/EXT TRANS switch to AUTO.

Navigation & Communication

The F-14’s primary navigation system is a multi-unit Carrier Aircraft Inertial Navigation System (CAINS) designated as AN/ASN-92. An INS system measures and integrates sensed inertia forces (acceleration) and rotational velocities to calculate aircraft position and linear velocity. A good navigation system can precisely guide an aircraft on a route to a mission objective hundred or thousand miles-long, and then back to the home base, safely and reliably. Such a system is even more important when an aircraft is designed to operate over the ocean, far away from any ground-based TACAN or visual references.

Designing an INS (IMU) is an engineering challenge, which requires consideration of such problems as calibration, alignment, Earth’s rotational motion, inertia forces, thermal stability, analogue-digital converters precision, all different types of corrections which have to be applied to keep the device precise over extended time, and many more. Simulating an INS platform is very similar - it is a complex undertaking.

At Heatblur, we decided to develop an entirely new mathematical model to simulate the AN/ASN-92 for our F-14. We included all the potential sources of errors contributing to the final precision of the device, and recreated the characteristic behavior of a gimballed INS platform. The result is a set of algorithms providing an authentic representation of the AN/ASN-92 in DCS, yet optimized to have almost no impact on CPU performance.

The main components of the INS are the inertial measurement unit (IMU), the power supply unit and pilot and RIO navigation controls and displays.

Although from the crew member’s point of view, the INS is used mostly for navigation, it is also essential for proper operations of other aircraft equipment. For example, the attitude is necessary for the radar. The attitude and the own position are required for some weapon delivery modes, particularly for long shots. Even more distressing to the crew, a complete failure of the INS renders the more advanced modes of weapons such as the AIM-7 and AIM-54 missiles inoperable.

The same information is used for data-link operations - when using erroneous INS data, own tracks and targets received from cooperating aircraft will not match and result in false contacts being displayed on the TID. These are only a few examples, and the INS data is used whenever aircraft position or attitude is required.

Thus the inertial navigation system (INS) integrates with the AWG-9 computer (WCS computer) and the CSDC, the computer signal data converter. Other related equipment includes the attitude and heading reference system, central air data computer, radar altimeter, instrument landing system, and TACAN.

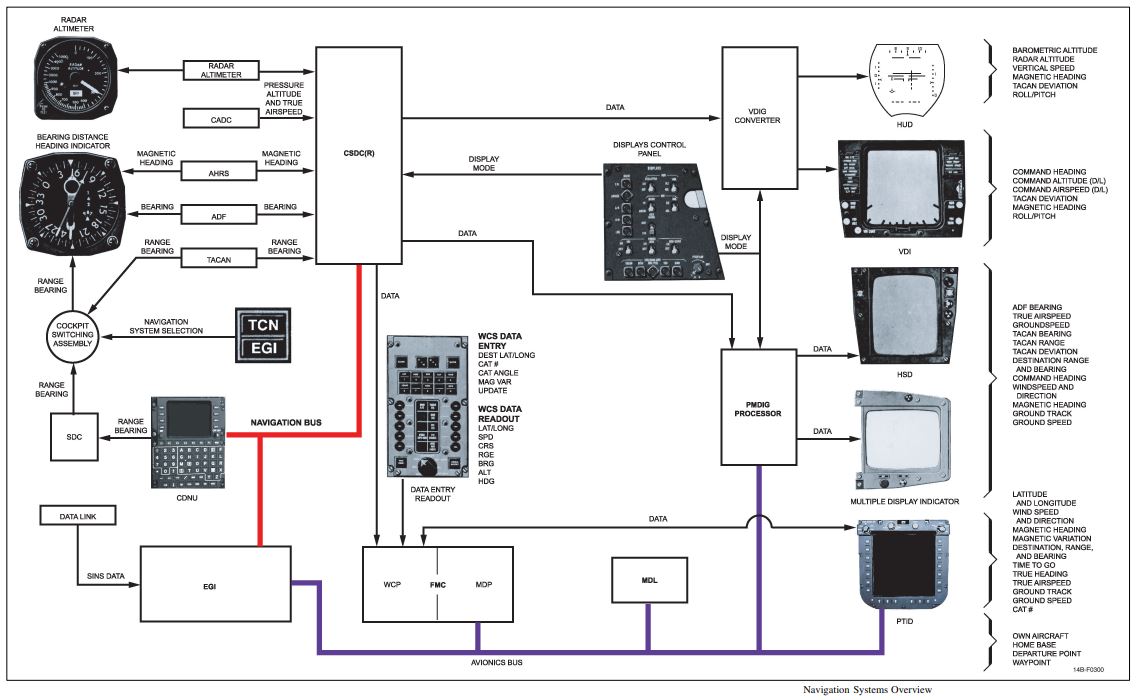

Navigation System

WCS Computer

The WCS or weapon control system computer and CSDC use several alignment routines stored on a magnetic tape to perform the necessary computations to align the INS.

These stored alignment routines in the WCS computer are called SMAL single mode alignment program. When alignment is initiated, the routines are loaded in the computer’s destructive readout memory from magnetic tape.

This process is called "tape read-in" and is represented by an M on the TID. During the alignment of the IMU platform, the WCS communicates with the CSDC to address specific CSDC navigation routines.

IMU Platform Alignment

When alignment mode is selected, the IMU platform first erects to a coarse alignment with the help of accelerometer output and gives an aircraft heading that represents the angular displacement from true north. This displacement is referred to as wander angle. The CSDC sends inertial velocity data to the WCS during the alignment process.

The second stage – fine alignment – uses the precise measurement of gyroscope drift to calculate the aircraft’s true heading. This is possible because of the Earth’s rotation. At no point of alignment, is the magnetic heading used, and the whole process relies only on the sensing of the non-inertial movement of the platform within the 3d space.

The WCS calculates terms for platform alignment corrections and estimates the value of the wander angle, it then sends this data to the CSDC. The CSDC uses these correction terms in the CSDC inertial equations to generate pulses for the platform torquing that are then transmitted to the IMU. The CSDC in return receives velocity information from the IMU and sends this new inertial velocity data to the WCS alignment program, upon which the cycle repeats. The exchange of data continues until INS is entered.

The leveling process of the platform is achieved by the CSDC generating torquing pulses based on IMU accelerometer off-level indications being sent to the IMU by the CSDC. With each data exchange, the WCS calculates an error value (delta) between the values of the previous and current wander angle. This delta is largest at the beginning of the alignment and smallest at the end of alignment.

The alignment is finished when the delta is near zero and near zero velocity is sensed along the platform X and Y axes. Variable factors required to align the platform are continuously calculated, updated, and saved as calibration data. When the alignment is complete, the system is ready to enter INS. The last used calibration data and wander angle are stored in the CSDC upon entry into INS. When in INS, the WCS accepts the velocity and position data and the wander angle from the CSDC.

Navigation Modes

Three navigation data mode sources are used for general navigation:

1. INS - The primary navigation mode set by the RIO once IMU alignment is complete. The IMU is the primary sensor supplying velocity data that is used to compute all inertial outputs. The IMU is the source for roll and pitch data.

2. IMU/AM - A backup mode that can either be selected by the RIO or is automatically entered when the CSDC determines the IMU inertial velocity data is unreliable. In this mode, true airspeed from the CADC and stored or entered winds are combined to provide ground speed and true heading for general navigation. The IMU is the source for pitch and roll.

3. AHRS/AM - An even further degraded mode that can be either selected by the RIO or automatically entered when the CSDC detects a total INS failure. Heading in this mode is derived from magnetic heading plus entered or stored magnetic variation (MAG VAR). This heading, TAS from the CADC, and entered or stored wind are used for general navigation. The AHRS is the source of pitch and roll.

Navigation Computations

The CSDC and the WCS are aware of the selected navigation mode. The CSDC sends the WCS navigation data parameters (TAS from the CADC, latitude and longitude, inertial velocities, true heading, etc.) required to support general navigation calculations. The WCS uses stored and input navigation data (based on the current navigation mode) to perform the required navigational computations. The WCS also performs additional computations so that the crew is provided with:

• Current latitude and longitude
• Attitude
• Heading true and magnetic
• Own ground speed and ground track
• Ability to store and display three waypoints, a fixed point (FP), an initial point (IP), a surface target (ST), a home base (HB), a defended point, and a hostile area
• Range, bearing, command course, command heading, and time-to-go to a selected destination point
• Calculated wind speed and direction
• Calculated magnetic variation
• Continuous monitoring of the status of the unit, and in case of failure inform the crew with advisory lights and appropriate acronyms displayed on the TID
• Backup navigation modes in case of partial system failure
• Backup present position

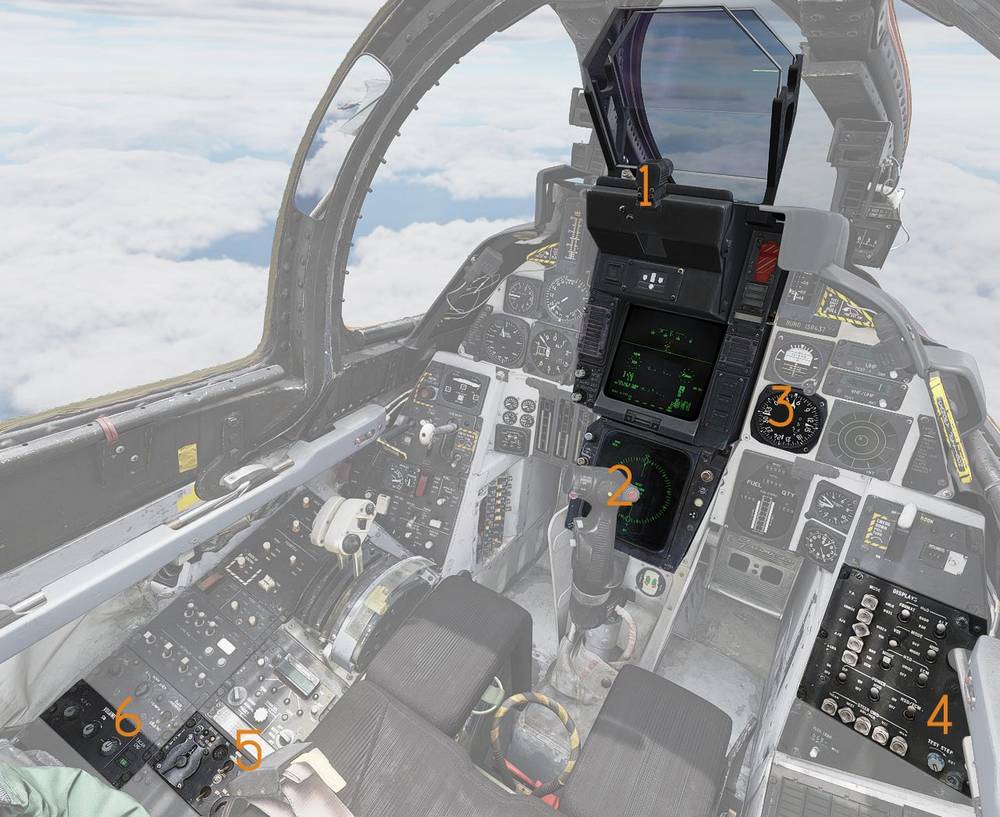

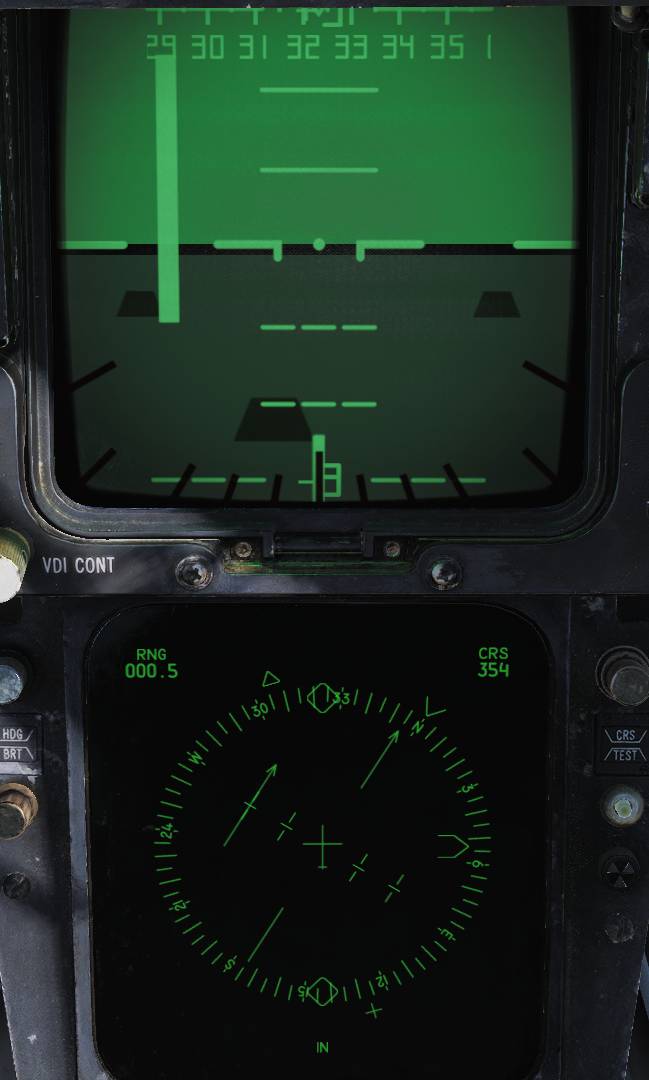

Displays

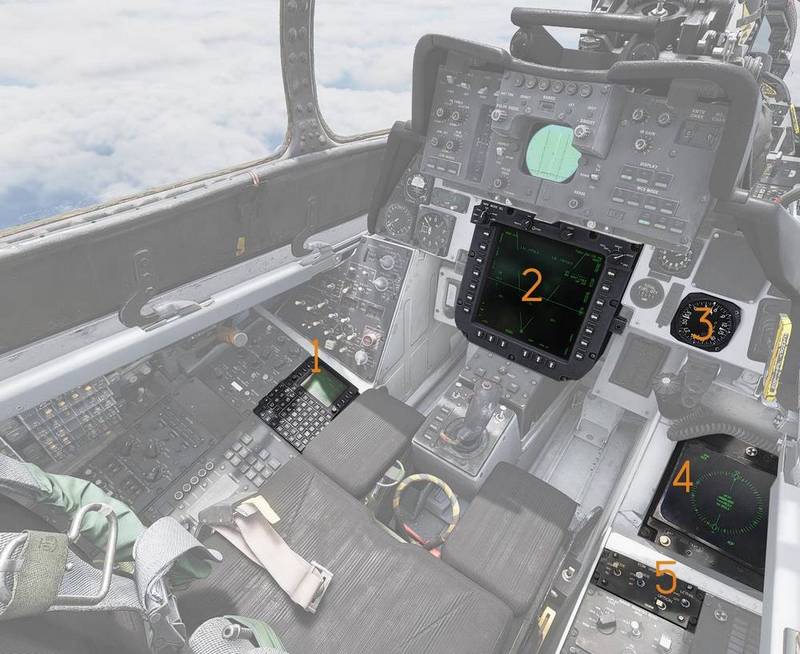

Navigation information is displayed on the TID, HSD, multiple display indicator (MDI), HUD, and VDI, depending on the mode selected by the pilot and RIO. If an IMU or navigation computer failure occurs, two backup modes are available: IMU airmass (IMU/AM) or AHRS airmass (AHRS/AM).

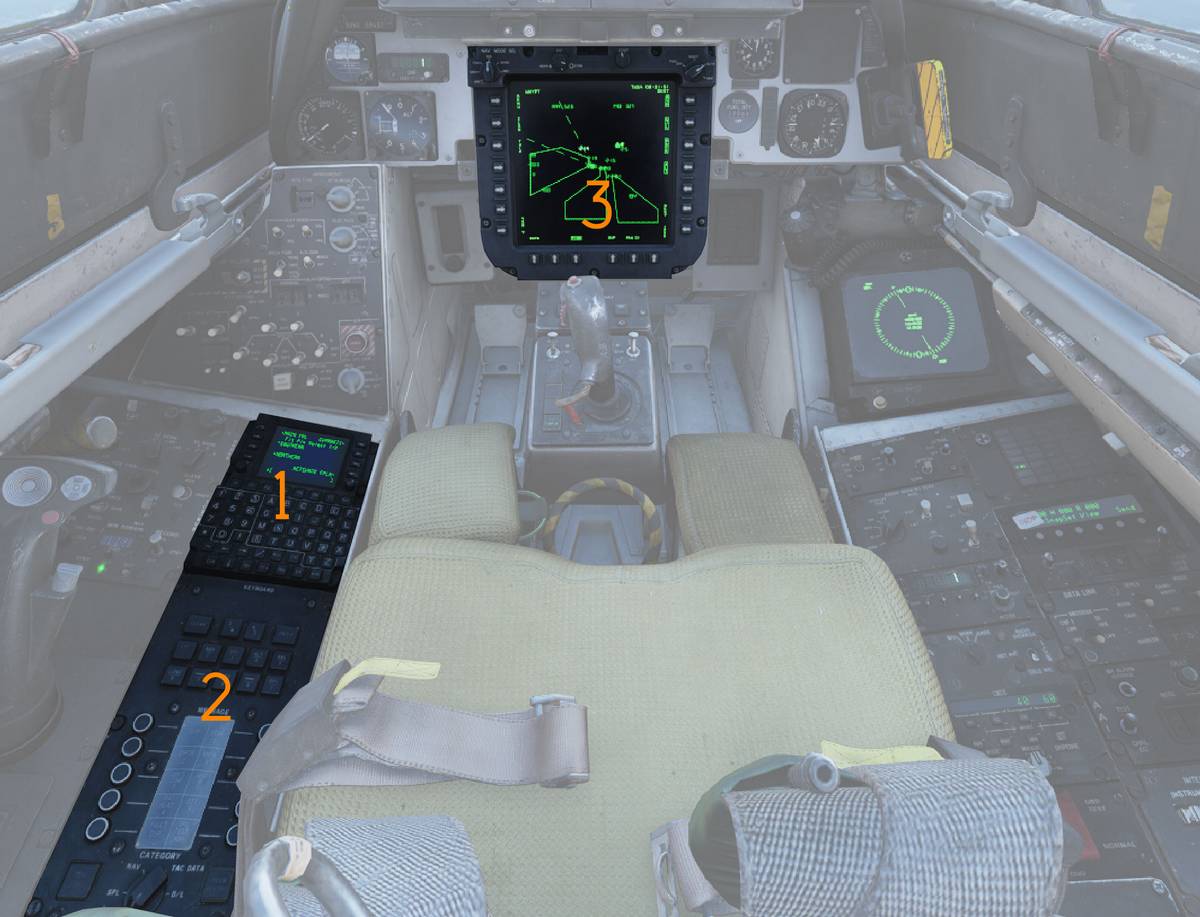

Navigational Controls

To control the INS, use the navigation control and data readout panel and the computer address panel. See Tactical Information Display (TID) and Associated Controls and Associated Controls and Computer Address Panel (CAP) for a more detailed description.

The desired operation mode, alignment mode, and destination point can be selected at the navigation control and data readout panel. The CAP allows entering navigation data and the selected information to be displayed on the TID. The CATEGORY switch on the lower end of the panel determines the function of the MESSAGE button. The categories used for navigation are NAV and TAC DATA. The STBY and READY advisory lights on the navigation control and data readout panel indicate the status of the alignment program and navigation system.

Failure indicators for the main components of the navigation system are on the caution/advisory light panels in both cockpits, however, the NAV COMP and IMU indicators are only present on the RIO cockpit caution/advisory light panel.

The pilot displays (HUD, VDI, and HSD) and the RIO multiple display indicator are controlled with either the pilot display control panel or the multiple display indicator control panel.

💡 For detailed information on CAP operation, refer to Computer Address Panel (CAP).

Navigation Category

If the CATEGORY switch is in NAV, the following matrix appears in the MESSAGE windows:

Each window has a designated button. Pressing this button tells the WCS computer which function of the matrix to use. If OWN AC, WIND, or MAG VAR is pressed, data can be entered and displayed for each.

Own-aircraft airspeed and magnetic heading are displayed on the TID. If own-aircraft data file is hooked using the TID cursor, heading will be magnetic. If OWN AC button was selected (hooked) via the CAP, own-aircraft true heading, speed (groundspeed), altitude, or course can be displayed on the TID by depressing the appropriate prefix button:

1. LAT or LONG button will display own-aircraft latitude and longitude.
2. SPD button displays ground speed and magnetic course.
3. True airspeed and true heading are displayed when the HDG prefix button is depressed.
4. Altitude is displayed on the left TID readout (right is blank) when the ALT button is used.
5. When pressing the WIND button, the TID displays present wind speed (left readout) and magnetic direction (right readout).
6. The MAG VAR button is used for displaying and entering magnetic variation (MAG VAR).

In order to change own-aircraft lat, long, true heading, or altitude, press the according prefix button followed by the desired quantity. During entry, the data is displayed on the upper middle readout on the TID. At the same time, existing data is being displayed on the two lower readouts. If new data is correct, the RIO can press the ENTER button and the new values will appear on the readout.

To change wind data entry, press the WIND button, then either the SPD or HDG prefix button and the appropriate numbers: knots (0 to 512) for speed or degrees (000 to 359) for magnetic direction. The multiple display indicator data readout of WIND direction is always displayed as true.

💡 In the INS mode, wind is calculated and updated continuously. The manual entry of wind is ignored by the wind calculations even though the system accepts the entry.

Depressing the MAG VAR button displays alternating values of computed MAG VAR (vC) and manual MAG VAR (vM) on the left readout and displays magnetic heading (MH) on the right readout. The two values alternate every 2 seconds. On the CAP sign/direction buttons, plus (+) corresponds to east variation and minus (-) to west variation.

For manual MAG VAR, press the MAG VAR button. Press HDG, E, or W, the angle in degrees and tenths, and ENTER. Tenths of a degree must be entered even if zero. The TID displays including the NAV GRID will shift appropriately. Computed MAG VAR is constantly calculated in the AWG-9 by comparing the IMU’s true heading with the magnetic heading from AHRS. This difference is saved as computed MAG VAR. The table below shows the MAG VAR source used by the computer for displays and CAP entries.

Computed MAG VAR and manual MAG VAR are compared by the AWG-9 computer. If they differ by a certain value, the acronym MV will alternate with the IN or IM navigation mode acronym on the TID and HSD. The acronym is cleared when the difference falls below 5°.

If the selection of AHRS/AM occurs and no update (or re-entering of the same value) occurs last vC will be used.

💡 When operating in SLAVED or COMP mode near a magnetic disturbance, such as aboard a carrier, the MV acronym should be expected to appear.

The table below shows error source analysis and response to the MV acronym appearing in flight.

Tactical Data Category

If the CATEGORY switch is in TAC DATA, the following matrix appears in the MESSAGE windows:

The functions in this category have a TID symbol each, except the PT to PT FUNCTION. When pressing any one of these MESSAGE buttons, the TID symbol brightens and the activated MESSAGE push button illuminates, indicating a successful hook. The RIO can then use the functions for which hooking was required. Data regarding the hooked point can be displayed on the TID by pressing the according prefix button. Additionally, the latitude, longitude, and altitude of the hooked point can be entered by pressing either the LAT, LONG, or ALT button followed by the desired numbers. Like before, existing data is being displayed on the two lower readouts. If the new data is correct, the RIO can press the ENTER button and the new values will appear on the readout.

Navigational Caution Lights

In addition to the NAV COMP, AHRS, and IMU lights mentioned above, the RIO caution/advisory panel contains two other advisory lights, C&D HOT and AWG-9 COND, that are indirectly related to navigation system operation. Illumination of either or both of these lights could mean degraded navigation operation and would require further investigation of the WCS.

Radar Altimeter System (AN/APN-194)

The radar altimeter is a low-altitude (0 to 5,000 feet), pulsed, range-tracking radar that measures the surface or terrain clearance below the aircraft. Altitude information is obtained by radiating a short-duration RF pulse from the transmit antenna to the Earth’s surface and measuring elapsed time until RF energy returns through the receiver antenna. The altitude is continuously presented to the pilot on an indicator dial in feet AGL. If either Landing or Take off mode is selected on the PDCP, radar altitude is displayed on the HUD from 0 to 1,400 feet.

The radar altimeter can operate in two modes. In the search mode, the system successively examines increments of range until the complete altitude range is searched for a return signal. When a return signal is detected, the system switches to the track mode and tracks the return signal to provide continuous altitude information.

If the radar altimeter drops out of the track mode, an OFF flag appears and the pointer is hidden by a mask. The altimeter will remain inoperative until a return signal is received, at which point the altimeter will display altitude above ground again. Reliable system operation in the altitude range of 0 to 5,000 feet permits close altitude control at minimum altitudes. The system will operate normally in bank angles up to 45° and in climbs or dives except when the reflected signal is too weak.

The system includes a height indicator (altimeter), a test light on the indicator, a low-altitude warning tone, a radar receiver-transmitter under the forward cockpit, and two antennas (transmit and receive), one on each side of the IR fairing, in the aircraft skin. During descent, the warning tone is heard momentarily when the aircraft passes through the altitude set on the limit index. When the aircraft is below this altitude, the red low-altitude warning light on the indicator will stay on.

💡 If radar altitude is unreliable, only the OFF flag is present.

The radar altimeter has a minimum warmup time of 3 minutes. During warmup, failure indications and erroneous readouts should be disregarded.

Radar Altimeter

The only controls for the system are on the Radar Altimeter on the pilot instrument panel. The indicator displays radar altitude above the Earth’s surface on a single-turn dial that is calibrated from 0 to 5,000 feet in decreasing scale to provide greater definition at lower altitudes. The control knob in the lower left corner of the indicator is a combination power switch, self-test switch, and positioning control for the low-altitude limit bug.

Altimeter BIT

To energize the self-test circuitry press and hold the control knob and the green test light will illuminate, the indicator will read 100 ±10 feet, and the HUD altitude scale should read approximately 100 feet. If the indicator passes below the altimeter limit bug setting, the aural and visual warnings are triggered. To resume normal operation simply release the control knob again.

Low-Altitude Audio Warning

A low-altitude 1,000-Hz tone provides an aural warning, modulated at two pulses per second, lasting for 3 seconds. The tone is played to both crew members when the aircraft descends below the altitude set on the low-altitude limit bug.

Navigation System Integration

Navigational Modes

Three navigational modes exist in the F-14:

1. Inertial Navigation Mode (INS)

   • The primary navigation mode is inertial and is achieved by the INS, employing the IMU (and PSU) and the CSDC.
   • Provides the flight crew with own-aircraft position, velocity, attitude, and heading information.

2. Inertial Measurement Unit/Airmass Mode (IMU/AM)

   • Serves as a backup navigation mode.
   • Entry into this mode permanently degrades INS platform heading alignment.

3. AHRS/Air Mass Mode (AHRS/AM)

   • Utilizes the AHRS attitude and heading information in place of the IMU.
   • Serves as an additional backup mode if both INS and IMU/AM modes fail.

Inertial Navigation Mode

INS mode should be entered following an alignment. The READY light illuminates in GND and CVA alignment positions and stays on after launch in CAT alignment, indicating completion of alignment. If the INS mode is selected, both the STBY and READY lights will go out. However, if the INS mode is selected before the caret turns into a diamond, both the STBY and READY lights will illuminate and the system will revert to the IMU/AM backup mode.

In the INS mode, IMU and CSDC provide the following outputs:

• Aircraft latitude and longitude
• Aircraft magnetic or true heading (depending on CAP prefix button selected)
• System altitude (barometric damped inertial altitude)
• Platform wander angle
• Velocity components (x, y, z)
• Vertical acceleration

Aircraft magnetic heading is derived from the AHRS. If the AHRS fails, magnetic heading is then derived by subtracting the MAG VAR from the true heading. The available readouts on the TID can display latitude, longitude, ground speed, ground track, true airspeed, wind (speed and direction), MAG VAR, altitude, and aircraft true or magnetic heading.

The WCS computer makes calculations in true north coordinates for steering and uses the magnetic heading input from the AHRS to update the value. Wind is computed from the difference between inertial velocities and air mass velocities. The WCS and CSDC also provide the steering and cueing functions required for display to the flight crew. The information can be displayed on the TID, HSD, multiple display indicator, HUD, and VDI, depending on the navigation and steering modes selected by the flight crew.

The available destination or navigation points are waypoints 1, 2, or 3, fixed point, home base, surface target, and initial point and may be designated by the DEST switch on the TID.

Additionally, navigational points (latitude and longitude) may also be inserted by the RIO using the CAP or by datalink message (when on the deck) using either cable or the RF link.

The course to set (heading to a selected navigational point), range, bearing, and time-to-go to a point are based on great circle calculations. The time-to-go assumes the aircraft is flown at its present groundspeed along the great circle heading to the selected point.

💡 If INS fails, the RIO should verify MAG VAR calculated and WIND data and update via manual entries as required.

IMU/AM Navigation Mode

If a failure of the navigation computer section of the CSDC or certain failures in the IMU are detected, the IMU/AM mode is entered automatically. The failures are indicated by the STBY and READY lights illuminating and the NAV COMP light illuminating on the RIO CAUTION/ ADVISORY panel.

The switch to IMU/AM is indicated by the IN acronym on the TID and HSD changing to IM. The RIO should select IMU/AM on the NAV MODE switch to extinguish the STBY and READY lights. The IMU/AM mode can be entered manually by selecting IMU/AM with the NAV MODE switch.

If the switch is turned off before selecting IMU/AM mode, the computer cannot enter the IMU/AM mode for approximately 3 to 5 minutes. This is necessary to allow the IMU to level itself after being turned off. During these 3 to 5 minutes, the aircraft must remain stationary on the ground or in level unaccelerated flight. Until the IMU is leveled, the computer will use the AHRS/ AM mode. If the IMU is level (i.e., alignment past coarse align completed), the entry into IMU/AM will occur immediately upon selection.

💡 If an alignment past coarse exists with no NAV COMP failure and the RIO switches to IMU/AM, the READY light will flash, indicating that if the switch is not returned to INS within 5 seconds the INS mode cannot be re-entered without completing a new alignment.

The WCS computer performs dead-reckoning navigation in the IMU/AM mode, using heading information from the IMU and true airspeed from the CADC. The same general navigation functions are performed in the backup mode as for the INS mode. The accuracy of the computer outputs degrades because of the inferior available speed and heading information.

Wind can be applied by either using the wind last computed in the INS mode or wind data manually entered through the CAP. The IMU heading is equally referenced to the last computed INS heading or to manual entry of true heading data via the CAP.

💡 After entering the IMU/AM mode, check wind and MAG VAR values. If MV is in error, enter own-aircraft true heading. If winds are in error, update.

IMU Reset Procedure

1. NAV MODE switch - OFF, for a few seconds.
2. NAV MODE switch - IMU.
3. Fly straight and level for 5 minutes.
4. Verify IM acronym.

AHRS/Air Mass Mode

The AHRS/AM mode is another backup mode for navigation. It uses the last known aircraft position, by either taking the last navigation computer value or by manual data entry from the RIO. It then extrapolates the present position of the aircraft.

AHRS/AM mode is automatically selected if the IMU fails or by switching to AHRS/AM on the NAV MODE switch. An IMU failure is indicated by the STBY and READY status lights and the IMU advisory light illuminating. Additionally, the attitude status readout on the TID changes to AH.

🟡 CAUTION: The navigation mode will not automatically switch to AHRS/AM upon an IMU failure when the navigation system is in IMU/AM mode with a failed IMU quantizer and NAV COMP advisory light illuminated. Because the VDIG/TID/DDD are displaying invalid IMU attitudes, the NAV MODE switch should be moved to AHRS/AM.

💡 Although the navigation mode automatically switches to AHRS when the IMU fails, the STBY and READY lights will remain on until the RIO selects AHRS/AM on the NAV MODE switch.

When AHRS/AM is selected on the NAV MODE switch, the AHRS provides heading information required for DR navigation in place of the IMU platform and the CSDC provides barometric altitude, altitude rate, and true airspeed as in the IMU/ AM mode. To update wind speed and direction and magnetic variation, use the CAP.

The AHRS can be operated in any of three subheading modes selected on the compass controller panel:

• SLAVED - Magnetic north referenced (flux value), directional gyro is slaved to flux value, used where reliable magnetic heading reference is available.
• DG - Free azimuth gyro, compensated for drift because of Earth’s (polar operations), used where magnetic reference is unreliable.
• COMP - Magnetic north reference direct (flux value), no gyro damping. The HUD, VDI, HSD, and multiple display indicator use manual magnetic variation (vM) automatically in this mode.

The RIO can switch from either INS mode to AHRS/AM mode or from IMU/AM mode to AHRS/AM mode for comparison, without fear of degradation, since the AHRS is a separate system. This cannot be done with the INS and IMU/AM modes since the IMU is used in both cases and it would result in permanent degradation to the IMU alignment. In the case of an IMU failure the nav system will automatically operate in the AHRS/AM mode with the navigation and data readout panel in INS, as long as the WCS computer receives heading from the AHRS and airspeed from the CADC.

💡 If takeoff is performed in the AHRS/AM mode, MAG VAR and WIND must be manually inserted via CAP for proper navigation computations.

When the platform is aligned and the AHRS/AM backup navigation mode is selected, the STBY light is off but the READY light is on, indicating that the inertial navigation mode can be selected if desired. The same functions and outputs for display are computed as in INS, however since different inputs are used for some calculations a degraded navigation performance is to be expected.

Steering

There are two basic types of steering: navigation and attack. Attack steering modes will be covered in the Weapons and Weapons Employment overview.

Navigation steering is computed on either a great circle course or rhumb line to a fixed point on the Earth’s surface or as a deviation from a selected course or heading. In general, great circle computations are used for long ranges and rhumb line for short distances (where it is close to great circle course).

The point used for steering can be the RIO’s selected destination (three waypoints, fixed point, identification point, surface target, or home base), a TACAN station, ADF information, ACLS information, or a data link waypoint.

Flight Modes and Steering Sub-Modes

The pilot can choose between five VDIG display formats (HUD modes) on the pilot display control panel. These five flight modes are arranged as five vertical, mutually exclusive buttons:

• Take Off (T.O.)
• Cruise (CRUISE)
• Air to Air (A/A)
• Air to Ground (A/G)
• Landing (LDG)

💡 ACM cover open selection overrides all modes, except the T.O. and LDG modes.

Apart from the VDIG displays, the flight mode selections also control AFCS, armament, and WCS logic. In addition to the essential data such as altitude, vertical speed indicator etc. the VDIG format also provides steering cues.

In each of the flight modes, the pilot can choose between the following five types of steering commands:

• TACAN (TACAN)
• Destination (DEST)
• AWL/PCD
• Vector (VEC)
• Manual (MAN)

The five selections are arranged horizontally along the bottom of the PDCP. These steering modes determine the display format on the pilot HSD and the RIO multiple display indicator. The HSD and multiple display indicator present, in a horizontal plane, steering to the selected point. The HSD follows the five submodes when the pilot places the HSD-MODE switch to NAV.

The RIO can do the same by setting the MODE switch on his multiple display indicator control panel to NAV. Also, when LDG is selected, the pilot has the option of displaying ICLS or ACL information via switches on the PDCP that can be used to individually and independently select the HUD and VDI for display. A typical choice would be to select ICLS (SPN-41 /ARA-63) for the HUD and for D/L the VDI.

A/A (air-to-air) and A/G (air-to-ground) modes are further explained in the Weapons and Weapons Employment overview.

💡 The STEERING indicator drum on the navigation control and data readout panel provides a readout for the RIO to inform him of what steering sub-mode the pilot bas chosen.

Takeoff Steering

To enter the takeoff steering mode, press the T.O. button on the display control panel. The VDIG will display a vertical speed indicator on the left side and an altitude scale on the right side in the HUD. Before takeoff, the pilot should check the magnetic heading on top of the HUD and VDI against a known reference (i.e. runway heading and most importantly BRC on the carrier, due to the large magnetic distortion on the ship). The vertical speed indicator should be used to verify a positive climb after takeoff.

After takeoff, the navigation system normally computes wind and magnetic variation, which are needed for steering. For backup modes, the WCS uses the last computed or RIO-entered wind speed, direction, and magnetic variation.

Take-Off-TACAN Steering

The TACAN steering submode works the same, whether used for takeoff, cruise, or landing, by providing the pilot with a TACAN deviation. The pilot can set the course or TACAN radial with the CRS control on the HSD. The TACAN displays are available on the HUD, VDI, HSD, and multiple display indicator. The HSD and the ECMD display TACAN range and the relative bearing to a selected TACAN station.

To enter the submode, press the TACAN button on the PDCP. After selection of TACAN course, the HUD and VDI display the TACAN deviation symbol and a TO and FROM symbology. This indicates whether the TACAN course is toward or away from the TACAN station. On the HSD and multiple display indicator, an arrow on the deviation bar pointing in the same direction as the TACAN course indicates a course toward the station, an arrow pointing in the opposite direction indicates a course away from the station. On the HUD, a dashed line indicates FROM, a solid line indicates TO. On the VDI, a dark bar indicates FROM, a bright bar indicates TO.

On the HUD, the deviation symbol moves 3° (linear) in the field of view for a 6° deviation from the selected TACAN radial. These limits prevent the symbol from leaving the field of view or interfering with the scales on the left and right side. On the VDI, the deviation symbol is scaled to move 1.5 inches (linear) for a 6° deviation.

Takeoff Manual Steering

The manual steering mode is similar to the basic takeoff mode. The mode is entered by pressing the MAN button and selecting a desired course with the CRS control on the HSD. The navigation system will then display a command heading on the VDI as a small diamond under the magnetic heading scale.

Cruise Steering

To enter the cruise flight mode. press the CRUISE button on the PDCP. There are four steering submodes available during cruise operations: TACAN, destination, manual and vector. While it is physically possible to press the AWL/PCD steering button on the display control panel, the action is without function in cruise mode.

💡 Should the AWL/PCD sub-mode be selected while in CRUISE, it will inhibit the display of other steering cues.

Cruise TACAN Steering

This submode works in the same way as take off TACAN steering and provides the same readouts and displays to the flight crew as described under take off TACAN steering.

Cruise Destination Steering

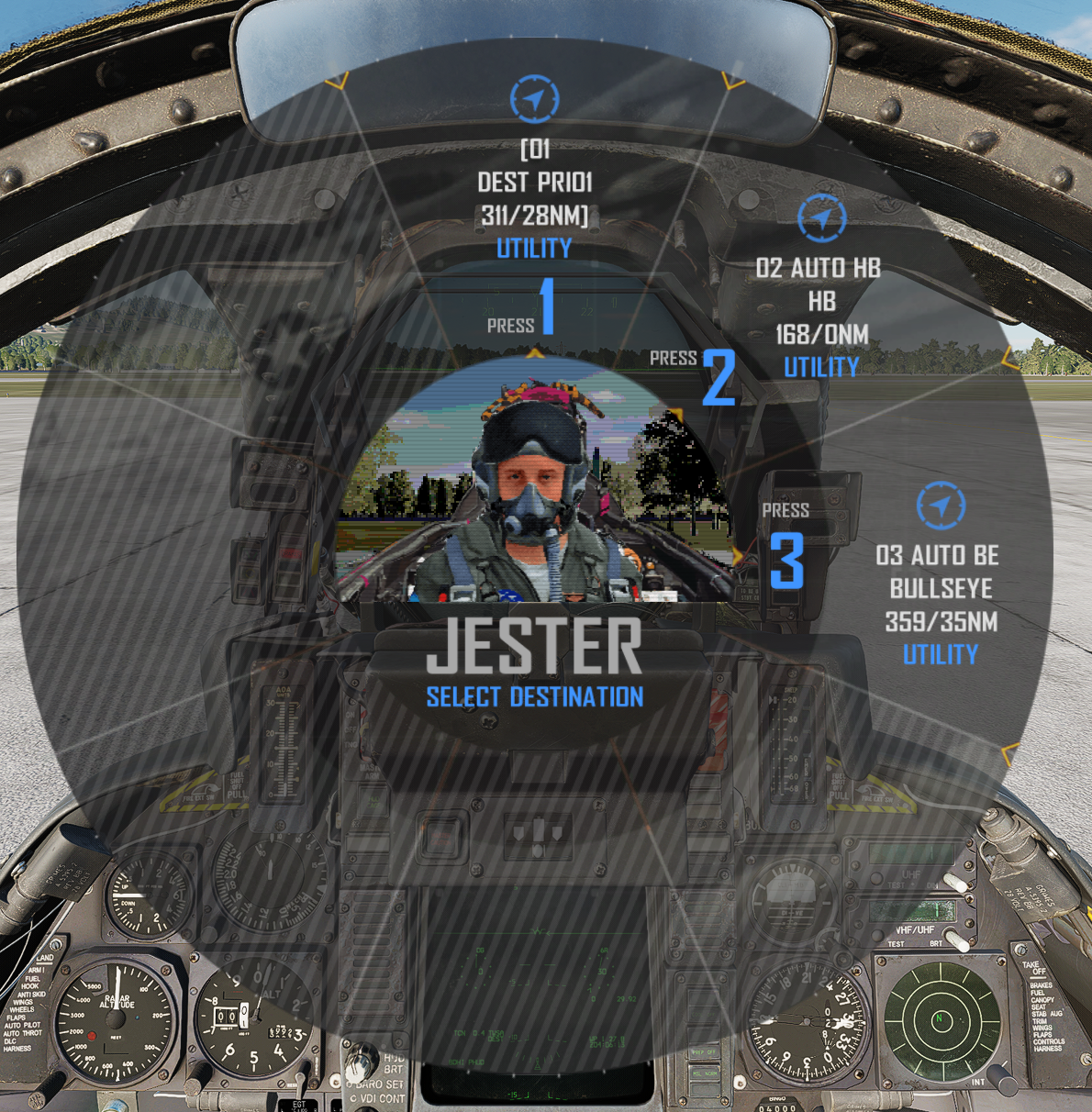

To enter the cruise destination steering mode, press the DEST button on the PDCP. This will provide steering as a command heading symbol on the VDI and HSD to a waypoint selected by the RIO on the navigation control and data readout panel. The RIO can change latitude/longitude of the destination by hooking the point on the TID and inserting new data.

💡 Destination steering to the defended point is provided by the RIO selecting MAN with the TID DEST switch. This option is not available in TARPS.

In the destination steering sub-mode, the destination selected by the RIO and the NAV MODE in use will be alternately displayed on the bottom center of the HSD.

ECMD showing the navigational display for Cruise with Manual steering selected.

VDI and HSD showing navigational displays for Cruise with TACAN steering selected.

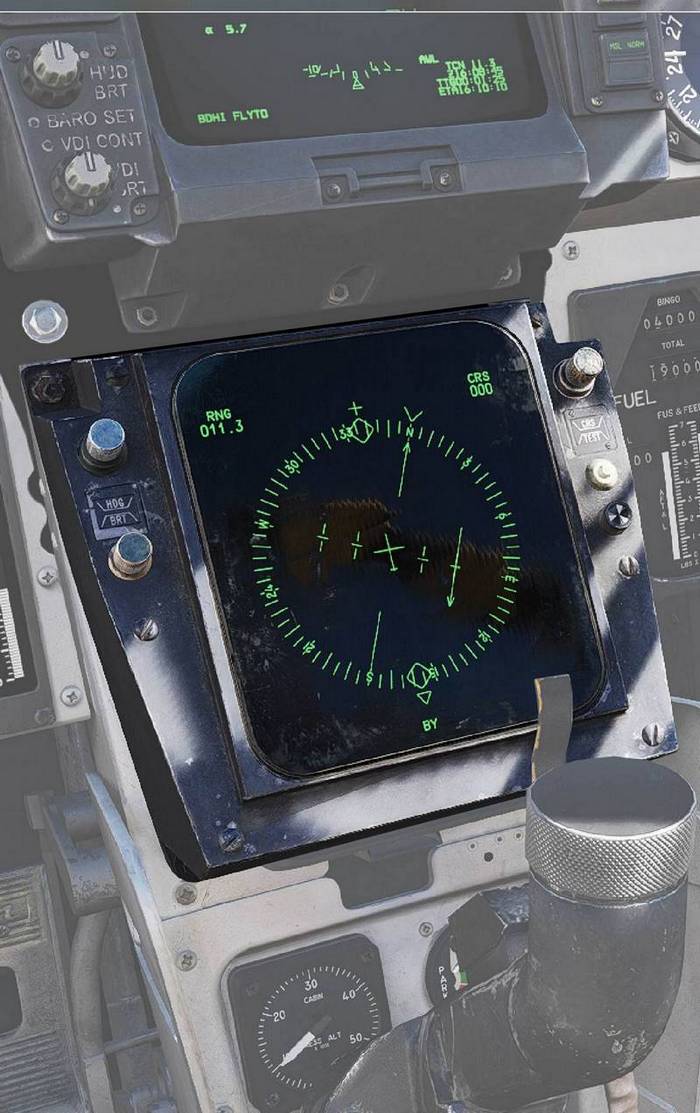

HSD showing navigational display for Cruise with Waypoint 1 set as Destination.

Landing Steering Modes

To enter the landing steering mode, press the LDG button on the PDCP. Usually the LDG mode is engaged at any point from marshal point on. In the case of a go around, waveoff or bolter, the pilot can press the T.O. button on the PDCP to engage the take off steering mode.

The landing mode symbology is in general the same as the takeoff mode symbology. Exceptions are the addition of angle-of-attack error symbol on the HUD (the E-bracket, referenced towards the displayed aircraft wings and not the velocity vector) and the velocity vector symbol, as well as 5° pitch increments on the VDI.

💡 In all landing sub-modes, a VDIG breakaway symbol can be displayed upon receipt of a D/L waveoff message.

• There are three steering sub-modes available during landing: TACAN, VEC, and AWL/PCD.
• For the TACAN or VEC sub-modes of LDG, the HUD, VDI, and HSD displays are similar to the same sub-modes in CRUISE except that in LDG the HUD display includes the velocity vector symbol, the radar altitude symbol, and the vertical speed indicator symbol.

AWL Steering

If ICLS information from the ARA-63 is available at the marshalling area, the pilot can select the AWL/PCD sub mode. To observe glideslope displays, the HUD and VDI AWL switches on the pilot display and control panel should be placed in the ILS position.

The HUD and VDIG will then provide vertical and lateral precision course vector symbols, forming crossed pointers that are driven by the ICLS. On the HUD, full-scale vector deflection is limited to 2°. Full-scale vector deflection on the VDI is 1.5°. In the AWL/PCD sub-mode of LDG, the HSD will additionally display TACAN information if the HSD is set to NAV mode on the PDCP.

At the acquisition window, the pilot can either continue with the ILS display, or, if ACL information from the SPN-42 data link is available, he can select ACL of the AWL switches for either the VDI or HUD displays or both. The ACL display uses the same vertical and lateral precision course vector symbols as the ICLS, but these are now driven by the SPN-42 data link. A typical display combination during the final stages of landing is ILS on the HUD and ACL on the VDI. With valid ACL data available, the AFCS may be engaged by selecting ACL on the VEC/PCD, OFF, and ACL switch located on the AFCS control panel.

HUD showing Landing mode display with TACAN set as destination source.

HUD showing Landing mode with AWL/PCD set as Destination source, ACL set as source of glideslope and localizer.

VDI showing Landing mode with AWL/PCD set as Destination source, ILS (ICLS) set as source of glideslope and localizer.

Inertial Navigation System (INS)

An important feature of the INS is its fast alignment capability over a wide range of temperature. The INS is a dead-reckoning system that derives speed as a function of aircraft accelerations. Two accelerometers are used to measure acceleration in the horizontal plane. These outputs result in velocities along the X and Y axes after corrections for the Earth’s rotational velocity (coriolis acceleration) and integration inputs. These X and Y velocities can be resolved in the IMU platform coordinate system through wander angle and put in the Earth referenced north/east/down system. Integration about the north and east axes also provides increments of latitude and longitude. Navigation in such manner gives the flight crew detailed and precise knowledge of the position, direction and velocity of their aircraft at any time.

An INS device like the AN/ASN-92 requires a high precision of measurements of the acceleration and the attitude, because even the smallest inaccuracy can result in a significant error when accumulated over extended time.

Consider an example: the inertial platform is slightly tilted from the nominal position, let’s say by 0.002°. Then, the horizontal accelerometers are no longer parallel to the ground, and this means that they start to be sensitive to gravity. If not corrected, this gravitational component is interpreted by the navigation computer as a horizontal acceleration. If the wrong attitude is kept constant for one hour, it will result in an error of the measured position of over one nautical mile. It is a significant inaccuracy, and it comes as a result of such a minimal alignment error.

The accuracy of the INS degrades with time – usually the longer they operate in the navigation mode, the higher the error they accumulate.

Inertial Measurement Unit

The IMU is a three-axis, four-gimbal, all-attitude unit containing two gyros and three accelerometers. The gyros and the accelerometers are mounted to a platform that is free to rotate with respect to the base (aircraft). The four-gimbal system provides gimbal-lock free rotation and uses torquer motors to correct platform attitude errors. The gyros sense angular rotation about their sensitive axes and are the source of information about the aircraft attitude. They also stabilize the whole platform and keep the constant orientation of the accelerometers with respect to the ground (gravity). Two accelerometers are used to measure acceleration in the horizontal plane; the third accelerometer measures vertical acceleration. The sensitive axes of the accelerometers are orthogonal. Their displacement is sensed by pick-off coils that develop a signal that is amplified, then applied to a torquer that restores the mass to its null position. The magnitude of torquing current required is proportional to the acceleration. The sensed acceleration signal is integrated in the computer and used to calculate aircraft velocity and displacement from the initial position. The attitude of the platform is also corrected continuously to account for the effects associated with the Earth’s rotation and device inaccuracies.

This design is widespread for gimballed inertial navigation systems. It was used for the F-14, but also for the Space Shuttle and many other aircraft of the era.

IMU BIT

In case of IMU failure, the CSDC automatically switches to a backup navigation mode. The IMU BIT monitors the temperature, internal error signals, and electrical characteristics of the IMU.

If the CSDC detects a failure in the IMU, it informs the WCS computer and the IMU acronym indicating the component of the INS that failed is displayed on the TID. The IMU advisory light illuminates on the RIO caution/advisory panel.

NAV COMP Light

If the NAV MODE switch is in INS, and the NAV COMP light illuminates, there is a failure in the INS or CSDC; the navigation system will automatically switch to a backup mode. The NAV COMP light remains illuminated and the RIO should set the NAV MODE switch to IMU/AM position. The NAV COMP advisory light indicates that the INS is operating in a degraded mode as a result of manual selection by the RIO using the NAV MODE switch or automatic selection because of a failure of the CSDC or the IMU.

💡 When an IMU quantizer failure occurs in the INS mode, the system will automatically select the IMU/AM mode and the STBY/READY and NAV COMP lights will illuminate. The RIO should move the NAV MODE switch from the INS to IMU/AM. The STBY/READY lights go out - but the NAV COMP light will remain illuminated.

With a NAV COMP light and a CSI ACRO displayed on the TID, there is no auto-switch to a backup attitude source for the HUD or the VDI nor is the RIO able to manually switch to any backup mode.

IMU Light

If there is a failure in the IMU, the IMU advisory light will illuminate; the navigation system switches to the AHRS/AM mode and accuracy may become degraded Attitude information for the VDIG and missile control system are now provided by the AHRS. The IMU light remains illuminated until the RIO selects AHRS/AM. With an AHRS light computed magnetic variation (vC) should be verified and updated if necessary.

🟡 CAUTION: After RIO selection IMU/AM because of a failure, and a complete IMU failure occurs afterwards, the system will display erroneous attitude information to the pilot. The CSDC will neither automatically exit IMU/AM to the AHRS/AM mode (if a valid AHRS exists) nor remove VDIG/TID/DDD attitude displays. The RIO should manually switch to the AHRS/AM mode.

Whenever the NAV COMP light illuminates the flight crew should be cautious of attitude displays and frequently cross-reference the VDIG/TID/DDD and standby attitude indicator, particularly during non-VFR conditions and be alert for an IMU failure. If an IMU failure is indicated by the IMU light, display of IMU acronym in OBC continuous monitor, removal of the IM acronym in the TID attitude reference source buffer, and the NAV COMP light goes out, the RIO should move the NAV MODE switch from the IMU/AM to the AHRS/AM and disregard the READY light. If a valid AHRS exists, its attitude information will be displayed, otherwise the VDIG/TID/DDD attitude displays will be removed.

AHRS Light

If the AHRS self-test has detected a failure the AHRS Light will illuminate. The magnetic heading on the HUD and VDI is now controlled by the WCS computer. Because it uses the last known value for magnetic variation, the heading will degrade over long distances and time unless new values of magnetic variation are entered by the RIO via the CAP. IFR flight should be avoided completely.

Navigation Power Supply

The NPS provides electrical power for the IMU and CSDC. A nickel-cadmium battery provides power to the IMU and CSDC for up to 10 seconds if there is a power interruption or transient.

INS Alignment Modes

Before INS can be used for navigation, the inertial platform must be aligned so that it is level relative to local vertical and its orientation relative to true north. This is done automatically in two phases: coarse alignment and fine alignment.

The coarse phase begins when the initialization sequence is complete and performs initial coarse estimates of the IMU platform wander angle. The successful completion of this phase requires a minimum local level error in the IMU platform to proceed to the fine alignment phase.

IMU elements that require warmup are being heated by the IMU heaters. In addition, the IMU gimbals (roll, pitch, azimuth) are caged through their respective synchros to the IMU case (airframe reference). The IMU gyros are brought up to running speed, and coarse leveling is performed using the accelerometer outputs.

When power is applied to the NPS and IMU, the SMAL program from the bulk storage tape is read into the WCS computer non-write-protected memory. The alignment program estimates a wander angle, velocity errors, and gyro-torquing correction signals.

These values are sent to the CSDC to align the IMU and to initialize the CSDC NAV program. The following assemblies are used during alignment: IMU, NPS, CSDC, WCS computer, CAP (computer address panel), navigation control and data readout panel. For carrier alignment also the data link receiver-processor is used.

There are four primary alignment modes: SAT ground and carrier alignment, and NON SAT ground and carrier alignment. SAT operation allows OBC testing during the alignment. Either alignment mode can be used in SAT or NON SAT. (SAT modes are not yet implemented in DCS)

The basic TID display formats are represented in the image below. The automatic sequence is the same for all modes, except for CVA ALIGN, where the ship’s motion is inserted by the data link.

The CAT ALIGN overrides the requirement for the parking brake to be on (suspend align). There are two more alignment sub-modes: stored heading and handset. The handset mode is used for CVA ALIGN when SINS data is not available. The stored heading mode is used for rapid alignment, by using a previous alignment (reference alignment) to align the system quickly.

Initialization of any alignment mode requires entry of the following values in either own aircraft or HB (homebase) for the following:

• Latitude
• Longitude
• Corrected pressure altitude.

In addition, if handset alignment is used on the carrier, the following values must also be entered:

• Speed
• Ship’s true heading.

💡 The parking brake must be on during initialization of any alignment. When the parking brake is released during coarse alignment, the STBY and READY lights flash and the align program will reinitialize. If the parking brake is released during fine alignment, a suspend align discrete is sent to the CSDC, the STBY or READY light blinks, and the time into alignment clock on the TID stops.

Non-SAT Alignments

Ground Alignment

For land-based operations, the ground alignment procedure is used to align the IMU. Aircraft or homebase latitude, longitude, and altitude are entered into the WCS computer via the CAP. This may be accomplished before or after selecting GND align. Selecting GND ALIGN on the NAV MODE switch initiates the align operation. However note that whatever has been hooked when switching to ALIGN, is injected as your own coordinates. You can use homebase or preset own aircraft coordinates for example, but if you didn’t, you will have between 90 to 120 seconds to enter your own coordinates and you cannot wait for the alignment to finish, or it will trigger the observable error (O) and alignment will have to be reinitialized.

💡 If fine align has not been achieved, entry of the own aircraft’s latitude will restart the alignment. On completion of the alignment program read-in, the alignment display appears on the TID.

During the initialization, the TID will display an alignment time of 0.7. After 42 to 45 seconds, the NAV COMP light on the caution/advisory panel goes out, indicating that the IMU has entered the ready state; the READY light also goes out. The alignment program will begin with the computation of the alignment parameters.

At this time an alignment status indicator, called a caret (v), will start to move from left to right. The status of the alignment is indicated by where the caret appears in relationship to three alignment-tick indicators. The first tick indicator is called the coarse-align complete marker, the second is the alert launch criteria marker, and the third indicator is the fine-align complete marker. An elapsed time indicator provides alignment time in minutes and tenths.

The clock indicator will begin with 0.7 displayed and continue after a 42-second delay. After 9.9 minutes, the clock display will pass through zero and begin again. If the alignment is suspended (parking brake), the clock will stop counting until alignment is resumed.

Between the first and second ticks are the telltale status indicators that indicate a failure of one of four systems: C = calibration data fail, T = temperature (cold IMU), S = SINS data invalid, and 0 = observable (alignment data bad, i.e., LAT, LONG, SPEED, etc.). The letter that appears indicates which system has a failure.

A C indicates a failure in the transfer of calibration data between the IMU and the CSDC, and the alignment will not progress.

The T appears normally at the start of alignment and disappears when the IMU has reached operating temperature. If the T does not disappear, there is a failure in the system and a non-stored heading alignment will not progress.

The S can appear at the start of any CV alignment and will disappear shortly after. If the S does not disappear, there is a failure and the result will be a bad alignment. The S also appears if incoming SINS data is not valid, in which case the alignment should not be trusted.

💡 The CSDC and IMU outputs as well as data inputs are constantly monitored and if either an excessive value in the X or Y acceleration is sensed, or a bad value from wrong lat or long data input, a 0 (bad observable) is posted on the TID and the alignment stalls (ceases to continue).

The IMU may be preheated by selecting IMU/AM on the TID NAV MODE switch when operating on ground or aircraft power. This energizes the IMU and navigation power supply, which turns on the IMU heater prior to start of a ground or carrier alignment. The IMU should not be preheated for longer than 5 minutes.

During coarse alignment, the alignment caret moves based on the wander angle error. If the parking brake is released during this phase, the alignment will reset.

The V will reach the first tick when coarse alignment is complete. When the program switches to fine alignment, the caret changes into a diamond, which indicates to the pilot that he may release the parking brake (suspend alignment) and taxi, if OBC is complete. After the parking brake is reset, alignment will continue and the diamond will move right as alignment improves.

At the second tick, which indicates that alignment meets the minimum criteria to launch weapons, the STBY light will go off and the READY light will illuminate. The INS mode may be entered at this point. If INS is not selected, the diamond continues to move to the right. When it reaches the third tick, it indicates that fine alignment is completed and a dot will appear in the diamond (<>).

You can leave the system in alignment mode even after fine align is complete, which will provide a progressively more accurate alignment. How much more accuracy is gained depends on the quality of alignment when fine align was completed. This can be rather minimal in some cases, but, when it is further left in alignment for long enough, it will always provide a certain amount of improvement.

💡 If alignment is suspended and the aircraft is taxied over a distance greater than 4000 feet, the quality of the alignment becomes unknown to a point where it might be unreliable. Alignment reinitialization is advised.

If the caret (v) or diamond stop moving, the program has stopped aligning. If they stop between the first and third ticks (coarse and fine), it means that alignment has been suspended. The clock will stop counting if that is the case. If alignment continues, the clock resumes counting until switched out of alignment by NAV MODE switch or if the parking brake is released again.

💡 The alignment display will not go past the coarse align tick until the IMU temperature has reached 165°. When this temperature is reached, the T symbol will disappear. The temperature interlock is bypassed when performing a stored heading alignment. The IMU should be preheated for a stored heading alignment, as it usually completes in under 2 minutes, which could result in a bad alignment.

Selecting INS will turn off the READY light, terminate alignment and the tactical display will appear, and the normal navigation display will become available.

💡 When the NAV MODE switch is set to INS, the CSDC is in navigation mode and the READY light goes out.

After selecting the INS navigation mode, the AWG-9 align program continues for approximately three align data cycles (18 seconds) before entering INS. This also applies if the aircraft takes off before INS is selected.

The RIO and pilot can then observe an IN acronym on the attitude status readout on the TID or TID repeat.

If you want to reinitialize an alignment when observing an acronym during fine alignment or if noting a stalled alignment, the following methods can be used:

• Select both INS mode switch and WCS PWR switch to off. Allow TID displays to collapse. Proceed with normal start sequence.
• INS mode switch to desired align mode.
• INS mode switch to INS. Verify system in INS (IN acronym on TID), cycle mode switch to off and back to desired alignment mode.

Failing to follow above procedures when reinitializing a fine alignment will result in severely degraded alignment quality. To reinitialize the program during coarse align, the RIO has to unselect GND ALIGN, re-enter LAT and LONG and reselect GND ALIGN.

Carrier Alignment

When aligning on a carrier with a changing latitude, longitude, and heading, the carrier alignment procedure is used. INS can be aligned in three different ways on a carrier: with RF data link alignment and manual (handset) alignment - deck-edge cable alignment is not implemented in DCS. TID displays the same information as during a GND ALIGN procedure.

Note that you will get erroneous heading readings on a carrier, even if fine align is complete. The heading can deviate up to 20 or 30 degrees, depending on the parking position on the carrier and the carrier’s heading, due to the carrier’s own magnetic field and induced magnetic field. It is important that the flight crew know the carrier’s BRC. The magnetic variation caused by the carrier’s magnetic distortion will go away shortly after take off. This magnetic distortion does not impact the alignment quality.

Carrier Data Link Alignment

The primary carrier alignment mode is the RF data link alignment (CAINS). This mode uses the ship’s INS (SINS) to align the IMU. Inertial inputs including the ship’s longitude, latitude, north and east velocity as well as roll, pitch, heading, and heading rate are transmitted to the WCS computer via the RF data link.

The data is transmitted by the ship’s data link equipment. To align the INS by the CVA alignment method, follow these steps:

1. Turn on the power to the data link system
2. Turn the WCS power to STBY
3. Set the D/L mode on the DATA LINK control panel to CAINS/WAYPT
4. Select CVA ALIGN on the NAV MODE switch.

The received data is processed by the data link equipment in the aircraft and transmitted to the WCS computer. The WCS computer compares the IMU data with the ship’s INS data and sends correction signals to the CSDC to fine align the IMU.

💡 If CVA or CAT ALIGN is selected prior to selecting OBC BIT, data link OBC testing is inhibited. (Not implemented yet)

The fine alignment complete tick mark indicates completion of fine align and whether alignment data is SINS or handset. When good SINS data is not received during a filter cycle, the fine alignment complete tick mark jumps to the left approximately 0.75 inches. The jump indicates the SINS data is intermittent, and handset alignment data is required.

CVA ALIGN is much similar to GND ALIGN, and alignment is suspended, stalled, and reinitialized in the same manner as during GND ALIGN, depending on whether it has been induced during the coarse or fine alignment phase.

💡 If SINS data link is lost during taxi, a flashing HS will appear on the TID. This will disappear when data link is reacquired; however, because of align timing requirements, it may remain flashing up to 8 seconds after data link is reacquired. If the HS flashing does not stop 8 seconds after resetting the parking brake, SINS data is lost but the alignment can continue by entering carrier speed and true heading into the own aircraft file and completing the align in handset mode. If datalink is reacquired during this period, the HS will disappear from the TID and a normal datalink CVA align will continue.

To complete the alignment, set the NAV MODE switch to INS. A successfully aligned INS is indicated by both the STBY and READY lights off and the IN acronym in the status readout on the TID.

💡 Do not switch to INS while the ship is in a turn, even if fine align has been completed. This will degrade the alignment quality significantly. If you wait until the ship’s turn is complete, alignment quality will not be affected. Handset alignment is not affected.

If during a CVA alignment the CAINS/WAYPT-TAC switch is unlatched to TAC by power transient, or data link signal is lost, the INS will revert to a handset alignment (HS).

Carrier Cable Alignment

The deck-edge cable alignment (SINS) is an alternative to the RF data link alignment, where inputs are sent over a secure cable to the data link from the deck-edge outlet box of the carrier. Switching from RF data link to cable inputs is done automatically when the cable is connected. To initiate a CVA align with SINS via cable, use the same steps as for the RF data link alignment. As cable and RF data link alignment are virtually the same, it has not been implemented in DCS.

💡 The SINS-cable is currently not implemented in DCS.

Handset Alignment

The HS alignment mode is a manual alignment option available for carrier alignment, should SINS data from RF data link or cable not be available, inaccurate, or interrupted (indicated by the TILT light on the DDI and/or the fine alignment complete tick mark jumping to the left about 0.75 inches). The HS is also very similar to the GND ALIGN mode, but the RIO has to input more data and the computer takes longer to process because of the ship movement.

IF CVA ALIGN is selected with the NAV MODE switch and no SINS data is available, a flashing HS acronym will appear on the TID. Whenever HS flashes on the TID before alignment starts and the RIO chooses to align the system with handset align, he must enter the according ship’s data in the following order:

• Speed
• Ship’s true heading
• Latitude
• Longitude
• Corrected pressure altitude.

If during coarse align data link is lost (RF or cable) or during any portion of a stored heading alignment, the alignment will reinitialize and the HS acronym will be flashing. The alignment can then be continued with the handset mode as described above.

If the reinitialization occurs during the fine align phase of a stored heading alignment, the CSDC alignment routine must be reset first by turning the AWG-9 OFF for 6 seconds.

If data link is lost during a normal fine align phase, HS will be entered automatically, but the acronym will not flash and the alignment will continue. If data link is regained, the HS acronym will disappear and normal CVA align via RF or cable data link will continue. When data link is regained, the acronym can remain for up to 8 seconds.

💡 If HS is not flashing, valid SINS data has already been entered. If it is flashing, SINS data has to be entered manually.

On the CAP NAV DATA matrix use OWN AC, and the LAT and LONG prefix push buttons; to enter the ships’ heading and speed use own-aircraft HDG and SPD buttons. Once this data has been entered HS will stop flashing and the alignment will progress like a normal GND ALIGN, but can take up to 3 times as long.

💡 The carrier needs to maintain a constant speed and heading during alignment for this method to be successful. Remember that handset alignment quality will always be inferior to a normal CVA ALIGN fine alignment quality.

Reinitialization

To reinitialize an alignment during the fine align phase, if an observable acronym (O) or a stalled alignment has been noticed, the RIO can use any of the following methods:

1. Set NAV MODE switch and WCS switch to OFF. Allow TID displays to collapse. Proceed with normal start sequence.
2. Set NAV MODE switch to OFF. Set NAV MODE switch to desired align mode.
3. Set NAV MODE switch to INS. Verify system in INS (IN acronym on TID). Cycle NAV MODE switch to OFF and back to desired alignment mode.

Failing to follow above procedures when reinitializing a fine alignment will result in severely degraded alignment quality. To reinitialize the program during coarse align, the RIO has to unselect GND ALIGN, re-enter LAT and LONG and reselect GND ALIGN.

Stored Heading Alignment

A feature of the INS that allows for quick-reaction response is the stored-heading alignment. The aircraft has to be parked and tied down in the alert position (wheel-chocks in DCS) for this procedure to be successful. Additionally, the aircraft heading has to be stored with a reference alignment before the aircraft is being powered down (and back up again).

When the aircraft is powered back up, the system takes less than 2 minutes to align the INS from the stored heading, while providing almost the same accuracy like a full, fine ground or carrier alignment. When align is selected and a reference alignment is available, an ASH acronym for automatic stored heading will be displayed on the TID and STORED HDG ALIGN will illuminate on the CAP. The ASH acronym tells the RIO that a stored heading has been entered automatically.

No further action from the RIO is needed, ASH align will continue and ASH will remain on the TID as an advisory. Pressing once on the STORED HDG ALIGN on the CAP will end the ASH align and initiate normal alignment. The ASH acronym will disappear. Pressing the STORED HDG ALIGN a second time will reinitialize the stored heading alignment, however ASH won’t be displayed on the TID anymore.

💡 STBY/READY lights should be monitored for simultaneous illumination. If simultaneous illumination appears after 42 to 45 seconds, a failure has caused the alignment to re-initiate and may result in an erroneous alignment. The RIO must turn NAV MODE switch to OFF for 1 second, then restart the alignment following normal ground or carrier alignment procedures.

The reference alignment can be done with either internal or external power. To do a reference alignment, enter the latitude and longitude via the CAP into the own-aircraft file. This can be achieved by an automatic transfer from homebase entry into own-aircraft before selecting GND ALIGN, or entry into own-aircraft file after GND ALIGN has been selected.

The aircraft’s latitude and longitude can be entered into homebase and transferred into own-aircraft file through the following steps:

1. Set the NAV MODE switch to GND ALIGN.
2. Select CAP category TAC DATA.
3. Depress HOME BASE and enter aircraft longitude and latitude via the CAP data entry buttons.

Aircraft latitude and longitude can be entered directly through the following steps:

1. Set the NAV MODE switch to either OFF or GND ALIGN.
2. Select CAP category NAV.
3. Depress OWN A/C and enter aircraft longitude and latitude via the CAP data entry buttons.

💡 Depressing OWN A/C hooks own aircraft. If longitude and latitude is entered with the NAV MODE switch set to OFF, own aircraft must be hooked when the NAV MODE switch is set from OFF to GND ALIGN again. Be aware that whatever has been hooked (OWN AC or HB) will provide the data that is entered when NAV MODE is set from OFF to GND ALIGN.

For a reference alignment, alignment has to reach fine align complete. Both CVA ALIGN and GND ALIGN can be used to establish a reference alignment. The reference alignment is complete when a dot appears in the diamond.

To establish a reference alignment follow these steps:

1. WCS switch - STBY.
2. NAV MODE - CVA or GND.
3. DATA LINK - ON (CV ops only).
4. D/L MODE - CAINS/WAYPT (CV ops only).
5. Reference alignment continues to fine align complete.
6. NAV MODE switch to INS.
7. WCS - OFF.
8. NAV MODE - OFF.

💡 Unstable current or temporary loss of power will cause the CAINS to be deselected and will be indicated by a flashing HS acronym. A reference alignment cannot be done through a handset alignment, even if continued to fine align complete. For a successful reference alignment the aircraft must not move and the parking brake must not be cycled after the reference heading has been stored. For a valid reference alignment, it isn’t necessary to switch NAV MODE to INS, instead it can be switched directly to OFF from either CVA or GND ALIGN.

Catapult Alignment

The CAT ALIGN mode is used to prevent suspend align when positioned on the catapult and the parking brake has been released. The purpose of the catapult align mode is to provide normal CVA ALIGN as long as possible. When CAT ALIGN is selected, large roll, pitch, speed, and heading changes of the ship can cause the program to automatically switch to INS.

Navigation Fix Update

An error of latitude or longitude in the computer position of the aircraft can be corrected by a navigation fix update. Updating is especially important in the backup modes (AHRS AM and IMU/ AM) because of the estimated winds and magnetic variation changes. A nav fix is done via a ground-reference-point (latitude and longitude) position. The range and bearing of this position to the present aircraft position is used to update or correct existing values. The nav system may be updated by either a radar fix, a TACAN fix, or a visual fix.

Before performing a nav fix, the latitude and longitude of the desired update point (radar, TACAN, or visual) must be stored in one of eight navigation point locations (three WPs, FIX PT, HOME BASE, HOST AREA, DEF PT, and IP). This data can be stored prior to flight by data link or by manual insertion. Then follow these steps:

1. Hook the Waypoint you choose to select for the nav fix.
2. Check the stored latitude and longitude on the TID.
3. Rotate the CATEGORY switch to NAV and select the desired type of update.

Note that updating the position while in INS, and to a lesser degree while in IMU, can introduce a greater navigational position error than already present, in particular if a radar fix is used to update the nav system. Updates with a visual or TACAN fix provide reasonable accuracy (assuming a good MAG VAR during TACAN updates). Updating your nav system via a nav fix should be primarily used in the AHRS mode.

Radar Update

A RDR FIX may be selected before or after positioning the DDD cursors. If the RDR FIX button is depressed, the computer computes the present position of the aircraft by measuring the range and bearing from the selected point. The delta between the computer position and the position determined by the INS is then displayed on the TID. If entry of this delta into the navigation computations is desired, press the FIX ENABLE button. If the delta does not appear to be correct, the computer and the readout can be cleared by pressing the RDR FIX button. The fix may then be attempted again. The RIO should also perform periodic checks of own aircraft system altitude and update the altitude if necessary.

Radar updating is performed as follows:

1. TID CURSOR/CAP - Hook Desired Navigation Point for Update.
2. PULSE SRCH button - Depress.
3. On sensor control panel: STAB switch - IN. EL BARS switch - 1. AZ SCAN switch - As Desired.
4. RDR FIX button - Depress.
5. DDD CURSOR button - Depress.
6. Action switch - Half Action (first detent).
7. Cursor is displayed on DDD.
8. Manipulate hand control DDD cursor over desired ground map point.
9. Action switch - Full Action and Release. (This will cause the DDD cursor to remain at the selected position.)
10. Observe the delta for LAT and LONG on TID.
11. If readouts are unsatisfactory, deselect RDR FIX and repeat steps 4 through 12.
12. FIX ENABLE button - Depress.

💡 To clear the previous hooked DDD cursor position, go to half action and then release prior to initiating full action for the new position hook.

TACAN Update

To perform a nav fix by TACAN, it requires that a pre-stored waypoint shares identical LAT and LONG values with the TACAN station that will be used for the fix. Select the TACAN channel for the desired station and verify by listening to the coded identifier tone in the headset.

Press the TACAN FIX button to update the aircraft position from a TACAN station. The WCS computer then calculates the own aircraft position error based on the range and bearing from the TACAN station. The delta is then entered in the same manner as with a radar fix.

Perform a TACAN fix following these steps:

1. Select a TACAN channel whose latitude and longitude correspond to an update point.
2. Hook the desired update point (WAYPT 1, FIX PT, HOME BASE, etc.).
3. CATEGORY switch - NAV.
4. TACAN FIX button - Depress.
5. Observe the present position delta readout.
6. If delta is unsatisfactory, deselect TACAN FIX and repeat steps 2 through 7.
7. FIX ENABLE button - Depress.

💡 During a TACAN FIX, the MAG VAR must be the same as the TACAN station magnetic variation, or the update will be in error. Given a TACAN station with a range of 100 NM from ownship, a 1°MAG VAR error introduces a 1.74nm error into the ownship’s TACAN update.

Visual Update

To perform a visual fix, fly over a pre-stored waypoint and press the VIS FIX button. Estimate your timing, because the aircraft nose and fuselage can obscure the fix point during overflight. It is also difficult to estimate when directly overhead a waypoint if the aircraft altitude is greater than 10,000 feet. The delta for the visual fix is displayed on the TID. Enter the delta by pressing FIX ENABLE.

To perform a visual fix use the following steps:

1. Hook the desired update point (WAY PT, HB, IP, etc.).
2. Select NAV category on CAP.
3. Overfly the selected pre-stored point and when over the point, depress the VIS FIX button on the cap.
4. If the delta is not satisfactory, press VIS FIX again to clear the delta and repeat from step 1.
5. If a satisfactory delta is displayed, depress the FIX ENABLE button; this causes the delta correction of own-aircraft position to be inserted into the computer.

Data Link Update

To perform a data link update of the aircraft INS to the TDS frame of reference, the aircraft and TDS must share a pre-briefed waypoint, identical in latitude and longitude. Enter this LAT/LONG data into the HOST AREA pseudo target file. The TDS will uplink the common reference point as a data link waypoint. When the aircraft and TDS INS systems agree, the data link waypoint and host area symbols will be superimposed on the TID. If they drift apart, the two pseudo targets on the TID will drift as well.

To perform an update via data link, use the following steps:

1. Hook the data link waypoint corresponding pre-briefed reference point.
2. Select the NAV category on CAP.
3. Overfly the hooked data link waypoint. When immediately over the point, press VIS FIX button on CAP.
4. Observe delta LAT and LONG on TID.
5. If deltas are satisfactory and update is desired, depress FIX ENABLE.

After a data link update, HOST AREA and data link waypoint should be superimposed on the TID again.

Fighter-to-Fighter Navigation Update

Net aircraft that use fighter-to-fighter data link can update their navigation system in the FF/DL mode. To update LAT/LONG hook the net aircraft symbol of an aircraft that is in close proximity and select F/F NAV UPDATE on the CAP. This will enter the hooked aircraft’s coordinates into the INS as own-aircraft coordinates. To update the nav system on an aircraft that is not close, first obtain a radar STT on that aircraft, hook the STT-ed aircraft on the TID and then press F/F NAV UPDATE on the CAP.

💡 By updating to the selected aircraft’s INS, its calibration/drift can potentially introduce a larger error into your own INS. Both aircraft will share the same error though.

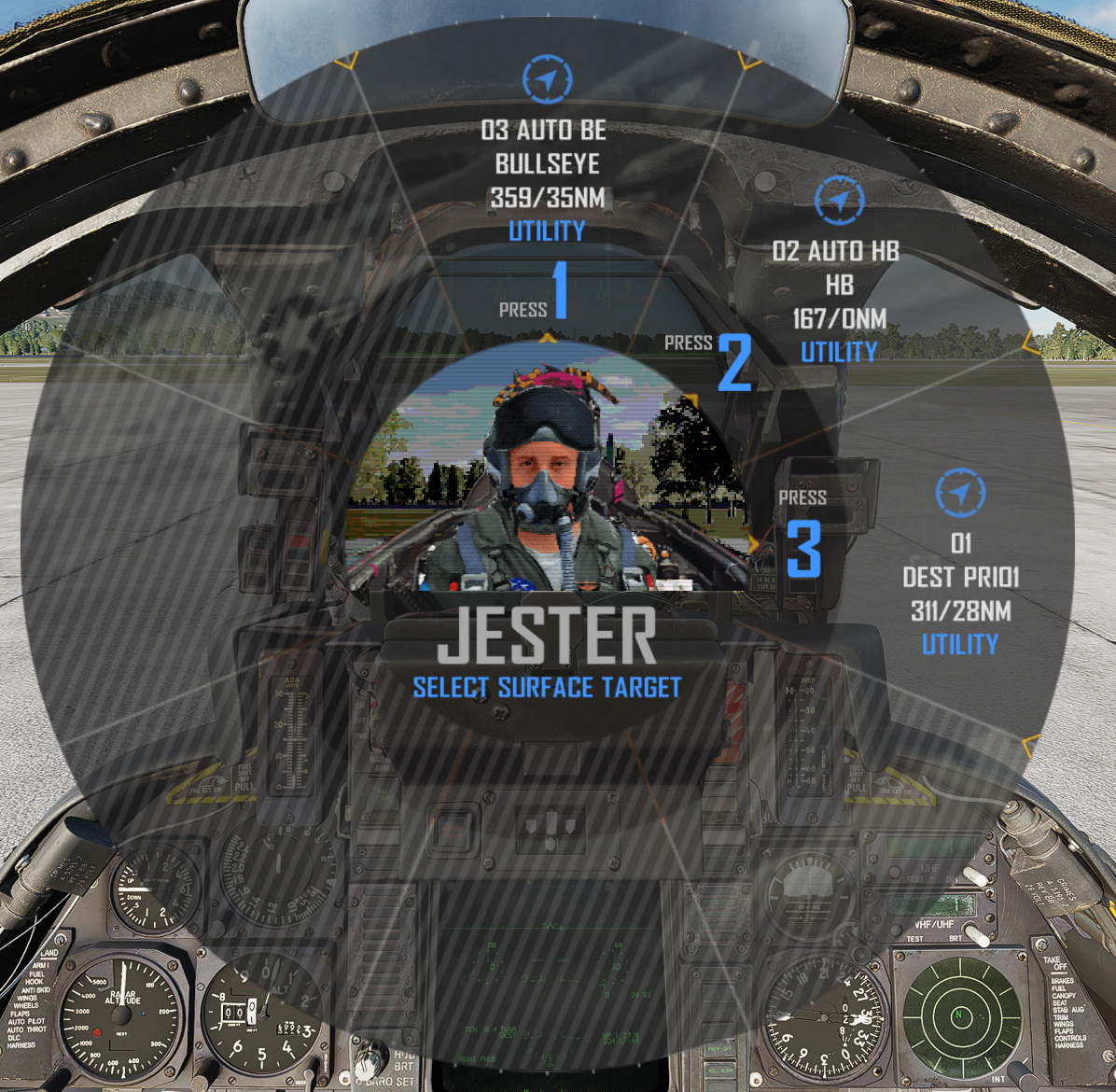

Position Marking

To mark the position of a pulse radar target, a visual target, or a TACAN station to be displayed on the TID, use the SURF TGT position in the TAC DATA category. Once displayed on the TID, latitude, longitude, range, bearing, and steering data are available, using the CAP or the navigation destination control or both.

💡 Do not use the position SURF TGT to update the navigation computer. The surface target position symbol is repositioned with respect to own aircraft instead of own aircraft being updated in reference to the surface target.

To mark a pulse radar target on the TID, follow these steps:

1. Select the SURF TGT button.
2. Establish the location via a radar fix.
3. Select the DDD CURSOR and use the pulse system for radar mapping.
4. Designate the point of interest by placing the cursor over that point.
5. Selecting full action.
6. Select RDR FIX.

This will display a delta from the hooked point to the surface target. Ignore the delta and select FIX ENABLE to position the surface target over the previously identified radar position. A very accurate readout of latitude, longitude, and steering information will become available for the Surface Target Waypoint.

The method for visual targets is the same, but a visual fix is required. You can also mark a TACAN station by using the same method and following the TACAN fix procedures. After completing any of the above procedures, the SURF TGT symbol will be displayed on the TID at the computed latitude and longitude coordinates.

The surface target symbol can also be used as a destination point. If its position has been previously entered, the symbol will appear on the TID. One method for special position marking is to hook any point on the TID and select SURF TGT. The surface target symbol now appears over the hooked point and its new position will be stored in the WCS computer.

Attitude and Heading Reference Set (AHRS)

The AHRS provides backup pitch and roll information to the CSDC and WCS computer, if attitude data from the INS is not available. At any time, the AHRS provides prime magnetic heading to the BDHI for direct analog display and to the CSDC where it is converted to digital information for the VDIG, MDIG, and the WCS. Additionally, the autopilot gets its heading reference from the AHRS.

💡 The only analog cockpit display for magnetic heading is the BDHI. The HUD, VDI, TID, HSD, and multiple display indicator are digital and receive their inputs from the AHRS through the CSDC. Thus. in case of a CSDC failure, the only magnetic heading is displayed on the BDHI.

The main assemblies of the AHRS are a two-gyro platform (vertical and directional displacement gyros), an electronic control amplifier, a compass controller, a magnetic azimuth detector, and an electronic compensator.

In case of an IMU failure, the CSDC automatically selects AHRS attitude information for display and autopilot control. The directional gyro smoothens the flux valve heading signal in the SLAVED mode or provides a direct heading reference in the DG mode. The resulting heading is transmitted to the BDHI, the CSDC, and the WCS.

💡

• In the INS nav mode IMU true heading is used and must be converted to magnetic heading by adding or subtracting the magnetic variation to have a backup magnetic value, if needed. Under normal operation, AHRS magnetic heading is used for all displays.
• The AHRS is unlimited in roll but limited to 82° in pitch. If the pitch attitude exceeds ±82, it will precess. A gradual precession in roll, pitch, and heading can also be expected in sustained turns at slow rates (less than 6° per minute). Large roll and pitch precession errors can be corrected by flying straight and level, without accelerating, and pressing and holding the HDG set button on the compass controller panel. Pressing and holding this button corrects precession errors at a rate of 12° per minute minimum. The HDG set button should be held for at least 3 minutes. Before repeating the 3-minute cycle, it should be released for at least 1 minute.

Compass Controller Panel

Use the compass controller panel to select one of three compass modes when the AHRS is used as a heading reference. For a description, see Compass Control Panel.

When magnetic heading references are unreliable, operate the system in the DG mode. When the magnetic reference is reliable, operate the system in the SLAVED mode. When DG or SLAVED modes are inoperable, the COMP mode can be used for emergencies.

💡 If both the IMU and the AHRS fail, pitch and roll attitude indications from the HUD, TID, and DDD will be removed, and the IMU and AHRS advisory lights illuminate. Select COMP mode on the compass controller panel to possibly restore valid magnetic heading information to the HUD, VDI, and HSD, the AHRS advisory lights will go off. Disregard the invalid pitch and roll attitude information that will be restored to the HUD and VDI.

AHRS Operation

As a compass, the AHRS operates in three modes:

• The directional gyro (DG) mode provides a free-gyro heading reference with Earth-rate correction.
• The SLAVED mode provides a gyro-stabilized magnetic heading
• And the compass (COMP) mode provides an emergency magnetic heading from the compass transmitter only.

If the COMP mode is selected, the AFCS is automatically disengaged to prevent erratic steering commands. The COMP mode cannot provide a sufficiently stable heading signal for AFCS operation and should only be used for emergencies. To erect the AHRS, press and hold the HDG set button on the compass controller (3 minutes on, 1 minute off cycle) until the needle of the synchronous indicator is bracketing the null mark.

If nav mode is set to INS or IMU/AM, attitude displays will continue to indicate properly when the AHRS pitch limit of 82° is exceeded, but all displays of magnetic heading will be in error and the advisory lights may be on or off. If this is encountered, accurate and stable magnetic heading displays on the HUD, VDI, HSD, TID, and multiple display indicator can be regained immediately by inserting the proper MAG VAR via the computer address panel.

TACAN System (AN/ARN-84)

The TACAN system indicates a slant range accurate to within 0.1 NM and a bearing of 0.5° to any surface station selected. Slant range to airborne stations is provided with an air-to-air (A/A) mode. The operating range is approximately 300 NM, if line of sight is given.

The system offers 126 operating channels in each of 2 modes. Receiving frequencies for surface-to-air operation are 962 to 1024 MHz and 1151 to 1213 MHz, for air-to-air operations, the frequencies are from 1025 to 1150 MHz. The TACAN uses two antennas that automatically switch in a 6-second interval until a threshold signal is received. Note that the TACAN can take up to 2 minutes to warm up when turned on for the first time after a cold start.

TACAN Modes

The system is capable of receiving valid signals from a ground station simultaneously with 99 other aircraft in either REC or T/R mode.

In the A/A mode, the system is capable of transponding with each of five cooperating aircraft, indicating slant range information to each, but the system will interrogate and lock on to only one at a time.

Both pilot and RIO share Identical TACAN control panels on the left consoles. Individual TACAN CMD buttons on both the pilot and RIO left consoles provide transfer of TACAN control between pilot and RIO. Control of TACAN is indicated by a flip-flop indicator in each cockpit showing PLT (pilot) or RIO. Either crewman may adjust the audio level of the identification signal. For TACAN panel description see TACAN Control Panel.

TACAN Displays

Bearing and distance to a TACAN station are displayed on the BDHI, the HSD, and the multiple display indicator. Deviation to the TACAN station is displayed on the HUD and VDI (VDIG) and the HSD and multiple display indicator.

The MDIG displays TACAN bearing marker, deviation ticks, range-to-TACAN station, and course. The HUD and VDI display provide a TACAN deviation bar, which is coded, on the HUD: solid line - TO station, dashed line - FROM station and on the VDI: bright bar - TO station, dark bar - FROM station.

TACAN information is also displayed on both the pilot’s and RIO’s identical BDHI. The bearing and distance functions of the BDHI come alive when the TACAN mode select switch is set to T/R. In the REC and T/R modes, magnetic bearings are displayed by the No.2 (large) needle, which unlocks and enters a search mode (spins) whenever bearing information is unreliable.

Range information received in T/R or A/A mode is displayed in nautical miles on the distance counter. An OFF flag covers the counter window if the range information is unreliable or not available. TACAN information is also displayed on the pilot HSD, HUD, and VDI and on the RIO multiple display indicator in other navigation modes.

TACAN Operation

If after approximately 2 minutes warm up time the range and bearing indications continue to search when a reliable station is selected, check circuit breakers should or select another station. The system has a memory feature so that tracking will not be interrupted by momentary disruption of received signals.

A range signal that is lost and has been previously tracked for at least 10 seconds, will be sustained by memory for 9 to 12 seconds. A bearing signal that has been tracked for at least 15 seconds will be retained for 3 to 8 seconds after signal loss. This allows for automatic antenna switching without a loss of TACAN displays.

During the minimum warmup time, failure indications and erroneous readouts should be disregarded and self-test results may be inconclusive.

TACAN BIT

The TACAN system has a built-in test that continuously monitors the TACAN functionality and provides an interruptive self-test. To start a 22-second interruptive self-test, use the momentary button (BIT switch) and monitor the GO (green) and NO-GO (amber) status lights.

💡 A BIT performed on TACAN stations within 2 NM can give an invalid indication. If a TCN acronym or NO-GO response is observed while tuned to a local station, along with normal TACAN azimuth and range, the acronym and/or the NO-GO should be disregarded.

The normal BIT sequence is as follows:

1. Set MODE switch to T/R, allow 2 minutes for warmup.
2. Press and hold BIT button.
3. Both GO and NO-GO lights illuminate (light test).
4. BDHI range OFF flag appears.
5. BDHI bearing needle rotates counterclockwise.
6. Release button; both lights go out (self-test starts).
7. After 5 to 6 seconds, BDHI and HSD range reads 2 NM, BDHI and HSD bearing reads 4° (identify TACAN station).
8. After 22 seconds, if good, green GO light illuminates, if bad, amber NO-GO light illuminates.

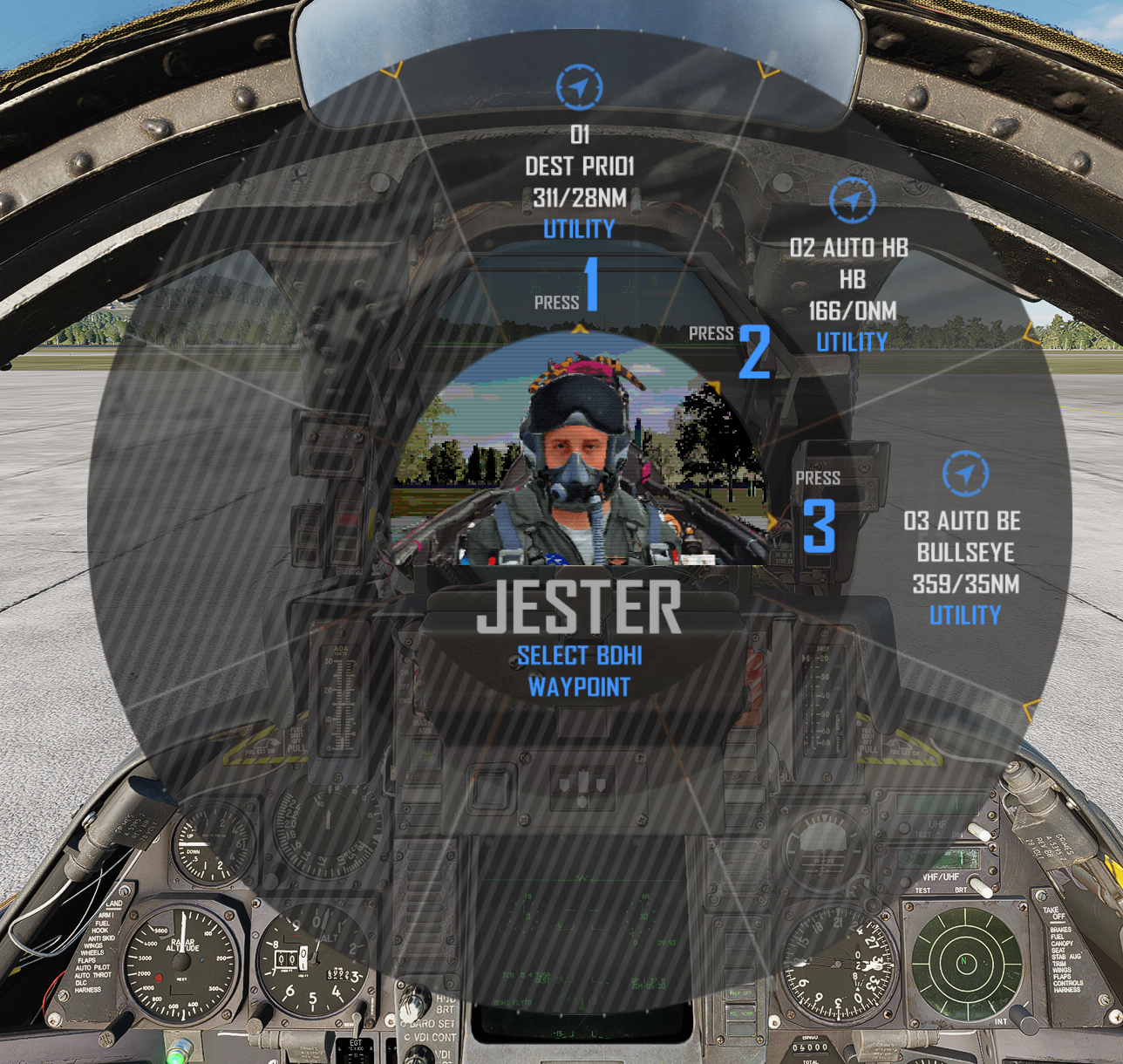

Bearing Distance and Heading Indicator (BDHI)

A BDHI is on the right side of the pilot and RIO instrument panels, see Bearing Distance Heading Indicator (BDHI). It displays aircraft magnetic heading with navigation bearing data and range information. The controls on the compass panel set the BDHI compass card to operate in a slaved or non-slaved (FREE DG) compass mode. A fixed index marker at the 12-o’clock position indicates the magnetic heading.

Two servo-driven bearing needles show magnetic bearings to the selected UHF (ADF) and TACAN stations. The No.1 (single bar) needle receives signals from the UHF (ADF) system, the No.2 (double bar) needle receives signals from the TACAN coupler.

The No.1 needle will continue to point toward the signal source, even if the compass card is misaligned or a malfunction exists, but the bearing to the station is displayed on the indicator as a relative bearing and the top of the indicator bezel will show 000°. The No.2 needle will also continue to show the magnetic bearing to the selected station or may revert to the search mode.

Communications Systems

Antennas

Four VHF/UHF/L-band dual-blade antennas provide omnidirectional coverage for VHF/UHF voice, UHF data link, TACAN, and identification friend or foe/selective identification feature transponder (APX-72) operation. TACAN and VHF/UHF 2 voice communications use one set of antennas; UHF 1 voice communications, the data link, and IFF transponder use another set of antennas. Refer to the general arrangement illustration for antenna locations. The IFF interrogator (APX-76) antenna is an integral part of the AWG-9 WCS antenna.

Each individual system is connected to the appropriate portion of an upper or lower antenna through a coaxial switch and diplexer. The V/UHF 2 ANT switch on the RIO communication TACAN CMD panel must be used to select the upper or lower antenna manually; there is no automatic actuation function in these aircraft. The data link (DIL) antennas are similarly selected manually. Upper or lower antenna is selected by means of ANTENNA switches on the DATA LINK control panel. The UHF 1 voice communication ARC-159 antenna is shared with the DIL antenna system and is always on the opposite antenna from the one selected by the ANTENNA switch.

The upper V/UHF 2/TACAN antenna is the first one aft of the canopy on the turtleback, and the lower antenna is embedded in the bottom of the left ventral fin. Only one antenna is used at a time. Automatic switching between antennas prevents the loss of TACAN information. If a signal is lost or is too weak to hold receiver lockup, the TACAN automatically cycles between the two antennas every 6 seconds seeking a stronger signal.

During this cycling and search period, memory circuits retain range tracking for 8 to 12 seconds and bearing tracking for 8 seconds. The IFF antenna lobing switch is controlled by the IFF ANT switch on the RIO right outboard console. In AUTO, the lobing switch cycles the receiver-transmitter between the upper and lower antenna. In the LWR (lower) position, only the lower antenna is used to receive and transmit signals. The upper antenna pattern has a slight forward tilt; the lower pattern a slight aft tilt.

💡 In real life, it is often necessary to select LWR to improve ground station reception. However, due to the limitations of DCS, antenna switching is not modeled and thus not functional. The use of antennas is automated and/or neglected for the player. All radios and radio functions work through proper keying.

Pilot Volume/TACAN Command Panel

The Volume/TACAN command panel on the pilot left side console has three volume controls for regulating audio signals from the ALR-67, Sidewinder (SW), and V/UHF 2.

RIO Communication/TACAN Command Panel

Allows RIO to select either UHF 1 (AN/ARC-159), V/UHF 2 (AN/ARC-182), or both radios for transmitting.

💡 BOTH is not functional in DCS.

• The V/UHF 2 ANT switch allows the selection of upper or lower antenna to minimize interference between dual UHF or data link operation. Opposite antenna selection, frequency separation greater than 55 MHz, or turning one radio off is recommended. Additionally, the DATA LINK panel provides lower or upper antenna selection for UHF 1 and DIL operation.
• The TACAN CMD push buttons provide for the transfer of TACAN control functions between pilot and RIO. The crewmember (PLT or RIO) in control illuminates when selected.
• The UHF 1 VOL control allows the RIO to adjust the audio level of the ARC 159 UHF 1 radio. The KY MODE switch is operative only when the KY-58 is installed.

💡 The Heatblur F-14 version uses the KY-28 only.

Loading (saving) Preset Channel(s) on UHF 1 and V/UHF 2

1. MODE selection- T/R or T/R&G.
2. Frequency mode control - PRESET.
3. CHAN SEL switch- Select desired channel.
4. Frequency mode control- READ.
5. Frequency select switches - Slew to desired Frequency.
6. Frequency mode control - LOAD (frequency is stored in memory for the selected channel).
7. Frequency mode control- READ, Verify frequency display.
8. Repeat steps 2 through 7 for subsequent channels.

AN/ARC-159 and AN/ARC-182 Remote Displays

Both the pilot and RIO have remote displays for the currently set channel or frequency of the radios. The pilot has remote displays for both UHF 1 and V/UHF 2 and the RIO only for UHF 1.

ICS - Intercommunications System

The ICS provides normal, backup, or emergency communications between crewmembers. It also combines and amplifies audio signals received from other electronic receiving equipment (ECM, Sidewinder tone, IFF/SIF, radar altimeter, and voice radios, etc.). Identical ICS control panels are on the pilot and RIO left side consoles. The ICS consists of four amplifiers, two at each cockpit station, which permit duplex operation during normal operation. If one amplifier fails, it may be bypassed by selecting either the B/U (backup) or EMER (emergency) position on the ICS control panel. This permits continued ICS operation.

💡 If two amplifiers fail at the same station, intercommunication is impossible.

💡 By selecting EMER on the respective ICS control panel and using the other crewmember’s amplifier, you can listen in on audio normally only available at that station (like SW-tone or ALQ-126 PRF) but you lose the ability to control the volume of the audio you listen to.

The external interphone connection is in the nose-wheel well. When the pilot ICS switch is set to HOT MIC, ground personnel can communicate with the cockpit stations. In DCS, this works through selecting the ground crew communication menu in the DCS radio communication menu when activating ICS PTT.

The Pilot Radio ICS button allows for various intercommunication and radio operation modes. When set to ICS, it permits intercommunication when COLD MIC is selected on the function selector, overriding UHF/VHF communications. In the BOTH position, it keys both radios for operation, although this function is not active in DCS. The UHF 1 position keys the ARC-159 radio, and the UHF 2 position keys the ARC-182 radio.

The VOL control is used to control the intercommunication audio level at the specific cockpit station where it is adjusted. The audio levels at other stations remain unaffected by changes to this control.

The Amplifier selector has three positions: B/U (Backup), NORM (Normal), and EMER (Emergency). The B/U position is used to bypass a faulty amplifier, utilizing a backup output amplifier at the current station. The NORM position is for normal operation when all amplifiers are functioning correctly. The EMER position bypasses a faulty amplifier and uses the input amplifier of the other station, though HOT MIC is not available in this mode. It is important to note that with the front cockpit amplifier selector switch in the EMER position, engine stall/overtemperature and Sidewinder tones will not be available to the pilot.

The Function selector has multiple settings to manage radio and intercommunication audio. The RADIO OVERRIDE setting attenuates noncritical radio audio to prioritize intercommunication when urgent. The HOT MIC setting allows for intercommunication without keying, while the COLD MIC setting requires the pilot to actuate the ICS keying switch on the inboard throttle or the RIO to actuate the keying switch on the left footrest for intercommunication.

The RIO’s ICS button located on the left footrest permits intercommunication if COLD MIC is selected on the function selector control, overriding UHF communication. The RIO’s MIC button, found on the right footrest, allows for the transmission of UHF 1 or UHF 2 radios as selected on the communications/TACAN command panel. Note the BOTH function is not active in DCS.

💡 The two RIO foot-pedals have axis bindings in DCS to allow sim rudder pedals to trigger these functions.

TSEC/KY-28 Voice Security Equipment

The security equipment is integrated and operates with the VHF/UHF 2 and UHF 1 communication sets to enable secure voice in a hostile environment. The KY-28 control panel on the RIO left side console is the only cockpit control for operating the KY-28 in either cipher or plain-language modes.

The KY-28 has two basic modes of operation: plain (P) and cipher (C). The plain mode is used during normal UHF communications. The cipher mode is used when secure voice communications are desired. The radio sets must be ON to attain secure operation. The receiving station must be properly equipped to receive transmissions in the proper cipher mode.

KY-28 Operation

Prelaunch

1. Determine that the proper code has been set by personnel qualified in voice security equipment. In DCS and in combination with SRS (Simple Radio) this is done through the ground crew communication menu in the DCS communications menu.
2. VHF/UHF radios - ON.
3. Power mode switch - C.
4. Radio selector - RAD-1 or RAD-2.
5. If a ground test of equipment is desired, establish two-way, plain-text radio communications on the plain-voice radio with a suitable remote station and request an equipment check. (In DCS another player is needed)
6. After a 2-minute warmup period, on the cipher-selected radio listen for a steady, unbroken tone in the headset followed by a double-pitched broken tone.
7. Key the appropriate radio selected for transmission, hold for approximately 2 seconds, and release. The double-pitched broken tone will cease and no sound will be heard.
8. Key radio and hold. A single-beep tone will be heard in approximately 1-1/2 seconds. When this tone is heard, the equipment is ready to cipher transmission.
9. After the beep tone is heard, establish two-way cipher radio communications with a cooperating ground station and check for readability and signal strength.
10. Set power mode and radio selector switches in accordance with the tactical situation.

💡 The above procedures may be used to perform an in-flight check of the equipment.

Postlaunch

The speech security equipment shall be operated as briefed.

💡 If ZEROIZE is pressed during flight, ciphered communication is not possible. The code can only be reset (or changed) through the ground crew communications menu after landing.

After Landing

1. ZEROIZE switch - ZEROIZE (as briefed).
2. Power switch - OFF.

💡 If ZEROIZE has been pressed and the POWER MODE switch is in C, both crewmembers will be warned by a continuing beeping sound.

AN/ARC-159 (UHF 1) Radio

The UHF 1 (ARC-159) radio provides air-to-air and air-to-surface voice communications. Radio frequency range extends from 225.000 to 399.975 MHz. The equipment allows AM mode transmission and reception on any of the 20 preset channels and a guard channel (243.000 MHz). Guard frequency may be monitored simultaneously with any other frequency selected. The ARC-159 has a possible 7,000 frequencies available by manually tuning in 25-kHz steps. The ARC-159 radio is a solid-state, self-contained unit with a minimum RF output of 10 watts. All controls for operation of the radio are on the front panel of the radio. The radio is located on the pilot left console.

💡 The UHF 1 (ARC-159) ADF position is non-functional in the modeled version of the F-14; use the DF mode of V/UHF 2 ARC-182.

💡 UHF communication interference with the D/L may cause the TILT light to illuminate and the autopilot ACL or VEC/PCD mode to disengage. Data link interference with the UHF radios may cause audible chirping at the D/L message reply rate. Although antenna switching is not implemented in DCS, it is still recommended to use a frequency separation greater than 55 MHz, and if necessary along with turning UHF 1 or V/UHF 2 radio OFF to avoid mutual interference between UHF communications.

💡 Transmissions on both UHF 1 and V/UHF 2 radios, while operating on the same frequency, may result in a squeal. This feedback is a normal condition caused by RF interaction between the two radios operating on the same frequency in close proximity to each other.

AN/ARC-182 (V/UHF 2) Radio

The ARC-182 radio provides multi-mode, multichannel, air-to-air/air-to-surface voice and tone communications. The ARC-182 control panel is located on the RIO left console. Frequency range extends in four bands from 30 to 88, 108 to 156, 156 to 174, and 225 to 399.975 MHz on any of 11,960 channels (separated by 25 kHz).

💡 The Have Quick anti-jam function is not implemented in DCS.

Transmission and reception are available in AM or FM bands. The modulation is selected automatically by the radio except in the 225 to 399.975 band (toggle switch). 30 preset channels are available. Guard frequency of each band may be monitored simultaneously with any other frequency selected. The radio is used with the ARA-50 to provide automatic direction finding (ADF) to the transmitting station. The ARC-182 operates with secure-voice equipment (KY-28, the KY-58 is not implemented in DCS). Upper and lower antenna installations provide reliable line-of-sight communications to 200 NM (depending on altitude and atmospheric conditions). A remote indicator on the pilot instrument panel indicates the channel or frequency selected.

AN/ARC-182 BIT (Built-in Test)

BIT isolates faults in AN/ARC-182. BIT should be started if the FREQ/(CHAN) display blanks, indicates an erroneous readout, or the transceiver otherwise malfunctions.

Proceed as follows:

1. MODE selector - TEST.
2. BRT control- As Required.
3. BIT requires approximately 10 seconds, observe FREQ/(CHAN) display.
   • No fault is indicated by 888.888.
   • Faults are indicated by a number that identifies the module or modules at fault.

AN/ARA-50 UHF Automatic Direction Finder

The UHF automatic direction finder is used with the ARC-182 radio. ADF provides relative bearings to transmitting ground stations or other aircraft. It can receive signals on any 1 of 30 preset channels or on any manually set frequency in the 108 to 399.975 MHz range. The system has a line-of-sight range, varying with altitude.

The system requires a 5-minute warmup period. During the warmup time, failure indications should be disregarded. The system uses the AS-909/ARA-48 ADF antenna. Bearing to transmitting stations is displayed on the pilot/RIO BDHI (No. 1 needle), pilot HSD, and RIO multiple display indicator. The ADF signal is interrupted during voice UHF transmissions.

Link 4A & C Data Link

The F-14 Tomcat is equipped with the Link 4 data link system to allow for transmission and reception of target track, waypoint information and steering commands. Link 4 exists in two versions, the first being Link 4A which allows a surface ship or airborne AWACS to control the aircraft and also Link 4C, unique to the F-14, which is a fighter to fighter data link.

The Link 4A or TADIL C data link allows the F-14 to connect to a data link network controlled by a surface ship or an AWACS. The data source (or really its operator) will then provide the F-14 with target tracks, waypoints and control commands. Additionally, it’s also used for the carrier automatic landing system (ACLS).

Link 4C on the other hand allows up to four F-14 Tomcats to interconnect and share target tracks to coordinate their engagements.

The system does not allow an F-14 to use both at the same time as the same transmitter and receiver are used for both A and C links. The Link 4 system itself, operates using the UHF radio band at 5,000 bits per second.

The Link 4 is controlled using the Data Link Control Panel and the Data Link Reply and Antenna Control Panel. Received control signals are displayed on the pilot VDI indicators (Vertical Display Indicator (VDI)) and the RIO DDI panel (Digital Data Indicator (DDI)).

Link 4 Controls

The Data Link Control Panel contains the main Link 4 system power switches and the frequency selection wheels.

The first switch (1) controls the Link 4 built in test and also enables the anti-jam (A-J) function, this control is currently non-functional in DCS and should be set to NORMAL.

The frequency thumbwheels (2) are used to set used data link frequency, note that the first digit (3) is set and displayed as a fixed number before the first wheel. The allowable frequency range is 300.0 MHz to 324.9 MHz.

The third switch (3) controls power and operational mode of the Link 4. ON turns on and enables the Link 4A data link, OFF disables the system and AUX enables the Link 4C data link.

The Data Link Reply and Antenna Control Panel is used to select what antenna to use, own aircraft data link address, whether to transmit and which mode the Link 4A is used in.

The ANTENNA switch (1) sets if the data link uses the upper or lower antenna. As these are the same antennas that the UHF 1 (AN/ARC-159) uses it automatically sets that radio to the other antenna.

The REPLY switch (2) sets whether own aircraft replies to data link messages. NORM allows for normal operation while CANC turns off the transmitter and sets the data link to receive only.

The MODE switch (3) controls whether the Link 4A operates in the normal TAC (Tactical) mode or the CAINS/WAYPT (Carrier Aircraft Inertial Navigation System/Waypoint) mode. The TAC mode is the normal airborne mode while the CAINS/WAYPT mode is used while on the carrier deck to receive preflight waypoints and INS alignment data from the ships INS system. The switch is solenoid held and spring-loaded to the TAC position, if the data link reception is lost or the power lost the switch automatically returns to the TAC mode, forcing an ongoing INS alignment to the backup handset mode. If the aircraft takes off with the switch in the CAINS/WAYPT position the weight on wheels sensor will also release it to TAC.

The two address thumbwheel sets the least significant bits (two lowest numbers) of the aircraft data link address, the rest has to be set by the ground crew.

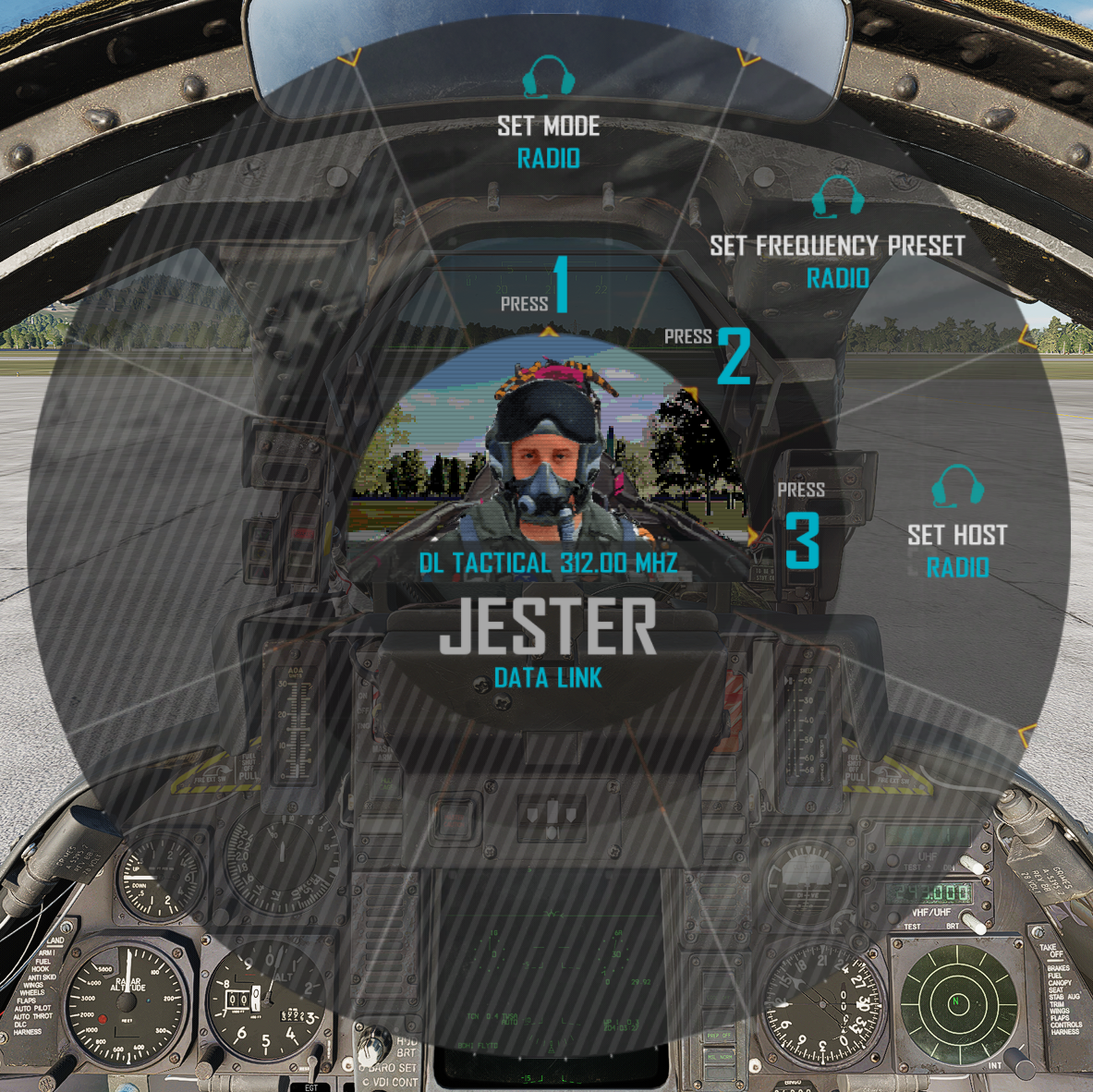

Link 4 in DCS

The Link 4 implementation in the Heatblur DCS F-14 implements both the Link 4A and C versions.

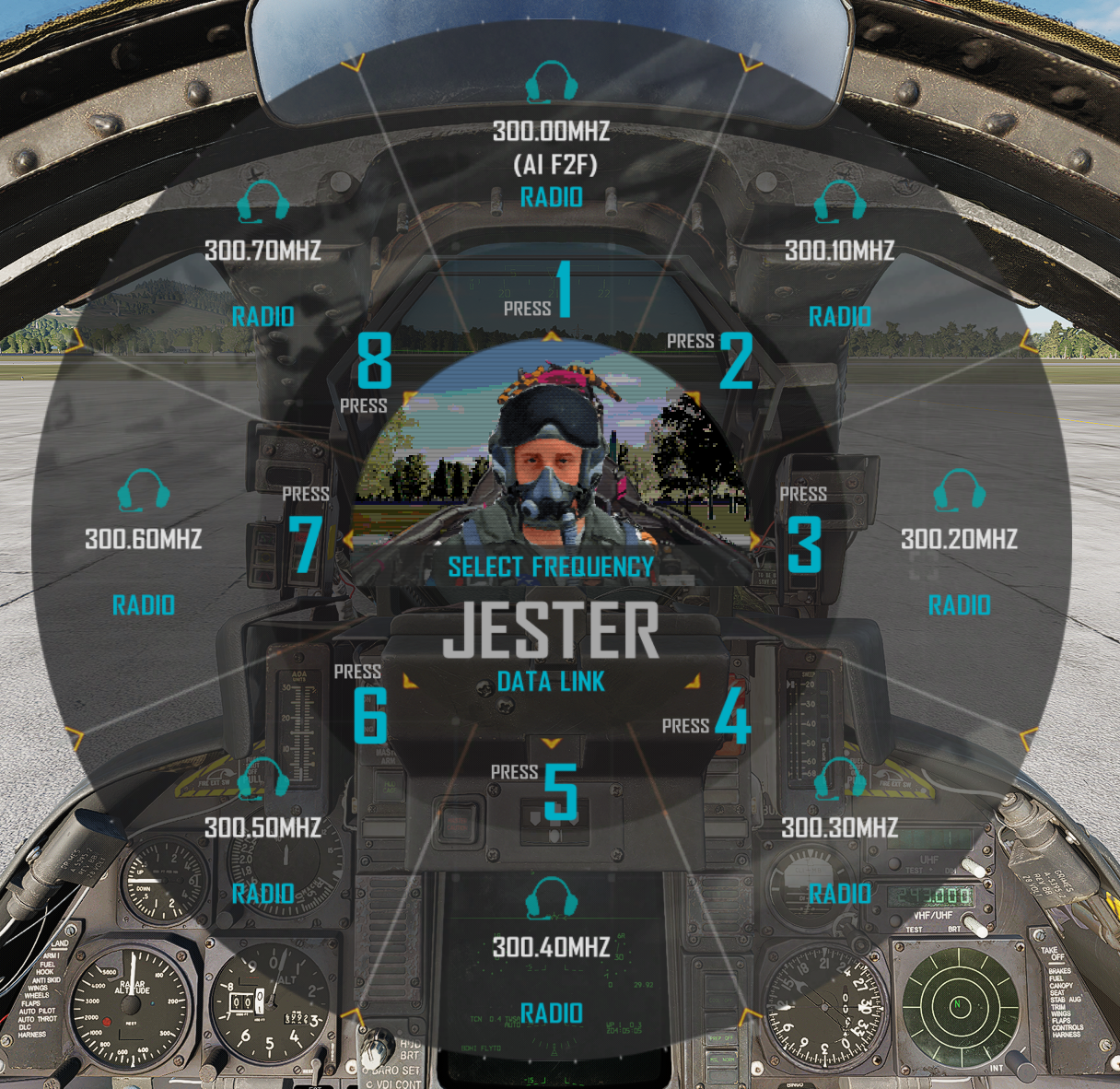

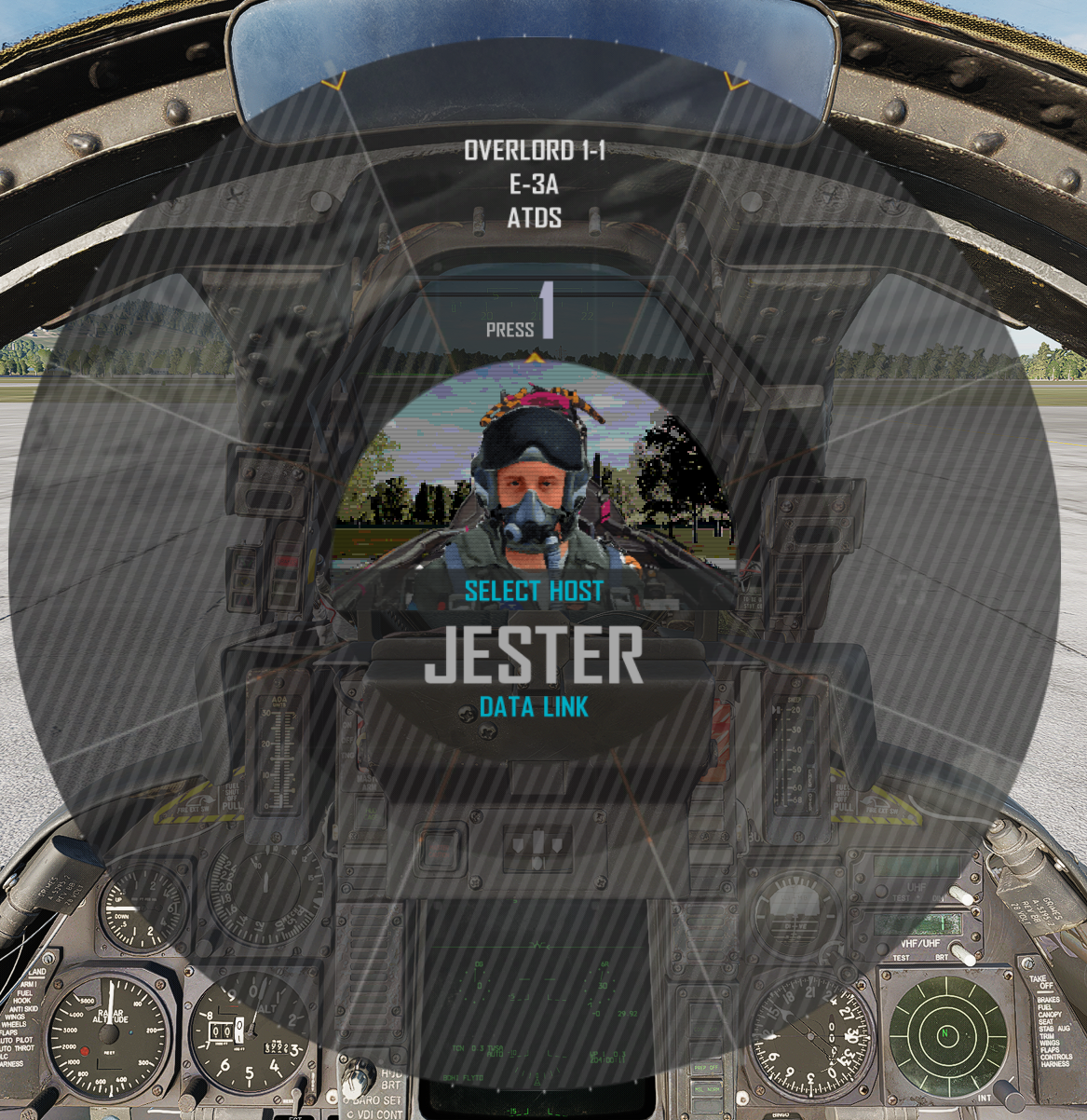

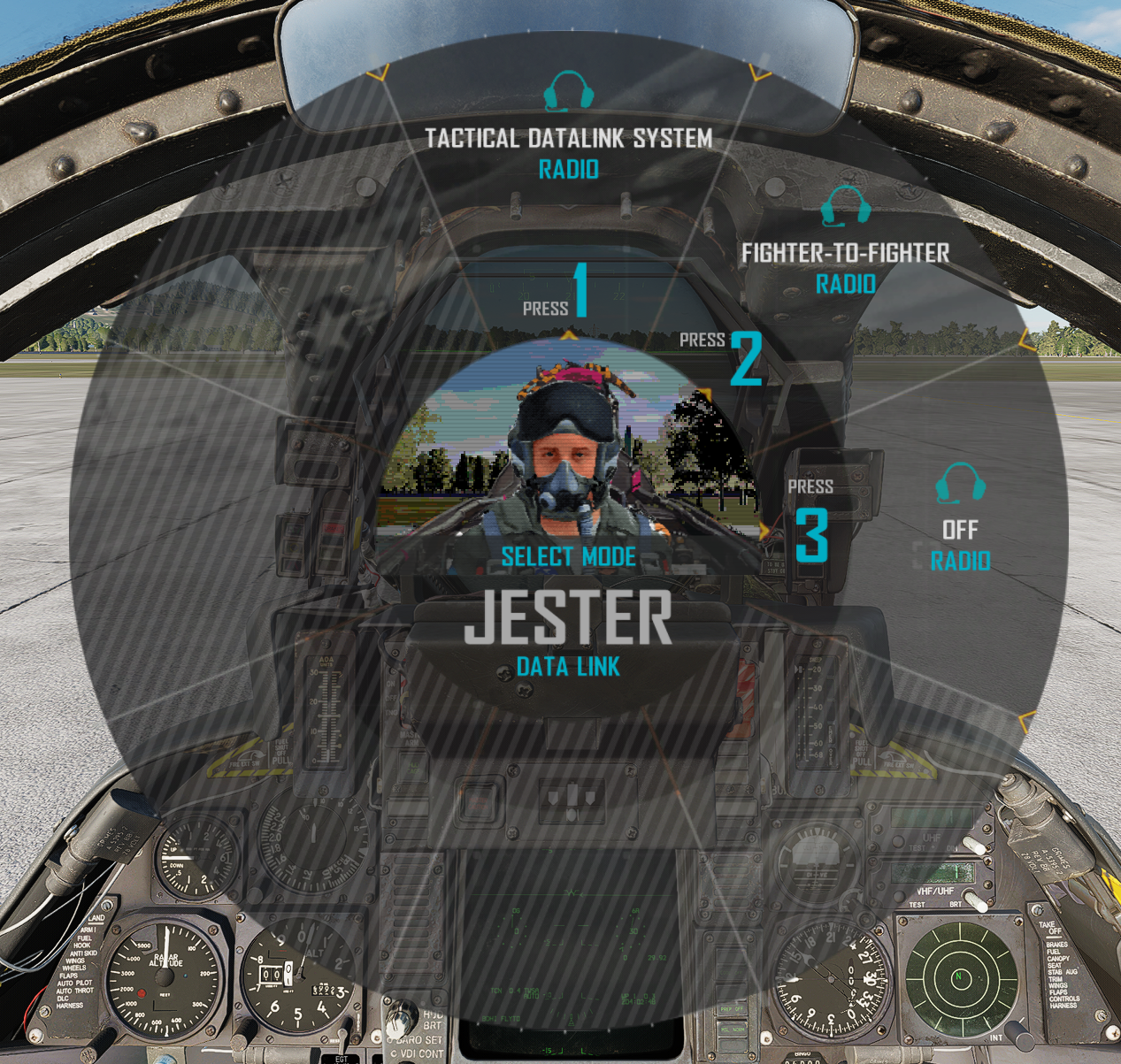

To use Link 4A the data link has to be powered on, set to Link 4A mode (ON) and tuned to the correct data link frequency for the desired host which can be found on the kneeboard. On the ground and set to the CAINS/WAYPT mode the data link will receive the ME set waypoints and allow for CVA alignment if on a carrier. The frequency does not need to be set to use CAINS/WAYPT as that frequency is set with jumpers on the actual equipment by the ground crew.

When set to TAC the data link will then receive the 8 target tracks with the highest priority from the TDS controller. The Link 4A also allows for automatic carrier landings with the data link set to use the carrier as a host.

To use Link 4C the data link should be set to Link 4C (AUX) and be tuned to a frequency agreed upon between participating aircraft. Up to four aircraft can participate within a flight and all four aircraft should have different addresses set. The ground crew sets the two most significant bits of the datalink frequency. This is preset automatically for aircraft in the same flight, or can be change in-mission using the kneeboard.

In Link 4C the participating aircraft shares up to 4 target tracks, selected by the RIO using the CAP as well as own aircraft position. The CAP also allows the RIO to update own aircraft INS position to another aircraft on the link to correlate track transmissions.

Identification Systems

The transponder and interrogator can be controlled by the RIO with a panel on the right console.

AN/APX-72 Transponder System

The transponder automatically responds to challenges from surface or airborne radar sets and serves supplementary purposes such as providing momentary identification of position upon request and transmitting a specially coded response to indicate an emergency.

The system operates by receiving coded interrogation signals and transmitting coded response signals to the source of the challenge, with a proper reply indicating the target is friendly.

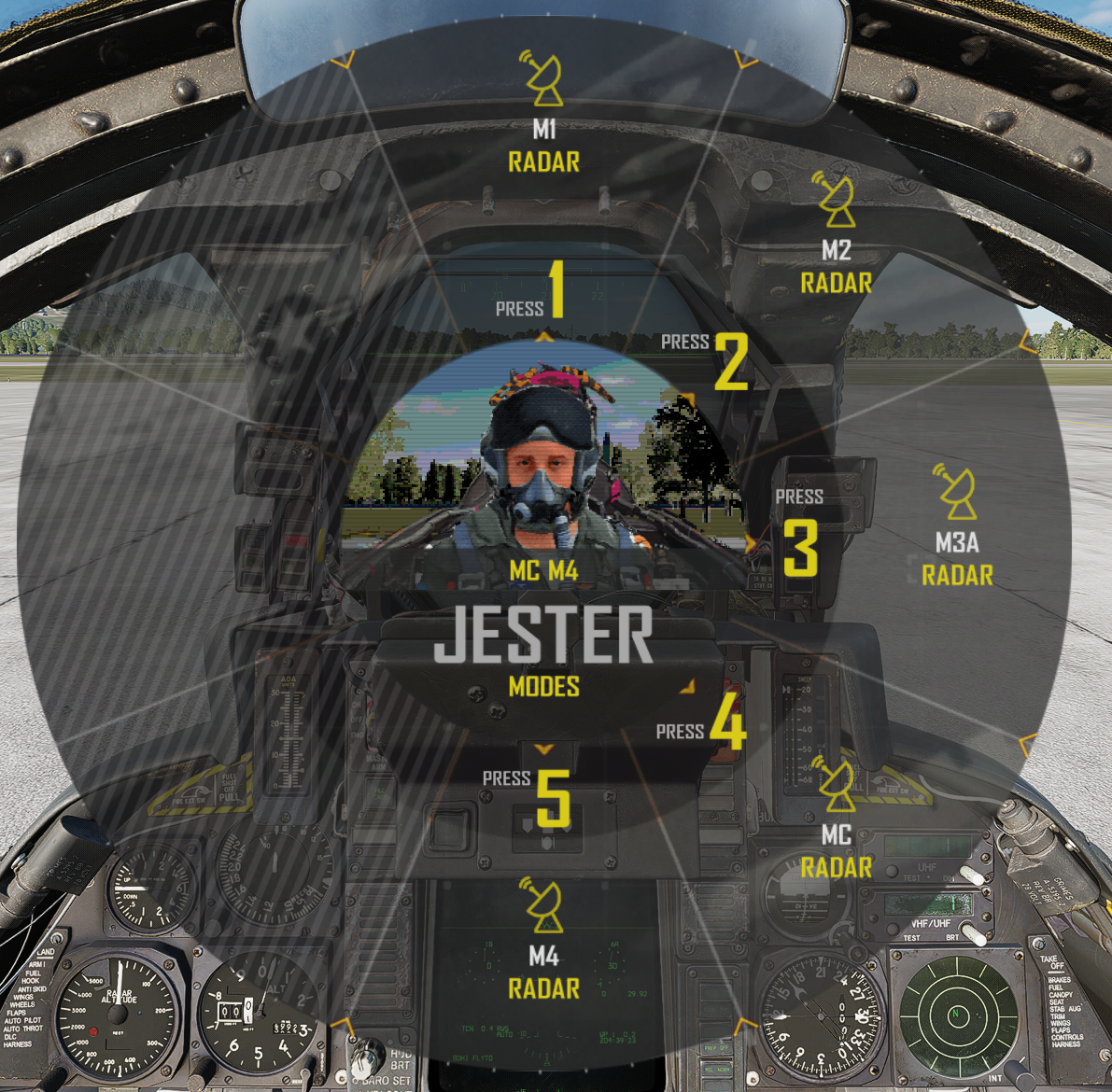

The system features four modes. Mode 1, Mode 2, and Mode 3 are provided for security identification, personal identification, and traffic identification, respectively.

Codes for Modes 1 and 3 can be set in the cockpit, while the code for Mode 2 must be set on the ground, ranging from 0000 to 7777. Mode 1 is limited to two digits 00 to 77.

The codes for Mode 4 are automatically inserted by Ground Crew before flight, the Crew Chief can be asked to insert them on demand as well.

💡 The Tomcat features a full IFF simulation. In DCS this system also works with any other cooperating aircraft, such as the F-4E, M-2000C, F1, JF-17, F-15E, Harrier and more. Other aircraft, or AI-controlled aircraft fall back to coalition based interrogation, assuming the Tomcats transponder to always be enabled and set to the correct M4 code for the current coalition, ignoring the real state of the transponder.

Self Test operation

To self test Modes 2 and 3, place the master switch (1) to NORM and hold the switch for the desired test mode to the upper position. If the test light on the IFF control panel illuminates, this indicates the mode is operating properly.

Mode 1 and Mode C do not have self testing capabilities.

Normal Operation

To operate the IFF system, start by rotating the master switch (1) to STBY. After an approximate 80-second warmup delay, the system receives full power, but interrogations are blocked.

Set the Mode 1, Mode 2, Mode 3, Mode 4, and Mode C switches (6) as directed, along with the Mode 1 and Mode 3 code selector switches (10) and Mode 4 function switch (8). Set the master switch (1) to NORM to make the system ready for operation on the selected modes. If the master switch (1) is rotated from OFF directly to an operating mode, it also has to go through the warmup period first before it is fully operational.

Interrogation of Position

For Interrogation of Position (I/P) switch operation, place the I/P switch (9) in the IDENT position or place it in the MIC position and press the UHF microphone. The IFF system responds with special I/P signals.

Warning Light

If the IFF warning light and MASTER CAUTION light come on momentarily, check the Mode 4 selector switch (8) ON and the master switch (1) NORMAL. Repeated illumination of the MASTER CAUTION light may be stopped only by placing the master switch (1) OFF, resulting in the loss of all IFF capability, or by placing the Mode 4 function switch (8) to ZERO. Before or during flight, if the master switch (1) is placed OFF, the IFF and MASTER CAUTION lights will not illuminate upon interrogation.

Normal IFF operation will be available, after an 80-second warm-up, when the master switch (1) is again placed to NORMAL.

M4 Zero/Hold

The codes for Mode 4 are automatically erased on shutdown, when the IFF system loses power. This can also be commanded by moving the Mode 4 function switch (8) into the ZERO position and holding it there for approximately 5 seconds. Once zeroed, the IFF warning light will illuminate and Mode 4 will not be available during the remainder of the flight.

Codes can be inserted again by the Ground Crew. The HOLD position of the Mode 4 function switch is inoperative on the DSCG variant of the F-4E and was added later for the DMAS only. Holding the switch in that position for 15 seconds will retain the mode 4 codes during the next shutdown, preventing them from automatically getting zeroed.

Emergency Operation

Upon ejection from either cockpit, the IFF emergency operation automatically becomes active.

If the master switch (1) is in the OFF position before ejection, the system will begin operation after an approximate 80-second delay.

In an emergency, rotate the master switch (1) to EMER. The replies for Modes 1 and 2 are special emergency signals of the codes selected on the applicable dials, while Mode 3 replies are special emergency signals of code 7700.

Interrogator System AN/APX-76

The AN/APX-76 IFF (Identification Friend or Foe) interrogator is integrated into the AN/AWG-9 operation. Then interrogator antenna itself is located on the AN/AWG-9 antenna gimbal platform.

An IFF system works by sending out an interrogation pulse and then listening for returns from cooperating transponders. In addition to the unencrypted civilian mode the AN/APX-76 is capable of interrogating in the encrypted military mode 4. This ensures that targets replying to mode 4 interrogations are indeed friendly.

The AN/APX-76 can be used both in search radar modes and in STT radar modes. To enable interrogation the IFF switch is depressed on the Detail Data Display Panel which then activates the interrogator for as long as the button is held up to 10 seconds max.

When enabled IFF received IFF returns are then overlaid on the normal AN/AWG-9 radar returns on the DDD. A friendly target will be indicated with two bars, one above and one below the normal radar return. As the AN/APX-76 is a secondary mode radar (transponder radar) apart from the AWG-9 the IFF can sometimes also detect targets not detected by the AWG-9. In this case the IFF return will not have a radar echo inside it.

In the search mode this is overlaid over each target replying and in STT over the STT target. Additionally, if the STT target is hooked on the TID the DDD will switch from normal range display to a ±10 NM display to enable display of multiple returns in case of closely grouped targets.

• 1. M4 ALARM OVERRIDE switch

  • Switch disabling the mode 4 tone alarm in the RIO headset.

• 2. TEST-CHAL CC switch

  • Switch spring-loaded to center controlling IFF challenge and test.
    • TEST: Momentary actuation, tests the AN/APX-76 by interrogating own transponder. If the same codes are set, two solid lines appear on DDD at 3 and 4 miles.
    • CHAL CC: Momentary actuation starts a 10-second interrogation cycle, only showing returns with the correct mode and code on DDD.

• 3. CODE selector thumbwheels

  • Thumbwheels controlling mode and code used for interrogation. The first wheel sets the mode, and the last four set the code.

• 4. CHAL light

  • Light indicating active interrogation in progress.

• 5. FAULT light

  • Light indicating a fault in the AN/APX-76.

To challenge friendly or civilian aircraft using the AN/APX-76, the RIO sets the interrogation mode on the first roller-display. It can be set to either OFF, or Mode 1, 2, 3, 4/A or 4/B (3).

The other four digits are used to set the IFF code to interrogate for Modes 1 to 3 (3). The code for Mode 4/A and 4/B is set by the ground personal.

Once setup, interrogation can be initiated by either pressing the IFF button on the DDD or moving the Test/Challenge Switch (2) to the CHAL CODE position.

💡 The Test/Challenge switch will only send a challenge via the AN/APX-76 system, while the Challenge Button includes an interrogation by Combat-Tree, if activated.

The radar screen presents the results of the interrogation with lines around the contacts position:

• line above; the aircraft has a matching transponder mode (likely friendly, or at least neutral)
• line below; the aircraft has a matching transponder code (likely friendly)

Each time the AN/APX-76 is sending an interrogation, the challenge light (4) illuminates.

IFF Displays

Display formats for IFF operation are shown below. During IFF interrogation, the radar continues its normal operations. With the radar in a pulse mode (search, track, or acquisitions), the IFF returns are mixed with the radar video and appropriate pulse radar display formats are displayed on the DDD. The IFF range scale is defined by the radar range scale. If the RIO commands an IFF interrogation during any pulse Doppler single target track or pulse single target track mode (PDSTT or PSTT) or when a target is designated (hooked) on the TID, an expanded IFF range display is generated on the DDD. The nominal target range is displayed at the vertical center of the DDD. The range scale is indicated on the range scale indicator at ±10 and it cannot be changed. The azimuth of the current radar mode is retained in the expanded IFF format. By unhooking the single-target track, normal range vs. azimuth is displayed along with the IFF display.

With the radar operating in the pulse Doppler mode, the DDD presentation is switched to a B-scan format. In this format, the pulse Doppler antenna scan pattern is retained but IFF range sweeps are displayed. A computer-generated symbol representing actual target range is displayed along with the IFF video on the DDD. The IFF scale is indicated on the range indicator. It may be changed by pressing the range-select pushbutton. In the pulse-Doppler, STT mode, the attack symbols are retained and the IFF sweep is displayed at the azimuth of the AWG-9 tracking antenna.

When a target is detected, the RIO must tell the computer whether the target is friend or foe. The APX-76 cannot perform this function. It can only determine if IFF is being utilized by the target.

DDD TWS positive IFF response

(1) Transponder Mode detected.

(2) Transponder Code detected.

(3) DDD Radar Range Gate.

(4) AGC Trace.

DDD STT positive IFF response

(1) STT target azimuth indicator.

(2) STT track with IFF bars. Two bars are shown positive transponder mode and code detected.

Hydraulics

The F-14 has two separate hydraulic systems, the flight hydraulic system and the combined hydraulic system.

Both systems are driven by hydraulic pumps connected to each engine, the flight hydraulic system from the right engine and the combined hydraulic system from the left engine. Both systems are pressurized to around 3,000 psi when operating normally.

Flight control surfaces are supplied by both systems while the combined system also supplies pressure to secondary systems such as the flaps, landing gear and the refueling probe. This is so that both systems can drive the control surfaces independently from each other in case of a failure in the other.

Additionally, the hydraulic systems related to systems not necessary while airborne can be isolated by a switch next to the landing gear handle. This is so that damage to those systems won’t affect the combined system pressure and cause fluid loss. The systems that can be isolated are the landing gear, wheel brakes, anti-skid and nosewheel steering. This switch is mechanically locked to not isolating these systems by the landing gear handle when it’s in the down position.

If only one of the hydraulic pumps fail it’s possible to pressurize that system from the other pump via the hydraulic transfer pump. This pump is an omni-directional hydraulically driven pump that can supply either system from the other and will maintain a pressure between 2,400 and 2,600 psi if the driving system is at around 3,000 psi. If one system pressure falls below 500 psi the pump will be secured to prevent pump damage and preserve pressure in the working system. The pump can also be manually disengaged by the pilot.

In case of failure of both hydraulic pumps the flight hydraulic system can be driven by an electrical pump, called the emergency flight hydraulic pump. This pump is capable of independently driving the tail control surfaces, enabling the aircraft to return home and land even without pressure in either main hydraulic system. The electric pump is automatically enabled if both main systems drop below 2,100 psi and shut off if either reaches 2,400 psi again. The automatic pump activation activates the system in the low mode but it can also manually be selected to either low or high operation. The control surfaces will have a reduced deflection rate if driven by this pump, more so in low than high.

There is also a hand driven hydraulic pump that can be used to pressurize the refueling probe and wheel brake accumulator if there’s otherwise no pressure in the combined system. This is mainly for un-powered ground operation but can be used as a backup in the air.

Controls and Indicators

The HYD PRESS, hydraulic pressure indicator, contains two gauges indicating COMB, combined, and FLT, flight system hydraulic pressure in thousands of psi. The scales have markings for the nominal 3,000 psi pressure when the pumps are operating normally.

Below the gauges are flags indicating hydraulic pressure availability to the spoilers SPOIL and the operation of the EMER FLT, emergency flight hydraulic pump. The HI flag indicates on if the emergency flight hydraulic pump is operating in high and the LOW if it’s operating in low.

The BRAKE PRESSURE gauge shows available pressure in the brake accumulators. PARK indicating parking brake pressure and the AUX indicating wheel brake pressure. The green area represents a pressure from about 2,150 psi to 3,000 psi and the red a pressure below that.

The HYD TRANSFER PUMP, hydraulic transfer pump switch is located on its own panel on the pilot’s right side console. The switch allows for manual shut-off of the pump (SHUTOFF) but is normally in the NORMAL position allowing the pump to activate automatically if either hydraulic pump fails. The switch is guarded to the NORMAL position.

The emergency flight hydraulic pump is controlled by a guarded switch on the Master Test Panel. The guarded position, (AUTO)LOW allows the pump to automatically activate as detailed above and the two other positions, HIGH and LOW can manually activate those modes when the guard is up.

On the Caution - Advisory Indicator the only relevant caution light is the HYD PRESS light indicating that either main hydraulic system pressure is below 2,100 psi. It turns off when both systems are again above 2,400 psi.

Environmental Control System

The ECS or environmental control system controls and supplies temperature- and pressure-regulated air to cockpit systems and cooling for electronic equipment and weapons.

The air used is sourced from the engines, one or both, or if needed from the emergency ram air door on the fuselage inboard of the right glove.

Systems using ECS air in the cockpit are cockpit pressurization and canopy seals, anti-g suit inflation, aircrew suit ventilation, seat cushion ventilation and windshield anti-ice and defogging.

Other systems using ECS air outside of the cockpit are pressurization of external drop tanks, wing airbag seals, electronics cooling and cooling of the AN/AWG-9 radar and AIM-54 missiles via an air/liquid heat exchanger.

Air Source and Cockpit Air Controls

Air source for the ECS is set using the controls on the Air Conditioning Control Panel.

The L ENG set air source to left engine, R ENG to right engine and BOTH to both engines which is also the normal position while in use.

RAM and OFF both enable the emergency ram door but OFF turns off pressurization and heating.

During normal operation temperature in the cockpit is controlled using the TEMP switch and thumbwheel on that same panel. The thumbwheel sets the temperature which is automatic regardless of airspeed and altitude if the TEMP switch is set to AUTO. If that switch is set to MAN, manual, it will vary depending on airspeed and altitude.

The CABIN PRESS switch controls the cockpit safety valve, controlling whether the cockpit is pressurized or not. If set to NORM cockpit pressure is at 8,000 feet up to 23,000 feet and after that 5 psi higher than the atmosphere outside. DUMP depressurizes the cockpit by opening the cockpit safety valve.

The RAM AIR switch is used to modulate cockpit air supply temperature when the ram air door is in use by opening and closing the emergency ram air door. This is as in this mode that air is mixed directly with hot bleed air from the engines. INCR, increase, opens the ram door, decreasing temperature and DECR closes the door and increases temperature. spring-loaded to center.

💡 Selection of RAM or OFF inhibits gun firing.

Current cabin air pressure altitude can be seen on the Cabin Pressure Altimeter in front of the pilot control stick.

The CABIN PRESS caution light is present on the RIO Caution-Advisory Panel, indicating less than 5 psi absolute pressure or above 27,000 feet cockpit pressure. On the same panel is also the COOLING AIR advisory light which indicates overheat in the electronics cooling system, indicative of a failure in the ECS which might damage the electronics.

The anti-g suit pressurization can be tested via the G-valve Button for the pilot and G-Valve Button for the RIO. The airflow through the suit, or seats if no suits are worn, are controlled by the VENT AIRFLOW thumbwheel on the pilot Oxygen-Vent Airflow Control Panel and RIO Oxygen-Vent Airflow Control Panel respectively.

Windshield Anti-Ice and Defogging

Windshield anti-ice and defogging is controlled via the External Environmental Control Panel and Canopy Defog/Cabin Air Lever.

The WSHLD, windshield, switch on the external environment panel provides hot bleed air on the outside of the windshield to clear ice and rain on the glass. AIR enables airflow over windshield, OFF disables it.

The Canopy Defog/Cabin Air Lever (for pilot) and Canopy Defog/Cabin Air Lever (for RIO) sets amount of air through the canopy air diffusers to be used to defog the canopy. Lever set fully to CANOPY DEFOG selects all cockpit air to be through the canopy diffusers while lever fully at CABIN AIR redirects 30% through the canopy diffusers and the rest to the cockpit diffusers.

The WSHLD HOT advisory light on the pilot Caution - Advisory Indicator illuminates when the windshield is warmer than 300° F (149° C). This automatically closes the valve and stops warm air to the windshield until cooled down.

AN/AWG-9 and AIM-54 Cooling

The AN/AWG-9 radar and AIM-54 missiles are liquid cooled via independent liquid/air heat exchangers cooled by ECS air.

The Liquid Cooling Control Panel controls these cooling systems and should be set to AWG-9 to enable only the AN/AWG-9 cooler if no AIM-54 Phoenix missiles are carried. If AIM-54 missiles are loaded AWG-9/AIM-54 should instead be set to enable both systems. OFF turns off both systems and should not be set with systems in use as they will overheat.

The RIO Caution-Advisory Panel contains advisory lights for these systems. The AWG-9 COND advisory light indicates overheat in the AN/AWG-9 cooling system, continuing use of the AN/AWG-9 might damage it. The MSL COND advisory light indicates overheat in the AIM-54 cooling system or operation of the WCS with AIM-54s loaded and liquid cooling switch not set to AWG-9/AIM-54.

External ECS Air Supply

For operation of systems requiring cooling on the ground or on deck it’s possible to connect an external ECS air source to cool them.

The normally used source isn’t able to provide cooling for all systems at the same time though and thus what is to be cooled needs to be set. This is controlled by the GND CLG switch on the IFF Antenna Control/Test Panel panel at the RIO right side console. OBC/CABIN provides the external ECS air to the cabin and all air cooled electronics. This setting disables the AN/AWG-9 transmitter due to inadequate cooling. AWG-9/AIM-54 provides the external ECS air to the AN/AWG-9 and AIM-54 heat exchangers and to related electronics. OFF turns off external ECS air supply and is the normal mode used when the engines are running.

💡 Any setting on the GND CLG other than OFF should not be used when the engines are running.

💡 For the Heatblur F-14 in DCS the external ECS air supply is connected via the same command as the engine starter air.

Utility

Audio Warning Signals

Audio warning signals from the weapon system are available to either or both crewmen through the ICS. Each signal has a distinct tone. A visual display accompanies most audio signals so that the flight crew can expect the tone and interpret its meaning. Most audio signals may be attenuated or turned off if not required, allowing the flight crew to concentrate on more critical tones.

Critical warning tones cannot be attenuated by any mode of ICS operation. The table below provides a glossary of audio warning signals available within the aircraft weapon systems. Approximately 1 minute of warmup is required to achieve normal operating temperature.

Oxygen System

The F-14 carries one or two 10-liter liquid oxygen bottles providing oxygen to the crew when needed.

The oxygen supply is controlled on the pilot Oxygen-Vent Airflow Control Panel and RIO Oxygen-Vent Airflow Control Panel respectively. Both panels contain an OXYGEN switch that sets oxygen supply to ON or OFF.

Liquid oxygen remaining is shown on the Liquid Oxygen Quantity Indicator on the pilot’s right side console. The gauge shows remaining liters of liquid oxygen up to 20 liters (if two bottles are installed). The indicator is electrically driven and if it receives no power an OFF flag will be visible and it will display 0 liters remaining.

Additionally the RIO Caution-Advisory Panel has the OXY LOW caution light which illuminates when the liquid oxygen quantity is below 2 liters.

During the INST test on the MTPanel the liquid oxygen meter shows 2 liters and the OXY LOW caution light illuminates.

Canopy

The rear-hinged F-14 canopy is operated hydraulically and pneumatically. Controls are present in both the pilot and RIO cockpits.

See Canopy Control Handle or Canopy Control Handle for the controls.

The CANOPY caution light on both the Pilot Caution - Advisory Indicator and the RIO Caution-Advisory Panel illuminates if the canopy is not in the down and locked, secured position.

Electrical Power System

All main electrical power in the F-14 is generated from the two engine driven AC generators. The generators connected to the gearboxes on the engines are each capable of generating enough power to individually drive all aircraft systems.

As for DC power generation the F-14 has two transformer-rectifiers supplying 28 V DC, and again each one is individually capable of driving all aircraft DC appliances.

The F-14 has an external power receptacle for AC power just aft of the nosegear, capable of driving aircraft AC and DC (through the transformer-rectifiers). External power is automatically disconnected from the aircraft power system when one of the internal generators come online.

Emergency Power

The F-14 has an emergency generator driven by the combined hydraulic system generating a limited supply of AC and DC power. If the system loses main power the emergency generator takes over supply of flight critical systems within 1 second.

Controls and Indicators

The controls for the electrical systems are located on the master generator control panel.

The MASTER GEN (1) switches control connection of the main generators to the electrical buses. The NORM position on the switches connect the individual generators to the buses. The OFF/RESET position disconnects the generator and also resets any protection circuits that might have cut in because of the power supply being outside normal limits. The TEST position starts the generator but do not connect it to the electrical buses making it possible to test the generator without affecting other aircraft systems. The switch is locked to the on position and needs to be lifted to move it to the OFF/RESET position from NORM.

The EMERG (2) switch controls the emergency generator. In the NORM position the emergency generator is automatically connected to the essential buses if the main generators fail. The OFF/RESET position deactivates the emergency generator and also resets the associated protection circuits if tripped. The switch is guarded to the NORM position and that guard needs to be opened to move the switch to OFF/RESET.

Associated caution and advisory lights are located on the pilot Caution - Advisory Indicator. The L GEN and R GEN lights, when illuminated, indicate that the respective generator is not functioning correctly. Either because of a fault or because the engine driving the generator not running.

The TRANS/RECT advisory light indicates that only one or none of the transformer-rectifiers are functioning.

The emergency generator can be tested by selection of EMERG GEN on the MASTER TEST switch on the Master Test Panel. Completion of the test is indicated by the GO light illuminating. In case of a fault the NO GO light illuminates.

Circuit Breakers

The circuit breakers in the F-14 are located on the pilot’s right and left knee panels and behind the RIO’s seat on his left and right sides. The breakers protect aircraft systems from over-current by popping out and isolating the system drawing too much current. This is indicated by a white line becoming visible on the breaker as it pops out. The breaker can be reset by pushing it in and it can also be pulled out manually.

These breakers will be detailed here when implemented in DCS.

Lighting System

The F-14 Tomcat lighting system consists of the internal and the external lights.

The internal lights are the red instrument panel and console lights, red and white floodlights and a moveable utility light at both crew stations.

The external lights are the position lights, the anti-collision lights, the formation lights, the taxi light, the approach lights and the refueling probe light.

Internal Lighting

The red instrument panel and console lights are the normally used lights during nighttime, they back-light all instruments and controls allowing their use while impacting night vision minimally.

The floodlights allow for additional lighting of the cockpit panels but care should be taken to avoid affecting night vision.

The utility lights are movable and can be used to illuminate a specific spot and as a map or reading light.

Controls for the internal lights are on the Master Light Control Panel in pilot cockpit and Interior Light Control Panel in the RIO cockpit, each controlling their own cockpit lighting.

💡 The utility light function is not modeled in DCS, but the flashlight function, default keybind LAlt + L, which moves with the cursor, can be used, providing a similar function.

External Lighting

The position lights on the F-14 are located on the left wing tip (red), right wing tip (green), top aft of left vertical stabilizer (white) and upper and lower lights on the wing gloves on each side (red on left glove and green on right). The glove lights are additional lights supplementing the wing tip lights. When the wings are swept forward of 25° the wing tip lights are active and when aft of 25° the glove lights are active instead.

With the gear down, wings forward of 25° and the position lights in steady mode both the glove and wingtip position lights are lit. When the anti-collision lights are on the the position lights can only operate in the steady mode, otherwise they can be set to flash.

The anti-collision lights are located on the chin pod or TCS pod, top front of the left vertical stabilizer and top aft of the right vertical stabilizer. The anti-collision lights are all red flashing lights. The chin pod mounted lower light only operates while the nosegear wheel door is closed.

The formation lights are dim green lights used for formation flight which can be dimmed gradually. They are located on the aircraft nose (behind the radome), the wing tips, on the fuselage aft of the wings and on the top edge of the vertical stabilizers. All are duplicated on both sides of the aircraft.

The taxi light is a fixed headlight located on the nosewheel strut. It’s automatically turned off with gear retraction if set to on.

The approach lights are also located on the nosewheel strut and replicate the AoA indexer for the LSOs during carrier traps.

The refueling probe light is used to illuminate the refueling probe and is automatically enabled with probe extension.

All external light controls are located on the Master Light Control Panel except for the exterior lights switch on the left throttle (see Throttle) which disables or enables all external lights apart from the approach lights.

AN/AWG-9 Radar

The AN/AWG-9 radar in the F-14 is an all-weather, multi-mode pulse doppler radar using the X-band (X-band being 8-12 GHz). It was designed specifically to be a long range radar system capable of guiding up to 6 AIM-54 Phoenix missiles using its track while scan mode. One originally envisioned scenario was its use as a long range fleet defender intercepting russian bombers and attack aircraft threatening the fleet. During the F-14’s later service life this mission transitioned more towards the anti-fighter side, a mission for which it was very well adapted.

Radar Interface

The AN/AWG-9 weapons control system (WCS) is an integrated system containing the F-14’s main sensors and computer providing detection, tracking, and engagement of targets in the air-to-air and air-to-ground roles.

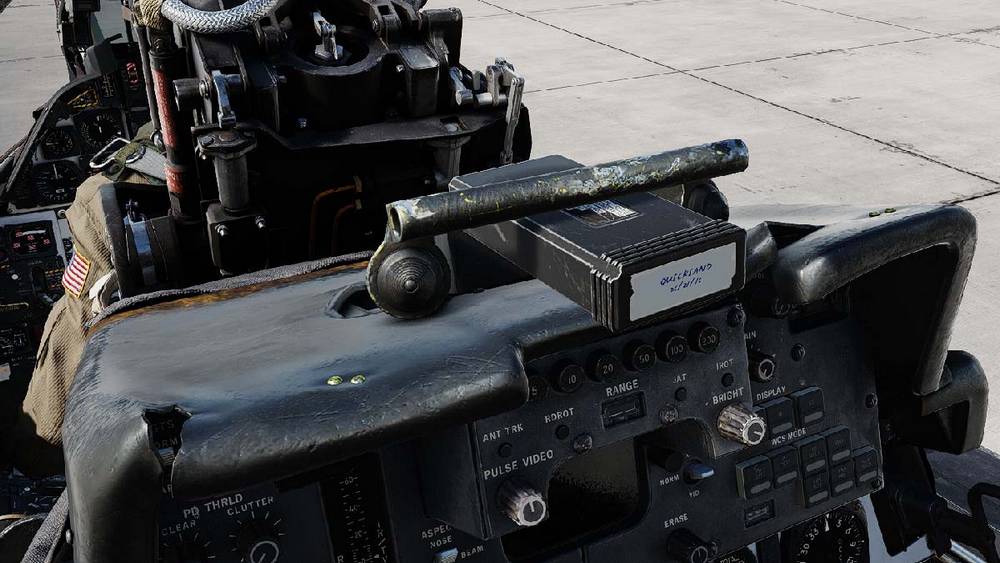

Detail Data Display (DDD) and Panel

The DDD is the main control panel and display for the radar part of the AN/AWG-9 system. It contains all the controls for the radar except the scan volume and stabilization controls which are on the sensor control panel.

TGTS, MLC, AGC and PARAMP Switches

The upper left part of the DDD panel contains four switches (1-4) controlling amplification, main-lobe clutter (MLC) suppression and target size parameters.

The TGTS (targets) switch selects expected target size which is used by the WCS to calculate missile launch zones and set parameters for target tracking in the radar. It also sets the range at which the missile ATC is sent, SMALL being 6NM, NORM 10NM and LARGE 13NM. The selected position of this switch might negatively affect target tracking and engagement if set incorrectly.

The MLC switch controls how the system suppresses the MLC in the radar system while in pulse doppler mode. The OUT position disables the system while the IN position enables it. The AUTO position automatically enables the MLC filter if the antenna look-up angle is less than 3°.

The AGC switch controls the automatic gain control and is used in the pulse doppler modes to allow control of the time constant used for the AGC. Normally (NORM position) the AGC uses a longer time constant to calculate a mean value used for amplification. If the radar is operating in a jammed environment or heavy clutter is present the AGC can be set to use a faster time constant to mitigate these factors but this setting can also make the radar less sensitive to real targets.

The PARAMP, parametric amplifier switch allows for manual control of the parametric amplifier which is used to amplify weaker targets in all radar modes. Normally the WCS controls when to use the PARAMP depending on range but if tracking an unusually strong target it can be used to disable PARAMP to lessen the effect from background noise. If set to off manually it lessens the detection range by approximately 35%.

💡 AGC and PARAMP switches are currently not implemented.

AWG-9 Range Selection and Tracking Indication

In the upper central part of the DDD panel are located the controls and indicators for setting the radar range in the search modes. Below these are also present the indicators for radar tracking while in the single target track (STT) modes.

The six round buttons (8), which are labelled 5, 10, 20, 50, 100 and 200, are used to set desired radar range in pulse modes and IFF range, they also set the scale on the pilot target range displays. The buttons are mutually exclusive as only one range can be selected at a time. In pulse search this setting affects the PRF of the radar and the scale on the DDD and if set to 20nm or greater range it also enables pulse compression.

The range display drum (7) indicates currently displayed scale on the DDD for the pulse modes and is blank when using pulse-doppler. It can also show ±10 for when using the IFF interrogator in the STT modes.

Below these are the four radar track indicator lights which are used to indicate how the radar tracks the target in STT.

• ANT TRK: Indicates the radar is tracking the target angle (azimuth and elevation).
• RDROT: Indicates the target is in the range or rate gate.
• JAT: Indicates the antenna is tracking a jamming source’s angle.
• IROT: Indicates target angle tracking via TCS.

IR AUDIO Controls

The IR AUDIO controls (10-12) in the upper right part of the DDD panel were used with the original IR-sensor and are non-functional in modelled F-14 versions.

Radar and Missile Frequency Selectors

The thumbwheels in the upper rightmost part of the DDD panel are used to control the AN/AWG-9 radar emitter’s frequency (13) and the missile control channel used with the AIM-7 and AIM-54 (14). Adjustment of these might be needed to avoid interference from other AN/AWG-9 equipped aircraft or other external sources. The WCS reads the missile channel for the AIM-7 as the missiles are prepared as they need to be tuned and changing the channel after this will not affect a change unless the preparation sequence is restarted.

💡 Non-functional in DCS currently.

Radar Mode Selectors

In the lower right part of the DDD panel are located the controls for display mode and radar mode and its indicator drum. The display mode buttons (15) selects what mode is currently selected for display on the DDD. The RDR, radar, mode is the normally selected mode. The IR mode is non-functional as the IR system is not installed. The IFF button enables the IFF interrogator in one of its two operational modes, for more detail see the IFF section in the General design and systems overview chapter.

The radar mode buttons (16) selects the operational mode of the AN/AWG-9 radar. The two STT buttons, pulse-doppler single target track (PD STT) and pulse single target track (P STT), enables selection of an STT mode if available and relevant. These are used to automatically attempt an STT lockon onto a hooked TID target or to transfer between these two STT modes. The pulse doppler search button (PD SRCH) selects the PD SEARCH mode of the radar. The range-while-search button (RWS) selects the RWS mode of the radar. The two track-while-scan buttons (TWS AUTO and TWS MAN) selects their respective TWS modes for use in the radar. The pulse search button (PULSE SRCH) selects the pulse search mode of the radar.

The indicator drum (17) shows currently selected radar mode. Apart from TWS MAN, TWS AUTO, RWS which refers to their respective modes it can also show MRL (manual rapid lockon), A-G (air-to-ground), VSL (vertical scan lockon), OPTTRK (TCS track), PLM (pilot lockon mode), PULSE (for both pulse search and pulse STT), PD (for both pulse doppler search and PD STT) and PAL (pilot automatic lockon mode).

Aspect and Vc Switches

On opposite sides of the DDD itself are located the ASPECT and VC switches. The Vc switch (18) controls the rate scale on the DDD in the pulse doppler search modes. X-4 sets the scale to 800 knots opening to 4,000 knots closing, NORM sets the scale to 200 knots opening to 1,000 knots closing and VID sets the scale to 50 knots opening to 250 knots closing.

The ASPECT switch (21) controls two different things depending on radar mode. In the pulse doppler search modes it controls the rate processing windows of the radar, NOSE sets 600 knots opening to 1,800 knots closing, BEAM sets 1,200 knots closing to 1,200 knots opening and TAIL sets 1,800 knots opening to 600 knots closing. In the short pulse STT modes the switch sets the system tracking mode to the corresponding echo edge or centroid to counteract countermeasures like chaff and specific jammer modes.

Elevation Indicator

The elevation indicator scale, EL, (22) is used to indicate the sensor elevations. The left (RDR) needle indicates current actual radar elevation. This indicator will move with the antenna in the radar search modes.

If the HCU is set to RDR the right (IR/TV/EC) needle indicates the currently set elevation center of the antenna scan pattern. This is useful in STT as it enables the RIO to set the antenna elevation center to use when you eventually revert to search.

If the HCU is set to IR/TV the right needle instead displays current TCS elevation.

Counter-Countermeasure Mode Controls

In the lower leftmost corner are located the three counter-countermeasure mode buttons. These controls functionality to counter different jammers affecting the system. (Not currently implemented).

Radar and DDD Control Knobs

Spread out on the DDD panel are eight different knobs controlling differing functions on the DDD and radar. On the upper left side of the DDD is located the PULSE VIDEO control knob (5) which controls the video intensity on the DDD for the pulse modes. It affects only the DDD display, not the radar itself.

On the upper right side of the DDD is located the BRIGHT control knob (9) which adjusts a polarized filter which allows for mechanical control of the brightness of the DDD, mainly used in low light conditions.

On the lower left side of the DDD is located the PULSE GAIN control knob (20) which controls the radar gain in the pulse modes. This control affects the gain of the radar directly. Normally left in the detent at the fully clockwise position which allows the WCS to control it automatically.

On the lower right side of the DDD is located the ERASE control knob (19) which controls the strength of the erase beam on the DDD. The erase beam is what erases the indications continually on the DDD and thus affects how long the after-image of the detected targets will remain.

On the left side of the DDD panel are located the PD THRLD (26), JAM/JET (24) and ACM THRLD (25) control knobs. The pulse-doppler threshold knobs (PD THRLD) controls the threshold at which an echo is regarded as a contact, displayed on the DDD and tracked on the TID in RWS and TWS. The CLEAR knob controls the clear region threshold (upper half of the DDD) and the CLUTTER knob controls the clutter region (lower half of the DDD). Normally left in the clockwise NORM detents, letting the WCS automatically control them.

The JAM/JET control knob selects the threshold of what jamming intensity signal strength is needed to regard an emitter as a jammer and make it indicate a jammer strobe on the TID. The ACM THRLD sets the threshold for what to regard as a target at ACM ranges. Normally left in the counter-clockwise detent, letting the WCS automatically control it.

💡 JAM/JET and ACM THRLD not currently implemented in DCS.

Detail Data Display

Mode	Search	STT
Pulse

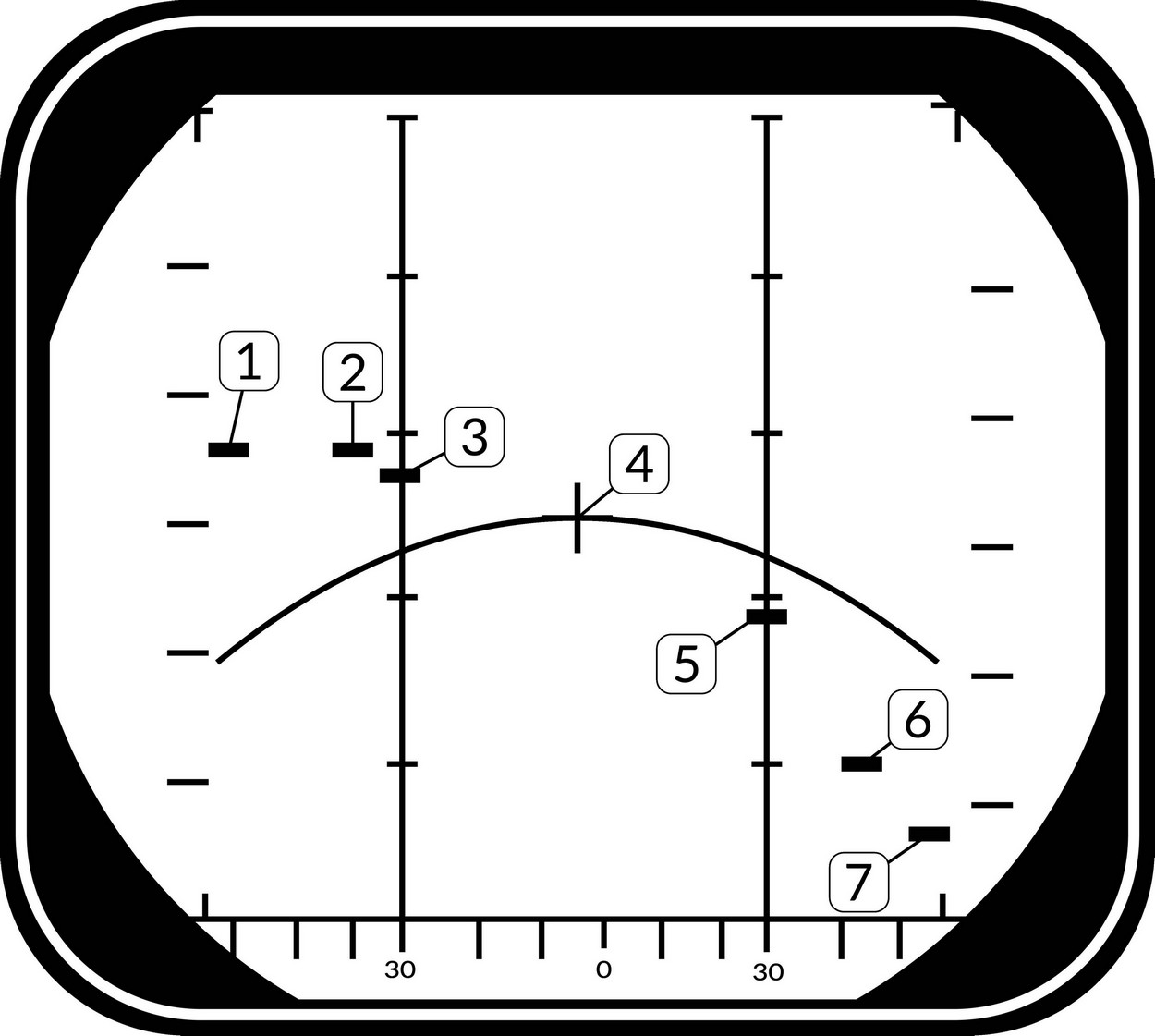

Pulse-Doppler

The DDD screen itself shows either only radar return data or radar returns combined with symbology depending on radar mode.

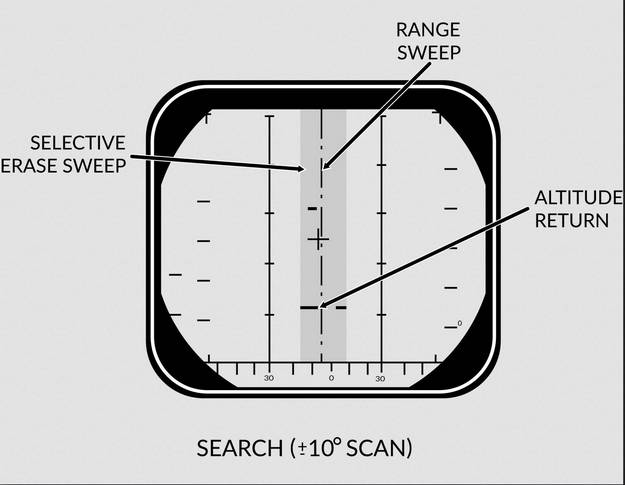

In the pulse search mode the display shows only radar returns and a visual representation of the radar sweep and erase sweep. The screen shows range vs azimuth in this mode. In pulse doppler modes the AGC TRACE is added on the bottom showing supposed jamming intensity of the detected targets. The screen shows rate vs azimuth in these modes.

In the two STT modes the display shows, in addition to the return from the target, the tracking gates (either range or range rate gate), a closing rate indication on the right side and the attack symbology if in air-to-air mode and a missile is selected.

In pulse STT the target is displayed at the correct azimuth and range while in pulse doppler STT the target is shifted to the left side of the display and a generated target symbol is at the correct azimuth instead. In pulse doppler STT the AGC TRACE is added as well to give an indication of jamming strength. For information about the attack symbology see the VDIG section.

When the IFF interrogator is activated it superimposes the IFF information on top of the normal radar picture if in pulse search. In pulse doppler search the DDD switches to range vs azimuth at the previously set range scale while the IFF information is shown and in PD STT or TWS modes, if the target is hooked on the TID the DDD switches to a ±10 scale centered on the target while the IFF returns are shown.

Tactical Information Display (TID) and Associated Controls

The TID is the main data display for the WCS. It displays a tactical picture to the RIO which is used to identify and select targets for the long range weapons on the F-14 Tomcat. Think of it as a top down map showing the relative coordinates of all presented tracks and symbols, but without a representation of the ground/surface features (map). It is also used in secondary roles as a display for entering data into the WCS, for navigation, for INS alignment and for the on board checkout, OBC.

TID Display Control Knobs

On the upper edge of the TID are two display control knobs (2 & 4). The left one controls the contrast of the TCS display and the right one controls the overall brightness of the TID. Both settings will depend on user preference and ambient lighting.

INS and Navigational Controls

On the upper left corner of the TID is the status display for the INS (1), used to indicate status of the INS and its alignment.

To the sides of the TID are located two selector knobs. The one on the left side (12) controls and selects the INS or AHRS mode to use. It also allows for INS alignment.

On the right side is the selector knob (6) controlling the source used when destination steering is selected by the pilot. Selects between the different waypoints stored in the WCS. MAN position is used only for aircraft with TARPS mounted.

Adjacent to this selector is a readout drum on the upper right edge of the TID (5). It’s used to indicate the type of steering information currently displayed to the pilot.

Possible steering type shown are: destination (DEST), data link command heading (D/L), azimuth lead collision steering (LD CLSN), collision steering (CLSN), lead pursuit steering (LD PURST), pursuit steering (PURST), TACAN radial (TACAN) and manually set commanded heading (MAN).

TID Data Readout Drum

Above the TID is located the data readout indicator drum (3). It’s used to indicate the source of the data displayed on the TID text readouts. Possible readouts are: the different waypoints in the navigational system (WAY PT, ST, FIX PT, IP and HB), own aircraft (OWN A/C), first priority target (TGT 1) and SYMBOL.

Symbol indicates that the readout displays data for a hooked symbol on the TID which doesn’t have its own indicator text on the drum. The drum can also show a blank face to indicate the data source as one not having its own indicator text and which has no symbol on the TID.

TRACK HOLD and CLSN buttons

Below the selector knobs on the sides of the TID are two buttons with indicator lights, one on each side. The lights illuminates green to indicate selection.

On the left side is the TRACK HOLD button (11) which enables the track hold function. Normally targets on the TID in TWS mode are retained 14 seconds after last observation. The track hold function extends this two 2 minutes for all tracks. If disabled it reverts to the standard 14 second period, whereafter the targets will be dropped if no new observations occur.

On the right side is the CLSN button (7) enabling collision steering to currently tracked target or centroid if in TWS. This selection overrides the current steering information presented to the pilot with the collision steering, only exception being if the pilot selects the ACM.

TID Control Panel

Below the TID is the TID control panel (8). It contains 8 buttons selecting what symbology to show on the TID, these illuminates green when active. It also contains two selector knobs controlling display scale and TID mode. The buttons are:

The left selector knob on the panel controls displayed TID mode (10).

GND STAB (ground stabilized) mode stabilizes the display to the ground meaning that the display is fixed while own aircraft moves on the display. True north is used as up on the display.

A/C STAB (aircraft stabilized) mode stabilizes the display to own aircraft meaning that the display moves along with own aircraft which stays put on the display. Own aircraft heading is used as up on the display.

ATTK (attack) functions in the same manner as A/C STAB but superimposes the attack steering symbology.

TV selects the TCS for display on the TID. Disables normal tactical presentation on the TID and on the HSD.

The right selector knob controls the scale on the TID, setting the display diameter to the selected range (9). Available ranges are 25, 50, 100, 200 and 400 nautical miles, the greater ranges being useful to show data link information outside of own radar range.

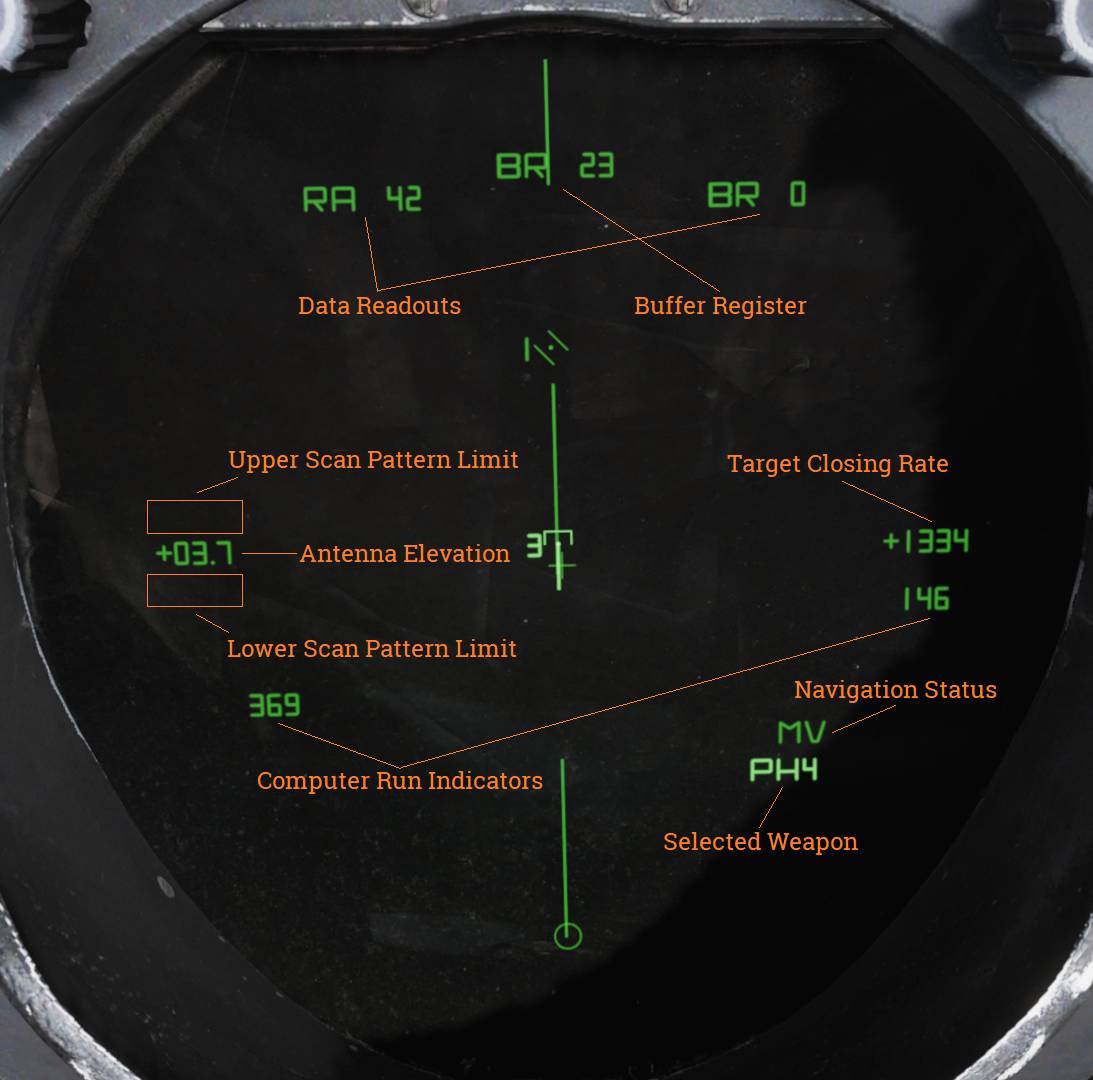

TID Data Readouts

TID Symbology

Element	Shape	Function
Center Dot		Marks coordinates of symbol, basic component of all symbols representing a coordinate.
Own Aircraft		Symbol representing own aircraft. Antenna scan limits, jamming strobes emanate from this symbol. Moves and has a velocity vector in ground stabilized mode. Stationary in aircraft stabilized and attack modes. If the symbol moves outside of TID presentation a line is drawn from the center of the display to the edge of the display indicating direction of the own aircraft symbol.
TID Cursor		Circle used as a hook cursor. Controlled by the HCU when in TID mode. Half-action on the HCU enables display of the symbol and also enables the HCU stick to move the cursor. The cursor location is set by stick deflection. Full-action on the HCU hooks (selects) the closest symbol if one is present within 0.125 inches of cursor center. The hooked symbol gets brighter to indicate hook.
TWS Steering Centroid		Steering centroid of TWS tracks selected by WCS for weapons engagement.
Unknown Onboard Sensor Target		Unknown sensor track in RWS, TWS, and STT modes.
Hostile Onboard Sensor Target		Track in TWS and STT modes designated as hostile by RIO.
Friend Onboard Sensor Target		Track in TWS and STT modes designated as friendly by RIO.
Angle-Tracked Radar Target		Radar target tracked only in angle (jamming target).
Angle-Tracked Radar Target with Altitude Difference		Radar target being tracked in angle only and range being computed by altitude difference ranging.
TCS-Angle Tracked Target		Target being tracked in angle by TCS.
TCS-Angle Tracked Target with Altitude Difference		Target being tracked in angle by TCS and range being computed by angle difference ranging.
Unknown Data Link Target		Data link track identified as unknown by source.
Hostile Data Link Target		Data link track identified as hostile by source.
Friend Data Link Target		Data link track identified as friendly by source.

Manually Entered Reference Points
Home base		Waypoint representing home base, carrier or airfield.
Waypoint		WCS navigational waypoint, supplanted by number indicating waypoint 1, 2 or 3.
Defended Point		Waypoint used to show area to protect.
Fixed Point		Generic fixed-point waypoint.
Hostile Area		Waypoint indicating a hostile area.
Surface Target		Waypoint indicating a surface target.
IP		Waypoint used for air-to-ground engagement, see Computer Initial Point.

Data Link Reference Points
Home Base		Data link waypoint representing home base.
Waypoint		Data link generic waypoint.
Data Link Fixed Point		Data link waypoint representing a fixed point.
Data Link Surface Target		Data link waypoint representing a surface target.

Position Symbol Modifiers
Mandatory Attack		Additional symbology on a TWS track (horizontal bar through center dot) selected as mandatory attack by the RIO. Only one target can be designated thusly and always receives an engagement priority number.
Data link Destroy		Additional symbology on a data link track (horizontal bar through center dot) designated to be destroyed by data link source. Does not affect target prioritization in WCS.
Do Not Attack		Additional symbology on a TWS or data link track (vertical bar through center dot) designated as do not attack (by RIO) or disengage (via data link). If set by RIO removes target from WCS target prioritization.
Multiple Targets		Additional symbology on a TWS or data link track (horizontal bar on left side of symbol) indicating that the track represents multiple targets. Can be set manually by RIO or received via data link.
Data Link Challenge		Additional symbology on a data link track (small V with apex at center dot) representing data link command to visually identify target.
Track Extrapolated		Additional symbology on TWS or STT track (small X with center at center dot) indicating that no update to target has occurred within 8 seconds. Track will be deleted after 14 seconds or 2 minutes if track hold function is enabled.
Hooked Symbol	Symbol brightens	When a symbol is hooked by HCU or CAP functions it brightens to indicate hook.
Target Under Missile Attack	Symbol brightens	In TWS and STT symbols of tracks being engaged by own aircraft brightens during computed missile flight time plus 15 seconds to indicate missile engagement in progress.
Target in Optimum Missile Launch Zone	Symbol blinks	In TWS and STT symbols, launch zones and firing order numerics of target tracks blink when time to optimum missile range is less than 8 seconds.
Altitude Numerics		When altitude numerics are selected for display a number on the left side of the tracks indicate track altitude to nearest ten thousands of feet. The number four as an example indicates an altitude between 35,000 and 45,000 feet. Available on radar and data link tracks.
Firing Order Numerics		Indicates AIM-54 phoenix target prioritization (1 to 6) in WCS when in the TWS mode. Next missile launch will target track with number 1 and remove the number from that track to advance the other 5 track numbers one step to prepare for next launch. Mandatory attack selection on a target forces the WCS to always include that target in the prioritization. Next launch selection automatically sets hooked target as number one.
Time-to-Impact (TTI)		After AIM-54 launch the firing order number on a track is replaced with the TTI or time-to-impact indication, showing WCS calculated time until missile intercepts the target track. When the AIM-54 active command is sent the TTI numbers flash to indicate this.
Velocity Vector		Velocity vector emanating from center dot of tracks when velocity vector display is selected. Vector direction represents track heading and length represents track speed so that the max indicated speed (1,800 knots) is 1.5 inches on the TID. In TID ground stabilized mode the vector direction represents track true heading and the vector length represents track ground speed.
Launch Zone Vectors		TUMR (Time Until Minimum Range), TUOR (Time Until Optimum Range) and TUIR (Time Until In-Range/Maximum Range). The launch zone vectors are activated manually by the RIO or when time to maximum launch range is less than 60 seconds and replaces the normal track velocity vectors.
Jamming Strobe		Line extending from own aircraft symbol to edge of TID to indicate a jammer exceeding the set JAM/JET threshold.
Radar Antenna Scan Pattern Azimuth Limits		The limits of the radar scan pattern in azimuth is displayed as two dashed lines extending from own aircraft symbol. Each dash and space represent 20 nautical miles each in all radar modes. In STT the two lines converge to a single tracking strobe to indicate that the antenna tracks a single target.
Data Link Jamming Strobe		Jamming strobe received via data link indicated by a line emanating from a data link point towards the jammers direction.
Data Link Pointer		Brightened cursor (circle) around a data link track used to indicate data link operator concern about the specific track.
Data link Priority Kill		Additional symbology on a data link track indicating a target that must be destroyed. Will not by itself affect WCS prioritization.
Artificial Horizon		Artificial horizon on TID representing aircraft roll and pitch. Angle of the line represents roll and vertical deflection on display represents pitch.
Steering Guidance Symbol		Symbol representing steering error from optimal missile launch direction. Should be placed by the pilot as near as possible to the center of the ASE circle and at launch should be inside of that same circle.
Allowable Steering Error Circle		ASE circle used to indicate the allowable steering error for missile launch. Size varies with attack geometry, mode and selected missile.
Breakaway Indication		Large cross appearing in the center of the TID when target range is less than minimum missile launch range or gun firing range.

💡 Some of these symbols pertain to functions not yet implemented in DCS.

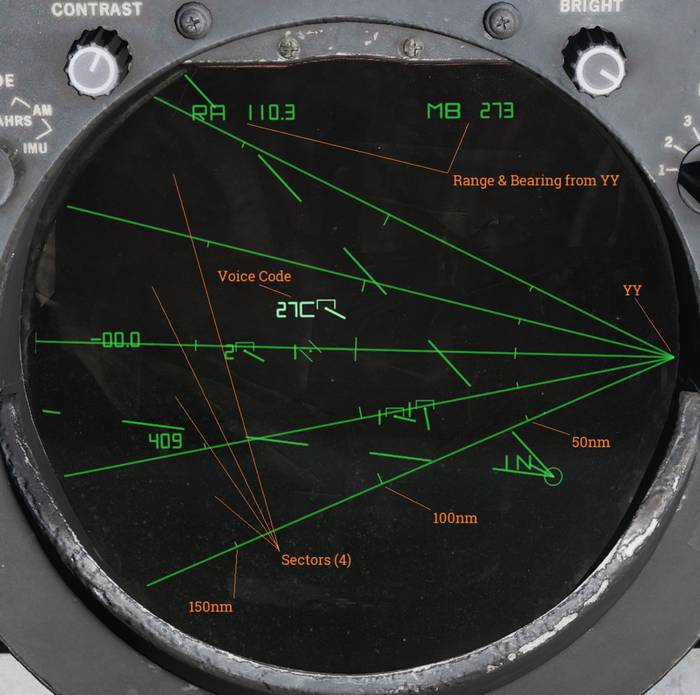

Navigation Command and Control Grid (NAV GRID)

The Navigation Command and Control Grid or NAV GRID was designed to enable easy navigation and CAP control from a common fixed reference point. It enables TID readout of bearing and range from that set reference point, called YY. While NAV GRID is active displayed range and bearing on the TID for hooks and own aircraft is indicated relative YY. Additionally it also displays a grid extending from YY along a set threat axis. The purpose of the grid itself is to allow for quick position reference while a precise readout is available for a hooked target. This is where the name NAV GRID originates.

Lastly it also allows for display of something called Voice Codes. These are displayed for current hook alternating with the altitude readout on the TID if ALT NUM is selected for display. It indicates bearing from YY in tens (15 reading as 150 as an example) followed by a letter indicating range. A would indicate 0-50nm while B indicates 50-100nm and so on for consecutive letters.

The standard NAV GRID display mode is GND STAB and this allows for the grid itself to be visible. If A/C STAB or ATTK display modes are selected only the Voice Code display functionality is retained but it addition to the normal functionality the Ownship Symbol will always display its Voice Code.

As default the grid origin, YY, is positioned at the edge of the TID extending outwards along the set threat axis. The grid can be set to have between 1 and 6 sectors display, all being outlined meaning that the one sector display will have 2 lines delineating the limits and 6 sectors having 7 lines. The size of the sectors depends on the total grid coverage, which can be up to 180 degrees, which is then divided into the selected number of sectors. Range indicator marks are drawn along the sector demarkation lines at 50nm intervals, the 50nm marks being shorter than the even 100nm markers.

The ground stab view as well as the grid can be offset as normal by the RIO via the HCU. To reset the offset, cycle to any aircraft stabilized mode and back to GND STAB.

While the original purpose of this functionality was intended for fleet defence use it works perfectly fine as a bulls-eye reference in DCS with YY set to the bulls-eye. The only real limitation being the grid only displaying along the threat axis and not all around.

Operation

NAV GRID entry

💡

• First pressing CLEAR is to make sure to reset any previously selected readout so that a subsequent press of a prefix sets a new readout for display and data entry and not enters new data into a previous readout instead. This is further detailed under Computer Address Panel (CAP).
• Modification and display of the NAV GRID readouts are available in NAV GRID with no hook present, i.e. OWN A/C as hook.
• Enter NAV GRID from the tactical display (GND STAB), do not attempt to enter it during alignment.

NAV GRID exit

• Deselect the CAP MESSAGE button corresponding to NAV GRID under the D/L category on the CAP.

NAV GRID in DCS

When hot spawning in DCS YY will be set to mission bulls-eye for your faction and threat axis will be set from YY to first valid waypoint in the following order: HA, DP, ST, FP, 3, 2, 1 and HB or own aircraft position at spawn if none of those waypoints are present.

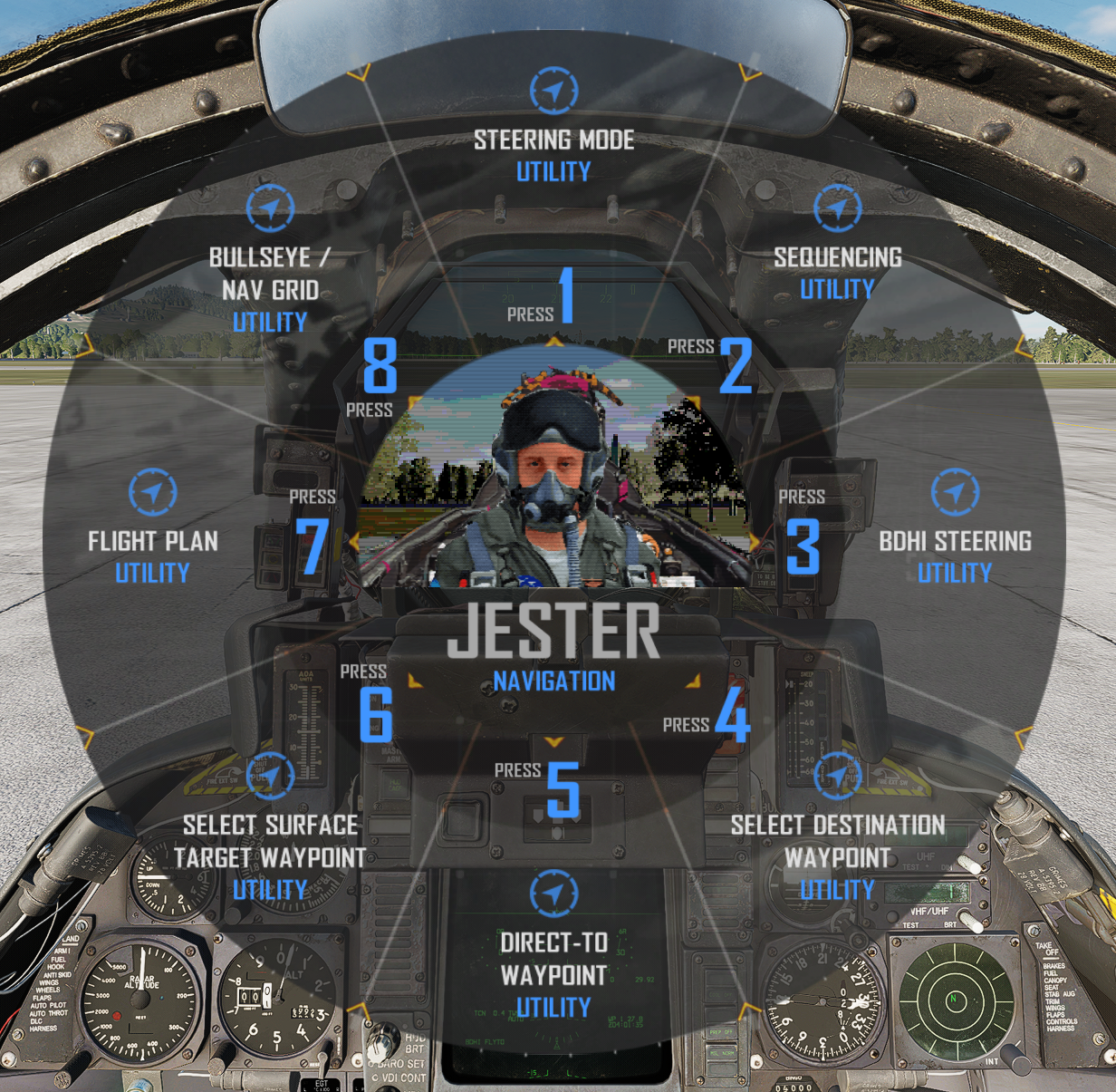

When cold starting with Jester he has to be commanded to adjust these parameters via the Jester wheel. He can enter YY using the same methods available for waypoints as well as entering a waypoint’s location as YY.

With a human RIO he/she will have to enter it manually.

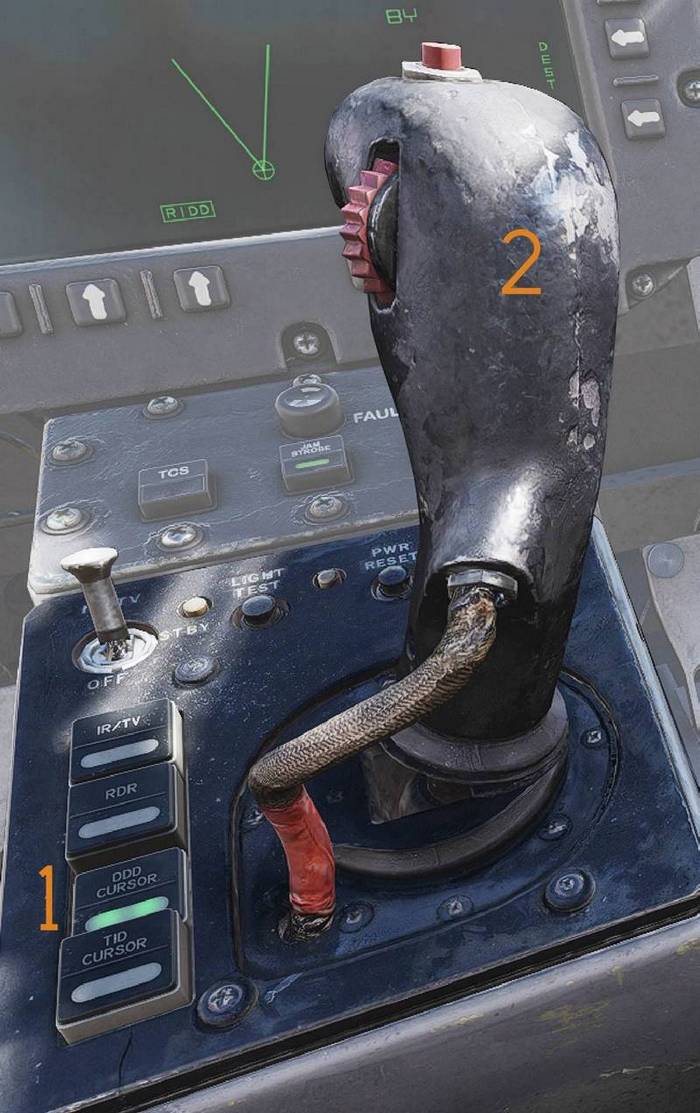

Hand Control Unit (HCU)

The hand control unit (HCU), stick and corresponding controls are the main input controlling the RIO WCS displays. It contains the power controls and indicators for the WCS and TCS in addition to the stick and it’s controls.

HCU Power Controls and Indicators

The lights on the upper edge of the HCU are the IR/TV overtemp indicator (2), the power reset indicator (4) and the WCS power indicator (6). The IR/TV power indicator light indicates TCS not ready when in the standby (STBY) and on positions, will remain on in the standby position and turn off in the on position when the TCS is ready for operation. The power reset indicator light indicates that one or more of the secondary power supplies are inoperative due to a power fault tripping it’s protection circuit. The WCS power indicator light indicates WCS is in standby (STBY) or on but that the radar is not ready to transmit. During startup the light will turn off until the radar startup timer times out. To reset radar, cycle to standby and back to on.

The IR/TV switch (1) in the upper left corner of the HCU controls the power to the TCS. Standby (STBY) starts system initiation but does not turn on the sensor. On enables sensor operation. The switch requires the WCS XMT to be in STBY or on to be enabled. The WCS XMT switch (7) controls power to the WCS computer system and corresponding displays (DDD and TID) and inhibits or allows radar transmission. Standby (STBY) enables power to all WCS systems, including displays, and begins the radar warmup sequence. The displays requires 30 seconds warmup and the radar requires 3 minutes of warmup for operation. The on position enables radar transmission if weight on wheels is not present and radar timeout (warmup) is complete.

The two buttons in the upper middle of the HCU are the LIGHT TEST (3) and PWR RESET (5) buttons. The LIGHT TEST button enables test of all WCS lights and indicators by enabling their lights. The PWR RESET button resets the protection circuits of the secondary power supplies, re-enabling any that have tripped, and also resets missile power. It should only be used if the power reset indicator light is on. If the fault tripping the circuits remains, the protection circuits will trip again and the indicator light will remain on.

HCU Mode buttons

The four lighted buttons on the left side (12) of the HCU stick are the HCU mode buttons which illuminate green to indicate which one is active; they are mutually exclusive. The IR/TV button selects TCS mode, allowing the HCU stick and controls to control the TCS. The RDR button selects radar mode, allowing the HCU stick and controls to control the radar acquisition cursor on the DDD allowing for transition from radar search modes to STT. The DDD CURSOR button selects DDD cursor mode, allowing the HCU stick and controls to control the DDD cursor used to indicate ground coordinates when using the radar for ground mapping. This is used for radar navigational fixes or for selecting a position on the DDD radar display for use as a waypoint. The TID CURSOR button selects TID cursor mode, allowing the HCU stick and controls to control the TID cursor used to hook (select) symbology on the TID for symbology control and data readout.

HCU Control Stick

The controls on the HCU stick are: the action trigger switch (11), elevation vernier control (10), the OFFSET button (9) and the MRL button (8). The action trigger on the forward side of the stick has two detents, the half-action first detent and the full-action second detent. Half-action enables display of the cursor for the selected mode except when in TCS mode where it enables stick control of TCS elevation and azimuth. In the radar mode it additionally enables the super search acquisition mode in the radar (See chapter about radar transitional modes for more information). Full-action when enabled tells the TCS to lock on to a target in the TCS mode if a target is present in its acquisition gates. In the radar mode it tells the radar to attempt lockon to a target in the radar range/rate gates at the set azimuth. In the DDD and TID modes it marks the current cursor position or, in the case of the TID mode, tries to hook a symbol if present within 0.125 inches on the display.

The elevation vernier control is a thumbwheel on the left side of the stick used in the TCS and radar modes to fine tune sensor elevation ±4° for target acquisition, this elevation deflection is added to the normal sensor elevation control. The OFFSET button on the top of the stick is used to offset any of the TID tactical displays, moving the own aircraft symbol to the TID cursor spot hook (if present) and the rest of the symbology relative to that. This function is reset and all the symbols are moved to the original positions by cycling the TID display mode selector to another mode and back. The MRL button on the right side of the stick is used to enable the manual rapid lockon mode (MRL) for target acquisition. See Manual Rapid Lockon (MRL) for more information.

The stick itself functions differently depending on selected HCU mode. In all cases the stick is only enabled with the action trigger depressed and all modes control sensor or cursor position absolutely meaning that a given deflection of the stick always moves the sensor or cursor to the same position. In the TCS mode X (up/down) controls TCS elevation and Y (left/right) controls TCS azimuth. In the radar mode X controls the range or rate of the radar acquisition gate on the DDD and Y controls the gate in azimuth in a similar fashion. In the two cursor modes X controls up/down of the cursor on the respective screen and Y controls left/right of the same.

Computer Address Panel (CAP)

The computer address panel (CAP) is the RIO’s main interface for controlling and entering/reading data into/from the WCS computer.

Numeric Keypad (3)

The upper part of the CAP contains a numeric keypad with additional buttons for clearing input (CLEAR), entering input (ENTER) and two buttons for selecting S/-/W and N/+/E prefixes for coordinates and other values. Some of the number keys have an additional function selecting a prefix for data display and/or entry. The keys containing functions and what those are:

Some of these keys also makes a corresponding other data be displayed on the TID readouts but entry only affects the selected prefix. As an example LAT also makes the readout display LONG but entry affects LAT only, SPD and HDG are another example of the same thing.

CAP Message Matrix Indicator Drum and buttons

The middle/lower part of the panel contains the message buttons and indicator drum and its CATEGORY selector knob. Its functionality is somewhat akin to the buttons on a MFD in a more modern system except that instead of a screen the drum is used to display the current functionality of the buttons.

The current functionality of the buttons are chosen by selecting a category on the CATEGORY selector knob, movement of the selector turns the display drum to indicate selected category’s button functionality. When a function or symbol hook is in use the corresponding message button illuminates to indicate activation.

The matrixes and corresponding functionality of the different categories are as follows:

Categories

BIT (Built in Test)

The BIT category contains message button functions pertaining to BIT initiation of different aircraft systems. These might be functions normally run during OBC during startup or separate tests only available from here. This will be detailed in a separate chapter about on board tests and BIT when implemented, not currently implemented in this simulation.

SPL (Special)

The SPL category contains various message button functions not contained under the other categories. Currently only the IP TO TGT function is implemented and used for the Computer Initial Point air to ground mode, see Computer Initial Point. It also contains a button for manually initiating the OBC routine (OBC BIT), a button for displaying latest OBC results (MAINT DISP) and a button for clearing the latest OBC results (OBC DISPL). These and the other functions are not yet implemented.

NAV (Navigation)

The NAV category contains message button functions used for navigational fixes and updating data used by for INS operation and alignment. The OWN A/C (own aircraft) button selects own aircraft for data readout and entry, the same as hooking the own aircraft symbol on the TID. Its used to enter data critical for INS alignment like aircraft coordinates and altitude (and heading and speed when performing a handset alignment) and can also be used for readout of the various data available about own aircraft. The STORED HDG ALIGN button is used to store and indicate if a stored heading align is available. It also allows deselection of the function resulting in a normal alignment. The WIND SPD HDG button selects entry and display of wind data, can also be used to enter wind speed and heading manually for backup navigation. The MAG VAR (HDG) button is used to display and enter magnetic variation used by the navigational system. The four FIX buttons, TACAN FIX, RDR FIX (radar), VIS FIX (visual) and FIX ENABLE are used to update aircraft position to correct for INS drift. Basic function is the selection of type of fix followed by FIX ENABLE to enter it into the system. Full procedures for these fixes can be found in the navigational section in this chapter. The two TARPS buttons are non-functional in a non TARPS aircraft.

TAC DATA (Tactical Data)

The TAC DATA category contains message button functionality allowing for hook/selection of the different waypoints available in the WCS navigational system. The same hook can be made via HCU hook on the TID. Hooking the waypoints enables them to be updated via the CAP keypad. The PT TO PT button is non-functional.

DATA LINK

The DATA LINK category contains message button functionality for RIO data link responses to data link controller commands. The WILCO (will comply), CANTCO (can not comply) tells the controller if own aircraft can or can not comply to a command. POINT enables the RIO to mark a hooked track sent to the controller for special attention. ENGAGE likewise indicates own intention to engage a hooked track. The NAV GRID button enables the NAV GRID functionality on the TID, see Navigation Command and Control Grid (NAV GRID). The TID AVIA button enables the AVIA display on the TID. The F/F NAV UPDATE allows for Link-4C fighter to fighter navigational updates. See the navigation chapter. Remaining buttons are non-functional.

TARGET DATA

The TARGET DATA category contains message button functionality used to modify hooked track symbols. The FRIEND, UNK (Unknown), HOST (Hostile) and MULT TGT (Multiple Target) message functions are used to mark a hooked symbol as the respective category (multiple target can be set in addition to the other three). The DO NOT ATTK button sets a target as a do not attack target, removing it from the WCS firing order. The DATA TRANS (Data Transfer) function enables a hooked jam strobe to be correlated with another hooked track symbol. This is used to allow the WCS to better use both data sources to track the target. The strobe needs to be hooked before the symbol. Currently not implemented. TEST TGT (Test Target) calls up a simulated test target in the WCS for test purposes. Currently not implemented. The SYM DELETE (Symbol Delete) allows the RIO to manually drop/remove a track or waypoint from the TID if no longer relevant. Own aircraft and data link track symbols can not be removed. IFT AUX LAUNCH and GND MAP are non-functional.

Program Restart Button

Below the message readout and buttons are two final buttons on the panel. The PRGM RESTRT (Program Restart) button resets the currently running program in case of a computer hang-up. A computer hang-up is indicated when the computer run indicator digits on the TID stops cycling. The last button is the TUNE DSBL button which is non-functional in this F-14 version.

Data Readout/Entry Procedure

Data readout and entry on the TID always follows the following sequence:

1. Selection of symbol/function
2. Prefix selection for display
3. Data entry

Selection of desired symbol or function can be achieved either via TID hook or via the CAP MESSAGE buttons available under the different categories on the CAP DRUM.

Most data readout prefixes display multiple readouts, as an example calling up either latitude or longitude shows both and calling up range also displays bearing and vice versa. Only the selected prefix is the one used for data entry.

To select another prefix for data readout without re-selecting the message function the CLEAR key on the CAP is used, this resets the readout and allows for selection of a new prefix. As it’s possible that depression of a prefix button is read as a data entry if a prefix is already selected it’s normally recommended to reset using CLEAR before re-selecting a new prefix. This makes the recommended sequence:

1. Selection of symbol/function
2. CLEAR
3. Prefix
4. selection for display
5. Data entry

To enter new data into selected prefix the RIO enters desired data after the prefix selection, checks it is correct and then enters it with the ENTER key. The TID readout is then updated with the new data. To clear the data without entering it, instead use the CLEAR key.

Sensor Control Panel

The sensor control panel contains the main controls for the AN/AWG-9 radar antenna scan patterns. It also contains various TCS controls, a control allowing the RIO to slave the radar to the TCS and vice versa and controls for the airborne video tape recorder (AVTR).

Antenna Search Pattern Selection

The upper half of panel contains controls for the radar antenna scan pattern. The STAB (stabilization) switch controls whether the radar antenna scan pattern is stabilized relative to the horizon (IN) or not. If in OUT instead meaning that the scan pattern is relative to the F-14 aircraft armament datum line (ADL). The WCS computer can override this setting if necessary. The AZ CTR (azimuth control) and EL CTR (elevation control) knobs sets the elevation and azimuth centerpoint of the antenna scan pattern. The azimuth control moves the azimuth scan center within 65° degrees of the aircraft centerline, this is has no effect if azimuth scan width is set to ±65° as it already scans the whole available azimuth range. Do not move the scan pattern so that it scans outside of 65° from aircraft centerline as this might damage the antenna as it might hit the antenna azimuth stops. The elevation control moves the elevation position of the bottom bar of the elevation scan pattern relative to zero elevation. It can move from -76° to +54°. Both control knobs have marked centerpoints, being aircraft centerline and zero elevation respectively.

The AZ SCAN (azimuth scan) and EL BARS (elevation bars) selector knobs control the size of the antenna scan pattern, in degrees either side of center. The AZ SCAN selector knob has four settings, ±10°, ±20°, ±40° and ±65°. The EL BARS selector knob also has four settings, 1, 2, 4 or 8 bars. 1 bar covers 2.3° of elevation, 2 bars 3.6°, 4 bars 6.3° and 8 bars 11.5°. The reason for the elevation coverage not equalling one bar times the number of bars is that the bars overlap slightly.

The last radar control on the panel is the VSL switch. Momentary selection of VSL HIGH or LOW activates the vertical scan lockon acquisition mode (VSL). (See Vertical Scan Lockon (VSL))

The lower part of the panel contains controls for the airborne video tape recorder (AVTR) controlling and indicating power mode and time remaining on tape.

💡 This is currently not modelled in DCS.

General Radar Operation

The AN/AWG-9 radar has two basic operational modes, pulse and pulse doppler, each with its own pros and cons. Below is a table listing function, weapons capability, expected range and target data available.
